在manim中增加外部视频文件，真得做到随心所欲

前言

      manim 动画是在场景中加入：文本、数学公式、坐标及函数图等动画对象，再附上背景音乐已是高大上了。但最近有个需求是在场景中指定的地方嵌入外部视频文件，可以说是动画中的动画，当时以为manim具备这个功能，但查了帮助文档和资料，都没有找到，怎么办呢，实际需求却是存在的。想了好大一会，于是决定自已来实现这个功能，思路是把原始视频音频和视频先分离开，视频文件中的每一Frame都用MObject来包装，最后再加上分离的音频文件，终于实现了这个需求。下面是我的具体实现。

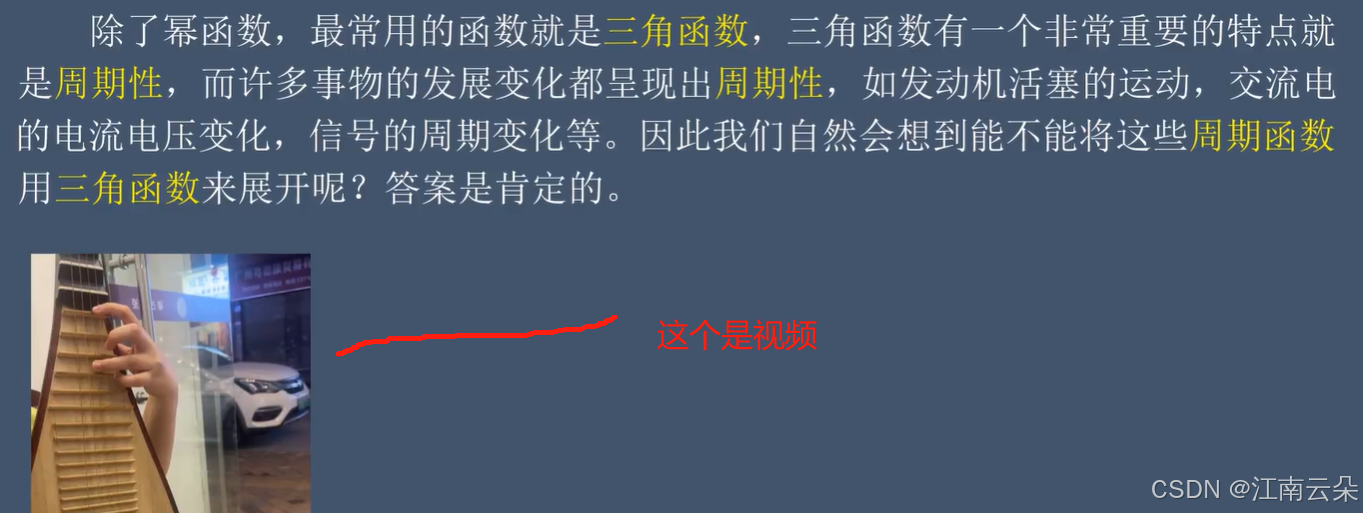

先上效果：

1、先安装视频处理的包

      前提条件是已经安装了 manim

pip install opencv-python movipy

2、具体实现，自已新建一个VideoUtil.py文件，在该文件中加入代码。我直接上代码

from manim import Animation,ImageMobject
from manim.typing import Vector3D
import numpy as np
import os
from PIL import Image
import cv2
from moviepy import VideoFileClip

class VideoCustomUtil:
    """
        videoCustomUtil = VideoCustomUtil("./assets/videos/biba.mp4", sample_inter=3)
            video_img_objs, r_time = videoCustomUtil.create_animations(position=DOWN + LEFT * 4.85)
            audio_file = videoCustomUtil.audio_file
            if audio_file is not None:
                self.add_sound(audio_file)

            for video_img_obj in video_img_objs:
                video_img_obj.scale(0.5)
                animal = Animation(video_img_obj)
                self.play(animal, run_time=r_time)

    Parameters
    video_file is video file path
    sample_inter is sample interval default is 3
    scene is scene that animation to play Scene
    """

    def __init__(self, video_file,sample_inter=1):
        self.video_file = video_file
        self.audio_file = None
        self.sample_inter = sample_inter
        self.video_w = None
        self.video_h = None
        self.video_duration = None

    def create_animations(self, position=None):
        #-----create manim animations------------------
        #param postion is mobject's position in Scene

        v_w,v_h,duration, fps, audio_file_name = self.get_video_info()
        file_folder = "./assets/images/temp/"
        self.create_folder(file_folder)
        cap = cv2.VideoCapture(self.video_file)
        i = -1;
        video_img_objs: list[ImageMobject] = []
        while cap.isOpened():
            ret, frame = cap.read()
            if not ret:
                break

            i = i + 1
            if i % self.sample_inter != 0 :
                continue

            temp_file = file_folder + "temp_cv2.png"
            cv2.imwrite(temp_file, frame)
            image_array = np.array(Image.open(temp_file))
            img_obj = ImageMobject(image_array)
            video_img_objs.append(img_obj)
            if os.path.exists(temp_file):
                os.unlink(temp_file)

        cap.release()

        #------start ready animations------------------------------
        for video_img_obj in video_img_objs:
            video_img_obj.move_to(position)
            # animal = Animation(video_img_obj)
            # self.scene.play(animal, run_time=self.sample_inter/fps)
        return video_img_objs,self.sample_inter/fps


    def get_video_info(self):
        video_clip = VideoFileClip(self.video_file)
        duration = video_clip.duration
        v_w = video_clip.w
        v_h = video_clip.h
        fps = video_clip.fps
        audio = video_clip.audio
        audio_file_name = self.video_file + ".mp3"

        if os.path.exists(audio_file_name):
            os.unlink(audio_file_name)

        audio.write_audiofile(audio_file_name)
        self.audio_file = audio_file_name
        self.video_w = v_w
        self.video_h = v_h
        self.video_duration = duration
        return v_w,v_h,duration, fps, audio_file_name

    def create_folder(self,folder_path):
        if not os.path.exists(folder_path):
            os.makedirs(folder_path)
        else:
            print(f"Folder '{folder_path}' already exists.")

    def create_image_obj(self, image_file:str = None, position:Vector3D = None):
        """
            image_array = np.array(Image.open("./assets/images/hs.png"))
            img_obj = ImageMobject(image_array)
            img_obj.move_to(DOWN + LEFT * 6.3, aligned_edge=LEFT)
            fade_in_animation5 = FadeIn(img_obj)
            self.play(fade_in_animation5, run_time=2)

        :param image_file:
        :param position:
        :return:
        """
        image_array = np.array(Image.open(image_file))
        img_obj = ImageMobject(image_array)
        img_obj.move_to(position)
        return img_obj

讲一下这个总体思路：先用movepy把原始视频文件中的视频与音频分开，音频保存成mp3文件，再用opencv对这个视频文件按帧读取，每读取一帧用MObject进行包装，所有的帧就都成了MObject,这样就可以在manim的Scene中加入动画了。

3、测试，直接上代码

# -*- coding=utf-8 -*-
from manim import *
import numpy as np
import os
from PIL import Image


from ppt.utils.VideoUtil import VideoCustomUtil

class FlyLevelPPT_2(Scene):
    def setBackground(self):
        self.camera.background_color = (68, 84, 106)

    def construct(self):
        config.tex_template = TexTemplate()
        config.tex_template.add_to_preamble(r"\usepackage{ctex}")
        self.setBackground()
        self.clear()

        # ------to do start----------------------
        tx1,tx2,tx3,tx4 = self.addTxt_1()
        self.wait(2)
        #self.add_image()
        #self.wait(2)
        self.add_video_1()

    def add_image(self, mobject: VMobject = None):
        pass

    def addTxt_1(self, mobject: VMobject = None):
        tx1 = MathTex(
            "除了幂函数，最常用的函数就是",
            "三角函数",
            "，三角函数有一个非常重要的特点就",
            arg_separator="",
            tex_template=config.tex_template,
            font_size=32
        )
        tx1[1].color = ManimColor("#f6f208")
        tx1.move_to(UP * 3.5 + LEFT * 5.6, aligned_edge=LEFT)
        fade_in_animation1 = FadeIn(tx1)
        self.play(fade_in_animation1, run_time=2)
        self.wait(2)

        tx2 = MathTex(
            "是",
            "周期性",
            "，而许多事物的发展变化都呈现出",
            "周期性",
            "，如发动机活塞的运动，交流电",
            arg_separator="",
            tex_template=config.tex_template,
            font_size=32
        )
        tx2[1].color = ManimColor("#f6f208")
        tx2[3].color = ManimColor("#f6f208")
        tx2.move_to(UP * 3.0 + LEFT * 6.3, aligned_edge=LEFT)
        fade_in_animation2 = FadeIn(tx2)
        self.play(fade_in_animation2, run_time=2)
        self.wait(2)

        tx3 = MathTex(
            "的电流电压变化，信号的周期变化等。因此我们自然会想到能不能将这些",
            "周期函数",
            arg_separator="",
            tex_template=config.tex_template,
            font_size=32
        )
        tx3[1].color = ManimColor("#f6f208")
        tx3.move_to(UP * 2.5 + LEFT * 6.3, aligned_edge=LEFT)
        fade_in_animation3 = FadeIn(tx3)
        self.play(fade_in_animation3, run_time=2)
        self.wait(2)

        tx4 = MathTex(
            "用",
             "三角函数",
            "来展开呢？答案是肯定的。",
            arg_separator="",
            tex_template=config.tex_template,
            font_size=32
        )
        tx4[1].color = ManimColor("#f6f208")
        tx4.move_to(UP * 2.0 + LEFT * 6.3, aligned_edge=LEFT)
        fade_in_animation4 = FadeIn(tx4)
        self.play(fade_in_animation4, run_time=2)
        return tx1,tx2,tx3,tx4

    def add_video_1(self, video_obj: VMobject=None):
        videoCustomUtil = VideoCustomUtil("./assets/videos/biba.mp4", sample_inter=3)
        video_img_objs, r_time = videoCustomUtil.create_animations(position=DOWN + LEFT * 4.85)
        audio_file = videoCustomUtil.audio_file
        if audio_file is not None:
            self.add_sound(audio_file)

        for video_img_obj in video_img_objs:
            video_img_obj.scale(0.5)
            animal = Animation(video_img_obj)
            self.play(animal, run_time=r_time)


if __name__ == "__main__":
    module_name = os.path.basename(__file__)
    print(module_name)
    scene_name = "FlyLevelPPT_2"
    os.system(f"manim --disable_caching -pqh {module_name} {scene_name}")

到此为止，全部完成了。
