引用链接:
1.Caffe python layer to print confusion matrix
链接:http://gcucurull.github.io/caffe/python/deep-learning/2016/06/29/caffe-confusion-matrix/
2.github主页:https://github.com/gcucurull/caffe-conf-matrix
3.Caffe Python Layer编译:https://chrischoy.github.io/research/caffe-python-layer/
1.编译python layer
WITH_PYTHON_LAYER=1 make && make pycaffe
打开makefile.config中 WITH_PYTHON_LAYER=1的开关,然后make编译,再然后make pycaffe 编译。
2.在hands_test.protxt文件中定义python layer如下:
layer {
type: 'Python'
name: 'py_accuracy'
top: 'py_accuracy'
bottom: 'ip2'
bottom: 'label'
python_param {
# the module name -- usually the filename -- that needs to be in $PYTHONPATH
module: 'python_confmat'
# the layer name -- the class name in the module
layer: 'PythonConfMat'
# this is the number of test iterations, it must be the same as defined in the solver.
param_str: '{"test_iter":100}'
}
include {
phase: TEST
}
}
注意:test_iter要和batch size对应,以取遍所有测试集样本。
python_confmat.py如下:
import caffe
import json
import numpy as np
import sys
import sklearn.metrics
class PythonConfMat(caffe.Layer):
"""
Compute the Accuracy with a Python Layer
"""
def setup(self, bottom, top):
# check input pair
if len(bottom) != 2:
raise Exception("Need two inputs.")
self.num_labels = bottom[0].channels
params = json.loads(self.param_str)
self.test_iter = params['test_iter']
self.conf_matrix = np.zeros((self.num_labels, self.num_labels))
self.current_iter = 0
def reshape(self, bottom, top):
# bottom[0] are the net's outputs
# bottom[1] are the ground truth labels
# Net outputs and labels must have the same number of elements
if bottom[0].num != bottom[1].num:
raise Exception("Inputs must have the same number of elements.")
# accuracy output is scalar
top[0].reshape(1)
def forward(self, bottom, top):
self.current_iter += 1
# predicted outputs
pred = np.argmax(bottom[0].data, axis=1)
accuracy = np.sum(pred == bottom[1].data).astype(np.float32) / bottom[0].num
top[0].data[...] = accuracy
# compute confusion matrix
self.conf_matrix += sklearn.metrics.confusion_matrix(bottom[1].data, pred, labels=range(self.num_labels))
if self.current_iter == self.test_iter:
self.current_iter = 0
sys.stdout.write('\nCAUTION!! test_iter = %i. Make sure this is the correct value' % self.test_iter)
sys.stdout.write('\n"param_str: \'{"test_iter":%i}\'" has been set in the definition of the PythonLayer' % self.test_iter)
sys.stdout.write('\n\nConfusion Matrix')
sys.stdout.write('\t'*(self.num_labels-2)+'| Accuracy')
sys.stdout.write('\n'+'-'*8*(self.num_labels+1))
sys.stdout.write('\n')
for i in range(len(self.conf_matrix)):
for j in range(len(self.conf_matrix[i])):
sys.stdout.write(str(self.conf_matrix[i][j].astype(np.int))+'\t')
sys.stdout.write('| %3.2f %%' % (self.conf_matrix[i][i]*100 / self.conf_matrix[i].sum()))
sys.stdout.write('\n')
sys.stdout.write('Number of test samples: %i \n\n' % self.conf_matrix.sum())
# reset conf_matrix for next test phase
self.conf_matrix = np.zeros((self.num_labels, self.num_labels))
def backward(self, top, propagate_down, bottom):
pass
注意: 调用test命令可能出现import error:no module named python_confmat
解决方案:终端输入export PYTHONPATH=/home/xxx/caffe/python即可。
然后调用test命令即可生成混淆矩阵。

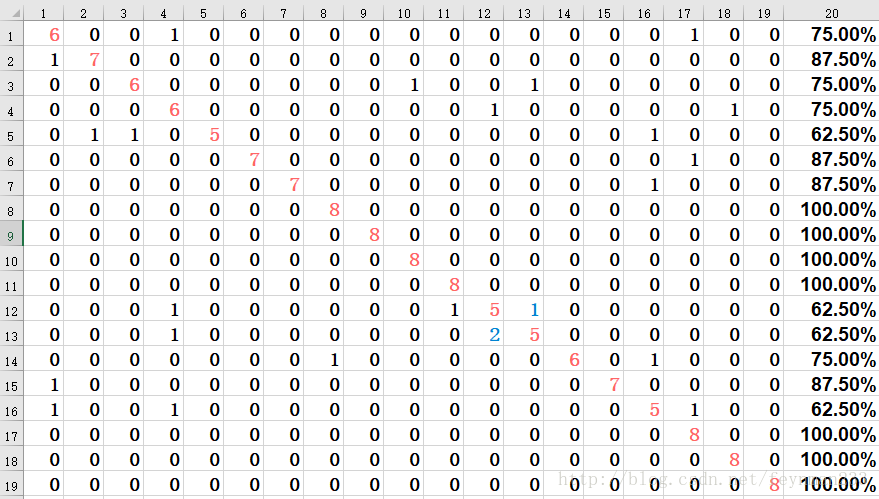

生成效果如下:
延伸阅读:
1.https://github.com/borisgin/caffe/blob/confusion_matrix/src/caffe/layers/confusion_matrix_layer.cpp
直接在caffe层里添加了confusion_matrix_layer
2.https://gist.github.com/stardust2602/79c818add4f7100397dd
Caffe script to compute accuracy and confusion matrix based on training input ( .txt file )
3.https://github.com/giladsharir/caffe
4.https://groups.google.com/forum/#!topic/caffe-users/u-pyqqZzlOM
5.http://blog.csdn.net/guoyilin/article/details/42047615
如何用python画好confusion matrix
