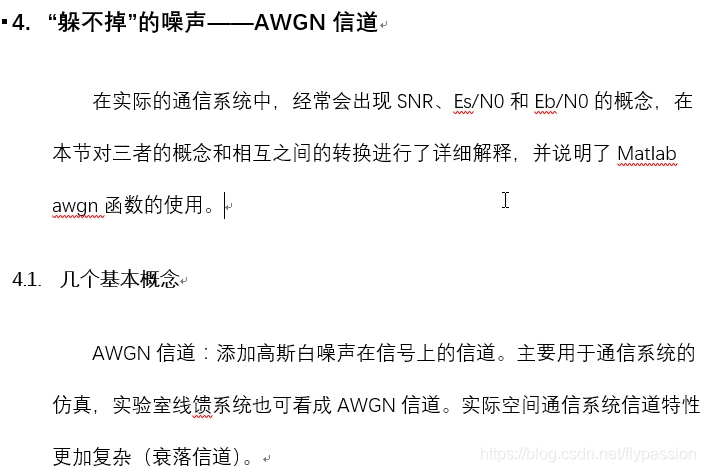

通信原理及系统系列4—— AWGN信道(信噪比SNR、Es/N0和Eb/N0概念的辨析、转换及使用)

%Calculate the SNR when the channel has an Eb/N0 = 10 dB.
EbNo = 10;
snr = EbNo + 10*log10(k) - 10*log10(numSamplesPerSymbol);
receivedSignal = awgn(dataMod,snr,'measured');
