埃尔米特插值（hermite 插值） C++

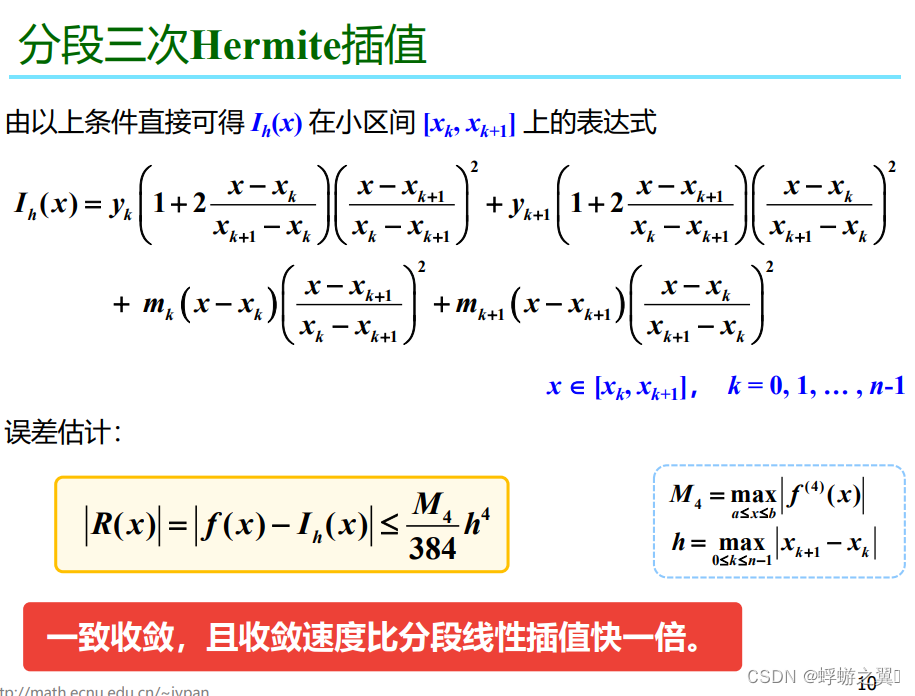

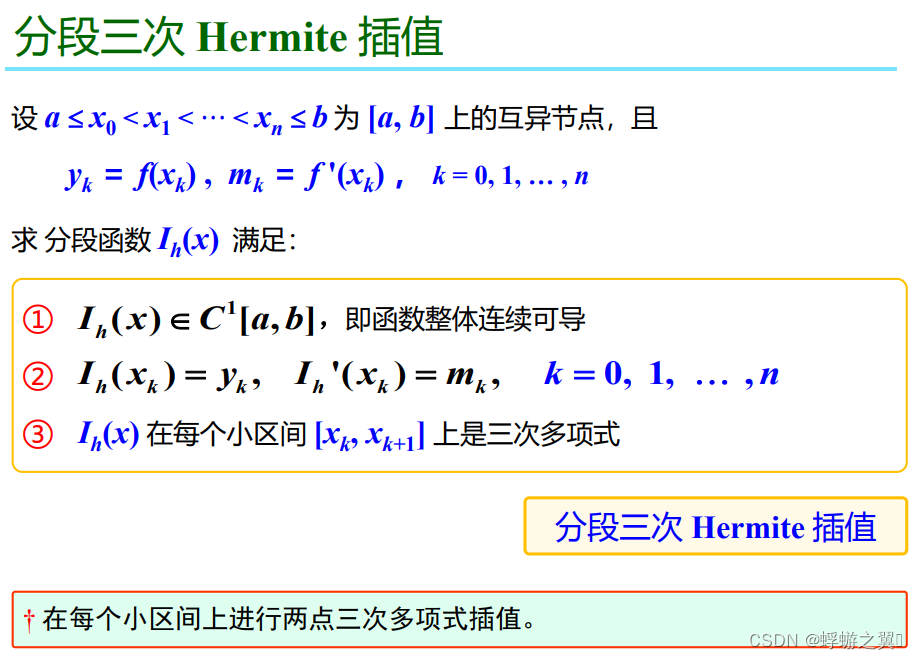

埃尔米特插值 原理

#pragma once
#include <vector>
#include <functional>
/*

埃尔米特插值

*/
struct InterpolationPoint {
    double x; // 插值点的横坐标
    double y; // 插值点的纵坐标
    double derivative; // 插值点的导数值
     // 默认构造函数
    InterpolationPoint() : x(0.0), y(0.0), derivative(0.0) {}

    // 带参数的构造函数
    InterpolationPoint(double x_val, double y_val, double derivative_val) : x(x_val), y(y_val), derivative(derivative_val) {}

    // 拷贝构造函数
    InterpolationPoint(const InterpolationPoint& other) : x(other.x), y(other.y), derivative(other.derivative) {}

    // 移动构造函数
    InterpolationPoint(InterpolationPoint&& other) noexcept : x(other.x), y(other.y), derivative(other.derivative) {
        other.x = 0.0;
        other.y = 0.0;
        other.derivative = 0.0;
    }
    // Copy assignment operator
    InterpolationPoint& operator=(const InterpolationPoint& other) {
        if (this != &other) {
            x = other.x;
            y = other.y;
            derivative = other.derivative;
        }
        return *this;
    }

    // 设置插值点的值
    void set(double x_val, double y_val, double derivative_val) {
        x = x_val;
        y = y_val;
        derivative = derivative_val;
    }

    // 获取插值点的横坐标
    double get_x() const {
        return x;
    }

    // 获取插值点的纵坐标
    double get_y() const {
        return y;
    }

    // 获取插值点的导数值
    double get_derivative() const {
        return derivative;
    }
};

class HermiteInterpolator {
public:
    HermiteInterpolator(const std::vector<InterpolationPoint>& points);
    HermiteInterpolator(int width, std::vector<int> &adjPoints);
    void setPoints(const std::vector<InterpolationPoint>& points);
    double interpolate(double x) ;

private:
    // 返回连接两点的线段函数
    std::function<double(double)> getLineFunction( InterpolationPoint& p1,  InterpolationPoint& p2);

private:
    std::vector<InterpolationPoint> points_;
};
#include "pch.h"
#include "HermiteInterpolator.h"
#include <fstream>
HermiteInterpolator::HermiteInterpolator(const std::vector<InterpolationPoint>& points)
	: points_(points)
{
}
HermiteInterpolator::HermiteInterpolator(int width, std::vector<int>& adjPoints)
{
	float step = width / adjPoints.size();
	for (int i = 0; i < adjPoints.size(); i++)
	{
		InterpolationPoint point(step*i, adjPoints[i] , 0);
		points_.push_back(point);
	}
}
void HermiteInterpolator::setPoints(const std::vector<InterpolationPoint>& points)
{
	points_ = points;
}

// 返回连接两点的线段函数
std::function<double(double)> HermiteInterpolator::getLineFunction( InterpolationPoint& p1,  InterpolationPoint& p2) {
    // 计算线段的斜率和截距
    double slope = (p2.y - p1.y) / (p2.x - p1.x);
    double intercept = p1.y - slope * p1.x;

    // 返回线段的lambda表达式
    return [slope, intercept](double x) {
        return slope * x + intercept;
    };
}
// 计算三次分段Hermite插值函数的值
double HermiteInterpolator::interpolate(double x)  {
    int y = 0;

    int n = points_.size();
    if (n < 3)
    {
        // 获取线段函数
        std::function<double(double)> lineFunction = getLineFunction(points_[0], points_[1]);
        y= lineFunction(x);
    }
    else
    {
        for (int i = 0; i < n - 1; i++) {
            if (x >= points_[i].x && x <= points_[i + 1].x) {
                double h = points_[i + 1].x - points_[i].x;
                double t = (x - points_[i].x) / h;// (x-x_k)/(x_{k+1} - x_k)
                double tk = (x - points_[i + 1].x) / (-h); // (x - x_{ k + 1 }) / (x_k - x_{ k + 1 })
                double y0 = (1 + 2 * t) * tk * tk;
                double y1 = (1 + 2 * tk) * t * t;
                double y2 = (x - points_[i].x) * tk * tk;
                double y3 = (x - points_[i + 1].x) * t * t;

                y= points_[i].y * y0 + points_[i + 1].y * y1 + points_[i].derivative * y2 + points_[i + 1].derivative * y3;
            }
        }
    }

    //ofstream  f;
    //f.open("D:\\work\\documentation\\HermiteInterpolator.txt", ios::app);
    //f <<x<<"," << y << endl;
    //f.close();
    return y; // 如果找不到对应的插值段，返回默认值
}

为了可视化效果可以把结果写到HermiteInterpolator.txt
画图python代码：

import matplotlib.pyplot as plt

# 打开文本文件进行读取
with open('D:\\work\\documentation\\HermiteInterpolator.txt') as f:
    data = f.readlines()

# 定义两个列表分别存储横坐标和纵坐标的数据
x = []
y = []

# 遍历每一行
for i, line in enumerate(data):
    # 去除换行符
    if line:
        user_pwd_list = line.strip().split(',')

        # 横坐标是行号
        x.append(float(user_pwd_list[0]))

        # 纵坐标是数值数据
        y.append(float(user_pwd_list[1]))

# 创建散点图
plt.scatter(x, y)

# 添加标题和轴标签
plt.title('Scatter Plot')
plt.xlabel('Line')
plt.ylabel('Value')

# 显示并保存图像
#plt.savefig('plot.png')
plt.show()

python 版本

class point:
    def __init__(self, x, y):
        self.x = x
        self.y = y
        self.derivative=0

class HermiteInterpolator:
    def __init__(self, points, ifcalculatederivative=True):
        self.points = points
        if ifcalculatederivative:
            self.calculatederivative()
        print("point: " ,ifcalculatederivative,"\n")
        for i in range(len(self.points)):
            print(self.points[i].x , self.points[i].y, self.points[i].derivative)

        print(" \n")

    def calculatederivative(self):
        n = len(self.points)-1
        for i in range(1,n):
            self.points[i].derivative = (self.points[i + 1].y - self.points[i - 1].y) / (self.points[i + 1].x - self.points[i - 1].x)
        if n>0:
            self.points[0].derivative = (self.points[1].y - self.points[0].y) / (self.points[1].x - self.points[0].x)
            self.points[n].derivative = (self.points[n].y - self.points[n-1].y) / (self.points[n].x - self.points[n-1].x)


    def interpolate(self, x):
        result = 0
        for i in range(len(self.points)):
            result += self.coefficients[i] * self.hermitePolynomial(i, x)
        return result

    def calculateLine(self, x, point1, point2):
        return (point2.y - point1.y) / (point2.x - point1.x) * (x - point1.x) + point1.y


    def hermiteBase(self, x,point1,point2):
        result = 0
        h = point2.x - point1.x
        t = (x - point1.x) / h;# (x-x_k)/(x_{k+1} - x_k)
        tk = (x - point2.x)/(-h) #; // (x - x_{ k + 1 }) / (x_k - x_{ k + 1 })
        y0 = (1 + 2 * t) * tk * tk
        y1 = (1 + 2 * tk) * t * t
        y2 = (x - point1.x) * tk * tk
        y3 = (x - point2.x) * t * t
        result= point1.y * y0 + point2.y * y1 + point1.derivative * y2 + point2.derivative * y3
        return result

    def HermiteInterpolate(self, x):
        y=0
        n = len(self.points)
        points_ = self.points
        for i in range(n-1):
            if x >= points_[i].x and x <= points_[i + 1].x:
                y =self.hermiteBase(x, points_[i], points_[i+1])
        return y

    def HermiteInterpolateAdvance(self, x):
        y=0
        n = len(self.points)
        points_ = self.points
        for i in range(n-1):
            if x >= points_[i].x and x <= points_[i + 1].x:
                if(points_[i].y == points_[i+1].y):
                    y= self.calculateLine(x, points_[i], points_[i+1])
                else:
                    y =self.hermiteBase(x, points_[i], points_[i+1])
        return y



def plotHermiteFunction():
    points = [point(0,0) , point(1,1), point(2,0), point(3,1), point(4,1), point(5,1)]
    points2 = [point(0,0) , point(1,1), point(2,0), point(3,1), point(4,1), point(5,1)]
    hermiteInterpolator = HermiteInterpolator(points)
    x = np.linspace(0, 5, 200)

    #y1 = [hermiteInterpolator.HermiteInterpolateAdvance(i) for i in x]
    hermiteInterpolator2 = HermiteInterpolator(points2,False)
    y = [hermiteInterpolator2.HermiteInterpolate(i) for i in x]
    y2 = [hermiteInterpolator2.HermiteInterpolateAdvance(i) for i in x]
    #plt.plot(x, y, label='hermite',color='deepskyblue')
    plt.plot(x, y2, label='hermiteAdvance',color='red')
    #plt.plot(x, y1, label='hermiteAdvance',color='green')

    scatterX = [0,1,2,3,4,5]
    scatterY = [0,1,0,1,1,1]
    plt.scatter(scatterX,  # 横坐标
            scatterY,  # 纵坐标
            c='yellow',  # 点的颜色
            label='点')  # 标签 即为点代表的意思
    plt.legend()
    plt.show()
