UFS学习一：UTP层和UPIU



一。协议层对UTP层和UPIU的认识

1.

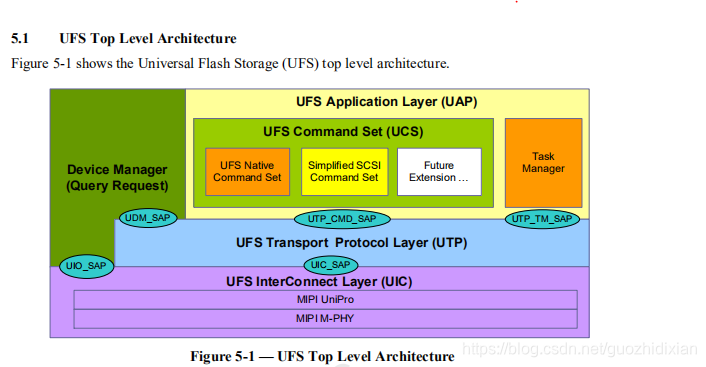

下图是UFS Device协议架构图，UTP层上面对接UCS层，左上对接Device Manager(主要是Query Request), 右上对接Task Manager。

UTP层的作用：将应用层传下来的请求数据以UPIU的数据包下发给UIC层(Unipro和M-PHY), 将底层传上来的UPIU数据包解析之后将数据传给应用层

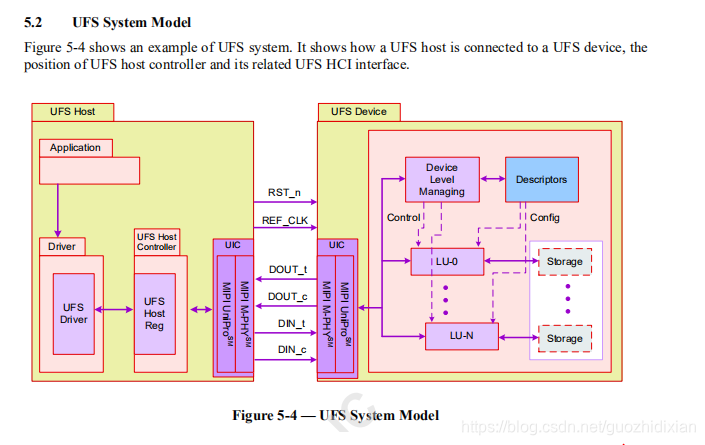

2. UFS System Model



UFS传输事务是由UFS协议信息单元(UPIU)的数据包组成，这些数据包在Unipro总线上的设备之间传输，传输事务请求-响应的操作在发起方设备和目标设备之间开始，发起方通过启动传输序列对目标设备和逻辑单元的请求，然后目标设备将响应一系列最终以响应交易结束的交易。

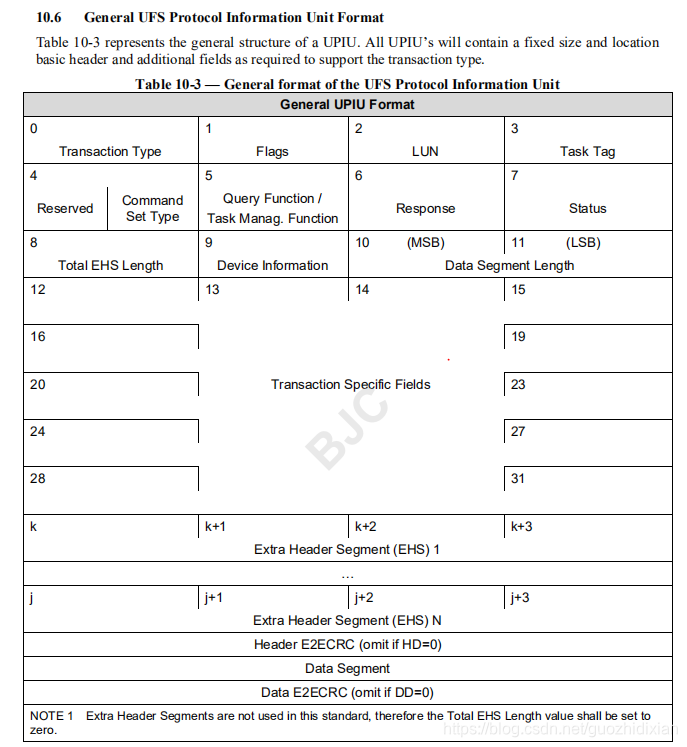

3. UPIU的通用标准格式

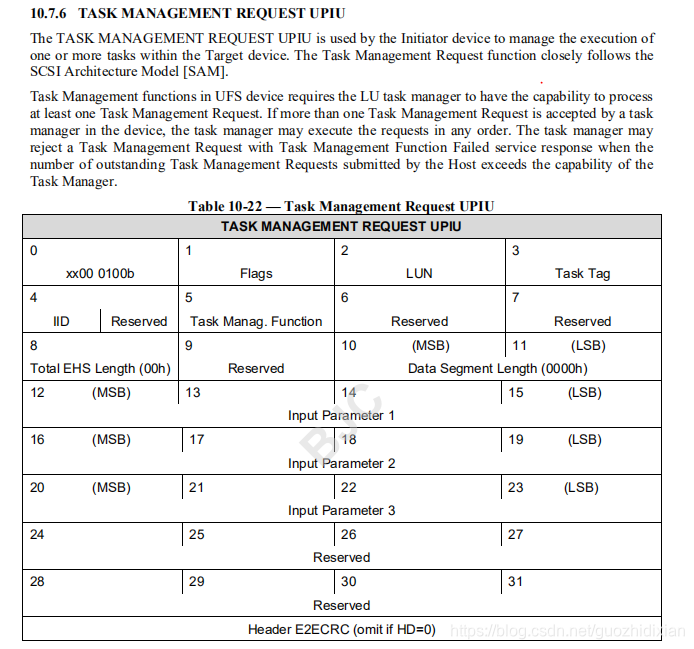

3.1 TASK MANAGEMENT REQUEST UPIU

注1：对于UFS Devices来说，每个UFS Devices有多个Lun, 每个Lun有一个Command Queue(命令队列)， 命令队列深度一般为32，UFS Devices收到UFS Host的Command（一般来说一个Command Request就是一个Task）之后，会将这个命令放到命令队列里，队列最多存放32个Command Request. UFS Device一般一次执行1个Command Request, 执行完一个之后再执行下一个。

注2：TASK MANAGEMENT REQUEST UPIU管理UFS Device的Task，其实就是理解为管理UFS Host给UFS Device下发的Command Request.

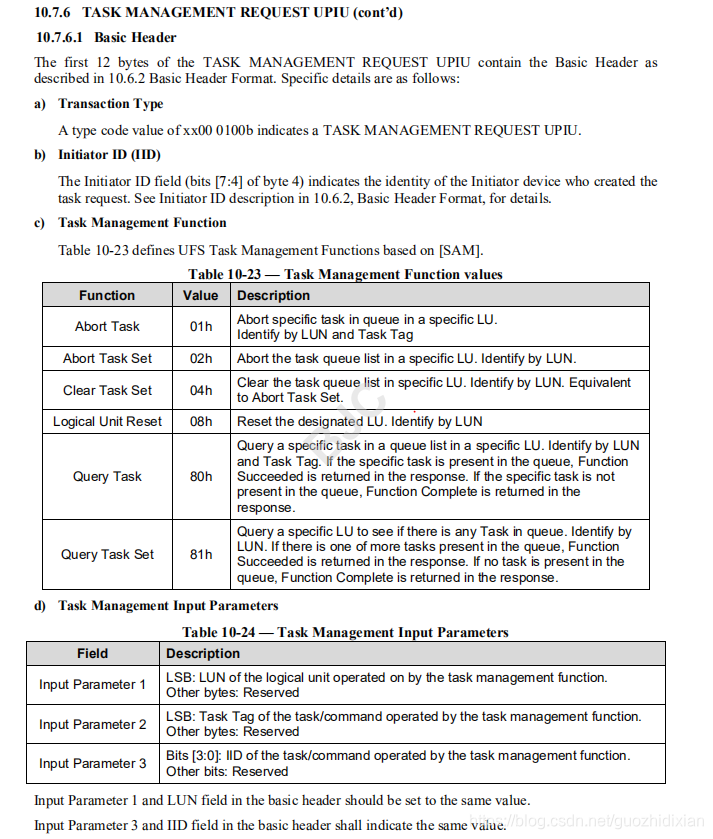

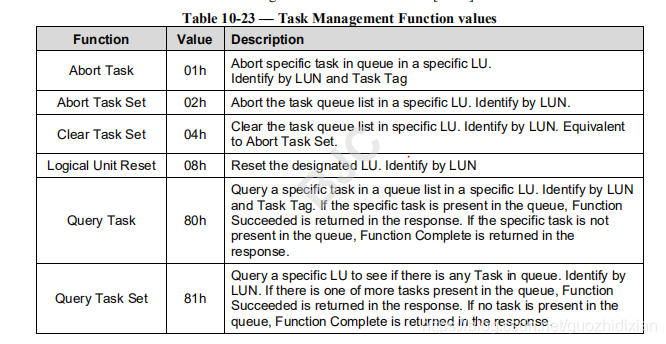

注3：理解一下Task Management Function values

Abort Task：终止一个task(Command Request)

Logical Unit Reset: Reset 整个Lun，相当于Reset 整个Lun的Task(Command Request)



Query Task : 查询当前Task（Command Request）是否在ufs devices lun的command queue list, 通过Lun和Task tag识别，如果这个task当前在ufs devices lun的command queue list里面，会返回Task Management Function Succeeded的Resonse(说明ufs host已经成功下发了这个task, 但是pending在ufs devices的command queue list等待执行)， 如果这个task当前不在ufs devices lun的command queue list里面，会返回Task Management Function Complete的Response(说明此时ufs host已经成功下发了这个task,且ufs device已经成功执行了 )







二。控制器层对UTP层和UPIU的认识





三。UFS Host Driver层对UTP层和UPIU的认识

1.UFS Transfer Request Descriptors

ufshcd_queuecommand

ufshcd_comp_scsi_upiu

ret = ufshcd_prepare_req_desc_hdr(hba, lrbp, &upiu_flags, lrbp->cmd->sc_data_direction);

/**
 * ufshcd_prepare_req_desc_hdr() - Fills the requests header
 * descriptor according to request
 * @hba: per adapter instance
 * @lrbp: pointer to local reference block
 * @upiu_flags: flags required in the header
 * @cmd_dir: requests data direction
 */
static int ufshcd_prepare_req_desc_hdr(struct ufs_hba *hba,
	struct ufshcd_lrb *lrbp, u32 *upiu_flags,
	enum dma_data_direction cmd_dir)
{
	struct utp_transfer_req_desc *req_desc = lrbp->utr_descriptor_ptr;
	u32 data_direction;
	u32 dword_0;

	if (cmd_dir == DMA_FROM_DEVICE) {
		data_direction = UTP_DEVICE_TO_HOST;
		*upiu_flags = UPIU_CMD_FLAGS_READ;
	} else if (cmd_dir == DMA_TO_DEVICE) {
		data_direction = UTP_HOST_TO_DEVICE;
		*upiu_flags = UPIU_CMD_FLAGS_WRITE;
	} else {
		data_direction = UTP_NO_DATA_TRANSFER;
		*upiu_flags = UPIU_CMD_FLAGS_NONE;
	}

	set_customized_upiu_flags(lrbp, upiu_flags);

	dword_0 = data_direction | (lrbp->command_type
				<< UPIU_COMMAND_TYPE_OFFSET);
	if (lrbp->intr_cmd)
		dword_0 |= UTP_REQ_DESC_INT_CMD;

	/* Transfer request descriptor header fields */
	req_desc->header.dword_0 = cpu_to_le32(dword_0);
	/* dword_1 is reserved, hence it is set to 0 */
	req_desc->header.dword_1 = 0;
	/*
	 * assigning invalid value for command status. Controller
	 * updates OCS on command completion, with the command
	 * status
	 */
	req_desc->header.dword_2 =
		cpu_to_le32(OCS_INVALID_COMMAND_STATUS);
	/* dword_3 is reserved, hence it is set to 0 */
	req_desc->header.dword_3 = 0;

	req_desc->prd_table_length = 0;

	if (ufshcd_is_crypto_supported(hba))
		return ufshcd_prepare_crypto_utrd(hba, lrbp);

	return 0;
}

对应于UFS Host Controller Spec:





DW0：

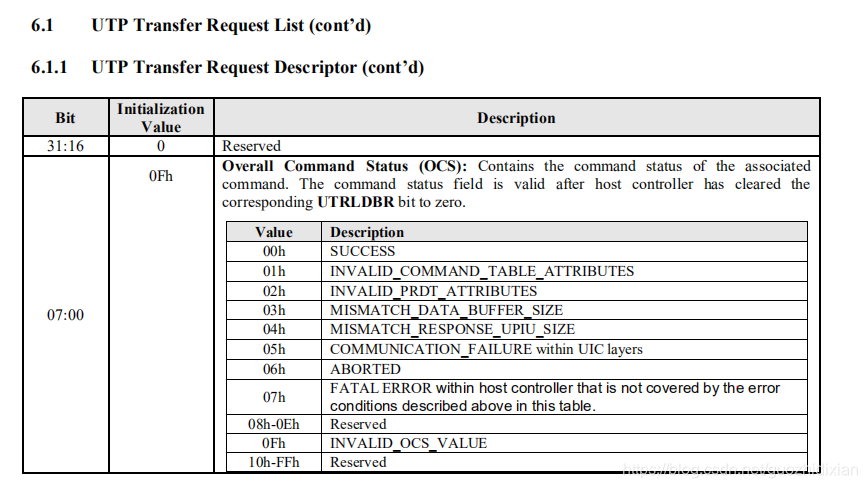

DW2:

其中DW1和DW3是Reseve的

/**
 * ufshcd_memory_alloc - allocate memory for host memory space data structures
 * @hba: per adapter instance
 *
 * 1. Allocate DMA memory for Command Descriptor array

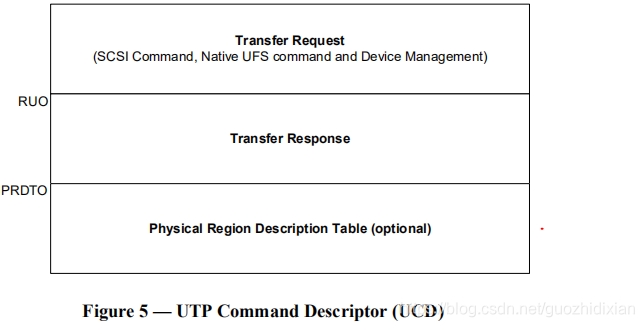

 *	Each command descriptor consist of Command UPIU, Response UPIU and PRDT
 * 2. Allocate DMA memory for UTP Transfer Request Descriptor List (UTRDL).
 * 3. Allocate DMA memory for UTP Task Management Request Descriptor List
 *	(UTMRDL)
 * 4. Allocate memory for local reference block(lrb).
 *
 * Returns 0 for success, non-zero in case of failure
 */
static int ufshcd_memory_alloc(struct ufs_hba *hba)
{
	size_t utmrdl_size, utrdl_size, ucdl_size;

	/* Allocate memory for UTP command descriptors */
	ucdl_size = (sizeof(struct utp_transfer_cmd_desc) * hba->nutrs);
	hba->ucdl_base_addr = dmam_alloc_coherent(hba->dev,
						  ucdl_size,
						  &hba->ucdl_dma_addr,
						  GFP_KERNEL);

	/*
	 * UFSHCI requires UTP command descriptor to be 128 byte aligned.
	 * make sure hba->ucdl_dma_addr is aligned to PAGE_SIZE
	 * if hba->ucdl_dma_addr is aligned to PAGE_SIZE, then it will
	 * be aligned to 128 bytes as well
	 */
	if (!hba->ucdl_base_addr ||
	    WARN_ON(hba->ucdl_dma_addr & (PAGE_SIZE - 1))) {
		dev_err(hba->dev,
			"Command Descriptor Memory allocation failed\n");
		goto out;
	}

	/*
	 * Allocate memory for UTP Transfer descriptors
	 * UFSHCI requires 1024 byte alignment of UTRD
	 */
	utrdl_size = (sizeof(struct utp_transfer_req_desc) * hba->nutrs);
	hba->utrdl_base_addr = dmam_alloc_coherent(hba->dev,
						   utrdl_size,
						   &hba->utrdl_dma_addr,
						   GFP_KERNEL);
	if (!hba->utrdl_base_addr ||
	    WARN_ON(hba->utrdl_dma_addr & (PAGE_SIZE - 1))) {
		dev_err(hba->dev,
			"Transfer Descriptor Memory allocation failed\n");
		goto out;
	}

	/*
	 * Allocate memory for UTP Task Management descriptors
	 * UFSHCI requires 1024 byte alignment of UTMRD
	 */
	utmrdl_size = sizeof(struct utp_task_req_desc) * hba->nutmrs;
	hba->utmrdl_base_addr = dmam_alloc_coherent(hba->dev,
						    utmrdl_size,
						    &hba->utmrdl_dma_addr,
						    GFP_KERNEL);
	if (!hba->utmrdl_base_addr ||
	    WARN_ON(hba->utmrdl_dma_addr & (PAGE_SIZE - 1))) {
		dev_err(hba->dev,
		"Task Management Descriptor Memory allocation failed\n");
		goto out;
	}

	/* Allocate memory for local reference block */
	hba->lrb = devm_kcalloc(hba->dev,
				hba->nutrs, sizeof(struct ufshcd_lrb),
				GFP_KERNEL);
	if (!hba->lrb) {
		dev_err(hba->dev, "LRB Memory allocation failed\n");
		goto out;
	}
	return 0;
out:
	return -ENOMEM;
}



/**
 * ufshcd_host_memory_configure - configure local reference block with
 *				memory offsets
 * @hba: per adapter instance
 *
 * Configure Host memory space
 * 1. Update Corresponding UTRD.UCDBA and UTRD.UCDBAU with UCD DMA
 * address.
 * 2. Update each UTRD with Response UPIU offset, Response UPIU length
 * and PRDT offset.
 * 3. Save the corresponding addresses of UTRD, UCD.CMD, UCD.RSP and UCD.PRDT
 * into local reference block.
 */
static void ufshcd_host_memory_configure(struct ufs_hba *hba)
{
	struct utp_transfer_cmd_desc *cmd_descp;
	struct utp_transfer_req_desc *utrdlp;
	dma_addr_t cmd_desc_dma_addr;
	dma_addr_t cmd_desc_element_addr;
	u16 response_offset;
	u16 prdt_offset;
	int cmd_desc_size;
	int i;

	utrdlp = hba->utrdl_base_addr;
	cmd_descp = hba->ucdl_base_addr;

	response_offset =
		offsetof(struct utp_transfer_cmd_desc, response_upiu);
	prdt_offset =
		offsetof(struct utp_transfer_cmd_desc, prd_table);

	cmd_desc_size = sizeof(struct utp_transfer_cmd_desc);
	cmd_desc_dma_addr = hba->ucdl_dma_addr;

	for (i = 0; i < hba->nutrs; i++) {
		/* Configure UTRD with command descriptor base address */
		cmd_desc_element_addr =
				(cmd_desc_dma_addr + (cmd_desc_size * i));
		utrdlp[i].command_desc_base_addr_lo =
				cpu_to_le32(lower_32_bits(cmd_desc_element_addr));
		utrdlp[i].command_desc_base_addr_hi =
				cpu_to_le32(upper_32_bits(cmd_desc_element_addr));

		/* Response upiu and prdt offset should be in double words */
		if (hba->quirks & UFSHCD_QUIRK_PRDT_BYTE_GRAN) {
			utrdlp[i].response_upiu_offset =
				cpu_to_le16(response_offset);
			utrdlp[i].prd_table_offset =
				cpu_to_le16(prdt_offset);
			utrdlp[i].response_upiu_length =
				cpu_to_le16(ALIGNED_UPIU_SIZE);
		} else {
			utrdlp[i].response_upiu_offset =
				cpu_to_le16((response_offset >> 2));
			utrdlp[i].prd_table_offset =
				cpu_to_le16((prdt_offset >> 2));
			utrdlp[i].response_upiu_length =
				cpu_to_le16(ALIGNED_UPIU_SIZE >> 2);
		}

		hba->lrb[i].utr_descriptor_ptr = (utrdlp + i);
		hba->lrb[i].utrd_dma_addr = hba->utrdl_dma_addr +
				(i * sizeof(struct utp_transfer_req_desc));
		hba->lrb[i].ucd_req_ptr =
			(struct utp_upiu_req *)(cmd_descp + i);
		hba->lrb[i].ucd_req_dma_addr = cmd_desc_element_addr;
		hba->lrb[i].ucd_rsp_ptr =
			(struct utp_upiu_rsp *)cmd_descp[i].response_upiu;
		hba->lrb[i].ucd_rsp_dma_addr = cmd_desc_element_addr +
				response_offset;
		hba->lrb[i].ucd_prdt_ptr =
			(struct ufshcd_sg_entry *)cmd_descp[i].prd_table;
		hba->lrb[i].ucd_prdt_dma_addr = cmd_desc_element_addr +
				prdt_offset;
	}
}

/**
 * ufshcd_make_hba_operational - Make UFS controller operational
 * @hba: per adapter instance
 *
 * To bring UFS host controller to operational state,
 * 1. Enable required interrupts
 * 2. Configure interrupt aggregation
 * 3. Program UTRL and UTMRL base address
 * 4. Configure run-stop-registers
 *
 * Returns 0 on success, non-zero value on failure
 */
static int ufshcd_make_hba_operational(struct ufs_hba *hba)
{
	int err = 0;
	u32 reg;

	/* Enable required interrupts */
	ufshcd_enable_intr(hba, UFSHCD_ENABLE_INTRS);

	/* Configure interrupt aggregation */
	if (ufshcd_is_intr_aggr_allowed(hba))
		ufshcd_config_intr_aggr(hba, hba->nutrs - 1, INT_AGGR_DEF_TO);
	else
		ufshcd_disable_intr_aggr(hba);

	/* Configure UTRL and UTMRL base address registers */
	ufshcd_writel(hba, lower_32_bits(hba->utrdl_dma_addr),
			REG_UTP_TRANSFER_REQ_LIST_BASE_L);
	ufshcd_writel(hba, upper_32_bits(hba->utrdl_dma_addr),
			REG_UTP_TRANSFER_REQ_LIST_BASE_H);
	ufshcd_writel(hba, lower_32_bits(hba->utmrdl_dma_addr),
			REG_UTP_TASK_REQ_LIST_BASE_L);
	ufshcd_writel(hba, upper_32_bits(hba->utmrdl_dma_addr),
			REG_UTP_TASK_REQ_LIST_BASE_H);

	/*
	 * Make sure base address and interrupt setup are updated before
	 * enabling the run/stop registers below.
	 */
	wmb();

	/*
	 * UCRDY, UTMRLDY and UTRLRDY bits must be 1
	 */
	reg = ufshcd_readl(hba, REG_CONTROLLER_STATUS);
	if (!(ufshcd_get_lists_status(reg))) {
		ufshcd_enable_run_stop_reg(hba);
	} else {
		dev_err(hba->dev,
			"Host controller not ready to process requests");
		err = -EIO;
		goto out;
	}

out:
	return err;
}

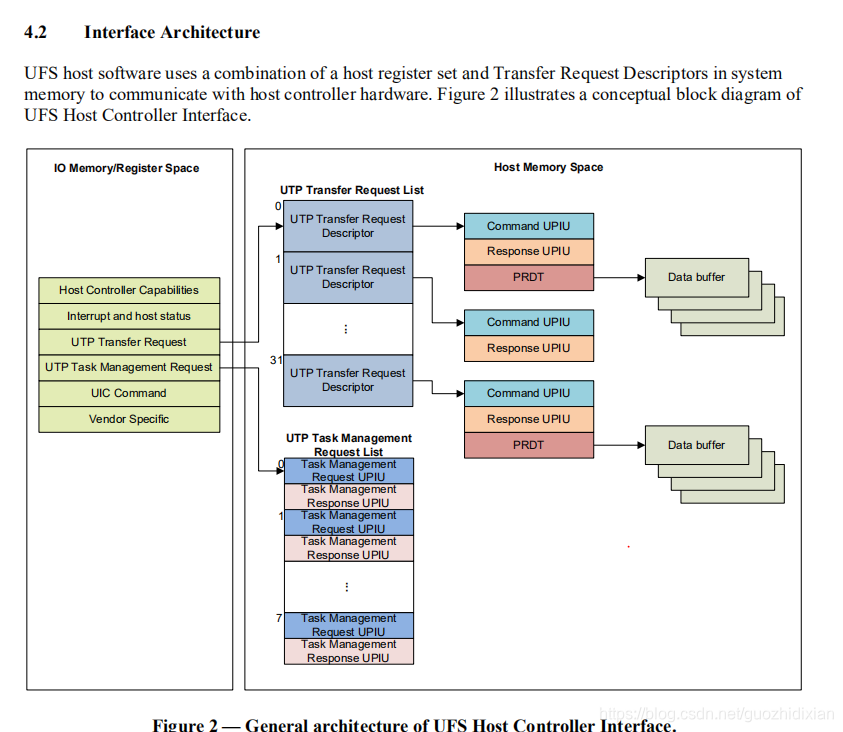

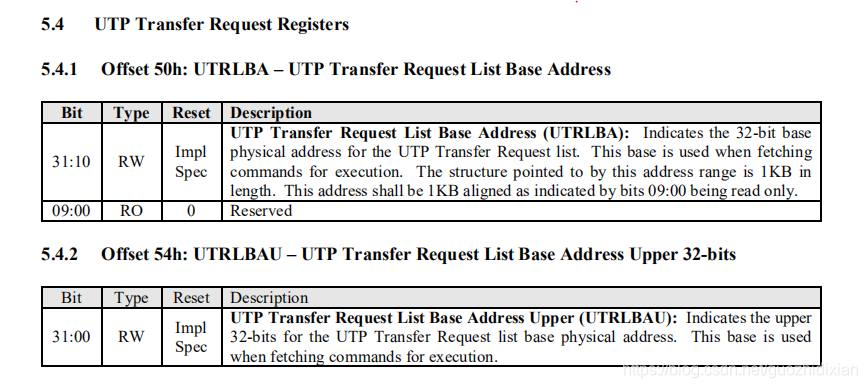

其中对应于Host Controller Register：

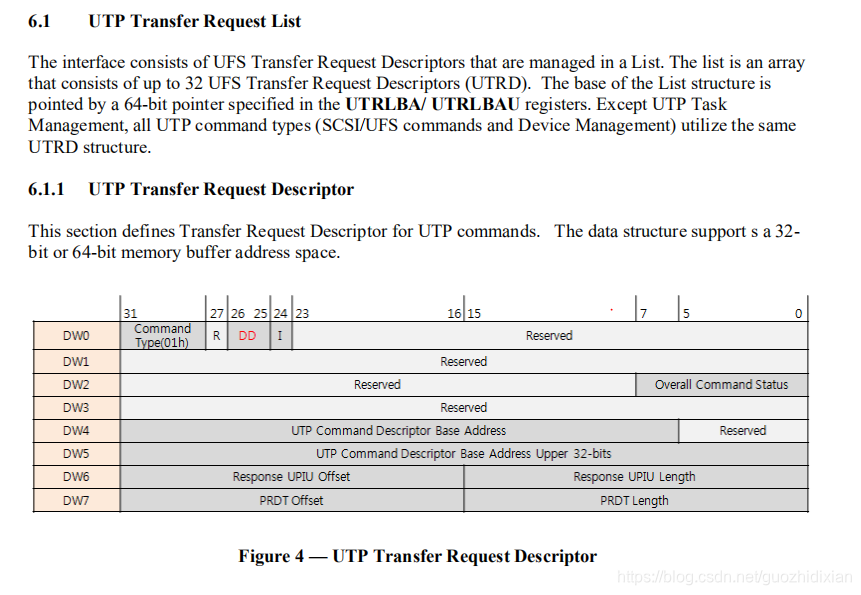

Spec orginal description:

The interface consists of UFS Transfer Request Descriptors that are managed in a List. The list is an array that consists of up to 32 UFS Transfer Request Descriptors (UTRD). The base of the List structure is pointed by a 64-bit pointer specified in the UTRLBA/ UTRLBAU registers. Except UTP Task Management, all UTP command types (SCSI/UFS commands and Device Management) utilize the same UTRD structure.



translate:

该接口由在列表中管理的UFS传输请求描述符组成。 该列表是一个数组 最多包含32个UFS传输请求描述符（UTRD）。 列表结构的基础是 由UTRLBA / UTRLBAU寄存器中指定的64位指针指向。 UTP任务除外 管理，所有UTP命令类型（SCSI / UFS命令和设备管理）都使用相同的 UTRD结构



可以这么理解：UFS Host给UFS Devices传输的请求是以UTP Transfer Request Descriptor格式传输的，UTP Transfer Request Descriptor的地址由0x50 (– UTP Transfer Request List Base Address )和0x54(– UTP Transfer Request List Base Address Upper 32-bits )组成, 当控制器往doorbeer register寄存器写1，即敲doorbeer时，host controller就会去0x50+0x54组成的UTP Transfer Request List 地址处取相应的UTP Transfer Request Descriptor数据经过Unipro和M-PHY传输给UFS Devices.

注1：UFS Transfer Request Descriptors（UTRD）是UFS Host和UFS Devices之间传输的基本单元，UFS Transfer Request Descriptors(UTRD) 有地址DW4: UTP Command Descriptor Base Address (UCDBA)和DW5: UTP Command Descriptor Base Address Upper 32-bits(UCDBAU)；

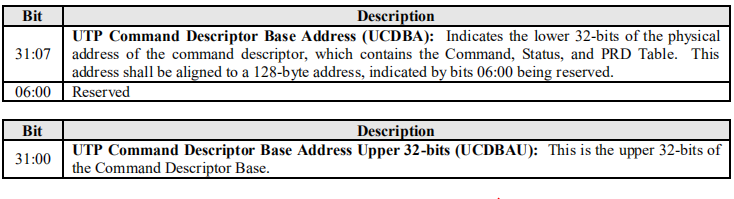

UTP Command Descriptor Base Address (UCDBA)和UTP Command Descriptor Base Address Upper 32-bits(UCDBAU)组成的地址为UCD（UTP Command Descriptor ）的地址，其中UCD包括Request UPIU + Response UPIU + PRDT(存放读写Data的地址)

注2： UTP Task Management Request List 详情可以查看UFS Host Controller的介绍



ufshcd_prepare_utp_scsi_cmd_upiu(lrbp, upiu_flags);

/**
 * ufshcd_prepare_utp_scsi_cmd_upiu() - fills the utp_transfer_req_desc,
 * for scsi commands
 * @lrbp: local reference block pointer
 * @upiu_flags: flags
 */
static
void ufshcd_prepare_utp_scsi_cmd_upiu(struct ufshcd_lrb *lrbp, u32 upiu_flags)
{
	struct utp_upiu_req *ucd_req_ptr = lrbp->ucd_req_ptr;
	unsigned short cdb_len;

	/* command descriptor fields */
	ucd_req_ptr->header.dword_0 = UPIU_HEADER_DWORD(
				UPIU_TRANSACTION_COMMAND, upiu_flags,
				lrbp->lun, lrbp->task_tag);
	ucd_req_ptr->header.dword_1 = UPIU_HEADER_DWORD(
				UPIU_COMMAND_SET_TYPE_SCSI, 0, 0, 0);

	/* Total EHS length and Data segment length will be zero */
	ucd_req_ptr->header.dword_2 = 0;

	ucd_req_ptr->sc.exp_data_transfer_len =
		cpu_to_be32(lrbp->cmd->sdb.length);

	cdb_len = min_t(unsigned short, lrbp->cmd->cmd_len, MAX_CDB_SIZE);
	memcpy(ucd_req_ptr->sc.cdb, lrbp->cmd->cmnd, cdb_len);
	if (cdb_len < MAX_CDB_SIZE)
		memset(ucd_req_ptr->sc.cdb + cdb_len, 0,
			(MAX_CDB_SIZE - cdb_len));
	memset(lrbp->ucd_rsp_ptr, 0, sizeof(struct utp_upiu_rsp));
}

#define UPIU_HEADER_DWORD(byte3, byte2, byte1, byte0)\
			cpu_to_be32((byte3 << 24) | (byte2 << 16) |\
			 (byte1 << 8) | (byte0))

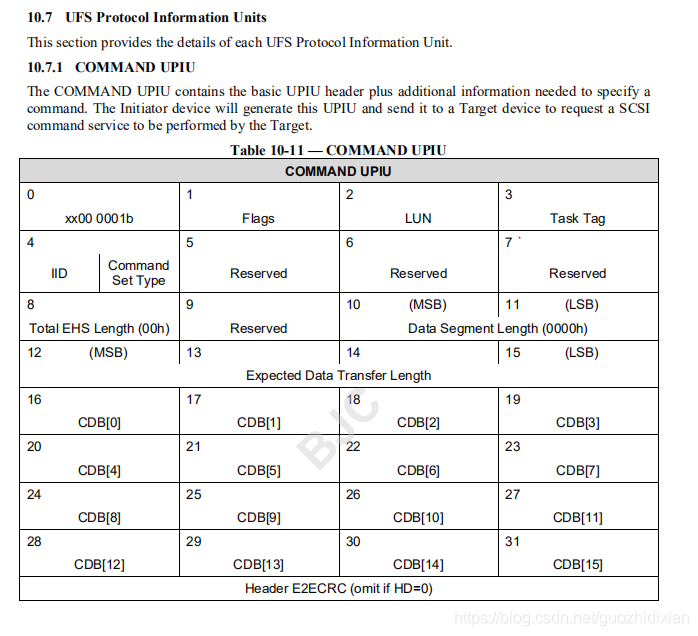

按照ufs devices协议command upiu的格式填充upiu数据包，准备下发给unipro层

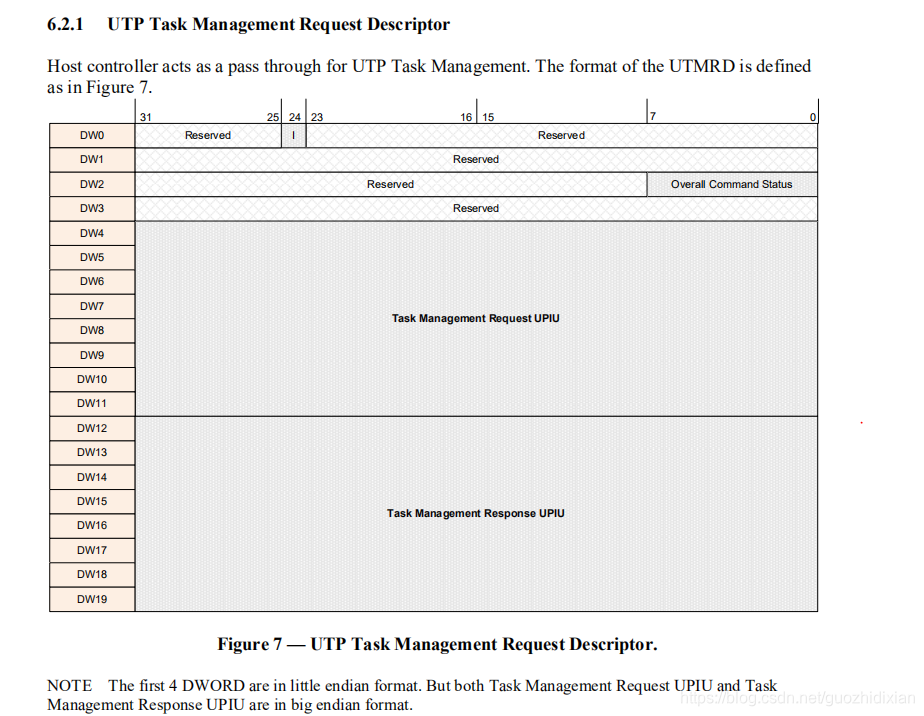

2. UTP Task Management Request Descriptor:





static int ufshcd_memory_alloc(struct ufs_hba *hba)
{
    hba->utmrdl_base_addr = dmam_alloc_coherent(hba->dev,
						    utmrdl_size,
						    &hba->utmrdl_dma_addr,
						    GFP_KERNEL);
	if (!hba->utmrdl_base_addr ||
	    WARN_ON(hba->utmrdl_dma_addr & (PAGE_SIZE - 1))) {
		dev_err(hba->dev,
		"Task Management Descriptor Memory allocation failed\n");
		goto out;
	}
}



static int ufshcd_make_hba_operational(struct ufs_hba *hba)
{
    ufshcd_writel(hba, lower_32_bits(hba->utmrdl_dma_addr),
			REG_UTP_TASK_REQ_LIST_BASE_L);
	ufshcd_writel(hba, upper_32_bits(hba->utmrdl_dma_addr),
			REG_UTP_TASK_REQ_LIST_BASE_H);
}

下面是发送TASK MANAGEMENT REQUEST UPIU的地方：

(1)

err = ufshcd_issue_tm_cmd(hba, lrbp->lun, lrbp->task_tag, UFS_QUERY_TASK, &resp);

err = ufshcd_issue_tm_cmd(hba, lrbp->lun, lrbp->task_tag, UFS_ABORT_TASK, &resp);

/**
 * ufshcd_abort - abort a specific command
 * @cmd: SCSI command pointer
 *
 * Abort the pending command in device by sending UFS_ABORT_TASK task management
 * command, and in host controller by clearing the door-bell register. There can
 * be race between controller sending the command to the device while abort is
 * issued. To avoid that, first issue UFS_QUERY_TASK to check if the command is
 * really issued and then try to abort it.
 *
 * Returns SUCCESS/FAILED
 */
static int ufshcd_abort(struct scsi_cmnd *cmd)
{
	struct Scsi_Host *host;
	struct ufs_hba *hba;
	unsigned long flags;
	unsigned int tag;
	int err = 0;
	int poll_cnt;
	u8 resp = 0xF;
	struct ufshcd_lrb *lrbp;
	u32 reg;

	host = cmd->device->host;
	hba = shost_priv(host);
	tag = cmd->request->tag;
	if (!ufshcd_valid_tag(hba, tag)) {
		dev_err(hba->dev,
			"%s: invalid command tag %d: cmd=0x%pK, cmd->request=0x%pK\n",
			__func__, tag, cmd, cmd->request);
		BUG_ON(1);
	}

	if (cmd->cmnd[0] == READ_10 || cmd->cmnd[0] == WRITE_10) {
		unsigned long lba = (cmd->cmnd[2] << 24) |
			(cmd->cmnd[3] << 16) |
			(cmd->cmnd[4] << 8) |
			(cmd->cmnd[5] << 0);
		unsigned int sct = (cmd->cmnd[7] << 8) |
			(cmd->cmnd[8] << 0);
		sector_t lba_bi_sector = 0;

		if (cmd->request->bio)
			lba_bi_sector = cmd->request->bio->bi_iter.bi_sector;

		dev_err(hba->dev, "%s: tag:%d, cmd:0x%x, "
				"lba:0x%08lx(0x%llx), sct:0x%04x, retries %d\n",
				__func__, tag, cmd->cmnd[0], lba,
				(unsigned long long)lba_bi_sector, sct, cmd->allowed);
	} else {
		dev_err(hba->dev, "%s: tag:%d, cmd:0x%x, retries %d\n",
				__func__, tag, cmd->cmnd[0], cmd->allowed);
	}

	lrbp = &hba->lrb[tag];

	ufshcd_update_error_stats(hba, UFS_ERR_TASK_ABORT);

	if (!ufshcd_valid_tag(hba, tag)) {
		dev_err(hba->dev,
			"%s: invalid command tag %d: cmd=0x%pK, cmd->request=0x%pK\n",
			__func__, tag, cmd, cmd->request);
		BUG_ON(1);
	}

	/*
	 * Task abort to the device W-LUN is illegal. When this command
	 * will fail, due to spec violation, scsi err handling next step
	 * will be to send LU reset which, again, is a spec violation.
	 * To avoid these unnecessary/illegal step we skip to the last error
	 * handling stage: reset and restore.
	 */
	if (lrbp->lun == UFS_UPIU_UFS_DEVICE_WLUN)
		return ufshcd_eh_host_reset_handler(cmd);

#if defined(SEC_UFS_ERROR_COUNT)
	SEC_ufs_utp_error_check(hba, cmd, false, 0);
#if defined(CONFIG_UFSFEATURE) && defined(CONFIG_UFSHPB)
	if (hba->ufsf.hpb_dev_info.hpb_device &&
			((cmd->cmnd[0] == READ_16) || (((cmd->cmnd[0] >> 4) & 0xF) == 0xF))) {
		SEC_ufs_hpb_error_check(hba, cmd);
	}
#endif
#endif

	ufshcd_hold_all(hba);
	reg = ufshcd_readl(hba, REG_UTP_TRANSFER_REQ_DOOR_BELL);
	/* If command is already aborted/completed, return SUCCESS */
	if (!(test_bit(tag, &hba->outstanding_reqs))) {
		dev_err(hba->dev,
			"%s: cmd at tag %d already completed, outstanding=0x%lx, doorbell=0x%x\n",
			__func__, tag, hba->outstanding_reqs, reg);
		goto out;
	}

	if (!(reg & (1 << tag))) {
		dev_err(hba->dev,
		"%s: cmd was completed, but without a notifying intr, tag = %d",
		__func__, tag);
	}

	/* Print Transfer Request of aborted task */
	dev_err(hba->dev, "%s: Device abort task at tag %d\n", __func__, tag);

	/*
	 * Print detailed info about aborted request.
	 * As more than one request might get aborted at the same time,
	 * print full information only for the first aborted request in order
	 * to reduce repeated printouts. For other aborted requests only print
	 * basic details.
	 */
	scsi_print_command(cmd);
	if (!hba->req_abort_count) {
		ufshcd_print_fsm_state(hba);
		ufshcd_print_host_regs(hba);
		ufshcd_print_host_state(hba);
		ufshcd_print_pwr_info(hba);
		ufshcd_print_trs(hba, 1 << tag, true);
		/* crash the system upon setting this debugfs. */
		BUG_ON(hba->crash_on_err);
	} else {
		ufshcd_print_trs(hba, 1 << tag, false);
	}
	hba->req_abort_count++;

	/* Skip task abort in case previous aborts failed and report failure */
	if (lrbp->req_abort_skip) {
		err = -EIO;
		goto out;
	}

	for (poll_cnt = 100; poll_cnt; poll_cnt--) {
		err = ufshcd_issue_tm_cmd(hba, lrbp->lun, lrbp->task_tag,
				UFS_QUERY_TASK, &resp);
		if (!err && resp == UPIU_TASK_MANAGEMENT_FUNC_SUCCEEDED) {
			/* cmd pending in the device */
			dev_err(hba->dev, "%s: cmd pending in the device. tag = %d\n",
				__func__, tag);
			break;
		} else if (!err && resp == UPIU_TASK_MANAGEMENT_FUNC_COMPL) {
			/*
			 * cmd not pending in the device, check if it is
			 * in transition.
			 */
			dev_err(hba->dev, "%s: cmd at tag %d not pending in the device.\n",
				__func__, tag);
			reg = ufshcd_readl(hba, REG_UTP_TRANSFER_REQ_DOOR_BELL);
			if (reg & (1 << tag)) {
				/* sleep for max. 200us to stabilize */
				usleep_range(100, 200);
				continue;
			}
			/* command completed already */
			dev_err(hba->dev, "%s: cmd at tag %d successfully cleared from DB.\n",
				__func__, tag);
			goto out;
		} else {
			dev_err(hba->dev,
				"%s: no response from device. tag = %d, err %d\n",
				__func__, tag, err);
			if (!err)
				err = resp; /* service response error */
#if defined(SEC_UFS_ERROR_COUNT)
			SEC_ufs_utp_error_check(hba, NULL, true, UFS_QUERY_TASK);
#endif
			goto out;
		}
	}

	if (!poll_cnt) {
		err = -EBUSY;
		goto out;
	}

	err = ufshcd_issue_tm_cmd(hba, lrbp->lun, lrbp->task_tag,
			UFS_ABORT_TASK, &resp);
	if (err || resp != UPIU_TASK_MANAGEMENT_FUNC_COMPL) {
		if (!err) {
			err = resp; /* service response error */
			dev_err(hba->dev, "%s: issued. tag = %d, err %d\n",
				__func__, tag, err);
		}
#if defined(SEC_UFS_ERROR_COUNT)
		SEC_ufs_utp_error_check(hba, NULL, true, UFS_ABORT_TASK);
#endif
		goto out;
	}

	err = ufshcd_clear_cmd(hba, tag);
	if (err) {
		dev_err(hba->dev, "%s: Failed clearing cmd at tag %d, err %d\n",
			__func__, tag, err);
		goto out;
	}

	scsi_dma_unmap(cmd);

	spin_lock_irqsave(host->host_lock, flags);
	ufshcd_outstanding_req_clear(hba, tag);
	hba->lrb[tag].cmd = NULL;
	spin_unlock_irqrestore(host->host_lock, flags);

	clear_bit_unlock(tag, &hba->lrb_in_use);
	wake_up(&hba->dev_cmd.tag_wq);

out:
	if (!err) {
		err = SUCCESS;
		if ((hba->dev_info.quirks & UFS_DEVICE_QUIRK_SUPPORT_QUERY_FATAL_MODE) &&
				!hba->UFS_fatal_mode_done) {
			unsigned long max_doorbells = (1UL << hba->nutrs) - 1;
			if (hba->outstanding_reqs == max_doorbells)
				__ufshcd_transfer_req_compl(hba,
						(1UL << (hba->nutrs - 1)));
			schedule_work(&hba->fatal_mode_work);
		}
	} else {
		dev_err(hba->dev, "%s: failed with err %d\n", __func__, err);
		ufshcd_set_req_abort_skip(hba, hba->outstanding_reqs);
		err = FAILED;
	}

	/*
	 * This ufshcd_release_all() corresponds to the original scsi cmd that
	 * got aborted here (as we won't get any IRQ for it).
	 */
	ufshcd_release_all(hba);
	return err;
}

注1：简单描述一下ufs abort的过程，先发送UFS_QUERY_TASK查询task的状态：

如果response为UPIU_TASK_MANAGEMENT_FUNC_SUCCEEDED，ufs host会发送UFS_ABORT_TASK去终止这个task.

如果response为UPIU_TASK_MANAGEMENT_FUNC_COMPL， ufs host会循环100次查询door bell的状态，如果查询次数小于100次的时候，发现task对应的door bell bit位为0时，此时ufs host不会发送UFS_ABORT_TASK，如果查询次数大于等于100次，表示ufs devices是busy的状态，，此时ufs host不会发送UFS_ABORT_TASK

如果response为其他值，说明ufs devices没有响应ufs host发送的task, 可能ufs devices出现某种错误，此时ufs host不会发送UFS_ABORT_TASK

(2) 在error handle处理的时候会发送TASK MANAGEMENT REQUEST UPIU去Reset 整个Lun的Task

err = ufshcd_issue_tm_cmd(hba, lrbp->lun, 0, UFS_LOGICAL_RESET, &resp);

/**
 * ufshcd_eh_device_reset_handler - device reset handler registered to
 *                                    scsi layer.
 * @cmd: SCSI command pointer
 *
 * Returns SUCCESS/FAILED
 */
static int ufshcd_eh_device_reset_handler(struct scsi_cmnd *cmd)
{
	struct Scsi_Host *host;
	struct ufs_hba *hba;
	unsigned int tag;
	u32 pos;
	int err;
	u8 resp = 0xF;
	struct ufshcd_lrb *lrbp;
	unsigned long flags;

	host = cmd->device->host;
	hba = shost_priv(host);
	tag = cmd->request->tag;

	lrbp = &hba->lrb[tag];
	err = ufshcd_issue_tm_cmd(hba, lrbp->lun, 0, UFS_LOGICAL_RESET, &resp);
	if (err || resp != UPIU_TASK_MANAGEMENT_FUNC_COMPL) {
		if (!err)
			err = resp;
		goto out;
	}

	/* clear the commands that were pending for corresponding LUN */
	for_each_set_bit(pos, &hba->outstanding_reqs, hba->nutrs) {
		if (hba->lrb[pos].lun == lrbp->lun) {
			err = ufshcd_clear_cmd(hba, pos);
			if (err)
				break;
		}
	}
	spin_lock_irqsave(host->host_lock, flags);
	ufshcd_transfer_req_compl(hba);
	spin_unlock_irqrestore(host->host_lock, flags);

out:
	hba->req_abort_count = 0;
	if (!err) {
#if defined(CONFIG_UFSFEATURE)
		ufsf_hpb_reset_lu(&hba->ufsf);
#endif
		err = SUCCESS;
	} else {
		dev_err(hba->dev, "%s: failed with err %d\n", __func__, err);
		err = FAILED;
	}
	return err;
}

四。Reference:

1. JESD223B  (ufs host controller 2.0)

2. JESD220C-2_2 (ufs devices spec 2.2)

3. linux kernel ufs opensource (https://git.kernel.org/pub/scm/linux/kernel/git/torvalds/linux.git/tree/drivers/scsi/ufs?h=v5.11-rc4)
