最近才注意到bro更名为zeek了，官网上有说明，貌似是因为bro有不太好的含义。

bro官网上提供了一个探测ftp暴力破解进行登录的例子。该例子中把所有突破阈值的可疑主机记录了下来（这些主机多次尝试登录某个ftp服务器，很不幸，它们登录失败了很多次，被改脚本记录为可疑的主机并通过NOTICE框架写到了notice.log中）。

下面是我尝试用bro写的一个简单的例子，有对logging，sumstats，notice框架的简单使用。

potential_ftp_attackers中存放那些曾经尝试登录ftp且失败了的主机ip。ftp_quests中存放成功登录ftp服务器的主机的ip。potential_attacks_info中存放那些可疑的攻击者以及它们尝试登录失败的次数。在脚本的最后对每个可疑的攻击者作检查，看看是否有成功登录了的。

另，在vscode中可以找到bro的插件，虽然只是语法高亮（基本没人用这个东西呀）。

新的调研内容：要求获取突破成功（那些可疑主机）的用户名和密码，并将之保存至日志。

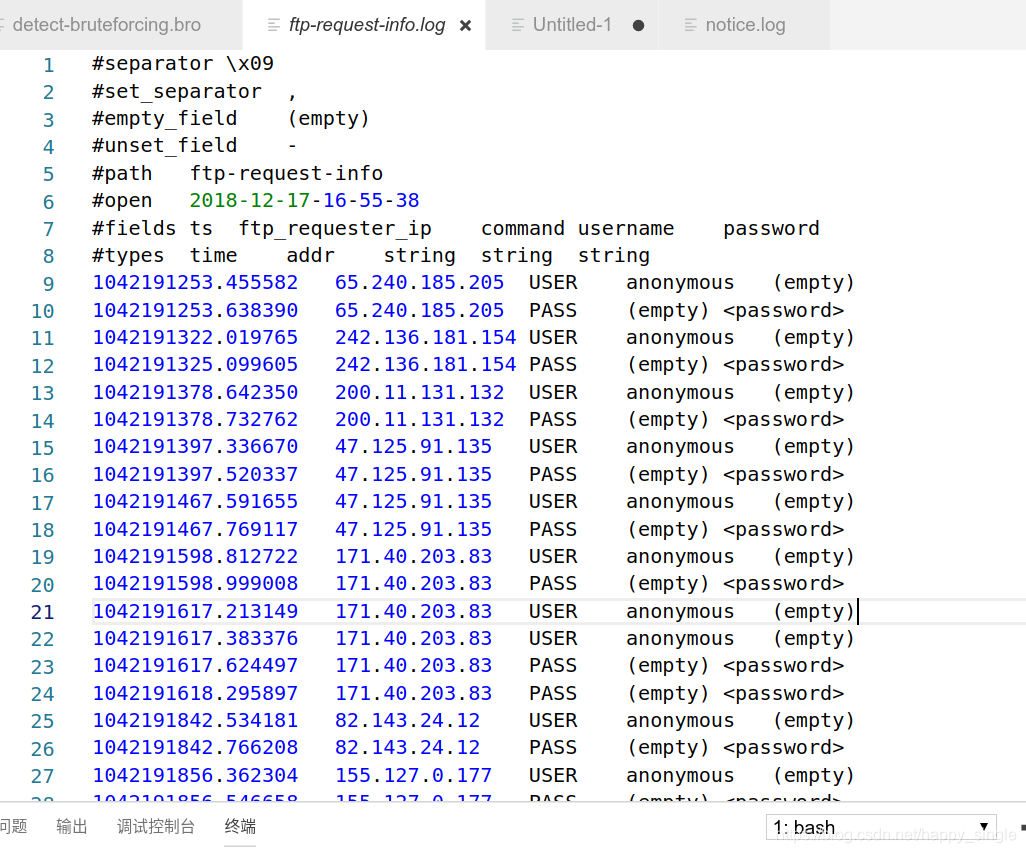

新创建一个日志流，写一个名为ftp-request-info.log的日志文件。这里是所有的ftp请求的用户名和密码的记录。想要知道突破成功的主机的用户名和密码，就在此日志文件的基础上筛选。

##! FTP brute-forcing detector, triggering when too many rejected usernames or
##! failed passwords have occurred from a single address.

@load base/protocols/ftp
@load base/frameworks/sumstats

@load base/utils/time


module FTP;

global potential_ftp_attackers : set[string];
global ftp_quests : set[string];
global potential_attacks_info : table[string] of count;

export {
	redef enum Notice::Type += {
		## Indicates a host bruteforcing FTP logins by watching for too
		## many rejected usernames or failed passwords.
		Bruteforcing
	};

	# Create an ID for our new stream. By convention, this is
	# called "MY_LOG".
	redef enum Log::ID += { MY_LOG,
							REQUEST_LOG };

	# Define the record type that will contain the data to log.
	type Info: record {
		ts: time	&log;
		id: conn_id &log;
	};

	type request_info: record{
		ts: time	&log;
		ftp_requester_ip: addr	&log;
		command: string		&log;
		username: string	&log;
		password: string	&log;
	};

	# Optionally, we can add a new field to the connection record so that
	# the data we are logging (our "Info" record) will be easily
	# accessible in a variety of event handlers.
	redef record connection += {
		# By convention, the name of this new field is the lowercase name
		# of the module.
		ftp: Info &optional;
	};

	## How many rejected usernames or passwords are required before being
	## considered to be bruteforcing.
	const bruteforce_threshold: double = 20 &redef;

	## The time period in which the threshold needs to be crossed before
	## being reset.
	const bruteforce_measurement_interval = 15mins &redef;
}

event bro_init(){
	print "ready to use SumStats";
	local r1: SumStats::Reducer = [$stream="ftp.failed_auth", $apply=set(SumStats::UNIQUE), $unique_max=double_to_count(bruteforce_threshold+2)];
	local r2: SumStats::Reducer = [$stream="ftp.success_auth", $apply=set(SumStats::SUM)];
	local r3: SumStats::Reducer = [$stream="ftp.failed_auth_sum", $apply=set(SumStats::SUM)];
	SumStats::create([$name = "ftp.success_auth",
					$epoch = 1min,
					$reducers = set(r2),
					$epoch_result(ts: time, key: SumStats::Key, result: SumStats::Result) =
					{
						print key;
						print result;
						print fmt("Number of successful ftp login(s) from %s within one minute: %.0f", key$host, result["ftp.success_auth"]$sum);
					}]);
	SumStats::create([$name = "ftp.failed_auth_sum",
					$epoch = bruteforce_measurement_interval,
					$reducers = set(r3),
					$epoch_result(ts: time, key: SumStats::Key, result: SumStats::Result) =
					{
						print fmt("Number of unsuccessful ftp logins(s) from %s within 15 minutes: %.0f", key$host, result["ftp.failed_auth_sum"]$sum);
					}]);
	SumStats::create([$name = "ftp-detect-bruteforcing",
	                $epoch = bruteforce_measurement_interval,
	                $reducers = set(r1),
	                $threshold_val(key: SumStats::Key, result: SumStats::Result) =
	                  	{
	                  	return result["ftp.failed_auth"]$num+0.0;
	                  	},
	                $threshold = bruteforce_threshold,
	                $threshold_crossed(key: SumStats::Key, result: SumStats::Result) =
	                  	{
	                  	local r = result["ftp.failed_auth"];
	                  	local dur = duration_to_mins_secs(r$end-r$begin);
	                  	local plural = r$unique>1 ? "s" : "";
	                  	local message = fmt("%s had %d failed logins on %d FTP server%s in %s", key$host, r$num, r$unique, plural, dur);
						print message;
	                  	NOTICE([$note = FTP::Bruteforcing,
	                  	        $src = key$host,
	                  	        $msg = message,
	                  	        $identifier = cat(key$host)]);
	                  	},
					$epoch_result(ts: time, key: SumStats::Key, result: SumStats::Result) = {
						for (e in result["ftp.failed_auth"]$unique_vals){
							print fmt("attacker wants to login %s via FTP", e$str);
						}
						# here is an output example below
						# ts: 1499171520.032659
						# key: [str=<uninitialized>, host=172.16.0.1]
						# result: {
						# [ftp.failed_auth] = [begin=1499170763.708863, end=1499171519.331044, num=2441, average=<uninitialized>, hll_unique=0, card=<uninitialized>, hll_error_margin=<uninitialized>, hll_confidence=<uninitialized>, last_elements=<uninitialized>, max=<uninitialized>, min=<uninitialized>, samples=[], sample_elements=0, num_samples=0, variance=<uninitialized>, prev_avg=<uninitialized>, var_s=0.0, std_dev=0.0, sum=0.0, topk=<uninitialized>, unique=1, unique_max=22, unique_vals={
						# [num=<uninitialized>, dbl=<uninitialized>, str=192.168.10.50]
						# }]
						# }
					}
					]);
}

# This event is handled at a priority higher than zero so that if
# users modify this stream in another script, they can do so at the
# default priority of zero.
event bro_init() &priority=5{
	# Create the stream. This adds a default filter automatically.

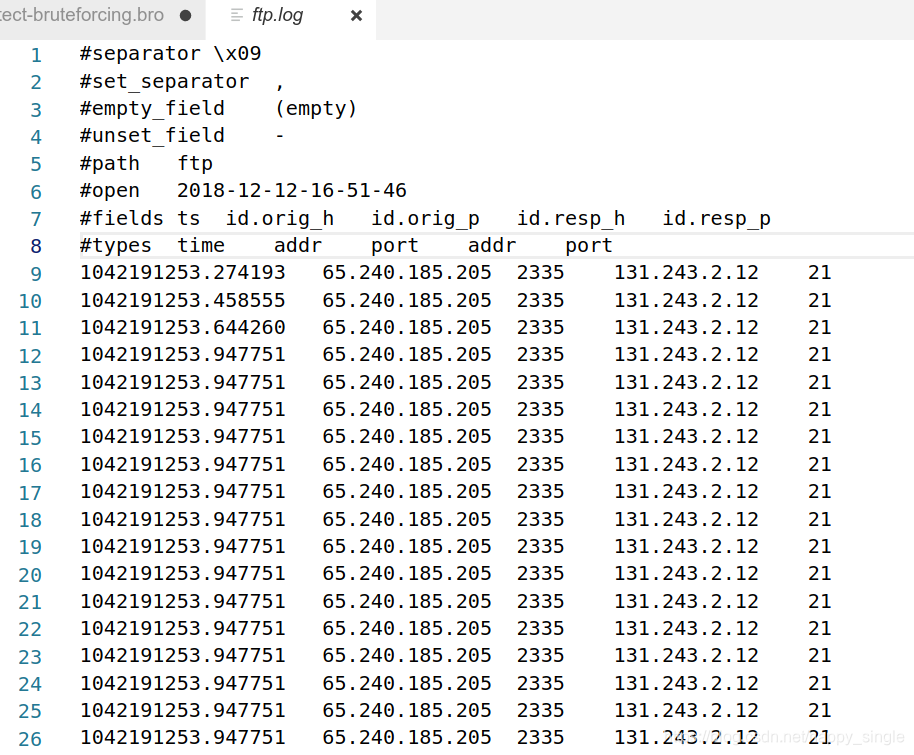

	Log::create_stream(FTP::MY_LOG, [$columns=Info, $path="ftp"]);

	Log::create_stream(FTP::REQUEST_LOG, [$columns=request_info, $path="ftp-request-info"]);
	# Add a new filter to the FTP::MY_LOG stream that logs only
	# timestamp and originator address.
	local filter: Log::Filter = [$name="orig-only", $path="origs",
								$include=set("ts", "id.orig_h")];
	Log::add_filter(FTP::MY_LOG, filter);

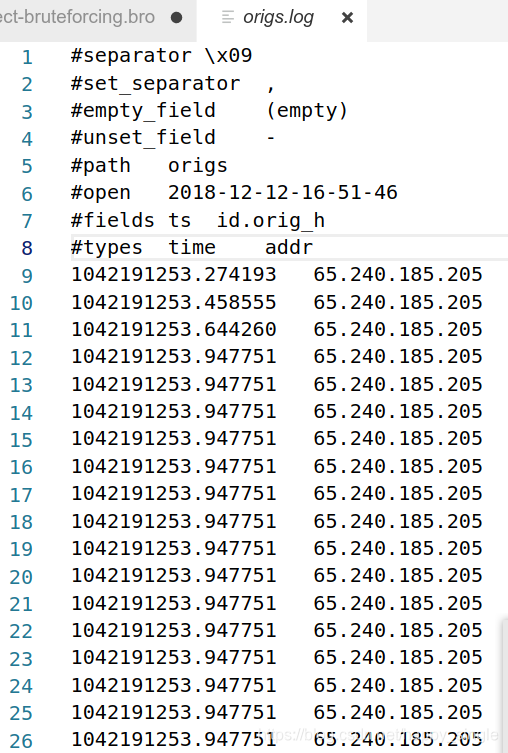

	# We can get a log file called origs.log using this filter
}

# Here I want to collect username and password sent by requesters.
event ftp_request(c :connection, command: string, arg: string){
	print "a ftp request occurred! ";
	if(command == "USER"){
		local rec1: FTP::request_info = [$ts = network_time(),
										$ftp_requester_ip = c$id$orig_h,$command = command,
										$username = arg, $password = ""];
		Log::write(FTP::REQUEST_LOG, rec1);
	} else if(command == "PASS"){
		local rec2: FTP::request_info = [$ts = network_time(),
										$ftp_requester_ip = c$id$orig_h, $command = command,
										$username = "", $password = arg];
		Log::write(FTP::REQUEST_LOG, rec2);
	}
}

event ftp_reply(c: connection, code: count, msg: string, cont_resp: bool){
	# logging
	local rec: FTP::Info = [$ts = network_time(), $id = c$id];
	# Store a copy of the data in the connection record so other
	# event handlers can access it.
	# c$ftp = rec;
	Log::write(FTP::MY_LOG, rec);
	local cmd = c$ftp$cmdarg$cmd;
	if (code == 331 || code == 332){
		print "request for a user name or password!";
	}
	if (code == 200){
		# print c;
		local test = fmt("%s", c$id$orig_h);
		if(test !in ftp_quests){
			add ftp_quests[test];
		} else {
			# this host has once established a ftp connection
			# maybe it is an attacker
			print "depulicate ftp connection (obviously the previous ftp connection has broken down)";
		}
		print fmt("a successful ftp login from %s!", c$id$orig_h);
		SumStats::observe("ftp.success_auth", SumStats::Key($host=c$id$orig_h),
	                  SumStats::Observation($num=1));
	}
	if ( cmd == "USER" || cmd == "PASS" ){
		if ( FTP::parse_ftp_reply_code(code)$x == 5 ){
			# local test1 = fmt("%s", c$id$resp_h);
			local test2 = fmt("%s", c$id$orig_h);
			# if(test1 !in potential_ftp_attackers){
			# 	add potential_ftp_attackers[test1];
			# 	potential_attacks_info[test1] = 1;
			# } else {
			# 	potential_attacks_info[test1] += 1;
			# }
			if(test2 !in potential_ftp_attackers){
				add potential_ftp_attackers[test2];
				potential_attacks_info[test2] = 1;
			} else {
				potential_attacks_info[test2] += 1;
			}
			SumStats::observe("ftp.failed_auth", [$host=c$id$orig_h], [$str=cat(c$id$resp_h)]);
			SumStats::observe("ftp.failed_auth_sum", SumStats::Key($host=c$id$orig_h),
	                  SumStats::Observation($num=1));
		}
	}
}

event bro_done(){
	print "finishing";
	print "here are(is) potential ftp attacker(s): ";
	print potential_ftp_attackers;
	print "here are hosts which established ftp connections successfully";
	print ftp_quests;
	print "here are poential attackers cooresponding to their attempt times";
	print potential_attacks_info;
	print "start checking...";
	for(e in potential_ftp_attackers){
		print fmt("check %s", e);
		if(e in ftp_quests){
			print fmt("It seems that %s is an attacker and it succeeded to login via ftp(input wrong password %d times).", e, potential_attacks_info[e]);
		} else {
			print fmt("%s failed to login via ftp", e);
		}
	}
	print "end checking...";
}

 运行的结果，拿得是bro官网提供的pcap文件：

here are poential attackers cooresponding to their attempt times
{
[120.221.194.180] = 16,
[56.199.108.57] = 5,
[106.20.55.102] = 1,
[131.243.3.49] = 11,
[121.58.136.76] = 12,
[98.37.80.166] = 1,
[54.231.35.101] = 2,
[133.128.74.175] = 5,
[33.96.133.127] = 1,
[79.71.74.165] = 7,
[10.84.255.93] = 1,
[10.194.47.41] = 12,
[185.90.84.96] = 3,
[176.224.179.191] = 1,
[30.159.200.190] = 1,
[42.113.44.231] = 1,
[131.243.1.83] = 123,
[195.96.20.122] = 2,
[184.217.39.68] = 2,
[224.20.132.30] = 2,
[187.18.15.111] = 1,
[178.148.238.232] = 2,
[196.233.219.147] = 1,
[172.130.217.52] = 1,
[198.158.17.190] = 1,
[135.160.181.10] = 3,
[96.159.45.4] = 1,
[94.7.2.86] = 1,
[246.124.22.82] = 1,
[30.146.52.247] = 2,
[241.34.155.201] = 9,
[68.98.238.60] = 1,
[5.181.121.178] = 2,
[234.147.130.114] = 9,
[210.13.53.158] = 1,
[110.102.141.8] = 3,
[74.12.78.121] = 1,
[65.105.203.243] = 1,
[218.65.255.185] = 3,
[188.179.92.114] = 10,
[230.126.59.23] = 2,
[179.192.184.110] = 4,
[138.151.189.128] = 18,
[136.145.76.48] = 1,
[191.63.112.154] = 1,
[206.135.167.184] = 1,
[253.87.26.29] = 1,
[116.70.243.164] = 1,
[142.195.176.72] = 1,
[202.239.81.189] = 1,
[4.18.95.135] = 1,
[32.175.23.146] = 1,
[222.38.6.47] = 1,
[232.82.19.92] = 2,
[99.201.191.152] = 4,
[250.180.225.181] = 2,

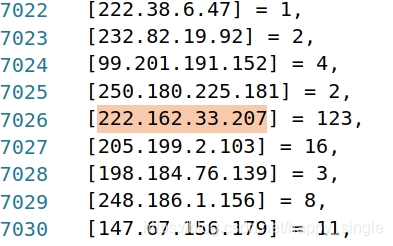

[222.162.33.207] = 123,
[205.199.2.103] = 16,
[198.184.76.139] = 3,
[248.186.1.156] = 8,
[147.67.156.179] = 11,
[204.189.164.75] = 1,
[183.173.223.0] = 1,
[135.118.232.105] = 1,
[121.119.209.34] = 1,
[213.102.101.225] = 1,
[59.235.58.155] = 1,
[248.170.78.217] = 2,
[107.143.150.55] = 1,
[234.129.51.135] = 2,
[131.243.1.10] = 279,
[229.226.233.186] = 1,

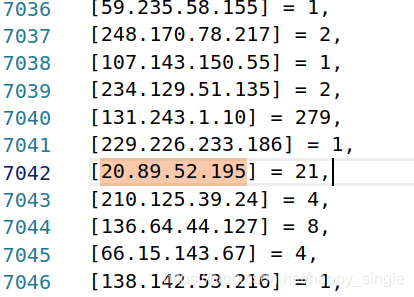

[20.89.52.195] = 21,
[210.125.39.24] = 4,
[136.64.44.127] = 8,
[66.15.143.67] = 4,
[138.142.53.216] = 1,
[44.76.136.98] = 24,
[25.141.7.128] = 4,
[216.181.212.62] = 1,
[254.105.15.81] = 1,
[163.35.234.74] = 1,
[29.135.233.80] = 1,
[146.134.112.83] = 3,
[42.176.40.48] = 1,
[51.165.231.205] = 2,
[131.102.149.29] = 1,
[234.60.65.4] = 3,
[150.206.239.185] = 1,
[219.199.171.180] = 7,

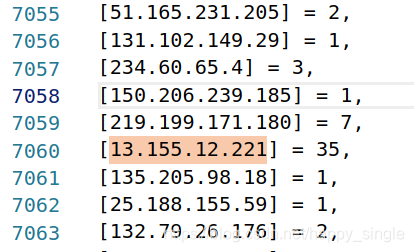

[13.155.12.221] = 35,
[135.205.98.18] = 1,
[25.188.155.59] = 1,
[132.79.26.176] = 2,
[11.117.225.64] = 1,
[45.9.79.41] = 1,
[44.85.238.2] = 2,
[49.131.41.26] = 2,
[90.50.23.40] = 1,
[253.9.198.39] = 2,
[218.51.165.238] = 1,
[131.192.25.203] = 1,
[208.167.163.43] = 3,
[197.109.165.121] = 2,
[223.252.32.126] = 5,
[70.212.208.175] = 3,
[44.120.49.173] = 1,
[118.14.158.208] = 2,
[194.123.168.69] = 3,
[213.82.145.63] = 2,
[165.166.76.61] = 1,
[95.38.206.165] = 7,
[206.212.29.97] = 1,
[49.241.172.178] = 3,
[228.136.177.100] = 1,
[60.31.90.94] = 3,
[128.224.254.154] = 5,
[149.179.123.67] = 1,
[133.88.74.25] = 5,
[198.111.78.1] = 2,
[120.86.184.155] = 5,
[123.103.74.35] = 1,
[95.237.72.221] = 1,
[150.250.38.223] = 10,
[176.152.171.164] = 3,
[132.34.219.22] = 1,
[176.97.142.45] = 1,
[157.3.95.196] = 1,
[127.127.179.120] = 1,
[157.94.151.3] = 5,
[48.191.139.130] = 5,
[2.246.14.185] = 3,
[78.101.5.64] = 5,
[198.82.60.50] = 4,
[8.138.220.65] = 1,
[145.82.149.241] = 1,
[249.4.134.221] = 1
}
start checking...
check 120.221.194.180
It seems that 120.221.194.180 is an attacker and it succeeded to login via ftp(input wrong password 16 times).
check 56.199.108.57
It seems that 56.199.108.57 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 106.20.55.102
It seems that 106.20.55.102 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 131.243.3.49
131.243.3.49 failed to login via ftp
check 121.58.136.76
121.58.136.76 failed to login via ftp
check 98.37.80.166
98.37.80.166 failed to login via ftp
check 54.231.35.101
It seems that 54.231.35.101 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 133.128.74.175
It seems that 133.128.74.175 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 33.96.133.127
It seems that 33.96.133.127 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 79.71.74.165
79.71.74.165 failed to login via ftp
check 10.84.255.93
10.84.255.93 failed to login via ftp
check 10.194.47.41
10.194.47.41 failed to login via ftp
check 185.90.84.96
185.90.84.96 failed to login via ftp
check 176.224.179.191
It seems that 176.224.179.191 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 30.159.200.190
30.159.200.190 failed to login via ftp
check 42.113.44.231
42.113.44.231 failed to login via ftp
check 131.243.1.83
131.243.1.83 failed to login via ftp
check 195.96.20.122
195.96.20.122 failed to login via ftp
check 184.217.39.68
It seems that 184.217.39.68 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 224.20.132.30
It seems that 224.20.132.30 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 187.18.15.111
It seems that 187.18.15.111 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 178.148.238.232
178.148.238.232 failed to login via ftp
check 196.233.219.147
It seems that 196.233.219.147 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 172.130.217.52
It seems that 172.130.217.52 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 198.158.17.190
It seems that 198.158.17.190 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 135.160.181.10
It seems that 135.160.181.10 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 96.159.45.4
It seems that 96.159.45.4 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 94.7.2.86
94.7.2.86 failed to login via ftp
check 246.124.22.82
246.124.22.82 failed to login via ftp
check 30.146.52.247
It seems that 30.146.52.247 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 241.34.155.201
It seems that 241.34.155.201 is an attacker and it succeeded to login via ftp(input wrong password 9 times).
check 68.98.238.60
68.98.238.60 failed to login via ftp
check 5.181.121.178
It seems that 5.181.121.178 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 234.147.130.114
234.147.130.114 failed to login via ftp
check 210.13.53.158
210.13.53.158 failed to login via ftp
check 110.102.141.8
110.102.141.8 failed to login via ftp
check 74.12.78.121
It seems that 74.12.78.121 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 65.105.203.243
65.105.203.243 failed to login via ftp
check 218.65.255.185
It seems that 218.65.255.185 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 188.179.92.114
It seems that 188.179.92.114 is an attacker and it succeeded to login via ftp(input wrong password 10 times).
check 230.126.59.23
It seems that 230.126.59.23 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 179.192.184.110
It seems that 179.192.184.110 is an attacker and it succeeded to login via ftp(input wrong password 4 times).
check 138.151.189.128
It seems that 138.151.189.128 is an attacker and it succeeded to login via ftp(input wrong password 18 times).
check 136.145.76.48
136.145.76.48 failed to login via ftp
check 191.63.112.154
191.63.112.154 failed to login via ftp
check 206.135.167.184
It seems that 206.135.167.184 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 253.87.26.29
It seems that 253.87.26.29 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 116.70.243.164
It seems that 116.70.243.164 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 142.195.176.72
142.195.176.72 failed to login via ftp
check 202.239.81.189
202.239.81.189 failed to login via ftp
check 4.18.95.135
4.18.95.135 failed to login via ftp
check 32.175.23.146
32.175.23.146 failed to login via ftp
check 222.38.6.47
222.38.6.47 failed to login via ftp
check 232.82.19.92
It seems that 232.82.19.92 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 99.201.191.152
It seems that 99.201.191.152 is an attacker and it succeeded to login via ftp(input wrong password 4 times).
check 250.180.225.181
It seems that 250.180.225.181 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 222.162.33.207
It seems that 222.162.33.207 is an attacker and it succeeded to login via ftp(input wrong password 123 times).
check 205.199.2.103
It seems that 205.199.2.103 is an attacker and it succeeded to login via ftp(input wrong password 16 times).
check 198.184.76.139
It seems that 198.184.76.139 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 248.186.1.156
It seems that 248.186.1.156 is an attacker and it succeeded to login via ftp(input wrong password 8 times).
check 147.67.156.179
It seems that 147.67.156.179 is an attacker and it succeeded to login via ftp(input wrong password 11 times).
check 204.189.164.75
It seems that 204.189.164.75 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 183.173.223.0
It seems that 183.173.223.0 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 121.119.209.34
It seems that 121.119.209.34 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 135.118.232.105
135.118.232.105 failed to login via ftp
check 213.102.101.225
It seems that 213.102.101.225 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 59.235.58.155
It seems that 59.235.58.155 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 248.170.78.217
It seems that 248.170.78.217 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 107.143.150.55
It seems that 107.143.150.55 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 234.129.51.135
It seems that 234.129.51.135 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 229.226.233.186
It seems that 229.226.233.186 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 131.243.1.10
131.243.1.10 failed to login via ftp
check 20.89.52.195
It seems that 20.89.52.195 is an attacker and it succeeded to login via ftp(input wrong password 21 times).
check 210.125.39.24
210.125.39.24 failed to login via ftp
check 136.64.44.127
It seems that 136.64.44.127 is an attacker and it succeeded to login via ftp(input wrong password 8 times).
check 66.15.143.67
It seems that 66.15.143.67 is an attacker and it succeeded to login via ftp(input wrong password 4 times).
check 138.142.53.216
It seems that 138.142.53.216 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 44.76.136.98
44.76.136.98 failed to login via ftp
check 25.141.7.128
25.141.7.128 failed to login via ftp
check 216.181.212.62
216.181.212.62 failed to login via ftp
check 254.105.15.81
254.105.15.81 failed to login via ftp
check 163.35.234.74
163.35.234.74 failed to login via ftp
check 29.135.233.80
29.135.233.80 failed to login via ftp
check 146.134.112.83
146.134.112.83 failed to login via ftp
check 42.176.40.48
42.176.40.48 failed to login via ftp
check 51.165.231.205
51.165.231.205 failed to login via ftp
check 131.102.149.29
It seems that 131.102.149.29 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 234.60.65.4
234.60.65.4 failed to login via ftp
check 150.206.239.185
It seems that 150.206.239.185 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 219.199.171.180
It seems that 219.199.171.180 is an attacker and it succeeded to login via ftp(input wrong password 7 times).
check 13.155.12.221
It seems that 13.155.12.221 is an attacker and it succeeded to login via ftp(input wrong password 35 times).
check 135.205.98.18
It seems that 135.205.98.18 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 25.188.155.59
It seems that 25.188.155.59 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 132.79.26.176
It seems that 132.79.26.176 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 11.117.225.64
It seems that 11.117.225.64 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 45.9.79.41
It seems that 45.9.79.41 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 44.85.238.2
44.85.238.2 failed to login via ftp
check 49.131.41.26
It seems that 49.131.41.26 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 90.50.23.40
It seems that 90.50.23.40 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 253.9.198.39
It seems that 253.9.198.39 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 218.51.165.238
218.51.165.238 failed to login via ftp
check 131.192.25.203
131.192.25.203 failed to login via ftp
check 208.167.163.43
208.167.163.43 failed to login via ftp
check 197.109.165.121
It seems that 197.109.165.121 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 223.252.32.126
It seems that 223.252.32.126 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 44.120.49.173
It seems that 44.120.49.173 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 70.212.208.175
It seems that 70.212.208.175 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 118.14.158.208
It seems that 118.14.158.208 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 194.123.168.69
It seems that 194.123.168.69 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 213.82.145.63
It seems that 213.82.145.63 is an attacker and it succeeded to login via ftp(input wrong password 2 times).
check 165.166.76.61
165.166.76.61 failed to login via ftp
check 95.38.206.165
It seems that 95.38.206.165 is an attacker and it succeeded to login via ftp(input wrong password 7 times).
check 206.212.29.97
206.212.29.97 failed to login via ftp
check 49.241.172.178
49.241.172.178 failed to login via ftp
check 228.136.177.100
228.136.177.100 failed to login via ftp
check 60.31.90.94
60.31.90.94 failed to login via ftp
check 149.179.123.67
It seems that 149.179.123.67 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 128.224.254.154
128.224.254.154 failed to login via ftp
check 133.88.74.25
It seems that 133.88.74.25 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 198.111.78.1
198.111.78.1 failed to login via ftp
check 120.86.184.155
It seems that 120.86.184.155 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 123.103.74.35
It seems that 123.103.74.35 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 95.237.72.221
95.237.72.221 failed to login via ftp
check 176.152.171.164
176.152.171.164 failed to login via ftp
check 150.250.38.223
It seems that 150.250.38.223 is an attacker and it succeeded to login via ftp(input wrong password 10 times).
check 132.34.219.22
It seems that 132.34.219.22 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 176.97.142.45
176.97.142.45 failed to login via ftp
check 157.3.95.196
It seems that 157.3.95.196 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 127.127.179.120
It seems that 127.127.179.120 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 157.94.151.3
It seems that 157.94.151.3 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 48.191.139.130
It seems that 48.191.139.130 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 2.246.14.185
It seems that 2.246.14.185 is an attacker and it succeeded to login via ftp(input wrong password 3 times).
check 78.101.5.64
It seems that 78.101.5.64 is an attacker and it succeeded to login via ftp(input wrong password 5 times).
check 198.82.60.50
It seems that 198.82.60.50 is an attacker and it succeeded to login via ftp(input wrong password 4 times).
check 8.138.220.65
It seems that 8.138.220.65 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
check 145.82.149.241
145.82.149.241 failed to login via ftp
check 249.4.134.221
It seems that 249.4.134.221 is an attacker and it succeeded to login via ftp(input wrong password 1 times).
end checking...

可以看到可疑的ip以及它们尝试登录ftp且失败的次数，并且列出了有可疑行为且成功登录了的主机（由于输出太多，上面只列出了最后的结果）。

另外，这里用logging框架生成了两个日志文件，分别是origs.log和ftp.log。其中ftp.log是在添加日志流之后自动生成的。

	# Create an ID for our new stream. By convention, this is
	# called "MY_LOG".
	redef enum Log::ID += { MY_LOG };

	# Define the record type that will contain the data to log.
	type Info: record {
		ts: time	&log;
		id: conn_id &log;
	};

	# Optionally, we can add a new field to the connection record so that
	# the data we are logging (our "Info" record) will be easily
	# accessible in a variety of event handlers.
	redef record connection += {
		# By convention, the name of this new field is the lowercase name
		# of the module.
		ftp: Info &optional;
	};
	# logging
	local rec: FTP::Info = [$ts = network_time(), $id = c$id];
	# Store a copy of the data in the connection record so other
	# event handlers can access it.
	# c$ftp = rec;
	Log::write(FTP::MY_LOG, rec);

 每个日志流至少对应一个日志文件，这部分就对应ftp.log文件了。下面是ftp.log的部分内容：

 因为这里的id本身又是record类型的，它包含orig_h，orig_p，resp_h，resp_p四个成员。这四个成员分别是，源主机ip，源主机端口，目的主机ip，目的主机端口。所以，ftp.log实际上记录了五个字段。

在默认的情况下，每个日志流只对应一个日志文件，但可以通过添加过滤器的方法，为某一个日志流添加多个日志文件。

# This event is handled at a priority higher than zero so that if
# users modify this stream in another script, they can do so at the
# default priority of zero.
event bro_init() &priority=5{
	# Create the stream. This adds a default filter automatically.
	Log::create_stream(FTP::MY_LOG, [$columns=Info, $path="ftp"]);

	# Add a mew filter to the FTP::MY_LOG stream that logs only
	# timestamp and originator address.
	local filter: Log::Filter = [$name="orig-only", $path="origs",
								$include=set("ts", "id.orig_h")];
	Log::add_filter(FTP::MY_LOG, filter);
	# We can get a log file called origs.log using this filter
}

这个过滤器会创建origs.log文件，origs.log的内容如下：

因为取了id的orig_h成员，所以最后origs.log中就只有这两个字段。

下面是notice.log的内容：

#separator \x09
#set_separator	,
#empty_field	(empty)
#unset_field	-
#path	notice
#open	2018-12-12-16-51-49
#fields	ts	uid	id.orig_h	id.orig_p	id.resp_h	id.resp_p	fuid	file_mime_type	file_desc	proto	note	msg	sub	src	dst	p	n	peer_descr	actions	suppress_for	dropped	remote_location.country_code	remote_location.region	remote_location.city	remote_location.latitude	remote_location.longitude
#types	time	string	addr	port	addr	port	string	string	string	enum	enum	string	string	addr	addr	port	count	string	set[enum]	interval	bool	string	string	string	double	double
1042214045.140824	-	-	-	-	-	-	-	-	-	FTP::Bruteforcing	222.162.33.207 had 20 failed logins on 1 FTP server in 1m10s	-	222.162.33.207	-	-	-	-	Notice::ACTION_LOG	3600.000000	F	-	-	-	-	-
1042511846.764683	-	-	-	-	-	-	-	-	-	FTP::Bruteforcing	13.155.12.221 had 20 failed logins on 1 FTP server in 0m4s	-	13.155.12.221	-	-	-	-	Notice::ACTION_LOG	3600.000000	F	-	-	-	-	-
1042736636.176201	-	-	-	-	-	-	-	-	-	FTP::Bruteforcing	20.89.52.195 had 20 failed logins on 1 FTP server in 1m51s	-	20.89.52.195	-	-	-	-	Notice::ACTION_LOG	3600.000000	F	-	-	-	-	-
#close	2018-12-12-16-53-37



可以看到notice.log中所提及的三个ip的ftp登录失败次数。

check 20.89.52.195
It seems that 20.89.52.195 is an attacker and it succeeded to login via ftp(input wrong password 21 times).
check 13.155.12.221
It seems that 13.155.12.221 is an attacker and it succeeded to login via ftp(input wrong password 35 times).
check 222.162.33.207
It seems that 222.162.33.207 is an attacker and it succeeded to login via ftp(input wrong password 123 times).

并且它们最终都暴力破解成功了（成功登上了ftp服务器）。

查看记录用户名和密码（筛选之前的，即所有发出ftp请求并发送用户名和密码的主机，都记录下来，筛选是后话了）

 可惜，用户名全是anonymous（匿名），密码全是<password>。看来bro没有直接提供报文中破解之后的密码。

基于离线pcap包的FTP协议网络流量数据提取
dibi7905的博客
11-27 1563
基于离线pcap包的FTP协议网络流量数据提取 最近要利用python程序对离线pcap数据包进行分析，工作的环境是win10系统，python3.6 一、需要用到的几个python库 struct io sys 附：利用wireshark进行辅助分析 二、协议提取 1、定义所需要的库 import struct import io import sys` 2、对数据包进行导入 open_file...
bro脚本语法1-操作符
mhpmii的专栏
10-26 2586
bro脚本语法1-操作符@(教程)[Bro]理解Bro脚本 Bro包含一个事件驱动型的脚本语言，主要是为了提供和扩展bro的功能 Bro脚本有效的通知bro我们定义的事件(event),然后让我们知道有关于连接的信息，以便我们可以在其上执行某些功能 比如 ssl.log 文件通过bro脚本创建，当某个证书链是无效的遍历整个证书链和问题通知，整个过程告诉bro应该监视服务器和客户端的 SSL_H
捕获ftp数据流查看图片_TCP的交互数据流传输
weixin_39860919的博客
12-10 301
TCP协议基础之上建立着许多不同类型的网络协议，我们通常根据数据吞吐量的大小将其分为两大类：第一类协议是交互数据类型协议，较为常见的协议有Telnet协议、SSH协议等。这种类型的协议在多数情况下用做小流量的数据交换，诸如输入一小段指令、回显一些文字等；第二类协议是数据成块类型协议，较为常见的协议有FTP协议、HTTP协议、电子邮件等。这种类型的协议要求TCP尽可能的运载数据，把数据吞吐...
bro脚本实例讲解
Leeboy_Wang的专栏
01-25 2774
1、过滤出数据包中的文件global mime_to_ext: table[string] of string = { ["application/x-dosexec"] = "exe", ["text/plain"] = "txt", ["image/jpeg"] = "jpg", ["image/png"] = "png", ["text/html"] = "html", }; e
2.5 Bro脚本入门
liyh_xd的博客
02-24 1109
基于Bro 2.5.3 文档，按照原文结构整理，非原文翻译，建议阅读英文文档后阅读，如有错误请不吝指出。原文地址：https://www.bro.org/sphinx/scripting/index.html时间修改内容2018.02.24完成全文    一、理解Bro脚本语言Bro主要提供两项能力：解析流量并生成event，整个过程不对使用者开放，也不对生成的event进行分析。分析event并...
bro_scripts:我收集的兄弟脚本
07-12
总的来说，"Bro Scripts: 我收集的兄弟脚本" 是一个宝贵的资源库，它汇集了各种实用的Bro脚本，可以帮助网络安全专业人员提升其网络监控能力，实现更高效、更全面的威胁检测。在实际应用中，应结合具体需求选择和...
CTF中的网络流量分析：工具、技术与实战案例
最新发布
weixin_65409651的博客
08-26 1907
网络流量分析是一项通过捕获和检查网络数据包来解析网络活动的技术。分析者可以识别网络中的恶意活动、异常行为或数据泄露等问题。网络流量分析在CTF竞赛中常用于重建网络攻击过程、提取敏感数据、识别命令与控制（C2）通信等任务。
zeek(bro) 脚本学习 一
lepton126的专栏
10-18 2436
https://www.zeek.org/官网 https://docs.zeek.org/en/stable/script-reference/log-files.html log文件字段名详解 安全套接字SSL或者是安全传输协议TLS是当今网络使用的重要加密协议，ZEEK(BRO)是一款经典网络安全分析架构，是分析加密数据有力工具，和大多数编程语言一样,ZEEK...
Bro脚本语法6-日志文件（Log Files）
mhpmii的专栏
10-26 2454
Bro脚本语法6-日志文件（Log Files）@(教程)[Bro]Network Protocols Log File Description Field Descriptions conn.log TCP/UDP/ICMP connections Conn::Info dhcp.log DHCP leases DHCP::Info dnp3.log DN
如何使用Python进行网络安全与密码学【第149篇—密码学】
2401_84254087的博客
04-27 961
最近遍览了各种网络安全类的文章，内容参差不齐，其中不伐有大佬倾力教学，也有各种不良机构浑水摸鱼，在收到几条私信，发现大家对一套完整的系统的网络安全从学习路线到学习资料，甚至是工具有着不小的需求。相比起繁琐的文字，还是生动的视频教程更加适合零基础的同学们学习，这里也是整理了一份与上述学习路线一一对应的网络安全视频教程。当然，当你入门之后，仅仅是视频教程已经不能满足你的需求了，你肯定需要学习各种工具的使用以及大量的实战项目，这里也分享一份。Scapy不仅可以用于网络数据包操作，还可以实现各种网络攻击与防御。
zeek：Zeek是功能强大的网络分析框架，与您可能知道的典型IDS有很大不同
02-05
Zeek网络安全监视器 网络流量分析和安全监控的框架。 ---- 在Twitter上关注我们 。 主要特点 深入分析Zeek附带了用于许多协议的分析器，可在应用程序层进行高级语义分析。 适应性强且灵活Zeek的特定于域的脚本语言支持特定于站点的监视策略，这意味着它不限于任何特定的检测方法。 高效的Zeek以高性能网络为目标，并在各种大型站点中得到运营使用。 高状态Zeek保持有关其监视的网络的广泛应用层状态，并提供网络活动的高级存档。 入门 查找有关Zeek入门信息的最佳位置是我们的网站 ，尤其是的部分。 在该网站上，您还可以找到稳定版本的下载，有关设置Zeek的教程以及许多其他有用
zeek-sanitize:用于清理Zeek日志的Python脚本
04-01
消毒 用于清理Zeek日志的Python脚本。 用法 sanitize.py <盐值> <字段列表，以逗号分隔> 如： cat conn.log | 切工| python sanitize.py mysalt 2,4 $ gunzip -c /usr/local/zeek/logs/2021-03-31/conn.08\:53\:31-09\:00\:00.log.gz | zeek-cut | python sanitize.py somelongsaltvalue 2,4 1617195206.877965 CV2G122dMtlNo3Rgv3 b530c19c772a39493981420b5100e3f0 61584 06067a84047d2e80fa39d09dd8868671 53 tcp - 0.001868 36 0 SH T T 0 SADF 5 248 0 0
rdfp：Zeek的远程桌面客户端指纹脚本。 基于https：github.com0x4D31fatt
02-04
rdfp：Zeek的远程桌面客户端指纹脚本。 基于https：github.com0x4D31fatt
cve-2020-0601:用于检测CVE-2020-0601的Zeek程序包
03-13
CVE-2020-0601的Zeek测试脚本 该脚本可以检测CVE-2020-0601的利用尝试。 它执行简单的检查以查看证书中是否使用了已知曲线-如果不是这样，则会发出通知。 notice.log中的示例通知： 1579043477.791522 CHhAvVGS1DHFjwGM9 192.241.209.49 46110 192.241.202.21 4433 F37z6n1B8zn1fZjpj application/x-x509-user-cert 192.241.202.21:4433/tcp tcp CVE_2020_0601::Unknown_X509_Curve ECC certificate with unknown curve; potential CVE-2020-0601 exploit attempt - 192.241.209.49 192.241.202.
zeek(bro) 脚本学习 三
lepton126的专栏
02-20 2563
参考https://blog.csdn.net/roshy/article/details/88827716 zeek(bro)读取pcap包后，缺省状态输出数个log文件，主要分以下几个类别： 诊断日志：capture_loss.log、loaded_scripts.log、stats.log、packet_filter.log 会话日志：conn.log 告警信息：weird.log ...
zeek学习(二)
成长之路
08-14 1218
zeek初识
zeek脚本语言编写入门
随便记记笔记
11-29 2393
其实大部分都是文档翻译的（也许是全部）
DVWA靶场-BruteForce·low~教程
m0_63936639的博客
05-24 558
brute force名为蛮力，此时此刻，我们的任务就是将这个页面可以成功的login in，当然我们现在并不知道正确的username以及password...
DVWA学习（三）Brute Force（暴力破解）
yusakul的博客
11-25 1194
BF算法，即暴风(Brute Force)算法，是普通的模式匹配算法，BF算法的思想就是将目标串S的第一个字符与模式串T的第一个字符进行匹配，若相等，则继续比较S的第二个字符和 T的第二个字符；若不相等，则比较S的第二个字符和T的第一个字符，依次比较下去，直到得出最后的匹配结果。BF算法是一种蛮力算法。 下面将对四种级别的代码进行分析。 Low 服务器端核心代码 &amp;amp;lt;?php if( i...
bcftools或vcftools提取指定区段的vcf文件（extract specified position ）
05-23
使用bcftools或vcftools提取指定区段的vcf文件的方法如下： 1. bcftools 使用bcftools需要先安装bcftools软件包。假设你已经安装好了bcftools，然后可以使用以下命令来提取指定区段的vcf文件： ``` bcftools view -r chrom:start-end input.vcf > output.vcf ``` 其中，`chrom`是染色体名称，`start`和`end`是区段的起始和终止位置，`input.vcf`是输入的vcf文件，`output.vcf`是输出的vcf文件。 例如，如果你想要提取chr1的第1000000到2000000个碱基位置的vcf记录，可以使用以下命令： ``` bcftools view -r chr1:1000000-2000000 input.vcf > output.vcf ``` 2. vcftools 使用vcftools需要先安装vcftools软件包。假设你已经安装好了vcftools，然后可以使用以下命令来提取指定区段的vcf文件： ``` vcftools --vcf input.vcf --chr chrom --from-bp start --to-bp end --out output ``` 其中，`chrom`是染色体名称，`start`和`end`是区段的起始和终止位置，`input.vcf`是输入的vcf文件，`output`是输出文件的前缀。 例如，如果你想要提取chr1的第1000000到2000000个碱基位置的vcf记录，可以使用以下命令： ``` vcftools --vcf input.vcf --chr chr1 --from-bp 1000000 --to-bp 2000000 --out output ``` 注意，vcftools生成的输出文件包括`.log`、`.frq`、`.sumstats`和`.recode.vcf`四个文件。其中，`.recode.vcf`文件是我们需要的vcf文件。
评论 3
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

Memories off

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
