而且,若自己实现一个2D引擎,这块内容是很具有参考意义的,用OpenGL的话,图像采样等都很少关注了,对对坐标就好。但菱角、圆弧、曲线等如何绘制仍然是一个难题,这时就可以参考Skia中drawPath的实现。
由于涉及较多的图形学知识,本章就不讲相关公式了,只讲讲基本的流程。
一、SkPath类
在之前的图像绘制并没有介绍SkBitmap,因为SkBitmap相对而言比较容易理解,网上文章也多。但这次的SkPath不同,研究它怎么用是需要一点精力的,因此在这里先做介绍。
1、SkPath结构
去除成员函数之后,我们看到SkPath包括这几个成员,注释中补充了说明:
class SK_API SkPath {
//SkPath中的主要内容,SkAutoTUnref是自解引用,之所以这么设计,是为了复制SkPath时,省去份量较多的点复制(只复制引用)。
//由一系列线段组成
SkAutoTUnref<SkPathRef> fPathRef;
int fLastMoveToIndex;
uint8_t fFillType;//如下四种类型之一
/*enum FillType {
kWinding_FillType,//绘制所有线段包围成的区域
kEvenOdd_FillType,//绘制被所有线段包围奇数次的区域)
kInverseWinding_FillType,//kWinding_FillType取反,即绘制不在该区域的点
kInverseEvenOdd_FillType//第二种type取反
}*/
mutable uint8_t fConvexity;//凹凸性,临时计算
mutable uint8_t fDirection;//方向,顺时针/逆时针,临时计算
#ifdef SK_BUILD_FOR_ANDROID
const SkPath* fSourcePath;//Hwui中使用,暂不关注
#endif
};
关于 fFillType中 kWinding_FillType和 kEvenOdd_FillType的区别,可看SkPath::contains。这是判断点是否在不规则几何体内的经典代码(),很有参考意义。
SkPathRef的内容如下:class SkPathRef
{
private:
mutable SkRect fBounds;//边界,临时计算
uint8_t fSegmentMask;//表示这个Path含有哪些种类的形状
mutable uint8_t fBoundsIsDirty;//缓存fBounds使用,表示 fBounds是否需要重新计算
mutable SkBool8 fIsFinite; // only meaningful if bounds are valid
mutable SkBool8 fIsOval;
/*skia不使用stl库而采用的一套容器方案,具体不细说,可看下 SkPath::Iter 的实现*/
SkPoint* fPoints; // points to begining of the allocation
uint8_t* fVerbs; // points just past the end of the allocation (verbs grow backwards)
int fVerbCnt;
int fPointCnt;
size_t fFreeSpace; // redundant but saves computation
SkTDArray<SkScalar> fConicWeights;
mutable uint32_t fGenerationID;
};
2、SkPath的主要类型:
kMove_Verb:表示需要移动起点
kLine_Verb:直线
kQuad_Verb:二次曲线
kConic_Verb:圆锥曲线
kCubic_Verb:三次曲线
kClose_Verb:表闭合到某点
kDone_Verb:表结束
#include "SkPath.h"
#include "SkCanvas.h"
#include "SkBitmap.h"
int main()
{
SkBitmap dst;
dst.allocN32Pixels(1000, 1000);
SkCanvas c(dst);
SkPath path;
/*一个三角形*/
path.moveTo(300,0);
path.lineTo(400,100);
path.lineTo(200,100);
path.close();
/*椭圆*/
SkRect oval;
oval.set(0, 0, 500, 600);
path.addOval(oval);
c.drawPath(path);
return 1;
}

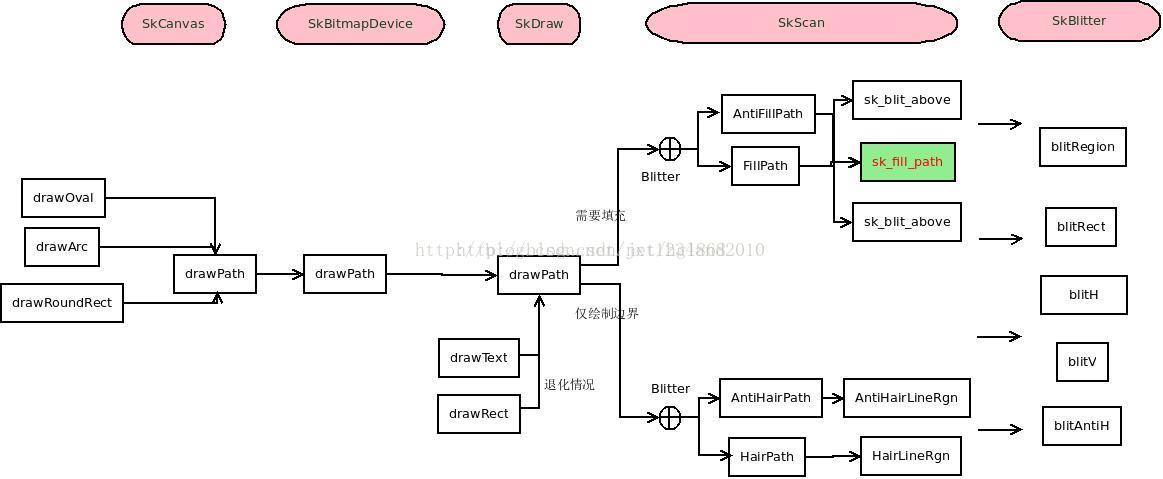

二、drawPath流程
填充算法说明
我们跟进最重要的函数 sk_fill_path,如下为代码:
void sk_fill_path(const SkPath& path, const SkIRect* clipRect, SkBlitter* blitter,
int start_y, int stop_y, int shiftEdgesUp,
const SkRegion& clipRgn) {
SkASSERT(&path && blitter);
SkEdgeBuilder builder;
int count = builder.build(path, clipRect, shiftEdgesUp);
SkEdge** list = builder.edgeList();
if (count < 2) {
if (path.isInverseFillType()) {
/*
* Since we are in inverse-fill, our caller has already drawn above
* our top (start_y) and will draw below our bottom (stop_y). Thus
* we need to restrict our drawing to the intersection of the clip
* and those two limits.
*/
SkIRect rect = clipRgn.getBounds();
if (rect.fTop < start_y) {
rect.fTop = start_y;
}
if (rect.fBottom > stop_y) {
rect.fBottom = stop_y;
}
if (!rect.isEmpty()) {
blitter->blitRect(rect.fLeft << shiftEdgesUp,
rect.fTop << shiftEdgesUp,
rect.width() << shiftEdgesUp,
rect.height() << shiftEdgesUp);
}
}
return;
}
SkEdge headEdge, tailEdge, *last;
// this returns the first and last edge after they're sorted into a dlink list
SkEdge* edge = sort_edges(list, count, &last);
headEdge.fPrev = NULL;
headEdge.fNext = edge;
headEdge.fFirstY = kEDGE_HEAD_Y;
headEdge.fX = SK_MinS32;
edge->fPrev = &headEdge;
tailEdge.fPrev = last;
tailEdge.fNext = NULL;
tailEdge.fFirstY = kEDGE_TAIL_Y;
last->fNext = &tailEdge;
// now edge is the head of the sorted linklist
start_y <<= shiftEdgesUp;
stop_y <<= shiftEdgesUp;
if (clipRect && start_y < clipRect->fTop) {
start_y = clipRect->fTop;
