#原先MobileNet网络存在问题:
1.采用了密集的1x1卷积。引入了大量的计算量。
2.之前引入残差结构,逐项加法也带来了额外的计算量。
3.特征图之间通信加强,对分组卷积后的特征图通过混洗重组,保证信息能够在不同组之间进行交互,再经过一个分组卷积。

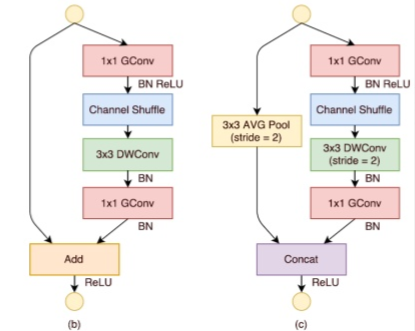

下面是ShuffleNet_V1版本的Block。具体混洗在程序内是通过先转置及reshape操作实现的:
def channel_shuffle(x, groups):
# type: (torch.Tensor, int) -> torch.Tensor
batchsize, num_channels, height, width = x.shape
channels_per_group = num_channels // groups
# reshape
x = x.view(batchsize, groups,
channels_per_group, height, width)
x = torch.transpose(x, 1, 2).contiguous()
# flatten
x = x.view(batchsize, -1, height, width)
return x
如下图是shuffleNet_V2版本的Block结构变化:
用channelSplit代替了最初的分组卷积,干脆将Channel Shuffle移至网络末端。、
其余4点改进为:
- 卷积层的输入和输出特征通道数相等时MAC最小,此时模型速度最快
- 过多的group操作会增大MAC,从而使模型速度变慢
- 模型中的分支数量越少,模型速度越快
- 逐项相加耗费时间,直接改为concat操作。

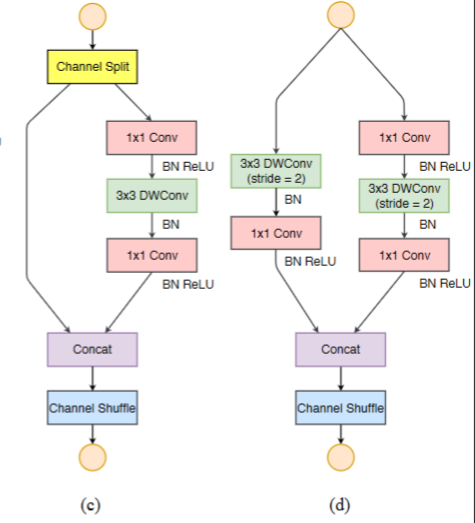

下面左右两图的区别为,左图使用channel split,通道数无变化;有图不使用channel split,特征图缩小但通道数加倍;但是每分支上经卷积后输出通道数不发生改变,保证了对于每个分支的卷积输入及输出通道的相等,提升了计算速度。也即,在v2中,所有卷积均不改变输出通道数。
根据上面两图,用pytorch给出ShuffleNet_V2基本模块的代码:
import os.path
from typing import Iterator
import numpy as np
import torch
import cv2
from PIL import Image
from torch.utils.data import Dataset, DataLoader, Subset, random_split
import re
from functools import reduce
from torch.utils.tensorboard import SummaryWriter as Writer
from torchvision import transforms, datasets
import torchvision as tv
from torch import nn
import torch.nn.functional as F
import time
class DSCWithBNAndReluForShuffleV2(nn.Module):
'''
stride=1时,默认输入通道等于输出通道的Block,也可在stride=1时改变输出通道倍数,channelOut为当stride=1时的输入参数,
如果不等于channelIn,则进行了倍数放大;
当stride=2时,为降采样网络,特征是输出特征图尺寸减半,但输出通道加倍。
注意,因为非降采样网络,需要对输入通道平分.但是对于3通道等奇数通道,需要利用相减的方法,确定两分支各自需要处理的通道数。
两分支通道数不同,并不影响最后以通道维度进行的concat操作:
'''
def __init__(self,channelIn,channelOut,stride=1,groups = 2):
if stride==2 and channelIn!=channelOut:
raise Exception('stride=1时,channelIn和channelOut必须相等')
# 默认混洗分组数
self.groups=groups
#非降采样网络时右分支的通道数:
dividedRate=0.5
super().__init__()
#以stride为参数划分降采样和非降采样的区别:
#当为非降采样时,负责提升输出通道
if stride == 1:
self.hasleftBranch=False
self.rightBranchChannel = channelIn-round(channelIn*dividedRate)
self.rightBranchChannelOut = channelOut-round(channelIn*dividedRate)
self.LeftBranchChannel =round(channelIn*dividedRate)
# 带BN及Relu的深度可分离卷积
elif stride == 2:
self.hasleftBranch = True
#左右分支输入均为channelIn,输出的通道加倍
self.channelIn = channelIn
self.rightBranchChannel=channelIn
self.rightBranchChannelOut=channelIn
# 降采样网络用
self.shortCutBranch = nn.Sequential(
nn.Conv2d(channelIn, channelIn, kernel_size=3, stride=stride,
padding=1, groups=channelIn, bias=False),
nn.BatchNorm2d(channelIn),
nn.Conv2d(channelIn, channelIn, kernel_size=1, bias=False),
nn.BatchNorm2d(channelIn),
nn.ReLU(True)
)
else:
raise Exception('stride的参数异常,正确值只能为1或2')
# 带BN及Relu的深度可分离卷积
self.rightBranch = nn.Sequential(
nn.Conv2d(self.rightBranchChannel, self.rightBranchChannelOut, kernel_size=1, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.ReLU(True),
nn.Conv2d(self.rightBranchChannelOut, self.rightBranchChannelOut, kernel_size=3, stride=stride,
padding=1, groups=self.rightBranchChannelOut, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.Conv2d(self.rightBranchChannelOut, self.rightBranchChannelOut, kernel_size=1, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.ReLU(True)
)
#用于混洗通道用
def _shuffle_chnls(self,x, groups=2):
(bs, chnls, h, w) = x.shape
#如果余数不为0,无法混洗,此次不混洗
if chnls % groups:
return x
chnls_per_group = chnls // groups
x = x.view(bs, groups, chnls_per_group, h, w)
x = torch.transpose(x, 1, 2).contiguous()
x = x.view(bs, -1, h, w)
return x
def forward(self,x):
#如果是非降采样网络
if self.hasleftBranch == False:
#首先切分两通道
#从头到self.LeftBranchChannel-1个元素
xlData=x[:, :self.LeftBranchChannel, :, :]
#从self.LeftBranchChannel元素到最后
xrData=x[:, self.LeftBranchChannel:, :, :]
xr = self.rightBranch(xrData)
x = torch.cat([xr, xlData], 1)
return self._shuffle_chnls(x, groups=self.groups)
#如果是降采样网络
elif self.hasleftBranch == True:
xr=self.rightBranch(x)
xl=self.shortCutBranch(x)
x=torch.cat([xr,xl],1)
return self._shuffle_chnls(x, groups=self.groups)
输出结果为:
torch.Size([1, 10, 224, 224])
torch.Size([1, 18, 112, 112])

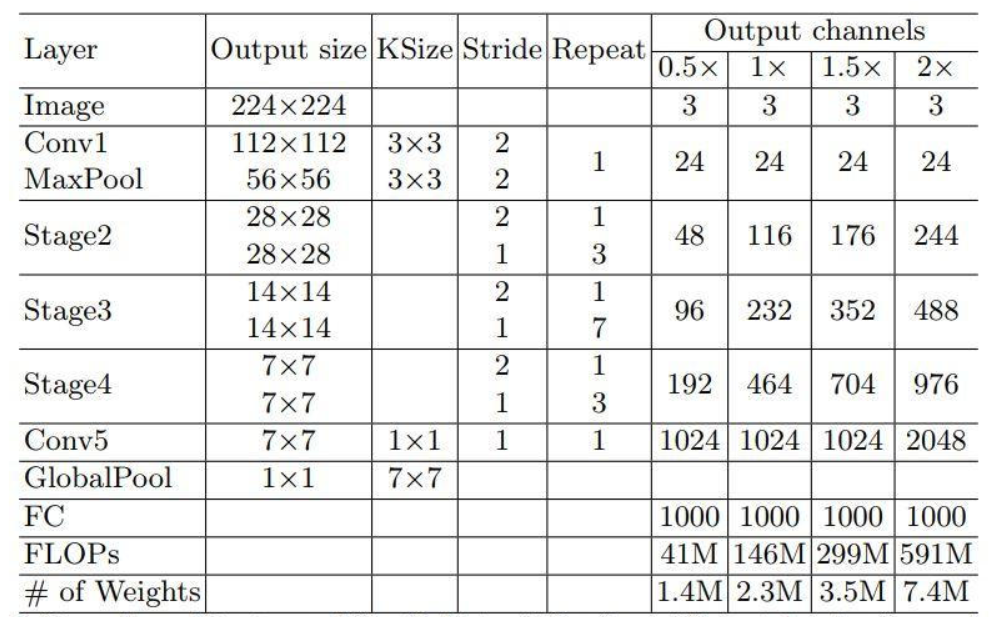

下面对图写出ShuffleNet_V2网络模块的完整结构表:
下面是pytorh按上图参数实现ShuffleNet_V2的完整代码:
import os.path
from typing import Iterator
import numpy as np
import torch
import cv2
from PIL import Image
from torch.utils.data import Dataset, DataLoader, Subset, random_split
import re
from functools import reduce
from torch.utils.tensorboard import SummaryWriter as Writer
from torchvision import transforms, datasets
import torchvision as tv
from torch import nn
import torch.nn.functional as F
import time
class DSCWithBNAndReluForShuffleV2(nn.Module):
'''
stride=1时,默认输入通道等于输出通道的Block,也可在stride=1时改变输出通道倍数,channelOut为当stride=1时的输入参数,
如果不等于channelIn,则进行了倍数放大;
当stride=2时,为降采样网络,特征是输出特征图尺寸减半,但输出通道加倍。
注意,因为非降采样网络,需要对输入通道平分.但是对于3通道等奇数通道,需要利用相减的方法,确定两分支各自需要处理的通道数。
两分支通道数不同,并不影响最后以通道维度进行的concat操作:
'''
def __init__(self,channelIn,channelOut,stride=1,groups = 2):
if stride==2 and channelIn!=channelOut:
raise Exception('stride=1时,channelIn和channelOut必须相等')
# 默认混洗分组数
self.groups=groups
#非降采样网络时右分支的通道数:
dividedRate=0.5
super().__init__()
#以stride为参数划分降采样和非降采样的区别:
#当为非降采样时,负责提升输出通道
if stride == 1:
self.hasleftBranch=False
self.rightBranchChannel = channelIn-round(channelIn*dividedRate)
self.rightBranchChannelOut = channelOut-round(channelIn*dividedRate)
self.LeftBranchChannel =round(channelIn*dividedRate)
# 带BN及Relu的深度可分离卷积
elif stride == 2:
self.hasleftBranch = True
#左右分支输入均为channelIn,输出的通道加倍
self.channelIn = channelIn
self.rightBranchChannel=channelIn
self.rightBranchChannelOut=channelIn
# 降采样网络用
self.shortCutBranch = nn.Sequential(
nn.Conv2d(channelIn, channelIn, kernel_size=3, stride=stride,
padding=1, groups=channelIn, bias=False),
nn.BatchNorm2d(channelIn),
nn.Conv2d(channelIn, channelIn, kernel_size=1, bias=False),
nn.BatchNorm2d(channelIn),
nn.ReLU(True)
)
else:
raise Exception('stride的参数异常,正确值只能为1或2')
# 带BN及Relu的深度可分离卷积
self.rightBranch = nn.Sequential(
nn.Conv2d(self.rightBranchChannel, self.rightBranchChannelOut, kernel_size=1, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.ReLU(True),
nn.Conv2d(self.rightBranchChannelOut, self.rightBranchChannelOut, kernel_size=3, stride=stride,
padding=1, groups=self.rightBranchChannelOut, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.Conv2d(self.rightBranchChannelOut, self.rightBranchChannelOut, kernel_size=1, bias=False),
nn.BatchNorm2d(self.rightBranchChannelOut),
nn.ReLU(True)
)
#用于混洗通道用
def _shuffle_chnls(self,x, groups=2):
(bs, chnls, h, w) = x.shape
#如果余数不为0,无法混洗,此次不混洗
if chnls % groups:
return x
chnls_per_group = chnls // groups
x = x.view(bs, groups, chnls_per_group, h, w)
x = torch.transpose(x, 1, 2).contiguous()
x = x.view(bs, -1, h, w)
return x
def forward(self,x):
#如果是非降采样网络
if self.hasleftBranch == False:
#首先切分两通道
#从头到self.LeftBranchChannel-1个元素
xlData=x[:, :self.LeftBranchChannel, :, :]
#从self.LeftBranchChannel元素到最后
xrData=x[:, self.LeftBranchChannel:, :, :]
xr = self.rightBranch(xrData)
x = torch.cat([xr, xlData], 1)
return self._shuffle_chnls(x, groups=self.groups)
#如果是降采样网络
elif self.hasleftBranch == True:
xr=self.rightBranch(x)
xl=self.shortCutBranch(x)
x=torch.cat([xr,xl],1)
return self._shuffle_chnls(x, groups=self.groups)
class ShuffleNet_v2(nn.Module):
"将参数写在类内,由字典进行加载,方便参数修改"
_defaults = {
"sets": {0.5, 1, 1.5, 2},
"units": [3, 7, 3],
"chnl_sets": {0.5: [24, 48, 96, 192, 1024],
1: [24, 116, 232, 464, 1024],
1.5: [24, 176, 352, 704, 1024],
2: [24, 244, 488, 976, 2048]}
}
'''scale为通道的缩放参数,越大模型体积越大,精度越高'''
def __init__(self, scale, num_cls):
super(ShuffleNet_v2, self).__init__()
self.__dict__.update(self._defaults)
self.num_cls=num_cls
self.chnls=self.chnl_sets[scale]
assert (scale in self.sets)
#重复一次的预处理层:
self.conv1AndMaxpool = nn.Sequential(nn.Conv2d(3, self.chnls[0], 3, 2, 1),nn.MaxPool2d(3, 2, 1))
self.stage2=self._makeStage(2)
self.stage3 = self._makeStage(3)
self.stage4 = self._makeStage(4)
self.conv5=nn.Conv2d(self.chnls[3], self.chnls[4], 1, 1, 0)
self.GP=nn.AdaptiveAvgPool2d(1)
self.FC=nn.Linear(self.chnls[4],self.num_cls)
def _makeStage(self,stageNum):
#所有阶段的共性是先过一个降采样层
layer=[]
#只改变特征图大小,输出通道固定加倍:
layer+=[DSCWithBNAndReluForShuffleV2(self.chnls[stageNum-2],self.chnls[stageNum-2],stride=2)]
#注意,降采样后下一层输入默认加倍
layer += [DSCWithBNAndReluForShuffleV2(2*self.chnls[stageNum - 2], self.chnls[stageNum - 1])]
#再过一个重复若干次数的非降采样层:
for i in range(self.units[stageNum-2]-1):
#进行输入输出的通道变换:
layer += [DSCWithBNAndReluForShuffleV2(self.chnls[stageNum - 1], self.chnls[stageNum - 1])]
return nn.Sequential(*layer)
def forward(self,x):
x= nn.Sequential(self.conv1AndMaxpool,self.stage2,self.stage3,self.stage4,self.conv5,self.GP)(x)
x=x.view(x.shape[0],-1)
#线性层前先展平:
x=self.FC(x)
return x
#进行实际测试:
net=ShuffleNet_v2(scale=1,num_cls=20)
k=torch.rand(1,3,224,224)
print(net(k).shape)
输出结果为:
torch.Size([1, 20])
