《机器学习》课后习题3.3 对率回归编程实现

参考了han同学的答案，西瓜数据集也可在han同学的github上下载。

3.3 编程实现对率回归，并给出西瓜数据集 3.0α 上的结果.

代码

import numpy as np
import pandas as pd
from matplotlib import pyplot as plt
from sklearn import linear_model
# 下面这两行是为了让matplotlib画图时的汉字正常显示
import matplotlib
matplotlib.rc("font",family='YouYuan')


# sigmoid函数


def sigmoid(s):
    s = 1 / (1 + np.exp(-s))
    return s


# 公式 3.27，最小化对数似然的相反数


def J_cost(X, y, beta):
    """

    :param X: array , shape(num_sample, num_features)
    :param y: array, shape(num_sample, 1)
    :param beta: array, shape(num_features+1, 1)
    :return: 公式3.27的结果，即对数似然相反数的值
    """
    X_hat = np.c_[X, np.ones((X.shape[0], 1))]
    y = y.reshape(-1, 1)
    beta = beta.reshape(-1, 1)

    lbeta = -y*np.dot(X_hat, beta) + np.log(1 + np.exp(np.dot(X_hat, beta)))

    return lbeta.sum()

# 公式3.30，beta的一阶导数


def gradient(X, y, beta):
    '''

    :param X:
    :param y:
    :param beta:
    :return: result of formula 3.30
    '''
    X_hat = np.c_[X, np.ones((X.shape[0], 1))]
    beta = beta.reshape(-1, 1)
    y = y.reshape(-1, 1)
    p1 = np.exp(np.dot(X_hat, beta)) / (1 + np.exp(np.dot(X_hat, beta)))

    grad = (-X_hat*(y - p1)).sum(0)

    return  grad.reshape(-1, 1)

# 梯度下降法，更新beta


def update_parameters_gradDesc(X, y, beta, learning_rate, num_iterations, print_cost):
    '''
    使用梯度下降法更新beta，输出对数似然相反数 公式3.27 的值
    :param X:
    :param y:
    :param beta:
    :param learning_rate:
    :param num_iterations:
    :param print_cost:
    :return:
    '''

    for i in range(num_iterations):
        grad = gradient(X, y, beta)
        beta -= learning_rate * grad

        if (i % 100 == 0) & print_cost:
            print('{}th iteration, cost is {} '.format(i, J_cost(X, y, beta)))
    return beta


# 牛顿法，海森因矩阵


def hessian(X, y, beta):
    '''
    根据公式3.31求Lbeta二阶导
    :param X:
    :param y:
    :param beta:
    :return:
    '''
    X_hat = np.c_[X, np.ones((X.shape[0], 1))]
    y = y.reshape(-1, 1)
    beta = beta.reshape(-1, 1)

    p1 = np.exp(np.dot(X_hat, beta)) / (1 + np.exp(np.dot(X_hat, beta)))

    m, n = X.shape
    # np.eye(m)是一个单位阵，P是方阵
    P = np.eye(m) * p1 * (1 -p1)

    assert P.shape[0] == P.shape[1]
    hess = np.dot(np.dot(X_hat.T, P), X_hat)
    return hess

# 牛顿法更新参数


def update_parameters_Newton(X, y, beta, num_iterations, print_cost):
    '''
    根据公式3.29更新beta
    :param X:
    :param y:
    :param beta:
    :param learning_rate:
    :param num_iterations:
    :param print_cost:
    :return: beta
    '''
    for i in range(num_iterations):
        grad = gradient(X, y, beta)
        hess = hessian(X, y, beta)

        beta -= np.dot(np.linalg.inv(hess), grad)

        if (i % 100 == 0) & print_cost:
            print('{}th iteration, cost is {}'.format(i, J_cost(X, y, beta)))
    return beta

# 初始化beta


def initialize_beta(n):
    # randn产生的样本符合正态分布
    beta = np.random.randn(n + 1, 1) * 0.5 + 1
    # print(beta)
    return beta

# 对数几率模型


def logistic_beta(X, y, num_iterations=100, learning_rate=1.2, print_cost=False, method='gradDesc'):
    '''

    :param X: array shape(num_sample, num_feature)
    :param y:
    :param num_iterations: 迭代次数
    :param learning_rate: 学习率
    :param print_cost: 是否打印对数似然相反数
    :param method: 所用方法
    :return: beta array shape(num_feature + 1, 1)
    '''
    m, n = X.shape
    beta = initialize_beta(n)

    if method == 'gradDesc':
        return update_parameters_gradDesc(X, y, beta, learning_rate, num_iterations, print_cost)
    elif method == 'Newton':
        return update_parameters_Newton(X, y, beta, num_iterations, print_cost)
    else:
        raise ValueError('Unknown error of %s' % method)

# 预测


def predict(X, beta):
    X_hat = np.c_[X, np.ones((X.shape[0], 1))]
    beta.reshape(-1, 1)
    p1 = np.exp(np.dot(X_hat, beta)) / (1 + np.exp(np.dot(X_hat, beta)))

    p1[p1 > 0.5] = 1
    p1[p1 <= 0.5] = 0

    temp = np.c_[X, p1]
    print(temp)

    return p1


if __name__ == '__main__':
    data_path = r'C:\Users\***\3.3\watermelon3_0_Ch.csv '

    # 加载数据
    data = pd.read_csv(data_path).values
    # print(data)
    is_good = data[:, 9] == '是'
    # print(is_good)
    is_bad = data[:, 9] == '否'
    # print(is_bad)

    # 7、8列数据，密度和含糖量
    X = data[:, 7:9].astype(float)
    # print(X)
    # 第九列数据，样本标记‘是’或‘否’
    y = data[:, 9]
    # print(y)

    y[y == '是'] = 1
    y[y == '否'] = 0
    y = y.astype(int)

    # 绘图：密度为行，含糖量为列，好瓜为黑圈，坏瓜为红×
    plt.scatter(data[:, 7][is_good], data[:, 8][is_good], c='k', marker='o')
    plt.scatter(data[:, 7][is_bad], data[:, 8][is_bad], c='r', marker='x')

    plt.xlabel('密度')
    plt.ylabel('含糖量')

    # 可视化模型结果
    beta = logistic_beta(X, y, num_iterations=1000, learning_rate=2.0, print_cost=True, method='gradDesc')

    w1, w2, intercept = beta
    # 预测结果
    predict(X, beta)
    x1 = np.linspace(0, 1)
    # 下面这个式子我不是很明白，我觉得y1也是一个属性，对应参数w2，w2y1 = -(w1x + b)，两边相减结果为0
    y1 = -(w1*x1 + intercept) / w2
    # print(x1)
    # print(y1)
    plt.plot(x1, y1, label=r'my_logistic_gradDesc')

    beta = logistic_beta(X, y, num_iterations=1000, learning_rate=2.0, print_cost=True, method='Newton')
    w1, w2, intercept = beta
    # 预测结果
    predict(X, beta)
    x1 = np.linspace(0, 1)
    # 下面这个式子我不是很明白，我觉得y1也是一个属性，对应参数w2，w2y1 = -(w1x + b)，两边相减结果为0
    y1 = -(w1*x1 + intercept) / w2
    plt.plot(x1, y1, label=r'my_logistic_Newton')


    # 可视化sklearn Logistic regression 模型结果
    # 注意sklearn的逻辑回归中，C越大表示正则化程度越低
    lr = linear_model.LogisticRegression(solver='lbfgs', C=100)
    lr.fit(X, y)

    lr_beta = np.c_[lr.coef_, lr.intercept_]
    print('cost of sklearn logistic: {}'.format(J_cost(X, y, lr_beta)))

    w1_sk, w2_sk = lr.coef_[0, :]

    x2 = np.linspace(0, 1)
    y2 = -(w1_sk*x2 + lr.intercept_) / w2_sk

    plt.plot(x2, y2, label=r'sklearn logistic')

    plt.legend(loc='upper right')
    plt.show()

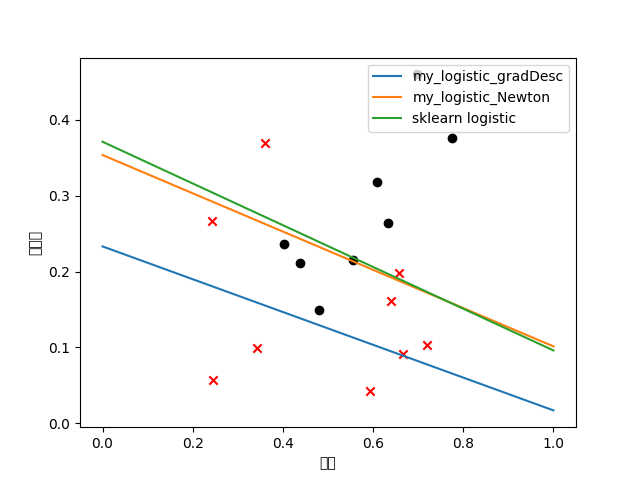

可视化呈现
