解析qlib表达式引擎

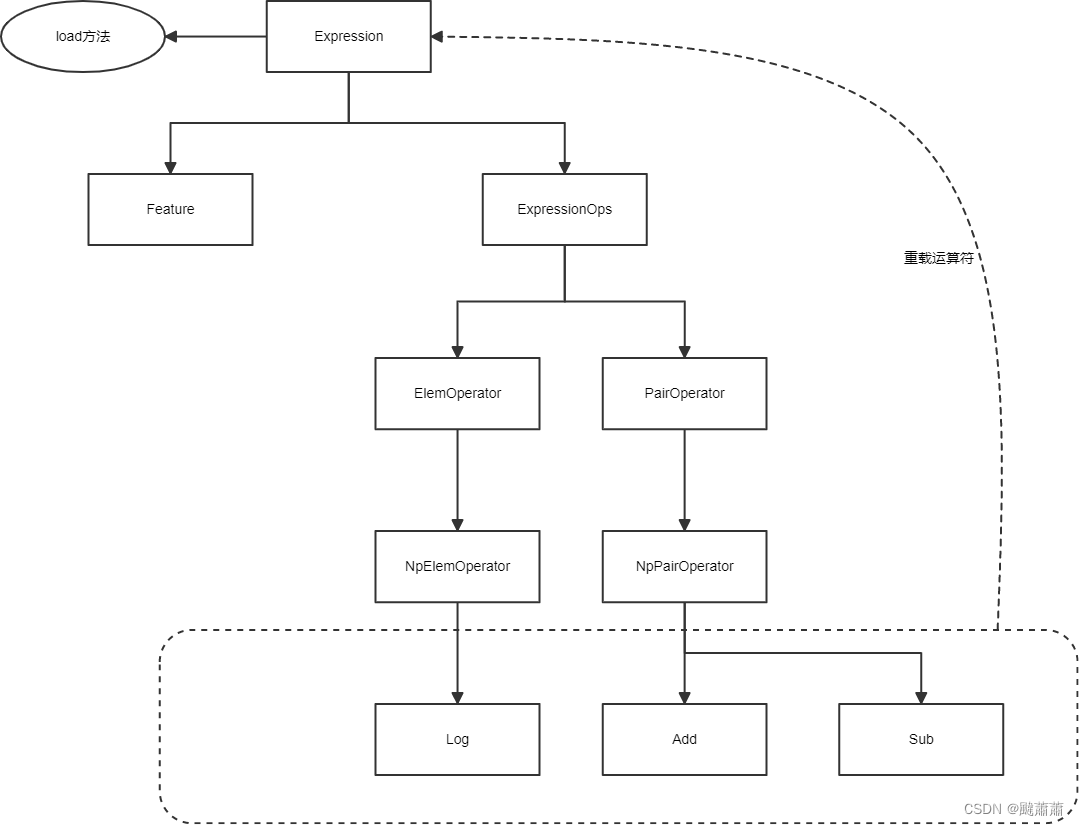

定义基础类

import abc
import pandas as pd
import numpy as np
import re

class Expression(abc.ABC):

    def __str__(self):
        return type(self).__name__

    def __repr__(self):
        return str(self)

    def __add__(self, other):
        return Add(self, other)  # 重载运算符 +

    def __radd__(self, other):
        return Add(other, self)

    def __sub__(self, other):
        return Sub(self, other) # 重载运算符 -

    def __rsub__(self, other):
        return Sub(other, self)

    def __mul__(self, other):
        return Mul(self, other)

    def __rmul__(self, other):
        return Mul(self, other)

    def __div__(self, other):
        return Div(self, other)

    def __rdiv__(self, other):
        return Div(other, self)

    def load(self, instrument, start_index, end_index, *args):
        series = self._load_internal(instrument, start_index, end_index, *args)
        return series

    @abc.abstractmethod
    def _load_internal(self, instrument, start_index, end_index, *args) -> pd.Series:
        raise NotImplementedError("This function must be implemented in your newly defined feature")

class ExpressionOps(Expression):
    pass

#################### Pair-Wise Operator ####################
class PairOperator(ExpressionOps):
    def __init__(self, feature_left, feature_right):
        self.feature_left = feature_left
        self.feature_right = feature_right

    def __str__(self):
        return "{}({},{})".format(type(self).__name__, self.feature_left, self.feature_right)


class NpPairOperator(PairOperator):
    def __init__(self, feature_left, feature_right, func):
        self.func = func
        super(NpPairOperator, self).__init__(feature_left, feature_right)

    def _load_internal(self, instrument, start_index, end_index, *args):
        if isinstance(self.feature_left, (Expression,)):
            series_left = self.feature_left.load(instrument, start_index, end_index, *args)
        else:
            series_left = self.feature_left  # numeric value
        if isinstance(self.feature_right, (Expression,)):
            series_right = self.feature_right.load(instrument, start_index, end_index, *args)
        else:
            series_right = self.feature_right
        res = getattr(np, self.func)(series_left, series_right)
        return res

class Add(NpPairOperator):
    def __init__(self, feature_left, feature_right):
        super(Add, self).__init__(feature_left, feature_right, "add")

class Sub(NpPairOperator):
    def __init__(self, feature_left, feature_right):
        super(Sub, self).__init__(feature_left, feature_right, "subtract")

class Mul(NpPairOperator):
    def __init__(self, feature_left, feature_right):
        super(Mul, self).__init__(feature_left, feature_right, "multiply")

class Div(NpPairOperator):
    def __init__(self, feature_left, feature_right):
        super(Div, self).__init__(feature_left, feature_right, "divide")

class Feature(Expression):
    """Static Expression

    This kind of feature will load data from provider
    """

    def __init__(self, name=None):
        if name:
            self._name = name
        else:
            self._name = type(self).__name__

    def __str__(self):
        return "$" + self._name

    def _load_internal(self, instrument, start_index, end_index):
        return instrument.loc[start_index:end_index][self._name]


解析表达式

def parse_field(field):
    # Following patterns will be matched:
    # - $close -> Feature("close")
    # - $close5 -> Feature("close5")
    # - $open+$close -> Feature("open")+Feature("close")

    if not isinstance(field, str):
        field = str(field)

    for pattern, new in [
        (rf"\$([\w]+)", r'Feature("\1")'),
    ]:  # Features  # Operators
        field = re.sub(pattern, new, field)
    return field

def compute_feature(df, exp):
    exp = eval(parse_field(exp))
    return exp.load(df, 0, len(df))

def compute_features(df, exps, labels):
    data = dict()
    for label, exp in zip(labels, exps):
        data[label] = compute_feature(df, exp)
    if len(data) > 1:
        return pd.concat(data, axis=1)
    else:
        return pd.DataFrame(data)

样例

data = {
    'a' : [1,2,3,4,5],
    'b' : [6,7,8,9,0]
}
df = pd.DataFrame(data)
compute_features(df, ["$a", "$b", "($a + $b) * ($a - $b)"], ['a','b', 'a^2 - b^2'])
