李宏毅机器学习作业10——Adversarial Attack，FGSM，IFGSM-CSDN博客

import torch
import torch.nn as nn
import torchvision
import os
import glob
import shutil
import numpy as np
from PIL import Image
from torchvision.transforms import transforms
from torch.utils.data import Dataset, DataLoader
import matplotlib.pyplot as plt

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
batch_size = 8

Global Settings

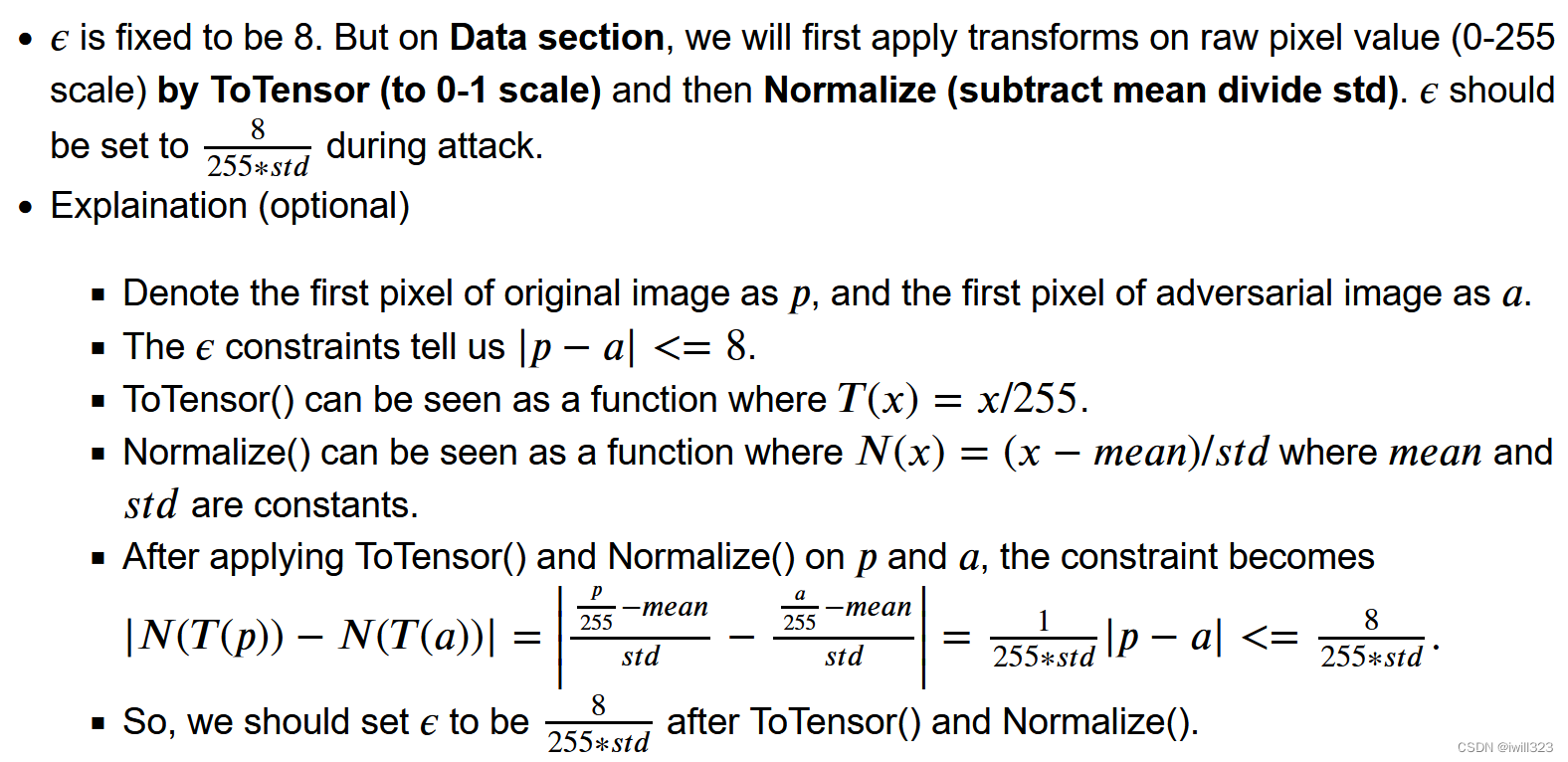

主要是图像标准化所用的平均值mean和标准差std，还有ε。ε要除以255和std，解释如下

benign images: images which do not contain adversarial perturbations
adversarial images: images which include adversarial perturbations

# the mean and std are the calculated statistics from cifar_10 dataset
cifar_10_mean = (0.491, 0.482, 0.447) # mean for the three channels of cifar_10 images
cifar_10_std = (0.202, 0.199, 0.201) # std for the three channels of cifar_10 images

# convert mean and std to 3-dimensional tensors for future operations
mean = torch.tensor(cifar_10_mean).to(device).view(3, 1, 1)
std = torch.tensor(cifar_10_std).to(device).view(3, 1, 1)

epsilon = 8/255/std

root = './data' # directory for storing benign images

Data

transform

transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize(cifar_10_mean, cifar_10_std)
])

Dataset

可以从李宏毅2022机器学习HW10解析_机器学习手艺人的博客-CSDN博客下载，总共200张图片，分为10个文件夹，每一类20个图片。

        data_dir
        ├── class_dir
        │   ├── class1.png
        │   ├── ...
        │   ├── class20.png

看到这个目录结构，可以发现用ImageFolder函数就可以了。ImageFolder函数可以参考数据集读取与划分_iwill323的博客-CSDN博客

adv_set = torchvision.datasets.ImageFolder(os.path.join(root), transform=transform)
adv_loader = DataLoader(adv_set, batch_size=batch_size, shuffle=False)

有意思的是，原代码自定义了一个Dataset函数，短小精悍，值得学习

class AdvDataset(Dataset):
    def __init__(self, data_dir, transform):
        self.images = []
        self.labels = []
        self.names = []
        '''
        data_dir
        ├── class_dir
        │   ├── class1.png
        │   ├── ...
        │   ├── class20.png
        '''
        for i, class_dir in enumerate(sorted(glob.glob(f'{data_dir}/*'))):
            images = sorted(glob.glob(f'{class_dir}/*'))
            self.images += images
            self.labels += ([i] * len(images))  # 第i个读到的类文件夹，类别就是i
            self.names += [os.path.relpath(imgs, data_dir) for imgs in images]  # 返回imgs相对于data_dir的相对路径
        self.transform = transform
    def __getitem__(self, idx):
        image = self.transform(Image.open(self.images[idx]))
        label = self.labels[idx]
        return image, label
    def __getname__(self):
        return self.names
    def __len__(self):
        return len(self.images)

adv_set = AdvDataset(root, transform=transform)
adv_names = adv_set.__getname__()
adv_loader = DataLoader(adv_set, batch_size=batch_size, shuffle=False)

print(f'number of images = {adv_set.__len__()}')

代理模型和目标模型

本次作业将已经训练好的模型作为proxy网络和攻击目标模型，这些网络在CIFAR-10上进行了预训练，可以从Pytorchcv 中引入。模型列表 here。要选择那些带_cifar10后缀的模型。

目标模型选择的是resnet110_cifar10。后面代理模型选择的是nin_cifar10，resnet20_cifar10，preresnet20_cifar10，也就是说在这些网络上训练生成攻击图像，然后应用于攻击resnet110_cifar10

from pytorchcv.model_provider import get_model as ptcv_get_model

model = ptcv_get_model('resnet110_cifar10', pretrained=True).to(device)
loss_fn = nn.CrossEntropyLoss()
