AHS量子霍尔传感器应用案例-磁成像安防威胁检测应用
网站链接：https://www.ahsltd.com/copy-of-projects

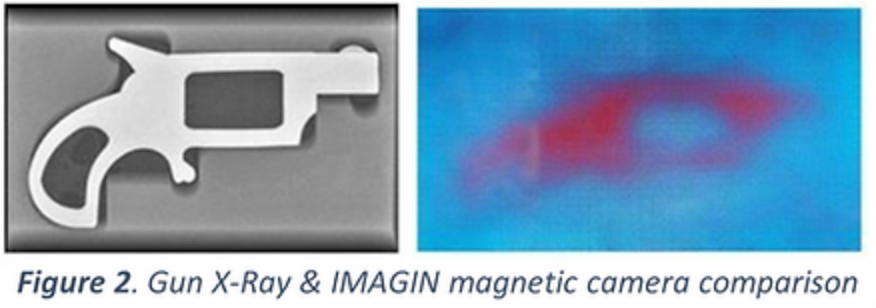

AHS has developed a miniaturised Intelligent magnetic Imaging device with the potential to revolutionise the speed and accuracy of high-resolution non-contact magnetic imaging of metallic threats. Our technology offers the advantages of metallic component X-ray imaging without the need for X-ray energy generation.
AHS开发了一种小型化的智能磁成像设备，有可能彻底改变金属威胁的高分辨率非接触式磁成像的速度和准确性。我们的技术提供了金属部件X射线成像的优势，而无需产生X射线能量。

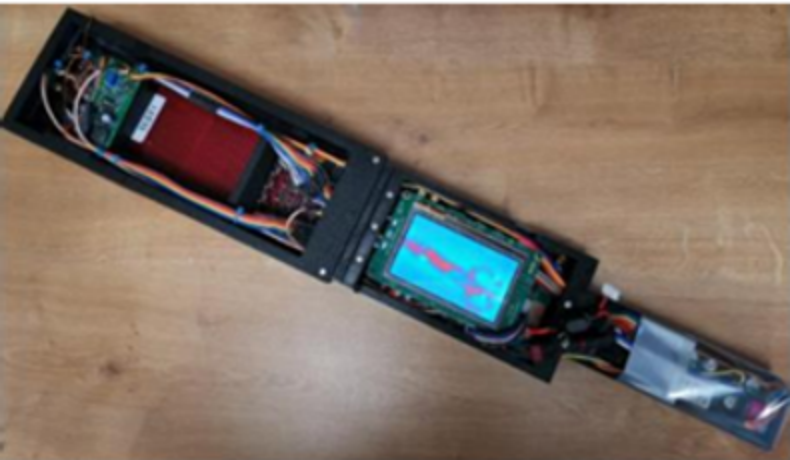

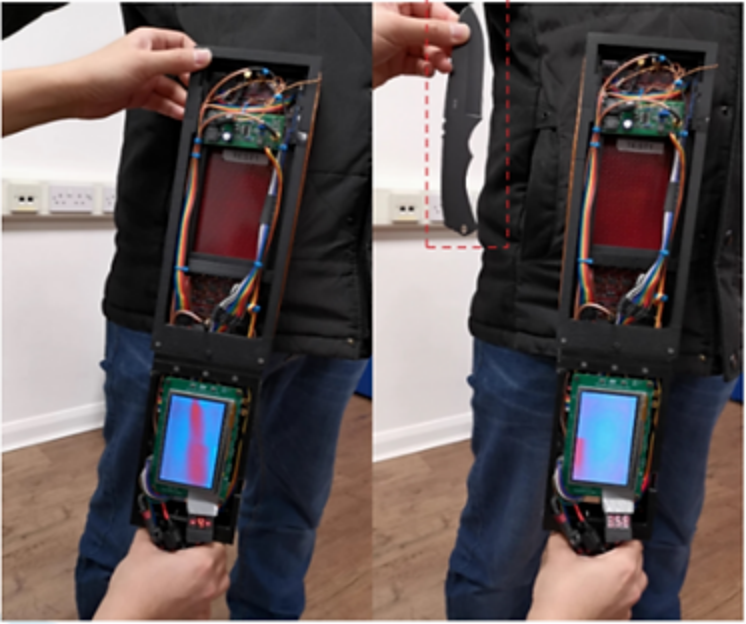

The innovation is based on a radically new sensor developed in house which offers high resolution and high throughput magnetic camera imaging in real world environments with low power consumption, which makes portable solutions viable. The initial application will be in threat detection applications as a portable handheld camera imager for screening and identification of metallic objects in personal body search. The new magnetic camera will enable users to identify the concealed metallic object and take decisions accordingly.
这项创新基于公司内部开发的全新传感器，该传感器在现实世界环境中提供高分辨率和高吞吐量磁相机成像，同时具有低功耗，这使得便携式解决方案成为可能。最初的应用将是在威胁检测应用中，作为便携式手持相机成像器，用于个人身体搜查中金属物体的筛查和识别。新的磁相机将使用户能够识别隐藏的金属物体，并据此做出决策。

The AHS key breakthrough innovation is based on our bespoke Gallium Arsenide based Quantum Well Hall Effect (QWHE) technology that is >100x more sensitive than existing Silicon Hall sensor technology and has unprecedented large dynamic range making it ideal for imaging modalities.
AHS的关键突破创新基于我们定制的基于砷化镓的量子阱霍尔效应（QWHE）技术，该技术比现有的硅霍尔传感器技术敏感100倍以上，并具有前所未有的大动态范围，使其非常适合成像模式。

It is key to unlocking multiple benefits for Threat Detection: nanoTesla sensitivities in an uncooled format, AC operation enabling 3D inspection, and minimal power consumption for portable implementation. The superior sensitivity enables visualisation of the geometrical characteristics of hidden metallic objects, determination of the type of metallic object (ferrous and non-ferrous), discrimination of metallic combinations, & 3D profiling of metallic objects.
它对于解锁威胁检测的多重好处至关重要：无冷却形式的nanoTesla灵敏度，AC操作可实现3D检查，以及便携式实施所需的最低功耗。优越的灵敏度使得能够可视化隐藏金属物体的几何特征，确定金属物体的类型（铁和非铁），区分金属组合，以及金属物体的3D轮廓。)
