1.7 NSCollectionView
NSCollectionView是Cocoa中用来展示多行多列的自定义Item的控件，其作用和写法类似于UICollectionView，均有数据源和代理协议构成，然而具体实现细节上却有很大出入，下面请看纯代码编写NSCollectionView的介绍，为了方便示例，本节内容并没有严格遵守MVC架构来进行。

1.7.1 基本声明
基本声明包括Item的创建、NSCollectionView的创建、NSCollectionFlowLayout的创建。这三者的创建细节与UICollectionView的细节上有着不同，请看下面讲解。

1.Item的创建
右键单击鼠标，选择New File->Cocoa Class->新建继承于NSCollectionViewItem的子类（取消勾选创建XIB文件），该类即我们的item子类布局文件。我们这里创建item内要有一个Label对象和一个NSImageView对象，其创建代码如下：

import Cocoa
import SnapKit

class CellItem: NSCollectionViewItem {

    var mView: NSView!
    var mImageView: NSImageView!
    var mLabel: NSTextField!

    override func loadView() {
        self.view = NSView(frame: NSRect(x: 0, y: 0, width: 100, height: 100))
    }

    override func viewDidLoad() {
        super.viewDidLoad()

        installMImageView()
        installLabel()
    }

    private func installMImageView(){
        mImageView = NSImageView()
        self.view.addSubview(mImageView)

        mImageView.snp.makeConstraints{ make in
            make.size.equalTo(66)
            make.centerX.equalToSuperview()
            make.top.equalTo(self.view.snp.top).offset(15)
        }
    }

    private func installLabel(){
        mLabel = NSTextField()
        mLabel.drawsBackground = false
        mLabel.isBezeled = false
        mLabel.isEditable = false
        mLabel.alignment = .center
        self.view.addSubview(mLabel)

        mLabel.snp.makeConstraints{ make in
            make.width.equalTo(60)
            make.height.equalTo(25)
            make.top.equalTo(self.mImageView.snp.bottom).offset(2)
            make.centerX.equalToSuperview()
        }
    }

    public func updateView(){
        if self.isSelected == true {
            self.view.layer?.backgroundColor = .init(gray: 0.9, alpha: 0.9)
        } else if self.isSelected == false {
            self.view.layer?.backgroundColor = .white
        }
    }
}

说明：loadView()这个方法系纯代码创建要重写的方法，不重写系统则不会绘制此自定义NSView及其子类。

2.NSCollectionView的创建

    var mView: NSView!
    var scrollView: NSScrollView!
    var mCollectionView: NSCollectionView!

    override func loadView() {
        self.view = NSView(frame: NSRect(x: 0, y: 0, width: 500, height: 350))
    }

    private func initView(){
        mView = NSView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))

        scrollView = NSScrollView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))
        self.view.addSubview(scrollView)

        mCollectionView = NSCollectionView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))
        mCollectionView.delegate = self
        mCollectionView.dataSource = self
        mCollectionView.isSelectable = true
        mCollectionView.register(CellItem.self, forItemWithIdentifier:NSUserInterfaceItemIdentifier(rawValue: "NS_COLLECTION_VIEW"))
        self.scrollView.contentView.addSubview(mCollectionView)
    }

说明：在XIB中，创建的NSCollectionView对象实际上是置于NSScrollView上方，如果这里我们不手动创建一个NSScrollView对象，那么有关数据源代理方法实际上是不会执行的。

3.NSCollectionFlowLayout的创建
在上述的initView()方法内插入如下代码：

// ...
mCollectionView.isSelectable = true

let layout = NSCollectionViewFlowLayout()
layout.itemSize = .init(width: 100, height: 100)
layout.minimumLineSpacing = 10
layout.minimumInteritemSpacing = 10
mCollectionView.collectionViewLayout = layout

mCollectionView.register(CellItem.self, forItemWithIdentifier:NSUserInterfaceItemIdentifier(rawValue: "NS_COLLECTION_VIEW"))
// ...

1.7.2 数据源与代理协议
实现如下协议：

NSCollectionViewDataSource, NSCollectionViewDelegate

有关数据源和代理协议方法如下：

func collectionView(_ collectionView: NSCollectionView, numberOfItemsInSection section: Int) -> Int {
        return 10
} // 返回item数量

func collectionView(_ collectionView: NSCollectionView, didSelectItemsAt indexPaths: Set<IndexPath>) {
        print("------> CLICK AT:\(indexPaths.first)")
        let view = collectionView.item(at: indexPaths.first!) as! CellItem
        view.updateView()
} // 对应的点击事件

func collectionView(_ collectionView: NSCollectionView, itemForRepresentedObjectAt indexPath: IndexPath) -> NSCollectionViewItem {
	let view = collectionView.makeItem(withIdentifier: NSUserInterfaceItemIdentifier(rawValue: "NS_COLLECTION_VIEW"), for: indexPath) as! CellItem

	view.mImageView.image = NSImage(named: "user")
	view.mLabel.stringValue = "User"

	return view
} // 返回一个NSCollectionViewItem对象

本节代码：
CellItem.swift

import Cocoa
import SnapKit

class CellItem: NSCollectionViewItem {

    var mView: NSView!
    var mImageView: NSImageView!
    var mLabel: NSTextField!

    override func loadView() {
        self.view = NSView(frame: NSRect(x: 0, y: 0, width: 100, height: 100))
    }

    override func viewDidLoad() {
        super.viewDidLoad()

        installMImageView()
        installLabel()
    }

    private func installMImageView(){
        mImageView = NSImageView()
        self.view.addSubview(mImageView)

        mImageView.snp.makeConstraints{ make in
            make.size.equalTo(66)
            make.centerX.equalToSuperview()
            make.top.equalTo(self.view.snp.top).offset(15)
        }
    }

    private func installLabel(){
        mLabel = NSTextField()
        mLabel.drawsBackground = false
        mLabel.isBezeled = false
        mLabel.isEditable = false
        mLabel.alignment = .center
        self.view.addSubview(mLabel)

        mLabel.snp.makeConstraints{ make in
            make.width.equalTo(60)
            make.height.equalTo(25)
            make.top.equalTo(self.mImageView.snp.bottom).offset(2)
            make.centerX.equalToSuperview()
        }
    }

    public func updateView(){
        if self.isSelected == true {
            self.view.layer?.backgroundColor = .init(gray: 0.9, alpha: 0.9)
        } else if self.isSelected == false {
            self.view.layer?.backgroundColor = .white
        }
    }
}

CollectionViewController.swift

//
//  CollectionViewController.swift
//  Versatile
//
//  Created by Eldest's MacBook on 2021/10/5.
//

import Cocoa
import SnapKit

class CollectionViewController: NSViewController, NSCollectionViewDataSource, NSCollectionViewDelegate {

    var mView: NSView!
    var scrollView: NSScrollView!
    var mCollectionView: NSCollectionView!

    override func loadView() {
        self.view = NSView(frame: NSRect(x: 0, y: 0, width: 500, height: 350))
    }

    private func initView(){
        mView = NSView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))

        scrollView = NSScrollView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))
        self.view.addSubview(scrollView)

        mCollectionView = NSCollectionView(frame: NSRect(x: 0, y: 0, width: self.view.frame.width, height: self.view.frame.height))
        mCollectionView.delegate = self
        mCollectionView.dataSource = self
        mCollectionView.isSelectable = true
        let layout = NSCollectionViewFlowLayout()
        layout.itemSize = .init(width: 100, height: 100)
        layout.minimumLineSpacing = 10
        layout.minimumInteritemSpacing = 10
        mCollectionView.collectionViewLayout = layout
        mCollectionView.register(CellItem.self, forItemWithIdentifier:NSUserInterfaceItemIdentifier(rawValue: "NS_COLLECTION_VIEW"))
        self.scrollView.contentView.addSubview(mCollectionView)
    }

    private func initConfig(){
        self.title = "NSCollectionView"
    }

    override func viewDidLoad() {
        super.viewDidLoad()
        // Do view setup here.

        initView()
        initConfig()
    }

    // MARK: - Delegate
    func collectionView(_ collectionView: NSCollectionView, numberOfItemsInSection section: Int) -> Int {
        return 10
    }

    func collectionView(_ collectionView: NSCollectionView, didSelectItemsAt indexPaths: Set<IndexPath>) {
        print("------> CLICK AT:\(indexPaths.first)")
        let view = collectionView.item(at: indexPaths.first!) as! CellItem
        view.updateView()
    }

    func collectionView(_ collectionView: NSCollectionView, itemForRepresentedObjectAt indexPath: IndexPath) -> NSCollectionViewItem {

        let view = collectionView.makeItem(withIdentifier: NSUserInterfaceItemIdentifier(rawValue: "NS_COLLECTION_VIEW"), for: indexPath) as! CellItem

        view.mImageView.image = NSImage(named: "user")
        view.mLabel.stringValue = "User"

        return view
    }
}

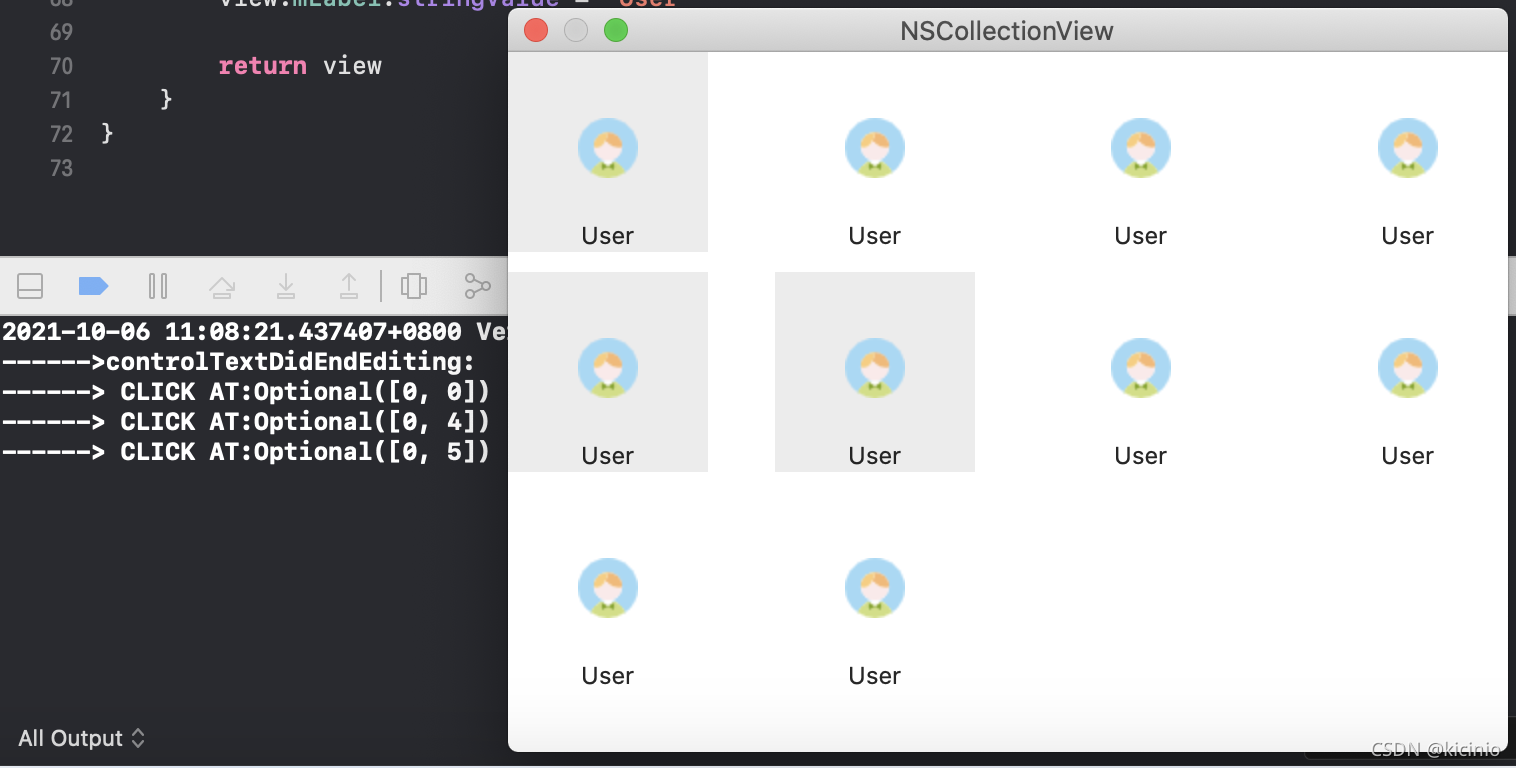

运行截图：
