NOAA气象大数据分析

1.实验目的

写一个Map-Reduce作业，求每年的最低温度。
这里只选用1970年的数据，算出最低温度。

2.实验准备

打开eclipse

cd /usr/eclipse/
./eclipse

-OK
右键New一个Java Project
命名为NOAA
-Finish

在NOAA工程上右键-New-Folder
Folder name输入lib
-Finish
lib文件夹用来存放相关jar包

进行jar包的拷贝

新开一个命令行窗口

su
输入密码

1.导入Hadoop相关的jar包
拷贝“hadoop-hdfs-2.8.5.jar”包

cp /opt/modules/app/hadoop-2.8.5/share/hadoop/hdfs/hadoop-hdfs-2.8.5.jar /root/workspace/NOAA/lib/

拷贝$HADOOP_HOME/share/hadoop/hdfs/lib/下的所有jar包

cp /opt/modules/app/hadoop-2.8.5/share/hadoop/hdfs/lib/* /root/workspace/NOAA/lib/

拷贝“hadoop-common-2.8.5.jar”包

cp /opt/modules/app/hadoop-2.8.5/share/hadoop/common/hadoop-common-2.8.5.jar /root/workspace/NOAA/lib/

拷贝$HADOOP_HOME/share/hadoop/common/lib下的所有jar包

cp /opt/modules/app/hadoop-2.8.5/share/hadoop/common/lib/* /root/workspace/NOAA/lib/

有一些jar包是重复的，出现提示回车覆盖即可

2.MapReduce相关的jar包

cp /opt/modules/app/hadoop-2.8.5/share/hadoop/mapreduce/hadoop-mapreduce-client-common-2.8.5.jar /root/workspace/NOAA/lib/
cp /opt/modules/app/hadoop-2.8.5/share/hadoop/mapreduce/hadoop-mapreduce-client-core-2.8.5.jar /root/workspace/NOAA/lib/

右键项目-Refresh，可看到lib文件夹下出现jar包

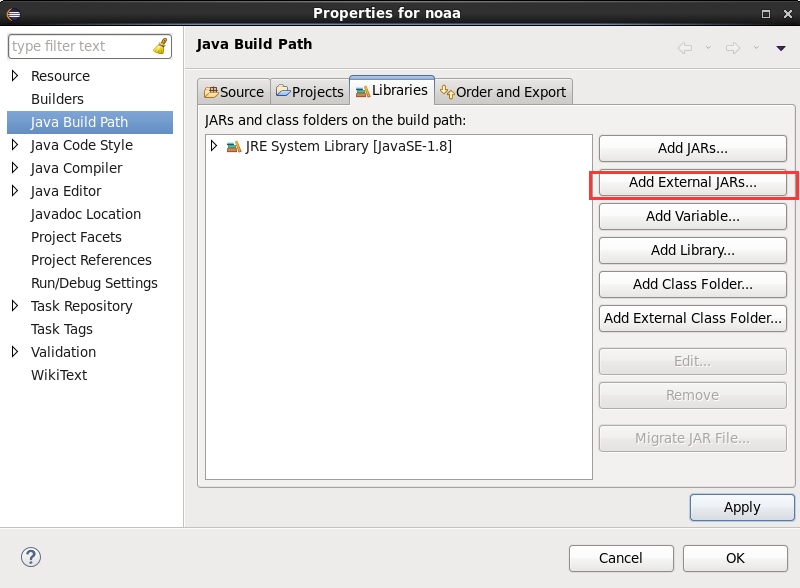

右键项目-Build Path-Configure Build Path

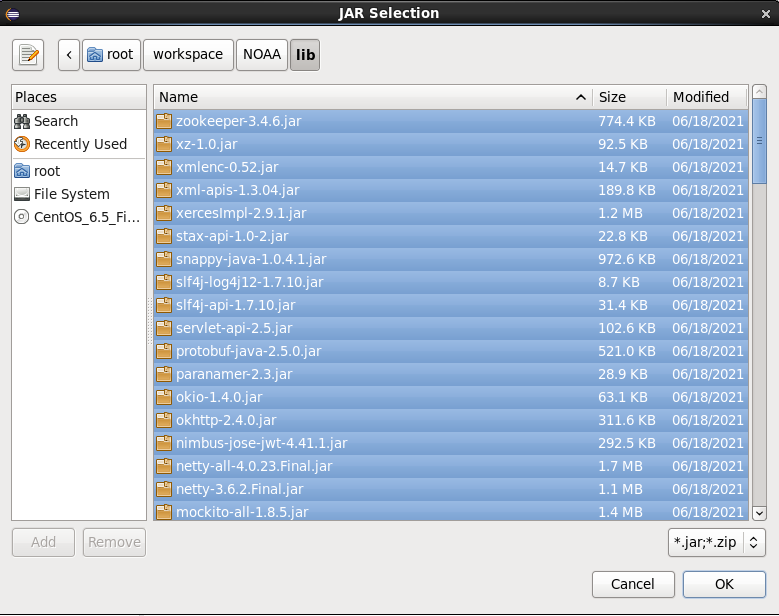

选到当前的lib目录

CRTL+A全部选中-OK-OK
便出现引用的类库

3.代码编写

复制粘贴代码时可能格式会乱，可粘贴完进行自动缩进
Eclipse 自动缩进：Ctrl+Shift+F

3.1 MinTemperature.java

右键NOAA项目下的src
-New-Class
Package填com.noaa
Name填MinTemperature

MinTemperature.java

package com.noaa;

import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

public class MinTemperature {

    public static void main(String[] args) throws Exception {
        if(args.length != 2) {
            System.err.println("Usage: MinTemperature<input path> <output path>");
            System.exit(-1);
        }

        Job job = new Job();
        job.setJarByClass(MinTemperature.class);
        job.setJobName("Min temperature");
        FileInputFormat.addInputPath(job, new Path(args[0]));
        FileOutputFormat.setOutputPath(job, new Path(args[1]));
        job.setMapperClass(MinTemperatureMapper.class);
        job.setReducerClass(MinTemperatureReducer.class);
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(IntWritable.class);
        System.exit(job.waitForCompletion(true) ? 0 : 1);
    }
}

3.2 MinTemperatureMapper.java

右键NOAA项目下的src
-New-Class
Package填com.noaa
Name填MinTemperatureMapper

MinTemperatureMapper.java

package com.noaa;

import java.io.IOException;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

public class MinTemperatureMapper extends Mapper<LongWritable, Text, Text, IntWritable>{

    private static final int MISSING = 9999;

    @Override
    public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {

        String line = value.toString();
        String year = line.substring(15, 19);

        int airTemperature;
        if(line.charAt(87) == '+') {
            airTemperature = Integer.parseInt(line.substring(88, 92));
        } else {
            airTemperature = Integer.parseInt(line.substring(87, 92));
        }

        String quality = line.substring(92, 93);
        if(airTemperature != MISSING && quality.matches("[01459]")) {
            context.write(new Text(year), new IntWritable(airTemperature));
        }
    }
}

3.3 MinTemperatureReducer.java

右键NOAA项目下的src
-New-Class
Package填com.noaa
Name填MinTemperatureReducer

MinTemperatureReducer.java

package com.noaa;

import java.io.IOException;

public class MinTemperatureReducer extends Reducer<Text, IntWritable, Text, IntWritable> {

    @Override
    public void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException {

        int minValue = Integer.MAX_VALUE;
        for(IntWritable value : values) {
            minValue = Math.min(minValue, value.get());
        }
        context.write(key, new IntWritable(minValue));
    }
}

4.打jar包运行

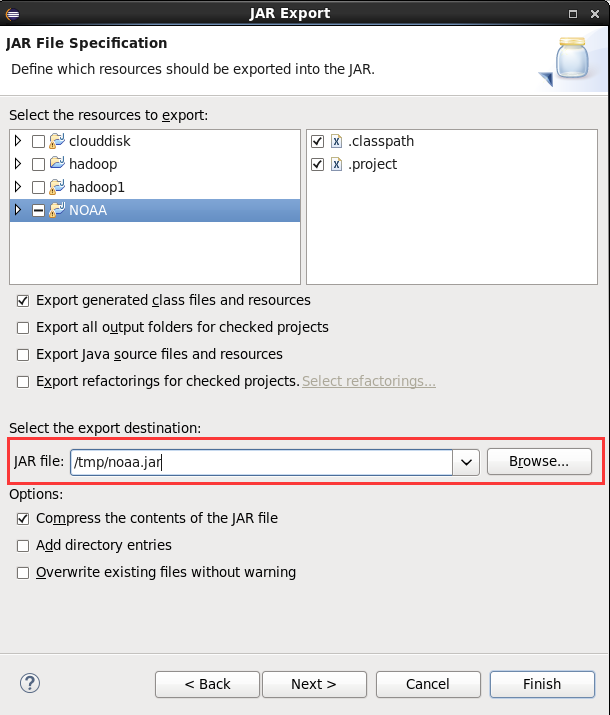

右键NOAA项目-Export-选择JAR file-Next
选择导出路径为tmp
-Next-Next

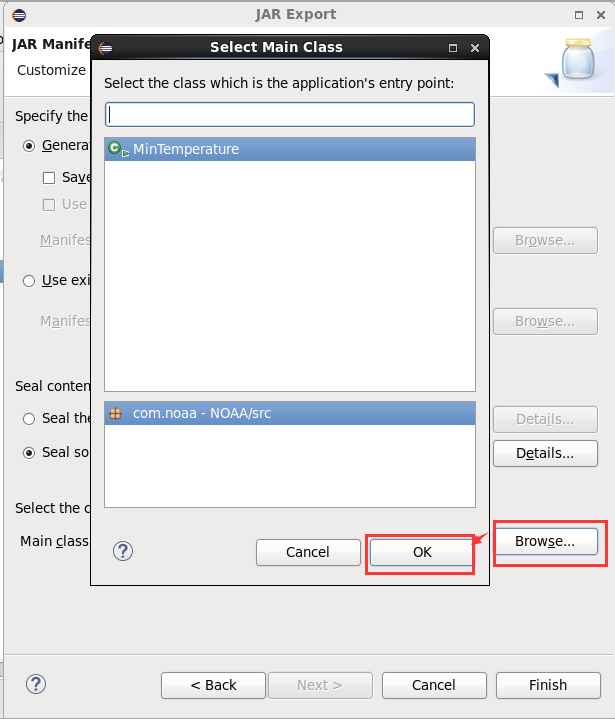

Browse选择Main Class-OK

-Finish

便导出jar包noaa.jar到tmp路径下

将NOAA 1970 - Part复制到共享文件夹share中

新建一个命令行窗口
进入到该文件夹中

cd /mnt/hgfs/share/NOAA\ 1970\ -\ Part/

使用zcat命令把这些数据文件解压并合并到一个temperature.txt文件中

zcat *.gz > temperature.txt

启动HDFS、启动yarn便启动了MapReduce

cd
start-all.sh

将此文件上传到hdfs的根目录

hdfs dfs -put temperature.txt /

运行jar包，输入为/temperature.txt，输出为/min文件夹

hadoop jar /tmp/noaa.jar /temperature.txt  /min

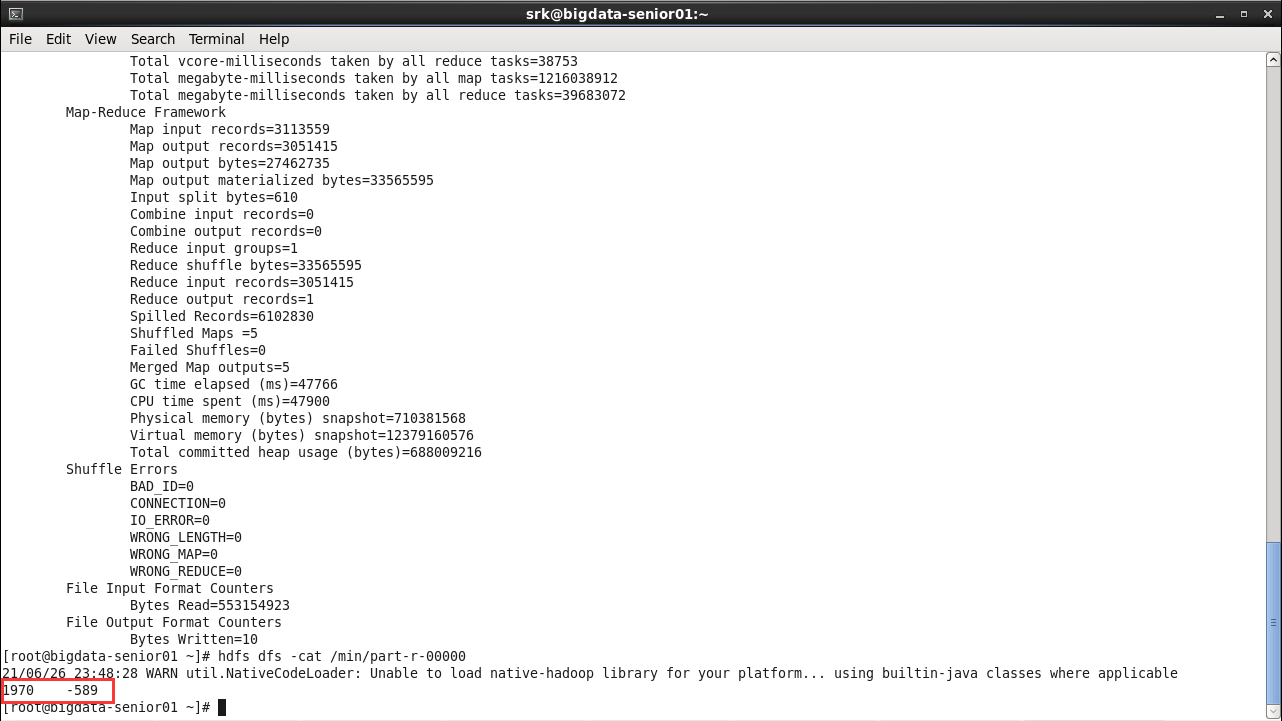

查看计算出来的最低气温

hdfs dfs -cat /min/part-r-00000

可看到1970年的最低气温为-589

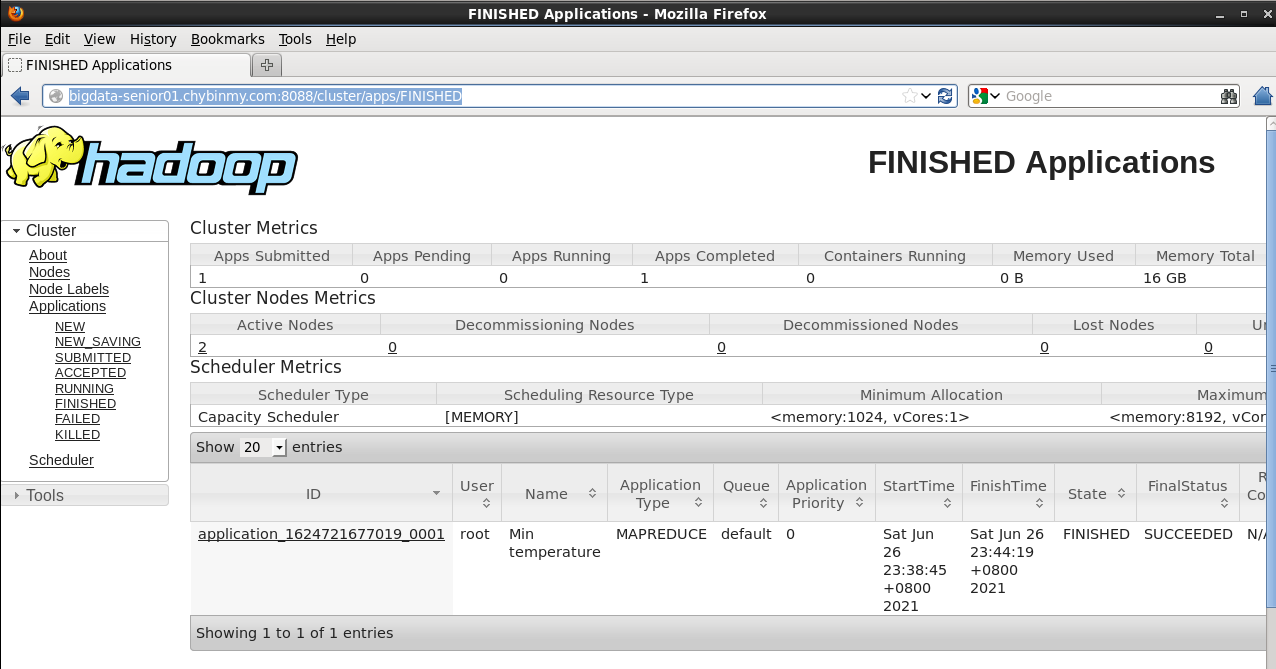

可在浏览器中输入：
http://bigdata-senior01.chybinmy.com:8088/cluster/apps/FINISHED
查看job结果

关闭所有服务

stop-all.sh

注：若要重新运行，需要先将输出的文件夹删除

hdfs dfs -rm -r /min
