sox效果器

sox效果器的定义

sox效果器的定义可以查看effects.h文件，源码如下。

  EFFECT(allpass)
  EFFECT(band)
  EFFECT(bandpass)
  EFFECT(bandreject)
  EFFECT(bass)
  EFFECT(bend)
  EFFECT(biquad)
  EFFECT(chorus)
  EFFECT(channels)
  EFFECT(compand)
  EFFECT(contrast)
  EFFECT(dcshift)
  EFFECT(deemph)
  EFFECT(delay)
  EFFECT(dft_filter) /* abstract */
  EFFECT(dither)
  EFFECT(divide)
  EFFECT(downsample)
  EFFECT(earwax)
  EFFECT(echo)
  EFFECT(echos)
  EFFECT(equalizer)
  EFFECT(fade)
  EFFECT(fir)
  EFFECT(firfit)
  EFFECT(flanger)
  EFFECT(gain)
  EFFECT(highpass)
  EFFECT(hilbert)
  EFFECT(input)
#ifdef HAVE_LADSPA_H
  EFFECT(ladspa)
#endif
  EFFECT(loudness)
  EFFECT(lowpass)
  EFFECT(mcompand)
  EFFECT(noiseprof)
  EFFECT(noisered)
  EFFECT(norm)
  EFFECT(oops)
  EFFECT(output)
  EFFECT(overdrive)
  EFFECT(pad)
  EFFECT(phaser)
  EFFECT(pitch)
  EFFECT(rate)
  EFFECT(remix)
  EFFECT(repeat)
  EFFECT(reverb)
  EFFECT(reverse)
  EFFECT(riaa)
  EFFECT(silence)
  EFFECT(sinc)
#ifdef HAVE_PNG
  EFFECT(spectrogram)
#endif
  EFFECT(speed)
#ifdef HAVE_SPEEXDSP
  EFFECT(speexdsp)
#endif
  EFFECT(splice)
  EFFECT(stat)
  EFFECT(stats)
  EFFECT(stretch)
  EFFECT(swap)
  EFFECT(synth)
  EFFECT(tempo)
  EFFECT(treble)
  EFFECT(tremolo)
  EFFECT(trim)
  EFFECT(upsample)
  EFFECT(vad)
  EFFECT(vol)

效果器的使用

效果器的使用方法有两种方式，一种是命令行方式，一种是通过API调用。

命令行方式

以norm为例，归一化音频文件到0dB或者其他值，该值应该是小于0的数值，大于0可能会出现失真警告。以4K正弦音频信号为例，分别进行比较。
命令如下

sox sin_4k.mp3 sin_4k-0.mp3 --norm=0

当norm=10时，出现警告
sox WARN gain: gain clipped 1043520 samples; decrease volume?

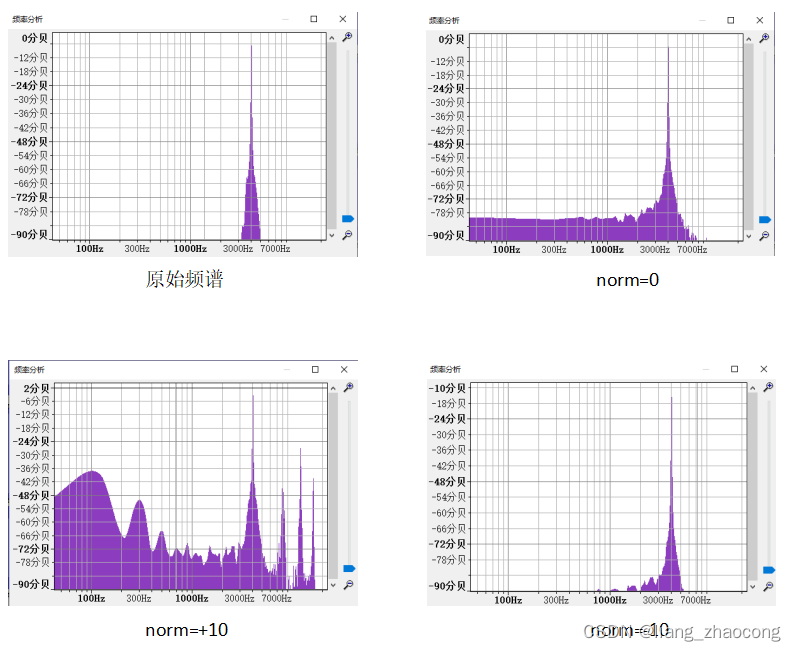

由频谱对比图可以看出，当norm=0时，处理的结果最为理想，既放大了音频音量也没有失真警告；当norm=+10时，出现失真警告；当norm=-10时，音量降低。

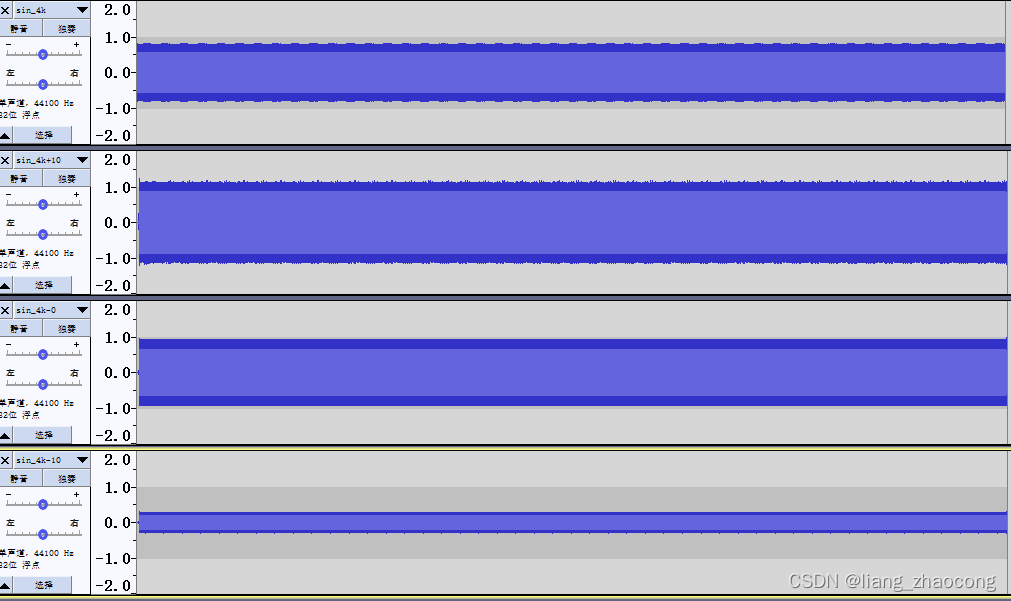

由时域波形可以看出，当norm=+10时，幅值超过了1.0，出现失真警告。

API调用方式

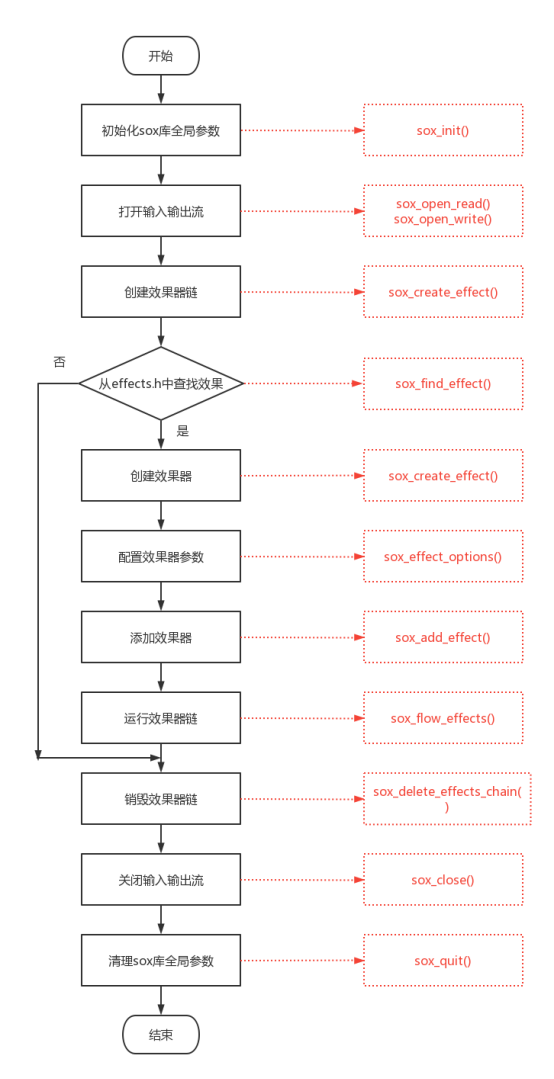

API调用流程

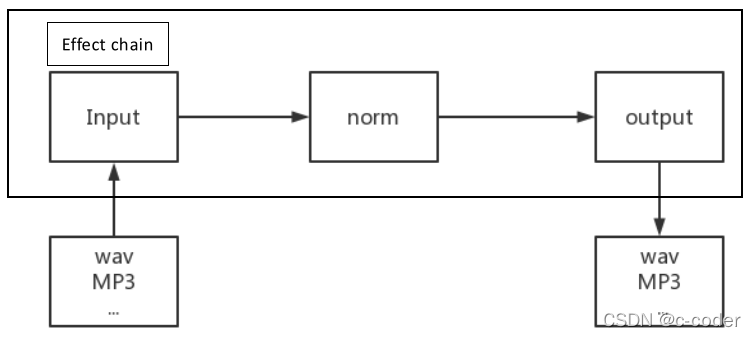

效果器结构如下

源码如下

int main(int argc, char * argv[])
{
  static sox_format_t * in, * out; /* input and output files */
  sox_effects_chain_t * chain;
  sox_effect_t * e;
  char * args[32];

  assert(argc == 4);

  /* All libSoX applications must start by initialising the SoX library */
  assert(sox_init() == SOX_SUCCESS);

  /* Open the input file (with default parameters) */
  assert(in = sox_open_read(argv[1], NULL, NULL, NULL));

  /* Open the output file; we must specify the output signal characteristics.
   * Since we are using only simple effects, they are the same as the input
   * file characteristics */
  assert(out = sox_open_write(argv[2], &in->signal, NULL, NULL, NULL, NULL));

  /* Create an effects chain; some effects need to know about the input
   * or output file encoding so we provide that information here */
  chain = sox_create_effects_chain(&in->encoding, &out->encoding);

  /* The first effect in the effect chain must be something that can source
   * samples; in this case, we use the built-in handler that inputs
   * data from an audio file */
  e = sox_create_effect(sox_find_effect("input"));
  args[0] = (char *)in, assert(sox_effect_options(e, 1, args) == SOX_SUCCESS);
  /* This becomes the first `effect' in the chain */
  assert(sox_add_effect(chain, e, &in->signal, &in->signal) == SOX_SUCCESS);
  free(e);

  /* Create the `norm' effect, and initialise it with the desired parameters: */
  e = sox_create_effect(sox_find_effect("norm"));
  char normStr[8] = {};
  snprintf(normStr, sizeof(normStr), "%s", argv[3]);
  //printf("normStr: %s\n", normStr);
  args[0] = normStr, assert(sox_effect_options(e, 1, args) == SOX_SUCCESS);
  /* Add the effect to the end of the effects processing chain: */
  assert(sox_add_effect(chain, e, &in->signal, &in->signal) == SOX_SUCCESS);
  free(e);

  /* The last effect in the effect chain must be something that only consumes
   * samples; in this case, we use the built-in handler that outputs
   * data to an audio file */
  e = sox_create_effect(sox_find_effect("output"));
  args[0] = (char *)out, assert(sox_effect_options(e, 1, args) == SOX_SUCCESS);
  assert(sox_add_effect(chain, e, &in->signal, &in->signal) == SOX_SUCCESS);
  free(e);

  /* Flow samples through the effects processing chain until EOF is reached */
  sox_flow_effects(chain, NULL, NULL);

  /* All done; tidy up: */
  sox_delete_effects_chain(chain);
  sox_close(out);
  sox_close(in);
  sox_quit();
  return 0;
}

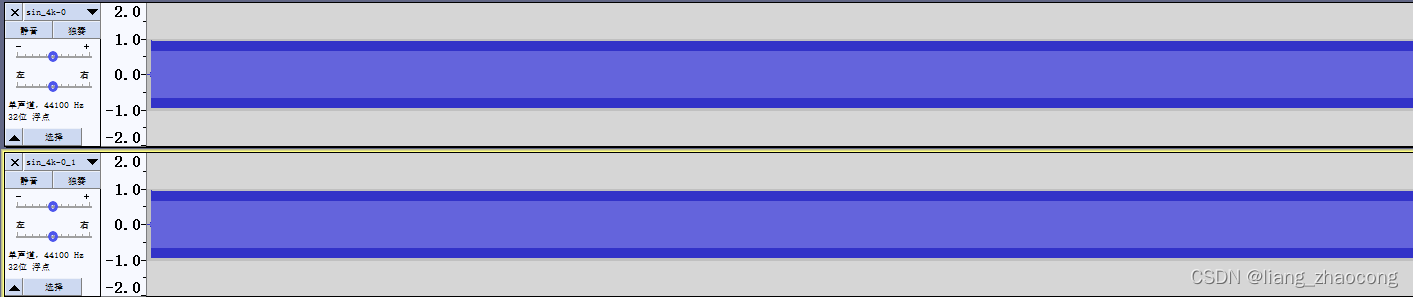

API调用方式与命令行调用方式结果对比如下
