SENTINEL-sentinel实时监控持久化到InfluxDB中

官网解析：
在生产环境中使用 Sentinel

监控

Sentinel 会记录资源访问的秒级数据（若没有访问则不进行记录）并保存在本地日志中，具体格式请见 秒级监控日志文档。Sentinel 控制台可以通过 Sentinel 客户端预留的 HTTP API 从秒级监控日志中拉取监控数据，并进行聚合。

目前 Sentinel 控制台中监控数据聚合后直接存在内存中，未进行持久化，且仅保留最近 5 分钟的监控数据。若需要监控数据持久化的功能，可以自行扩展实现 MetricsRepository 接口（0.2.0 版本），然后注册成 Spring Bean 并在相应位置通过 @Qualifier 注解指定对应的 bean name 即可。MetricsRepository 接口定义了以下功能：

• save 与 saveAll：存储对应的监控数据

• queryByAppAndResourceBetween：查询某段时间内的某个应用的某个资源的监控数据

• listResourcesOfApp：查询某个应用下的所有资源

其中默认的监控数据类型为 MetricEntity，包含应用名称、时间戳、资源名称、异常数、请求通过数、请求拒绝数、平均响应时间等信息。对于监控数据的存储，用户需要根据自己的存储精度，来考虑如何存储这些监控数据。部署多个控制台实例时，通常需要仔细设计下监控拉取和写入策略。

同时用户可以自行进行扩展，适配 Grafana 等可视化平台，以便将监控数据更好地进行可视化。

以上为官方解析，现在我们来进行操作。

引入依赖

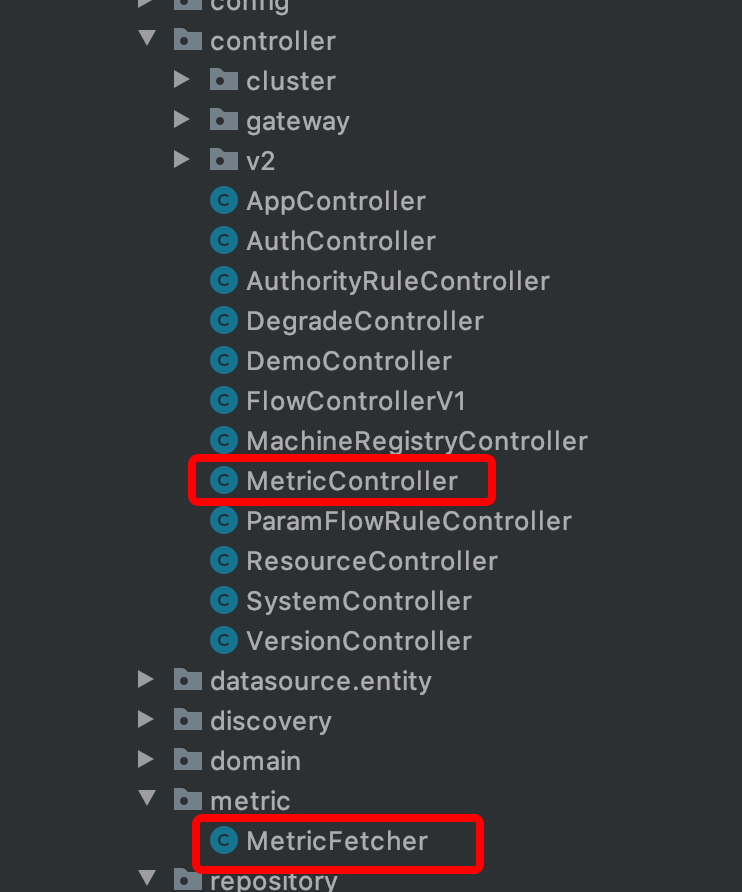

找到实时监控进行保存和查询的类，具体目录为：/sentinel-dashboard/src/main/java/com/alibaba/csp/sentinel/dashboard/repository/metric/InMemoryMetricsRepository。
熟悉基本逻辑之后，我们开始写将数据持久化到InfluxDB的操作。
引入依赖：

 <dependency>
            <groupId>org.influxdb</groupId>
            <artifactId>influxdb-java</artifactId>
            <version>2.15</version>
 </dependency>

数据库链接

需要在本地或者是测试环境搭建influxdb数据库，具体见上一个博客。然后开始和数据库建立链接

package com.alibaba.csp.sentinel.dashboard.repository.metric.InfluxDB;

import org.influxdb.InfluxDB;
import org.influxdb.InfluxDBFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.concurrent.TimeUnit;

@Configuration
public class InfluxDBConfig {

    @Value("${spring.influx.url:''}")
    private String influxDBUrl;

    @Value("${spring.influx.user:''}")
    private String userName;

    @Value("${spring.influx.password:''}")
    private String password;

    @Value("${spring.influx.database:''}")
    private String database;

    @Bean
    public InfluxDB influxDB(){
        InfluxDB influxDB = InfluxDBFactory.connect(influxDBUrl, userName, password);
        try {
            /**
             * 异步插入：
             * enableBatch这里第一个是point的个数，第二个是时间，单位毫秒
             * point的个数和时间是联合使用的，如果满100条或者2000毫秒
             * 满足任何一个条件就会发送一次写的请求。
             */
            influxDB.setDatabase(database)
                    .enableBatch(100,2000, TimeUnit.MILLISECONDS);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            influxDB.setRetentionPolicy("autogen");
        }
        influxDB.setLogLevel(InfluxDB.LogLevel.BASIC);
        return influxDB;
    }
}

建立实体类

package com.alibaba.csp.sentinel.dashboard.repository.metric.InfluxDB;

import org.influxdb.annotation.Column;
import org.influxdb.annotation.Measurement;

import java.time.Instant;


@Measurement(name = "sentinelInfo")
public class InfluxDBMetricEntity {
    @Column(name = "time")
    private Instant time;
    @Column(name = "gmtCreate")
    private Long gmtCreate;
    @Column(name = "gmtModified")
    private Long gmtModified;
    /**
     * 监控信息的时间戳
     */
    @Column(name = "app", tag = true)
    private String app;
    @Column(name = "resource", tag = true)
    private String resource;
    @Column(name = "timestamp")
    private Long timestamp;
    @Column(name = "passQps")
    private Long passQps;//通过qps
    @Column(name = "successQps")
    private Long successQps;//成功qps
    @Column(name = "blockQps")
    private Long blockQps;//限流qps
    @Column(name = "exceptionQps")
    private Long exceptionQps;//异常qps

    /**
     * 所有successQps的rt的和
     */
    @Column(name = "rt")
    private double rt;

    /**
     * 本次聚合的总条数
     */
    @Column(name = "count")
    private int count;
    @Column(name = "resourceCode")
    private int resourceCode;

    public static InfluxDBMetricEntity copyOf(InfluxDBMetricEntity oldEntity) {
        InfluxDBMetricEntity entity = new InfluxDBMetricEntity();
        entity.setApp(oldEntity.getApp());
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(oldEntity.getGmtModified());
        entity.setTimestamp(oldEntity.getTimestamp());
        entity.setResource(oldEntity.getResource());
        entity.setPassQps(oldEntity.getPassQps());
        entity.setBlockQps(oldEntity.getBlockQps());
        entity.setSuccessQps(oldEntity.getSuccessQps());
        entity.setExceptionQps(oldEntity.getExceptionQps());
        entity.setRt(oldEntity.getRt());
        entity.setCount(oldEntity.getCount());
        entity.setResource(oldEntity.getResource());
        return entity;
    }

    public synchronized void addPassQps(Long passQps) {
        this.passQps += passQps;
    }

    public synchronized void addBlockQps(Long blockQps) {
        this.blockQps += blockQps;
    }

    public synchronized void addExceptionQps(Long exceptionQps) {
        this.exceptionQps += exceptionQps;
    }

    public synchronized void addCount(int count) {
        this.count += count;
    }

    public synchronized void addRtAndSuccessQps(double avgRt, Long successQps) {
        this.rt += avgRt * successQps;
        this.successQps += successQps;
    }

    /**
     * {@link #rt} = {@code avgRt * successQps}
     *
     * @param avgRt      average rt of {@code successQps}
     * @param successQps
     */
    public synchronized void setRtAndSuccessQps(double avgRt, Long successQps) {
        this.rt = avgRt * successQps;
        this.successQps = successQps;
    }

    public Long getGmtCreate() {
        return gmtCreate;
    }

    public void setGmtCreate(Long gmtCreate) {
        this.gmtCreate = gmtCreate;
    }

    public Long getGmtModified() {
        return gmtModified;
    }

    public void setGmtModified(Long gmtModified) {
        this.gmtModified = gmtModified;
    }

    public Long getTimestamp() {
        return timestamp;
    }

    public void setTimestamp(Long timestamp) {
        this.timestamp = timestamp;
    }

    public String getResource() {
        return resource;
    }

    public void setResource(String resource) {
        this.resource = resource;
        this.resourceCode = resource.hashCode();
    }

    public Long getPassQps() {
        return passQps;
    }

    public void setPassQps(Long passQps) {
        this.passQps = passQps;
    }

    public Long getBlockQps() {
        return blockQps;
    }

    public void setBlockQps(Long blockQps) {
        this.blockQps = blockQps;
    }

    public Long getExceptionQps() {
        return exceptionQps;
    }

    public void setExceptionQps(Long exceptionQps) {
        this.exceptionQps = exceptionQps;
    }

    public double getRt() {
        return rt;
    }

    public void setRt(double rt) {
        this.rt = rt;
    }

    public int getCount() {
        return count;
    }

    public void setCount(int count) {
        this.count = count;
    }

    public int getResourceCode() {
        return resourceCode;
    }

    public Long getSuccessQps() {
        return successQps;
    }

    public void setSuccessQps(Long successQps) {
        this.successQps = successQps;
    }

    public Instant getTime() {
        return time;
    }

    public void setTime(Instant time) {
        this.time = time;
    }

    public String getApp() {
        return app;
    }

    public void setApp(String app) {
        this.app = app;
    }

    @Override
    public String toString() {
        return "InfluxdbMetricEntity{" +
            ", gmtCreate=" + gmtCreate +
            ", gmtModified=" + gmtModified +
            ", timestamp=" + timestamp +
            ", resource='" + resource + '\'' +
            ", passQps=" + passQps +
            ", blockQps=" + blockQps +
            ", successQps=" + successQps +
            ", exceptionQps=" + exceptionQps +
            ", rt=" + rt +
            ", count=" + count +
            ", resourceCode=" + resourceCode +
            '}';
    }

}

持久化代码

直接将InMemoryMetricsRepository复制一份，更改名字为InfluxDBMetricsRepository，然后将保存和查询内存的代码更改为数据库即可。

package com.alibaba.csp.sentinel.dashboard.repository.metric.InfluxDB;

import com.alibaba.csp.sentinel.dashboard.datasource.entity.MetricEntity;
import com.alibaba.csp.sentinel.dashboard.repository.metric.MetricsRepository;
import com.alibaba.csp.sentinel.util.StringUtil;
import com.alibaba.nacos.client.naming.utils.CollectionUtils;
import org.influxdb.InfluxDB;
import org.influxdb.dto.BatchPoints;
import org.influxdb.dto.Point;
import org.influxdb.dto.Query;
import org.influxdb.dto.QueryResult;
import org.influxdb.impl.InfluxDBResultMapper;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

import java.util.*;
import java.util.concurrent.TimeUnit;
import java.util.stream.Collectors;


@Component("influxDBMetricsRepository")
public class InfluxDBMetricsRepository implements MetricsRepository<MetricEntity> {

    @Autowired
    public InfluxDB influxDB;

    @Override
    public synchronized void save(MetricEntity metric) {
    #这里我直接建立2张表，因为后期做图表用的grafana，需要用这2张表sentinelInfo和sentinel_app
        try {
            Point point = Point
                    .measurement("sentinelInfo")
                    .time(System.currentTimeMillis(), TimeUnit.MILLISECONDS)
                    .tag("app",metric.getApp())//tag 数据走索引
                    .tag("resource",metric.getResource())//tag 数据走索引
                    .addField("gmtCreate", metric.getGmtCreate().getTime())
                    .addField("gmtModified", metric.getGmtModified().getTime())
                    .addField("timestamp", metric.getTimestamp().getTime())
                    .addField("passQps", metric.getPassQps())
                    .addField("successQps", metric.getSuccessQps())
                    .addField("blockQps", metric.getBlockQps())
                    .addField("exceptionQps", metric.getExceptionQps())
                    .addField("rt", metric.getRt())
                    .addField("count", metric.getCount())
                    .addField("resourceCode", metric.getResourceCode())
                    .build();
            influxDB.write(point);
            //在grafana中查询app列表中，设置成tag不能使用distinct
            Point point1=Point.measurement("sentinel_app")
                    .time(System.currentTimeMillis(), TimeUnit.MILLISECONDS)
                    .addField("app",metric.getApp())
                    .addField("resource",metric.getResource()).build();
            influxDB.write(point1);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    @Override
    public synchronized void saveAll(Iterable<MetricEntity> metrics) {
        if (metrics == null) {
            return;
        }
        BatchPoints batchPoints = BatchPoints.builder()
                .tag("async", "true")
                .consistency(InfluxDB.ConsistencyLevel.ALL)
                .build();
        BatchPoints batchPoint1s = BatchPoints.builder()
                .tag("async", "true")
                .consistency(InfluxDB.ConsistencyLevel.ALL)
                .build();
        metrics.forEach(metric->{
            Point point = Point
                    .measurement("sentinelInfo")
                    .time(System.currentTimeMillis(), TimeUnit.MILLISECONDS)
                    .tag("app",metric.getApp())//tag 数据走索引
                    .tag("resource",metric.getResource())//tag 数据走索引
                    .addField("gmtCreate", metric.getGmtCreate().getTime())
                    .addField("gmtModified", metric.getGmtModified().getTime())
                    .addField("timestamp", metric.getTimestamp().getTime())
                    .addField("passQps", metric.getPassQps())
                    .addField("successQps", metric.getSuccessQps())
                    .addField("blockQps", metric.getBlockQps())
                    .addField("exceptionQps", metric.getExceptionQps())
                    .addField("rt", metric.getRt())
                    .addField("count", metric.getCount())
                    .addField("resourceCode", metric.getResourceCode())
                    .build();
            batchPoints.point(point);


            //在grafana中查询app列表中，设置成tag不能使用distinct
            Point point1=Point.measurement("sentinel_app")
                    .time(System.currentTimeMillis(), TimeUnit.MILLISECONDS)
                    .addField("app",metric.getApp())
                    .addField("resource",metric.getResource()).build();
            batchPoints.point(point1);
        });
        influxDB.write(batchPoints);
        influxDB.write(batchPoint1s);
    }

    @Override
    public synchronized List<MetricEntity> queryByAppAndResourceBetween(String app, String resource, long startTime, long endTime) {
        List<MetricEntity> results = new ArrayList<>();
        if (StringUtil.isBlank(app)) {
            return results;
        }
        String command = "SELECT * FROM sentinelInfo WHERE app='"+app+"' AND resource = '"+resource+"' AND gmtCreate>"+startTime+" AND gmtCreate<"+endTime;
        Query query = new Query(command);
        QueryResult queryResult = influxDB.query(query);
        InfluxDBResultMapper resultMapper = new InfluxDBResultMapper(); // thread-safe - can be reused
        List<InfluxDBMetricEntity> influxResults = resultMapper.toPOJO(queryResult, InfluxDBMetricEntity.class);
        try {
            influxResults.forEach(entity->{
                MetricEntity metric = new MetricEntity();
                BeanUtils.copyProperties(entity,metric);
                metric.setTimestamp(new Date(entity.getTimestamp()));
                metric.setGmtCreate(new Date(entity.getGmtCreate()));
                metric.setGmtModified(new Date(entity.getGmtModified()));
                results.add(metric);
            });
        } catch (Exception e) {
            e.printStackTrace();
        }
        return results;
    }

    @Override
    public synchronized List<String> listResourcesOfApp(String app) {
        List<String> results = new ArrayList<>();
        if (StringUtil.isBlank(app)) {
            return results;
        }
        //最近一分钟的指标(实时数据)
        final long minTimeMs = System.currentTimeMillis() - 1000 * 60;
        String command = "SELECT * FROM sentinelInfo WHERE app='"+app+"' AND gmtCreate>"+minTimeMs;
        Query query = new Query(command);
        QueryResult queryResult = influxDB.query(query);
        InfluxDBResultMapper resultMapper = new InfluxDBResultMapper(); // thread-safe - can be reused
        List<InfluxDBMetricEntity> influxResults = resultMapper.toPOJO(queryResult, InfluxDBMetricEntity.class);
        try {
            if (CollectionUtils.isEmpty(influxResults)) {
                return results;
            }
            Map<String, InfluxDBMetricEntity> resourceCount = new HashMap<>(32);
            for (InfluxDBMetricEntity metricEntity : influxResults) {
                String resource = metricEntity.getResource();
                if (resourceCount.containsKey(resource)) {
                    InfluxDBMetricEntity oldEntity = resourceCount.get(resource);
                    oldEntity.addPassQps(metricEntity.getPassQps());
                    oldEntity.addRtAndSuccessQps(metricEntity.getRt(), metricEntity.getSuccessQps());
                    oldEntity.addBlockQps(metricEntity.getBlockQps());
                    oldEntity.addExceptionQps(metricEntity.getExceptionQps());
                    oldEntity.addCount(1);
                } else {
                    resourceCount.put(resource, InfluxDBMetricEntity.copyOf(metricEntity));
                }
            }
            //排序
            results =  resourceCount.entrySet()
                    .stream()
                    .sorted((o1, o2) -> {
                        InfluxDBMetricEntity e1 = o1.getValue();
                        InfluxDBMetricEntity e2 = o2.getValue();
                        int t = e2.getBlockQps().compareTo(e1.getBlockQps());
                        if (t != 0) {
                            return t;
                        }
                        return e2.getPassQps().compareTo(e1.getPassQps());
                    })
                    .map(Map.Entry::getKey)
                    .collect(Collectors.toList());
        } catch (Exception e) {
            e.printStackTrace();
        }
        return results;
    }
}

还需要在配置文件中加入influxDB的用户名和密码等信息

spring.influx.url=http://127.0.0.1:8086
spring.influx.user=admin
spring.influx.password=admin
spring.influx.database=sentinel_log

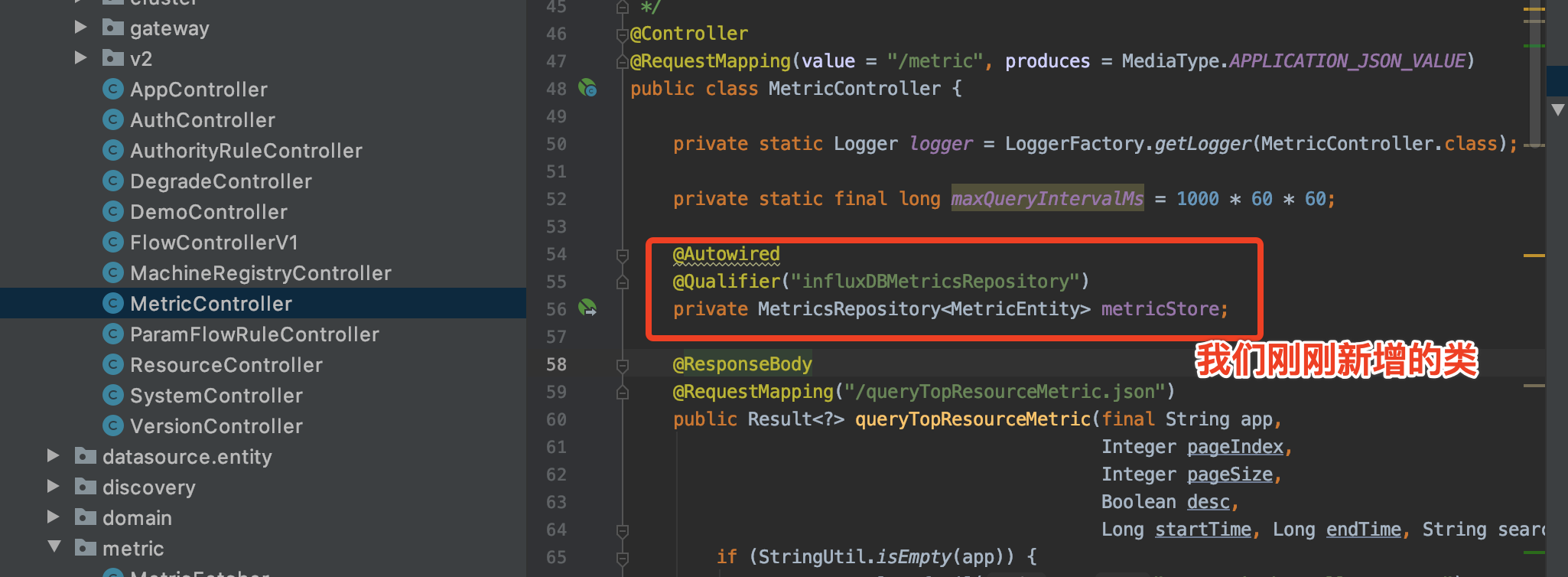

要注册成 Spring Bean 并在相应位置通过 @Qualifier 注解指定对应的 bean name 。所以还需要修改2个注入的bean name

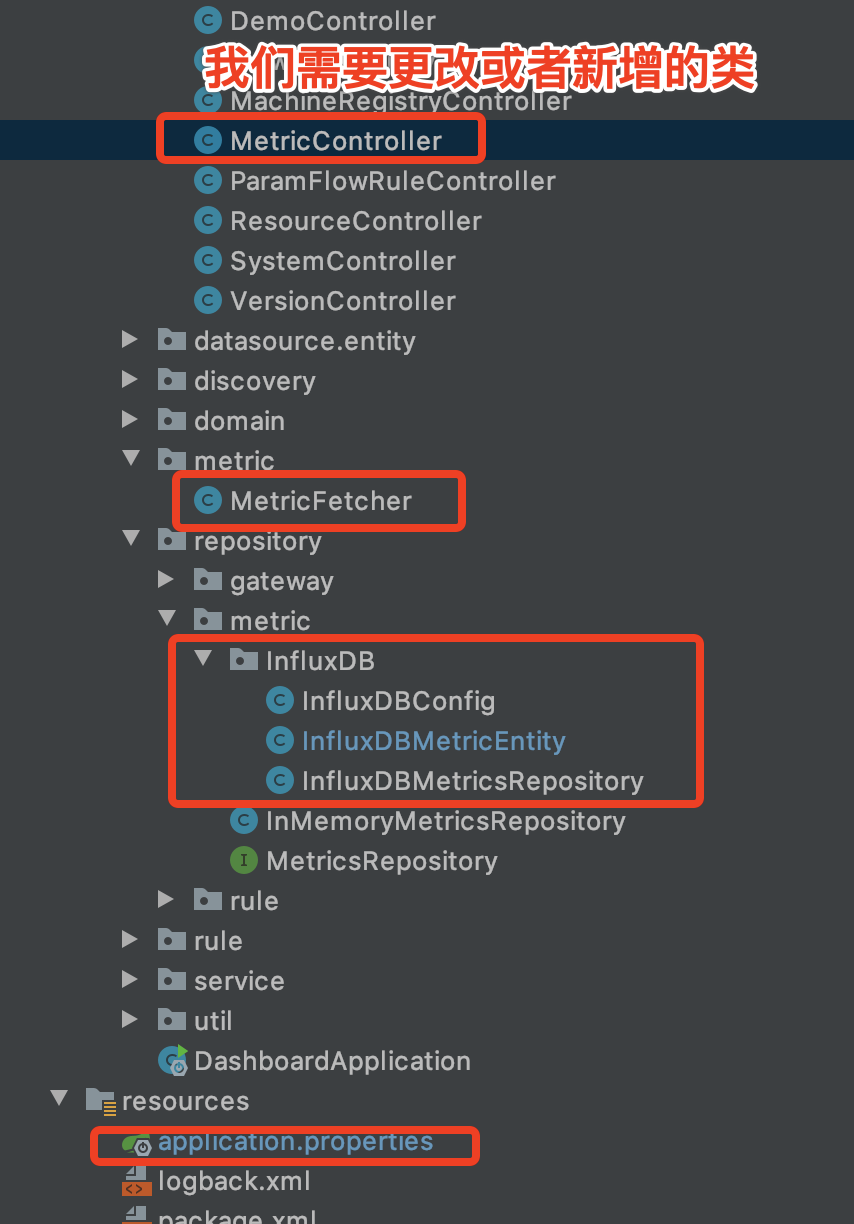

修改注入的具体baen name

以上就是全部的过程，当然了，我们可以对进行根据实际的需要进行再优化。
