实验目的
- 了解IAR开发环境的应用
- 熟悉MFRC531的使用
实验环境
- 硬件： RFID射频模块，USB仿真器，PC机。
- 软件：IAR Embedded Workbench for STMicroelectronics STM8 1.30 Evaluation
实验内容
- 用IAR环境，在电子标签卡片接触RFID模块时，按KEY按键，电子标签中的数据加1和减1，即充值1和减去1，可通过PC机串口软件观测。
- 在串口软件界面输出卡号、余额、小组成员所有学号。
实验步骤
实验代码
1) 输出
- 此次实验的输出为字符串形式，所以注释掉UART2_SendString()函数，避免输出乱码，三个printf()函数分别输出打印卡ID号、按键提示和余额显示。
if(MI_OK == status)
{
tx_buf[9] = money[3];
tx_buf[10] = money[2];
tx_buf[11] = money[1];
tx_buf[12] = money[0];
//UART2_SendString(tx_buf, 14);
}
else
{
Flag = 0;
}
printf("ID: %x %x %x %x\n", g_cSNR[0],g_cSNR[1],g_cSNR[2],g_cSNR[3]);
printf("please press the key,\n");
printf("value: %x %x %x %x\n",tx_buf[9],tx_buf[10],tx_buf[11],tx_buf[12]);
2) 按键控制
- 在中断处理中，判断是否PC1引脚触发，若是，则设置不接收中断，将rx_buf设置为CC EE FE 01 01 00 00 00 01 FF，其中，CC EE FE 01为固定的，第二个01为充值命令，00 00 00 01为充值金额，FF表示结束，然后将两个flag置为1（flag为0，表示未识别到卡，为1，表示识别到卡），打开中断接收信号。
INTERRUPT_HANDLER(EXTI_PORTC_IRQHandler, 5)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
if ((GPIO_ReadInputData(GPIOC) & GPIO_PIN_1) == 0x00)//判断是否PC1引脚触发
//实现按键控制
{
disableInterrupts();
rx_buf[0] = 0xCC;
rx_buf[1] = 0xEE;
rx_buf[2] = 0xFE;
rx_buf[3] = 0x01;
rx_buf[4] = 0x01;
rx_buf[5] = 0x00;
rx_buf[6] = 0x00;
rx_buf[7] = 0x00;
rx_buf[8] = 0x01;
rx_buf[9] = 0xFF;
Uart_RecvFlag = 1;
Flag=1;
enableInterrupts();
}
}
3) 蜂鸣声响
- 读取串口指令完成后，蜂鸣器响100ms。
BEEP_On();
delay_ms(100);
BEEP_Off();
硬件连接
- 把RFID模块插到实验箱的主板上的串口
- 把ST-Link配合JTAG仿真器插到标有ST-Link标志的串口上
- 把仿真器一端的USB线插到PC机的USB端口，通过主板上的“加”“减”按键调整要实验的RFID模块（会有黄色LED灯提示），硬件连接完毕。
编译、烧录并测试
- 我们用IAR SWSTM8 1.30软件，打开…\RFID_电子钱包实验\Project\MFRC531_ATM8.eww。
- 工程编译:点击“Project”->“Rebuild All”。
- 点击“Rebuild All”进行编译。
- 将卡片放在烧录板上，把程序烧到模块里，点击“ ”中间的Download and Debug进行烧录，完成后听到蜂鸣器响一声。
- 关闭上述已打开程序，打开串口测试软件，将传感器模块连接到串口转USB模块上，将USB2UART模块的USB线连接到PC机的USB端口，然后打开串口工具，配置好串口，波特率115200，8个数据位，一个停止位，无校验位，串口开始工作。
实验结果

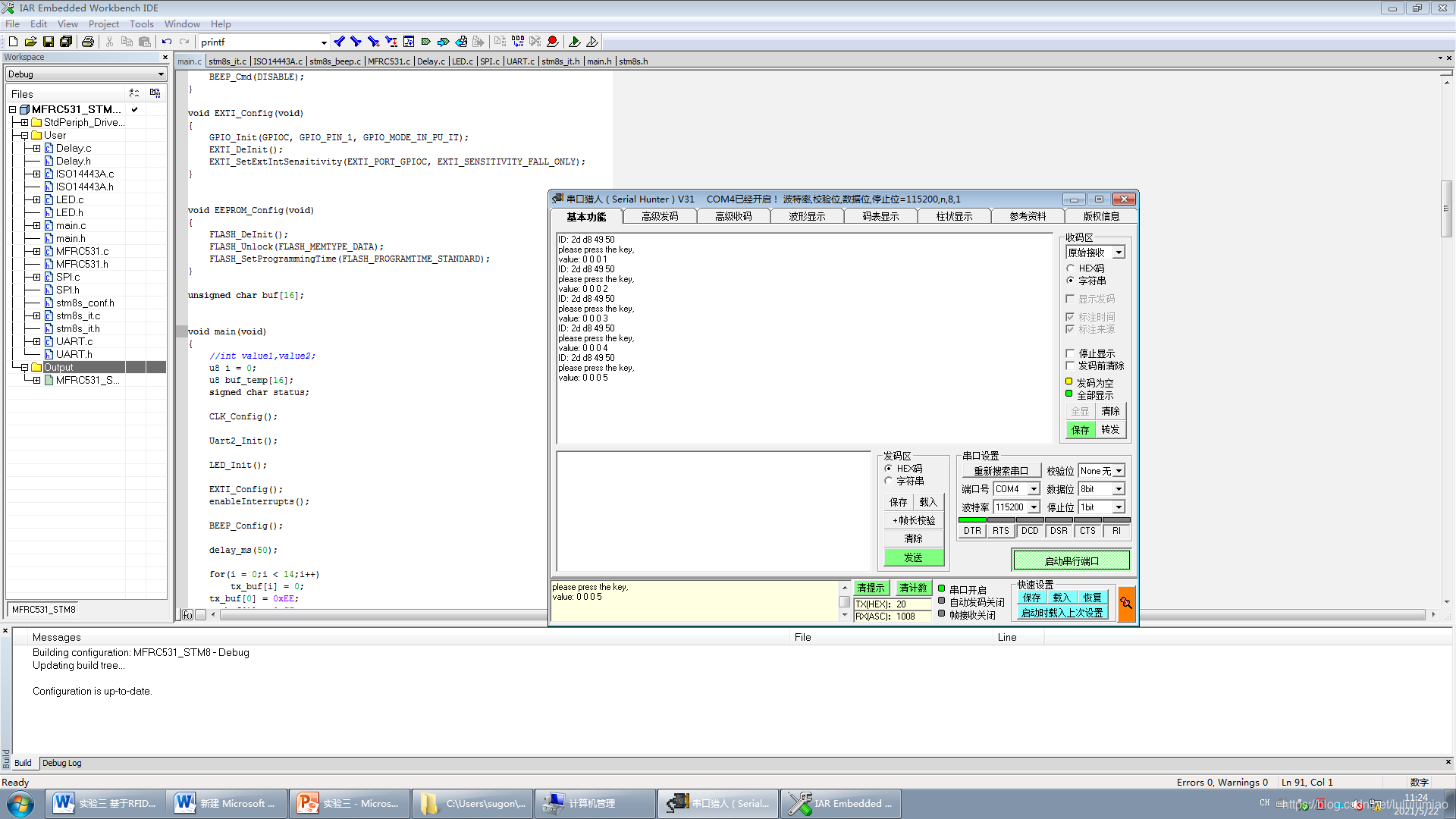

截图1
- 输出“ID：2d d8 49 50”，这是卡序列号；输出“please press the key”，提醒按下按键，输出“value:0 0 0 1”，此时，卡内余额（十六进制）为1，随后，每按下一次按键，向卡内充值1单位的钱，因此，后面输出的value值分别为0 0 0 2、0 0 0 3、0 0 0 4和0 0 0 5。
截图2
- 输出“ID：fd d3 71 51”，这是卡序列号；输出“please press the key”，提醒按下按键，输出“value:af b7 e3 6a”，此时，卡内余额（十六进制）为af b7 e3 6a，随后，每按下一次按键，向卡内充值1单位的钱，因此，后面输出的value值分别为af b7 e3 6b、af b7 e3 6c、af b7 e3 6d。
标准输出示例
代码
main.c
#include "main.h"
#include "stdio.h"
#ifdef _RAISONANCE_
#define PUTCHAR_PROTOTYPE int putchar (char c)
#define GETCHAR_PROTOTYPE int getchar (void)
#elif defined (_COSMIC_)
#define PUTCHAR_PROTOTYPE char putchar (char c)
#define GETCHAR_PROTOTYPE char getchar (void)
#else /* _IAR_ */
#define PUTCHAR_PROTOTYPE int putchar (int c)
#define GETCHAR_PROTOTYPE int getchar (void)
#endif /* _RAISONANCE_ */
u8 rx_buf[10]; //串口输入字符
u8 rx_counter;
u8 Uart_RecvFlag = 0;
u8 tx_buf[14];
u8 tx_buff[14];
u8 g_cSNR[4]; //M1卡序列号
u8 g_pTagType[2]; // M1卡型号代码
u8 money[16]; //余额
u8 p_KeyA[6] = {0xFF,0xFF,0xFF,0xFF,0xFF,0xFF};
u8 p_Key[12];
u8 money_buf[4];
u8 Flag = 0; //是否发现卡标志
//电子钱包-扇区0 块号1
// 时钟设置，内部时钟16M
void CLK_Config(void)
{
CLK_DeInit();
CLK_HSICmd(ENABLE);
CLK_HSIPrescalerConfig(CLK_PRESCALER_HSIDIV1);
CLK_ClockSecuritySystemEnable();
}
void TIM4_Config(void)
{
TIM4_DeInit();
TIM4_TimeBaseInit(TIM4_PRESCALER_128,125); // 1ms 中断
TIM4_ITConfig(TIM4_IT_UPDATE, ENABLE);
TIM4_Cmd(ENABLE);
}
void BEEP_Config(void)
{
BEEP_DeInit();
BEEP_Init(BEEP_FREQUENCY_4KHZ);
BEEP_LSICalibrationConfig(LSI_FREQUENCY_MAX);
}
void BEEP_On(void)
{
BEEP_Cmd(ENABLE);
}
void BEEP_Off(void)
{
BEEP_Cmd(DISABLE);
}
void EXTI_Config(void)
{
GPIO_Init(GPIOC, GPIO_PIN_1, GPIO_MODE_IN_PU_IT);
EXTI_DeInit();
EXTI_SetExtIntSensitivity(EXTI_PORT_GPIOC, EXTI_SENSITIVITY_FALL_ONLY);
}
void EEPROM_Config(void)
{
FLASH_DeInit();
FLASH_Unlock(FLASH_MEMTYPE_DATA);
FLASH_SetProgrammingTime(FLASH_PROGRAMTIME_STANDARD);
}
unsigned char buf[16];
void main(void)
{
//int value1,value2;
u8 i = 0;
u8 buf_temp[16];
signed char status;
CLK_Config();
Uart2_Init();
LED_Init();
EXTI_Config();
enableInterrupts();
BEEP_Config();
delay_ms(50);
for(i = 0;i < 14;i++)
tx_buf[i] = 0;
tx_buf[0] = 0xEE;
tx_buf[1] = 0xCC;
tx_buf[2] = 0xFE;
tx_buf[3] = 0x01;
tx_buf[13] = 0xFF;
if(MFRC531_Init() == MI_OK)
{
BEEP_On();
delay_ms(200);
BEEP_Off();
LED_On();
}
else
{
BEEP_On();
delay_ms(200);
BEEP_Off();
delay_ms(200);
BEEP_On();
delay_ms(200);
BEEP_Off();
LED_Off();
while(1);
}
MFRC531_CfgISOType('A');
rx_counter = 0;
Uart_RecvFlag = 0;
Flag = 0;
enableInterrupts();
while (1)
{
if(Flag == 0) // 未发现卡，寻卡
{
status = MFRC531_OpenAnt();
delay_ms(10);
status = PcdRequest(0x52, g_pTagType);
status = PcdAnticoll(g_cSNR);
status = PcdSelect(g_cSNR,&buf_temp[0]);
if(MI_OK != status)
{
Flag = 0;
}
else // 获取卡号和余额
{
Flag = 1;
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
status = PcdAuthState(0x60, 1, g_cSNR); //验证密钥
status = PcdRead(1, money);
// 判断是否进行过初始化，如果没有，初始化钱包内的余额为0
if(money[12] == 0x01)
{
tx_buf[4] = 0x03;
tx_buf[5] = g_cSNR[0];
tx_buf[6] = g_cSNR[1];
tx_buf[7] = g_cSNR[2];
tx_buf[8] = g_cSNR[3];
tx_buf[9] = money[3];
tx_buf[10] = money[2];
tx_buf[11] = money[1];
tx_buf[12] = money[0];
tx_buff[0] = g_cSNR[0];
tx_buff[1] = g_cSNR[1];
tx_buff[2] = g_cSNR[2];
tx_buff[3] = g_cSNR[3];
}
else
{
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
status = PcdAuthState(0x60, 1, g_cSNR); //验证密钥
buf_temp[0] = 0;
buf_temp[1] = 0;
buf_temp[2] = 0;
buf_temp[3] = 0;
buf_temp[4] = 0xff;
buf_temp[5] = 0xff;
buf_temp[6] = 0xff;
buf_temp[7] = 0xff;
buf_temp[8] = 0;
buf_temp[9] = 0;
buf_temp[10] = 0;
buf_temp[11] = 0;
buf_temp[12] = 0x01;
buf_temp[13] = 0xfe;
buf_temp[14] = 0x01;
buf_temp[15] = 0xfe;
status = PcdWrite(1,buf_temp);
tx_buf[4] = 0x03;
tx_buf[5] = g_cSNR[0];
tx_buf[6] = g_cSNR[1];
tx_buf[7] = g_cSNR[2];
tx_buf[8] = g_cSNR[3];
tx_buf[9] = 0;
tx_buf[10] = 0;
tx_buf[11] = 0;
tx_buf[12] = 0;
tx_buff[0] = g_cSNR[0];
tx_buff[1] = g_cSNR[1];
tx_buff[2] = g_cSNR[2];
tx_buff[3] = g_cSNR[3];
}
}
}
if(Uart_RecvFlag&Flag) // 已发现卡，读写
{
/*读取串口输入指令*/
money_buf[0] = rx_buf[8];
money_buf[1] = rx_buf[7];
money_buf[2] = rx_buf[6];
money_buf[3] = rx_buf[5];
//读取串口指令完成后，蜂鸣器响100ms
BEEP_On();
delay_ms(100);
BEEP_Off();
switch(rx_buf[4])
{
case 0x01: // 充值
tx_buf[4] = 0x01;
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
PcdAuthState(0x60, 1, g_cSNR); //验证密钥
status = PcdValue(0xC1, 1, money_buf);
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
PcdAuthState(0x60, 1, g_cSNR); //验证密钥
status = PcdRead(1, money);
if(MI_OK == status)
{
tx_buf[9] = money[3];
tx_buf[10] = money[2];
tx_buf[11] = money[1];
tx_buf[12] = money[0];
//UART2_SendString(tx_buf, 14);
}
else
{
Flag = 0;
}
printf("ID: %x %x %x %x\n", g_cSNR[0],g_cSNR[1],g_cSNR[2],g_cSNR[3]);
printf("please press the key,\n");
printf("value: %x %x %x %x\n",tx_buf[9],tx_buf[10],tx_buf[11],tx_buf[12]);
break;
case 0x02: // 扣款
tx_buf[4] = 0x02;
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
PcdAuthState(0x60, 1, g_cSNR); //验证密钥
status = PcdValue(0xC0, 1, money_buf);
ChangeCodeKey(p_KeyA,p_Key); //转换密钥格式
PcdAuthKey(p_Key); //传送密钥到RC531 FIFO
PcdAuthState(0x60, 1, g_cSNR); //验证密钥
status = PcdRead(1, money);
if(MI_OK == status)
{
tx_buf[9] = money[3];
tx_buf[10] = money[2];
tx_buf[11] = money[1];
tx_buf[12] = money[0];
//UART2_SendString(tx_buf, 14);
}
else
{
Flag = 0;
}
break;
default:
break;
}
LED_Toggle();
Uart_RecvFlag = 0;
}
}
}
/**
* @brief Retargets the C library printf function to the UART.
* @param c Character to send
* @retval char Character sent
*/
PUTCHAR_PROTOTYPE
{
/* Write a character to the UART1 */
UART2_SendData8(c);
/* Loop until the end of transmission */
while (UART2_GetFlagStatus(UART2_FLAG_TXE) == RESET);
return (c);
}
/**
* @brief Retargets the C library scanf function to the USART.
* @param None
* @retval char Character to Read
*/
GETCHAR_PROTOTYPE
{
#ifdef _COSMIC_
char c = 0;
#else
int c = 0;
#endif
/* Loop until the Read data register flag is SET */
while (UART2_GetFlagStatus(UART2_FLAG_RXNE) == RESET);
c = UART2_ReceiveData8();
return (c);
}
#ifdef USE_FULL_ASSERT
/**
* @brief Reports the name of the source file and the source line number
* where the assert_param error has occurred.
* @param file: pointer to the source file name
* @param line: assert_param error line source number
* @retval None
*/
void assert_failed(uint8_t* file, uint32_t line)
{
/* User can add his own implementation to report the file name and line number,
ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
/* Infinite loop */
while (1)
{
}
}
#endif
/**
* @brief Retargets the C library printf function to the UART.
* @param c Character to send
* @retval char Character sent
*/
stm8s_it.c
/**
******************************************************************************
* @file stm8s_it.c
* @author MCD Application Team
* @version V2.0.1
* @date 18-November-2011
* @brief Main Interrupt Service Routines.
******************************************************************************
* @attention
*
* THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS
* WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE
* TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY
* DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING
* FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE
* CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.
*
* <h2><center>© COPYRIGHT 2011 STMicroelectronics</center></h2>
******************************************************************************
*/
/* Includes ------------------------------------------------------------------*/
#include "stm8s_it.h"
#include "main.h"
/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
/* Private macro -------------------------------------------------------------*/
/* Private variables ---------------------------------------------------------*/
/* Private function prototypes -----------------------------------------------*/
/* Private functions ---------------------------------------------------------*/
/* Public functions ----------------------------------------------------------*/
/** @addtogroup GPIO_Toggle
* @{
*/
#ifdef _COSMIC_
/**
* @brief Dummy interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(NonHandledInterrupt, 25)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*_COSMIC_*/
/**
* @brief TRAP interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER_TRAP(TRAP_IRQHandler)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Top Level Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TLI_IRQHandler, 0)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Auto Wake Up Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(AWU_IRQHandler, 1)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Clock Controller Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(CLK_IRQHandler, 2)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief External Interrupt PORTA Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EXTI_PORTA_IRQHandler, 3)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief External Interrupt PORTB Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EXTI_PORTB_IRQHandler, 4)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief External Interrupt PORTC Interrupt routine
* @param None
* @retval None
*/
extern u8 Flag;
INTERRUPT_HANDLER(EXTI_PORTC_IRQHandler, 5)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
if ((GPIO_ReadInputData(GPIOC) & GPIO_PIN_1) == 0x00)//判断是否PC1引脚触发
//实现按键控制
{
disableInterrupts();
rx_buf[0] = 0xCC;
rx_buf[1] = 0xEE;
rx_buf[2] = 0xFE;
rx_buf[3] = 0x01;
rx_buf[4] = 0x01;
rx_buf[5] = 0x00;
rx_buf[6] = 0x00;
rx_buf[7] = 0x00;
rx_buf[8] = 0x01;
rx_buf[9] = 0xFF;
Uart_RecvFlag = 1;
Flag=1;
enableInterrupts();
}
}
/**
* @brief External Interrupt PORTD Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EXTI_PORTD_IRQHandler, 6)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief External Interrupt PORTE Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EXTI_PORTE_IRQHandler, 7)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#ifdef STM8S903
/**
* @brief External Interrupt PORTF Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EXTI_PORTF_IRQHandler, 8)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S903*/
#if defined (STM8S208) || defined (STM8AF52Ax)
/**
* @brief CAN RX Interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(CAN_RX_IRQHandler, 8)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief CAN TX Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(CAN_TX_IRQHandler, 9)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S208 || STM8AF52Ax */
/**
* @brief SPI Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(SPI_IRQHandler, 10)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Timer1 Update/Overflow/Trigger/Break Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM1_UPD_OVF_TRG_BRK_IRQHandler, 11)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Timer1 Capture/Compare Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM1_CAP_COM_IRQHandler, 12)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#ifdef STM8S903
/**
* @brief Timer5 Update/Overflow/Break/Trigger Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM5_UPD_OVF_BRK_TRG_IRQHandler, 13)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Timer5 Capture/Compare Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM5_CAP_COM_IRQHandler, 14)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#else /*STM8S208, STM8S207, STM8S105 or STM8S103 or STM8AF62Ax or STM8AF52Ax or STM8AF626x */
/**
* @brief Timer2 Update/Overflow/Break Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM2_UPD_OVF_BRK_IRQHandler, 13)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Timer2 Capture/Compare Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM2_CAP_COM_IRQHandler, 14)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S903*/
#if defined (STM8S208) || defined(STM8S207) || defined(STM8S007) || defined(STM8S105) || \
defined(STM8S005) || defined (STM8AF62Ax) || defined (STM8AF52Ax) || defined (STM8AF626x)
/**
* @brief Timer3 Update/Overflow/Break Interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM3_UPD_OVF_BRK_IRQHandler, 15)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief Timer3 Capture/Compare Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM3_CAP_COM_IRQHandler, 16)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S208, STM8S207 or STM8S105 or STM8AF62Ax or STM8AF52Ax or STM8AF626x */
#if defined (STM8S208) || defined(STM8S207) || defined(STM8S007) || defined(STM8S103) || \
defined(STM8S003) || defined (STM8AF62Ax) || defined (STM8AF52Ax) || defined (STM8S903)
/**
* @brief UART1 TX Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART1_TX_IRQHandler, 17)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief UART1 RX Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART1_RX_IRQHandler, 18)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S105*/
/**
* @brief I2C Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(I2C_IRQHandler, 19)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#if defined(STM8S105) || defined(STM8S005) || defined (STM8AF626x)
/**
* @brief UART2 TX interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART2_TX_IRQHandler, 20)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief UART2 RX interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART2_RX_IRQHandler, 21)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
u8 data;
if(UART2_GetITStatus(UART2_IT_RXNE )!= RESET)
{
disableInterrupts();
data = UART2_ReceiveData8();
if (!Uart_RecvFlag)
{
rx_buf[rx_counter] = data;
switch (rx_counter)
{
case 0:
if (data == 0xCC) rx_counter = 1;
break;
case 1:
if (data == 0xEE) rx_counter = 2;
break;
case 2:
if (data == 0xFE) rx_counter = 3;
break;
case 3:
case 4:
case 5:
case 6:
case 7:
case 8:
rx_counter++;
break;
case 9:
if (data == 0xFF)
Uart_RecvFlag = 1;
rx_counter = 0;
break;
default:
rx_counter = 0;
break;
}
}
else
rx_counter = 0;
enableInterrupts();
}
}
#endif /* STM8S105*/
#if defined(STM8S207) || defined(STM8S007) || defined(STM8S208) || defined (STM8AF52Ax) || defined (STM8AF62Ax)
/**
* @brief UART3 TX interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART3_TX_IRQHandler, 20)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @brief UART3 RX interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(UART3_RX_IRQHandler, 21)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#endif /*STM8S208 or STM8S207 or STM8AF52Ax or STM8AF62Ax */
#if defined(STM8S207) || defined(STM8S007) || defined(STM8S208) || defined (STM8AF52Ax) || defined (STM8AF62Ax)
/**
* @brief ADC2 interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(ADC2_IRQHandler, 22)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
return;
}
#else /*STM8S105, STM8S103 or STM8S903 or STM8AF626x */
/**
* @brief ADC1 interrupt routine.
* @param None
* @retval None
*/
INTERRUPT_HANDLER(ADC1_IRQHandler, 22)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
return;
}
#endif /*STM8S208 or STM8S207 or STM8AF52Ax or STM8AF62Ax */
#ifdef STM8S903
/**
* @brief Timer6 Update/Overflow/Trigger Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM6_UPD_OVF_TRG_IRQHandler, 23)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
#else /*STM8S208, STM8S207, STM8S105 or STM8S103 or STM8AF62Ax or STM8AF52Ax or STM8AF626x */
/**
* @brief Timer4 Update/Overflow Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(TIM4_UPD_OVF_IRQHandler, 23)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
//TIM4_ClearITPendingBit(TIM4_IT_UPDATE);
}
#endif /*STM8S903*/
/**
* @brief Eeprom EEC Interrupt routine
* @param None
* @retval None
*/
INTERRUPT_HANDLER(EEPROM_EEC_IRQHandler, 24)
{
/* In order to detect unexpected events during development,
it is recommended to set a breakpoint on the following instruction.
*/
}
/**
* @}
*/
/******************* (C) COPYRIGHT 2011 STMicroelectronics *****END OF FILE****/
189
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
