WPF 颜色渐变

线性渐变:LinearGradientBrush使用沿直线（渐变轴）定义的渐变绘制区域。 使用对象指定渐变的颜色及其在渐变轴上的位置 GradientStop 。 还可以修改渐变轴，从而能够创建水平和垂直渐变以及反转渐变方向。

Xaml代码:

<!-- This rectangle is painted with a diagonal linear gradient. -->
<Rectangle Width="200" Height="100">
  <Rectangle.Fill>
    <LinearGradientBrush StartPoint="0,0" EndPoint="1,1">
      <GradientStop Color="Yellow" Offset="0.0" />
      <GradientStop Color="Red" Offset="0.25" />
      <GradientStop Color="Blue" Offset="0.75" />
      <GradientStop Color="LimeGreen" Offset="1.0" />
    </LinearGradientBrush>
  </Rectangle.Fill>
</Rectangle>

C#代码:

//C# Code
Rectangle diagonalFillRectangle = new Rectangle();
diagonalFillRectangle.Width = 200;
diagonalFillRectangle.Height = 100;

// Create a diagonal linear gradient with four stops.
LinearGradientBrush myLinearGradientBrush =
    new LinearGradientBrush();
myLinearGradientBrush.StartPoint = new Point(0,0);
myLinearGradientBrush.EndPoint = new Point(1,1);
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Yellow, 0.0));
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Red, 0.25));
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Blue, 0.75));
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Colors.LimeGreen, 1.0));

// Use the brush to paint the rectangle.
diagonalFillRectangle.Fill = myLinearGradientBrush;

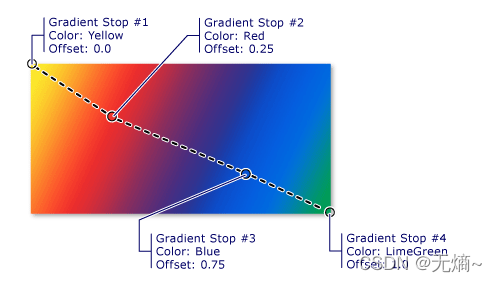

效果:

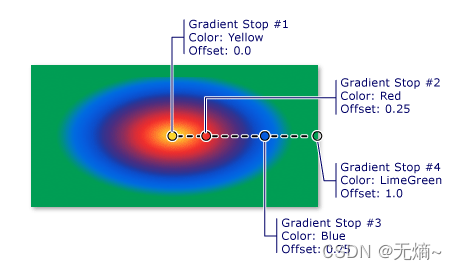

径向渐变:像一样 LinearGradientBrush ，用 RadialGradientBrush 沿轴混合的颜色绘制区域。 前面的示例演示线性渐变画笔的轴是一条直线。 径向渐变画笔的轴由圆圈定义；它的颜色从原点开始向外“辐射”。

Xaml代码:

<!-- This rectangle is painted with a diagonal linear gradient. -->
<Rectangle Width="200" Height="100">
  <Rectangle.Fill>
    <RadialGradientBrush
      GradientOrigin="0.5,0.5" Center="0.5,0.5"
      RadiusX="0.5" RadiusY="0.5">
      <GradientStop Color="Yellow" Offset="0" />
      <GradientStop Color="Red" Offset="0.25" />
      <GradientStop Color="Blue" Offset="0.75" />
      <GradientStop Color="LimeGreen" Offset="1" />
    </RadialGradientBrush>
  </Rectangle.Fill>
</Rectangle>

C#代码:

RadialGradientBrush myRadialGradientBrush = new RadialGradientBrush();
myRadialGradientBrush.GradientOrigin = new Point(0.5,0.5);
myRadialGradientBrush.Center = new Point(0.5,0.5);
myRadialGradientBrush.RadiusX = 0.5;
myRadialGradientBrush.RadiusY = 0.5;
myRadialGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Yellow, 0.0));
myRadialGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Red, 0.25));
myRadialGradientBrush.GradientStops.Add(
    new GradientStop(Colors.Blue, 0.75));
myRadialGradientBrush.GradientStops.Add(
    new GradientStop(Colors.LimeGreen, 1.0));

Rectangle myRectangle = new Rectangle();
myRectangle.Width = 200;
myRectangle.Height = 100;
myRectangle.Fill = myRadialGradientBrush;

效果:

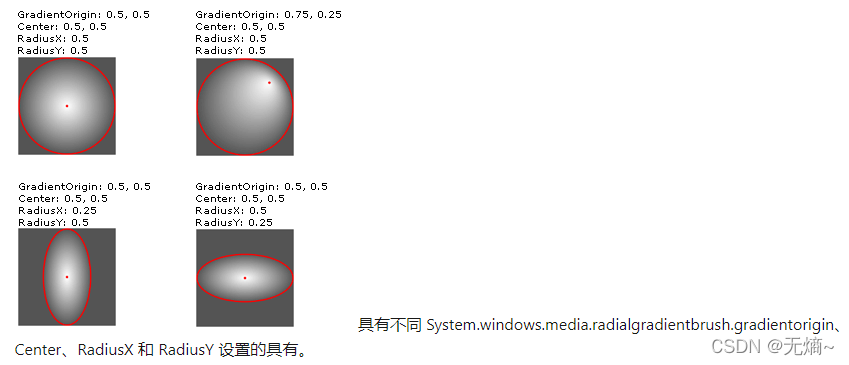

GradientOrigin指定径向渐变画笔的渐变轴的起点。 渐变轴从渐变原点向渐变圆辐射开来。 画笔的渐变圆由其 Center 、 RadiusX 和 RadiusY 属性定义:

指定透明或部分透明的梯度停止点: 在中 XAML ，可以使用 ARGB 十六进制表示法来指定各个颜色的不透明度。 ARGB 十六进制表示法使用以下语法：

# aa rrggbb

上一行中的 aa 表示用于指定颜色不透明度的两位十六进制值。 rr、gg 和 bb 分别表示用于指定颜色中的红色、绿色和蓝色量的两位十六进制值。

Xaml代码:

<Rectangle Width="100" Height="100">
  <Rectangle.Fill>
    <LinearGradientBrush StartPoint="0,0">

      <!-- This gradient stop is partially transparent. -->
      <GradientStop Color="#200000FF" Offset="0.0" />

      <!-- This gradient stop is fully opaque. -->
      <GradientStop Color="#FF0000FF" Offset="1.0" />
    </LinearGradientBrush>
  </Rectangle.Fill>
</Rectangle>

C#代码:

LinearGradientBrush myLinearGradientBrush = new LinearGradientBrush();

// This gradient stop is partially transparent.
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Color.FromArgb(32, 0, 0, 255), 0.0));

// This gradient stop is fully opaque.
myLinearGradientBrush.GradientStops.Add(
    new GradientStop(Color.FromArgb(255, 0, 0, 255), 1.0));

Rectangle myRectangle = new Rectangle();
myRectangle.Width = 100;
myRectangle.Height = 100;
myRectangle.Fill = myLinearGradientBrush;

设置控件渐变色，修改其Background属性:

        <Button Width="100" Height="30" VerticalAlignment="Top">
            <Button.Background>
                <LinearGradientBrush StartPoint="0,0.5" EndPoint="1,0.5">
                    <GradientStop Color="Yellow" Offset="0.0" />
                    <GradientStop Color="Red" Offset="0.25" />
                    <GradientStop Color="Blue" Offset="0.75" />
                    <GradientStop Color="LimeGreen" Offset="1.0" />
                </LinearGradientBrush>
            </Button.Background>
        </Button>
