module top_module(
    input clk,
    input reset,
    input ena,
    output pm,
    output [7:0] hh,
    output [7:0] mm,
    output [7:0] ss);

    wire [3:0] i_en;
   // wire pm_temp;
   //assign pm_temp = (hh == {4'd1, 4'd1} && mm == {4'd5,4'd9} && ss == {4'd5, 4'd9}) ? (~pm) : pm;
   // assign pm = pm_temp;
    assign i_en = {mm[7:4] == 8'd5 && mm[3:0] == 8'd9 && ss[7:4] == 8'd5 && ss[3:0] == 8'd9,//i_en[3]
                   mm[3:0] == 8'd9 && ss[7:4] == 8'd5 && ss[3:0] == 8'd9,		//i_en[2]
                   ss[7:4] == 8'd5 && ss[3:0] == 8'd9,	//i_en[1]
                   ss[3:0] == 8'd9};					//i_en[0]

    bcd i0 (clk, reset, 	ena, 4'd0, 4'd9, ss[3:0]);
    bcd i1 (clk, reset, i_en[0] & ena, 4'd0, 4'd5, ss[7:4]);

    bcd i2 (clk, reset, i_en[1], 4'd0, 4'd9, mm[3:0]);
    bcd i3 (clk, reset, i_en[2], 4'd0, 4'd5, mm[7:4]);

    bcd_h1 i4 (clk, reset, i_en[3], hh[7:0]);
    pm i5 (clk, reset, hh, mm, ss, pm);
endmodule
//可选择范围的计数器;start表示计数起点，end表示计数终点
module bcd(
    input clk,
    input reset,
    input i_enable,
    input [3:0] starting,
    input [3:0] ending,
    output [3:0] num);

    always @(posedge clk)
        begin
           if(reset) begin
                num <= starting;
           end
           else begin
               if(i_enable) begin
                    if(num == ending) begin
                        num <= starting;
                    end
                    else begin
                        num <= num + 1'b1;
                    end
               end
               else begin
                  num <= num;
               end
            end
        end
endmodule
 //小时
module bcd_h1(
    input clk,
    input reset,
    input i_enable,
    output [7:0] num);
    reg [3:0] hours;

    always @(posedge clk)
        begin
           if(reset) begin
               num = {4'd1,4'd2};
               hours = 4'd12;
            end
            else begin
                if(i_enable) begin //i_enable_h1 = 1:表示十位数为1
                    if(hours == 4'd12) begin
                        num   = {4'd0,4'd1};
                        hours = 4'd1;
                    end
                    else begin
                        hours = hours + 1'b1;
                        num   = num + 1'b1;
                    end
                end
                else begin
                    hours = hours;
                    num   = num;
                end
                if(hours < 4'd10) begin
                    num = {4'd0, hours};
                end
                else begin
                    num = {4'd1, hours - 4'd10};
                end
            end
        end
endmodule

module pm(
    input clk,
    input reset,
    input [7:0] hh,
    input [7:0] mm,
    input [7:0] ss,
    output pm);

    always @(posedge clk)
        begin
           if(reset) begin
               pm <= 'b0;
            end
            else begin
                if(hh == {4'd1, 4'd1} && mm == {4'd5,4'd9} && ss == {4'd5, 4'd9}) begin
                    pm <= ~pm;
                end
                else begin
                    pm <= pm;
                end
            end
        end
endmodule

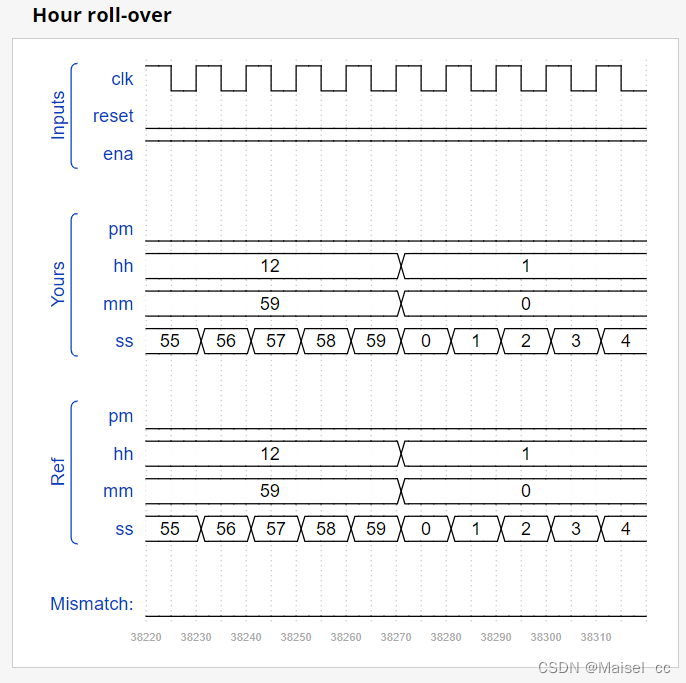

题目描述

设计一个带有am/pm指示的12小时时钟。当reset时时钟指向12：00am。pm为0时表示AM，pm为1表示PM。hh, mm, ss都是用连个BCD码表示hh（1-12），mm（0-59），ss（0-59）。reset的优先级高于enable信号。

当时钟在11：59：59am时下一刻在12：00：00PM

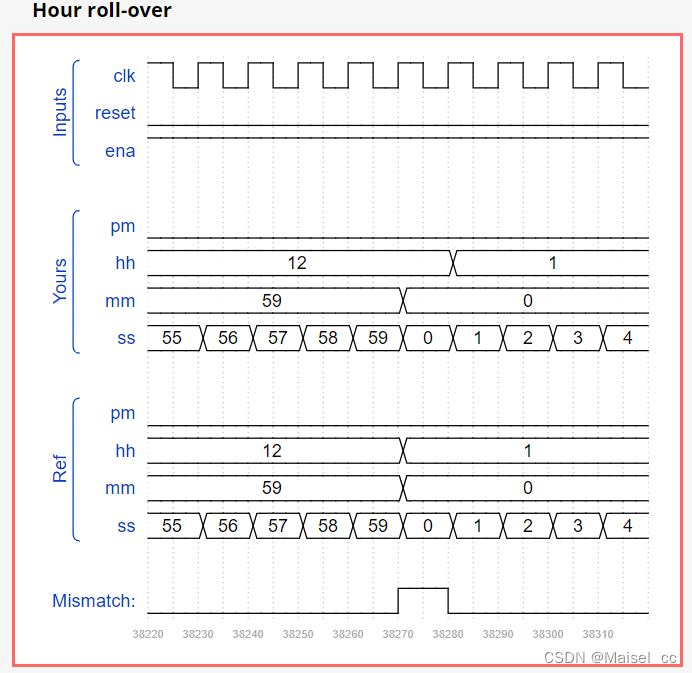

遇见问题1

若代码中出现此下情况

assign pm = {hh == 8'd11 && mm == 8'd59 && ss == 8'd59} ? ~pm : pm;

调试过程中便会出现如下错误：调试过程超出了限制次数5000次，一般的这种错误会出现在组合逻辑电路中（回环）。在组合逻辑电路中对敏感变量进行赋值，而敏感变量一变化，组合逻辑块就会进行赋值，赋值又会让敏感变量变化，如此循环，并且组合电路动作几乎不花时间，这便成了一个死循环。

# ** Error (suppressible): (vsim-3601) Iteration limit 5000 reached at time 15 ps.
This usually means your code is broken and the simulator can't simulate it. It's often caused by having a combinational loop or a latch with race conditions that oscillates, causing the simulator to never settle to a fixed value at this particular point in the simulation. Combinational loops can occur if some combinational logic (including always@(*) blocks) consumes a signal that it modifies. It can sometimes be caused by thinking in C while writing Verilog. Look for Quartus Warning (10240 or 13012) or Info (10041) regarding inferred latches or unsafe latch behaviour.

解决：利用电平铭感描述组合的逻辑块

module pm(
    input clk,
    input reset,
    input [7:0] hh,
    input [7:0] mm,
    input [7:0] ss,
    output pm);

    always @(posedge clk)
        begin
           if(reset) begin
               pm <= 'b0;
            end
            else begin
                if(hh == {4'd1, 4'd1} && mm == {4'd5,4'd9} && ss == {4'd5, 4'd9}) begin
                    pm <= ~pm;
                end
                else begin
                    pm <= pm;
                end
            end
        end
endmodule
