汽车华容道BFS求解（幼儿益智玩具

问题背景

这是一个幼儿锻炼智力的玩具，但是有一个“小可爱”在哄孩子玩的时候，解不出来，遂来求助。

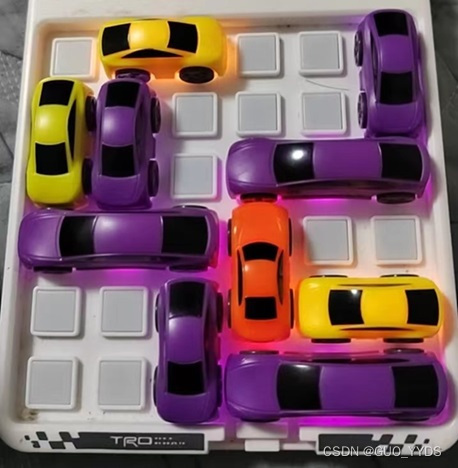

书归正文，对于上面的局面，需要通过不断移动通过其他汽车，让橙色汽车向下移动到出口，即为胜利。

在这里，不允许把小车拿起来，同时对于横着的小汽车只能横着移动，竖着的小车同样道理。

问题求解

这是一个十分经典的计算机领域的问题，可以使用宽度优先遍历的方式求解最少的移动步数。

抽象一下问题，主要是棋盘里面小车的摆放方式，如何更好的表示：

首先， 6 * 6 的棋盘，是一个二维数组。

数组的内容表示如下：

0: 空
1：作为小车的其他部分填充，小车只有最左边/最上边的是2/3/4/5
2：1 * 2
3：1 * 3
4：2 * 1
5：3 * 1

所以，上面图片的例子数组表示就是：

VII a = {
		{0,2,1,0,0,4},
		{4,4,0,0,0,1},
		{1,1,0,3,1,1},
		{3,1,1,4,0,0},
		{0,0,4,1,2,1},
		{0,0,1,3,1,1}
	};

所以，只要修改main函数里面的二维数组，就可以求解其他的情况了。

另外，因为使用BFS，所以输出的执行步骤需要倒着看。

下面贴出来代码：(c++版本)

#include<iostream>
#include<vector>
#include<string>
#include<unordered_map>
#include<iomanip>
#include<queue>
using namespace std;
// 6 * 6
// 0: 空
// 1：填充
// 2：1 * 2
// 3：1 * 3
// 4：2 * 1
// 5：3 * 1
typedef vector<vector<int>> VII;
unordered_map<string, bool> st;
unordered_map<string, string> pre;
string vec2str(VII a) {
	string res;
	for (int i = 0; i < 6; i++) {
		for (int j = 0; j < 6; j++) {
			res += to_string(a[i][j]);
		}
	}
	return res;
}
VII str2vec(string s) {
	VII a(6, vector<int>(6, 0));
	int k = 0;
	for (int i = 0; i < 6; i++) {
		for (int j = 0; j < 6; j++) {
			a[i][j] = s[k++] - '0';
		}
	}
	return a;
}
void print(VII a) {
	vector<vector<char>> b(6, vector<char>(6, '0'));
	for (int i = 0; i < 6; i++) {
		for (int j = 0; j < 6; j++) {
			if (b[i][j] != '0') continue;
			switch (a[i][j]) {
			case 0: {
				b[i][j] = '-'; break;
			}
			case 2: {
				b[i][j] = b[i][j + 1] = '@';
				break;
			}
			case 3: {
				b[i][j] = b[i][j + 1] = b[i][j + 2] = '#';
				break;
				}
			case 4: {
				b[i][j] = b[i+1][j] = '$';
				break;
			}
			case 5: {
				b[i][j] = b[i+1][j] = b[i+2][j] = '%';
			}
			}

		}
	}
	for (int i = 0; i < 6; i++) {
		for (int j = 0; j < 6; j++) {
			cout << b[i][j];
		}
		cout << endl;
	}
	cout << endl;
}
bool is_success(VII a) {
	return a[4][3] == 4;
}

void bfs(VII& b) {
	queue<VII> q;
	q.push(b);
	st[vec2str(b)] = true;
	pre[vec2str(b)] = "";
	while (q.size()) {
		VII a = q.front();
		if (is_success(a)) {
			string s = vec2str(a);
			while (s != "") {
				print(str2vec(s));
				s = pre[s];
			}
			return;
		}
		string s = vec2str(a);
		q.pop();
		for (int i = 0; i < 6; i++) {
			for (int j = 0; j < 6; j++) {
				if (a[i][j] == 0 || a[i][j] == 1) continue;
				if (a[i][j] == 2) {
					// 1*2 左右移动 k = [0, 4]
					// left
					if (j - 1 >= 0 && a[i][j - 1] == 0) {
						a[i][j] = a[i][j + 1] = 0;
						a[i][j - 1] = 2;
						a[i][j] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i][j - 1] = 0;
						a[i][j] = 2;
						a[i][j + 1] = 1;
					}
					// right
					if (j + 2 < 6 && a[i][j + 2] == 0) {
						a[i][j] = a[i][j + 1] = 0;
						a[i][j + 1] = 2;
						a[i][j + 2] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i][j + 1] = a[i][j + 2] = 0;
						a[i][j] = 2;
						a[i][j + 1] = 1;
					}
				}
				else if (a[i][j] == 3) {
					// left
					if (j - 1 >= 0 && a[i][j - 1] == 0) {
						a[i][j] = a[i][j + 1] = a[i][j + 2] = 0;
						a[i][j - 1] = 3;
						a[i][j] = 1;
						a[i][j + 1] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i][j - 1] = a[i][j] = a[i][j + 1] = 0;
						a[i][j] = 3;
						a[i][j + 1] = 1;
						a[i][j + 2] = 1;
					}
					// right
					if (j + 3 < 6 && a[i][j + 3] == 0) {
						a[i][j] = a[i][j + 1] = a[i][j + 2] = 0;
						a[i][j + 1] = 3;
						a[i][j + 2] = 1;
						a[i][j + 3] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i][j + 1] = a[i][j + 2] = a[i][j + 3] = 0;
						a[i][j] = 3;
						a[i][j + 1] = 1;
						a[i][j + 2] = 1;
					}
				}
				else if (a[i][j] == 4) {
					// up
					if (i - 1 >= 0 && a[i - 1][j] == 0) {
						a[i][j] = a[i + 1][j] = 0;
						a[i - 1][j] = 4;
						a[i][j] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i - 1][j] = 0;
						a[i][j] = 4;
						a[i + 1][j] = 1;
					}
					// down
					if (i + 2 < 6 && a[i + 2][j] == 0) {
						a[i][j] = a[i + 1][j] = 0;
						a[i + 1][j] = 4;
						a[i + 2][j] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i + 1][j] = a[i + 2][j] = 0;
						a[i][j] = 4;
						a[i + 1][j] = 1;
					}
				}
				else if (a[i][j] == 5) {
					// up
					if (i - 1 >= 0 && a[i - 1][j] == 0) {
						a[i][j] = a[i + 1][j] = a[i + 2][j] = 0;
						a[i - 1][j] = 5;
						a[i][j] = 1;
						a[i + 1][j] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i - 1][j] = a[i][j] = a[i + 1][j] = 0;
						a[i][j] = 5;
						a[i + 1][j] = 1;
						a[i + 2][j] = 1;
					}
					// down
					if (i + 3 < 6 && a[i + 3][j] == 0) {
						a[i][j] = a[i + 1][j] = a[i + 2][j] = 0;
						a[i + 1][j] = 5;
						a[i + 2][j] = 1;
						a[i + 3][j] = 1;
						if (!st.count(vec2str(a))) {
							st[vec2str(a)] = true;
							pre[vec2str(a)] = s;
							q.push(a);
						}
						a[i + 1][j] = a[i + 2][j] = a[i + 3][j] = 0;
						a[i][j] = 5;
						a[i + 1][j] = 1;
						a[i + 2][j] = 1;
					}
				}
			}
		}
	}
}

int main() {
	//freopen("out.txt", "w", stdout);
/*	VII a = {
		{0,2,1,0,0,4},
		{4,4,0,0,0,1},
		{1,1,0,3,1,1},
		{3,1,1,4,0,0},
		{0,0,4,1,2,1},
		{0,0,1,3,1,1}
	};*/
	VII a = {
		{0,5,0,4,0,0},
		{0,1,0,1,5,0},
		{0,1,2,1,1,0},
		{0,3,1,1,1,0},
		{0,0,4,0,0,0},
		{2,1,1,2,1,0}
	};
	vector<string> path;
	bfs(a);
	return 0;
}
