一、写在前面
nginx是十分轻量级的HTTP服务器。是一个高性能的HTTP和反向代理服务器,同时也是一个IMAP/POP3/SMTP 代理服务器。
了解nginx的基本操作
nginx一键安装脚本:https://blog.csdn.net/m0_59371732/article/details/126162978?spm=1001.2014.3001.5501
按步骤操作如下:
编译下载
curl -O http://nginx.org/download/nginx-1.22.0.tar.gz 下载
将已经编译好的二进制程序安装到指定的路径 make install
nginx.conf文件解析
- 工作进程的数量,与cpu数量相同即可,使用top命令按1查看
#user nobody;
worker_processes 2;
- 错误日志的地址
#error_log logs/error.log;
error_log logs/error.log notice;
#error_log logs/error.log info;
- 指定安装路径
--prefix=PATH set installation prefix
- 建立长连接(http模块)
keepalive_timeout 65;
- 网站首页位置,/代表当前
location / {
root html;
index index.html index.htm;
}
- 运行改代码 添加需要的模块等
./configure --prefix=/usr/local/jay-zhou99 --user=jay-zhou --group=jay-zhou
--with-http_ssl_module --with-threads --with-http_v2_module
--with-http_stub_status_module --with-stream --with-http_gunzip_module
安装好后文件显示
[root@VM-12-8-centos nginx-1.22.0]# cd /usr/local/jay-zhou99/
[root@VM-12-8-centos jay-zhou99]# ls
conf html logs sbin
安装好后的操作
conf 存放nginx的配置的文件
html 存放网站的网页的目录
logs 存放日志
sbin 存放nginx的启动程序的
```shell
[root@VM-12-8-centos html]# ls
50x.html index.html
index.html 首页文件 :进入某个网站看到的第一个页面
链接:通过首页里的链接跳到其他的页面
修改环境变量 可以在任何地方使用nginx 命令直接启动
[root@VM-12-8-centos sbin]# PATH=/usr/local/jay-zhou99/sbin/:$PATH
把这个脚本的变量放到当前终端运行,不会去产生一个子进程
source /root/.bashrc
停掉nginx进程
[root@VM-12-8-centos ~]# ps aux|grep nginx
或者使用kill -9 ,先杀死master的那个nginx进程
- 防火墙的设置
立即关闭防火墙,只是暂时
[root@VM-12-8-centos nginx_d]# service firewalld stop
永久关闭防火墙,下次开机时生效
[root@VM-12-8-centos nginx_d]# systemctl disable firewalld
查看防火墙状态
service filewalld status
日志问题,不同级别的错误
0最高
loglevel
The kernel log levels are:
0 (KERN_EMERG)
The system is unusable.
1 (KERN_ALERT)
Actions that must be taken care of immediately.
2 (KERN_CRIT)
Critical conditions.
3 (KERN_ERR)
Noncritical error conditions.
4 (KERN_WARNING)
Warning conditions that should be taken care of.
5 (KERN_NOTICE)
Normal, but significant events.
6 (KERN_INFO)
Informational messages that require no action.
7 (KERN_DEBUG) 调试模式: 程序执行的整个过程都记录,方便开发者调试程序
Kernel debugging messages, output by the kernel if the developer enabled debugging at compile time.
==
0 EMERG. emergency 紧急 --》系统不能使用了
1 ALERT. 告警
2 CRIT. 严重 Critical
3 ERR. 程序因为某个错误导致不能运行,只要是error以上的级别都会导致程序启动或者是运行失败
4 WARNING. 警告 ,不会影响程序的正常运行,只是提醒而已
5 NOTICE. 正常的记录,有点影响力的事件
6 INFO. 普通的信息都记录
7 DEBUG. 调试模式,什么都记录
二、环境搭建学习
web服务器配置
(本章是在云服务器上学习用的)
1、在配置文件里修改配置,新建3个虚拟主机
nginx.conf 新添加的server
一个server对应一个网站 -----》虚拟主机 (只截取了一个server)
server{
listen 80;
server_name www.liang.com;
location / {
root html/liang;
index index.html index.htm shouye.html #首页文件优先级,先从做左边
}
access_log logs/liang_access.log main; #访问日志
error_log logs/liang_error.log notice; #错误日志
}
2、添加好后 新建各个虚拟主机对应的网页根目录,并且新建首页
[root@VM-12-8-centos jay-zhou99]# cd html
[root@VM-12-8-centos html]# pwd
/usr/local/jay-zhou99/html
[root@VM-12-8-centos html]#
[root@VM-12-8-centos html]# tree
.
|-- 50x.html
|-- hejin
| `-- he.html
|-- index.html
|-- jay.jpg
|-- liang
| `-- index.html 在index.html 中输入想在网页上看到的内容
|-- lili
| `-- index.html
`-- tian
`-- index.html
3、重启nginx服务
nginx -s reload

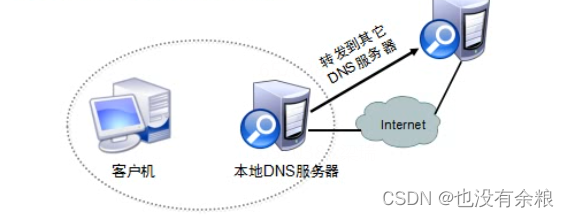

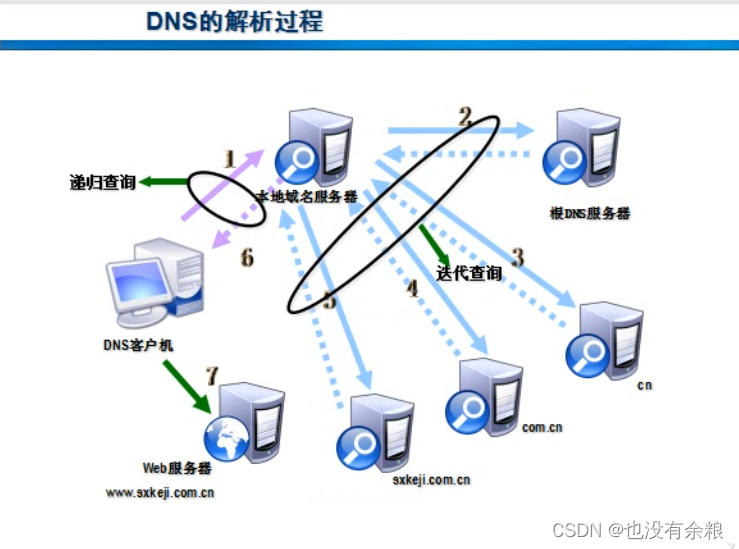

4、域名解析
拿我们的nginx服务器做客户,修改/etc/hosts 添加对应的域名
写入/etc/hosts 文件
1.14.183.210 www.liang.com
1.14.183.210 www.tian.com
1.14.183.210 www.lili.com
5、测试访问
访问的域名不一样,然会的内容也不一样
[root@VM-12-8-centos html]# curl www.lili.com
liyili cool
[root@VM-12-8-centos html]# curl www.liang.com
liangrui bingo
[root@VM-12-8-centos html]#
(在windows里改hosts文件
C:\Windows\System32\drivers\etc
改不了的话把hosts文件移到桌面上修改,然后再移回去
# 以下为 kafka的
192.168.10.160 www.sc.com
192.168.10.157 www.sc.com
192.168.10.161 www.sc.com
# 以下为学习linux加的
# 是基于域名的虚拟主机 ,此种要好些,公用一个ip,共用一个端口
1.14.183.210 www.liang.com
1.14.183.210 www.tian.com
1.14.183.210 www.lili.com
错误页面跳转
浏览器访问错误页面 访问的www.qq.com/liang 跳出一个404错误页面和公益广告
https://www.qq.com/404page.html
1、自己写一个错误的页面
此为配置文件中的错误 处理,可以编写一个404文件
error_page 404 /404.html;
[root@VM-12-8-centos html]# ls
50x.html hejin index.html jay.jpg liang lili tian
[root@VM-12-8-centos html]# vim 404.html
[root@VM-12-8-centos html]# cat 404.html
<html>
<head>
<title>404 page not found</title>
</head>
<body>
<p>page not found
<p><h3>admin:liangrui 16609165839</h3> (h为加粗)
<p><img src=jay.jpg width=200>
</body>
</html>
2、然后加到server中,使用www.liang.com/***访问看是否会出现那个错误页面
server {
listen 80;
server_name www.liang.com;
location / {
root html/liang; index index.html index.htm shouye.html; #首页文件优先级,先从做左>边
}
error_page 404 /404.html;
access_log logs/liang_access.log main; #访问日志
error_log logs/liang_error.log notice; #错误日志
}
3、打开浏览器没有那个效果,打开日志排错
2022/07/22 19:35:24 [error] 15159#15159: *434 open() "/usr/local/jay-zhou99/html/liang/404.html" failed (2: No such file or directory), client: 222.244.221.23, server: www.liang.com, request: "GET /ww HTTP/1.1", host: "www.liang.com"
html 文件放的不对,要放到这个文件下面去
/usr/local/jay-zhou99/html/liang/404.html"
4、加了一行跳转的页面。5秒后自动跳转
<html>
<head>
<title>404 page not found</title>
<meta http-equiv="refresh" content="5";url="http://www.bilibili.com">
</head>
<body>
<p>page not found
<p><h3>admin:liangrui 16609165839</h3>
<p><img src=jay.jpg width=200>
</body>
</html>
5、错误页面效果如下
5秒后跳转至bilibili
www.liang.com:8080 (冒号后面加端口,表示访问哪个端口)
IO多路复用
解决高并发的问题
1、select 和 epoll
select单个进程可监视的fd数量受到限制,epoll和select都可实现同时监听多个I/O事件的状态。
- select 基于轮训机制
- epoll基于操作系统支持的I/O通知机制 epoll支持水平触发和边沿触发两种模式。
lsof -p 加进程号 查看该进程打开了哪些文件 (p---->pid)
[root@VM-12-8-centos conf]# ps aux |grep nginx
root 4793 0.0 0.1 50196 3084 ? Ss Jul19 0:00 nginx: master process nginx
jay-zhou 29738 0.0 0.1 52280 2356 ? S 22:02 0:00 nginx: worker process
jay-zhou 29739 0.0 0.1 52280 2356 ? S 22:02 0:00 nginx: worker process
root 29791 0.0 0.0 115928 1016 pts/1 S+ 22:02 0:00 grep --color=auto nginx
[root@VM-12-8-centos conf]# lsof -p 29738
COMMAND PID USER FD TYPE DEVICE SIZE/OFF NODE NAME
nginx 29738 jay-
