本文介绍了Saastamoinen和UNB3m两种气象模型，用于计算对流层延迟，包括静力学延迟和湿延迟。Saastamoinen模型详细展示了如何根据气压、气温和海拔计算延迟，而UNB3m模型则依赖于年均值和振幅参数。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一、写在前面

需要实测气象参数的模型：Saastamoinen模型、Hopfield模型

不需要实测气象参数的模型：UNB模型、UNB3m模型（只需要提供高程、纬度和年积日即可计算对流层延迟量）

一般对流层模型中，将对流层天顶总延迟（ZTD：Zenith Total Delay）分为对流层静力学延迟（ZHD：Zenith Hydrostatic Delay）和对流层湿延迟（ZWD：Zenith Wet Delay）。静力学延迟约占总延迟量的90%，可以通过实测气压和气温来计算，而湿延迟影响因素较多，不太容易估算。

PS：静力学延迟又叫做干延迟，非静力学延迟又叫做湿延迟。

二、Saastamoinen模型

代码如下：

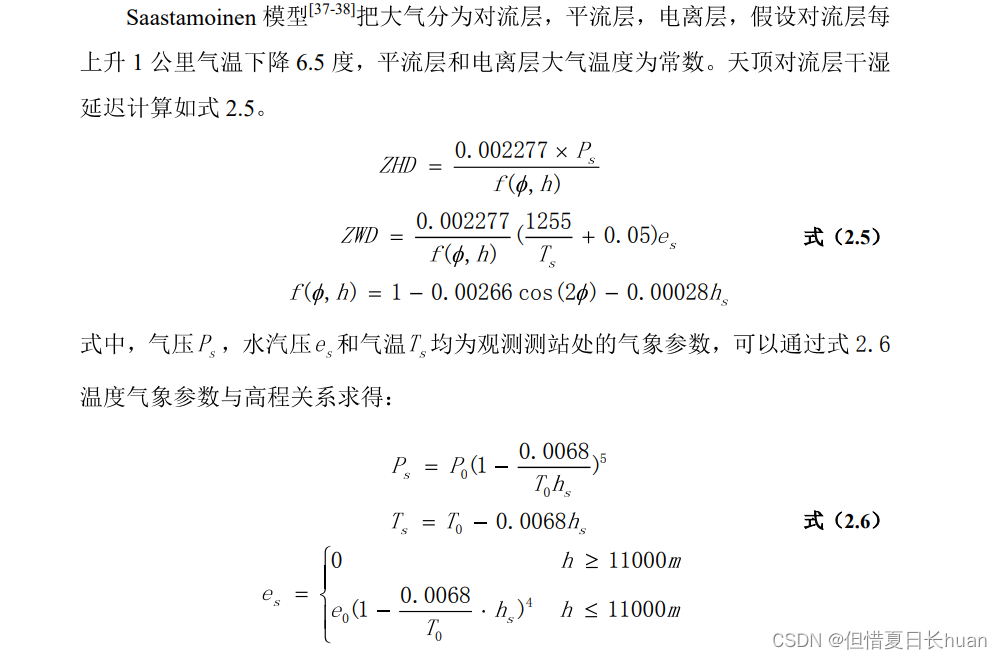

/*Saastamoinen模型*/
void Saastamoinen(double elevation, double Phi_u, double h, double *Th, double *Tw)
{

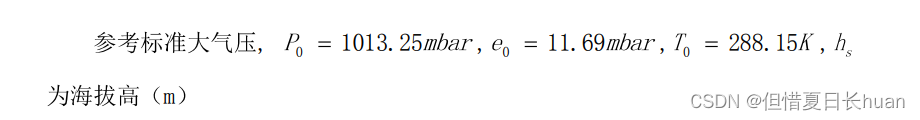

    const double P0 = 1013.25, e0 = 11.69, T0 = 288.15;
    double p;//大气压力
    double e;//水汽压
    double T;//大气温度

    /*求大气压力*/
    p = P0 * pow( (1.0 - 0.0068 / T0 / h) , 5);
    printf("大气压力p = %.10lf\n",p);

    /*大气温度*/
    T = 288.15 - 0.0068 * h;//开尔文温度
    printf("大气温度T = %.10lf\n",T);

    /*水汽压e*/
    if(h > 11000)
    {
        e = 0;
    }
    else
    {
        e = e0 * pow((1.0 - 0.0068 * h / T0) , 4);
    }

    /*静力学延迟Th*/
    *Th = 0.002277 * p / (1.0 - 0.00266 * cos(2 * Phi_u * M_PI/180) - 0.00028 * h * 1e-3) ;
    /*湿延迟Tw*/
    *Tw = 0.0022768 * (1255.0 / T + 0.05) / (1.0 - 0.00266 * cos(2 * Phi_u * M_PI/180) - 0.00028 * h * 1e-3) * e;

    printf("静力学延迟Th = %.10lf\n",*Th);
}

//Saastamoinen.h
void Saastamoinen(double elevation, double Phi_u, double h, double *Th, double *Tw);

三、UNB3模型

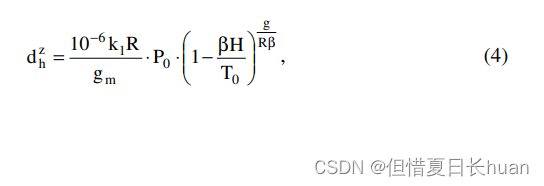

静力学延迟：

非静力学延迟：

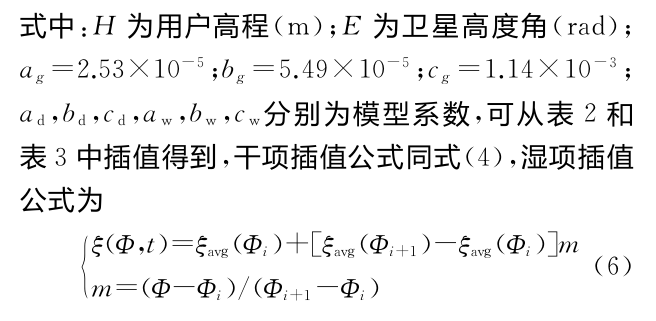

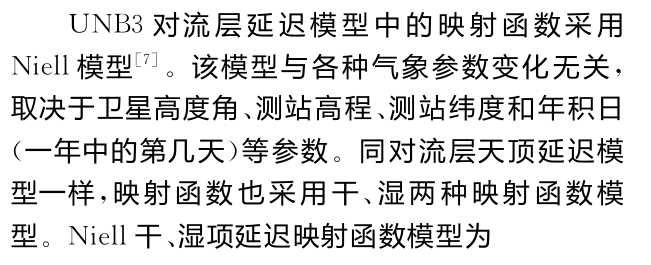

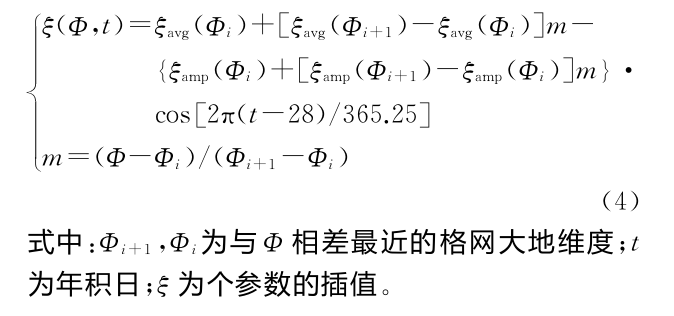

上面参数按照以下公式得出，

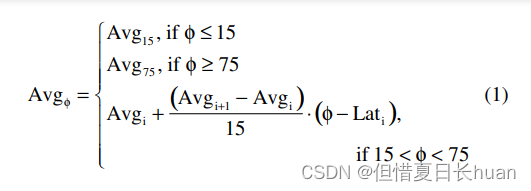

Average是年均值，Amplitude是振幅值或者波动值。

Lati指的是离Φ最近的两个纬度中最小的那个，比如41度的Lati为30度。

参考年积日为28，28日为延迟最小的一天。

在式（7）中，T= T0 - βH。

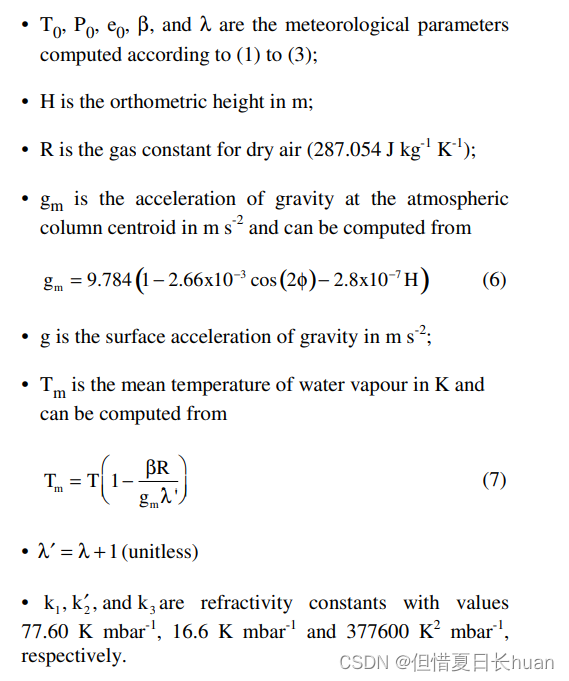

Hopfield的精度较差，此处不做说明。UNB3m与UNB3在参数表上有所不同。UNB3的water vapour pressure (WVP)在UNB3m中被换为relative humidity (RH)。

原因：

The version UNB3m was developed to avoid the problematic values of relative humidity. Following the same method of computation as for the pressure and the temperature, average and amplitude for relative humidity were derived from the U.S. Standard Atmosphere Supplements, 1966 [Orliac, 2002].

代码如下：

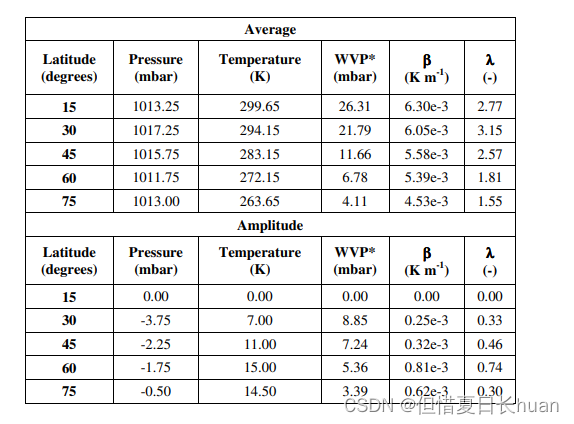

const double P_avg[5] = {1013.25, 1017.25, 1015.75, 1011.75, 1013.00};//压强年均值
const double T_avg[5] = {299.65, 294.15, 283.15, 272.15, 263.65};//温度年均值
const double e_avg[5] = {26.31, 21.79, 11.66, 6.78, 4.11};//水汽压年均值
//const double e_avg[5] = {75.0, 80.0, 76.0, 77.5, 82.5};
const double Beta_avg[5] = {6.30e-3, 6.05e-3, 5.58e-3, 5.39e-3, 4.53e-3};//温度梯度年均值
const double LambDa_avg[5] = {2.77, 3.15, 2.57, 1.81, 1.55};//水汽梯度年均值

const double P_amp[5] = {0.00, -3.75, -2.25, -1.75, -0.50};//压强振幅值
const double T_amp[5] = {0.00, 7.00, 11.00, 15.00, 14.50};//温度振幅值
const double e_amp[5] = {0.00, 8.85, 7.24, 5.36, 3.39};//水汽压振幅值
//const double e_amp[5] = {0.0, 0.0, -1.0, -2.5, 2.5};
const double Beta_amp[5] = {0.00, 0.25e-3, 0.32e-3, 0.81e-3, 0.62e-3};//温度梯度振幅值
const double LambDa_amp[5] = {0.00, 0.33, 0.46, 0.74, 0.30};//水汽梯度振幅值

const double k1 = 77.60, k2_l = 16.60, k3 = 377600;
const double g = 9.80665, Rd = 287.054;

/*UNB3*/
void UNB3(double Phi, double H, double DOY, double *ZHD, double *ZWD)
{
    double dh;
    double T0, P0, e0, Beta, LambDa;
    double gm, Tm, LambDa_l;

    /*求5个气象参数*/
    Coefficient(Phi, DOY, &T0, &P0, &e0, &Beta, &LambDa);
    //printf("T0 = %.10lf,P0 = %10.lf,e0 = %.10lf,Beta = %.10lf,LambDa = %.10lf\n",T0,P0,e0,Beta,LambDa);

    LambDa_l = LambDa + 1;
    gm = 9.784 * (1.0 - 2.66 * 1e-3 * cos(2 * Phi * M_PI/180) - 2.8e-7);
    Tm = (T0 - Beta * H) * (1.0 - Beta * Rd / gm / LambDa_l);
    //printf("LambDa = %.10lf\n",LambDa);

    /*天顶方向的干延迟和湿延迟*/
    *ZHD = 1e-6 * k1 * Rd / gm * P0 * pow((1.0 - Beta * H / T0) , g / (Rd * Beta));

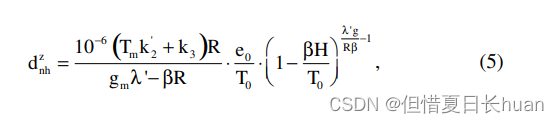

    *ZWD = 1e-6 * Rd * (Tm * k2_l + k3) / (gm * LambDa_l - Beta * Rd) * pow((1.0 - Beta * H / T0) , LambDa_l * g / Rd / Beta - 1.0) * (e0 / T0);

}

/*计算5个气象参数*/
void Coefficient(double Phi, double DOY, double *T0, double *P0, double *e0, double *Beta, double *LambDa)
{
    double Tem;

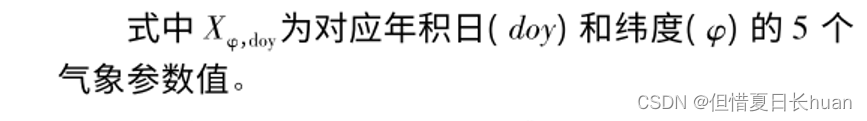

    Tem = cos((DOY - 28) * 2 * M_PI / 365.25);

    /*求T0 P0 e0 Beta LambDa*/
    if(Phi<=15)
    {
        *T0 = T_avg[0] - T_amp[0] * Tem;
        *P0 = P_avg[0] - P_amp[0] * Tem;
        *e0 = e_avg[0] - e_amp[0] * Tem;
        *Beta = Beta_avg[0] - Beta_amp[0] * Tem;
        *LambDa = LambDa_avg[0] - LambDa_amp[0] * Tem;
    }
    if(Phi>15&&Phi<30)
    {
        *T0 = T_avg[0] + (T_avg[1] - T_avg[0]) / 15 * (Phi - 15) - (T_amp[0] + (T_amp[1] - T_amp[0]) / 15 * (Phi - 15)) * Tem;
        *P0 = P_avg[0] + (P_avg[1] - P_avg[0]) / 15 * (Phi - 15) - (P_amp[0] + (P_amp[1] - P_amp[0]) / 15 * (Phi - 15)) * Tem;
        *e0 = e_avg[0] + (e_avg[1] - e_avg[0]) / 15 * (Phi - 15) - (e_amp[0] + (e_amp[1] - e_amp[0]) / 15 * (Phi - 15)) * Tem;
        *Beta = Beta_avg[0] + (Beta_avg[1] - Beta_avg[0]) / 15 * (Phi - 15) - (Beta_amp[0] + (Beta_amp[1] - Beta_amp[0]) / 15 * (Phi - 15)) * Tem;
        *LambDa = LambDa_avg[0] + (LambDa_avg[1] - LambDa_avg[0]) / 15 * (Phi - 15) - (LambDa_amp[0] + (LambDa_amp[1] - LambDa_amp[0]) / 15 * (Phi - 15)) * Tem;
    }
    if(Phi>=30&&Phi<45)
    {
        *T0 = T_avg[1] + (T_avg[2] - T_avg[1]) / 15 * (Phi - 30) - (T_amp[1] + (T_amp[2] - T_amp[1]) / 15 * (Phi - 30)) * Tem;
        *P0 = P_avg[1] + (P_avg[2] - P_avg[1]) / 15 * (Phi - 30) - (P_amp[1] + (P_amp[2] - P_amp[1]) / 15 * (Phi - 30)) * Tem;
        *e0 = e_avg[1] + (e_avg[2] - e_avg[1]) / 15 * (Phi - 30) - (e_amp[1] + (e_amp[2] - e_amp[1]) / 15 * (Phi - 30)) * Tem;
        *Beta = Beta_avg[1] + (Beta_avg[2] - Beta_avg[1]) / 15 * (Phi - 30) - (Beta_amp[1] + (Beta_amp[2] - Beta_amp[1]) / 15 * (Phi - 30)) * Tem;
        *LambDa = LambDa_avg[1] + (LambDa_avg[2] - LambDa_avg[1]) / 15 * (Phi - 30) - (LambDa_amp[1] + (LambDa_amp[2] - LambDa_amp[1]) / 15 * (Phi - 30)) * Tem;
    }
    if(Phi>=45&&Phi<60)
    {
        *T0 = T_avg[2] + (T_avg[3] - T_avg[2]) / 15 * (Phi - 45) - (T_amp[2] + (T_amp[3] - T_amp[2]) / 15 * (Phi - 45)) * Tem;
        *P0 = P_avg[2] + (P_avg[3] - P_avg[2]) / 15 * (Phi - 45) - (P_amp[2] + (P_amp[3] - P_amp[2]) / 15 * (Phi - 45)) * Tem;
        *e0 = e_avg[2] + (e_avg[3] - e_avg[2]) / 15 * (Phi - 45) - (e_amp[2] + (e_amp[3] - e_amp[2]) / 15 * (Phi - 45)) * Tem;
        *Beta = Beta_avg[2] + (Beta_avg[3] - Beta_avg[2]) / 15 * (Phi - 45) - (Beta_amp[2] + (Beta_amp[3] - Beta_amp[2]) / 15 * (Phi - 45)) * Tem;
        *LambDa = LambDa_avg[2] + (LambDa_avg[3] - LambDa_avg[2]) / 15 * (Phi - 45) - (LambDa_amp[2] + (LambDa_amp[3] - LambDa_amp[2]) / 15 * (Phi - 45)) * Tem;

    }
    if(Phi>=60&&Phi<75)
    {
        *T0 = T_avg[3] + (T_avg[4] - T_avg[3]) / 15 * (Phi - 60) - (T_amp[3] + (T_amp[4] - T_amp[3]) / 15 * (Phi - 60)) * Tem;
        *P0 = P_avg[3] + (P_avg[4] - P_avg[3]) / 15 * (Phi - 60) - (P_amp[3] + (P_amp[4] - P_amp[3]) / 15 * (Phi - 60)) * Tem;
        *e0 = e_avg[3] + (e_avg[4] - e_avg[3]) / 15 * (Phi - 60) - (e_amp[3] + (e_amp[4] - e_amp[3]) / 15 * (Phi - 60)) * Tem;
        *Beta = Beta_avg[3] + (Beta_avg[4] - Beta_avg[3]) / 15 * (Phi - 60) - (Beta_amp[3] + (Beta_amp[4] - Beta_amp[3]) / 15 * (Phi - 60)) * Tem;
        *LambDa = LambDa_avg[3] + (LambDa_avg[4] - LambDa_avg[3]) / 15 * (Phi - 60) - (LambDa_amp[3] + (LambDa_amp[4] - LambDa_amp[3]) / 15 * (Phi - 60)) * Tem;

    }
    if(Phi>=75)
    {
        *T0 = T_avg[4] - T_amp[4] * Tem;
        *P0 = P_avg[4] - P_amp[4] * Tem;
        *e0 = e_avg[4] - e_amp[4] * Tem;
        *Beta = Beta_avg[4] - Beta_amp[4] * Tem;
        *LambDa = LambDa_avg[4] - LambDa_amp[4] * Tem;
    }

}

//UNB3.h
void UNB3(double Phi, double H, double DOY, double *ZHD, double *ZWD);
void Coefficient(double Phi, double DOY, double *T0, double *P0, double *e0, double *Beta, double *LambDa);

四、对流层总延迟

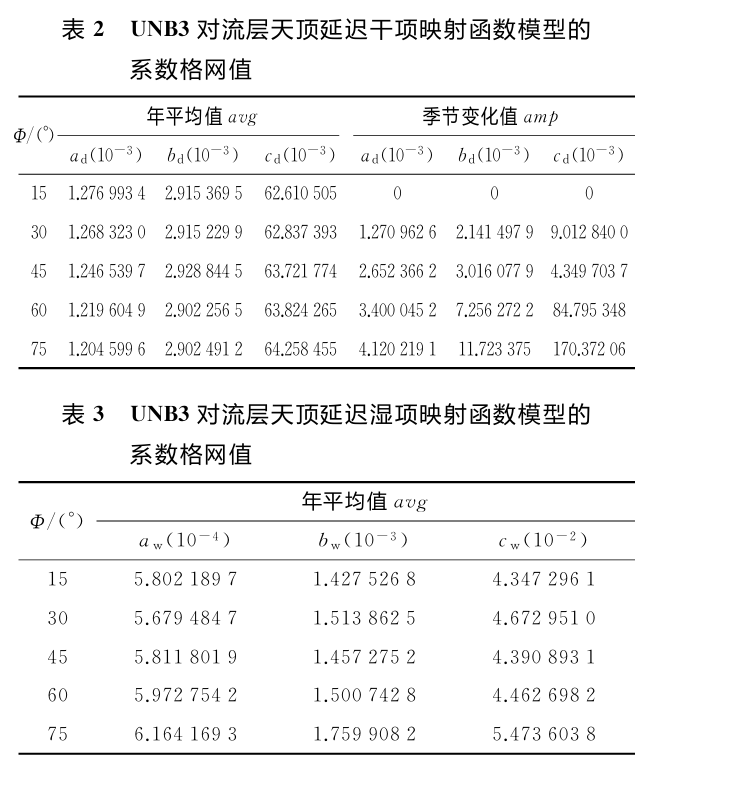

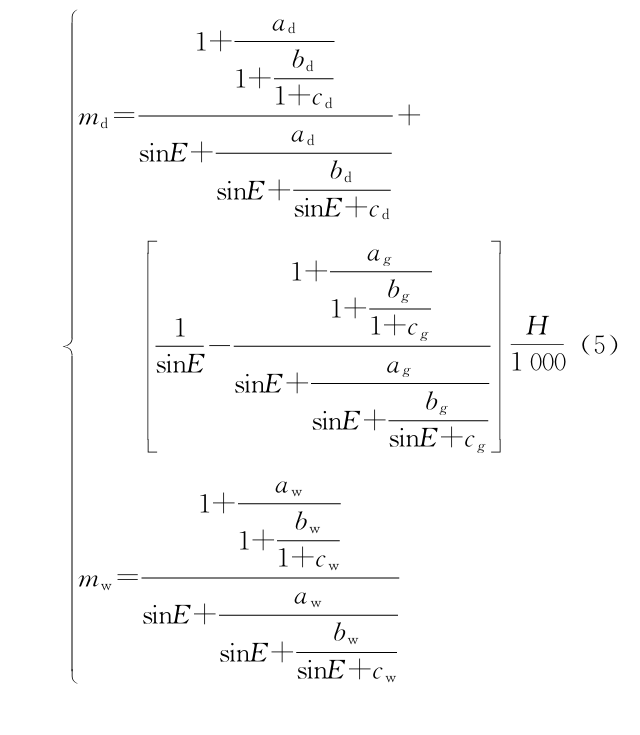

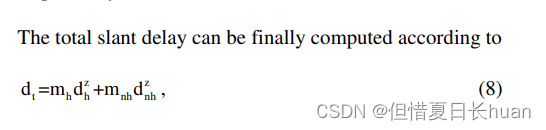

根据以上模型算出的皆为对流层天顶延迟，也不需要用到卫星仰角（高度角）。若想算出总延迟，要再乘以映射函数。干延迟乘以干映射函数，湿延迟乘以湿映射函数，再相加。

在这里藏一个main函数吧。

#include <stdio.h>
#include <math.h>
#include "Saastamoinen.h"
#include "UNB3.h"
#include "NMF.h"

int main() {

    double Phi = 30.53165278 ;//用户地理纬度
    double elevation =  0.2326965967;//卫星高度角或卫星仰角
    double H = 28.2;//用户海拔
    double DOY[10] = {152, 152 + 300.0/86400, 152 + 600.0/86400, 152 + 900.0/86400, 152 + 1200.0/86400, 152 + 1500.0/86400, 152 + 1800.0/86400,
                      152 + 2100.0/86400, 152 + 2400.0/86400, 152 + 2700.0/86400};//年积日

    for(int i=0;i<10;i++)
    {
        UNB3(Phi, H, DOY[i], &ZHD, &ZWD);
        printf("ZHD = %.10lf,ZWD = %.10lf\n",ZHD,ZWD);
        //Saastamoinen(elevation,Phi, H, &Th, &Tw);
        //printf("Th = %.10lf,Tw = %.10lf\n",Th,Tw);
    }
    return 0;
}
