arduino 简易智能花盆

最新推荐文章于 2024-06-16 15:07:18 发布
最新推荐文章于 2024-06-16 15:07:18 发布
阅读量526 收藏 4
点赞数 5
文章标签： 单片机 arduino 学习
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/m0_68319844/article/details/134351777
版权

编辑器：arduino IDE

主板：arduino uno

传感器：

0.96寸的OLED屏（四脚）
声音模块
土壤温湿度模块
DS18B20温度模块（这里用到防水的）
光敏电阻模块（买成三脚的了只能显示高低，可换四脚显示数字）
arduino扩展板 （看个人需求）
杜邦线（母对母，公对母）

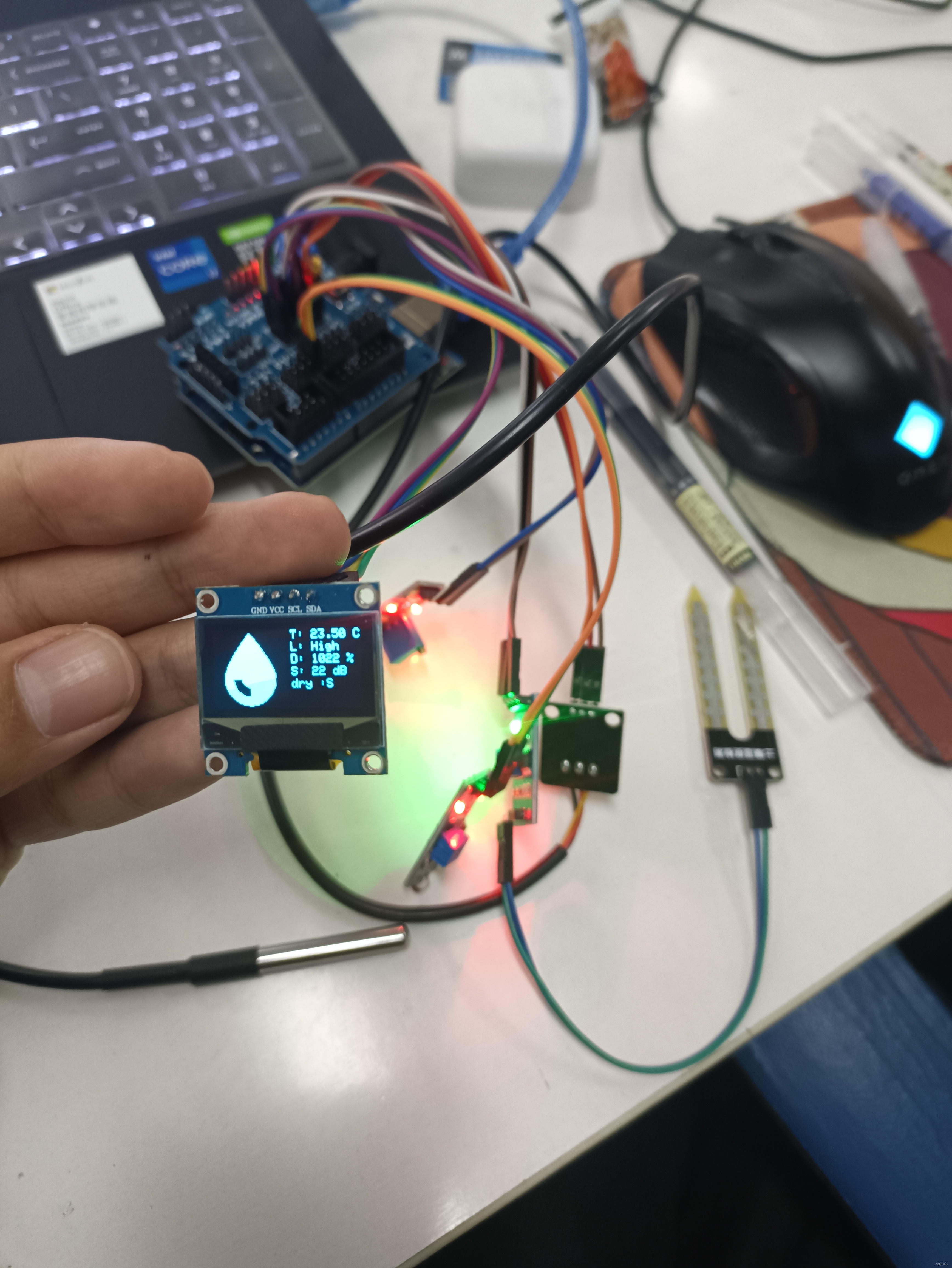

功能：能在OLED屏上显示出传感器的数据，并模拟显示出植物对应的状态的图案
可自己设置零界点

（买的少的话pdd即可，百元以内轻轻松松，还可以买个wifi模块，做个app上位机）

代码如下：



#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#include <OneWire.h>
#include <DallasTemperature.h>
#include <SoftwareSerial.h>


#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

const int temperatureSensorPin = A0;  // 温度
const int lightSensorDOPin = 7;  // 光敏
const int soilMoistureSensorPin = A2; // 湿度
const int soundSensorPin = A3;  // 声音
OneWire oneWire(A0); // 使用一线式总线连接DS18B20传感器
DallasTemperature sensors(&oneWire);

void setup() {
  Serial.begin(115200);
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  display.setTextColor(WHITE);
  display.clearDisplay();
  display.display();
  delay(2000);
  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  sensors.begin(); // 初始化DS18B20传感器
  pinMode(soundSensorPin, INPUT); // 初始化声音传感器引脚
  pinMode(lightSensorDOPin, INPUT);  // 设置数字光敏传感器的数字输出引脚为输入
}

static const unsigned char PROGMEM pic[] = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x00,0x00,0x40,0x00,
0x00,0x00,0x0F,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x3E,0x00,0x00,0x00,0xE0,0x00,
0x00,0x00,0x7C,0x00,0x00,0x00,0xE0,0x00,0x00,0x01,0xF8,0x00,0x00,0x01,0xF0,0x00,
0x00,0x03,0xF0,0x00,0x00,0x01,0xF0,0x00,0x00,0x07,0xF0,0x00,0x00,0x03,0xF8,0x00,
0x00,0x0F,0xE0,0x00,0x00,0x07,0xF8,0x00,0x00,0x1F,0xE0,0x00,0x00,0xFF,0xFF,0xE0,
0x00,0x3F,0xC0,0x00,0x03,0xFF,0xFF,0xF8,0x00,0x7F,0xC0,0x00,0x01,0xFF,0xFF,0xF0,
0x00,0xFF,0x80,0x00,0x00,0xFF,0xFF,0xE0,0x01,0xFF,0x80,0x00,0x00,0x7F,0xFF,0xC0,
0x01,0xFF,0x80,0x00,0x00,0x3F,0xFF,0x80,0x03,0xFF,0x80,0x00,0x00,0x1F,0xFF,0x00,
0x03,0xFF,0x80,0x00,0x00,0x1F,0xFF,0x00,0x07,0xFF,0x00,0x00,0x00,0x1F,0xFF,0x00,
0x07,0xFF,0x00,0x00,0x00,0x1F,0xFF,0x00,0x0F,0xFF,0x00,0x00,0x00,0x1F,0xFF,0x00,
0x0F,0xFF,0x00,0x00,0x00,0x1F,0xFF,0x00,0x0F,0xFF,0x00,0x00,0x00,0x3F,0x3F,0x00,
0x1F,0xFF,0x00,0x00,0x00,0x3E,0x0F,0x80,0x1F,0xFF,0x80,0x00,0x00,0x38,0x03,0x80,
0x1F,0xFF,0x80,0x00,0x00,0x20,0x00,0x00,0x1F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,
0x0F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x08,0x0F,0xFF,0xFF,0x80,0x00,0x00,0x00,0x18,
0x07,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x30,0x07,0xFF,0xFF,0xF0,0x00,0x00,0x00,0xF0,
0x03,0xFF,0xFF,0xF8,0x00,0x00,0x01,0xE0,0x03,0xFF,0xFF,0xFE,0x00,0x00,0x07,0xE0,
0x03,0xFF,0xFF,0xFF,0x80,0x00,0x3F,0xC0,0x01,0xFF,0xFF,0xFF,0xF8,0x01,0xFF,0xC0,
0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,
0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFE,0x00,
0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,
0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xF0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x07,0xF0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};

static const unsigned char PROGMEM pic1[] = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC0,0xC0,0x00,0x00,0x00,
0x00,0x00,0x03,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x07,0xC1,0x80,0x00,0x00,0x00,
0x00,0x00,0x07,0xC3,0x80,0x00,0x00,0x00,0x00,0x00,0x0F,0xC3,0xC0,0x00,0x00,0x00,
0x00,0x00,0x1F,0xC3,0xC0,0x00,0x00,0x00,0x00,0x00,0x1F,0xE3,0xE0,0x00,0x02,0x00,
0x00,0x00,0x1F,0xF1,0xF0,0x00,0x0E,0x00,0x00,0x00,0x1F,0xF8,0xFC,0x00,0x1C,0x00,
0x00,0x00,0x1F,0xF8,0xFE,0x00,0x3C,0x00,0x00,0x00,0x1F,0xFC,0x7F,0x80,0x78,0x00,
0x00,0x00,0x0F,0xFE,0x3F,0xC0,0x78,0x00,0x00,0x00,0x07,0xFE,0x3F,0xF0,0x78,0x00,
0x00,0x00,0x07,0xFE,0x1F,0xF8,0x78,0x00,0x00,0x00,0x03,0xFE,0x1F,0xFC,0x3C,0x00,
0x00,0x00,0x01,0xFE,0x1F,0xFE,0x3C,0x00,0x00,0x00,0x00,0xFE,0x1F,0xFE,0x3C,0x00,
0x00,0x00,0xC0,0x7C,0x1F,0xFE,0x3E,0x00,0x00,0x00,0x40,0x78,0x3F,0xFE,0x3E,0x00,
0x00,0x00,0x60,0x78,0x7F,0xFE,0x3C,0x00,0x00,0x00,0x60,0x70,0xFF,0xFE,0x38,0x00,
0x00,0x00,0x70,0xE3,0xFF,0xFE,0x70,0x00,0x00,0x00,0x70,0xC7,0xFF,0xFC,0xE0,0x00,
0x00,0x00,0xF1,0x1F,0xFF,0xFC,0x80,0x00,0x00,0x00,0xF0,0x3F,0xFF,0xF8,0x00,0x00,
0x00,0x01,0xF0,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x03,0xF1,0xFF,0xFF,0xF8,0x00,0x00,
0x00,0x07,0xF7,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x07,0xEF,0xFF,0xFF,0xF0,0x00,0x00,
0x00,0x0F,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xE1,0xF0,0x00,
0x00,0x1F,0xFF,0xFF,0xFF,0xE7,0xC0,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0x80,0x00,
0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFE,0x00,0x00,
0x00,0x7F,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFE,0x00,0x00,
0x00,0x7E,0x78,0xE0,0x60,0x1E,0x00,0x00,0x00,0x7E,0x78,0xC0,0x30,0x1E,0x00,0x00,
0x00,0x7E,0x78,0x8F,0x3C,0xFE,0x00,0x00,0x00,0x7E,0x79,0x8F,0x9C,0xFF,0x00,0x00,
0x00,0x7E,0x01,0x9F,0x9C,0xFF,0x00,0x00,0x00,0x3E,0x00,0x9F,0x9C,0xFF,0x80,0x00,
0x00,0x3E,0x79,0x9F,0x9C,0xFF,0x80,0x00,0x00,0x3E,0x78,0x8F,0x1C,0xFF,0x80,0x00,
0x00,0x1E,0x78,0xC6,0x3C,0xFF,0x80,0x00,0x00,0x0E,0x78,0xC0,0x7C,0x7F,0x80,0x00,
0x00,0x0E,0x7D,0xF0,0xFE,0xFF,0x80,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0x80,0x00,
0x00,0x03,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFC,0x00,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xE0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};


static const unsigned char PROGMEM pic2[] = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x80,0x00,0x00,0x00,
0x00,0x00,0x00,0x03,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,0x00,0x00,
0x00,0x00,0x00,0x07,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xF8,0x00,0x00,0x00,
0x00,0x00,0x00,0x1F,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFC,0x00,0x00,0x00,
0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0x00,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0x80,0x00,0x00,
0x00,0x00,0x03,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xE0,0x00,0x00,
0x00,0x00,0x07,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xF0,0x00,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,
0x00,0x00,0x3F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0x80,0x00,
0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,
0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,
0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,
0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,
0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,
0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,
0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,
0x00,0x3F,0x80,0x7F,0xFF,0xFF,0xFC,0x00,0x00,0x3F,0x80,0x7F,0xFF,0xFF,0xFC,0x00,
0x00,0x3F,0xC0,0x7F,0xFF,0xFF,0xFC,0x00,0x00,0x3F,0xC0,0x3F,0xFF,0xFF,0xFC,0x00,
0x00,0x3F,0xC0,0x1F,0xFF,0xFF,0xFC,0x00,0x00,0x1F,0xE0,0x0F,0xFF,0xFF,0xFC,0x00,
0x00,0x1F,0xE0,0x03,0xFF,0xFF,0xF8,0x00,0x00,0x1F,0xF0,0x00,0xFF,0xFF,0xF8,0x00,
0x00,0x0F,0xF0,0x00,0xFF,0xFF,0xF0,0x00,0x00,0x0F,0xF8,0x00,0xFF,0xFF,0xF0,0x00,
0x00,0x07,0xFC,0x00,0xFF,0xFF,0xE0,0x00,0x00,0x07,0xFF,0x00,0xFF,0xFF,0xE0,0x00,
0x00,0x03,0xFF,0x80,0xFF,0xFF,0xC0,0x00,0x00,0x01,0xFF,0xE0,0xFF,0xFF,0x80,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,
0x00,0x00,0x3F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,
0x00,0x00,0x07,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xC0,0x00,0x00,
0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xC0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};



static const unsigned char PROGMEM pic3[] = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x07,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xF0,0x00,0x00,
0x00,0x00,0x00,0x00,0x0F,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x3F,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xE0,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x7E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x00,
0x00,0x00,0x00,0x00,0x0F,0x00,0x0F,0x00,0x00,0x00,0x00,0x00,0x0F,0xE0,0x07,0x80,
0x00,0x00,0x00,0x18,0x0F,0xF0,0x07,0xC0,0x00,0x00,0x00,0x3C,0x01,0xF8,0x03,0xC0,
0x00,0x00,0x00,0x7E,0x00,0x7E,0x01,0xE0,0x00,0x00,0x00,0x7F,0x00,0x3E,0x01,0xE0,
0x00,0x00,0x00,0xFF,0x80,0x1F,0x00,0xF0,0x00,0x00,0x00,0xFF,0xC0,0x0F,0x80,0xF0,
0x00,0x00,0x01,0xFF,0xE0,0x07,0xC0,0x78,0x00,0x00,0x01,0xFF,0xF0,0x03,0xC0,0x78,
0x00,0x00,0x03,0xFF,0xF8,0x01,0xE0,0x38,0x00,0x00,0x03,0xFF,0xFC,0x01,0xE0,0x38,
0x00,0x00,0x07,0xFF,0xFE,0x00,0xF0,0x3C,0x00,0x00,0x07,0xFF,0xFF,0x00,0xF0,0x3C,
0x00,0x00,0x0F,0xFF,0xFF,0x80,0x70,0x18,0x00,0x00,0x0F,0xFF,0xFF,0xC0,0x60,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF0,0x00,0x00,
0x00,0x00,0x3F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFC,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,
0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x01,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,
0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x07,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xF0,0x00,0x00,
0x00,0x0F,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0x00,0x00,0x00,
0x00,0x1F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF0,0x00,0x00,0x00,
0x00,0x3F,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0x00,0x00,0x00,0x00,
0x00,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,
0x07,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,
0x1F,0x1F,0xFF,0x00,0x00,0x00,0x00,0x00,0x1E,0x0F,0xFF,0x80,0x00,0x00,0x00,0x00,
0x1E,0x07,0xFF,0xC0,0x00,0x00,0x00,0x00,0x0F,0x07,0x9F,0xE0,0x00,0x00,0x00,0x00,
0x07,0x8F,0x0F,0xF0,0x00,0x00,0x00,0x00,0x03,0xCF,0x07,0xF8,0x00,0x00,0x00,0x00,
0x01,0xFE,0x03,0xFC,0x00,0x00,0x00,0x00,0x00,0xFC,0x01,0xFC,0x00,0x00,0x00,0x00,
0x00,0x78,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0x70,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};


static const unsigned char PROGMEM pic4[] = {
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFE,0x00,0x00,0x00,
0x00,0x00,0x03,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,
0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,
0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,
0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,
0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFE,0x00,
0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x80,
0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x80,0x03,0xFF,0xF3,0xFF,0xFF,0xCF,0xFF,0xC0,
0x03,0xFF,0xC0,0xFF,0xFF,0x83,0xFF,0xC0,0x07,0xFF,0xC0,0xFF,0xFF,0x01,0xFF,0xE0,
0x07,0xFF,0x80,0x7F,0xFE,0x01,0xFF,0xE0,0x0F,0xFF,0x80,0x7F,0xFE,0x01,0xFF,0xF0,
0x0F,0xFF,0xC0,0xFF,0xFF,0x01,0xFF,0xF0,0x0F,0xFF,0xC0,0xFF,0xFF,0x03,0xFF,0xF0,
0x0F,0xFF,0xF3,0xFF,0xFF,0xC7,0xFF,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,
0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x1F,0xFF,0xF3,0xFF,0xFF,0xEF,0xFF,0xF8,
0x0F,0xFF,0xC3,0xFF,0xFF,0xC3,0xFF,0xF0,0x0F,0xFF,0x81,0xFF,0xFF,0x80,0xFF,0xF0,
0x0F,0xFF,0x80,0xFF,0xFF,0x01,0xFF,0xF0,0x07,0xFF,0xC0,0x3F,0xFC,0x01,0xFF,0xE0,
0x07,0xFF,0xC0,0x0F,0xF0,0x03,0xFF,0xE0,0x03,0xFF,0xE0,0x00,0x00,0x07,0xFF,0xC0,
0x03,0xFF,0xF8,0x00,0x00,0x0F,0xFF,0xC0,0x01,0xFF,0xFC,0x00,0x00,0x3F,0xFF,0x80,
0x00,0xFF,0xFF,0x00,0x00,0xFF,0xFF,0x80,0x00,0xFF,0xFF,0xC0,0x03,0xFF,0xFF,0x00,
0x00,0x7F,0xFF,0xFE,0x7F,0xFF,0xFE,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,
0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,
0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,
0x00,0x01,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFE,0x00,0x00,
0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xE0,0x00,0x00,
0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xE0,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};



void loop() {
  delay(2000);

  sensors.requestTemperatures();
  float temperatureC = sensors.getTempCByIndex(0); // 获取DS18B20传感器的温度值
  int lightIntensity = digitalRead(lightSensorDOPin); // 使用digitalRead读取数字光敏传感器的状态
  int soilMoisture = analogRead(soilMoistureSensorPin);
  int soundLevel = analogRead(soundSensorPin);

  // // 在OLED上显示传感器数据
  display.clearDisplay();
  display.setCursor(68, 0);
  display.print("T: ");
  display.print(temperatureC);
  display.print(" C");
  display.setCursor(68, 10);
  display.print("L: ");
  display.print(lightIntensity == LOW ? "High" : "Low"); // 显示光强状态
  display.setCursor(68, 20);
  display.print("D: ");
  display.print(soilMoisture);
  display.print(" %");
  display.setCursor(68, 30);
  display.print("S: ");
  display.print(soundLevel);
  display.print(" dB");
  display.display();


  // 根据传感器数据选择表情
  if (lightIntensity == HIGH) {
    // 低光照强度
    // display.setCursor(35, 40);
    // display.clearDisplay();//清屏
    display.drawBitmap(0, 0, pic, 64, 64, 1); //画出字符对应点阵数据
    display.setCursor(68, 40);
    display.print("Sad :(");
    display.display();//开显示
    delay(2000);
  } else if (temperatureC > 25) {
    // 高温
    // display.setCursor(35, 40);
    // display.clearDisplay();//清屏
    display.drawBitmap(0, 0, pic1, 64, 64, 1); //画出字符对应点阵数据
    display.setCursor(68, 40);
    display.print("Hot :S");
    display.display();//开显示
    delay(2000);
  } else if (soilMoisture > 500) {
    // 土壤过干
    // display.setCursor(35, 40);
    // display.clearDisplay();//清屏
    display.drawBitmap(0, 0, pic2, 64, 64, 1); //画出字符对应点阵数据
    display.setCursor(68, 40);
    display.print("dry :S");
    display.display();//开显示

    delay(2000);
  } else if (soundLevel > 30) {
    // 声音强
    // display.setCursor(35, 40);
    // display.clearDisplay();//清屏
    display.drawBitmap(0, 0, pic3, 64, 64, 1); //画出字符对应点阵数据
    display.setCursor(68, 40);
    display.print("Loud :O");
    display.display();//开显示
    delay(2000);
  } else {
    // 默认表情
    // display.setCursor(35, 40);
    // display.clearDisplay();//清屏
    display.drawBitmap(0, 0, pic4, 64, 64, 1); //画出字符对应点阵数据
    display.setCursor(68, 40);
    display.print("Smile :)");
    display.display();//开显示
    delay(2000);
  }
  display.display();
}

 效果如下图：


⚝ ⚝
关注
  • 5
    点赞
  • 踩
  • 4
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 1
    评论
基于STM32的太阳能供电智能花盆
06-10
“个人项目——基于STM32的太阳能供电智能花盆”博客中使用的代码
基于arduino的ESP32 学习笔记（一） 基于ESP32的智能花盆
热门推荐
张竞豪的博客
12-07 1万+
ESP32智能花盆
基于Proteus 8.9进行Arduino仿真
sclovezxy的博客
11-27 4509
标题是啥这篇文章说的就是啥
极简创意编程：第7课——制作人工智能花盆
代码俱乐部
06-20 2427
《极简创意编程——人工智能启蒙课》，参考了相关国家软件素质教育的大纲规范，意在对国内中小学创意编程的推广尽微薄之力。同时也盼望这个课程，能对国内的家长、信息教师和相关教育机构有所帮助，共同促进国内软件素质教育的发展。第1课和第2课主要分析了青少年创意编程的重要性和紧迫性。从第3课开始，进入创意编程的启蒙实践。这些课程均参考了国外主流的编程教育方法，它们分别是：1.以游戏活动为中心的“无代码编程”。...
智能花盆
cheshouxi4906的博客
08-07 356
//-----显示屏 #include <Wire.h> #include <Adafruit_SSD1306.h> #include <Adafruit_GFX.h> #define OLED_RESET 4 Adafruit_SSD1306 oled(O...
基于Python和Arduino的智能花盆系统.pdf
09-07
基于Python和Arduino的智能花盆系统.pdf
arduino 实现智能家居.zip
07-29
采用蓝牙通信实现智能家居控制。包括灯光开关、温湿度显示、舵机控制开关门等指令。
Arduino制作简易电子琴
06-01
Arduino制作简易电子琴
基于arduino的智能密码锁
04-26
这是一个关于arduino nano与oled和4X4矩阵按键的学习资料
智慧家居·万物互联：我的智能花盆DIY之旅(ESP32)
FRIGIDWINTER的博客
12-17 6780
物联网(Internet of things, IoT)就是物物相连的互联网，在智能家居、智慧城市等方面有广泛应用。这次，我从零开始搭建一个基于ESP32的智能花盆，相信读完本文，你也可以亲自实现一个物联网应用，无论是参加创客大赛还是物联网比赛，都先人一步！...
python和arduino哪个好_基于Python和Arduino的智能花盆系统
weixin_39681058的博客
12-14 530
基于Python和Arduino的智能花盆系统杨吉云YANGJi-yun；徐乾淏XUQian-hao；沈莲SHENLian；章晓敏ZHANGXiao-min【摘要】摘要：智能花盆作为智能家居的一员，本质上是花盆，但融入嵌入式技术，在一定程度上活化了普通花盆，使其拥有自动照料盆栽的能力。本文利用盆栽生长习性的知识，结合专业能力，设计并实现一套基于Python和Arduino的智能花盆系统。依靠Ar...
智能花盆（一）
zhiyuanjiang的博客
03-04 3944
智能花盆组成 硬件部分：NodeMcu 服务器：java web 移动端：android 实现功能：NodeMcu上接传感器，采集数据，然后上传到服务器，将输入写入数据库。app请求服务器数据，在app端显示，app端发送控制指令，通过服务器转发到NodeMcu进行控制。 硬件 使用NodeMcu集成了ESP8266的一款单片机，使用lua脚本语言作为编程语言，NodeMcu提供了很...
学单片机前先学什么？
linlaoshi2009的博客
06-06 1385
现在的单片机编程几乎用的都是c语言，有用汇编的，但是少，通常学校里面的教学还是用的汇编，但是干活解决问题一般都是用c语言。电子信息这边比较侧重于更底层的操作，比如说指针，位操作，结构体这些，像文件操作这些就很少用。这里默认你说的单片机是51单片机，通过你的问题，我猜你的单片机应该还没有入门，如果是入门的话，一般都是从51单片机开始的。其实单片机本质上就是一个数字电路，你需要了解数字电路的基本知识就行，比如说电平类型，电压多少等等，有个基本概念就行。想比较数字电路，最重要的还是要掌握c语言。
STM32项目分享：智能窗帘系统
qq_44016222的博客
06-12 906
（资料分享见文末）基于STM32智能窗帘系统。光强采集：光敏电阻实时采集环境光强度数据温湿度采集：DHT11温湿度传感器采集环境温湿度危险气体监测：MQ-7判断危险气体是否超标（超标板子指示灯闪烁）窗帘控制：步进电机模拟窗帘驱动开闭OLED显示：当前时间，温湿度数据，模式信息实时时钟：DS1302时钟模块读取记录当前时间蓝牙APP控制：手机端蓝牙app远程遥控窗帘控制模式：JR6001语音模块驱动扬声器播报提示音。
零基础入门学用Arduino 第三部分（三）
Zevalin的博客
06-16 694
（1）除了FastLED库提供的颜色参数外，程序员还可以自定义颜色，FastLED提供了两种自定义颜色的方法，分别是CRGB方法与CHSV方法：①CRGB方法就是将三原色（红色、绿色、蓝色）以不同比重（或者说数值）相加在一起得到其它颜色。定义方式：CRGB <颜色变量名>(<rValue>,<gValue>,<bValue>);//CRGB方法定义颜色//myRGBcolor（rValue，gValue，bValue）——创建RGB颜色变量//rValue: 红色数值 0 - 255。
STM学习记录（四）———中断及NVIC
qq_63556165的博客
06-14 541
一个学习32单片机的小白~ 有问题评论或私信指出~提示：以下是本篇文章正文内容，下面案例可供参考在主程序运行过程中，出现了特定的中断触发条件（中断源），使得CPU暂停当前正在运行的程序，转去处理中断程序，处理完成后又返回被暂停的位置继续执行。1.中断就相当于我们人在处理事情时会先选择重要的事情去做处理完之后回到被打断的事情继续执行。
STM8单片机的GPIO口介绍
最新发布
2303_79336820的博客
06-16 335
基于STM8简单阐述GPIO即对应标准库函数的使用
嵌入式单片机中项目在线仿真工具分享
嵌入式技术开发
06-09 512
前段时间，无意间发现了一个不错的在线仿真工具（Wokwi），支持多种平台，支持市面上主流的开发板，比如：STM32、ESP32、Arduino、树莓派等。还支持常见的传感器、显示器件（LCD、LED屏幕）等，还可以播放音乐、联网、逻辑分析仪等，关键还提供了很多实际项目的案例。Wokwi在线仿真工具的使用方法可以说非常简单，只要你不是傻子（能看到这篇文章的人，我相信都不是傻子），基本一看就会。从主页选择对应平台进入，选择子项目，然后就可以编辑项目了,编辑好之后，直接点击仿真运行。连接你的模拟项目到互联网。
智能浇水花盆arduino
07-27
智能浇水花盆是基于Arduino制作的自动浇水装置，可以解决长期出差或无法经常浇水的情况下，保持家里花草的水分供应问题。该装置使用了Arduino Nano作为控制板，湿度传感器用于监测花盆土壤的湿度，继电器用于控制...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 1
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

⚝ ⚝

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
