前言介绍

该网络运用到的技术主要有vlan划分、eth-trunk捆绑、RSTP、MSTP、VRRP、OSPF、RIP、IS-IS、NAT(地址池、easyIP两种转换)、单臂路由、ACL、DHCP子接口分配、DHCP中继、Vlink、IPsec VPN、路由引入、默认路由、FW的安全策略、无线WLAN规划等等，非常适合学习各个技术的小伙伴使用，还可适用于毕设，课设，中大型园区网络的实现等等场景！

一、设计思路

完成服务器、防火墙、路由器相应的接口地址的配置。

慧源楼配置Eth-Trunk链路捆绑来提高链路的冗余。

根据不同的地域划分多个不同的vlan,减小广播域大小，提高网络的可靠性和安全性。

在慧源楼配置RSTP+VRRP,避免网络的回环且快速收敛。

在明诚楼配置MSTP+VRRP,同时实现冗余，划分实例，让不同的vlan优先选择相应的交换机，并减少stp震荡。

明诚楼、慧源楼、服务区的所有用户通过配置相应的DHCP中继能自动获取地址，且DHCP服务器为AR2。

分校区用户也需要要自动获取地址，相应服务器为AR13，AR13配置相应的子接口为相应终端分配地址。

慧源楼主要配置OSPF让其相应路由器能学到相应的路由表。

明诚楼应用RIP协议和OSPF协议，并将RIP和OSPF路由进行双向引入，让其能与慧源楼互通。

服务区配置相应的ftp、dns、web服务器，如有PC接入也能自动获取地址，这里的PC用于测试相应的DHCP。

FW1和LSW4分别配置Vlink,让area3和area0之间能互通，学到相应的路由信息。

FW1/FW2都配置相应的安全策略，且在FW1上放行trust到dmz的流量。

FW1/FW2都配置相应的默认路由指向我们的运行商ISP。

FW1/FW2配置相应的NAT策略，使得内网、dmz可以访问外网(百度)。

FW1/FW2配置相应的。IPsec VPN让模拟主校区与模拟分校区之间互通，允许互通的网段为172.16.X.X/16。

外网模拟ISP使用使用IS-IS路由让其互通。

主校区/分校区用户可以通过域名(www.baidu.com)访问外网百度，主校区可以通过域名(www.xyw.com)访问内网web服务器。

我们主校区用户的dns服务器就用我们内部的dns服务器，分校区的dns服务器用ISP的dns服务器。

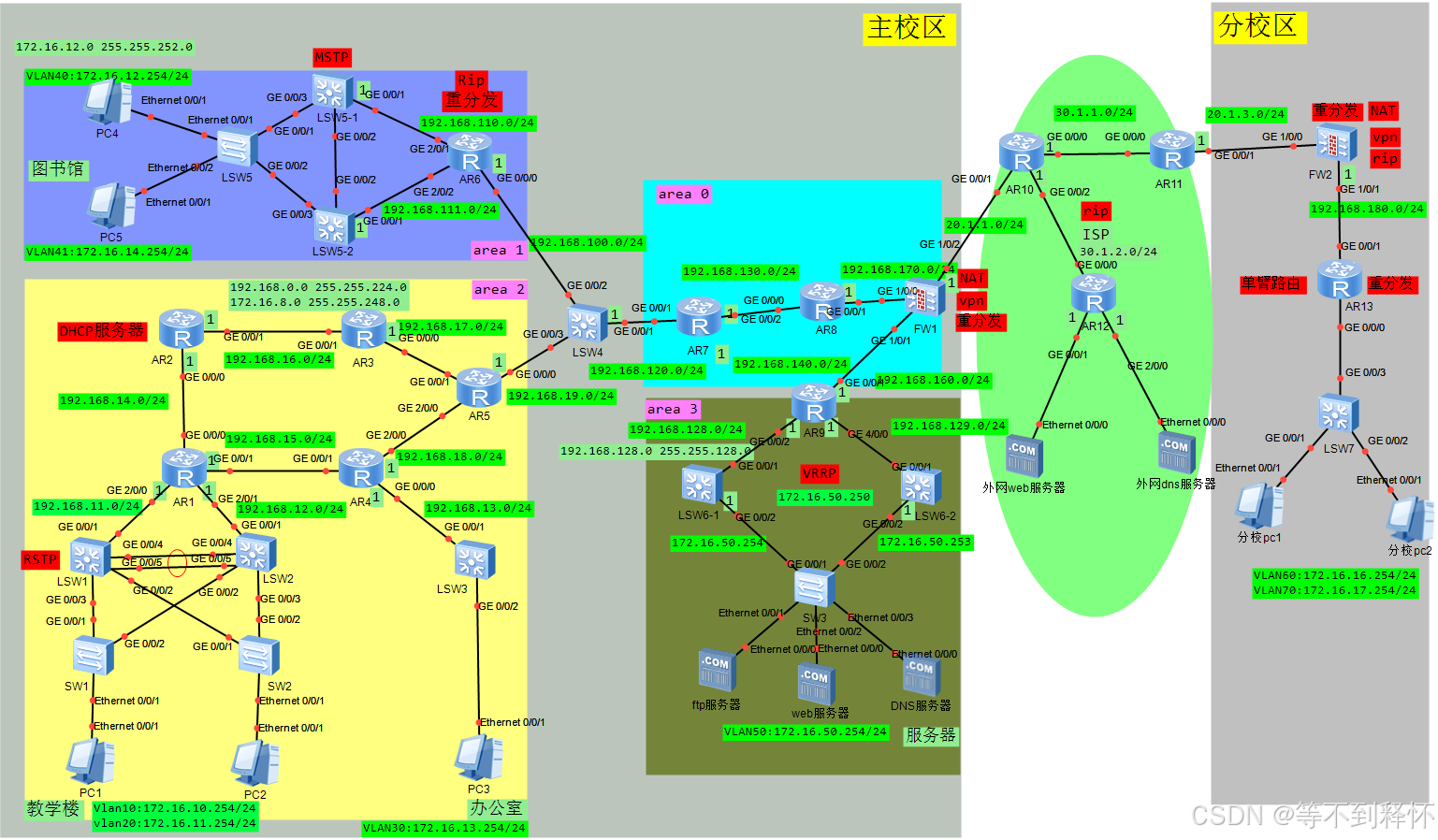

二、设计图

这个就是所搭建的设计图，查看设备代码可用dis cu进行配置代码的查看。

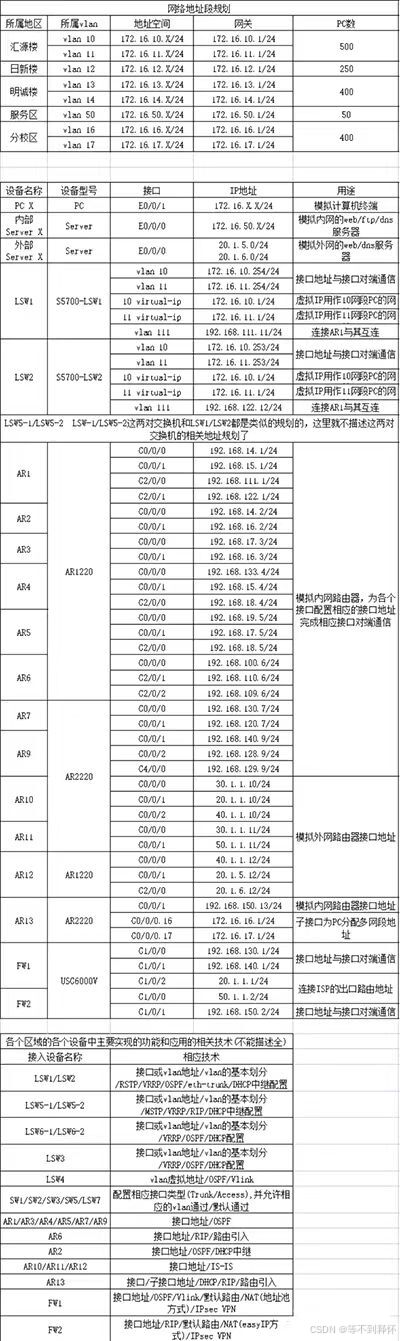

三、IP地址及VLAN的划分

四、配置步骤

1、慧源楼Eth-trunk配置

	LSW1:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW1
[LSW1]int eth-trunk 1
[LSW1-Eth-Trunk1]mode lacp-static
[LSW1-Eth-Trunk1]trunkport g0/0/4
[LSW1-Eth-Trunk1]trunkport g0/0/5
[LSW1-Eth-Trunk1]qui
[LSW1]
-------------------------------------------
	LSW2:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW2
[LSW2]int eth-trunk 1
[LSW2-Eth-Trunk1]mode lacp-static
[LSW2-Eth-Trunk1]trunkport g0/0/4
[LSW2-Eth-Trunk1]trunkport g0/0/5
[LSW2-Eth-Trunk1]qui
[LSW2]

2、慧源/日新楼VLAN 划分

	LSW1:
[LSW1]vlan batch 10 11 111
[LSW1]int g0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type access
[LSW1-GigabitEthernet0/0/1]port default vlan 111
[LSW1-GigabitEthernet0/0/1]int g0/0/2
[LSW1-GigabitEthernet0/0/2]port link-type trunk
[LSW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 to 11
[LSW1-GigabitEthernet0/0/2]int g0/0/3
[LSW1-GigabitEthernet0/0/3]port link-type trunk
[LSW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 to 11
[LSW1-GigabitEthernet0/0/3]qui
[LSW1]int Eth-Trunk 1
[LSW1-Eth-Trunk1]port link-type trunk
[LSW1-Eth-Trunk1]port trunk allow-pass vlan 10 to 11
[LSW1-Eth-Trunk1]qui
[LSW2]
-------------------------------------------
    LSW2:
[LSW2]vlan batch 10 11 122
[LSW2]int g0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type access
[LSW2-GigabitEthernet0/0/1]port default vlan 122
[LSW2-GigabitEthernet0/0/1]int g0/0/2
[LSW2-GigabitEthernet0/0/2]port link-type trunk
[LSW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 to 11
[LSW2-GigabitEthernet0/0/2]int g0/0/3
[LSW2-GigabitEthernet0/0/3]port link-type trunk
[LSW2-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 to 11
[LSW2-GigabitEthernet0/0/3]qui
[LSW2]int Eth-Trunk 1
[LSW2-Eth-Trunk1]port link-type trunk
[LSW2-Eth-Trunk1]port trunk allow-pass vlan 10 to 11
[LSW2-Eth-Trunk1]qui
[LSW2]
-------------------------------------------
    LSW3:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW3
[LSW3]vlan batch 12 133
[LSW3]int g0/0/1
[LSW3-GigabitEthernet0/0/1]port link-type access
[LSW3-GigabitEthernet0/0/1]port default vlan 133
[LSW3-GigabitEthernet0/0/1]int g0/0/2
[LSW3-GigabitEthernet0/0/2]port link-type access
[LSW3-GigabitEthernet0/0/2]port default vlan 12
[LSW3-GigabitEthernet0/0/2]qui
[LSW3]
-------------------------------------------
    SW1:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname SW1
[SW1]vlan 10
[SW1-vlan10]qui
[SW1]int g0/0/1
[SW1-GigabitEthernet0/0/1]port link-type trunk
[SW1-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 11
[SW1-GigabitEthernet0/0/1]int g0/0/2
[SW1-GigabitEthernet0/0/2]port link-type trunk
[SW1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 11
[SW1-GigabitEthernet0/0/2]int e0/0/1
[SW1-Ethernet0/0/1]port link-type access
[SW1-Ethernet0/0/1]port default vlan 10
[SW1-Ethernet0/0/1]qui
[SW1]
-------------------------------------------
    SW2:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname SW2
[SW2]vlan 11
[SW2-vlan11]qui
[SW2]int g0/0/1
[SW2-GigabitEthernet0/0/1]port link-type trunk
[SW2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 11
[SW2-GigabitEthernet0/0/1]int g0/0/2
[SW2-GigabitEthernet0/0/2]port link-type trunk
[SW2-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 11
[SW2-GigabitEthernet0/0/2]int e0/0/1
[SW2-Ethernet0/0/1]port link-type access
[SW2-Ethernet0/0/1]port default vlan 11
[SW2-Ethernet0/0/1]qui
[SW2]

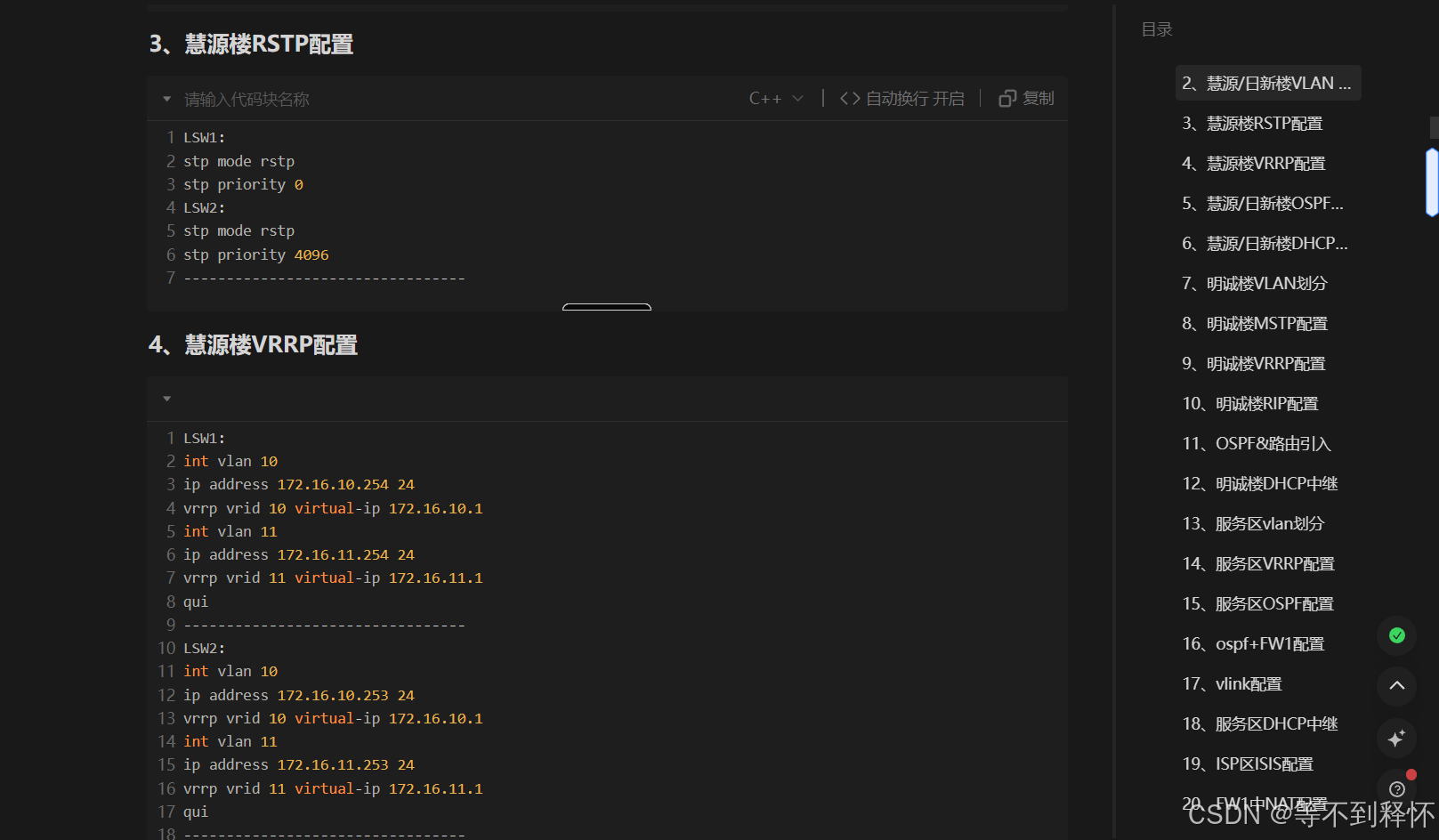

3、慧源楼RSTP配置

	LSW1:
[LSW1]stp mode rstp
[LSW1]stp priority 0
[LSW1]
-------------------------------------------
    LSW2:
[LSW2]stp mode rstp
[LSW2]stp priority 4096
[LSW2]

4、慧源楼VRRP配置

	LSW1:
[LSW1]int vlan 10
[LSW1-Vlanif10]ip address 172.16.10.254 24
[LSW1-Vlanif10]vrrp vrid 10 virtual-ip 172.16.10.1
[LSW1-Vlanif10]int vlan 11
[LSW1-Vlanif11]ip address 172.16.11.254 24
[LSW1-Vlanif11]vrrp vrid 11 virtual-ip 172.16.11.1
[LSW1-Vlanif11]qui
[LSW1]
-------------------------------------------
    LSW2:
[LSW2]int vlan 10
[LSW2-Vlanif10]ip address 172.16.10.253 24
[LSW2-Vlanif10]vrrp vrid 10 virtual-ip 172.16.10.1
[LSW2-Vlanif10]int vlan 11
[LSW2-Vlanif11]ip address 172.16.11.253 24
[LSW2-Vlanif11]vrrp vrid 11 virtual-ip 172.16.11.1
[LSW2-Vlanif11]qui
[LSW2]

5、慧源/日新楼OSPF配置

	LSW1:
[LSW1]int vlan 111
[LSW1-Vlanif111]ip add 192.168.111.11 24
[LSW1-Vlanif111]qui
[LSW1]ospf router-id 1.1.1.11
[LSW1-ospf-1]area 0
[LSW1-ospf-1-area-0.0.0.0]network 172.16.10.0 0.0.0.255
[LSW1-ospf-1-area-0.0.0.0]network 172.16.11.0 0.0.0.255
[LSW1-ospf-1-area-0.0.0.0]network 192.168.111.0 0.0.0.255
[LSW1-ospf-1-area-0.0.0.0]qui
[LSW1-ospf-1]qui
[LSW1]
-------------------------------------------
    LSW2:
[LSW2]int vlan 122
[LSW2-Vlanif122]ip add 192.168.122.12 24
[LSW2-Vlanif122]qui
[LSW2]ospf router-id 1.1.1.12
[LSW2-ospf-1]area 0
[LSW2-ospf-1-area-0.0.0.0]network 172.16.10.0 0.0.0.255
[LSW2-ospf-1-area-0.0.0.0]network 172.16.11.0 0.0.0.255
[LSW2-ospf-1-area-0.0.0.0]network 192.168.122.0 0.0.0.255
[LSW2-ospf-1-area-0.0.0.0]qui
[LSW2-ospf-1]qui
[LSW2]
-------------------------------------------
    LSW3:
[LSW3]int vlan 133
[LSW3-Vlanif133]ip add 192.168.133.13 24
[LSW3-Vlanif133]int vlan 12
[LSW3-Vlanif12]ip add 172.16.12.1 24
[LSW3-Vlanif12]qui
[LSW3]ospf router-id 1.1.1.13
[LSW3-ospf-1]area 0
[LSW3-ospf-1-area-0.0.0.0]network 172.16.12.0 0.0.0.255
[LSW3-ospf-1-area-0.0.0.0]network 192.168.133.0 0.0.0.255
[LSW3-ospf-1-area-0.0.0.0]qui
[LSW3-ospf-1]qui
[LSW3]
-------------------------------------------
    AR1:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR1
[AR1]int g2/0/0
[AR1-GigabitEthernet2/0/0]ip add 192.168.111.1 24
[AR1-GigabitEthernet2/0/0]int g2/0/1
[AR1-GigabitEthernet2/0/1]ip add 192.168.122.1 24
[AR1-GigabitEthernet2/0/1]int g0/0/0
[AR1-GigabitEthernet0/0/0]ip add 192.168.14.1 24
[AR1-GigabitEthernet0/0/0]int g0/0/1
[AR1-GigabitEthernet0/0/1]ip add 192.168.15.1 24
[AR1-GigabitEthernet0/0/1]int loo0
[AR1-LoopBack0]ip add 10.1.1.1 32
[AR1-LoopBack0]qui
[AR1]ospf router-id 1.1.1.1
[AR1-ospf-1]area 0
[AR1-ospf-1-area-0.0.0.0]net 192.168.14.0 0.0.0.255
[AR1-ospf-1-area-0.0.0.0]net 192.168.15.0 0.0.0.255
[AR1-ospf-1-area-0.0.0.0]net 192.168.122.0 0.0.0.255
[AR1-ospf-1-area-0.0.0.0]net 192.168.111.0 0.0.0.255
[AR1-ospf-1-area-0.0.0.0]qui
[AR1-ospf-1]qui
[AR1]
-------------------------------------------
    AR2:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR2
[AR2]int g0/0/0
[AR2-GigabitEthernet0/0/0]ip add 192.168.14.2 24
[AR2-GigabitEthernet0/0/0]int g0/0/1
[AR2-GigabitEthernet0/0/1]ip add 192.168.16.2 24
[AR2-GigabitEthernet0/0/1]int loo0
[AR2-LoopBack0]ip add 10.1.1.2 32
[AR2-LoopBack0]qui
[AR2]ospf router-id 1.1.1.2
[AR2-ospf-1]area 0
[AR2-ospf-1-area-0.0.0.0]net 192.168.14.0 0.0.0.255
[AR2-ospf-1-area-0.0.0.0]net 192.168.16.0 0.0.0.255
[AR2-ospf-1-area-0.0.0.0]qui
[AR2-ospf-1]qui
[AR2]
-------------------------------------------
    AR3:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR3
[AR3]int g0/0/0
[AR3-GigabitEthernet0/0/0]ip add 192.168.17.3 24
[AR3-GigabitEthernet0/0/0]int g0/0/1
[AR3-GigabitEthernet0/0/1]ip add 192.168.16.3 24
[AR3-GigabitEthernet0/0/1]int loo0
[AR3-LoopBack0]ip add 10.1.1.3 32
[AR3-LoopBack0]qui
[AR3]ospf router-id 1.1.1.3
[AR3-ospf-1]area 0
[AR3-ospf-1-area-0.0.0.0]net 192.168.17.0 0.0.0.255
[AR3-ospf-1-area-0.0.0.0]net 192.168.16.0 0.0.0.255
[AR3-ospf-1-area-0.0.0.0]qui
[AR3-ospf-1]qui
[AR3]
-------------------------------------------
    AR4:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR4
[AR4]int g0/0/0
[AR4-GigabitEthernet0/0/0]ip add 192.168.133.4 24
[AR4-GigabitEthernet0/0/0]int g0/0/1
[AR4-GigabitEthernet0/0/1]ip add 192.168.15.4 24
[AR4-GigabitEthernet0/0/1]int g2/0/0
[AR4-GigabitEthernet2/0/0]ip add 192.168.18.4 24
[AR4-GigabitEthernet2/0/0]int loo0
[AR4-LoopBack0]ip add 10.1.1.4 32
[AR4-LoopBack0]qui
[AR4]ospf router-id 1.1.1.4
[AR4-ospf-1]area 0
[AR4-ospf-1-area-0.0.0.0]net 192.168.18.0 0.0.0.255
[AR4-ospf-1-area-0.0.0.0]net 192.168.15.0 0.0.0.255
[AR4-ospf-1-area-0.0.0.0]net 192.168.133.0 0.0.0.255
[AR4-ospf-1-area-0.0.0.0]qui
[AR4-ospf-1]qui
[AR4]
-------------------------------------------
    AR5:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR5
[AR5]int g0/0/0
[AR5-GigabitEthernet0/0/0]ip add 192.168.19.5 24
[AR5-GigabitEthernet0/0/0]int g0/0/1
[AR5-GigabitEthernet0/0/1]ip add 192.168.17.5 24
[AR5-GigabitEthernet0/0/1]int g2/0/0
[AR5-GigabitEthernet2/0/0]ip add 192.168.18.5 24
[AR5-GigabitEthernet2/0/0]int loo0
[AR5-LoopBack0]ip add 10.1.1.5 32
[AR5-LoopBack0]qui
[AR5]ospf router-id 1.1.1.5
[AR5-ospf-1]area 0
[AR5-ospf-1-area-0.0.0.0]net 192.168.19.0 0.0.0.255
[AR5-ospf-1-area-0.0.0.0]net 192.168.17.0 0.0.0.255
[AR5-ospf-1-area-0.0.0.0]net 192.168.18.0 0.0.0.255
[AR5-ospf-1-area-0.0.0.0]qui
[AR5-ospf-1]qui
[AR5]

6、慧源/日新楼DHCP中继

	LSW1:
[LSW1]dhcp enable
[LSW1]int vlan 10
[LSW1-Vlanif10]dhcp select relay
[LSW1-Vlanif10]dhcp relay server-ip 192.168.14.2
[LSW1-Vlanif10]dhcp relay server-ip 192.168.16.2
[LSW1-Vlanif10]int vlan 11
[LSW1-Vlanif11]dhcp select relay
[LSW1-Vlanif11]dhcp relay server-ip 192.168.14.2
[LSW1-Vlanif11]dhcp relay server-ip 192.168.16.2
[LSW1-Vlanif11]qui
[LSW1]
-------------------------------------------
    LSW2:
[LSW2]dhcp enable
[LSW2]int vlan 10
[LSW2-Vlanif10]dhcp select relay
[LSW2-Vlanif10]dhcp relay server-ip 192.168.14.2
[LSW2-Vlanif10]dhcp relay server-ip 192.168.16.2
[LSW2-Vlanif10]int vlan 11
[LSW2-Vlanif11]dhcp select relay
[LSW2-Vlanif11]dhcp relay server-ip 192.168.14.2
[LSW2-Vlanif11]dhcp relay server-ip 192.168.16.2
[LSW2-Vlanif11]qui
[LSW2]
-------------------------------------------
    LSW3:
[LSW3]dhcp enable
[LSW3]int vlan 12
[LSW3-Vlanif12]dhcp select relay
[LSW3-Vlanif12]dhcp relay server-ip 192.168.14.2
[LSW3-Vlanif12]dhcp relay server-ip 192.168.16.2
[LSW3-Vlanif12]
-------------------------------------------
    AR2:
[AR2]dhcp enable
[AR2]int g0/0/0
[AR2-GigabitEthernet0/0/0]dhcp select global
[AR2-GigabitEthernet0/0/0]int g0/0/1
[AR2-GigabitEthernet0/0/1]dhcp select global
[AR2-GigabitEthernet0/0/1]qui
[AR2]ip pool vlan10
[AR2-ip-pool-vlan10]network 172.16.10.0 mask 24
[AR2-ip-pool-vlan10]gateway-list 172.16.10.1
[AR2-ip-pool-vlan10]excluded-ip-address 172.16.10.250 172.16.10.254
[AR2-ip-pool-vlan10]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan10]lease unlimited
[AR2-ip-pool-vlan10]qui
[AR2]ip pool vlan11
[AR2-ip-pool-vlan11]network 172.16.11.0 mask 24
[AR2-ip-pool-vlan11]gateway-list 172.16.11.1
[AR2-ip-pool-vlan11]excluded-ip-address 172.16.11.250 172.16.11.254
[AR2-ip-pool-vlan11]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan11]lease unlimited
[AR2-ip-pool-vlan11]qui
[AR2]ip pool vlan12
[AR2-ip-pool-vlan12]gateway-list 172.16.12.1
[AR2-ip-pool-vlan12]network 172.16.12.0 mask 255.255.255.0
[AR2-ip-pool-vlan12]excluded-ip-address 172.16.12.250 172.16.12.254
[AR2-ip-pool-vlan12]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan12]lease unlimited
[AR2-ip-pool-vlan12]qui
[AR2]ip pool vlan13
[AR2-ip-pool-vlan13]gateway-list 172.16.13.1
[AR2-ip-pool-vlan13]network 172.16.13.0 mask 255.255.255.0
[AR2-ip-pool-vlan13]excluded-ip-address 172.16.13.250 172.16.13.254
[AR2-ip-pool-vlan13]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan13]lease unlimited
[AR2-ip-pool-vlan13]qui
[AR2]ip pool vlan14
[AR2-ip-pool-vlan14]gateway-list 172.16.14.1
[AR2-ip-pool-vlan14]network 172.16.14.0 mask 255.255.255.0
[AR2-ip-pool-vlan14]excluded-ip-address 172.16.14.250 172.16.14.254
[AR2-ip-pool-vlan14]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan14]lease unlimited
[AR2-ip-pool-vlan14]qui
[AR2]ip pool vlan50
[AR2-ip-pool-vlan50]gateway-list 172.16.50.1
[AR2-ip-pool-vlan50]network 172.16.50.0 mask 255.255.255.0
[AR2-ip-pool-vlan50]excluded-ip-address 172.16.50.250 172.16.50.254
[AR2-ip-pool-vlan50]dns-list 172.16.50.3 8.8.8.8
[AR2-ip-pool-vlan50]lease unlimited
[AR2-ip-pool-vlan50]qui
[AR2]

7、明诚楼VLAN划分

	LSW5-1:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW5-1
[LSW5-1]vlan batch 13 14 110
[LSW5-1]int g0/0/1
[LSW5-1-GigabitEthernet0/0/1]port link-type access
[LSW5-1-GigabitEthernet0/0/1]port default vlan 110
[LSW5-1-GigabitEthernet0/0/1]int g0/0/2
[LSW5-1-GigabitEthernet0/0/2]port link-type trunk
[LSW5-1-GigabitEthernet0/0/2]port trunk allow-pass vlan 13 14
[LSW5-1-GigabitEthernet0/0/2]int g0/0/3
[LSW5-1-GigabitEthernet0/0/3]port link-type trunk
[LSW5-1-GigabitEthernet0/0/3]port trunk allow-pass vlan 13 14
[LSW5-1-GigabitEthernet0/0/3]qui
[LSW5-1]
-------------------------------------------
    LSW5-2:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW5-2
[LSW5-2]vlan batch 13 14 109
[LSW5-2]int g0/0/1
[LSW5-2-GigabitEthernet0/0/1]port link-type access
[LSW5-2-GigabitEthernet0/0/1]port default vlan 109
[LSW5-2-GigabitEthernet0/0/1]int g0/0/2
[LSW5-2-GigabitEthernet0/0/2]port link-type trunk
[LSW5-2-GigabitEthernet0/0/2]port trunk allow-pass vlan 13 14
[LSW5-2-GigabitEthernet0/0/2]int g0/0/3
[LSW5-2-GigabitEthernet0/0/3]port link-type trunk
[LSW5-2-GigabitEthernet0/0/3]port trunk allow-pass vlan 13 14
[LSW5-2-GigabitEthernet0/0/3]qui
[LSW5-2]
-------------------------------------------
    LSW5:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW5
[LSW5]vlan batch 13 14
[LSW5]int e0/0/1
[LSW5-Ethernet0/0/1]port link-type access
[LSW5-Ethernet0/0/1]port default vlan 13
[LSW5-Ethernet0/0/1]int e0/0/2
[LSW5-Ethernet0/0/2]port link-type access
[LSW5-Ethernet0/0/2]port default vlan 14
[LSW5-Ethernet0/0/2]int g0/0/1
[LSW5-GigabitEthernet0/0/1]port link-type trunk
[LSW5-GigabitEthernet0/0/1]port trunk allow-pass vlan 13 14
[LSW5-GigabitEthernet0/0/1]int g0/0/2
[LSW5-GigabitEthernet0/0/2]port link-type trunk
[LSW5-GigabitEthernet0/0/2]port trunk allow-pass vlan 13 14
[LSW5-GigabitEthernet0/0/2]qui
[LSW5]

8、明诚楼MSTP配置

	LSW5-1:
[LSW5-1]stp region-configuration
[LSW5-1-mst-region]region-name mstp_name
[LSW5-1-mst-region]revision-level 1
[LSW5-1-mst-region]instance 13 vlan 13
[LSW5-1-mst-region]instance 14 vlan 14
[LSW5-1-mst-region]active region-configuration
[LSW5-1-mst-region]qui
[LSW5-1]stp instance 13 root primary
[LSW5-1]stp instance 14 root secondary
[LSW5-1]
-------------------------------------------
    LSW5-2:
[LSW5-2]stp region-configuration
[LSW5-2-mst-region]region-name mstp_name
[LSW5-2-mst-region]revision-level 1
[LSW5-2-mst-region]instance 13 vlan 13
[LSW5-2-mst-region]instance 14 vlan 14
[LSW5-2-mst-region]active region-configuration
[LSW5-2-mst-region]qui
[LSW5-2]stp instance 14 root  primary
[LSW5-2]stp instance 13 root secondary
[LSW5-2]
-------------------------------------------
    LSW5:
[LSW5]stp region-configuration
[LSW5-mst-region]region-name mstp_name
[LSW5-mst-region]revision-level 1
[LSW5-mst-region]instance 13 vlan 13
[LSW5-mst-region]instance 14 vlan 14
[LSW5-mst-region]active region-configuration
[LSW5-mst-region]qui
[LSW5]

9、明诚楼VRRP配置

	LSW5-1:
[LSW5-1]int vlan 13
[LSW5-1-Vlanif13]ip address 172.16.13.254 24
[LSW5-1-Vlanif13]vrrp vrid 13 virtual-ip 172.16.13.1
[LSW5-1-Vlanif13]vrrp vrid 13 priority 105
[LSW5-1-Vlanif13]int vlan 14
[LSW5-1-Vlanif14]ip address 172.16.14.254 24
[LSW5-1-Vlanif14]vrrp vrid 14 virtual-ip 172.16.14.1
[LSW5-1-Vlanif14]qui
[LSW5-1]
-------------------------------------------
    LSW5-2:
[LSW5-2]int vlan 13
[LSW5-2-Vlanif13]ip address 172.16.13.253 24
[LSW5-2-Vlanif13]vrrp vrid 13 virtual-ip 172.16.13.1
[LSW5-2-Vlanif13]int vlan 14
[LSW5-2-Vlanif14]ip address 172.16.14.253 24
[LSW5-2-Vlanif14]vrrp vrid 14 virtual-ip 172.16.14.1
[LSW5-2-Vlanif14]vrrp vrid 14 priority 105
[LSW5-2-Vlanif14]qui
[LSW5-2]

10、明诚楼RIP配置

	LSW5-1:
[LSW5-1]int vlan 110
[LSW5-1-Vlanif110]ip add 192.168.110.1 24
[LSW5-1-Vlanif110]qui
[LSW5-1]rip 1
[LSW5-1-rip-1]version 2
[LSW5-1-rip-1]network 192.168.110.0
[LSW5-1-rip-1]network 172.16.0.0
[LSW5-1-rip-1]qui
[LSW5-1]
-------------------------------------------
    LSW5-2:
[LSW5-2]int vlan 109
[LSW5-2-Vlanif109]ip add 192.168.109.1 24
[LSW5-2-Vlanif109]qui
[LSW5-2]rip 1
[LSW5-2-rip-1]version 2
[LSW5-2-rip-1]network 192.168.109.0
[LSW5-2-rip-1]network 172.16.0.0
[LSW5-2-rip-1]qui
[LSW5-2]
-------------------------------------------
    AR6:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR6
[AR6]int g0/0/0
[AR6-GigabitEthernet0/0/0]ip add 192.168.100.6 24
[AR6-GigabitEthernet0/0/0]int g2/0/1
[AR6-GigabitEthernet2/0/1]ip add 192.168.110.6 24
[AR6-GigabitEthernet2/0/1]int g2/0/2
[AR6-GigabitEthernet2/0/2]ip add 192.168.109.6 24
[AR6-GigabitEthernet2/0/2]int loo0
[AR6-LoopBack0]ip add 10.1.1.6 32
[AR6-LoopBack0]qui
[AR6]rip
[AR6-rip-1]version 2
[AR6-rip-1]net 192.168.110.0
[AR6-rip-1]net 192.168.109.0
[AR6-rip-1]qui
[AR6]

11、OSPF&路由引入

	AR6:
[AR6]ospf router-id 1.1.1.6
[AR6-ospf-1]area 0.0.0.1
[AR6-ospf-1-area-0.0.0.1]network 192.168.100.0 0.0.0.255
[AR6-ospf-1-area-0.0.0.1]qui
[AR6-ospf-1]import-route rip 1
[AR6-ospf-1]qui
[AR6]rip
[AR6-rip-1]import-route ospf
[AR6-rip-1]qui
[AR6]
-------------------------------------------
    LSW4:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW4
[LSW4]vlan batch 100 19 120
[LSW4]int g0/0/1
[LSW4-GigabitEthernet0/0/1]port link-type access
[LSW4-GigabitEthernet0/0/1]port default vlan 120
[LSW4-GigabitEthernet0/0/1]int g0/0/2
[LSW4-GigabitEthernet0/0/2]port link-type access
[LSW4-GigabitEthernet0/0/2]port default vlan 100
[LSW4-GigabitEthernet0/0/2]int g0/0/3
[LSW4-GigabitEthernet0/0/3]port link-type access
[LSW4-GigabitEthernet0/0/3]port default vlan 19
[LSW4-GigabitEthernet0/0/3]qui
[LSW4]int vlan 120
[LSW4-Vlanif120]ip add 192.168.120.4 24
[LSW4-Vlanif120]int vlan 100
[LSW4-Vlanif100]ip add 192.168.100.4 24
[LSW4-Vlanif100]int vlan 19
[LSW4-Vlanif19]ip add 192.168.19.4 24
[LSW4-Vlanif19]qui
[LSW4]ospf router-id 1.1.1.14
[LSW4-ospf-1]area 0
[LSW4-ospf-1-area-0.0.0.0]net 192.168.19.0 0.0.0.255
[LSW4-ospf-1-area-0.0.0.0]qui
[LSW4-ospf-1]area 1
[LSW4-ospf-1-area-0.0.0.1]net 192.168.100.0 0.0.0.255
[LSW4-ospf-1-area-0.0.0.1]qui
[LSW4-ospf-1]area 2
[LSW4-ospf-1-area-0.0.0.2]net 192.168.120.0 0.0.0.255
[LSW4-ospf-1-area-0.0.0.2]qui
[LSW4-ospf-1]qui
[LSW4]

12、明诚楼DHCP中继

	LSW5-1:
[LSW5-1]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[LSW5-1]int vlan 13
[LSW5-1-Vlanif13]dhcp select relay
[LSW5-1-Vlanif13]dhcp relay server-ip 192.168.14.2
[LSW5-1-Vlanif13]dhcp relay server-ip 192.168.16.2
[LSW5-1-Vlanif13]int vlan 14
[LSW5-1-Vlanif14]dhcp select relay
[LSW5-1-Vlanif14]dhcp relay server-ip 192.168.14.2
[LSW5-1-Vlanif14]dhcp relay server-ip 192.168.16.2
[LSW5-1-Vlanif14]qui
[LSW5-1]
-------------------------------------------
    LSW5-2:
[LSW5-2]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[LSW5-2]int vlan 13
[LSW5-2-Vlanif13]dhcp select relay
[LSW5-2-Vlanif13]dhcp relay server-ip 192.168.14.2
[LSW5-2-Vlanif13]dhcp relay server-ip 192.168.16.2
[LSW5-2-Vlanif13]int vlan 14
[LSW5-2-Vlanif14]dhcp select relay
[LSW5-2-Vlanif14]dhcp relay server-ip 192.168.14.2
[LSW5-2-Vlanif14]dhcp relay server-ip 192.168.16.2
[LSW5-2-Vlanif14]qui
[LSW5-2]

13、服务区vlan划分

	SW3:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname SW3
[SW3]vlan 50
[SW3-vlan50]qui
[SW3]int e0/0/1
[SW3-Ethernet0/0/1]port link-type access
[SW3-Ethernet0/0/1]port default vlan 50
[SW3-Ethernet0/0/1]int e0/0/2
[SW3-Ethernet0/0/2]port link-type access
[SW3-Ethernet0/0/2]port default vlan 50
[SW3-Ethernet0/0/2]int e0/0/3
[SW3-Ethernet0/0/3]port link-type access
[SW3-Ethernet0/0/3]port default vlan 50
[SW3-Ethernet0/0/3]int g0/0/1
[SW3-GigabitEthernet0/0/1]port link-type trunk
[SW3-GigabitEthernet0/0/1]port trunk allow-pass vlan 50
[SW3-GigabitEthernet0/0/1]int g0/0/2
[SW3-GigabitEthernet0/0/2]port link-type trunk
[SW3-GigabitEthernet0/0/2]port trunk allow-pass vlan 50
[SW3-GigabitEthernet0/0/2]qui
[SW3]
-------------------------------------------
    LSW6-1:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW6-1
[LSW6-1]vlan batch 50 128
[LSW6-1]int g0/0/1
[LSW6-1-GigabitEthernet0/0/1]port link-type access
[LSW6-1-GigabitEthernet0/0/1]port default vlan 128
[LSW6-1-GigabitEthernet0/0/1]int g0/0/2
[LSW6-1-GigabitEthernet0/0/2]port link-type trunk
[LSW6-1-GigabitEthernet0/0/2]port trunk allow-pass vlan 50
[LSW6-1-GigabitEthernet0/0/2]qui
[LSW6-1]
-------------------------------------------
    LSW6-2:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW6-2
[LSW6-2]vlan batch 50 129
[LSW6-2]int g0/0/1
[LSW6-2-GigabitEthernet0/0/1]port link-type access
[LSW6-2-GigabitEthernet0/0/1]port default vlan 129
[LSW6-2-GigabitEthernet0/0/1]int g0/0/2
[LSW6-2-GigabitEthernet0/0/2]port link-type trunk
[LSW6-2-GigabitEthernet0/0/2]port trunk allow-pass vlan 50
[LSW6-2-GigabitEthernet0/0/2]qui
[LSW6-2]

14、服务区VRRP配置

	LSW6-1:
[LSW6-1]int vlan 50
[LSW6-1-Vlanif50]ip add 172.16.50.254 24
[LSW6-1-Vlanif50]vrrp vrid 50 virtual-ip 172.16.50.1
[LSW6-1-Vlanif50]vrrp vrid 50 priority 105
[LSW6-1-Vlanif50]qui
[LSW6-1]
-------------------------------------------
    LSW6-2:
[LSW6-2]int vlan 50
[LSW6-2-Vlanif50]ip add 172.16.50.253 24
[LSW6-2-Vlanif50]vrrp vrid 50 virtual-ip 172.16.50.1
[LSW6-2-Vlanif50]vrrp vrid 50 priority 105
[LSW6-2-Vlanif50]qui
[LSW6-2]

15、服务区OSPF配置

	LSW6-1:
[LSW6-1]int vlan 128
[LSW6-1-Vlanif128]ip add 192.168.128.1 24
[LSW6-1-Vlanif128]qui
[LSW6-1]ospf router-id 1.1.1.16
[LSW6-1-ospf-1]area 3
[LSW6-1-ospf-1-area-0.0.0.3]network 172.16.50.0 0.0.0.255
[LSW6-1-ospf-1-area-0.0.0.3]network 192.168.128.0 0.0.0.255
[LSW6-1-ospf-1-area-0.0.0.3]qui
[LSW6-1-ospf-1]qui
[LSW6-1]
-------------------------------------------
    LSW6-2:
[LSW6-2]int vlan 129
[LSW6-2-Vlanif129]ip add 192.168.129.1 24
[LSW6-2-Vlanif129]qui
[LSW6-2]ospf router-id 1.1.1.17
[LSW6-2-ospf-1]area 3
[LSW6-2-ospf-1-area-0.0.0.3]network 172.16.50.0 0.0.0.255
[LSW6-2-ospf-1-area-0.0.0.3]network 192.168.129.0 0.0.0.255
[LSW6-2-ospf-1-area-0.0.0.3]qui
[LSW6-2-ospf-1]qui
[LSW6-2]
-------------------------------------------
    AR9:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR9
[AR9]int g0/0/1
[AR9-GigabitEthernet0/0/1]ip add 192.168.140.9 24
[AR9-GigabitEthernet0/0/1]int g0/0/2
[AR9-GigabitEthernet0/0/2]ip add 192.168.128.9 24
[AR9-GigabitEthernet0/0/2]int g4/0/0
[AR9-GigabitEthernet4/0/0]ip add 192.168.129.9 24
[AR9-GigabitEthernet4/0/0]qui
[AR9]ospf router-id 1.1.1.9
[AR9-ospf-1]area 3
[AR9-ospf-1-area-0.0.0.3]net 192.168.128.0 0.0.0.255
[AR9-ospf-1-area-0.0.0.3]net 192.168.129.0 0.0.0.255
[AR9-ospf-1-area-0.0.0.3]net 192.168.140.0 0.0.0.255
[AR9-ospf-1-area-0.0.0.3]qui
[AR9-ospf-1]qui
[AR9]

16、OSPF&FW1配置

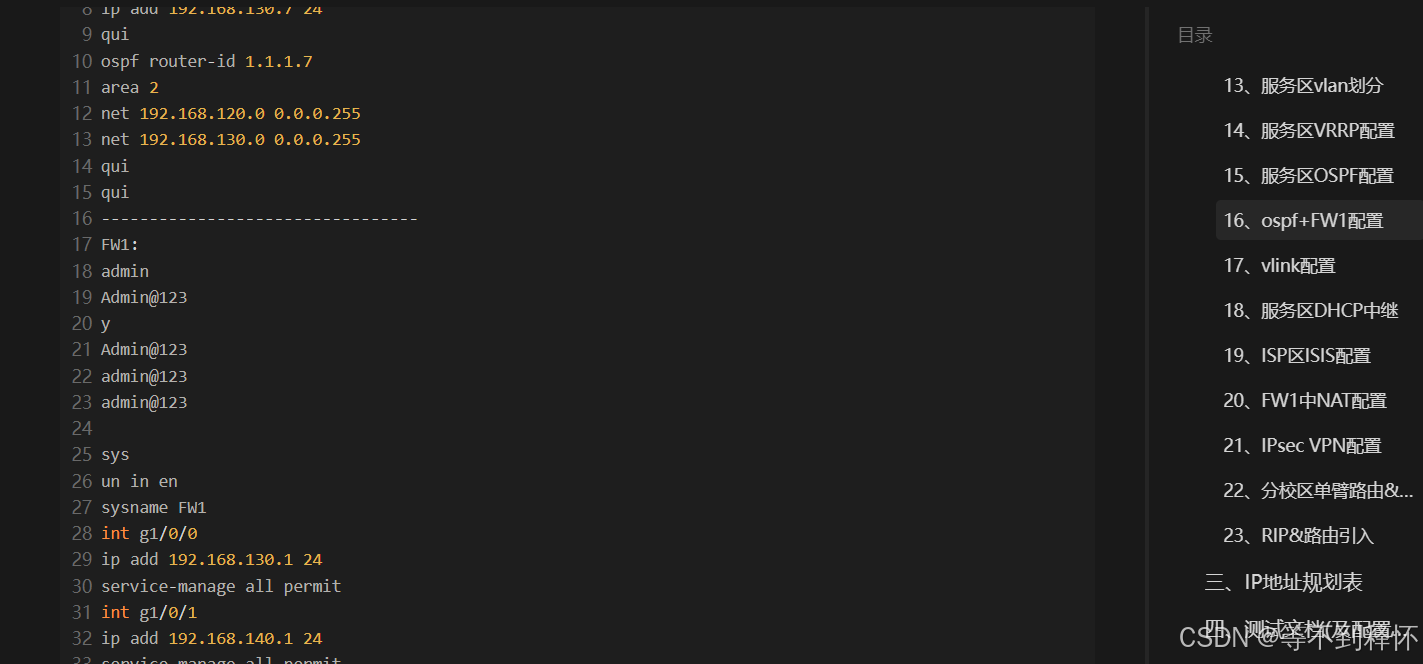

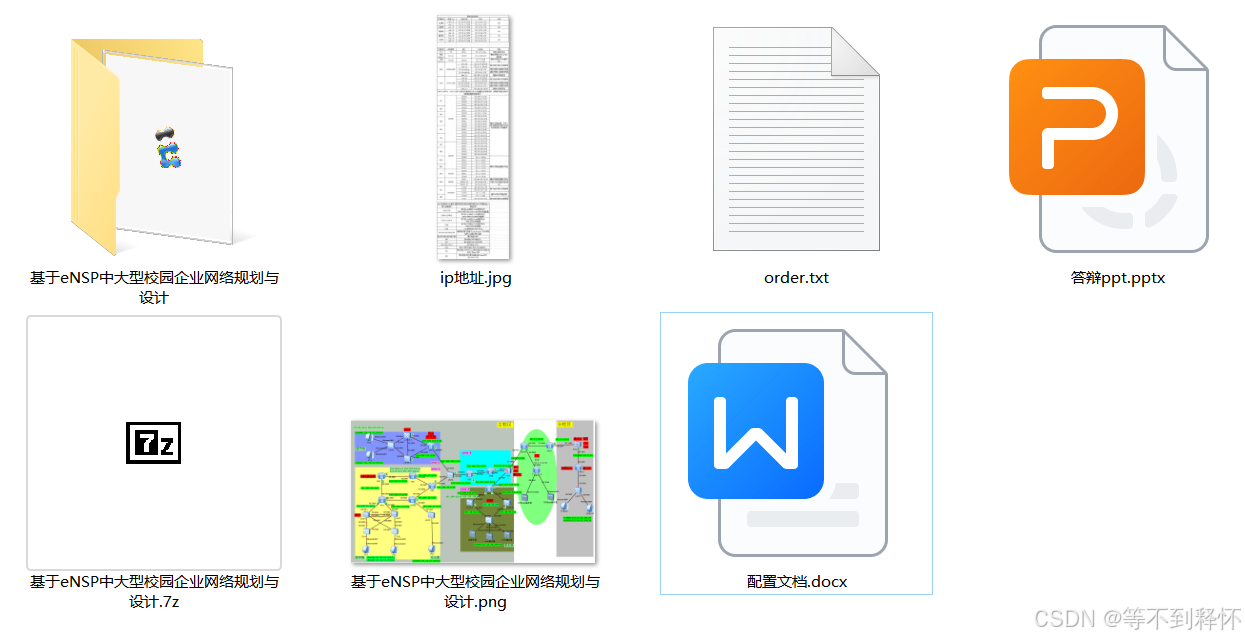

这里的配置就先不放了，具体的配置都放在下载链接里了！

17、Vlink配置

	FW1:
[FW1]ospf
[FW1-ospf-1]area 2
[FW1-ospf-1-area-0.0.0.2]vlink-peer 1.1.1.14
[FW1-ospf-1-area-0.0.0.2]qui
[FW1-ospf-1]qui
[FW1]
-------------------------------------------
    LSW4:
[LSW4]ospf
[LSW4-ospf-1]area 2
[LSW4-ospf-1-area-0.0.0.2]vlink-peer 1.1.1.18
[LSW4-ospf-1-area-0.0.0.2]qui
[LSW4-ospf-1]qui
[LSW4]

18、服务区DHCP中继

	LSW6-1:
[LSW6-1]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[LSW6-1]int vlan 50
[LSW6-1-Vlanif50]dhcp select relay
[LSW6-1-Vlanif50]dhcp relay server-ip 192.168.14.2
[LSW6-1-Vlanif50]dhcp relay server-ip 192.168.16.2
[LSW6-1-Vlanif50]qui
[LSW6-1]
-------------------------------------------
    LSW6-2:
[LSW6-2]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[LSW6-2]int vlan 50
[LSW6-2-Vlanif50]dhcp select relay
[LSW6-2-Vlanif50]dhcp relay server-ip 192.168.14.2
[LSW6-2-Vlanif50]dhcp relay server-ip 192.168.16.2
[LSW6-2-Vlanif50]qui
[LSW6-2]

19、ISP区ISIS配置

	AR10:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR10
[AR10]isis
[AR10-isis-1]net 49.0000.0000.0010.00
[AR10-isis-1]is-level level-2
[AR10-isis-1]cost-style wide
[AR10-isis-1]qui
[AR10]int g0/0/1
[AR10-GigabitEthernet0/0/1]ip add 20.1.1.10 24
[AR10-GigabitEthernet0/0/1]isis enable
[AR10-GigabitEthernet0/0/1]int g0/0/0
[AR10-GigabitEthernet0/0/0]ip add 30.1.1.10 24
[AR10-GigabitEthernet0/0/0]isis enable
[AR10-GigabitEthernet0/0/0]int g0/0/2
[AR10-GigabitEthernet0/0/2]ip add 40.1.1.10 24
[AR10-GigabitEthernet0/0/2]isis enable
[AR10-GigabitEthernet0/0/2]qui
[AR10]
-------------------------------------------
    AR11:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR11
[AR11]isis
[AR11-isis-1]net 49.0000.0000.0011.00
[AR11-isis-1]is-level level-2
[AR11-isis-1]cost-style wide
[AR11-isis-1]qui
[AR11]int g0/0/1
[AR11-GigabitEthernet0/0/1]ip add 50.1.1.11 24
[AR11-GigabitEthernet0/0/1]isis enable
[AR11-GigabitEthernet0/0/1]int g0/0/0
[AR11-GigabitEthernet0/0/0]ip add 30.1.1.11 24
[AR11-GigabitEthernet0/0/0]isis enable
[AR11-GigabitEthernet0/0/0]qui
[AR11]
-------------------------------------------
    AR12:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR12
[AR12]isis
[AR12-isis-1]net 49.0000.0000.0012.00
[AR12-isis-1]is-level level-2
[AR12-isis-1]cost-style wide
[AR12-isis-1]qui
[AR12]int g0/0/0
[AR12-GigabitEthernet0/0/0]ip add 40.1.1.12 24
[AR12-GigabitEthernet0/0/0]isis enable
[AR12-GigabitEthernet0/0/0]int g0/0/1
[AR12-GigabitEthernet0/0/1]ip add 20.1.5.12 24
[AR12-GigabitEthernet0/0/1]isis enable
[AR12-GigabitEthernet0/0/1]int g2/0/0
[AR12-GigabitEthernet2/0/0]ip add 20.1.6.12 24
[AR12-GigabitEthernet2/0/0]isis enable
[AR12-GigabitEthernet2/0/0]
[AR12-GigabitEthernet2/0/0]qui
[AR12]

20、FW1中NAT配置

	FW1:
[FW1]nat address-group nat_pool 0
[FW1-address-group-nat_pool]section 0 20.1.1.5 20.1.1.9
[FW1-address-group-nat_pool]qui
[FW1]nat-policy
[FW1-policy-nat]rule name nat_sys
[FW1-policy-nat-rule-nat_sys]source-zone trust
[FW1-policy-nat-rule-nat_sys]source-zone dmz
[FW1-policy-nat-rule-nat_sys]destination-zone untrust
[FW1-policy-nat-rule-nat_sys]action source-nat address-group nat_pool
[FW1-policy-nat-rule-nat_sys]qui
[FW1-policy-nat]qui
[FW1]

21、IPsec VPN配置

	FW1:
[FW1]ike proposal 10
[FW1-ike-proposal-10]authentication-method pre-share
[FW1-ike-proposal-10]dh group2
Warning: The security level of group1/group2/group5 is low.
[FW1-ike-proposal-10]encryption-algorithm 3des
 Warning: The security level of des/3des is low.
[FW1-ike-proposal-10]authentication-algorithm sha1
Warning: The security level of md5/sha1 is low.
[FW1-ike-proposal-10]qui
[FW1]ike peer FW2
[FW1-ike-peer-FW2]pre-shared-key huawei
[FW1-ike-peer-FW2]remote-address 50.1.1.2
[FW1-ike-peer-FW2]ike-proposal 10
[FW1-ike-peer-FW2]qui
[FW1]acl 3000
[FW1-acl-adv-3000]rule 5 permit ip source 172.16.0.0 0.0.255.255 destination 172.16.0.0 0.0.255.255
[FW1-acl-adv-3000]qui
[FW1]ipsec proposal XNS
[FW1-ipsec-proposal-XNS]encapsulation-mode tunnel
[FW1-ipsec-proposal-XNS]esp encryption-algorithm 3des
Warning: The security level of des/3des this algorithm is low.
[FW1-ipsec-proposal-XNS]esp authentication-algorithm sha1
Warning: The security level of md5/sha1 is low.
[FW1-ipsec-proposal-XNS]qui
[FW1]ipsec policy XNS_MAP 10 isakmp
[FW1-ipsec-policy-isakmp-XNS_MAP-10]security acl 3000
[FW1-ipsec-policy-isakmp-XNS_MAP-10]proposal XNS
[FW1-ipsec-policy-isakmp-XNS_MAP-10]ike-peer FW2
[FW1-ipsec-policy-isakmp-XNS_MAP-10]qui
[FW1]int g1/0/2
[FW1-GigabitEthernet1/0/2]ipsec policy XNS_MAP
[FW1-GigabitEthernet1/0/2]qui
[FW1]security-policy
[FW1-policy-security]rule name out_to_local
[FW1-policy-security-rule-out_to_local]source-zone untrust
[FW1-policy-security-rule-out_to_local]destination-zone local
[FW1-policy-security-rule-out_to_local]service protocol 50
[FW1-policy-security-rule-out_to_local]service protocol udp destination-port 500
[FW1-policy-security-rule-out_to_local]action permit
[FW1-policy-security-rule-out_to_local]qui
[FW1-policy-security]rule name out_to_in
[FW1-policy-security-rule-out_to_in]source-zone untrust
[FW1-policy-security-rule-out_to_in]destination-zone trust
[FW1-policy-security-rule-out_to_in]source-address 172.16.0.0 mask 255.255.0.0
[FW1-policy-security-rule-out_to_in]destination-address 172.16.0.0 mask 255.255.0.0
[FW1-policy-security-rule-out_to_in]action permit
[FW1-policy-security-rule-out_to_in]qui
[FW1-policy-security]qui
[FW1]nat-policy
[FW1-policy-nat]rule name nat_pass
[FW1-policy-nat-rule-nat_pass]source-zone trust
[FW1-policy-nat-rule-nat_pass]destination-zone untrust
[FW1-policy-nat-rule-nat_pass]source-address 172.16.0.0 16
[FW1-policy-nat-rule-nat_pass]destination-address 172.16.0.0 16
[FW1-policy-nat-rule-nat_pass]action no-nat
[FW1-policy-nat-rule-nat_pass]qui
[FW1-policy-nat]rule move nat_pass up
[FW1-policy-nat]qui
[FW1]
-------------------------------------------
    FW2:
<USG6000V1>sys
[USG6000V1]un in en
[USG6000V1]sysname FW2
[FW2]int g1/0/0
[FW2-GigabitEthernet1/0/0]ip add 50.1.1.2 24
[FW2-GigabitEthernet1/0/0]service-manage all permit
[FW2-GigabitEthernet1/0/0]int g1/0/1
[FW2-GigabitEthernet1/0/1]ip add 192.168.150.2 24
[FW2-GigabitEthernet1/0/1]service-manage all permit
[FW2-GigabitEthernet1/0/1]qui
[FW2]firewall zone untrust
[FW2-zone-untrust]add int g1/0/0
[FW2-zone-untrust]qui
[FW2]firewall zone trust
[FW2-zone-trust]add int g1/0/1
[FW2-zone-trust]qui
[FW2]ip route-static 0.0.0.0 0 50.1.1.11
[FW2]ike proposal 10
[FW2-ike-proposal-10]authentication-method pre-share
[FW2-ike-proposal-10]dh group2
Warning: The security level of group1/group2/group5 is low.
[FW2-ike-proposal-10]encryption-algorithm 3des
 Warning: The security level of des/3des is low.
[FW2-ike-proposal-10]authentication-algorithm sha1
Warning: The security level of md5/sha1 is low.
[FW2-ike-proposal-10]qui
[FW2]ike peer FW1
[FW2-ike-peer-FW1]pre-shared-key huawei
[FW2-ike-peer-FW1]remote-address 20.1.1.1
[FW2-ike-peer-FW1]ike-proposal 10
[FW2-ike-peer-FW1]qui
[FW2]acl 3000
[FW2-acl-adv-3000]rule 5 permit ip source 172.16.0.0 0.0.255.255 destination 172.16.0.0 0.0.255.255
[FW2-acl-adv-3000]qui
[FW2]ipsec proposal XNS
[FW2-ipsec-proposal-XNS]encapsulation-mode tunnel
[FW2-ipsec-proposal-XNS]esp encryption-algorithm 3des
Warning: The security level of des/3des this algorithm is low.
[FW2-ipsec-proposal-XNS]esp authentication-algorithm sha1
Warning: The security level of md5/sha1 is low.
[FW2-ipsec-proposal-XNS]qui
[FW2]ipsec policy XNS_MAP 10 isakmp
[FW2-ipsec-policy-isakmp-XNS_MAP-10]security acl 3000
[FW2-ipsec-policy-isakmp-XNS_MAP-10]proposal XNS
[FW2-ipsec-policy-isakmp-XNS_MAP-10]ike-peer FW1
[FW2-ipsec-policy-isakmp-XNS_MAP-10]qui
[FW2]int g1/0/0
[FW2-GigabitEthernet1/0/0]ipsec policy XNS_MAP
[FW2-GigabitEthernet1/0/0]qui
[FW2]security-policy
[FW2-policy-security]rule name out_to_local
[FW2-policy-security-rule-out_to_local]source-zone untrust
[FW2-policy-security-rule-out_to_local]destination-zone local
[FW2-policy-security-rule-out_to_local]service protocol 50
[FW2-policy-security-rule-out_to_local]service protocol udp destination-port 500
[FW2-policy-security-rule-out_to_local]action permit
[FW2-policy-security-rule-out_to_local]qui
[FW2-policy-security]rule name out_to_in
[FW2-policy-security-rule-out_to_in]source-zone untrust
[FW2-policy-security-rule-out_to_in]destination-zone trust
[FW2-policy-security-rule-out_to_in]source-address 172.16.0.0 16
[FW2-policy-security-rule-out_to_in]destination-address 172.16.0.0 16
[FW2-policy-security-rule-out_to_in]action permit
[FW2-policy-security-rule-out_to_in]qui
[FW2-policy-security]rule name in_to_out
[FW2-policy-security-rule-in_to_out]source-zone trust
[FW2-policy-security-rule-in_to_out]destination-zone untrust
[FW2-policy-security-rule-in_to_out]action permit
[FW2-policy-security-rule-in_to_out]qui
[FW2-policy-security]rule name local_to_any
[FW2-policy-security-rule-local_to_any]source-zone local
[FW2-policy-security-rule-local_to_any]action permit
[FW2-policy-security-rule-local_to_any]qui
[FW2-policy-security]qui
[FW2]nat-policy
[FW2-policy-nat]rule name nat_pass
[FW2-policy-nat-rule-nat_pass]source-zone trust
[FW2-policy-nat-rule-nat_pass]destination-zone untrust
[FW2-policy-nat-rule-nat_pass]source-address 172.16.16.0 16
[FW2-policy-nat-rule-nat_pass]destination-address 172.16.0.0 16
[FW2-policy-nat-rule-nat_pass]action no-nat
[FW2-policy-nat-rule-nat_pass]qui
[FW2-policy-nat]rule name easyip
[FW2-policy-nat-rule-easyip]source-zone trust
[FW2-policy-nat-rule-easyip]destination-zone untrust
[FW2-policy-nat-rule-easyip]source-address 172.16.0.0 16
[FW2-policy-nat-rule-easyip]action source-nat easy-ip
[FW2-policy-nat-rule-easyip]qui
[FW2-policy-nat]qui
[FW2]

22、分校区单臂路由&DHCP

	LSW7:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname LSW7
[LSW7]vlan batch 16 17
[LSW7]int g0/0/1
[LSW7-GigabitEthernet0/0/1]port link-type access
[LSW7-GigabitEthernet0/0/1]port default vlan 16
[LSW7-GigabitEthernet0/0/1]int g0/0/2
[LSW7-GigabitEthernet0/0/2]port link-type access
[LSW7-GigabitEthernet0/0/2]port default vlan 17
[LSW7-GigabitEthernet0/0/2]int g0/0/3
[LSW7-GigabitEthernet0/0/3]port link-type trunk
[LSW7-GigabitEthernet0/0/3]port trunk allow-pass vlan 16 17
[LSW7-GigabitEthernet0/0/3]qui
[LSW7]
-------------------------------------------
    AR13:
<Huawei>sys
[Huawei]un in en
[Huawei]sysname AR13
[AR13]int g0/0/1
[AR13-GigabitEthernet0/0/1]ip add 192.168.150.13 24
[AR13-GigabitEthernet0/0/1]int g0/0/0.16
[AR13-GigabitEthernet0/0/0.16]dot1q termination vid 16
[AR13-GigabitEthernet0/0/0.16]ip add 172.16.16.1 24
[AR13-GigabitEthernet0/0/0.16]arp broadcast en
[AR13-GigabitEthernet0/0/0.16]int g0/0/0.17
[AR13-GigabitEthernet0/0/0.17]dot1q termination vid 17
[AR13-GigabitEthernet0/0/0.17]ip add 172.16.17.1 24
[AR13-GigabitEthernet0/0/0.17]arp broadcast en
[AR13-GigabitEthernet0/0/0.17]qui
[AR13]dhcp enable
[AR13]ip pool sys_vlan16
[AR13-ip-pool-sys_vlan16]network 172.16.16.0 mask 24
[AR13-ip-pool-sys_vlan16]gateway-list 172.16.16.1
[AR13-ip-pool-sys_vlan16]dns-list 20.1.6.2 8.8.8.8
[AR13-ip-pool-sys_vlan16]qui
[AR13]ip pool sys_vlan17
[AR13-ip-pool-sys_vlan17]network 172.16.17.0 mask 24
[AR13-ip-pool-sys_vlan17]gateway-list 172.16.17.1
[AR13-ip-pool-sys_vlan17]dns-list 8.8.8.8 114.114.114.114
[AR13-ip-pool-sys_vlan17]qui
[AR13]int g0/0/0.16
[AR13-GigabitEthernet0/0/0.16]dhcp select global
[AR13-GigabitEthernet0/0/0.16]qui
[AR13]int g0/0/0.17
[AR13-GigabitEthernet0/0/0.17]dhcp select global
[AR13-GigabitEthernet0/0/0.17]qui
[AR13]

23、RIP&路由引入

    AR13:
[AR13]rip 1
[AR13-rip-1]version 2
[AR13-rip-1]network 192.168.150.0
[AR13-rip-1]import-route direct
[AR13-rip-1]qui
[AR13]
-------------------------------------------
    FW2:
[FW2]rip 1
[FW2-rip-1]default-route originate
[FW2-rip-1]version 2
[FW2-rip-1]network 192.168.150.0
[FW2-rip-1]qui
[FW2]
