FlinkCEP开发实战

1.导入pom依赖：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.mischen.it</groupId>
    <artifactId>FlinkDemo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <flink.version>1.12.0</flink.version>
        <java.version>1.8</java.version>
        <scala.binary.version>2.11</scala.binary.version>
        <slf4j.version>1.7.30</slf4j.version>
        <maven.compiler.source>1.8</maven.compiler.source>
        <maven.compiler.target>1.8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-runtime-web_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-cep_${scala.binary.version}</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-api</artifactId>
            <version>${slf4j.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>${slf4j.version}</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.logging.log4j</groupId>
            <artifactId>log4j-to-slf4j</artifactId>
            <version>2.14.0</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.projectlombok/lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.16</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_2.11</artifactId>
            <version>1.11.2</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>3.3.0</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>
        </plugins>
    </build>


</project>

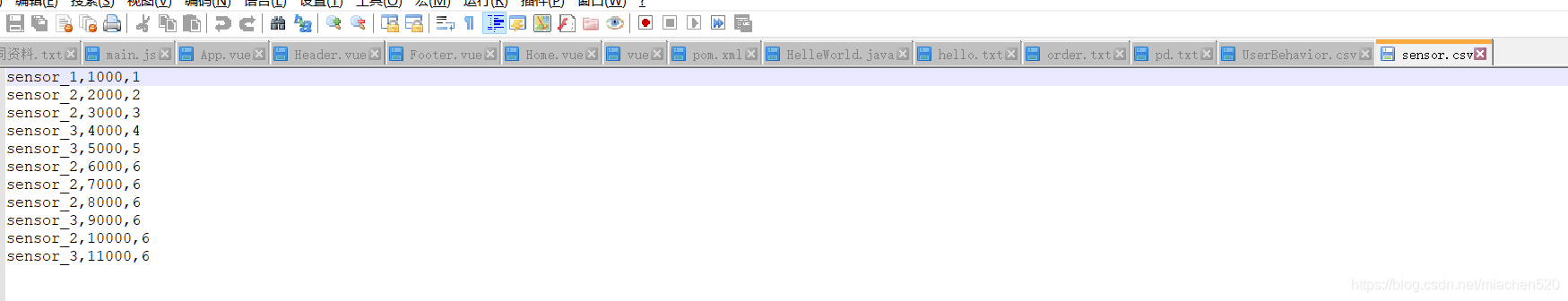

2.将csv文件放入工程input目录下面，截图如下：

文档格式如下：

3.编写javabean：

package com.mischen.it.entity;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @ClassName WaterSensor
 * @Description DOTO
 * @Author mischen
 * @Date 2021/6/29 0029 8:49
 * @Version 1.0
 **/
@Data
@NoArgsConstructor
@AllArgsConstructor
public class WaterSensor {
    //id:传感器编号
    private String id;
    //时间戳
    private Long ts;
    //水位
    private Integer vc;
}

4.编写本地main方法：

package com.mischen.it;

import com.mischen.it.entity.WaterSensor;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternSelectFunction;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.SimpleCondition;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.time.Duration;
import java.util.List;
import java.util.Map;

/**
 * @ClassName Flink01_CEP_BasicUse
 * @Description DOTO
 * @Author mischen
 * @Date 2021/6/30 0030 10:45
 * @Version 1.0
 **/
public class Flink01_CEP_BasicUse {
    public static void main(String[] args) {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(3);

        SingleOutputStreamOperator<WaterSensor> waterSensorStream = env
                .readTextFile("input/sensor.csv")
                .map(new MapFunction<String, WaterSensor>() {
                    @Override
                    public WaterSensor map(String value) throws Exception {
                        String[] split = value.split(",");
                        return new WaterSensor(split[0],
                                Long.parseLong(split[1]) * 1000,
                                Integer.parseInt(split[2]));
                    }
                })
                .assignTimestampsAndWatermarks(WatermarkStrategy
                        .<WaterSensor>forBoundedOutOfOrderness(Duration.ofSeconds(5))
                        .withTimestampAssigner((element, recordTimestamp) -> element.getTs()));
        // 1. 定义模式
        Pattern<WaterSensor, WaterSensor> pattern = Pattern
                .<WaterSensor>begin("start3")
                .where(new SimpleCondition<WaterSensor>() {
                    @Override
                    public boolean filter(WaterSensor value) throws Exception {
                        return "sensor_3".equals(value.getId());
                    }
                });
        // 2. 在流上应用模式
        PatternStream<WaterSensor> waterSensorPS = CEP.pattern(waterSensorStream, pattern);
        // 3. 获取匹配到的结果
        waterSensorPS
                .select(new PatternSelectFunction<WaterSensor, String>() {
                    @Override
                    public String select(Map<String, List<WaterSensor>> pattern) throws Exception {
                        return pattern.toString();
                    }
                })
                .print();

        try {
            env.execute();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}
