RK3566-RK817通过TS管脚控制外部电源

主板电路将RK817的TS管脚连接到外部电源的EN端，想实现开机时由TS管脚置高控制外部电源开启，关机时由TS管脚置低控制外部电源关闭。

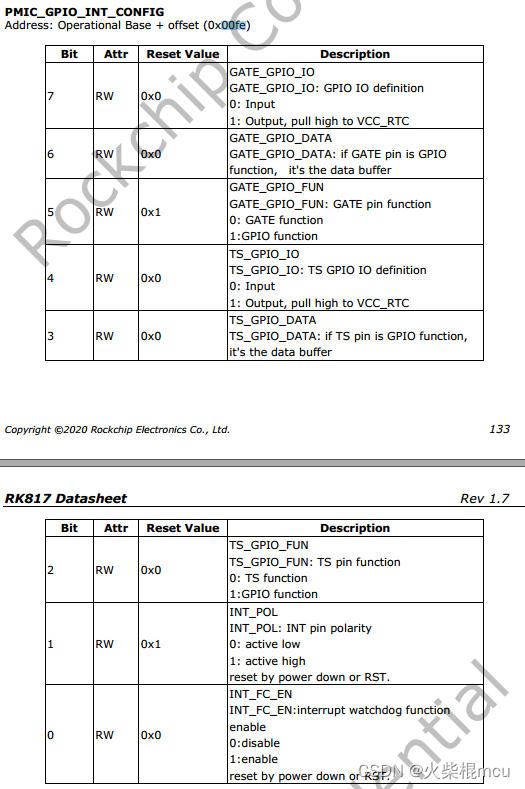

查看Rockchip RK817 Datasheet文档可知，需要操作PMIC_GPIO_INT_CONFIG寄存器中的bit[4:2]来实现。

Bit[4:2]=0x7时，TS为高电平；Bit[4:2]=0x5时，TS为低电平。

开机时置高TS管脚的方法：

可通过两种方式实现，一是修改uboot代码，二是修改内核。

修改u-boot

u-boot/drivers/power/pmic/rk8xx.c文件中rk817_init_reg[]表下增加

{ RK817_GPIO_INT_CFG, 0x1C, 0x1C },

static struct reg_data rk817_init_reg[] = {
/* enable the under-voltage protection,
 * the under-voltage protection will shutdown the LDO3 and reset the PMIC
 */
	{ RK817_BUCK4_CMIN, 0x60, 0x60},
	{ RK817_PMIC_SYS_CFG1, 0x20, 0x70},
	/* Set pmic_sleep as none function */
	{ RK817_PMIC_SYS_CFG3, 0x00, 0x18 },

#ifdef CONFIG_DM_CHARGE_DISPLAY
	/* Set pmic_int active low */
	{ RK817_GPIO_INT_CFG,  0x00, 0x02 },
#endif
	{ RK817_GPIO_INT_CFG,  0x1C, 0x1C },
};

reg_data类型定义如下：

struct reg_data {
	u8 reg;
	u8 val;
	u8 mask;
};

修改内核驱动：

./kernel/drivers/mfd/rk808.c文件中rk817_pre_init_reg[]表下增加

{RK817_GPIO_INT_CFG, 0x1C, 0x1C},

static const struct rk808_reg_data rk817_pre_init_reg[] = {
	{RK817_SYS_CFG(3), RK817_SLPPOL_MSK, RK817_SLPPOL_L},
	{RK817_RTC_CTRL_REG, RTC_STOP, RTC_STOP},
	{RK817_GPIO_INT_CFG, RK817_INT_POL_MSK, RK817_INT_POL_L},
	{RK817_GPIO_INT_CFG, 0x1C, 0x1C},
	{RK817_SYS_CFG(1), RK817_HOTDIE_TEMP_MSK | RK817_TSD_TEMP_MSK,
					   RK817_HOTDIE_105 | RK817_TSD_140},
};

关机时置低TS管脚的方法：

./kernel/drivers/mfd/rk808.c文件中rk817_shutdown_prepare()函数中增加

    ret = regmap_update_bits(rk808->regmap,
                 RK817_GPIO_INT_CFG,
                 0x08, 0x00);

加载/* pmic sleep shutdown function */之前

static void rk817_shutdown_prepare(void)
{
	int ret;
	struct rk808 *rk808 = i2c_get_clientdata(rk808_i2c_client);

	/* close rtc int when power off */
	regmap_update_bits(rk808->regmap,
			   RK817_INT_STS_MSK_REG0,
			   (0x3 << 5), (0x3 << 5));
	regmap_update_bits(rk808->regmap,
			   RK817_RTC_INT_REG,
			   (0x3 << 2), (0x0 << 2));

	if (rk808->pins && rk808->pins->p && rk808->pins->power_off) {
		ret = regmap_update_bits(rk808->regmap,
					 RK817_SYS_CFG(3),
					 RK817_SLPPIN_FUNC_MSK,
					 SLPPIN_NULL_FUN);
		if (ret) {
			pr_err("shutdown: config SLPPIN_NULL_FUN error!\n");
		}

		ret = regmap_update_bits(rk808->regmap,
					 RK817_SYS_CFG(3),
					 RK817_SLPPOL_MSK,
					 RK817_SLPPOL_H);
		if (ret) {
			pr_err("shutdown: config RK817_SLPPOL_H error!\n");
		}
		ret = pinctrl_select_state(rk808->pins->p,
					   rk808->pins->power_off);
		if (ret)
			pr_info("%s:failed to activate pwroff state\n",
				__func__);
	}

	ret = regmap_update_bits(rk808->regmap,
				 RK817_GPIO_INT_CFG,
				 0x08, 0x00);
	/* pmic sleep shutdown function */
	ret = regmap_update_bits(rk808->regmap,
				 RK817_SYS_CFG(3),
				 RK817_SLPPIN_FUNC_MSK, SLPPIN_DN_FUN);
	if (ret)
		dev_err(&rk808_i2c_client->dev, "Failed to shutdown device!\n");
	/* pmic need the SCL clock to synchronize register */
	mdelay(2);
}

因为开机时已将bit4,bit2置1，所以关机时只需将bit3置0。
