1引言

翻出之前的一篇推文跟着 Microbiome 学画图：堆积柱形图的多层注释。如果大家看过的话,可以发现我们需要经过一些复杂的坐标计算才能一层层添加注释。这次我们拿 jjAnno 来实战一下。

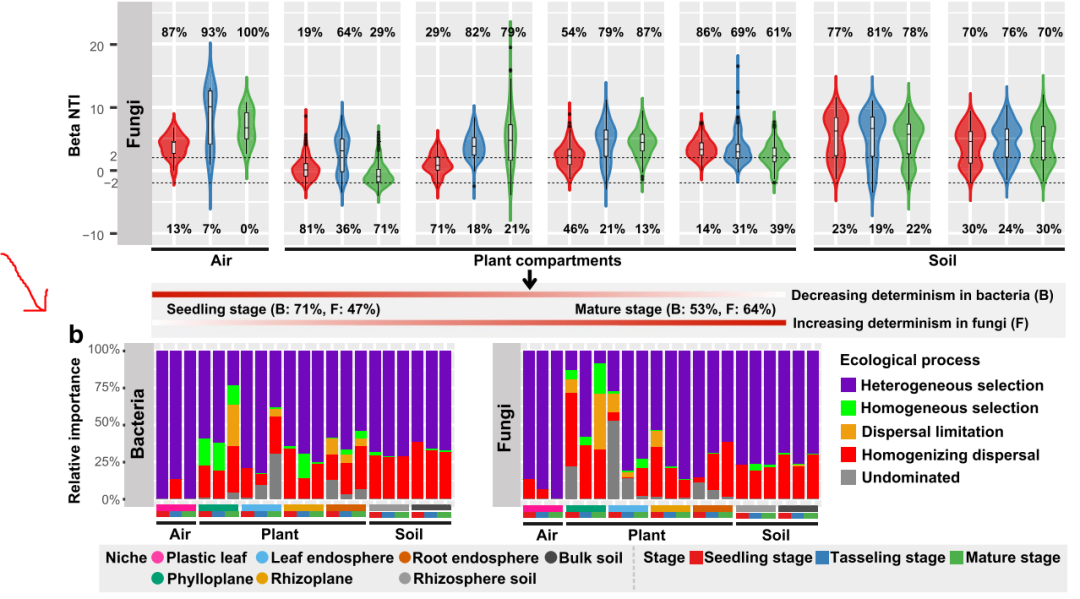

原文图:

2构建数据

library(jjAnno)
library(reshape2)
library(ggplot2)
library(RColorBrewer)

# 构造数据
set.seed(123)
df <- as.data.frame(matrix(data = sample(0:50,105,replace = T),ncol = 5))

# 给列命名
colnames(df) <- c('Heterogeneous selection','Homogeneous selection',
                  'Dispersal limitation','Homogenizing dispersal',
                  'Undominated')

# 添加分类
df$type <- rownames(df)
df$type1 <- rep(c('Plastic leaf','Phylloplane','Leaf endosphere',
                  'Rhizoplane','Root endosphere','Rhizosphere soil',
                  'Bulk soil'),each = 3)
df$type2 <- rep(c('Seeding stage','Tasseling stage','Mature stage'),7)
df$type3 <- rep(c('Air','Plant','Soil'),c(3,12,6))

# check
head(df,3)
#   Heterogeneous selection Homogeneous selection Dispersal limitation Homogenizing dispersal Undominated type        type1           type2 type3
# 1                      30                    25                    6                     30          24    1 Plastic leaf   Seeding stage   Air
# 2                      14                     6                   26                     15          31    2 Plastic leaf Tasseling stage   Air
# 3                      50                    41                   31                     29          45    3 Plastic leaf    Mature stage   Air

# wide to long
da <- melt(df,id.vars = c('type','type1','type2','type3'))

# check
head(da,3)
#   type        type1           type2 type3                variable value
# 1    1 Plastic leaf   Seeding stage   Air Heterogeneous selection    30
# 2    2 Plastic leaf Tasseling stage   Air Heterogeneous selection    14
# 3    3 Plastic leaf    Mature stage   Air Heterogeneous selection    50

# order
da$type <- factor(da$type,levels = unique(da$type))

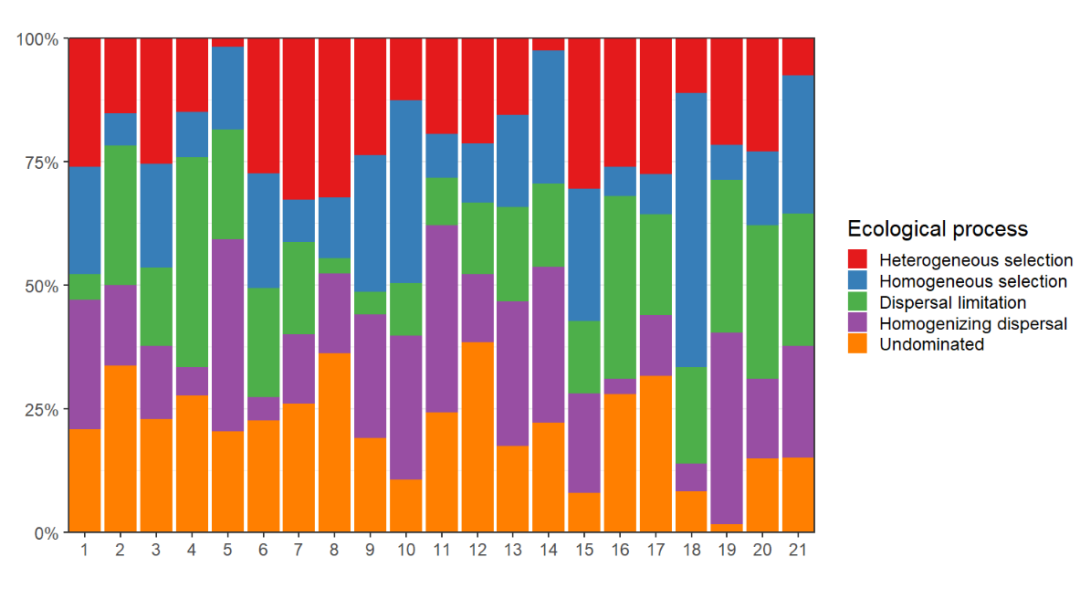

绘图:

# plot
p <- ggplot(data = da,aes(x = type,y = value)) +
  geom_col(aes(fill = variable),
           position = position_fill()) +
  scale_fill_brewer(palette = 'Set1',name = 'Ecological process') +
  scale_y_continuous(labels = scales::percent_format()) +
  theme_bw(base_size = 18) +
  coord_cartesian(expand = 0,clip = 'off') +
  xlab('') + ylab('') +
  theme(plot.margin = margin(t = 1,b = 3,unit = 'cm'))

p

3添加底层注释

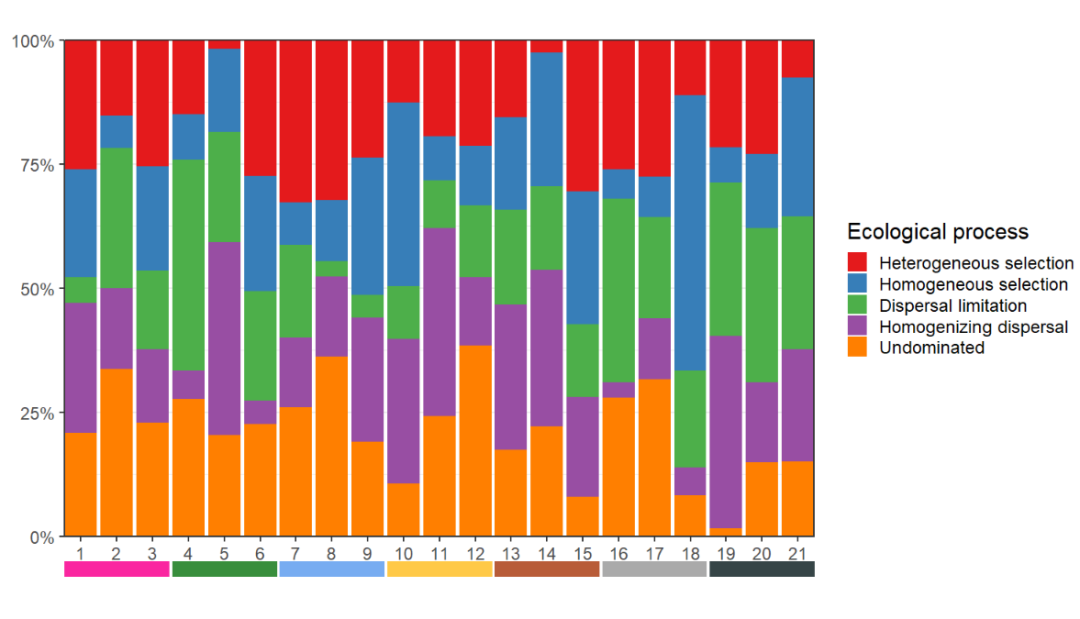

添第一层:

# add first annotation
p1 <- annoRect(object = p,
               annoPos = 'botomn',
               aesGroup = T,
               aesGroName = 'type1',
               yPosition = c(-0.08,-0.05),
               rectWidth = 0.9,
               pCol = c('#FA26A0','#388E3C','#77ACF1',
                        '#FFC947','#B85C38','#AAAAAA','#364547'),
               pFill = c('#FA26A0','#388E3C','#77ACF1',
                         '#FFC947','#B85C38','#AAAAAA','#364547'))

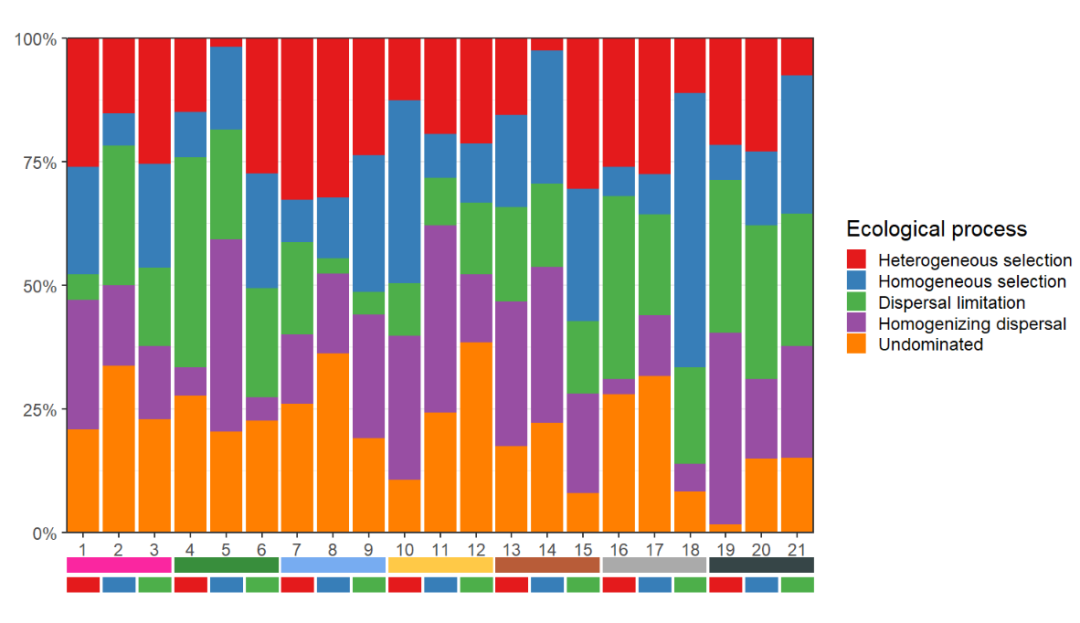

添加第二层:

# add second annotation
p2 <- annoRect(object = p1,
               annoPos = 'botomn',
               xPosition = 1:21,
               yPosition = c(-0.12,-0.09),
               rectWidth = 0.9,
               pCol = rep(brewer.pal(3,'Set1'),7),
               pFill = rep(brewer.pal(3,'Set1'),7))

添加第三层:

# add third annotation
p3 <- annoRect(object = p2,
               annoPos = 'botomn',
               aesGroup = T,
               aesGroName = 'type3',
               yPosition = c(-0.15,-0.13),
               rectWidth = 0.9,
               pCol = rep('black',3),
               pFill = rep('black',3),
               addText = T,
               textHVjust = -0.05,
               textCol = rep('black',3))

4添加图例

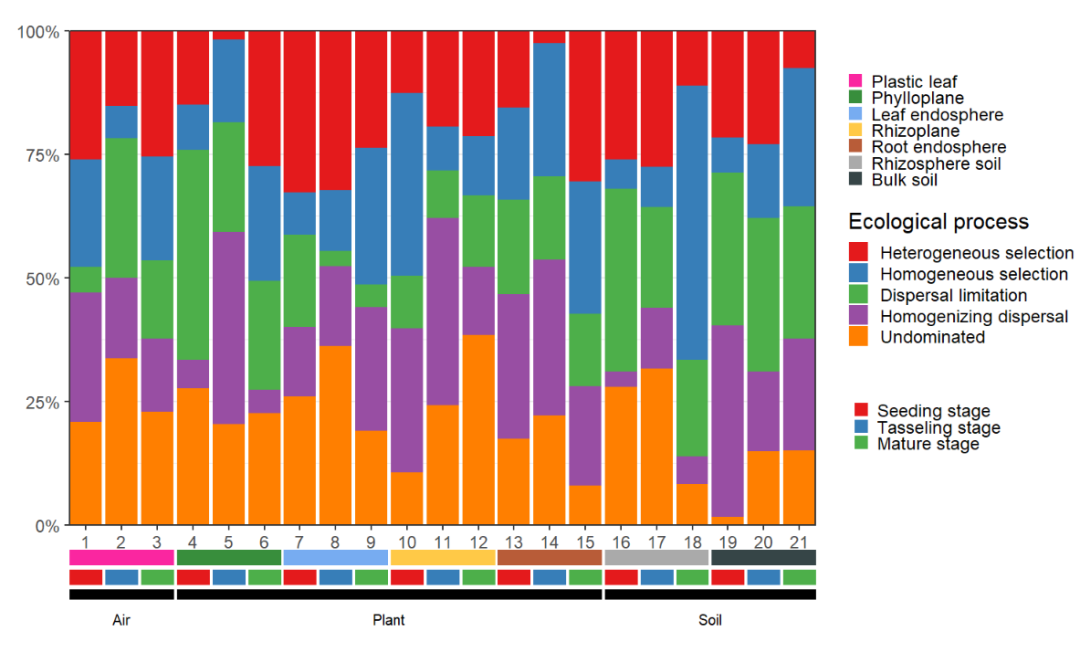

我们再添加对应注释的图例上去:

# add legend
p4 <- annoLegend(object = p3,
                 xPosition = 24.6,
                 yPosition = 0.8,
                 labels = c('Plastic leaf','Phylloplane','Leaf endosphere',
                            'Rhizoplane','Root endosphere','Rhizosphere soil',
                            'Bulk soil'),
                 pch = 15,
                 col = c('#FA26A0','#388E3C','#77ACF1',
                         '#FFC947','#B85C38','#AAAAAA','#364547'),
                 vgap = 0.1,
                 cex = 1.2)

# second legend
annoLegend(object = p4,
           xPosition = 24.6,
           yPosition = 0.2,
           labels = c('Seeding stage','Tasseling stage','Mature stage'),
           pch = 15,
           col = brewer.pal(3,'Set1'),
           vgap = 0.1,
           cex = 1.2)
