接着上一篇文章继续：(1247条消息) geometry 常用方法使用记录（一）_qiaobing1226的博客-CSDN博客

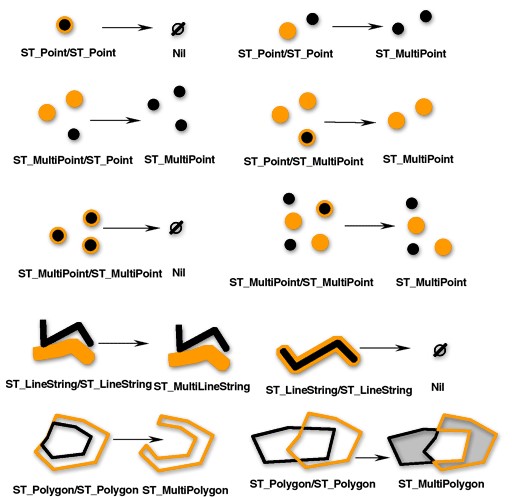

18. 两个几何的差集

 public Geometry symDifference(Geometry other) {
        if (this.isEmpty() || other.isEmpty()) {
            if (this.isEmpty() && other.isEmpty()) {
                return OverlayOp.createEmptyResult(4, this, other, this.factory);
            }

            if (this.isEmpty()) {
                return other.copy();
            }

            if (other.isEmpty()) {
                return this.copy();
            }
        }

        checkNotGeometryCollection(this);
        checkNotGeometryCollection(other);
        return SnapIfNeededOverlayOp.overlayOp(this, other, 4);
    }

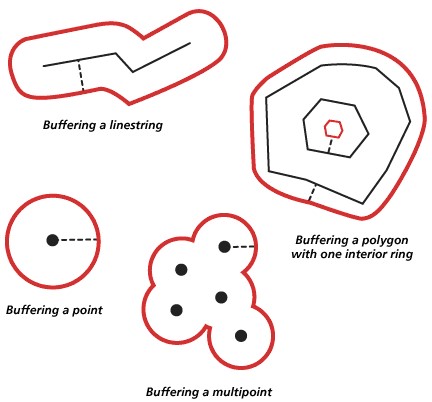

19.返回几何体的缓冲区（一）

默认样式

    public Geometry buffer(double distance) {
        return BufferOp.bufferOp(this, distance);
    }

20.返回几何体的缓冲区（二）

参数分别是：缓冲区宽度、端点圆弧样式

//线段末端样式
public static final int CAP_ROUND = 1;
public static final int CAP_FLAT = 2;
public static final int CAP_SQUARE = 3;

//quadrantSegments 圆弧处，线段数量
public static final int JOIN_ROUND = 1;  (默认)一个半圆
public static final int JOIN_MITRE = 2;  一条垂直于末端的直线
public static final int JOIN_BEVEL = 3;
public static final int DEFAULT_QUADRANT_SEGMENTS = 8;

//源方法
 public Geometry buffer(double distance, int quadrantSegments) {
        return BufferOp.bufferOp(this, distance, quadrantSegments);
    }

//调用示例
Geometry buffer = laneToQuery.buffer(bufferDis, BufferParameters.DEFAULT_QUADRANT_SEGMENTS);

圆弧线段数

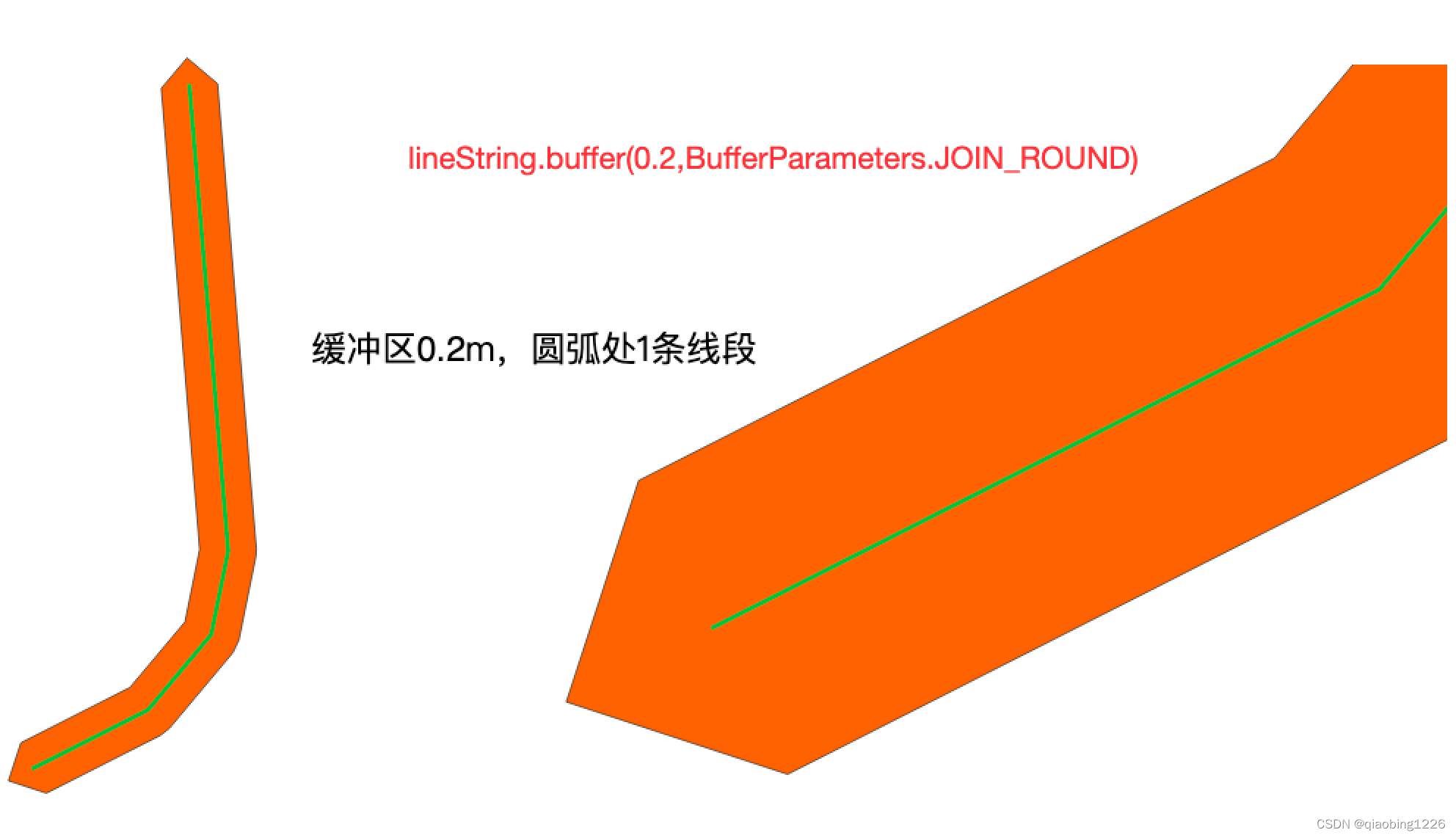

quadrantSegments参数示例：JOIN_ROUND = 1

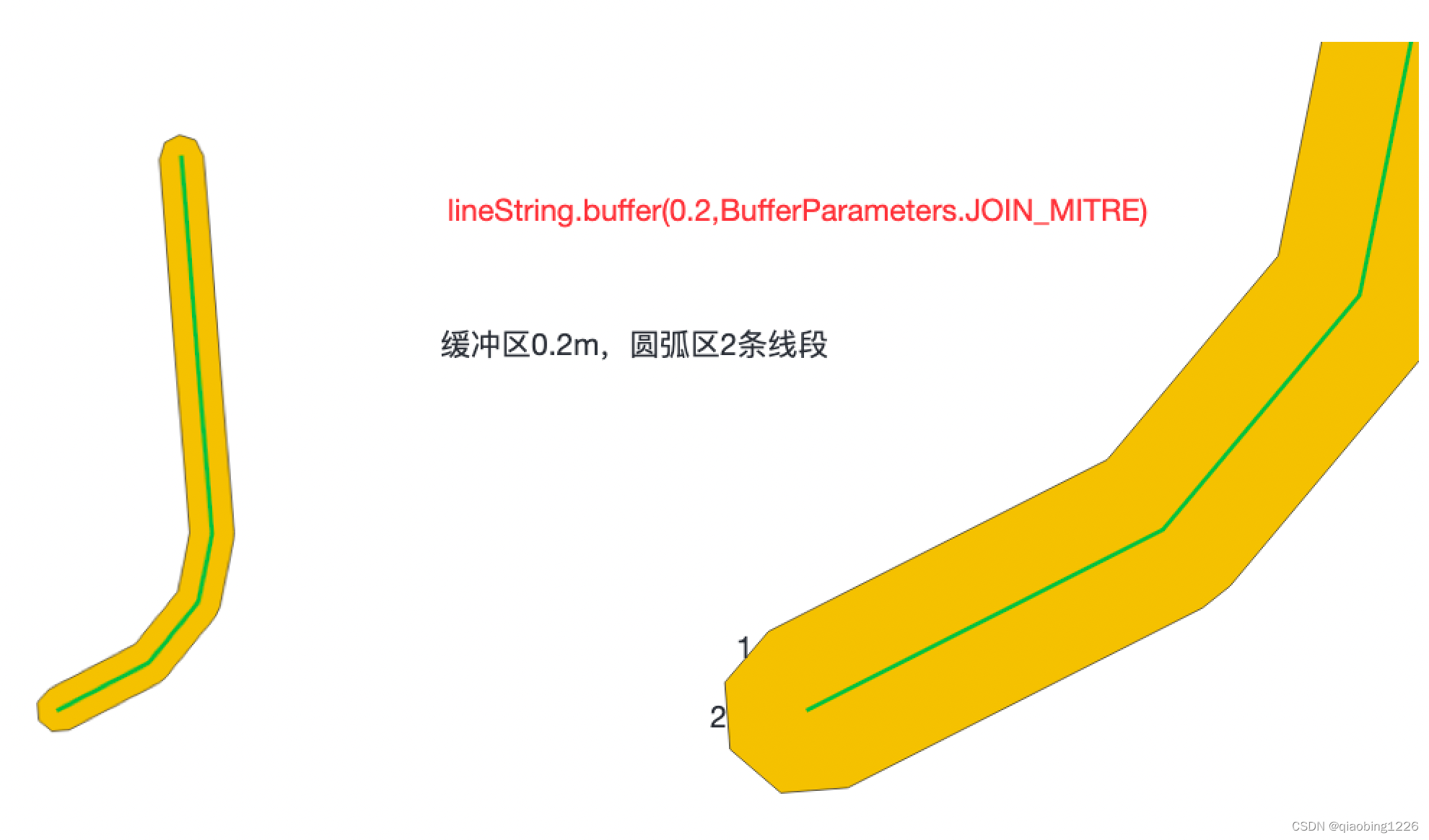

quadrantSegments参数示例：JOIN_ROUND = 2

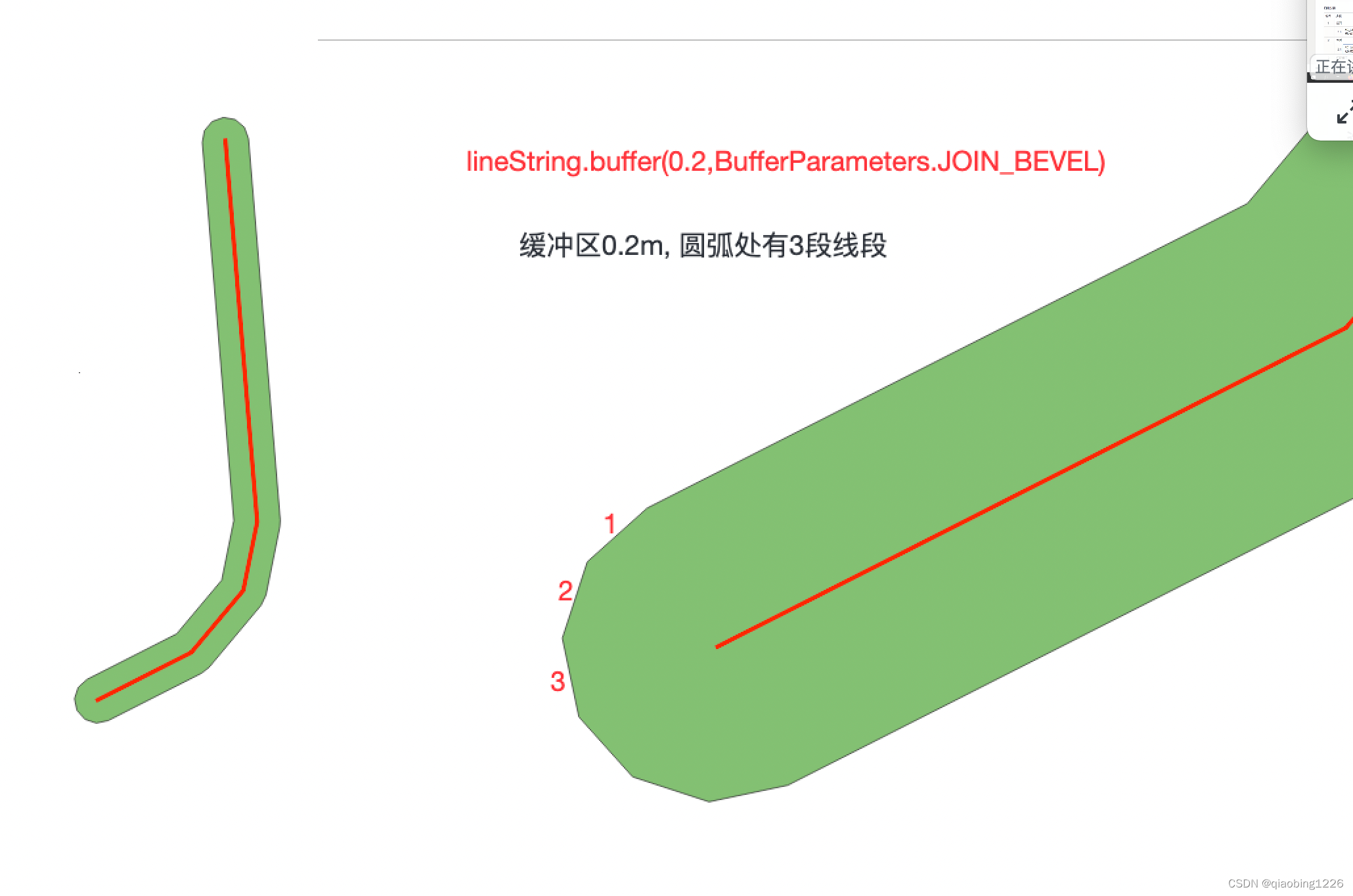

quadrantSegments参数示例：JOIN_ROUND = 3

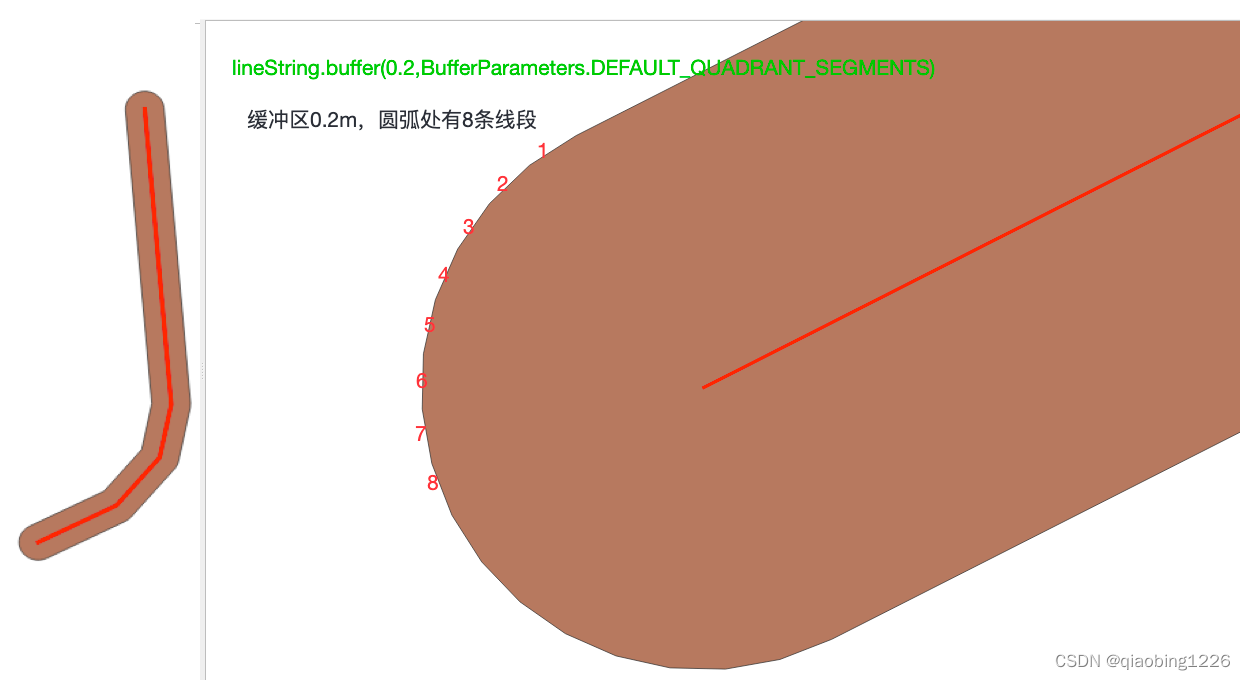

quadrantSegments参数示例：DEFAULT_QUADRANT_SEGMENTS = 8

21.返回几何体的缓冲区（三）

//源方法
 public Geometry buffer(double distance, int quadrantSegments, int endCapStyle) {
        return BufferOp.bufferOp(this, distance, quadrantSegments, endCapStyle);
    }


//调用示例
 Geometry buffer = laneToQuery.buffer(bufferDis, BufferParameters.DEFAULT_QUADRANT_SEGMENTS, BufferParameters.CAP_FLAT);

设置线段末尾端点样式

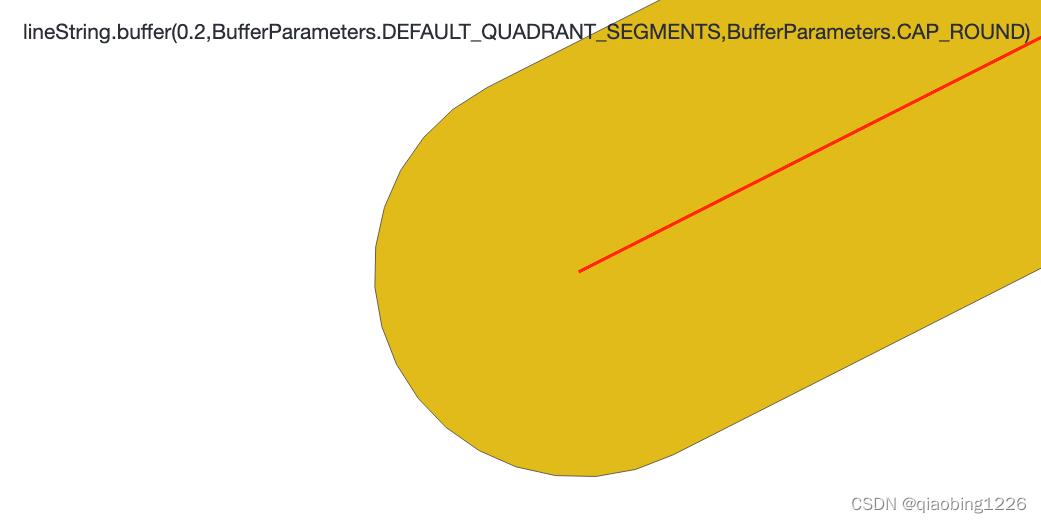

endCapStyle参数示例：CAP_ROUND = 1 (默认)一个半圆

endCapStyle参数示例：CAP_FLAT = 2 一条垂直于末端的直线

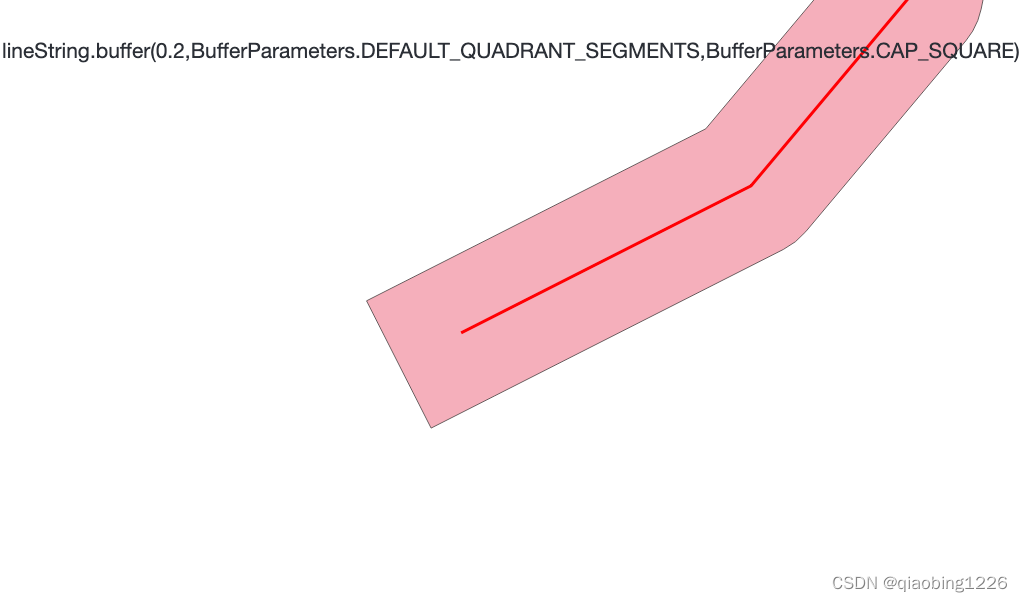

endCapStyle参数示例：CAP_SQUARE = 3

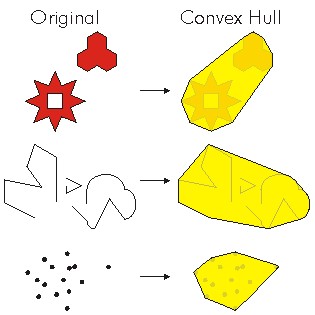

22.返回当前的几何的覆盖面几何

    public Geometry convexHull() {
        return (new ConvexHull(this)).getConvexHull();
    }

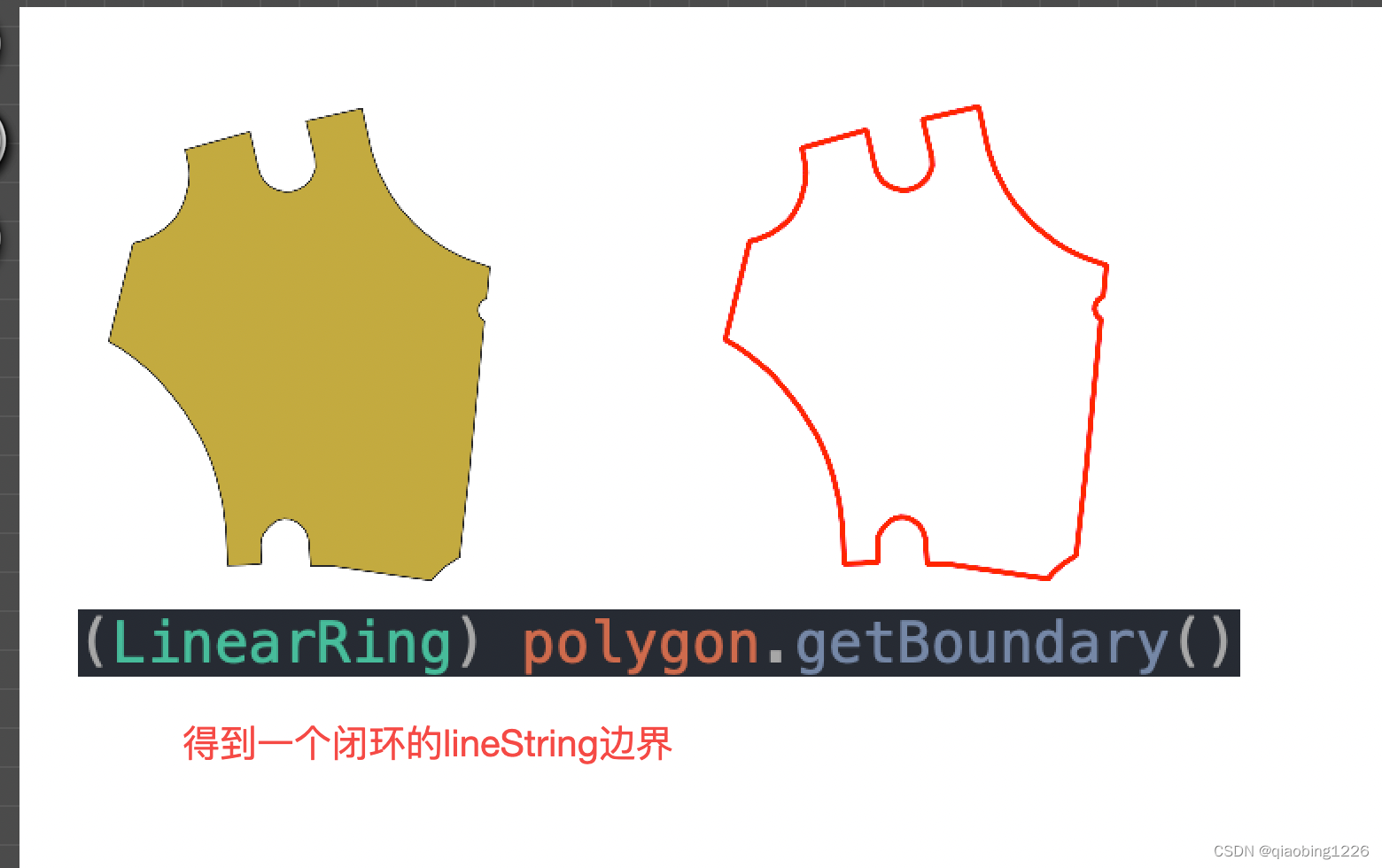

23. 获取当前几何的边界

LinearRing boundary = (LinearRing) polygon.getBoundary();

参考：SFS-简单要素标准

网址：1.2. II. SFS-简单要素标准 — OGC标准规范文档 (osgeo.cn)
