本文链接：https://blog.csdn.net/qq907342400/article/details/139702747

框架：https://ustc-gcl-f.github.io/code/index.html#sec_surface_framework

第三方库

OpenMesh
Qt

brew install open-mesh
brew info open-mesh

安装路径：/opt/homebrew/Cellar/open-mesh/11.0.0

brew install qt@5 <- 注意框架只支持Qt5
brew install --cask qt-creator

安装路径：/opt/homebrew/Cellar/qt/6.7.0_1

Qt Creator配置参考：MAC安装并配置Qt

框架配置

https://github.com/USTC-GCL-F/Surface-Mesh-Framework

克隆库至本地，打开Cmakelists.txt，修改

# 修改16-19行 Qt5
set(Qt5Core_DIR /opt/homebrew/Cellar/qt@5/5.15.13_1/lib/cmake/Qt5Core)
set(Qt5Gui_DIR /opt/homebrew/Cellar/qt@5/5.15.13_1/lib/cmake/Qt5Gui)
set(Qt5OpenGL_DIR /opt/homebrew/Cellar/qt@5/5.15.13_1/lib/cmake/Qt5OpenGL)
set(Qt5Widgets_DIR /opt/homebrew/Cellar/qt@5/5.15.13_1/lib/cmake/Qt5Widgets)


# 修改27-29行 path
SET(EIGEN_PATH "/opt/homebrew/Cellar/eigen/3.4.0_1/include/eigen3")
SET(OPENMESH_PATH "/opt/homebrew/Cellar/open-mesh/11.0.0/include")
SET(OPENMESH_LIB_PATH "/opt/homebrew/Cellar/open-mesh/11.0.0/lib")

新建build文件夹

.
├── Cmakelists.txt
├── README.md
├── build
└── src

cd build
cmake ../
make

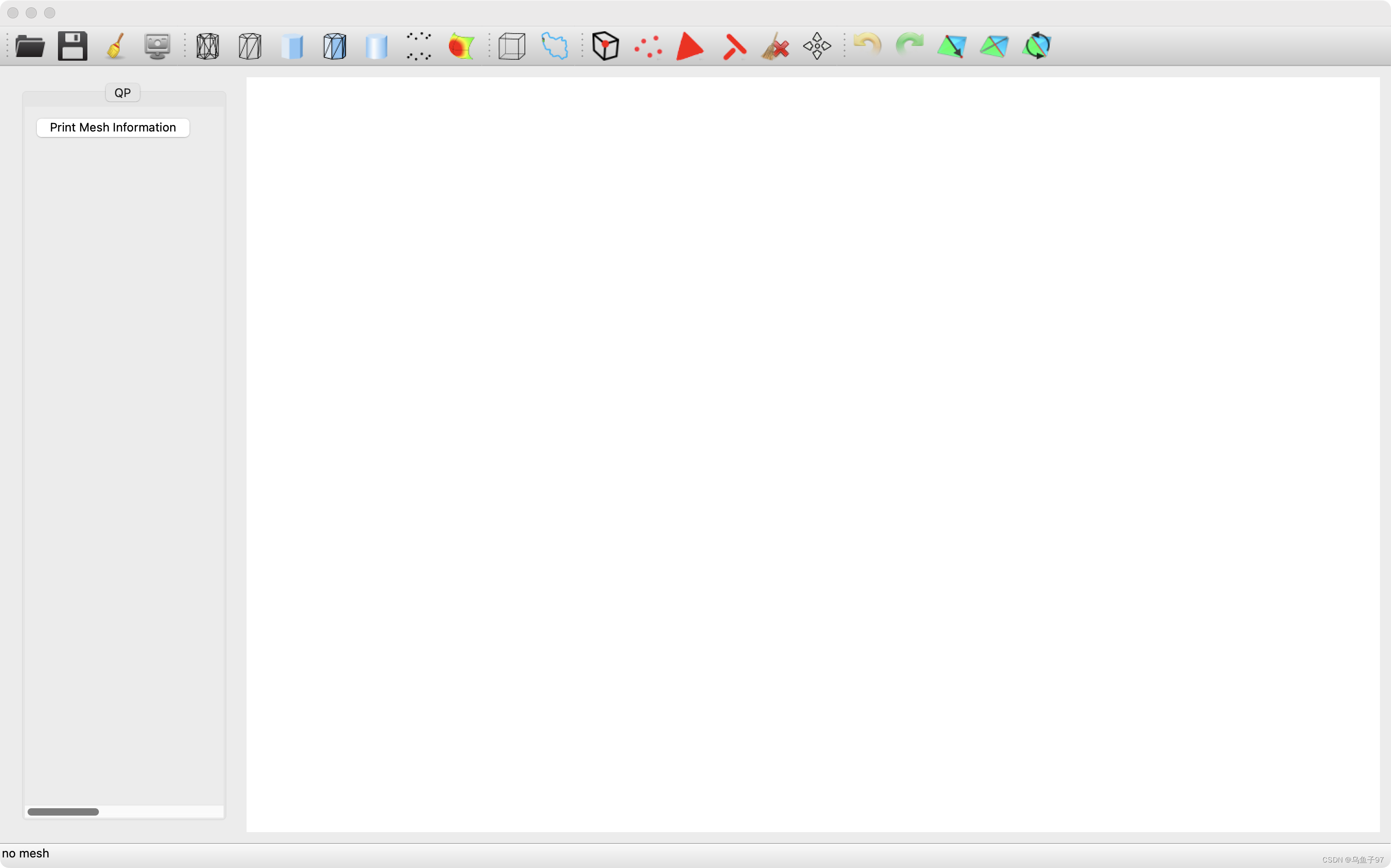

此时build文件夹中出现可执行项目SurfaceFramework，双击打开

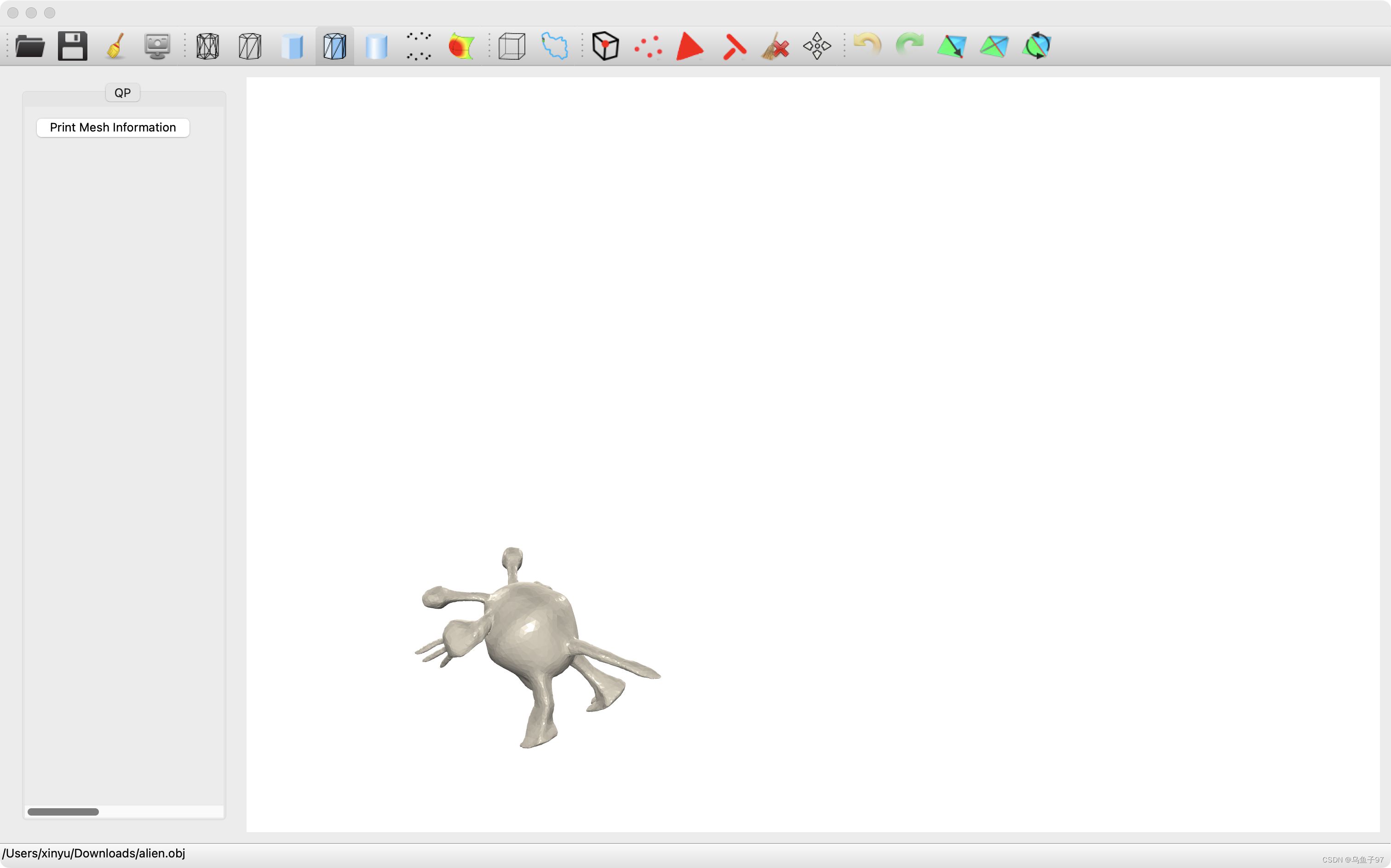

框架测试

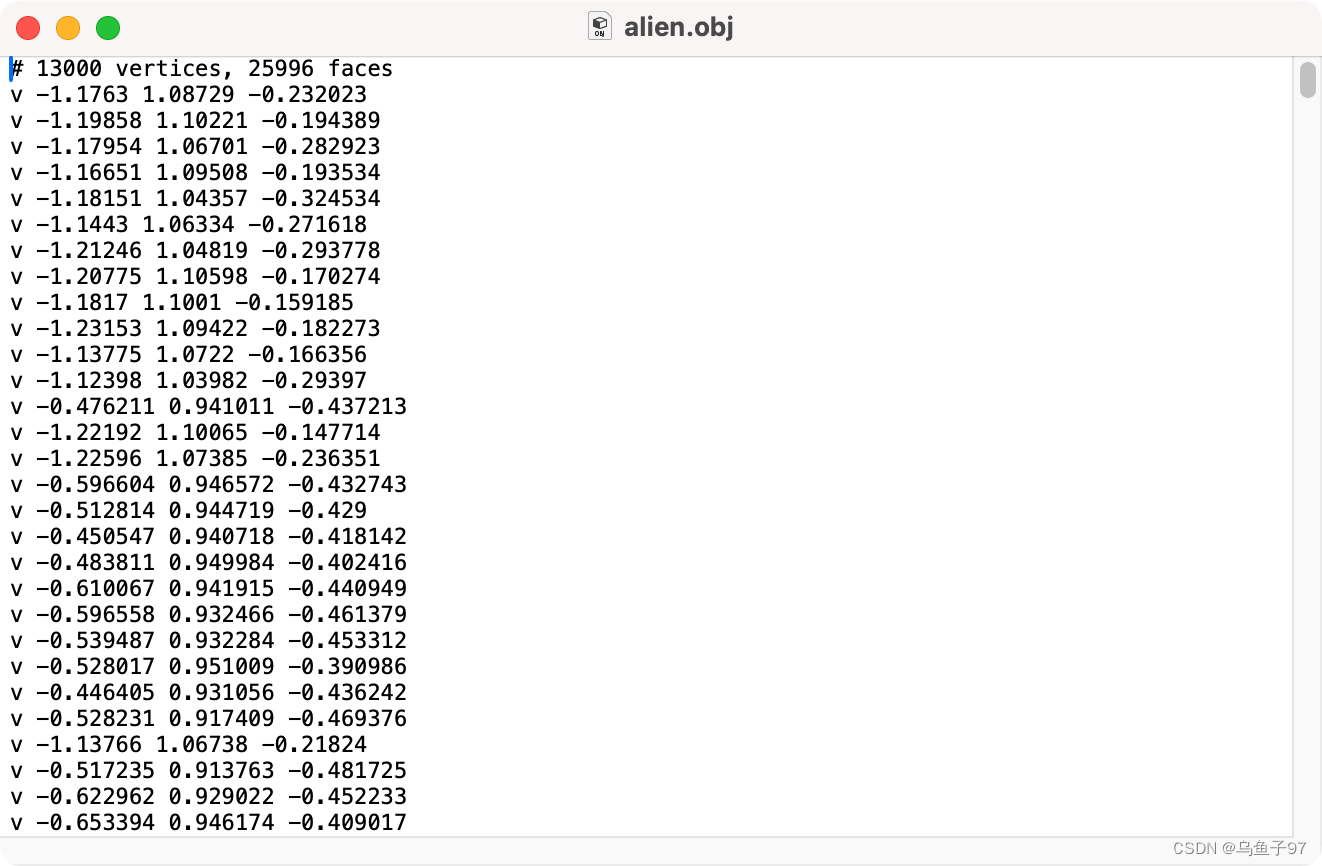

下载测试obj文件：AMMesh/example/hw1/alien.obj
