ENSP中vlan的配置

1、搭建一个包含4台PC1-4、2台交换机S1-2的网络，要求划分两个vlan，每个vlan中包含两台pc，一台交换机只连两台PC(不同vlan)

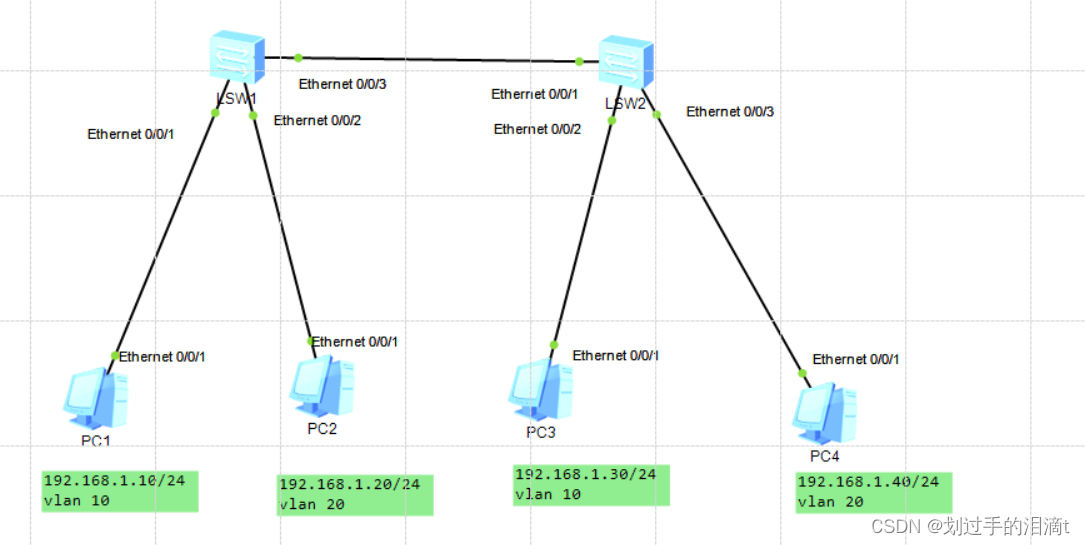

拓扑图

配置第一台交换机S1

<Huawei>u t m
Info: Current terminal monitor is off.
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys S1
[S1]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
[S1]int e0/0/1
[S1-Ethernet0/0/1]p l a
[S1-Ethernet0/0/1]port default vlan 10
[S1-Ethernet0/0/1]q
[S1]int e0/0/2
[S1-Ethernet0/0/2]p l a
[S1-Ethernet0/0/2]p d v 20
[S1-Ethernet0/0/2]q
[S1]int e0/0/3
[S1-Ethernet0/0/3]p l t
[S1-Ethernet0/0/3]p t a v all
[S1-Ethernet0/0/3]q
[S1]

配置第二台交换机S2

<Huawei>u t m
Info: Current terminal monitor is off.
<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sys S2
[S2]vlan batch 10 20
In
