WPF ToolBar

如何隐藏ToolBar左侧的移动虚线和右侧的箭头

上面的图是两个工具栏的链接处。



去除蓝色部分的方法是



去除蓝色部分的方法

设置工具栏的ToolBarTray.IsLoacked=True;

去除红色部分

这个需要修改控件模板，常见方法是在ToolBar的Loaded事件中做好如下处理

  private void ToolBar_Loaded(object sender, RoutedEventArgs e)
        {
            ToolBar toolBar = sender as ToolBar;
            var overflowGrid = toolBar.Template.FindName("OverflowGrid", toolBar) as FrameworkElement;
            if (overflowGrid != null)
            {
                overflowGrid.Visibility = Visibility.Collapsed;
            }
            //var mainPanelBorder = toolBar.Template.FindName("MainPanelBorder", toolBar) as FrameworkElement;
            //if (mainPanelBorder != null)
            //{
            //    mainPanelBorder.Margin = new Thickness(0);
            //}
        }

顺便留下控件样式，以供参考：


    <SolidColorBrush x:Key="ToolBarMenuBorder" Color="#808080"/>
    <SolidColorBrush x:Key="ToolBarSubMenuBackground" Color="#ffffffff"/>

    <SolidColorBrush x:Key="ToolBarGripper" Color="#C6C3C6"/>

    <Style x:Key="ToolBarThumbStyle" TargetType="{x:Type Thumb}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type Thumb}">
                    <Border Background="Transparent" Padding="{TemplateBinding Padding}" SnapsToDevicePixels="True">
                        <Rectangle>
                            <Rectangle.Fill>
                                <DrawingBrush TileMode="Tile" Viewbox="0,0,4,4" Viewport="0,0,4,4" ViewportUnits="Absolute" ViewboxUnits="Absolute">
                                    <DrawingBrush.Drawing>
                                        <DrawingGroup>
                                            <GeometryDrawing Brush="White" Geometry="M 1 1 L 1 3 L 3 3 L 3 1 z"/>
                                            <GeometryDrawing Brush="{StaticResource ToolBarGripper}" Geometry="M 0 0 L 0 2 L 2 2 L 2 0 z"/>
                                        </DrawingGroup>
                                    </DrawingBrush.Drawing>
                                </DrawingBrush>
                            </Rectangle.Fill>
                        </Rectangle>
                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsMouseOver" Value="true">
                            <Setter Property="Cursor" Value="SizeAll"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>


    <LinearGradientBrush x:Key="MainToolBarBackground" StartPoint="0.5,0" EndPoint="0.5,1">
        <GradientStop Color="#ffffffff" />
        <GradientStop Color="#ffe5e9ee" Offset="1"/>
    </LinearGradientBrush>
    <SolidColorBrush x:Key="MainToolBarBorderBrush" Color="#ff8b9097"/>

    <SolidColorBrush x:Key="MainToolBarToggleButtonBackground" Color="Transparent"/>
    <SolidColorBrush x:Key="MainToolBarButtonHover" Color="#ffc28f36"/>
    <SolidColorBrush x:Key="MainToolBarGripper" Color="#C6C3C6"/>
    <Style x:Key="MainToolBarOverflowButtonStyle" TargetType="{x:Type ToggleButton}">
        <Setter Property="Background" Value="{StaticResource MainToolBarToggleButtonBackground}"/>
        <Setter Property="MinHeight" Value="0"/>
        <Setter Property="MinWidth" Value="0"/>
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="{x:Type ToggleButton}">
                    <Border x:Name="Bd" Background="{TemplateBinding Background}" SnapsToDevicePixels="true">
                        <Canvas HorizontalAlignment="Right" Height="7" Margin="7,2,2,2" SnapsToDevicePixels="true" VerticalAlignment="Bottom" Width="6">
                            <Path Data="M 1 1.5 L 6 1.5" Stroke="White"/>
                            <Path Data="M 0 0.5 L 5 0.5" Stroke="{TemplateBinding Foreground}"/>
                            <Path Data="M 0.5 4 L 6.5 4 L 3.5 7 Z" Fill="White"/>
                            <Path Data="M -0.5 3 L 5.5 3 L 2.5 6 Z" Fill="{TemplateBinding Foreground}"/>
                        </Canvas>
                    </Border>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsMouseOver" Value="true">
                            <Setter Property="Foreground" Value="{StaticResource MainToolBarButtonHover}"/>
                        </Trigger>
                        <Trigger Property="IsKeyboardFocused" Value="true">
                            <Setter Property="Foreground" Value="{StaticResource MainToolBarButtonHover}"/>
                        </Trigger>
                        <Trigger Property="IsEnabled" Value="false">
                            <Setter Property="Foreground" Value="{StaticResource MainToolBarGripper}"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

    <Style x:Key="MainToolBarStyle" TargetType="ToolBar">
        <Setter Property="MinHeight" Value="30"/>
        <Setter Property="ToolBarTray.IsLocked" Value="True"/>
        <Setter Property="BorderThickness" Value="0,0,0,1"/>
        <Setter Property="BorderBrush" Value="{StaticResource MainToolBarBorderBrush}"/>
        <Setter Property="Background" Value="{StaticResource MainToolBarBackground}" />
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate TargetType="ToolBar">
                    <Grid x:Name="Grid"  SnapsToDevicePixels="true">
                        <Rectangle VerticalAlignment="Bottom" StrokeThickness="0" Height="3">
                            <Rectangle.Fill>
                                <LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
                                    <GradientStop Color="#ccaeb1b6" />
                                    <GradientStop Color="#33c4c8cd" Offset="1"/>
                                </LinearGradientBrush>
                            </Rectangle.Fill>
                        </Rectangle>
                        <Border  x:Name="MainPanelBorder" Margin="0,0,0,3" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" Background="{TemplateBinding Background}" Padding="{TemplateBinding Padding}" >
                            <Grid>
                                <Grid.ColumnDefinitions>
                                    <ColumnDefinition />
                                    <ColumnDefinition Width="Auto"/>
                                    <ColumnDefinition Width="Auto"/>
                                </Grid.ColumnDefinitions>
                                <DockPanel KeyboardNavigation.TabIndex="1" KeyboardNavigation.TabNavigation="Local">
                                    <Thumb x:Name="ToolBarThumb" Margin="-3,-1,0,0" Padding="6,5,1,6" Style="{StaticResource ToolBarThumbStyle}" Width="10"/>
                                    <ContentPresenter x:Name="ToolBarHeader" ContentSource="Header" HorizontalAlignment="Center" Margin="4,0,4,0" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" VerticalAlignment="Center"/>
                                    <ToolBarPanel x:Name="PART_ToolBarPanel" IsItemsHost="true" Margin="0,2" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}"/>
                                </DockPanel>
                                <Grid x:Name="OverflowGrid" Grid.Column="2" HorizontalAlignment="Right">
                                    <ToggleButton x:Name="OverflowButton" ClickMode="Press" FocusVisualStyle="{x:Null}" IsChecked="{Binding IsOverflowOpen, Mode=TwoWay, RelativeSource={RelativeSource TemplatedParent}}" IsEnabled="{TemplateBinding HasOverflowItems}" Style="{StaticResource MainToolBarOverflowButtonStyle}"/>
                                    <Popup x:Name="OverflowPopup" AllowsTransparency="true" Focusable="false" IsOpen="{Binding IsOverflowOpen, RelativeSource={RelativeSource TemplatedParent}}" PopupAnimation="{DynamicResource {x:Static SystemParameters.ComboBoxPopupAnimationKey}}" Placement="Bottom" StaysOpen="false">
                                        <Border x:Name="Shdw" Background="Transparent" >
                                            <Border x:Name="ToolBarSubMenuBorder" BorderBrush="{StaticResource ToolBarMenuBorder}" BorderThickness="1" Background="{StaticResource ToolBarSubMenuBackground}" RenderOptions.ClearTypeHint="Enabled">
                                                <Border.Effect>
                                                    <DropShadowEffect ShadowDepth="3"/>
                                                </Border.Effect>
                                                <ToolBarOverflowPanel x:Name="PART_ToolBarOverflowPanel" KeyboardNavigation.DirectionalNavigation="Cycle" FocusVisualStyle="{x:Null}" Focusable="true" Margin="2" SnapsToDevicePixels="{TemplateBinding SnapsToDevicePixels}" KeyboardNavigation.TabNavigation="Cycle" WrapWidth="200"/>
                                            </Border>
                                        </Border>
                                    </Popup>
                                </Grid>
                            </Grid>
                        </Border>
                    </Grid>
                    <ControlTemplate.Triggers>
                        <Trigger Property="IsOverflowOpen" Value="true">
                            <Setter Property="IsEnabled" TargetName="ToolBarThumb" Value="false"/>
                        </Trigger>
                        <Trigger Property="Header" Value="{x:Null}">
                            <Setter Property="Visibility" TargetName="ToolBarHeader" Value="Collapsed"/>
                        </Trigger>
                        <Trigger Property="ToolBarTray.IsLocked" Value="true">
                            <Setter Property="Visibility" TargetName="ToolBarThumb" Value="Collapsed"/>
                        </Trigger>
                        <Trigger Property="HasDropShadow" SourceName="OverflowPopup" Value="true">
                            <Setter Property="Padding" TargetName="Shdw" Value="0,0,5,5"/>
                            <Setter Property="SnapsToDevicePixels" TargetName="Shdw" Value="true"/>
                        </Trigger>
                        <Trigger Property="IsEnabled" Value="false">
                            <Setter Property="Foreground" Value="Gray"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>

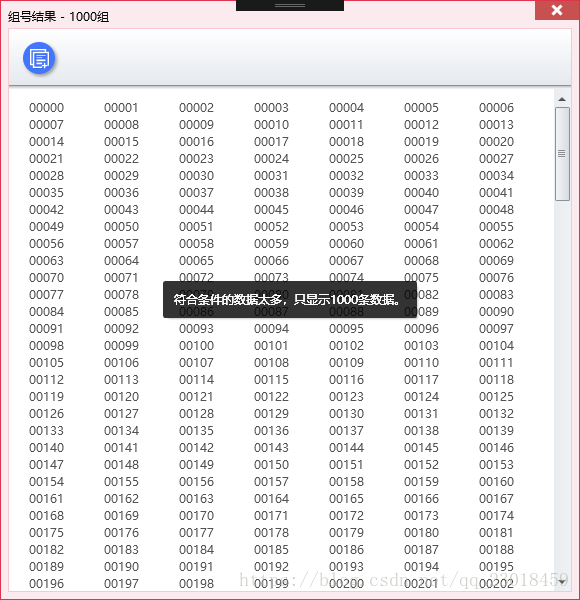

效果图：
