Netty源码分析：三大核心组件——ChannelPipline、ChannelHandler、ChannelHandlerContext

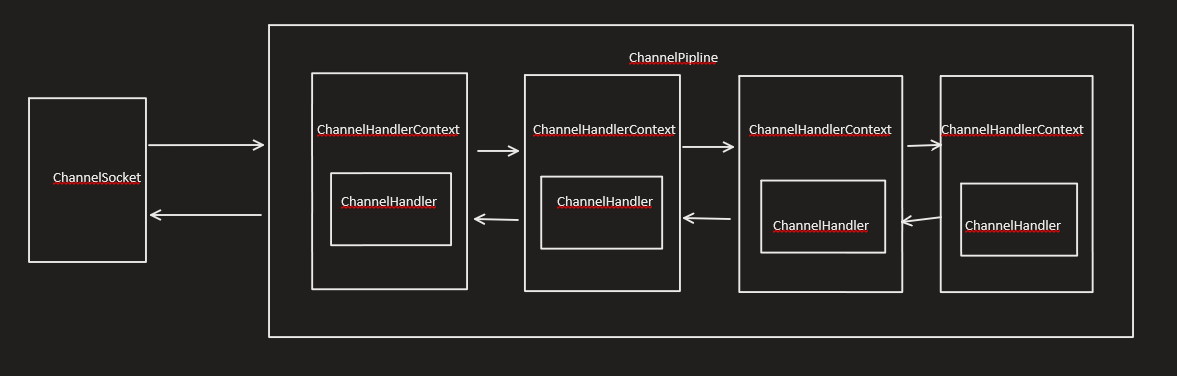

三者关系

• 每当ServerSocket建立一个新的连接后，就会创建一个Socket，对应目标客户端
• 每当创建一个Socket将会分配一个新的ChannelPipeline
• 每个ChannelPipline内包含多个ChannelHandlerContext，组成一个双向链表
• 这些ChannelHandlerContext用来包装我们添加的ChannelHandler

这是一个带有过滤器性质的责任链模式

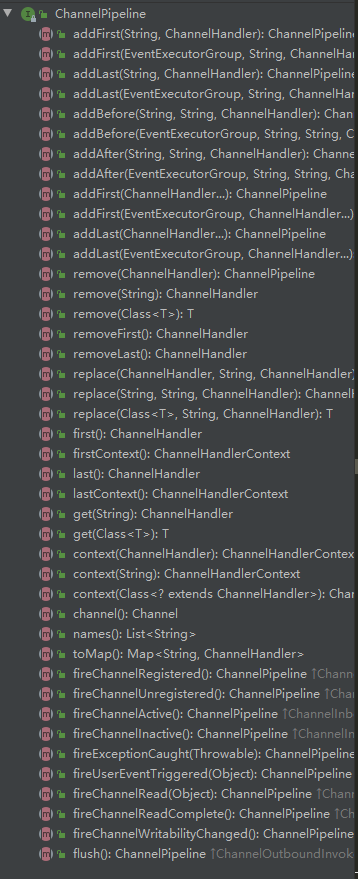

• ChannelPipline提供了许多对ChannelHandler操作的方法：addFirst、addLast、remove、etc.我们可以理解ChannelPipline提供了一系列对于ChannelHandlerContext链表的操作方法

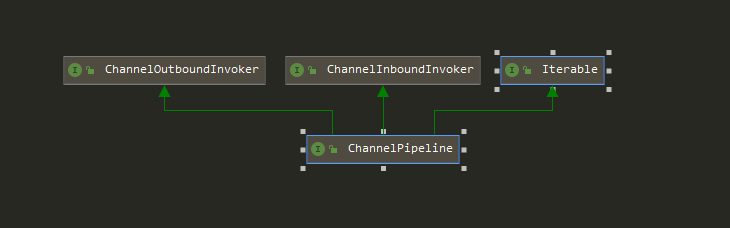

• ChannelPipline继承了ChannelOutboundInvoker、ChannelInboundInvoker和Iterable，inbound和Outbound就很明显说明了ChannelPipline参与了出站和入站的相关执行过程，同时可以对ChannelHandlerContext链表进行遍历
• ChannelPipline内的 channel()方法返回此pipline对应的Channel对象，证明了ChannelPipline与Channel是一一对应的关系

    /**
     * Returns the {@link Channel} that this pipeline is attached to.
     *
     * @return the channel. {@code null} if this pipeline is not attached yet.
     */
    Channel channel();

事件在pipline中的传递（How an event flows in a pipline）

Doc：

* <h3>How an event flows in a pipeline</h3>
 *
 * The following diagram describes how I/O events are processed by {@link ChannelHandler}s in a {@link ChannelPipeline}
 * typically. An I/O event is handled by either a {@link ChannelInboundHandler} or a {@link ChannelOutboundHandler}
 * and be forwarded to its closest handler by calling the event propagation methods defined in
 * {@link ChannelHandlerContext}, such as {@link ChannelHandlerContext#fireChannelRead(Object)} and
 * {@link ChannelHandlerContext#write(Object)}.
 *
 * <pre>
 *                                                 I/O Request
 *                                            via {@link Channel} or
 *                                        {@link ChannelHandlerContext}
 *                                                      |
 *  +---------------------------------------------------+---------------+
 *  |                           ChannelPipeline         |               |
 *  |                                                  \|/              |
 *  |    +---------------------+            +-----------+----------+    |
 *  |    | Inbound Handler  N  |            | Outbound Handler  1  |    |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |              /|\                                  |               |
 *  |               |                                  \|/              |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |    | Inbound Handler N-1 |            | Outbound Handler  2  |    |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |              /|\                                  .               |
 *  |               .                                   .               |
 *  | ChannelHandlerContext.fireIN_EVT() ChannelHandlerContext.OUT_EVT()|
 *  |        [ method call]                       [method call]         |
 *  |               .                                   .               |
 *  |               .                                  \|/              |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |    | Inbound Handler  2  |            | Outbound Handler M-1 |    |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |              /|\                                  |               |
 *  |               |                                  \|/              |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |    | Inbound Handler  1  |            | Outbound Handler  M  |    |
 *  |    +----------+----------+            +-----------+----------+    |
 *  |              /|\                                  |               |
 *  +---------------+-----------------------------------+---------------+
 *                  |                                  \|/
 *  +---------------+-----------------------------------+---------------+
 *  |               |                                   |               |
 *  |       [ Socket.read() ]                    [ Socket.write() ]     |
 *  |                                                                   |
 *  |  Netty Internal I/O Threads (Transport Implementation)            |
 *  +-------------------------------------------------------------------+
 * </pre>
 * An inbound event is handled by the inbound handlers in the bottom-up direction as shown on the left side of the
 * diagram.  An inbound handler usually handles the inbound data generated by the I/O thread on the bottom of the
 * diagram.  The inbound data is often read from a remote peer via the actual input operation such as
 * {@link SocketChannel#read(ByteBuffer)}.  If an inbound event goes beyond the top inbound handler, it is discarded
 * silently, or logged if it needs your attention.
 * <p>
 * An outbound event is handled by the outbound handler in the top-down direction as shown on the right side of the
 * diagram.  An outbound handler usually generates or transforms the outbound traffic such as write requests.
 * If an outbound event goes beyond the bottom outbound handler, it is handled by an I/O thread associated with the
 * {@link Channel}. The I/O thread often performs the actual output operation such as
 * {@link SocketChannel#write(ByteBuffer)}.
 * <p>
 * For example, let us assume that we created the following pipeline:
 * <pre>
 * {@link ChannelPipeline} p = ...;
 * p.addLast("1", new InboundHandlerA());
 * p.addLast("2", new InboundHandlerB());
 * p.addLast("3", new OutboundHandlerA());
 * p.addLast("4", new OutboundHandlerB());
 * p.addLast("5", new InboundOutboundHandlerX());
 * </pre>
 * In the example above, the class whose name starts with {@code Inbound} means it is an inbound handler.
 * The class whose name starts with {@code Outbound} means it is a outbound handler.
 * <p>
 * In the given example configuration, the handler evaluation order is 1, 2, 3, 4, 5 when an event goes inbound.
 * When an event goes outbound, the order is 5, 4, 3, 2, 1.  On top of this principle, {@link ChannelPipeline} skips
 * the evaluation of certain handlers to shorten the stack depth:
 * <ul>
 * <li>3 and 4 don't implement {@link ChannelInboundHandler}, and therefore the actual evaluation order of an inbound
 *     event will be: 1, 2, and 5.</li>
 * <li>1 and 2 don't implement {@link ChannelOutboundHandler}, and therefore the actual evaluation order of a
 *     outbound event will be: 5, 4, and 3.</li>
 * <li>If 5 implements both {@link ChannelInboundHandler} and {@link ChannelOutboundHandler}, the evaluation order of
 *     an inbound and a outbound event could be 125 and 543 respectively.</li>
 * </ul>

• 当数据流向pipline称为入站
• 当数据流出pipline称为出站

这份官方的解释中关于Pipline的处理过程图实质上就是本文开始第一张图的一个分解，将Handler分为了inbound和outbound两类，需要十分注意的是ChannelPipline是一个inbound和outbound组成的链表，不是两个链表，不要被这幅图给误导。

• 入站的时候，会根据ChannelHandlerContext所在链表的顺序来执行对应的ChannelHandler，并在每次执行ChannelHandler之前判断该ChannelHandler是否属于inbound，属于inbound则执行，不属于则跳过继续寻找下一个“inbound” ChannelHandler。
• 出站规则与入站一致，按照链表顺序执行“outbound” ChannelHandler。

ChannelPipline是怎么创建“链表”的？

ChannelPipline的默认实现：DefaultChannelPipeline，其构造方法如下：

    final AbstractChannelHandlerContext head;
    final AbstractChannelHandlerContext tail;

    protected DefaultChannelPipeline(Channel channel) {
        this.channel = ObjectUtil.checkNotNull(channel, "channel");
        succeededFuture = new SucceededChannelFuture(channel, null);
        voidPromise =  new VoidChannelPromise(channel, true);

        tail = new TailContext(this);
        head = new HeadContext(this);

        head.next = tail;
        tail.prev = head;
    }

---

head和tail是ChannelPipline构建的双向“链表的”初始头节点和末节点。之后add的Handler都处于这两个节点之间，并且所有实质性增加Handler的代码都是在同步代码块中，线程安全

    @Override
    public final ChannelPipeline addFirst(String name, ChannelHandler handler) {
        return addFirst(null, name, handler);
    }

    @Override
    public final ChannelPipeline addFirst(EventExecutorGroup group, String name, ChannelHandler handler) {
        final AbstractChannelHandlerContext newCtx;
        synchronized (this) {
            checkMultiplicity(handler);
            name = filterName(name, handler);

            newCtx = newContext(group, name, handler);

            addFirst0(newCtx);

            // If the registered is false it means that the channel was not registered on an eventLoop yet.
            // In this case we add the context to the pipeline and add a task that will call
            // ChannelHandler.handlerAdded(...) once the channel is registered.
            if (!registered) {
                newCtx.setAddPending();
                callHandlerCallbackLater(newCtx, true);
                return this;
            }

            EventExecutor executor = newCtx.executor();
            if (!executor.inEventLoop()) {
                callHandlerAddedInEventLoop(newCtx, executor);
                return this;
            }
        }
        callHandlerAdded0(newCtx);
        return this;
    }

    private void addFirst0(AbstractChannelHandlerContext newCtx) {
        AbstractChannelHandlerContext nextCtx = head.next;
        newCtx.prev = head;
        newCtx.next = nextCtx;
        head.next = newCtx;
        nextCtx.prev = newCtx;
    }

    @Override
    public final ChannelPipeline addLast(String name, ChannelHandler handler) {
        return addLast(null, name, handler);
    }

    @Override
    public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
        final AbstractChannelHandlerContext newCtx;
        synchronized (this) {
            checkMultiplicity(handler);

            newCtx = newContext(group, filterName(name, handler), handler);

            addLast0(newCtx);

            // If the registered is false it means that the channel was not registered on an eventLoop yet.
            // In this case we add the context to the pipeline and add a task that will call
            // ChannelHandler.handlerAdded(...) once the channel is registered.
            if (!registered) {
                newCtx.setAddPending();
                callHandlerCallbackLater(newCtx, true);
                return this;
            }

            EventExecutor executor = newCtx.executor();
            if (!executor.inEventLoop()) {
                callHandlerAddedInEventLoop(newCtx, executor);
                return this;
            }
        }
        callHandlerAdded0(newCtx);
        return this;
    }

    private void addLast0(AbstractChannelHandlerContext newCtx) {
        AbstractChannelHandlerContext prev = tail.prev;
        newCtx.prev = prev;
        newCtx.next = tail;
        prev.next = newCtx;
        tail.prev = newCtx;
    }

    private AbstractChannelHandlerContext newContext(EventExecutorGroup group, String name, ChannelHandler handler) {
        return new DefaultChannelHandlerContext(this, childExecutor(group), name, handler);
    }

在创建链表节点context对象时，将其对应的handler封装，建立绑定关系，从DefaultChannelHandlerContext构造方法可以看出这一点：

    private final ChannelHandler handler;

    DefaultChannelHandlerContext(
            DefaultChannelPipeline pipeline, EventExecutor executor, String name, ChannelHandler handler) {
        super(pipeline, executor, name, handler.getClass());
        this.handler = handler;
    }

Handler是怎么按照顺序依次执行的？

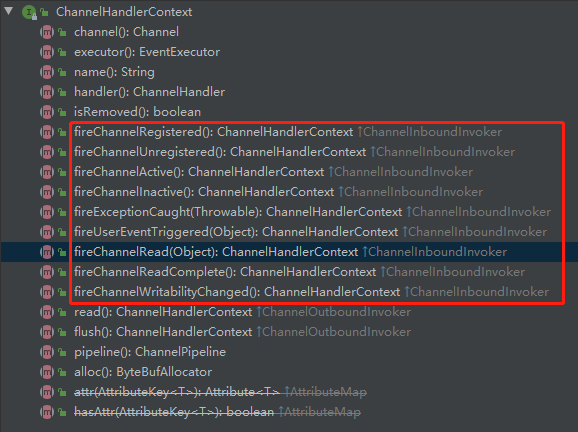

ChannelHandlerContext中有很多fireChannel*()方法，fire理解为激活的意思，这些方法用于ChannelHandlerContext间的交互。

以fireChannelRegistered()为例，找到其一个实现方法：

AbstractChannelHandlerContext类

    @Override
    public ChannelHandlerContext fireChannelRegistered() {
        invokeChannelRegistered(findContextInbound(MASK_CHANNEL_REGISTERED));
        return this;
    }

    private AbstractChannelHandlerContext findContextInbound(int mask) {
        AbstractChannelHandlerContext ctx = this;
        EventExecutor currentExecutor = executor();
        do {
            ctx = ctx.next;
        } while (skipContext(ctx, currentExecutor, mask, MASK_ONLY_INBOUND));
        return ctx;
    }

    private static boolean skipContext(
            AbstractChannelHandlerContext ctx, EventExecutor currentExecutor, int mask, int onlyMask) {
        // Ensure we correctly handle MASK_EXCEPTION_CAUGHT which is not included in the MASK_EXCEPTION_CAUGHT
        return (ctx.executionMask & (onlyMask | mask)) == 0 ||
                // We can only skip if the EventExecutor is the same as otherwise we need to ensure we offload
                // everything to preserve ordering.
                //
                // See https://github.com/netty/netty/issues/10067
                (ctx.executor() == currentExecutor && (ctx.executionMask & mask) == 0);
    }

注意这个findContextInbound()方法，可以在所有fire的实现方法中找到它，这个方法逻辑是寻找下一个inbound Handler。

首先根据“链表”AbstractChannelHandlerContext拿到下一个context对象，然后通过skipContext()方法判断这个context对象是否是一个inboud handlercontext，是的话就返回，不是话继续寻找符合条件的ChannelContext。同样，也有一个findContextOutbound()。

ChannelPipline怎么调度Handler

以收到请求后的read事件为例

1.当一个Netty内部的I/O线程中（Netty Internal I/O Threads (Transport Implementation)），调用了Socket.read()

2.此时DefaultChannelPipeline中的fireChannelRead将被调用，并传入头节点head，从头节点开始处理

    @Override
    public final ChannelPipeline fireChannelRead(Object msg) {
        AbstractChannelHandlerContext.invokeChannelRead(head, msg);
        return this;
    }

3.AbstractChannelHandlerContext

会调用当前AbstractChannelHandlerContext（也就是HeadContext）父类的handler方法，获取当前context绑定的handler实现类对象，并调用该实现类的channelRead()方法，并传入当前Context对象（this）。

    static void invokeChannelRead(final AbstractChannelHandlerContext next, Object msg) {
        final Object m = next.pipeline.touch(ObjectUtil.checkNotNull(msg, "msg"), next);
        EventExecutor executor = next.executor();
        if (executor.inEventLoop()) {
            next.invokeChannelRead(m);
        } else {
            executor.execute(new Runnable() {
                @Override
                public void run() {
                    next.invokeChannelRead(m);
                }
            });
        }
    }

    private void invokeChannelRead(Object msg) {
        if (invokeHandler()) {
            try {
                ((ChannelInboundHandler) handler()).channelRead(this, msg);
            } catch (Throwable t) {
                invokeExceptionCaught(t);
            }
        } else {
            fireChannelRead(msg);
        }
    }

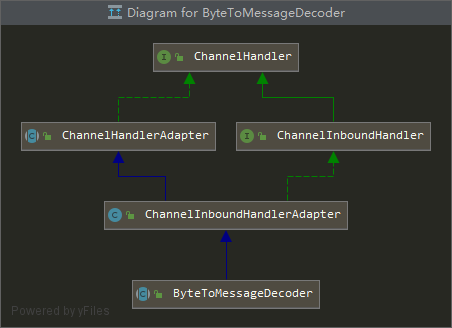

4.被调用的具体handler的channelRead()方法在执行了一系列其业务处理后，一定会调用传入的context对象的fireChannelRead()方法，以ByteToMessageDecoder（一个ChannelHandler的具体实现）为例：

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        if (msg instanceof ByteBuf) {
            CodecOutputList out = CodecOutputList.newInstance();
            try {
                first = cumulation == null;
                cumulation = cumulator.cumulate(ctx.alloc(),
                        first ? Unpooled.EMPTY_BUFFER : cumulation, (ByteBuf) msg);
                callDecode(ctx, cumulation, out);
            } catch (DecoderException e) {
                throw e;
            } catch (Exception e) {
                throw new DecoderException(e);
            } finally {
                try {
                    if (cumulation != null && !cumulation.isReadable()) {
                        numReads = 0;
                        cumulation.release();
                        cumulation = null;
                    } else if (++numReads >= discardAfterReads) {
                        // We did enough reads already try to discard some bytes so we not risk to see a OOME.
                        // See https://github.com/netty/netty/issues/4275
                        numReads = 0;
                        discardSomeReadBytes();
                    }

                    int size = out.size();
                    firedChannelRead |= out.insertSinceRecycled();
                    fireChannelRead(ctx, out, size);
                } finally {
                    out.recycle();
                }
            }
        } else {
            ctx.fireChannelRead(msg);
        }
    }

    /**
     * Get {@code numElements} out of the {@link List} and forward these through the pipeline.
     */
    static void fireChannelRead(ChannelHandlerContext ctx, List<Object> msgs, int numElements) {
        if (msgs instanceof CodecOutputList) {
            fireChannelRead(ctx, (CodecOutputList) msgs, numElements);
        } else {
            for (int i = 0; i < numElements; i++) {
                ctx.fireChannelRead(msgs.get(i));
            }
        }
    }

    /**
     * Get {@code numElements} out of the {@link CodecOutputList} and forward these through the pipeline.
     */
    static void fireChannelRead(ChannelHandlerContext ctx, CodecOutputList msgs, int numElements) {
        for (int i = 0; i < numElements; i ++) {
            ctx.fireChannelRead(msgs.getUnsafe(i));
        }
    }

5.在finally中调用了当前context的fireChannelRead()方法，这时候就回到之前所讲的，通过findContextInbound()方法获取链表中下一个context对象，从而就可以调用下一个context对象所包含的Handler

    @Override
    public ChannelHandlerContext fireChannelRead(final Object msg) {
        invokeChannelRead(findContextInbound(MASK_CHANNEL_READ), msg);
        return this;
    }

    private AbstractChannelHandlerContext findContextInbound(int mask) {
        AbstractChannelHandlerContext ctx = this;
        EventExecutor currentExecutor = executor();
        do {
            ctx = ctx.next;
        } while (skipContext(ctx, currentExecutor, mask, MASK_ONLY_INBOUND));
        return ctx;
    }

6.如此循环,就可以顺序执行context链表中的每一个handler，其他IO事件处理的逻辑和channelRead一样
