一、什么是对象池?
顾名思义,就是有一个池子装着一群对象。我们需要对象的时候就从池子中取一个出来,用完之后就把对象放回池子中去。这样可以复用对象并且减少创建一个对象的开销,也可以
避免申请对象太多导致的频繁gc。从设计模式上来讲,它是一种享元模式。
二、netty的对象池
netty为了避免过多的创建对象和频繁的gc使用了对象池,在需要创建ByteBuf的时候,从对象池中找,如果没有才会去创建一个新的ByteBuf。

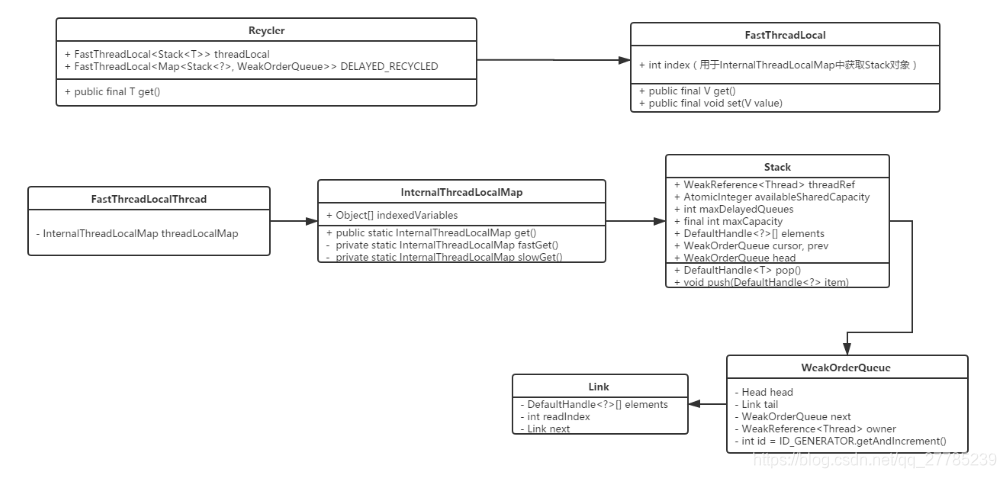

2.1 类图
下面对图中所涉及到的一些比较重要的类进行一些简要的说明
2.1.1 Recycler
//maxCapacityPerThread为0时,设置 NOOP_HANDLE ,表示不会回收对象
private static final Handle NOOP_HANDLE;
//用于表示线程id
private static final AtomicInteger ID_GENERATOR = new AtomicInteger(Integer.MIN_VALUE);
//谁创建的Recycler,那么就给这个线程记录一个id
private static final int OWN_THREAD_ID = ID_GENERATOR.getAndIncrement();
//默认的设置每个线程的Stack的初始化最大容量大小
private static final int DEFAULT_INITIAL_MAX_CAPACITY_PER_THREAD = 4 * 1024; // Use 4k instances as default.
//每个线程的Stack的最大容量大小,如果没有设置,那么将会将 DEFAULT_INITIAL_MAX_CAPACITY_PER_THREAD 设置给它
private static final int DEFAULT_MAX_CAPACITY_PER_THREAD;
//Stack的初始化容量
private static final int INITIAL_CAPACITY;
//最大共享容量的负载因子,用于限制 WeakOrderQueue 的容量大小
//默认是2
private static final int MAX_SHARED_CAPACITY_FACTOR;
//用于限制每个Recycler中记录中 DELAYED_RECYCLED 的大小
private static final int MAX_DELAYED_QUEUES_PER_THREAD;
//设置每个Link对象的默认容量
private static final int LINK_CAPACITY;
//默认回收率
private static final int RATIO;
//每个线程对应的Stack的容量大小
private final int maxCapacityPerThread;
//用于设置WeakOrderQueue容量的负载因子
private final int maxSharedCapacityFactor;
//回收率掩码
private final int ratioMask;
//WearOrderQueue的最大容量
private final int maxDelayedQueuesPerThread;
//用于记录Stack,是netty自己实现的一个threadLocal,如果线程对象是FastThread,那么可以直接从
//FastThread的字段中找到它
private final FastThreadLocal<Stack<T>> threadLocal
//WeakOrderQueue内部有一个 next 字段,用于指定下一个 WeakOrderQueue
//当回收数据时,操作 Stack 对象的不是 Stack 的线程,那么将会封装一个 WeakOrderQueue put 到 Map<Stack<?>, WeakOrderQueue> 中
//用于并发加锁,导致性能下降
private static final FastThreadLocal<Map<Stack<?>, WeakOrderQueue>> DELAYED_RECYCLED;
2.1.2 Stack
io.netty.util.Recycler.Stack
//当前Stack所属Recycler
final Recycler<T> parent;
//当前Stack所属线程,使用弱引用引用,如果这个线程不再使用,那么
//在gc的时候将被回收
final WeakReference<Thread> threadRef;
//用于限制Stack的WorkOrderQueue总共所能使用的大小
final AtomicInteger availableSharedCapacity;
//限制 Recycler#DELAYED_RECYCLED中 Map<Stack<?>, WeakOrderQueue> 容量的大小
final int maxDelayedQueues;
//Stack的最大容量
private final int maxCapacity;
//回收率掩码
private final int ratioMask;
//用于存储回收对象的数组,这个Stack是用过这个数组来实现的
private DefaultHandle<?>[] elements;
//回收对象个数
private int size;
//回收次数,不为零就表示已经被回收
private int handleRecycleCount = -1; // Start with -1 so the first one will be recycled.
//cursor用于指示当前进行需要transfer的WeakOrderQueue
//prev用于表示cursor的前驱节点,用于剔除被gc回收了线程的WeakOrderQueue
private WeakOrderQueue cursor, prev;
//WeakOrderQueue链表的头节点
private volatile WeakOrderQueue head;
2.1.3 WeakOrderQueue
io.netty.util.Recycler.WeakOrderQueue
//WeakOrderQueue中用于引用Link节点的头节点
//用于控制Link链表的容量
private final Head head;
//Link的tail节点
private Link tail;
// pointer to another queue of delayed items for the same stack
// WeakOrderQueue 链表的下一个节点
private WeakOrderQueue next;
//当前WeakOrderQueue所属线程
private final WeakReference<Thread> owner;
//给每个创建的 WeakOrderQueue 的一个 id
private final int id = ID_GENERATOR.getAndIncrement();
2.1.4 Link
io.netty.util.Recycler.WeakOrderQueue.Link
// LINK_CAPACITY 默认为16,elements用于存储回收对象
private final DefaultHandle<?>[] elements = new DefaultHandle[LINK_CAPACITY];
//当前可读元素起始下标
private int readIndex;
//Link链表的下一个节点
Link next;
2.1.5 Head
io.netty.util.Recycler.WeakOrderQueue.Head
//用于限制Stack的WorkOrderQueue总共所能使用的大小
private final AtomicInteger availableSharedCapacity;
//记录下一个Link节点
Link link;
2.2 回收
@Deprecated
public final boolean io.netty.util.Recycler#recycle(T o, Handle<T> handle) {
//NOOP_HANDLE 无需回收,通常是 maxDelayedQueuesPerThread 被设置为0
if (handle == NOOP_HANDLE) {
return false;
}
DefaultHandle<T> h = (DefaultHandle<T>) handle;
//只回收由当前Recycler创建的Stack
if (h.stack.parent != this) {
return false;
}
//回收
//(1)
h.recycle(o);
return true;
}
//(1)
public void io.netty.util.Recycler.DefaultHandle#recycle(Object object) {
//如果回收对象和上次回收的对象不一致,抛出错误
if (object != value) {
throw new IllegalArgumentException("object does not belong to handle");
}
//获取当初回收自己的Stack
Stack<?> stack = this.stack;
//每次回收的时候 lastRecycledId 都会被设置为一个id(如果是直接存入Stack的,那么这个id是创建Recycler时通过AtomicInteger自增而来的
//如果是存入WeakOrderQueue,那么就是创建WeakOrderQueue时通过AtomicInteger自增而来)
//被使用时重置为零
if (lastRecycledId != recycleId || stack == null) {
throw new IllegalStateException("recycled already");
}
//压栈
//(2)
stack.push(this);
}
//(2)
void io.netty.util.Recycler.Stack#push(DefaultHandle<?> item) {
Thread currentThread = Thread.currentThread();
//检查当前Stack所属线程是否为当前线程,如果是当前线程,那么很简单,直接往Stack中的数组中添加即可
//如果不是当前线程,那么为了避免多线程带来的加锁操作,这里会创建专属于当前线程的 WeakOrderQueue
if (threadRef.get() == currentThread) {
// The current Thread is the thread that belongs to the Stack, we can try to push the object now.
pushNow(item);
} else {
// The current Thread is not the one that belongs to the Stack
// (or the Thread that belonged to the Stack was collected already), we need to signal that the push
// happens later.
pushLater(item, currentThread);
}
}
以上方法首先判断是否需要回收对象,如果需要回收对象,那么会判断回收这个对象的线程是否就是当前Stack所属线程,如果是,那么直接push的栈中即可,如果不是,那么为
了避免多线程带来的同步问题,这里创建了专属于某个线程的 WeakOrderQueue
push到Stack数组中的代码比较简单,就是往数组后面添加元素即可,当然如果容量不够,那么会扩容2倍,如果超过最大容量,那么取最大容量
下面我们看到pushLater方法
private void io.netty.util.Recycler.Stack#pushLater(DefaultHandle<?> item, Thread thread) {
//从每个线程上获取其Map<Stack<?>, WeakOrderQueue>,key表示当初当前线程回收对象所属的Stack,
//value表示当前线程回收对象时为当前线程专属创建的WeakOrderQueue。
Map<Stack<?>, WeakOrderQueue> delayedRecycled = DELAYED_RECYCLED.get();
WeakOrderQueue queue = delayedRecycled.get(this);
if (queue == null) {
//如果超过了最大容量,那么将不再回收对象,这里直接put一个空队列标记
if (delayedRecycled.size() >= maxDelayedQueues) {
// Add a dummy queue so we know we should drop the object
delayedRecycled.put(this, WeakOrderQueue.DUMMY);
return;
}
// Check if we already reached the maximum number of delayed queues and if we can allocate at all.
//cas stack.availableSharedCapacity 的值,如果还能分配容量,那么创建WeakOrderQueue
//容量不足,直接返回,如果容量充足将新创建的WeakOrderQueue设置到Stack的头节点(这里使用了同步的方式去设置头节点)
if ((queue = WeakOrderQueue.allocate(this, thread)) == null) {
// drop object
return;
}
delayedRecycled.put(this, queue);
} else if (queue == WeakOrderQueue.DUMMY) {
// drop object
return;
}
//入队列
//(1)
queue.add(item);
}
//(1)
void io.netty.util.Recycler.WeakOrderQueue#add(DefaultHandle<?> handle) {
//设置回收id,用于检查是否被回收
handle.lastRecycledId = id;
Link tail = this.tail;
int writeIndex;
//检查尾部节点可写索引,如果已经达到最大容量,那么检查是否还有剩余容量可分配
//如果没有那么抛弃
if ((writeIndex = tail.get()) == LINK_CAPACITY) {
if (!head.reserveSpace(LINK_CAPACITY)) {
// Drop it.
return;
}
// We allocate a Link so reserve the space
//还有足够容量进行分配,那么创建一个新的Link
this.tail = tail = tail.next = new Link();
writeIndex = tail.get();
}
tail.elements[writeIndex] = handle;
//将stack置空,表示当前对象已被回收
//并且并不是由Stack所属线程所回收
handle.stack = null;
// we lazy set to ensure that setting stack to null appears before we unnull it in the owning thread;
// this also means we guarantee visibility of an element in the queue if we see the index updated
//更新到下一个索引,这个方法名虽然叫 lazySet,但是我没看出来怎么个lazy法了
//内部直接使用Unsafe设置值
tail.lazySet(writeIndex + 1);
}
为了减少并发带来的锁消耗,netty通过创建WeakOrderQueue来优化性能,首先每个线程最多可以维护默认CPU个数的2倍个数的Stack,再者Stack需要有足够默认16的容量用于创
建Link,如果当前线程还未为Stack创建过WeakOrderQueue,那么会进行创建,并将创建的WeakOrderQueue同步插入到Stack的头节点。

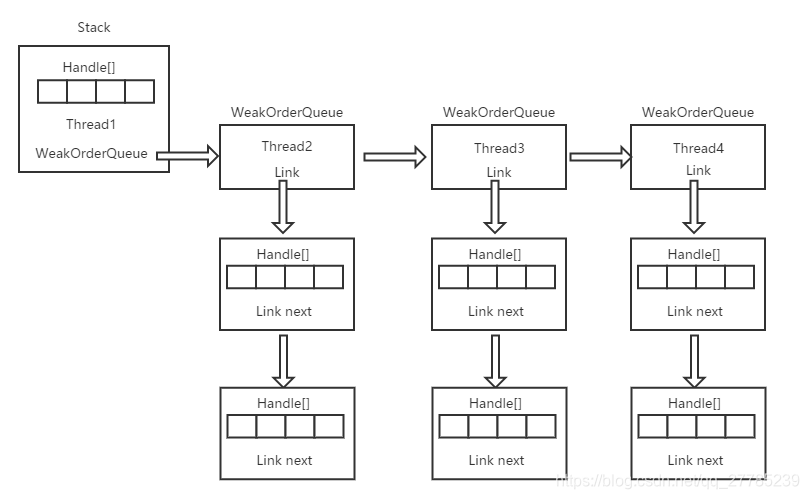

由此可画出其结构图
2.3 复用
2.3.1 FastThreadLocal
FastThreadLocal从名字上看就觉得不明觉厉,那它到底有多fast呢?我们接下来分析下它
//对应InternalThreadLocalMap中数组的下标,用于快速通过这个index找到对应的数据
private final int index;
//构造器
public FastThreadLocal() {
//内部使用一个 AtomicInteger 递增
index = InternalThreadLocalMap.nextVariableIndex();
}
//get方法
public final V get() {
//根据当前线程对象获取InternalThreadLocalMap
InternalThreadLocalMap threadLocalMap = InternalThreadLocalMap.get();
//通过构建FastThreadLocal时设置下标获取数据
Object v = threadLocalMap.indexedVariable(index);
if (v != InternalThreadLocalMap.UNSET) {
return (V) v;
}
//初始化
return initialize(threadLocalMap);
}
可以看到在创建FastThreadLocal对象时通过一个原子递增类获取一个下标,这个下标用于快速从InternalThreadLocalMap中定位数据(这个 InternalThreadLocalMap 内部是
由一个数组实现的,容量为2的n次幂的值)。
2.3.2 从Stack中获取复用对象
public final T io.netty.util.Recycler#get() {
//如果禁止了对象池的使用,那么返回一个 NOOP_HANDLE(内部回收逻辑为空)
if (maxCapacityPerThread == 0) {
return newObject((Handle<T>) NOOP_HANDLE);
}
//这个threadLocal是一个FastThreadLocal,如果当前线程是一个FastThreadLocalThread对象
//那么会直接从FastThreadLocalThread的一个InternalThreadLocalMap类型的字段中获取
//如果当前线程不是FastThreadLocalThread类型的,那么将会从当前线程的ThreadLocal中获取InternalThreadLocalMap对象
//由于创建一个FastThreadLocal对象时,会通过原子递增类获取一个下标,所以可以直接通过下标从InternalThreadLocalMap获取Stack对象
Stack<T> stack = threadLocal.get();
//从Stack中弹出一个对象
DefaultHandle<T> handle = stack.pop();
//如果为空,创建一个新的对象
if (handle == null) {
handle = stack.newHandle();
handle.value = newObject(handle);
}
return (T) handle.value;
}
上面这个方法首先判断是否允许回收对象,如果允许,那么会从Stack中pop对象,下面是Stack的pop方法
DefaultHandle<T> io.netty.util.Recycler.Stack#pop() {
int size = this.size;
//如果当前栈中没有值,那么尝试从WeakOrderQueue中查找
if (size == 0) {
//(1)
if (!scavenge()) {
return null;
}
size = this.size;
}
//弹栈
size --;
DefaultHandle ret = elements[size];
elements[size] = null;
//不允许多次回收,每个对象只能被一个线程回收一次
if (ret.lastRecycledId != ret.recycleId) {
throw new IllegalStateException("recycled multiple times");
}
//复位,表示未被回收
ret.recycleId = 0;
ret.lastRecycledId = 0;
this.size = size;
return ret;
}
//(1)
boolean scavenge() {
// continue an existing scavenge, if any
//扫描WeakOrderQueue
if (scavengeSome()) {
return true;
}
// reset our scavenge cursor
//没有扫描到,复位
prev = null;
cursor = head;
return false;
}
上面的逻辑比较简单,首先判断当前Stack中是否有回收对象,如果没有,那么将从WeakOrderQueue中寻找,如果有,那么直接从当前Stack中弹出一个即可
boolean io.netty.util.Recycler.Stack#scavengeSome() {
//用于记录当前扫描的节点的前一节点,用于剔除被gc回收掉的节点(prev.setNext(回收节点的next))
WeakOrderQueue prev;
//正被扫描的节点
WeakOrderQueue cursor = this.cursor;
if (cursor == null) {
prev = null;
//头节点开始
cursor = head;
if (cursor == null) {
return false;
}
} else {
prev = this.prev;
}
boolean success = false;
do {
//尝试将当前扫描到的节点的回收对象转移到Stack的数组中
if (cursor.transfer(this)) {
success = true;
break;
}
WeakOrderQueue next = cursor.next;
//当前节点线程被gc回收后,cursor.owner.get()将返回null
if (cursor.owner.get() == null) {
// If the thread associated with the queue is gone, unlink it, after
// performing a volatile read to confirm there is no data left to collect.
// We never unlink the first queue, as we don't want to synchronize on updating the head.
//检查这个节点是否还有回收对象
if (cursor.hasFinalData()) {
for (;;) {
//将当前WeakOrderQueue的数组转移到Stack中
if (cursor.transfer(this)) {
success = true;
} else {
break;
}
}
}
if (prev != null) {
//剔除当前被回收掉的节点
prev.setNext(next);
}
} else {
prev = cursor;
}
cursor = next;
} while (cursor != null && !success);
this.prev = prev;
this.cursor = cursor;
return success;
}
从Stack的头节点开始,寻找能够转移数据到Stack的WeakOrderQueue,对于那些被gc回收掉线程的WeakOrderQueue,首先会将他们回收的对象全部转移到Stack中,然后再将它们
从WeakOrderQueue链表中剔除
boolean io.netty.util.Recycler.WeakOrderQueue#transfer(Stack<?> dst) {
Link head = this.head.link;
//当前WeakOrderQueue没有回收对象了
if (head == null) {
return false;
}
//检查读下标是否已经达到最大索引
if (head.readIndex == LINK_CAPACITY) {
if (head.next == null) {
return false;
}
//移除当前使用完的节点
this.head.link = head = head.next;
//释放容量
this.head.reclaimSpace(LINK_CAPACITY);
}
//获取当前遍历到的节点的可读开始索引
final int srcStart = head.readIndex;
//当前节点的end下标
int srcEnd = head.get();
//当前Link节点可用对象个数
final int srcSize = srcEnd - srcStart;
//为零表示没有回收对象可用
if (srcSize == 0) {
return false;
}
//计算当前Stack将要达到的容量
final int dstSize = dst.size;
final int expectedCapacity = dstSize + srcSize;
//如果超过了Stack数组长度,那么需要进行扩容
if (expectedCapacity > dst.elements.length) {
final int actualCapacity = dst.increaseCapacity(expectedCapacity);
//由于Stack有最大容量限制,默认是4096,所以这里需要进行判断
srcEnd = min(srcStart + actualCapacity - dstSize, srcEnd);
}
//将Link中的元素迁移到Stack中
if (srcStart != srcEnd) {
final DefaultHandle[] srcElems = head.elements;
final DefaultHandle[] dstElems = dst.elements;
int newDstSize = dstSize;
for (int i = srcStart; i < srcEnd; i++) {
DefaultHandle element = srcElems[i];
if (element.recycleId == 0) {
element.recycleId = element.lastRecycledId;
} else if (element.recycleId != element.lastRecycledId) {
throw new IllegalStateException("recycled already");
}
srcElems[i] = null;
if (dst.dropHandle(element)) {
// Drop the object.
continue;
}
element.stack = dst;
dstElems[newDstSize ++] = element;
}
//srcEnd == LINK_CAPACITY表示当前遍历到的Link已经被充分使用了,在此次迁移
//数据之后将被释放容量
if (srcEnd == LINK_CAPACITY && head.next != null) {
// Add capacity back as the Link is GCed.
this.head.reclaimSpace(LINK_CAPACITY);
this.head.link = head.next;
}
head.readIndex = srcEnd;
if (dst.size == newDstSize) {
return false;
}
dst.size = newDstSize;
return true;
} else {
// The destination stack is full already.
return false;
}
}
上面这个方法将遍历WeakOrderQueue中的Link,将他们回收的对象迁移到Stack中,如果发现被使用完的Link,那么将从链表中剔除并回收容量。
三、总结
获取过程:
使用 FastThreadLocal#get方法从线程对象(FastThreadLocalThread或者普通的Thread对象,FastThreadLocalThread对象是直接通过一个属性引用InternalThreadLocalMap,
而Thread就得从ThreadLocal中查找,性能较差)中获取 InternalThreadLocalMap(通过一个Object[] indexedVariables数组记录数据,下标是创建FastThreadLocal时在
构造器中调用原子递增类得到的),然后从InternalThreadLocalMap获取Stack对象,从Stack中pop一个DefaultHandler对象,如果Stack中有值,那么直接从栈中弹出一个元素
,如果Stack中没有值,那么从WeakOrderQueue获取, 遍历WeakOrderQueue的Link,将Link中的元素迁移到Stack,如果发现用完了的Link,那么断开链接,在Head中记录释放了
多少多少空间(Link的容量默认是16),如果在遍历WeakOrderQueue的过程中,发现其对应的线程已经被垃圾回收了,那么将这个WeakOrderQueue中的所有元素移到Stack中。
回收过程:
如果当前DefaultHandler对应的Stack的线程对象就是当前线程对象,那么直接存到Stack的数组中即可,如果不是,创建一个WeakOrderQueue,存放到Recycler对象的
FastThreadLocal<Map<Stack<?>, WeakOrderQueue>> DELAYED_RECYCLED属性中,这个属性的容量默认是CPU个数乘以2。调用WeakOrderQueue的add方法,检查最后一个Link容量
是否已满,如果没有满,将值存入,如果满了,检查是否超过Stack允许的WeakOrderQueue的容量(默认是2048),没有超过就创建一个新的Link存入。
这样可以有效提高并发量,除了构建WeakOrderQueue需要线程安全之外,其他的操作就不需要锁啦。
类图:
结构图:
