实践--课程表（ViewPager实现）

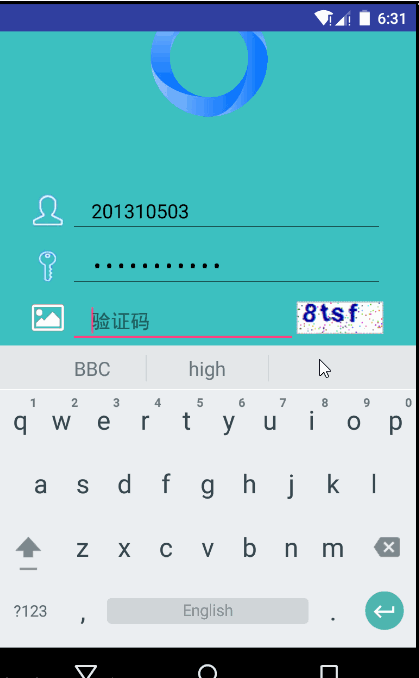

效果图

- 数据的获取参见下面这两篇博客
Java登录方正教务系统
Java登录方正教务系统获取课表

登录界面设计

• 登录界面就是简单UI控件的应用，同时配合自定义其显示的样式，实现一些简单的视觉效果

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical" android:layout_width="match_parent"
    android:background="@color/colorbackground_Lgoin"
    android:layout_height="match_parent">


    <ImageView
        android:layout_marginTop="80dp"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_gravity="center_horizontal"
        android:src="@mipmap/ic_pic"/>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginLeft="30dp"
        android:layout_marginRight="30dp"
        android:layout_marginTop="50dp"
        android:orientation="horizontal">

        <ImageView
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_marginRight="5dp"
            android:layout_gravity="center_vertical"
            android:src="@mipmap/account_pic"/>


        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="学号"
            android:text="201310503"
            android:id="@+id/editText_id"
            android:paddingLeft="20dp" />

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginLeft="30dp"
        android:layout_marginRight="30dp"
        android:layout_marginTop="5dp"
        android:orientation="horizontal">

        <ImageView
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_marginRight="5dp"
            android:layout_gravity="center_vertical"
            android:src="@mipmap/password_pic"/>

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:hint="密码"
            android:inputType="textPassword"
            android:text="wz446774318"
            android:paddingLeft="20dp"
            android:id="@+id/editText_password" />


    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginLeft="30dp"
        android:layout_marginRight="30dp"
        android:layout_marginTop="5dp"
        android:orientation="horizontal">

        <ImageView
            android:layout_width="30dp"
            android:layout_height="30dp"
            android:layout_marginRight="5dp"
            android:layout_marginTop="5dp"
            android:src="@mipmap/check_pic"/>

        <EditText
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:id="@+id/editText_checkcode"
            android:paddingLeft="20dp"
            android:hint="验证码"
            android:layout_weight="1"/>

        <ImageView
            android:layout_width="80dp"
            android:layout_height="40dp"
            android:id="@+id/imageView_checkcode" />
    </LinearLayout>

    <Button
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginTop="20dp"
        android:layout_marginLeft="40dp"
        android:layout_marginRight="40dp"
        android:text="登录"
        android:background="@drawable/selecter_login_button"
        android:id="@+id/button_login"
        android:layout_gravity="right" />

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="match_parent">


        <TextView
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="注意事项"
            android:layout_margin="10dp"
            android:id="@+id/textView_care"
            android:layout_alignParentBottom="true"
            android:layout_alignParentLeft="true" />
    </RelativeLayout>
</LinearLayout>

android的登陆操作

• 由于在安卓中不允许在主线程中访问网络和其他一些费时的操作，故在我们点击登录按钮的时候，我们需要开启新的线程去进行数据的提交，和返回数据的获取，对返回数据的处理，需要使用到消息传递机制Handler才能传递到主线程中。

private void loginThread() {
        new Thread(new Runnable() {
            @Override
            public void run() {
                Looper.prepare();
                try {

                    // 拼接请求字符串
                    String str = "__VIEWSTATE=" + URLEncoder.encode(loginData.getViewState(), "gb2312") + "&txtUserName=" + loginData.getId() + "&TextBox2="
                            + loginData.getPassword()+ "&txtSecretCode=" + loginData.getCheckCode() + "&RadioButtonList1=" + URLEncoder.encode("学生", "gb2312")
                            + "&Button1=&lbLanguage=&hidPdrs=&hidsc=";
                    ;
                    System.out.println("参数列表:" + str);

                    // 登录提交的网址
                    URL url = new URL("http://10.5.3.236/default2.aspx");

                    HttpURLConnection conn = (HttpURLConnection) url.openConnection();
                    // Post提交
                    conn.setRequestMethod("POST");
                    conn.setReadTimeout(5000);
                    conn.setUseCaches(false);
                    // 禁止程序自己跳转到目标网址，必须设置，不然程序会自己响应
                    // 302返回码，自己请求跳转后的网址，出现Object Had Moved!错误
                    conn.setInstanceFollowRedirects(false);
                    // 写入cookie
                    conn.setRequestProperty("Cookie", loginData.getCookie());
                    conn.setDoOutput(true);
                    OutputStream out = conn.getOutputStream();
                    // 写入参数
                    out.write(str.getBytes());
                    out.close();
                    // 打印返回码
                    System.out.println("返回码:" + conn.getResponseCode());
                    // 打印服务器返回的跳转网址
                    System.out.println("Location :" + conn.getHeaderField("Location"));

                    BufferedReader read = new BufferedReader(new InputStreamReader(conn.getInputStream()));
                    String temp;
                    // 读取页面源码
                    StringBuffer ab = new StringBuffer();
                    while ((temp = read.readLine()) != null) {
                        ab.append(temp);
                    }
                    System.out.println(ab);
                    if (conn.getResponseCode() != 302) {
                        new Thread(new GetCheckCode(loginData, myHanler)).start();
                        Toast.makeText(LoginActivity.this, "用户名或密码错误！！！", Toast.LENGTH_SHORT).show();
                        Message msg=new Message();
                        msg.arg1=10086;
                        myHanler.sendMessage(msg);
                    } else {
                        GetNameByUrl.getNameByUrl(conn.getHeaderField("Location"),loginData);
                        Intent intent=new Intent(LoginActivity.this,MainActivity.class);
                        intent.putExtra("loginData",loginData);
                        startActivity(intent);
                        finish();
                    }
                } catch (IOException e) {
                    e.printStackTrace();
                }
                Looper.loop();
            }
        }).start();
    }

• 通过两个工具类实现验证码的获取,获取验证码的代码如下：

public class GetCheckCode implements Runnable{
    private  LoginData loginData;
    private Handler myHandler;

    public GetCheckCode(LoginData loginData, Handler myHandler) {
        this.loginData = loginData;
        this.myHandler = myHandler;
    }

    @Override
    public void run() {
        try {
            /**
             * img变量的值为http:http://10.5.3.236/CheckCode.aspx
             * 也就是上面图片中，验证码的网址，在浏览器中，右键验证码 即可选择复制图片网址 请求 URL:
             * http://10.5.3.236/CheckCode.aspx
             */
            URL url = new URL("http://10.5.3.236/CheckCode.aspx");
            HttpURLConnection conn = (HttpURLConnection) url.openConnection();
            conn.setRequestMethod("GET");
            conn.setReadTimeout(5000);
            // cookie一同提交(ASP.NET_SessionId=4kusfii0urpbrazkhxvuas45,只需要等号后面的一串数据)
            conn.setRequestProperty("Cookie", loginData.getCookie());

            InputStream in = conn.getInputStream();
            loginData.setBitmap_checkcode(BitmapFactory.decodeStream(conn.getInputStream()));
            System.out.println("读取验证码完毕!");
            Message msg=new Message();
            msg.obj=loginData;
            myHandler.sendMessage(msg);
        } catch (MalformedURLException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
}

• 获取课表的代码如下

public class GetTimeTable implements Runnable {
    private LoginData loginData;
    private List<CourseBean> courseList;
    private Handler myHanler;
    public GetTimeTable(LoginData loginData,List<CourseBean> courseList,Handler myHanler) {
        this.loginData = loginData;
        this.courseList=courseList;
        this.myHanler=myHanler;
    }

    @Override
    public void run() {
        System.out.println("读取课表");
        String url = null;
        try {
            url = "http://10.5.3.236/xskbcx.aspx?xh="+loginData.getId()
                    +"&xm="+URLEncoder.encode(loginData.getName(), "gb2312")+"&gnmkdm="
                    +loginData.getNeedString();
            System.out.println("获取课表的参数: " + url);
            URL Url;
            Url = new URL(url);
            HttpURLConnection conn = (HttpURLConnection) Url.openConnection();

            conn.setRequestMethod("GET");
            conn.setReadTimeout(2000);
            conn.setRequestProperty("Cookie", loginData.getCookie());
            conn.setRequestProperty("Referer",
                    "http://10.5.3.236/xs_main.aspx?xh="+loginData.getId());
            conn.setInstanceFollowRedirects(false);
            conn.setDoOutput(true);
            BufferedReader read = new BufferedReader(new InputStreamReader(
                    conn.getInputStream(),"gb2312"));

            StringBuffer sb = new StringBuffer();
            String temp;
            while ((temp = read.readLine()) != null) {
                sb.append(temp);
            }

            dealTimeTableHtml(sb.toString());



        } catch (UnsupportedEncodingException e) {
            e.printStackTrace();
        } catch (ProtocolException e) {
            e.printStackTrace();
        } catch (MalformedURLException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    private void dealTimeTableHtml(String courseHtml) {
        Pattern pattern1 = Pattern.compile("width=\"7%\">.*?/td>");
        Matcher matcher1 = pattern1.matcher(courseHtml);
        StringBuffer sb = new StringBuffer();
        int begin = 0;
        int end = 0;
        while (matcher1.find()) {
            begin = matcher1.start();
            end = matcher1.end();
            String str = courseHtml.substring(begin + 11, end);
            sb.append(str);
        }

        pattern1 = Pattern.compile("rowspan=\"2\">.*?/td>");
        matcher1 = pattern1.matcher(courseHtml);

        while (matcher1.find()) {
            begin = matcher1.start();
            end = matcher1.end();
            String str = courseHtml.substring(begin + 12, end);
            sb.append(str);
        }
        String str=sb.toString().replaceAll("&nbsp;</td>","");
        String[] courseString = str.split("</td>");
        for (int i=0;i<courseString.length;i++){
            String[] courseDital=courseString[i].split("<br>");
            CourseBean courseBean=new CourseBean(courseDital[0],courseDital[1],courseDital[2],courseDital[3],courseDital[4]);
            courseList.add(courseBean);
        }
        Message msg=new Message();
        msg.obj=courseList;
        myHanler.sendMessage(msg);

    }
}

课表的解析和展示

• 课表的展示使用的是ViewPager，这是supportV4提供的一个控件，一个ViewPager里面包含了7个页面，在登录成功以后，登录界面会通过intent将解析出来并格式化好的课表信息发送给课表显示页面，然后根据课表信息是那一天的，在添加到不同页面的ListView中去，然后再为listView设置其适配器，自定义其显示的内容的样式即可。

/**
 * Created by Wang on 2016/3/29.
 */
public class MainActivity extends AppCompatActivity {
    private ViewPager viewPager;
    private List<Fragment> pager_list;
    private LoginData loginData;
    private List<CourseBean> courseList, courseList1, courseList2, courseList3, courseList4, courseList5;
    private ListView listView_pager1, listView_pager2, listView_pager3, listView_pager4, listView_pager5;
    private MyFragment myFragment1, myFragment2, myFragment3, myFragment4, myFragment5;

    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        init();
        Intent intent = getIntent();
        loginData = intent.getParcelableExtra("loginData");
        MyFragmentPagerAdapter adapter = new MyFragmentPagerAdapter(getSupportFragmentManager(), pager_list);
        viewPager.setAdapter(adapter);
        Toast.makeText(MainActivity.this, "欢迎登陆，" + loginData.getName() + "同学", Toast.LENGTH_SHORT).show();
        new Thread(new GetTimeTable(loginData, courseList, myHanler)).start();
        viewPager.setOnPageChangeListener(new ViewPager.OnPageChangeListener() {
            @Override
            public void onPageScrolled(int position, float positionOffset, int positionOffsetPixels) {
                switch (position) {
                    case 0:
                        listView_pager1 = myFragment1.getListView();
                        MyAdapter adapter1 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList1);
                        listView_pager1.setAdapter(adapter1);
                        break;
                    case 1:
                        listView_pager2 = myFragment2.getListView();
                        MyAdapter adapter2 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList2);
                        listView_pager2.setAdapter(adapter2);
                        break;
                    case 2:
                        listView_pager3 = myFragment3.getListView();
                        MyAdapter adapter3 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList3);
                        listView_pager3.setAdapter(adapter3);
                        break;
                    case 3:
                        listView_pager4 = myFragment4.getListView();
                        MyAdapter adapter4 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList4);
                        listView_pager4.setAdapter(adapter4);
                        break;
                    case 4:
                        listView_pager5 = myFragment5.getListView();
                        MyAdapter adapter5 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList5);
                        listView_pager5.setAdapter(adapter5);
                        break;
                }
            }

            @Override
            public void onPageSelected(int position) {

            }

            @Override
            public void onPageScrollStateChanged(int state) {

            }
        });
    }

    private Handler myHanler = new Handler() {
        public void handleMessage(Message msg) {
            courseList = (List) msg.obj;
            for (int i = 0; i < courseList.size(); i++) {
                CourseBean courseBean = courseList.get(i);
                if (courseBean.getCourse_week().contains("周一")) {
                    courseList1.add(courseBean);
                } else if (courseBean.getCourse_week().contains("周二")) {
                    courseList2.add(courseBean);
                } else if (courseBean.getCourse_week().contains("周三")) {
                    courseList3.add(courseBean);
                } else if (courseBean.getCourse_week().contains("周四")) {
                    courseList4.add(courseBean);
                } else if (courseBean.getCourse_week().contains("周五")) {
                    courseList5.add(courseBean);
                }
            }
            listView_pager1 = myFragment1.getListView();
            MyAdapter adapter1 = new MyAdapter(MainActivity.this, R.layout.layout_item_listview, courseList1);
            listView_pager1.setAdapter(adapter1);
        }
    };


    private void init() {
        viewPager = (ViewPager) findViewById(R.id.viewPager);
        pager_list = new ArrayList<>();
        myFragment1 = new MyFragment();
        myFragment2 = new MyFragment();
        myFragment3 = new MyFragment();
        myFragment4 = new MyFragment();
        myFragment5 = new MyFragment();
        pager_list.add(myFragment1);
        pager_list.add(myFragment2);
        pager_list.add(myFragment3);
        pager_list.add(myFragment4);
        pager_list.add(myFragment5);
        courseList = new ArrayList<>();
        courseList1 = new ArrayList<>();
        courseList2 = new ArrayList<>();
        courseList3 = new ArrayList<>();
        courseList4 = new ArrayList<>();
        courseList5 = new ArrayList<>();
    }

    @Override
    public boolean onCreateOptionsMenu(Menu menu) {
        getMenuInflater().inflate(R.menu.menu, menu);
        return true;
    }

    @Override
    public boolean onOptionsItemSelected(MenuItem item) {
        switch (item.getItemId()) {
            case R.id.login_out:
                this.finish();
                Toast.makeText(MainActivity.this, "用户已注销，请重新登录！！！", Toast.LENGTH_SHORT).show();
                Intent intent=new Intent(MainActivity.this,LoginActivity.class);
                startActivity(intent);
                break;
            case R.id.exit:
                finish();
                break;
        }
        return true;
    }
}

总结

• 由于本人水平有限，描述的也不尽然相近，代码中的诸多漏洞还请谅解，如果对代码存在疑问，可以查看源码并下载，地址：超级课程表（ViewPager实现）
