ANR系列（一）——ANR源码拆解之Input的触发

前言

Input类型的ANR相对于Service、Broadcast、Provider实现的方式不一样，Input的ANR发生原因是输入事件分发超时，包括按键和屏幕的触摸事件。对于输入系统而言

• 即使只有一次事件执行时间超过5s，只要用户后续没有再生成输入事件，那么也不需要ANR
• Input事件的ANR依赖用户输入的第一次事件有阻塞，在第二次输入的时候，系统事件分发超时才导致ANR

Input机制简介

Input的事件是需要从屏幕（输入设备）点击开始，从硬件设备驱动到应用层，涉及到的底层的交互，其中重要的角色有

1. InputReader：负责从输入设备获取事件，并将该事件通知给队列，并最终通知到InputDispatcher
2. InputDispatcher：负责将输入事件分发到正确的窗口上，并会处理ANR问题
3. InputManager：是InputReader和InputDispatcher的枢纽，类似MVC中到Controller作用

InputDispatcher的实现主要涉及3个Queue

1. InboundQueue: 这个队列里面存储的是从InputReader送来到输入事件
2. OutboundQueue：这个队列里面存储的是即将要发送给应用的输入事件
3. WaitQueue：这个队列里面存储的是已经发给应用的事件，但应用还未处理完成

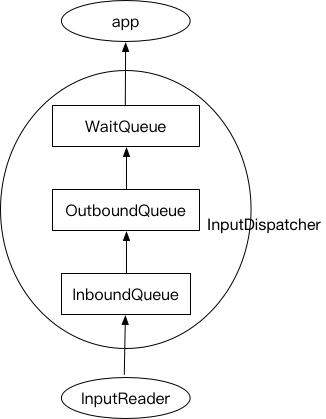

它们之间的关系如下

Input的工作机制

InputDispatcher内部维护了一个线程，负责不断从InboundQueue读取事件

• 当获取到焦点窗口后（即窗口就绪），将事件放入OutboundQueue，并分发给应用后放入WaitQueue。WaitQueue将会等待应用处理完成后，将事件从WaitQueue中移除，再循环处理下一个事件
• 当获取不到焦点窗口后（即窗口未就绪），将判断WaitQueue是否存在未处理的事件，如果存在，则判断上一次的事件的记录时间是否大于超时时间（5s），如果是则会响应ANR

Input的ANR原理

Input的ANR发生在事件的分发流程上，其逻辑都在InputDispatcher中，事件分发最终执行到dispatchOnceInnerLocked()

1. 开始计时ANR的执行起始时间
2. 从队列中取出待执行事件
3. 针对不同的事件进行分发

void InputDispatcher::dispatchOnceInnerLocked(nsecs_t* nextWakeupTime) {

    //1、ANR计算的起点时间
    nsecs_t currentTime = now();

    ......

    if (!mPendingEvent) {
        if (mInboundQueue.isEmpty()) {
            if (!mPendingEvent) {
                return;
            }
        } else {
            //2、从mInboundQueue取出头部的事件
            mPendingEvent = mInboundQueue.dequeueAtHead();
        }
        ......
        resetANRTimeoutsLocked();
    }

    switch (mPendingEvent->type) {
      case EventEntry::TYPE_KEY: {
          KeyEntry* typedEntry = static_cast<KeyEntry*>(mPendingEvent);
          if (isAppSwitchDue) {
              if (isAppSwitchKeyEventLocked(typedEntry)) {
                  resetPendingAppSwitchLocked(true);
                  isAppSwitchDue = false;
              } else if (dropReason == DROP_REASON_NOT_DROPPED) {
                  dropReason = DROP_REASON_APP_SWITCH;
              }
          }
          if (dropReason == DROP_REASON_NOT_DROPPED
                  && isStaleEventLocked(currentTime, typedEntry)) {
              dropReason = DROP_REASON_STALE;
          }
          if (dropReason == DROP_REASON_NOT_DROPPED && mNextUnblockedEvent) {
              dropReason = DROP_REASON_BLOCKED;
          }
          //3、针对不同的事件进行分发
          done = dispatchKeyLocked(currentTime, typedEntry, &dropReason, nextWakeupTime);
          break;
      }
      ......
    }
    ......
}

针对不同的事件进行分发，分发的逻辑在dispatchKeyLocked()

bool InputDispatcher::dispatchKeyLocked(nsecs_t currentTime, KeyEntry* entry, DropReason* dropReason, nsecs_t* nextWakeupTime) {
    ......
    //1、通过上图可以知道，事件先要寻找焦点窗口
    nt32_t injectionResult = findFocusedWindowTargetsLocked(currentTime,
            entry, inputTargets, nextWakeupTime);
    ......

    //2、当窗口就绪后，才会真正去分发事件
    dispatchEventLocked(currentTime, entry, inputTargets);
}

在分发事件之前要确保可以焦点窗口就绪，具体在findFocusedWindowTargetsLocked()

int32_t InputDispatcher::findFocusedWindowTargetsLocked(nsecs_t currentTime,
        const EventEntry* entry, Vector<InputTarget>& inputTargets, nsecs_t* nextWakeupTime) {
    ......
    //1、检测窗口是否为更多的输入操作而准备就绪
    reason = checkWindowReadyForMoreInputLocked(currentTime,
            mFocusedWindowHandle, entry, "focused");
    if (!reason.isEmpty()) {
        //2、如果未准备就绪则触发handleTargetsNotReadyLocked
        injectionResult = handleTargetsNotReadyLocked(currentTime, entry,
                mFocusedApplicationHandle, mFocusedWindowHandle, nextWakeupTime, reason.string());
        goto Unresponsive;
    }
    ......
}

窗口是否检查就绪的条件如下

String8 InputDispatcher::checkWindowReadyForMoreInputLocked(nsecs_t currentTime,
        const sp<InputWindowHandle>& windowHandle, const EventEntry* eventEntry,
        const char* targetType) {
    //当窗口暂停的情况，则保持等待
    if (windowHandle->getInfo()->paused) {
        return String8::format("Waiting because the %s window is paused.", targetType);
    }

    //当窗口连接未注册，则保持等待
    ssize_t connectionIndex = getConnectionIndexLocked(windowHandle->getInputChannel());
    if (connectionIndex < 0) {
        return String8::format("Waiting because the %s window's input channel is not "
                "registered with the input dispatcher. The window may be in the process "
                "of being removed.", targetType);
    }

    //当窗口连接已死亡，则保持等待
    sp<Connection> connection = mConnectionsByFd.valueAt(connectionIndex);
    if (connection->status != Connection::STATUS_NORMAL) {
        return String8::format("Waiting because the %s window's input connection is %s."
                "The window may be in the process of being removed.", targetType,
                connection->getStatusLabel());
    }

    // 当窗口连接已满，则保持等待
    if (connection->inputPublisherBlocked) {
        return String8::format("Waiting because the %s window's input channel is full. "
                "Outbound queue length: %d. Wait queue length: %d.",
                targetType, connection->outboundQueue.count(), connection->waitQueue.count());
    }


    if (eventEntry->type == EventEntry::TYPE_KEY) {
        // 按键事件，输出队列或事件等待队列不为空
        if (!connection->outboundQueue.isEmpty() || !connection->waitQueue.isEmpty()) {
            return String8::format("Waiting to send key event because the %s window has not "
                    "finished processing all of the input events that were previously "
                    "delivered to it. Outbound queue length: %d. Wait queue length: %d.",
                    targetType, connection->outboundQueue.count(), connection->waitQueue.count());
        }
    } else {
        // 非按键事件，事件等待队列不为空且头事件分发超时500ms
        if (!connection->waitQueue.isEmpty()
                && currentTime >= connection->waitQueue.head->deliveryTime
                        + STREAM_AHEAD_EVENT_TIMEOUT) {
            return String8::format("Waiting to send non-key event because the %s window has not "
                    "finished processing certain input events that were delivered to it over "
                    "%0.1fms ago. Wait queue length: %d. Wait queue head age: %0.1fms.",
                    targetType, STREAM_AHEAD_EVENT_TIMEOUT * 0.000001f,
                    connection->waitQueue.count(),
                    (currentTime - connection->waitQueue.head->deliveryTime) * 0.000001f);
        }
    }
    return String8::empty();
}

在检查窗口是否准备就绪时，当输出队列或事件等待队列不为空的时候，就表示有事件在等待，说明窗口未准备就绪，当未就绪时，就要处理handleTargetsNotReadyLocked()

int32_t InputDispatcher::handleTargetsNotReadyLocked(nsecs_t currentTime,
    const EventEntry* entry,
    const sp<InputApplicationHandle>& applicationHandle,
    const sp<InputWindowHandle>& windowHandle,
    nsecs_t* nextWakeupTime, const char* reason) {

    ......
    //1、当超时5s，则发生ANR
    if (currentTime >= mInputTargetWaitTimeoutTime) {
        onANRLocked(currentTime, applicationHandle, windowHandle,
                entry->eventTime, mInputTargetWaitStartTime, reason);

        *nextWakeupTime = LONG_LONG_MIN;
        return INPUT_EVENT_INJECTION_PENDING;
    } else {
        if (mInputTargetWaitTimeoutTime < *nextWakeupTime) {
            *nextWakeupTime = mInputTargetWaitTimeoutTime;
        }
        return INPUT_EVENT_INJECTION_PENDING;
    }
}

Input的例子分析

可以借助adb的命令dumpsys input来分析一些问题。执行dumpsys input后，可以看到InboundQueue，OutboundQueue，WaitQueue3个Queue的状态，以及PendingEvent的值，正常情况下都为<empty>

......
Input Dispatcher State:
  DispatchEnabled: 1
  DispatchFrozen: 0
  FocusedApplication: name='AppWindowToken{3f0c92ab token=Token{1ea37cfa ActivityRecord{235b7325 u0 com.android.launcher3/.Launcher t607}}}', dispatchingTimeout=5000.000ms
  FocusedWindow: name='Window{37886f95 u0 com.android.launcher3/com.android.launcher3.Launcher}'
  TouchStatesByDisplay:
    0: down=false, split=false, deviceId=6, source=0x00002002
      Windows: <none>
  Windows:
    ......
  PendingEvent: <none>
  InboundQueue: <empty>
  ReplacedKeys: <empty>
  Connections:
    ......
    8: channelName='37886f95 com.android.launcher3/com.android.launcher3.Launcher (server)', windowName='Window{37886f95 u0 com.android.launcher3/com.android.launcher3.Launcher}', status=NORMAL, monitor=false, inputPublisherBlocked=false
      OutboundQueue: <empty>
      WaitQueue: <empty>

    ......

通过重载dispatchTouchEvent()函数，阻塞事件的处理，来模拟ANR

override fun dispatchTouchEvent(ev: MotionEvent?): Boolean {
    Log.i(TAG, "handle event: "+ev)
    Thread.sleep(100000)
    return super.dispatchTouchEvent(ev)
}

程序运行后触屏点击一次Activity，执行adb shell dumpsys input，输出如下

PendingEvent: <none>
InboundQueue: <empty>
Connections:
  ......
  11: channelName='14a0d447 com.cy.anr/com.cy.anr.MainActivity (server)', windowName='Window{14a0d447 u0 com.cy.anr/com.cy.anr.MainActivity}', status=NORMAL, monitor=false, inputPublisherBlocked=false
      OutboundQueue: <empty>
      WaitQueue: length=3
        MotionEvent(deviceId=5, source=0x00001002, action=0, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (740.0, 75.0)]), policyFlags=0x62000000, targetFlags=0x00000105, resolvedAction=0, age=1411.8ms, wait=1411.3ms
        MotionEvent(deviceId=5, source=0x00001002, action=2, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (741.0, 80.0)]), policyFlags=0x62000000, targetFlags=0x00000105, resolvedAction=2, age=1363.3ms, wait=1363.2ms
        MotionEvent(deviceId=5, source=0x00001002, action=1, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (741.0, 80.0)]), policyFlags=0x62000000, targetFlags=0x00000105, resolvedAction=1, age=1347.2ms, wait=1347.0ms

1. 可以看到PendingEvent, InboundQueue和OutboundQueue都是空，而WaitQueue中有3个MotionEvent，分别对应action0,2,1，也就是Down,Move,Up。产生这样输出的原理是，在点击前，窗口没有在处理任何输入，因此对于down可以添加到WaitQueue。而对于Move和Up，由于是几乎同时产生和处理的，因此在判断窗口是否就绪时（当前时间是否大于WaitQueue队头500ms），发现窗口就绪，因此一并加入到了WaitQueue
2. 根据以上分析，此时，WaitQueue有元素，那么（500ms后）再次点击，往InqueueBound加入事件后，由于WaitQueue仍在处理，窗口未就绪，因此PendingEvent无法加入到WaitQueue。如果5s后再次尝试添加PendingEvent时窗口仍未就绪，则会触发ANR

再点击一次，5s后便发生ANR，看看dump输出

PendingEvent:
    MotionEvent(deviceId=5, source=0x00001002, action=0, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (716.0, 75.0)]), policyFlags=0x62000000, age=2067.0ms
InboundQueue: length=1
    MotionEvent(deviceId=5, source=0x00001002, action=1, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (716.0, 75.0)]), policyFlags=0x62000000, age=1985.6ms
Connections:
  ......
11: channelName='14a0d447 com.cy.anr/com.cy.anr.MainActivity (server)', windowName='Window{14a0d447 u0 com.cy.anr/com.cy.anr.MainActivity}', status=NORMAL, monitor=false, inputPublisherBlocked=false
      OutboundQueue: <empty>
      WaitQueue: length=2
        MotionEvent(deviceId=5, source=0x00001002, action=0, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (691.0, 62.0)]), policyFlags=0x62000000, targetFlags=0x00000105, resolvedAction=0, age=3362.6ms, wait=3362.0ms
        MotionEvent(deviceId=5, source=0x00001002, action=1, flags=0x00000000, metaState=0x00000000, buttonState=0x00000000, edgeFlags=0x00000000, xPrecision=1.0, yPrecision=1.0, displayId=0, pointers=[0: (691.0, 62.0)]), policyFlags=0x62000000, targetFlags=0x00000105, resolvedAction=1, age=3265.9ms, wait=3265.8ms

参考资料

• android input anr分析
