Faster R-CNN代码详解

代码框架

Faster RCNN --> GeneralizedRCNN --> nn.Module

Generalized RCNN

class GeneralizedRCNN(nn.Module):
    def __init__(self, backbone, rpn, roi_heads, transform):
        super(GeneralizedRCNN, self).__init__()
        self.transform = transform
        self.backbone = backbone
        self.rpn = rpn
        self.roi_heads = roi_heads
        # used only on torchscript mode
        self._has_warned = False

    @torch.jit.unused
    def eager_outputs(self, losses, detections):
        # type: (Dict[str, Tensor], List[Dict[str, Tensor]]) -> Tuple[Dict[str, Tensor], List[Dict[str, Tensor]]]
        if self.training:
            return losses

        return detections

    def forward(self, images, targets=None):
        if self.training and targets is None:
            raise ValueError("In training mode, targets should be passed")
        original_image_sizes = torch.jit.annotate(List[Tuple[int, int]], [])
        for img in images:
            val = img.shape[-2:]
            assert len(val) == 2
            original_image_sizes.append((val[0], val[1]))

        images, targets = self.transform(images, targets)
        features = self.backbone(images.tensors)
        if isinstance(features, torch.Tensor):
            features = OrderedDict([('0', features)])
        proposals, proposal_losses = self.rpn(images, features, targets)
        detections, detector_losses = self.roi_heads(features, proposals, images.image_sizes, targets)
        detections = self.transform.postprocess(detections, images.image_sizes, original_image_sizes)

        losses = {}
        losses.update(detector_losses)
        losses.update(proposal_losses)

        if torch.jit.is_scripting():
            if not self._has_warned:
                warnings.warn("RCNN always returns a (Losses, Detections) tuple in scripting")
                self._has_warned = True
            return (losses, detections)
        else:
            return self.eager_outputs(losses, detections)

对于GeneralizedRCNN由四个部分组成

• transform
• backbone
• rpn
• roi_heads

transform

transform主要做两件事：

• image: [0,255] uint8–> [-1.0, +1.0] float32
• image, targets : resize

# GeneralizedRCNN.forward(...)
for img in images:
	val = img.shape[-2:]
	assert len(val) == 2
	original_image_sizes.append((val[0], val[1]))

images, targets = self.transform(images, targets)

backbone + rpn + roi_heads

完成图像缩放之后其实才算是正式进入网络流程。接下来有4个步骤：

1. 将transform后的图像输入到backbone模块提取特征图

   # GeneralizedRCNN.forward(...)
   features = self.backbone(images.tensors)  #


2. 然后经过rpn 模块生成proposals 和proposal_losses

   # GeneralizedRCNN.forward(...)
   proposals, proposal_losses = self.rpn(images, features, targets)


3. 接着进入roi_heads模块（即 roi_pooling+ 分类）

   # GeneralizedRCNN.forward(...)
   detections, detector_losses =  self.roi_heads(features, proposals, images.image_sizes, targets)


4. 最后经transform.postprocess模块（进行 NMS，同时将box通过 original_images_size映射回原图）

   # GeneralizedRCNN.forward(...)
   detections = self.transform.postprocess(detections, images.image_sizes, original_image_sizes)


FasterRCNN

FasterRCNN 继承基类 GeneralizedRCNN， 实现了 GeneralizedRCNN 中的 transform、backbone、rpn、roi_heads 接口：

class FasterRCNN(GeneralizedRCNN):

    def __init__(self, backbone, num_classes=None,
                 # transform parameters
                 min_size=800, max_size=1333,
                 image_mean=None, image_std=None,
                 # RPN parameters
                 rpn_anchor_generator=None, rpn_head=None,
                 rpn_pre_nms_top_n_train=2000, rpn_pre_nms_top_n_test=1000,
                 rpn_post_nms_top_n_train=2000, rpn_post_nms_top_n_test=1000,
                 rpn_nms_thresh=0.7,
                 rpn_fg_iou_thresh=0.7, rpn_bg_iou_thresh=0.3,
                 rpn_batch_size_per_image=256, rpn_positive_fraction=0.5,
                 # Box parameters
                 box_roi_pool=None, box_head=None, box_predictor=None,
                 box_score_thresh=0.05, box_nms_thresh=0.5, box_detections_per_img=100,
                 box_fg_iou_thresh=0.5, box_bg_iou_thresh=0.5,
                 box_batch_size_per_image=512, box_positive_fraction=0.25,
                 bbox_reg_weights=None):

        out_channels = backbone.out_channels

        if rpn_anchor_generator is None:
            anchor_sizes = ((32,), (64,), (128,), (256,), (512,))
            aspect_ratios = ((0.5, 1.0, 2.0),) * len(anchor_sizes)
            rpn_anchor_generator = AnchorGenerator(
                anchor_sizes, aspect_ratios
            )
        if rpn_head is None:
            rpn_head = RPNHead(
                out_channels, rpn_anchor_generator.num_anchors_per_location()[0]
            )

        rpn_pre_nms_top_n = dict(training=rpn_pre_nms_top_n_train, testing=rpn_pre_nms_top_n_test)
        rpn_post_nms_top_n = dict(training=rpn_post_nms_top_n_train, testing=rpn_post_nms_top_n_test)

        rpn = RegionProposalNetwork(
            rpn_anchor_generator, rpn_head,
            rpn_fg_iou_thresh, rpn_bg_iou_thresh,
            rpn_batch_size_per_image, rpn_positive_fraction,
            rpn_pre_nms_top_n, rpn_post_nms_top_n, rpn_nms_thresh)

        roi_heads = RoIHeads(
            # Box
            box_roi_pool, box_head, box_predictor,
            box_fg_iou_thresh, box_bg_iou_thresh,
            box_batch_size_per_image, box_positive_fraction,
            bbox_reg_weights,
            box_score_thresh, box_nms_thresh, box_detections_per_img)

        if image_mean is None:
            image_mean = [0.485, 0.456, 0.406]
        if image_std is None:
            image_std = [0.229, 0.224, 0.225]
        transform = GeneralizedRCNNTransform(min_size, max_size, image_mean, image_std)

        super(FasterRCNN, self).__init__(backbone, rpn, roi_heads, transform)

transform

对于 transform 接口，使用 GeneralizedRCNNTransform 实现。从代码变量名可以明显看到包含：

• 与缩放相关参数：min_size + max_size
• 与归一化相关参数：image_mean + image_std

# FasterRCNN.__init__(...)
if image_mean is None:
    image_mean = [0.485, 0.456, 0.406]
if image_std is None:
    image_std = [0.229, 0.224, 0.225]
transform = GeneralizedRCNNTransform(min_size, max_size, image_mean, image_std)

backbone

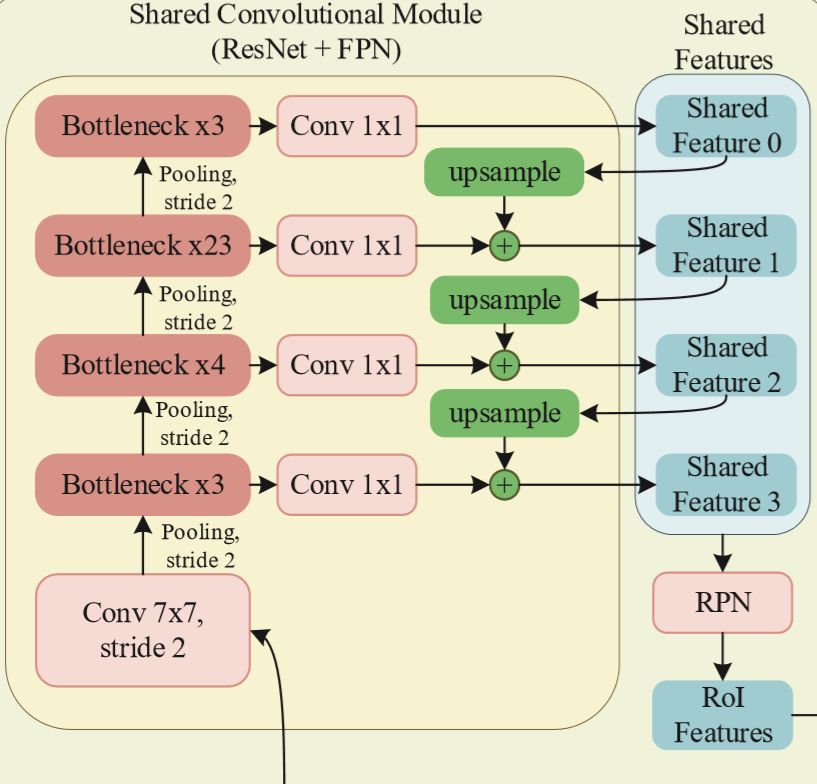

对于 backbone, Faster RCNN 使用 ResNet50 + FPN 结构：

# detection/faster_rcnn.py (291...)
def fasterrcnn_resnet50_fpn(pretrained=False, progress=True, num_classes=91, pretrained_backbone=True, **kwargs):
    if pretrained:
        # no need to download the backbone if pretrained is set
        pretrained_backbone = False
    backbone = resnet_fpn_backbone('resnet50', pretrained_backbone)
    model = FasterRCNN(backbone, num_classes, **kwargs)
    if pretrained:
        state_dict = load_state_dict_from_url(model_urls['fasterrcnn_resnet50_fpn_coco'], progress=progress)
        model.load_state_dict(state_dict)
    return model

特征提取网络，一般为 VGG、ResNet、MobileNet 等网络。

model	backbone	nick
faster RCNN	Resnet50	FPN
yolov3	Darknet53
ssd	vgg

rpn

接下来重点介绍 rpn 接口的实现

# FasterRCNN.__init__(194)
rpn = RegionProposalNetwork(
            rpn_anchor_generator, rpn_head,
            rpn_fg_iou_thresh, rpn_bg_iou_thresh,
            rpn_batch_size_per_image, rpn_positive_fraction,
            rpn_pre_nms_top_n, rpn_post_nms_top_n, rpn_nms_thresh)

首先是 rpn_anchor_generator :

• 目的: 用于生成Base-anchor
• input: 每个位置有三种长宽比(0.5, 1.0, 2.0)，以及五种sanchor_size
• output: 每个位置有15个base_anchor

# FasterRCNN.__init__(...)
if rpn_anchor_generator is None:
    anchor_sizes = ((32,), (64,), (128,), (256,), (512,))
    aspect_ratios = ((0.5, 1.0, 2.0),) * len(anchor_sizes)
    rpn_anchor_generator = AnchorGenerator(
        anchor_sizes, aspect_ratios
    )

在之前提到，由于有 FPN 网络，所以输入 rpn 的是多个特征。为了方便介绍，以下都是以某一个特征进行描述，其他特征类似。

假设有 $h\ast w$ 的特征，首先会计算这个特征相对于输入图像的下采样倍数 stride：

$$stride=\frac{image\_size}{featuresize}$$

然后生成一个 $h\ast w$ 大小的网格，每个格子长度为 stride，如下图：

# AnchorGenerator.grid_anchors(...)
shifts_x = torch.arange(0, grid_width, dtype=torch.float32, device=device) * stride_width
shifts_y = torch.arange(0, grid_height, dtype=torch.float32, device=device) * stride_height
shift_y, shift_x = torch.meshgrid(shifts_y, shifts_x)

然后将 base_anchors 的中心从 移动到网格的点，且在网格的每个点都放置一组 base_anchors。这样就在当前 feature_map 上有了很多的 anchors。

需要特别说明，stride 代表网络的感受野，网络不可能检测到比 feature_map 更密集的框了！所以才只会在网格中每个点设置 anchors（反过来说，如果在网格的两个点之间设置 anchors，那么就对应 feature_map 中半个点，显然不合理）。

放置好 anchors 后，接下来就要调整网络，使网络输出能够判断每个 anchor 是否有目标，同时还要有 bounding box regression 需要的4个值$(dx,dy,dw,dh)$ 。

class RPNHead(nn.Module):
    def __init__(self, in_channels, num_anchors):
        super(RPNHead, self).__init__()
        self.conv = nn.Conv2d(
            in_channels, in_channels, kernel_size=3, stride=1, padding=1
        )
        self.cls_logits = nn.Conv2d(in_channels, num_anchors, kernel_size=1, stride=1)
        self.bbox_pred = nn.Conv2d(
            in_channels, num_anchors * 4, kernel_size=1, stride=1
        )

    def forward(self, x):
        logits = []
        bbox_reg = []
        for feature in x:
            t = F.relu(self.conv(feature))
            logits.append(self.cls_logits(t))
            bbox_reg.append(self.bbox_pred(t))
        return logits, bbox_reg
