利用卷积神经网络对CIFAR-10数据集分类

CIFAR-10
　　该数据集共有60000张彩色图像，这些图像是32*32，分为10个类，每类6000张图。这里面有50000张用于训练，构成了5个训练批，每一批10000张图；另外10000用于测试，单独构成一批。测试批的数据里，取自10类中的每一类，每一类随机取1000张。抽剩下的就随机排列组成了训练批。注意一个训练批中的各类图像并不一定数量相同，总的来看训练批，每一类都有5000张图。
python 版本数据集下载网址：）
http://www.cs.toronto.edu/~kriz/cifar-10-python.tar.gz
下载之后加压，文件结构如下

data_batch_1到data_batch_5用于模型的训练，test_batch用于模型的验证。

下面我们使用卷积神经网络对CIFAR数据集进行分类
这里我们使用的网络结构如下：
#输入层（32，32，3）–卷积层1（32，32，32）–池化层1（16，16，32）–卷积层2（16，16，64）–池化层2（8，8，64）-全连接层-输出层
首先将数据下载，并加载进来。
代码如下：

import pickle as p

def load_batch(file):
    with open(file,'rb') as f:
        data_dict=p.load(f,encoding='bytes')
        images=data_dict[b'data']
        labels=data_dict[b'labels']
        images=images.reshape(10000,3,32,32)
        images=images.transpose(0,2,3,1)
        labels=np.array(labels)
        return images,labels

def load_data(data_dir):
    images_train=[]
    labels_train=[]
    for i in range(5):
        f=os.path.join(data_dir,'data_batch_%d'%(i+1))
        print('loading f')
        image_batch,label_batch=load_batch(f)
        images_train.append(image_batch)
        labels_train.append(label_batch)
        Xtrain=np.concatenate(images_train)
        Ytrain=np.concatenate(labels_train)
        del image_batch,label_batch
    Xtest,Ytest=load_batch(os.path.join(data_dir,'test_batch'))
    print('finishing loading data')
    return Xtrain,Ytrain,Xtest,Ytest

data_dir='data/'
Xtrain,Ytrain,Xtest,Ytest=load_data(data_dir)
print(Xtrain.shape)
print(Ytrain.shape)
print(Xtest.shape)
print(Ytest.shape)

2：数据预处理

Xtrain_norm=Xtrain.astype('float32')/255.
Xtest_norm=Xtest.astype('float32')/255.
Xtrain_norm[0][0][0]

3：将数据的标签格式改为独热编码

#独热编码
import sklearn
from sklearn.preprocessing import OneHotEncoder
encoder=OneHotEncoder(sparse=False)
yy=[[0],[1],[2],[3],[4],[5],[6],[7],[8],[9]]
encoder.fit(yy)
Y_train_reshape=Ytrain.reshape(-1,1)
Y_test_reshape=Ytest.reshape(-1,1)
Ytrain_onehot=encoder.transform(Y_train_reshape)
Ytest_onehot=encoder.transform(Y_test_reshape)

4：定义网络结构，损失函数，优化器

#输入层（32，32，3）-卷积层1（32，32，32）
#-池化层1（16，16，32）-卷积层2（16，16，64）
#-池化层2（8，8，64）-全连接层-输出层
#tf.reset_default_graph()
import tensorflow.compat.v1 as tf
tf.disable_v2_behavior()
def bias(shape):
    return tf.Variable(tf.constant(0.1,shape=shape),name='b')
def weight(shape):
    return tf.Variable(tf.truncated_normal(shape,stddev=0.1),name='w')
def conv2d(x,w):
    return tf.nn.conv2d(x,w,strides=[1,1,1,1],padding='SAME')
def max_pool(x):
    return tf.nn.max_pool(x,ksize=[1,2,2,1],strides=[1,2,2,1],padding='SAME')
with tf.name_scope('input_layer'):
    x=tf.placeholder('float',shape=[None,32,32,3],name='x')
with tf.name_scope('conv_1'):
    w1=weight([3,3,3,32])
    b1=bias([32])
    conv_1=conv2d(x,w1)+b1
    conv_1=tf.nn.relu(conv_1)
with tf.name_scope('pool_1'):
    pool_1=max_pool(conv_1)

with tf.name_scope('conv_2'):
    w2=weight([3,3,32,64])
    b2=bias([64])
    conv_2=conv2d(pool_1,w2)+b2
    conv_2=tf.nn.relu(conv_2)
with tf.name_scope('pool_2'):
    pool_2=max_pool(conv_2)
with tf.name_scope('fc'):
    w3=weight([4096,256])
    b3=bias([256])
    flat=tf.reshape(pool_2,[-1,4096])
    h=tf.nn.relu(tf.matmul(flat,w3)+b3)
    h_dropout=tf.nn.dropout(h,keep_prob=0.7)
with tf.name_scope('output'):
    w4=weight([256,10])
    b4=bias([10])
    pred=tf.nn.softmax(tf.matmul(h_dropout,w4)+b4)

with tf.name_scope('optimizer'):
    learning_rate=0.001
    y=tf.placeholder('float',shape=[None,10],name='label')
    loss_function=tf.reduce_mean(tf.nn.softmax_cross_entropy_with_logits_v2(logits=pred,labels=y))
    optimizer=tf.train.AdamOptimizer(learning_rate).minimize(loss_function)
with tf.name_scope('evaluation'):
    correct_prediction=tf.equal(tf.argmax(pred,1),tf.argmax(y,1))
    acc=tf.reduce_mean(tf.cast(correct_prediction,tf.float32))

5：启动Session,训练模型

import os
from time import time
sess=tf.Session()
init=tf.global_variables_initializer()
sess.run(init)
train_epochs=50
batch_size=100
total_batch=int(len(Xtrain)/batch_size)
epoch_list=[]
acc_list=[]
loss_list=[]
epoch=tf.Variable(0,name='epoch',trainable=False)
#定义batch读取函数
def get_train_batch(number,batch_size):
    return Xtrain_norm[number*batch_size:(number+1)*batch_size],Ytrain_onehot[number*batch_size:(number+1)*batch_size]

for ep in range(train_epochs):
    for i in range(total_batch):
        batch_x,batch_y=get_train_batch(i,batch_size)
        sess.run(optimizer,feed_dict={x:batch_x,y:batch_y})
        if i %100==0:
            print('step',i,'finished')
    loss,acc1=sess.run([loss_function,acc],feed_dict={x:batch_x,y:batch_y})
    print('epoch: ',ep,'acc: ',acc1)
    epoch_list.append(ep+1)
    loss_list.append(loss)
    acc_list.append(acc1)
print('train_finished')

训练50次，训练分类精度达到0.9；

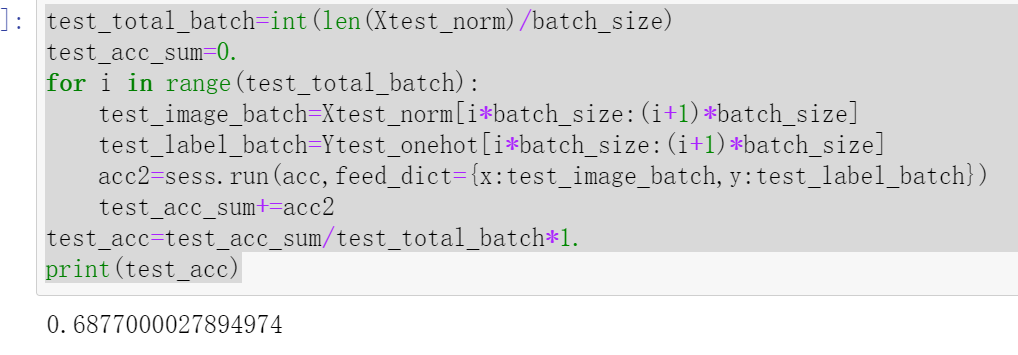

使用测试数据集进行测试,测试精度仅为0.68

test_total_batch=int(len(Xtest_norm)/batch_size)
test_acc_sum=0.
for i in range(test_total_batch):
    test_image_batch=Xtest_norm[i*batch_size:(i+1)*batch_size]
    test_label_batch=Ytest_onehot[i*batch_size:(i+1)*batch_size]
    acc2=sess.run(acc,feed_dict={x:test_image_batch,y:test_label_batch})
    test_acc_sum+=acc2
test_acc=test_acc_sum/test_total_batch*1.
print(test_acc)

训练精度和测试精度相差较大，可调整参数，比如网络结构，学习率，batch大小，训练次数等来尝试提高精度。
