初学Python，制作一个可视化的天气预报系统，完整代码如下，可自行优化界面和其他

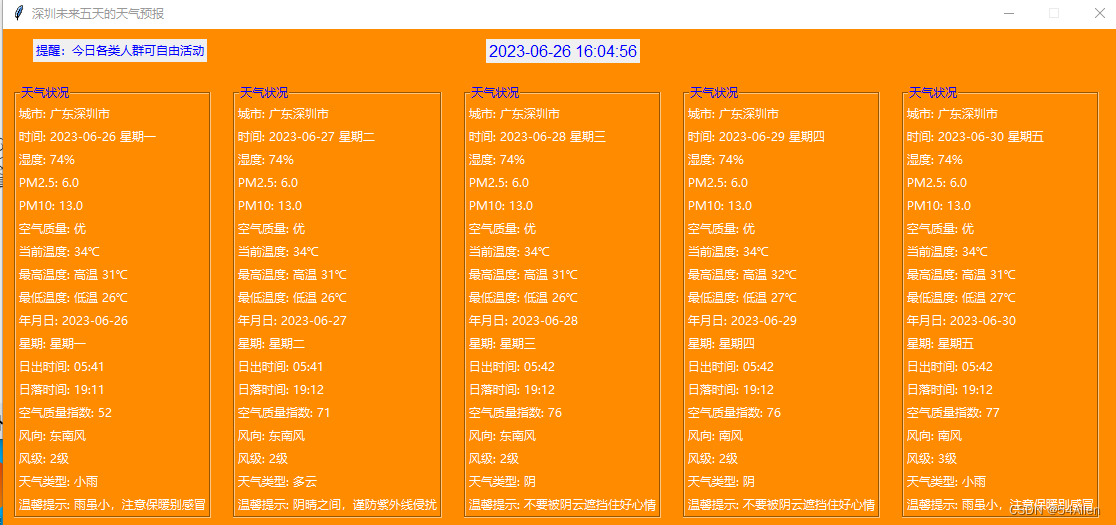

运行结果如下



 下面是完整代码，请笑纳！如果觉得该作品还行，请一键3连，谢谢！

from tkinter import *
import requests
import json
from tkinter import messagebox
import datetime
import matplotlib.pyplot as plt
import numpy as np
import warnings
warnings.filterwarnings("ignore")

root = Tk()

def main():
    root.title('天气查询系统')  # 设置窗口标题
    root.configure(bg='DarkOrange')  # 设置窗口背景颜色
    root.resizable(width=False, height=False)  # 禁止调整窗口大小
    with open("1.gif", "rb") as file:
        image0 = PhotoImage(data=file.read())# 导入图片文件
    Label(root, text='天气查询系统', fg="brown", font=20, compound='center', image=image0).grid(row=0, column=0, columnspan=2, sticky=W + E + N + S)
    Label(root, text='请输入城市', bg='DarkOrange').grid(row=1, column=0)
    Label(root, text="17-软件技术3班-学号-54Allen", fg="green", bg="yellow").place(x=125, y=5, width=162, height=20)
    enter = Entry(root)  # 创建文本输入框
    enter.grid(row=1, column=1, padx=10, pady=10)
    enter.delete(0, END)
    enter.insert(0, '深圳')
    running = 1

    def getCityCode(city):
        url = 'http://toy1.weather.com.cn/search?cityname=' + city
        try:
            r = requests.get(url, timeout=1)  # 发送HTTP GET请求
            r.raise_for_status()  # 检查请求是否成功
            if len(r.text) > 4:
                json_arr = json.loads(r.text[1:len(r.text) - 1])  # 解析JSON数据
                code = json_arr[0]['ref'][0:9]  # 获取城市代码
                return code
        except (requests.HTTPError, json.JSONDecodeError, requests.RequestException):
            messagebox.showerror("错误", "获取城市代码超时，请检查URL是否有效")
        return "000000000"

    def get_weather_data():
        city = enter.get()
        code = getCityCode(city)
        url = 'http://t.weather.sojson.com/api/weather/city/' + code
        r = requests.get(url, timeout=1)  # 发送HTTP GET请求
        try:
            r.raise_for_status()  # 检查请求是否成功
            info = r.json()  # 解析JSON数据
            formatted_data = json.dumps(info, indent=4)
            print(formatted_data)
            if info['status'] == 200:
                weather_data = []
                weather = {}
                forecast_data = info['data']['forecast']
                for forecast in forecast_data:
                    weather = {}
                    # 存储基本信息
                    weather['城市：'] = info['cityInfo']['city']
                    weather['时间：'] = forecast['ymd'] + ' ' + forecast['week']
                    weather['湿度：'] = info['data']['shidu']
                    weather['PM2.5：'] = info['data']['pm25']
                    weather['PM10：'] = info['data']['pm10']
                    weather['空气质量：'] = info['data']['quality']
                    weather['温度：'] = info['data']['wendu']
                    weather['感冒指数：'] = info['data']['ganmao']

                    # 存储预测信息
                    weather['日期：'] = forecast['date']
                    weather['最高温度：'] = forecast['high']
                    weather['最低温度：'] = forecast['low']
                    weather['年月日：'] = forecast['ymd']
                    weather['星期：'] = forecast['week']
                    weather['日出时间：'] = forecast['sunrise']
                    weather['日落时间：'] = forecast['sunset']
                    weather['空气质量指数：：'] = forecast['aqi']
                    weather['风向：'] = forecast['fx']
                    weather['风级：'] = forecast['fl']
                    weather['天气类型：'] = forecast['type']
                    weather['温馨提示：'] = forecast['notice']

                    weather_data.append(weather)

                return weather_data  # 返回正确的weather字典
            else:
                messagebox.showerror("错误", '[' + city + ']不存在！')
        except requests.Timeout:
            messagebox.showerror("错误", "服务器请求繁忙，请稍后再试！")
        except (requests.HTTPError, json.JSONDecodeError) as e:
            messagebox.showerror("错误", str(e))

    def update_current_time(label):
        current_time = datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S")  # 获取当前时间
        label.config(text=current_time)  # 更新标签的文本内容
        label.after(1000, update_current_time, label)  # 每隔1秒更新一次时间

    def show_data(weather_data, city):
        root1 = Toplevel()
        root1.geometry('1120x500')
        root1.resizable(width=False, height=False)
        root1.title(city + '未来五天的天气预报')
        root1.configure(bg='DarkOrange')  # 设置窗口背景颜色

        current_time_label = Label(root1, font=('Arial', 12), fg='blue')
        current_time_label.pack(pady=10)
        update_current_time(current_time_label)

        for weather in weather_data:
            LANGS = [
                (str(weather['城市：']), '城市'),
                (str(weather['时间：']), '时间'),
                (str(weather['湿度：']), '湿度'),
                (str(weather['PM2.5：']), 'PM2.5'),
                (str(weather['PM10：']), 'PM10'),
                (str(weather['空气质量：']), '空气质量'),
                (str(weather['温度：']+'℃'), '当前温度'),
                (str(weather['最高温度：']), '最高温度'),
                (str(weather['最低温度：']), '最低温度'),
                (str(weather['年月日：']), '年月日'),
                (weather['星期：'], '星期'),
                (str(weather['日出时间：']), '日出时间'),
                (str(weather['日落时间：']), '日落时间'),
                (str(weather['空气质量指数：：']), '空气质量指数'),
                (weather['风向：'], '风向'),
                (str(weather['风级：']), '风级'),
                (weather['天气类型：'], '天气类型'),
                (weather['温馨提示：'], '温馨提示')
            ]

            group = LabelFrame(root1, text='天气状况', padx=0, pady=0, fg="blue", bg='DarkOrange')  # 设置框架背景颜色
            group.pack(padx=11, pady=0, side=LEFT)
            for lang, value in LANGS:
                c = Label(group, text=value + ': ' + lang, bg='DarkOrange', fg='white')  # 设置标签背景颜色和文本颜色
                c.pack(anchor=W)
            Label(root1, text='提醒：今日' + weather['感冒指数：'], fg='blue').place(x=30, y=10)

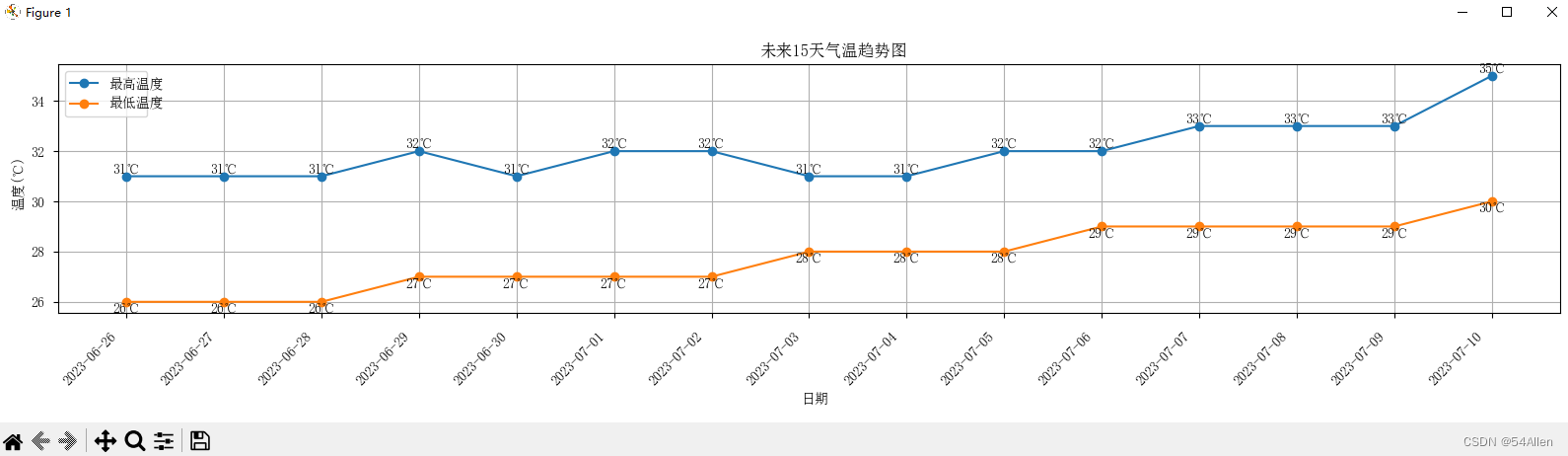

        # 绘制折线图
        dates = [weather['年月日：'] for weather in weather_data]
        high_temps = [int(weather['最高温度：'].split(' ')[1].split('℃')[0]) for weather in weather_data]
        low_temps = [int(weather['最低温度：'].split(' ')[1].split('℃')[0]) for weather in weather_data]

        plt.figure(figsize=(16, 4))
        plt.plot(dates, high_temps, marker='o', label='最高温度')
        plt.plot(dates, low_temps, marker='o', label='最低温度')
        plt.xlabel('日期')
        plt.ylabel('温度(℃)')
        plt.title('未来15天气温趋势图')
        plt.legend()
        plt.grid(True)
        plt.xticks(rotation=45, ha='right')
        plt.tight_layout()
        plt.rcParams['font.sans-serif'] = ['SimSun']
        plt.rcParams['axes.unicode_minus'] = False
        # 在每个点的位置上添加温度数值
        for date, high_temp, low_temp in zip(dates, high_temps, low_temps):
            plt.text(date, high_temp, str(high_temp) + "℃", ha='center', va='bottom')
            plt.text(date, low_temp, str(low_temp) + "℃", ha='center', va='top')

        plt.show()
        root1.mainloop()

    def button_click():
        city = enter.get()
        button1.config(state=DISABLED)  # 禁用按钮
        show_data(get_weather_data(), city)

    def destroy_windows():
        root.destroy()  # 销毁主窗口
        plt.close()

    button1 = Button(root, text="确认", width=10, command=button_click, bg='LimeGreen')
    button1.grid(row=4, column=0, sticky=W, padx=50, pady=5)
    button2 = Button(root, text='退出', width=10, command=destroy_windows, bg='LimeGreen')
    button2.grid(row=4, column=1, sticky=E, padx=50, pady=5)
    if running == 1:
        root.mainloop()

if __name__ == '__main__':
    main()

修复无法获取城市代码的问题，由于天气网更改了城市代码获取方式，之前的获取方式已经失效，请看此链接

可视化的天气预报系统-修复版-CSDN博客
