本文主要参照 Ray Tracing: The Rest of Your Life，其中只是主要精炼光追相关理论，具体实现可参照原文。
我们已经有2个pdf，一个和 cosine(θ) 相关，一个和跟光源采样相关。接下来，我们将他们结合起来生成一个混合密度。加权平均的pdf依然是一个pdf，例如：
伪代码示意：
if (random_double() < 0.5)
Pick direction according to pdf_reflection
else
Pick direction according to pdf_light
要估算pdf_mixture，就要估算 pdf_reflection 和 pdf_light，这需要知道两个值：
- 当前方向的pdf值
- 生成对应该pdf分布的随机数
接下来将pdf封装成类：
class pdf {
public:
virtual float value(const vec3& direction) const = 0; //当前方向的pdf值
virtual vec3 generate() const = 0; //生成对应该pdf分布的随机数
};
一、封装随机方向的pdf
先实现pdf_reflection，即之前和cosine(θ)相关的pdf。
class cosine_pdf : public pdf {
public:
cosine_pdf(const vec3& w) { uvw.build_from_w(w); }
virtual float value(const vec3& direction) const {
float cosine = dot(unit_vector(direction), uvw.w());
if (cosine > 0)
return cosine/M_PI;
else
return 0;
}
virtual vec3 generate() const {
return uvw.local(random_cosine_direction());
}
onb uvw;
};
修改color函数：
vec3 color(const ray& r, hittable *world, int depth) {
hit_record rec;
if (world->hit(r, 0.001, FLT_MAX, rec)) {
ray scattered;
vec3 attenuation;
//vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
vec3 emitted = rec.mat_ptr->emitted(r, rec, rec.u, rec.v, rec.p);
float pdf;
vec3 albedo;
if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
//new start
float sizeX = lightEndX - lightStartX;
float sizeZ = lightEndZ - lightStartZ;
float light_area = (lightEndX - lightStartX)*(lightEndZ - lightStartZ);
vec3 on_light = vec3(lightStartX + random_double()*sizeX,
lightY,
lightStartZ + random_double()*sizeZ);
vec3 to_light = on_light - rec.p;
float distance_squared = to_light.squared_length();
to_light.make_unit_vector();
if (dot(to_light, rec.normal) < 0) return emitted;
float light_cosine = fabs(to_light.y());
if (light_cosine < 0.000001) return emitted;
// origin
//pdf = distance_squared / (light_cosine * light_area);
//scattered = ray(rec.p, to_light, r.time());
//cosine
cosine_pdf p(rec.normal);
scattered = ray(rec.p, p.generate(), r.time());
pdf = p.value(scattered.direction());
return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
*color(scattered, world, depth + 1) / pdf;
}
else
return emitted;
}
else
return vec3(0, 0, 0);
}

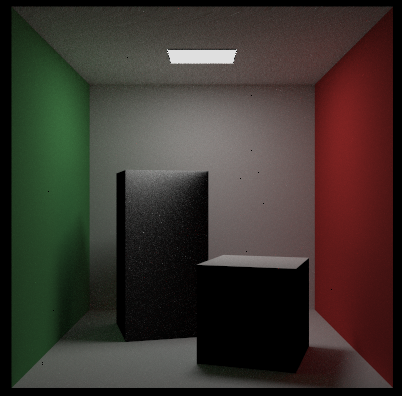

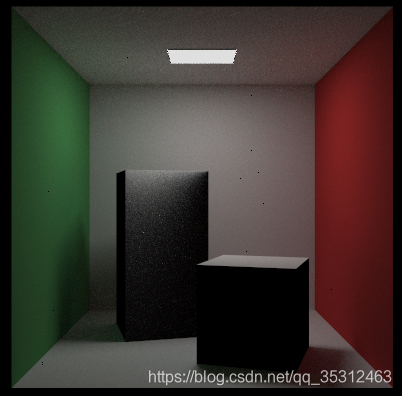

渲染效果和 【光线追踪系列十六】基于着色点的正向半球随机方向生成 中的一样：
二、封装对hittable采样的pdf
上一节我们实现了直接朝着光源方向采样的pdf，光源也是一种hittable类型。
接下来，封装hittable_pdf：
class hittable_pdf : public pdf {
public:
hittable_pdf(hittable *p, const vec3& origin) : ptr(p), o(origin) {}
virtual float value(const vec3& direction) const {
return ptr->pdf_value(o, direction);
}
virtual vec3 generate() const {
return ptr->random(o);
}
vec3 o;
hittable *ptr;
};
hittable_pdf类中声明了一个指向某个hittable的指针。
hittable基类中新增代码如下：
//物体的虚基类
class hittable
{
public:
virtual bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const = 0;
virtual bool bounding_box(float t0, float t1, aabb& box) const = 0;
virtual float pdf_value(const vec3& o, const vec3& v) const { return 0.0; }
virtual vec3 random(const vec3& o) const { return vec3(1, 0, 0); }
};
在灯光的hittable类xz_rect中实现pdf_value和random这两个方法：
class xz_rect : public hittable {
public:
xz_rect() {}
xz_rect(float _x0, float _x1, float _z0, float _z1, float _k, material *mat) :x0(_x0), x1(_x1), z0(_z0), z1(_z1), k(_k), mp(mat) {};
virtual bool hit(const ray& r, float t_min, float t_max, hit_record& rec) const override;
virtual bool bounding_box(float time0, float time1, aabb& output_box) const override {
// The bounding box must have non-zero width in each dimension, so pad the Y
// dimension a small amount.
output_box = aabb(vec3(x0, k - 0.0001, z0), vec3(x1, k + 0.0001, z1));
return true;
}
virtual float pdf_value(const vec3& o, const vec3& v) const {
hit_record rec;
if (this->hit(ray(o, v), 0.001, FLT_MAX, rec)) {
float area = (x1 - x0)*(z1 - z0);
float distance_squared = rec.t * rec.t * v.squared_length();
float cosine = fabs(dot(v, rec.normal) / v.length());
return distance_squared / (cosine * area);
}
else
return 0;
}
virtual vec3 random(const vec3& o) const {
vec3 random_point = vec3(x0 + random_double()*(x1 - x0), k,
z0 + random_double()*(z1 - z0));
return random_point - o;
}
material *mp;
double x0, x1, z0, z1, k;
};
color函数修改如下：
vec3 color(const ray& r, hittable *world, int depth) {
hit_record rec;
if (world->hit(r, 0.001, FLT_MAX, rec)) {
ray scattered;
vec3 attenuation;
//vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
vec3 emitted = rec.mat_ptr->emitted(r, rec, rec.u, rec.v, rec.p);
float pdf;
vec3 albedo;
if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
//new start
float sizeX = lightEndX - lightStartX;
float sizeZ = lightEndZ - lightStartZ;
float light_area = (lightEndX - lightStartX)*(lightEndZ - lightStartZ);
vec3 on_light = vec3(lightStartX + random_double()*sizeX,
lightY,
lightStartZ + random_double()*sizeZ);
vec3 to_light = on_light - rec.p;
float distance_squared = to_light.squared_length();
to_light.make_unit_vector();
if (dot(to_light, rec.normal) < 0) return emitted;
float light_cosine = fabs(to_light.y());
if (light_cosine < 0.000001) return emitted;
// origin
//pdf = distance_squared / (light_cosine * light_area);
//scattered = ray(rec.p, to_light, r.time());
// 1. cosine
//cosine_pdf p(rec.normal);
// 2. direction to light
hittable *light_shape = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, 0);
hittable_pdf p(light_shape, rec.p);
scattered = ray(rec.p, p.generate(), r.time());
pdf = p.value(scattered.direction());
return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
*color(scattered, world, depth + 1) / pdf;
}
else
return emitted;
}
else
return vec3(0, 0, 0);
}

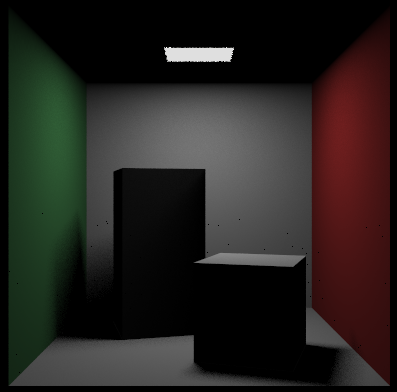

渲染效果和 【光线追踪系列十七】直接光源采样 中的一样：
效果如下：
三、混合两种密度函数
正如开头所提到的，加权平均的pdf依然是一个pdf，将上述两种pdf的权值分别设置为0.5：
class mixture_pdf : public pdf {
public:
mixture_pdf(pdf *p0, pdf *p1 ) { p[0] = p0; p[1] = p1; }
virtual float value(const vec3& direction) const {
return 0.5 * p[0]->value(direction) + 0.5 *p[1]->value(direction);
}
virtual vec3 generate() const {
if (random_double() < 0.5)
return p[0]->generate();
else
return p[1]->generate();
}
pdf *p[2];
};
color函数修改如下：
vec3 color(const ray& r, hittable *world, int depth) {
hit_record rec;
if (world->hit(r, 0.001, FLT_MAX, rec)) {
ray scattered;
vec3 attenuation;
//vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
vec3 emitted = rec.mat_ptr->emitted(r, rec, rec.u, rec.v, rec.p);
float pdf;
vec3 albedo;
if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
//new start
float sizeX = lightEndX - lightStartX;
float sizeZ = lightEndZ - lightStartZ;
float light_area = (lightEndX - lightStartX)*(lightEndZ - lightStartZ);
vec3 on_light = vec3(lightStartX + random_double()*sizeX,
lightY,
lightStartZ + random_double()*sizeZ);
vec3 to_light = on_light - rec.p;
float distance_squared = to_light.squared_length();
to_light.make_unit_vector();
if (dot(to_light, rec.normal) < 0) return emitted;
float light_cosine = fabs(to_light.y());
if (light_cosine < 0.000001) return emitted;
// origin
//pdf = distance_squared / (light_cosine * light_area);
//scattered = ray(rec.p, to_light, r.time());
// 1. cosine
//cosine_pdf p(rec.normal);
// 2. direction to light
//hittable *light_shape = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, 0);
//hittable_pdf p(light_shape, rec.p);
// 3.mixture density
hittable *light_shape = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, 0);
hittable_pdf p0(light_shape, rec.p);
cosine_pdf p1(rec.normal);
mixture_pdf p(&p0, &p1);
scattered = ray(rec.p, p.generate(), r.time());
pdf = p.value(scattered.direction());
return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
*color(scattered, world, depth + 1) / pdf;
}
else
return emitted;
}
else
return vec3(0, 0, 0);
}

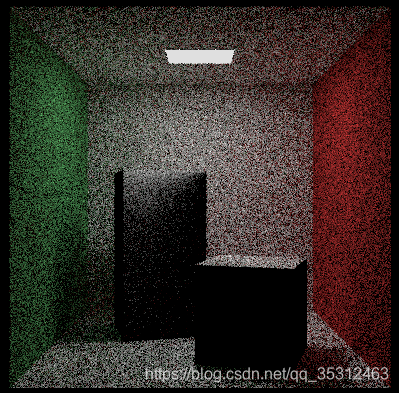

最终效果如下：
三、最终源码
/*
代码改动：
1.新增函数random_in_unit_disk()
2.修改相机类
3.修改入口函数
*/
#include "imgui.h"
#include "imgui_impl_glfw.h"
#include "imgui_impl_opengl2.h"
#include <stdio.h>
//#include <sys/time.h> // for gettimeofday()
#include <ctime>
//#include <unistd.h>
#include "vec3.h"
#include "draw.h"
#include <cstdlib>
#include <thread>
#include <fstream>
#include <vector>
#include <ctime>
#define STB_IMAGE_IMPLEMENTATION
#include "stb_image.h"
//#include <sys/time.h>
#include<string>
#ifdef __APPLE__
#define GL_SILENCE_DEPRECATION
#endif
#include <GLFW/glfw3.h>
#if defined(_MSC_VER) && (_MSC_VER >= 1900) && !defined(IMGUI_DISABLE_WIN32_FUNCTIONS)
#pragma comment(lib, "legacy_stdio_definitions")
#endif
static void glfw_error_callback(int error, const char *description)
{
fprintf(stderr, "Glfw Error %d: %s\n", error, description);
}
using namespace std;
long curTime;
long totTime;
float timeRemaining;
//全局变量
ImVec4 clear_color = ImVec4(0.0f, 0.0f, 0.00f, 1.00f);
float progressDone = 0.0f, progressDir = 1.0f;
bool gRayTracingBegin = false;
int numPixelTotal;
int numThread = 5;
int numPixelRendered = 0;
int doneRecord = 0;
int framebufferInited = false;
int gFrameFinished = false;
int *lastFrameBuffer;
int gFov = 40;
float lightStartX = 213;
float lightEndX = 343;
float lightStartZ = 227;
float lightEndZ = 332;
float lightY = 554;
//vec3 lookfrom(22, 2, 3);
//vec3 lookat(0, 2.5, 0);
vec3 lookfrom(278, 278, -800);
vec3 lookat(278, 278, 0);
float dist_to_focus = 10.0;
float aperture = 0.0;
float M_PI = 3.1415926;
static int speedFactor = 1;
#pragma region Ray
class ray
{
public:
vec3 A; //起点
vec3 B; //方向
float _time;
ray() {}
ray(const vec3 &a, const vec3 &b, float ti = 0.0f)
{
A = a;
B = b;
_time = ti;
}
float time() const { return _time; }
vec3 origin() const { return A; }
vec3 direction() const { return B; }
vec3 point_at_parameter(float t) const { return A + t * B; } //终点的坐标
};
#pragma endregion
#pragma region BVH
inline float ffmin(float a, float b) { return a < b ? a : b; }
inline float ffmax(float a, float b) { return a > b ? a : b; }
class aabb {
public:
vec3 _min; //左下角顶点
vec3 _max; //右上角顶点
aabb() {}
aabb(const vec3& a, const vec3& b) { _min = a; _max = b; }
vec3 min() const { return _min; }
vec3 max() const { return _max; }
//判断射线是否在t区间
bool hit(const ray &r, float tmin, float tmax) const
{
for (int a = 0; a < 3; a++)
{
float invD = 1.0f / r.direction()[a];
float t0 = (min()[a] - r.origin()[a]) * invD;
float t1 = (max()[a] - r.origin()[a]) * invD;
if (invD < 0.0f)
std::swap(t0, t1);
tmax = t1 < tmax ? t1 : tmax; //F为两者终点的最小值
tmin = t0 > tmin ? t0 : tmin; //f为两者起点的最大值
if (tmax <= tmin) //F <= f
return false;
}
return true;
}
};
//计算2个box的包围盒
aabb surrounding_box(aabb box0, aabb box1)
{
vec3 small(ffmin(box0.min().x(), box1.min().x()),
ffmin(box0.min().y(), box1.min().y()),
ffmin(box0.min().z(), box1.min().z()));
vec3 big(ffmax(box0.max().x(), box1.max().x()),
ffmax(box0.max().y(), box1.max().y()),
ffmax(box0.max().z(), box1.max().z()));
return aabb(small, big);
}
#pragma endregion
#pragma region obj
struct hit_record;
//class material
//{
//public:
// //r_in为入射光线, scattered为散射光线, attenuation 意思为衰减量，实际为各通道的反射率
// virtual bool scatter(const ray &r_in, const hit_record &rec, vec3 &attenuation, ray &scattered) const = 0;
// virtual vec3 emitted(float u, float v, const vec3& p) const {
// return vec3(0, 0, 0);
// }
//};
class material {
public:
virtual bool scatter(const ray& r_in,
const hit_record& rec, vec3& albedo, ray& scattered, float& pdf) const {
return false;
}
virtual float scattering_pdf(const ray& r_in, const hit_record& rec,
const ray& scattered) const {
return 0;
}
/*virtual vec3 emitted(float u, float v, const vec3& p) const {
return vec3(0, 0, 0);
}*/
virtual vec3 emitted(const ray& r_in, const hit_record& rec, float u, float v, const vec3& p) const {
return vec3(0, 0, 0);
}
};
class texture {
public:
//返回一个三通道的颜色值，p为命中终点坐标
virtual vec3 value(float u, float v, const vec3& p) const = 0;
};
class constant_texture : public texture {
public:
vec3 color;
constant_texture() { }
constant_texture(vec3 c) : color(c) { }
//返回一个三通道的color
virtual vec3 value(float u, float v, const vec3& p) const {
return color;
}
};
//棋盘纹理
class checker_texture : public texture {
public:
texture *odd;
texture *even;
checker_texture() { }
checker_texture(texture *t0, texture *t1) : even(t0), odd(t1) { }
virtual vec3 value(float u, float v, const vec3& p) const {
float sines = sin(10 * p.x())*sin(10 * p.y())*sin(10 * p.z());
if (sines < 0)
return odd->value(u, v, p);
else
return even->value(u, v, p);
}
};
//记录命中信息
struct hit_record
{
float t; //命中射线的长度
vec3 p; //命中终点坐标
vec3 normal; //命中点的法向量
material *mat_ptr; //new
float u = 1;
float v = 1;
};
#define pi 3.1415926
//物体的虚基类
class hittable
{
public:
virtual bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const = 0;
virtual bool bounding_box(float t0, float t1, aabb& box) const = 0;
virtual float pdf_value(const vec3& o, const vec3& v) const { return 0.0; }
virtual vec3 random(const vec3& o) const { return vec3(1, 0, 0); }
};
#pragma endregion
#pragma region uv
class image_texture : public texture
{
public:
unsigned char* data;
int nx, ny;
image_texture() {}
image_texture(unsigned char* pixels, int A, int B) : data(pixels), nx(A), ny(B) {}
//输入u和v，输出对应图片像素的rgb值
virtual vec3 value(float u, float v, const vec3 &p) const
{
int i = int((u)* nx);//求出像素索引
int j = int((1 - v)*ny - 0.001f);
if (i < 0) i = 0;
if (j < 0) j = 0;
if (i > nx - 1) i = nx - 1;
if (j > ny - 1) j = ny - 1;
float r = int(data[3 * i + 3 * nx*j]) / 255.0f;
float g = int(data[3 * i + 3 * nx*j + 1]) / 255.0f;
float b = int(data[3 * i + 3 * nx*j + 2]) / 255.0f;
return vec3(r, g, b);
}
};
#pragma endregion
#pragma region bvH
int box_x_compare(const void * a, const void * b) {
aabb box_left, box_right;
hittable *ah = *(hittable**)a;
hittable *bh = *(hittable**)b;
if (!ah->bounding_box(0, 0, box_left) || !bh->bounding_box(0, 0, box_right))
std::cerr << "no bounding box in bvh_node constructor\n";
if (box_left.min().x() - box_right.min().x() < 0.0)
return -1;
else
return 1;
}
int box_y_compare(const void * a, const void * b) {
aabb box_left, box_right;
hittable *ah = *(hittable**)a;
hittable *bh = *(hittable**)b;
if (!ah->bounding_box(0, 0, box_left) || !bh->bounding_box(0, 0, box_right))
std::cerr << "no bounding box in bvh_node constructor\n";
if (box_left.min().y() - box_right.min().y() < 0.0)
return -1;
else
return 1;
}
int box_z_compare(const void * a, const void * b) {
aabb box_left, box_right;
hittable *ah = *(hittable**)a;
hittable *bh = *(hittable**)b;
if (!ah->bounding_box(0, 0, box_left) || !bh->bounding_box(0, 0, box_right))
std::cerr << "no bounding box in bvh_node constructor\n";
if (box_left.min().z() - box_right.min().z() < 0.0)
return -1;
else
return 1;
}
class bvh_node : public hittable
{
public:
bvh_node() {}
hittable *left;
hittable *right;
aabb box;
bool bounding_box(float t0, float t1, aabb &b) const
{
b = box;
return true;
}
bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const
{
if (box.hit(r, t_min, t_max))
{
hit_record left_rec, right_rec;
bool hit_left = left->hit(r, t_min, t_max, left_rec);
bool hit_right = right->hit(r, t_min, t_max, right_rec);
if (hit_left && hit_right)
{
if (left_rec.t < right_rec.t)
rec = left_rec;
else
rec = right_rec;
return true;
}
else if (hit_left)
{
rec = left_rec;
return true;
}
else if (hit_right)
{
rec = right_rec;
return true;
}
else
return false;
}
else
return false;
}
bvh_node(hittable **l, int n, float time0, float time1)
{
int axis = int(3 * random_double());
if (axis == 0)
qsort(l, n, sizeof(hittable *), box_x_compare);
else if (axis == 1)
qsort(l, n, sizeof(hittable *), box_y_compare);
else
qsort(l, n, sizeof(hittable *), box_z_compare);
if (n == 1)
{
left = right = l[0];
}
else if (n == 2)
{
left = l[0];
right = l[1];
}
else
{
left = new bvh_node(l, n / 2, time0, time1);
right = new bvh_node(l + n / 2, n - n / 2, time0, time1);
}
aabb box_left, box_right;
if (!left->bounding_box(time0, time1, box_left) ||
!right->bounding_box(time0, time1, box_right))
{
std::cerr << "no bounding box in bvh_node constructor\n";
}
box = surrounding_box(box_left, box_right);
}
};
#pragma endregion
#pragma region ONE
class onb
{
public:
onb() {}
inline vec3 operator[](int i) const { return axis[i]; }
vec3 u() const { return axis[0]; }
vec3 v() const { return axis[1]; }
vec3 w() const { return axis[2]; }
vec3 local(float a, float b, float c) const { return a * u() + b * v() + c * w(); }
vec3 local(const vec3& a) const { return a.x()*u() + a.y()*v() + a.z()*w(); }
void build_from_w(const vec3&);
vec3 axis[3];
};
void onb::build_from_w(const vec3& n) {
axis[2] = unit_vector(n);
vec3 a;
if (fabs(w().x()) > 0.9)
a = vec3(0, 1, 0);
else
a = vec3(1, 0, 0);
axis[1] = unit_vector(cross(w(), a));
axis[0] = cross(w(), v());
}
#pragma endregion
#pragma region PDF
inline vec3 random_cosine_direction() {
float r1 = random_double();
float r2 = random_double();
float z = sqrt(1 - r2);
float phi = 2 * M_PI*r1;
float x = cos(phi)*sqrt(r2);
float y = sin(phi)*sqrt(r2);
return vec3(x, y, z);
}
class pdf {
public:
virtual float value(const vec3& direction) const = 0; //当前方向的pdf值
virtual vec3 generate() const = 0; //生成对应该pdf分布的随机数
};
class cosine_pdf : public pdf {
public:
cosine_pdf(const vec3& w) { uvw.build_from_w(w); }
virtual float value(const vec3& direction) const {
float cosine = dot(unit_vector(direction), uvw.w());
if (cosine > 0)
return cosine / M_PI;
else
return 0;
}
virtual vec3 generate() const {
return uvw.local(random_cosine_direction());
}
onb uvw;
};
class hittable_pdf : public pdf {
public:
hittable_pdf(hittable *p, const vec3& origin) : ptr(p), o(origin) {}
virtual float value(const vec3& direction) const {
return ptr->pdf_value(o, direction);
}
virtual vec3 generate() const {
return ptr->random(o);
}
vec3 o;
hittable *ptr;
};
class mixture_pdf : public pdf {
public:
mixture_pdf(pdf *p0, pdf *p1) { p[0] = p0; p[1] = p1; }
virtual float value(const vec3& direction) const {
return 0.5 * p[0]->value(direction) + 0.5 *p[1]->value(direction);
}
virtual vec3 generate() const {
if (random_double() < 0.5)
return p[0]->generate();
else
return p[1]->generate();
}
pdf *p[2];
};
#pragma endregion
vec3 random_in_unit_sphere()
{
vec3 p;
do
{
p = 2.0 * vec3(random_double(), random_double(), random_double()) - vec3(1, 1, 1);
} while (p.squared_length() >= 1.0);
return unit_vector(p);
}
void DrawFrame(int *fb)
{
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glOrtho(0.0, display_w, 0.0, display_h, 0.0, 1.0);
glBegin(GL_POINTS);
for (int i = 0; i < display_h; i++)
{
int r, g, b;
for (int j = 0; j < display_w; j++)
{
Color2RGB(fb[i * display_w + j], r, g, b);
glColor3f((float)r / 255, (float)g / 255, (float)b / 255);
glVertex3f(j + 20, display_h - i - 300, 0);
}
}
glEnd();
}
//记录进度和时间
void RecordProgressAndTime()
{
progressDone = float(numPixelRendered) / (numPixelTotal);
// totTime = (GetCurrentTimeMs() - curTime);
// timeRemaining = totTime * (1 - progressDone) / progressDone / 1000; //根据过去的平均时间来计算剩余时间 x/t=pTodo/pDone -> x= t*pTodo/pDone = t*(1-pDone) /pDone
}
class camera
{
public:
vec3 origin;
vec3 lower_left_corner;
vec3 horizontal;
vec3 vertical;
vec3 u, v, w;
float lens_radius;
float time0, time1;
//lookfrom为相机位置，lookat为观察位置，vup传(0,1,0)，vfov为视野角度，aspect为屏幕宽高比
//aperture为光圈大小，focus_dist为相机到观察点的距离
camera(vec3 lookfrom, vec3 lookat, vec3 vup, float vfov, float aspect, float aperture, float focus_dist, float t0, float t1)
{
time0 = t0;
time1 = t1;
lens_radius = aperture / 2;
float theta = vfov * M_PI / 180;
float half_height = tan(theta / 2);
float half_width = aspect * half_height;
origin = lookfrom;
w = unit_vector(lookfrom - lookat);
u = unit_vector(cross(vup, w));
v = cross(w, u);
lower_left_corner = origin - half_width * focus_dist * u - half_height * focus_dist * v - focus_dist * w;
horizontal = 2 * half_width * focus_dist * u;
vertical = 2 * half_height * focus_dist * v;
}
ray get_ray(float s, float t)
{
vec3 rd = lens_radius * random_in_unit_disk();
vec3 offset = u * rd.x() + v * rd.y();
float time = time0 + random_double() * (time1 - time0);
return ray(origin + offset, lower_left_corner + s * horizontal + t * vertical - origin - offset, time);
}
};
//输入命中点p的坐标，输出纹理坐标u,v
void get_sphere_uv(const vec3& p, float& u, float& v) {
auto phi = atan2(p.z(), p.x());
auto theta = asin(p.y());
u = 1 - (phi + pi) / (2 * pi);
v = (theta + pi / 2) / pi;
}
//aarect.h
class xy_rect : public hittable {
public:
xy_rect() {}
xy_rect(float _x0, float _x1, float _y0, float _y1, float _k, material *mat) : x0(_x0), x1(_x1), y0(_y0), y1(_y1), k(_k), mp(mat) {};
virtual bool hit(const ray& r, float t0, float t1, hit_record& rec) const;
virtual bool bounding_box(float t0, float t1, aabb& box) const {
box = aabb(vec3(x0, y0, k - 0.0001), vec3(x1, y1, k + 0.0001));
return true;
}
material *mp;
float x0, x1, y0, y1, k;
};
bool xy_rect::hit(const ray& r, float t0, float t1, hit_record& rec) const {
float t = (k - r.origin().z()) / r.direction().z();
if (t < t0 || t > t1) return false;
float x = r.origin().x() + t * r.direction().x();
float y = r.origin().y() + t * r.direction().y();
if (x < x0 || x > x1 || y < y0 || y > y1) return false;
rec.u = (x - x0) / (x1 - x0);
rec.v = (y - y0) / (y1 - y0);
rec.t = t;
rec.mat_ptr = mp;
rec.p = r.point_at_parameter(t);
rec.normal = vec3(0, 0, 1); //默认法线为(0,0,1)，但会有潜在的朝向问题
return true;
}
class xz_rect : public hittable {
public:
xz_rect() {}
xz_rect(float _x0, float _x1, float _z0, float _z1, float _k, material *mat) :x0(_x0), x1(_x1), z0(_z0), z1(_z1), k(_k), mp(mat) {};
virtual bool hit(const ray& r, float t_min, float t_max, hit_record& rec) const override;
virtual bool bounding_box(float time0, float time1, aabb& output_box) const override {
// The bounding box must have non-zero width in each dimension, so pad the Y
// dimension a small amount.
output_box = aabb(vec3(x0, k - 0.0001, z0), vec3(x1, k + 0.0001, z1));
return true;
}
virtual float pdf_value(const vec3& o, const vec3& v) const {
hit_record rec;
if (this->hit(ray(o, v), 0.001, FLT_MAX, rec)) {
float area = (x1 - x0)*(z1 - z0);
float distance_squared = rec.t * rec.t * v.squared_length();
float cosine = fabs(dot(v, rec.normal) / v.length());
return distance_squared / (cosine * area);
}
else
return 0;
}
virtual vec3 random(const vec3& o) const {
vec3 random_point = vec3(x0 + random_double()*(x1 - x0), k,
z0 + random_double()*(z1 - z0));
return random_point - o;
}
material *mp;
double x0, x1, z0, z1, k;
};
bool xz_rect::hit(const ray& r, float t_min, float t_max, hit_record& rec) const {
auto t = (k - r.origin().y()) / r.direction().y();
if (t < t_min || t > t_max)
return false;
auto x = r.origin().x() + t * r.direction().x();
auto z = r.origin().z() + t * r.direction().z();
if (x < x0 || x > x1 || z < z0 || z > z1)
return false;
rec.u = (x - x0) / (x1 - x0);
rec.v = (z - z0) / (z1 - z0);
rec.t = t;
rec.normal = vec3(0, 1, 0);
rec.mat_ptr = mp;
rec.p = r.point_at_parameter(t);
return true;
}
class yz_rect : public hittable {
public:
yz_rect(float _y0, float _y1, float _z0, float _z1, float _k,material *mat): y0(_y0), y1(_y1), z0(_z0), z1(_z1), k(_k), mp(mat) {};
virtual bool hit(const ray& r, float t_min, float t_max, hit_record& rec) const override;
virtual bool bounding_box(float time0, float time1, aabb& output_box) const override {
// The bounding box must have non-zero width in each dimension, so pad the X
// dimension a small amount.
output_box = aabb(vec3(k - 0.0001, y0, z0), vec3(k + 0.0001, y1, z1));
return true;
}
material *mp;
double y0, y1, z0, z1, k;
};
bool yz_rect::hit(const ray& r, float t_min, float t_max, hit_record& rec) const {
auto t = (k - r.origin().x()) / r.direction().x();
if (t < t_min || t > t_max)
return false;
auto y = r.origin().y() + t * r.direction().y();
auto z = r.origin().z() + t * r.direction().z();
if (y < y0 || y > y1 || z < z0 || z > z1)
return false;
rec.u = (y - y0) / (y1 - y0);
rec.v = (z - z0) / (z1 - z0);
rec.t = t;
rec.normal = vec3(1, 0, 0);
rec.mat_ptr = mp;
rec.p = r.point_at_parameter(t);
return true;
}
class sphere : public hittable
{
public:
vec3 center;
float radius;
material *mat_ptr; /* NEW */
sphere() {}
sphere(vec3 cen, float r, material *m) : center(cen), radius(r), mat_ptr(m) {}; //new
//如果命中了，命中记录保存到rec
virtual bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const
{
vec3 oc = r.origin() - center;
float a = dot(r.direction(), r.direction());
float b = dot(oc, r.direction());
float c = dot(oc, oc) - radius * radius;
float discriminant = b * b - a * c;
if (discriminant > 0)
{
float temp = (-b - sqrt(discriminant)) / a; //小实数根
if (temp < t_max && temp > t_min)
{
rec.t = temp;
rec.p = r.point_at_parameter(rec.t);
rec.normal = (rec.p - center) / radius;
rec.mat_ptr = mat_ptr; /* NEW */
vec3 outward_normal = (rec.p - center) / radius;
get_sphere_uv(outward_normal, rec.u, rec.v);
return true;
}
temp = (-b + sqrt(discriminant)) / a; //大实数根
if (temp < t_max && temp > t_min)
{
rec.t = temp;
rec.p = r.point_at_parameter(rec.t);
rec.normal = (rec.p - center) / radius;
rec.mat_ptr = mat_ptr; /* NEW */
vec3 outward_normal = (rec.p - center) / radius;
get_sphere_uv(outward_normal, rec.u, rec.v);
return true;
}
}
return false;
}
bool bounding_box(float t0, float t1, aabb &box) const
{
box = aabb(center - vec3(radius, radius, radius), center + vec3(radius, radius, radius));
return true;
}
};
class moving_sphere : public hittable
{
public:
vec3 center0, center1;
float time0, time1;
float radius;
material *mat_ptr; /* NEW */
vec3 center(float time) const
{
return center0 + ((time - time0) / (time1 - time0)) * (center1 - center0);
}
moving_sphere() {}
moving_sphere(
vec3 cen0, vec3 cen1, double t0, double t1, double r, material *m)
: center0(cen0), center1(cen1), time0(t0), time1(t1), radius(r), mat_ptr(m)
{};
//如果命中了，命中记录保存到rec
virtual bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const
{
vec3 oc = r.origin() - center(r.time());
float a = dot(r.direction(), r.direction());
float b = dot(oc, r.direction());
float c = dot(oc, oc) - radius * radius;
float discriminant = b * b - a * c;
if (discriminant > 0)
{
float temp = (-b - sqrt(discriminant)) / a; //小实数根
if (temp < t_max && temp > t_min)
{
rec.t = temp;
rec.p = r.point_at_parameter(rec.t);
rec.normal = (rec.p - center(r.time())) / radius;
rec.mat_ptr = mat_ptr; /* NEW */
return true;
}
temp = (-b + sqrt(discriminant)) / a; //大实数根
if (temp < t_max && temp > t_min)
{
rec.t = temp;
rec.p = r.point_at_parameter(rec.t);
rec.normal = (rec.p - center(r.time())) / radius;
rec.mat_ptr = mat_ptr; /* NEW */
return true;
}
}
return false;
}
bool bounding_box(float t0, float t1, aabb &box) const
{
aabb box0(center(t0) - vec3(radius, radius, radius), center(t0) + vec3(radius, radius, radius));
aabb box1(center(t1) - vec3(radius, radius, radius), center(t1) + vec3(radius, radius, radius));
box = surrounding_box(box0, box1);
return true;
}
};
class hittable_list : public hittable
{
public:
hittable **list;
int list_size;
hittable_list() {}
hittable_list(hittable **l, int n)
{
list = l;
list_size = n;
}
//如果命中了，命中记录保存到rec
virtual bool hit(const ray &r, float t_min, float t_max, hit_record &rec) const
{
hit_record temp_rec;
bool hit_anything = false;
double closest_so_far = t_max; //记录目前最近的t值
for (int i = 0; i < list_size; i++)
{
if (list[i]->hit(r, t_min, closest_so_far, temp_rec))
{
hit_anything = true;
closest_so_far = temp_rec.t;
rec = temp_rec; //只记录打到的最近的球
}
}
return hit_anything;
}
bool bounding_box(float t0, float t1, aabb &box) const
{
if (list_size < 1)
return false;
aabb temp_box;
bool first_true = list[0]->bounding_box(t0, t1, temp_box);
if (!first_true)
return false;
else
box = temp_box;
for (int i = 1; i < list_size; i++)
{
if (list[i]->bounding_box(t0, t1, temp_box))
{
box = surrounding_box(box, temp_box);
}
else
return false;
}
return true;
}
};
class flip_normals : public hittable {
public:
flip_normals(hittable *p) : ptr(p) {}
virtual bool hit(const ray& r, float t_min, float t_max, hit_record& rec) const {
if (ptr->hit(r, t_min, t_max, rec)) {
rec.normal = -rec.normal;
return true;
}
else
return false;
}
virtual bool bounding_box(float t0, float t1, aabb& box) const {
return ptr->bounding_box(t0, t1, box);
}
hittable *ptr;
};
class box : public hittable {
public:
box() {}
box(const vec3& p0, const vec3& p1, material *ptr);
virtual bool hit(const ray& r, float t0, float t1, hit_record& rec) const;
virtual bool bounding_box(float t0, float t1, aabb& box) const {
box = aabb(pmin, pmax);
return true;
}
vec3 pmin, pmax;
hittable *list_ptr;
};
box::box(const vec3& p0, const vec3& p1, material *ptr) {
pmin = p0;
pmax = p1;
hittable **list = new hittable*[6];
list[0] = new xy_rect(p0.x(), p1.x(), p0.y(), p1.y(), p1.z(), ptr);
list[1] = new flip_normals(new xy_rect(p0.x(), p1.x(), p0.y(), p1.y(), p0.z(), ptr));
list[2] = new xz_rect(p0.x(), p1.x(), p0.z(), p1.z(), p1.y(), ptr);
list[3] = new flip_normals(new xz_rect(p0.x(), p1.x(), p0.z(), p1.z(), p0.y(), ptr));
list[4] = new yz_rect(p0.y(), p1.y(), p0.z(), p1.z(), p1.x(), ptr);
list[5] = new flip_normals(new yz_rect(p0.y(), p1.y(), p0.z(), p1.z(), p0.x(), ptr));
list_ptr = new hittable_list(list, 6);
}
bool box::hit(const ray& r, float t0, float t1, hit_record& rec) const {
return list_ptr->hit(r, t0, t1, rec);
}
class translate : public hittable {
public:
translate(hittable *p, const vec3& displacement)
: ptr(p), offset(displacement) {}
virtual bool hit(
const ray& r, float t_min, float t_max, hit_record& rec) const;
virtual bool bounding_box(float t0, float t1, aabb& box) const;
hittable *ptr;
vec3 offset;
};
bool translate::hit(const ray& r, float t_min, float t_max, hit_record& rec) const {
ray moved_r(r.origin() - offset, r.direction(), r.time());
if (ptr->hit(moved_r, t_min, t_max, rec)) {
rec.p += offset;
return true;
}
else
return false;
}
bool translate::bounding_box(float t0, float t1, aabb& box) const {
if (ptr->bounding_box(t0, t1, box)) {
box = aabb(box.min() + offset, box.max() + offset);
return true;
}
else
return false;
}
class rotate_y : public hittable {
public:
rotate_y(hittable *p, float angle);
virtual bool hit(const ray& r, float t_min, float t_max, hit_record& rec) const;
virtual bool bounding_box(float t0, float t1, aabb& box) const {
box = bbox; return hasbox;
}
hittable *ptr;
float sin_theta;
float cos_theta;
bool hasbox;
aabb bbox;
};
rotate_y::rotate_y(hittable *p, float angle) : ptr(p) {
float radians = (M_PI / 180.) * angle;
sin_theta = sin(radians);
cos_theta = cos(radians);
hasbox = ptr->bounding_box(0, 1, bbox);
vec3 min(FLT_MAX, FLT_MAX, FLT_MAX);
vec3 max(-FLT_MAX, -FLT_MAX, -FLT_MAX);
for (int i = 0; i < 2; i++) {
for (int j = 0; j < 2; j++) {
for (int k = 0; k < 2; k++) {
float x = i * bbox.max().x() + (1 - i)*bbox.min().x();
float y = j * bbox.max().y() + (1 - j)*bbox.min().y();
float z = k * bbox.max().z() + (1 - k)*bbox.min().z();
float newx = cos_theta * x + sin_theta * z;
float newz = -sin_theta * x + cos_theta * z;
vec3 tester(newx, y, newz);
for (int c = 0; c < 3; c++)
{
if (tester[c] > max[c])
max[c] = tester[c];
if (tester[c] < min[c])
min[c] = tester[c];
}
}
}
}
bbox = aabb(min, max);
}
bool rotate_y::hit(const ray& r, float t_min, float t_max, hit_record& rec) const {
vec3 origin = r.origin();
vec3 direction = r.direction();
origin[0] = cos_theta * r.origin()[0] - sin_theta * r.origin()[2];
origin[2] = sin_theta * r.origin()[0] + cos_theta * r.origin()[2];
direction[0] = cos_theta * r.direction()[0] - sin_theta * r.direction()[2];
direction[2] = sin_theta * r.direction()[0] + cos_theta * r.direction()[2];
ray rotated_r(origin, direction, r.time());
if (ptr->hit(rotated_r, t_min, t_max, rec)) {
vec3 p = rec.p;
vec3 normal = rec.normal;
p[0] = cos_theta * rec.p[0] + sin_theta * rec.p[2]; //命中点坐标需要旋转
p[2] = -sin_theta * rec.p[0] + cos_theta * rec.p[2];
normal[0] = cos_theta * rec.normal[0] + sin_theta * rec.normal[2]; //命中点法线也要旋转
normal[2] = -sin_theta * rec.normal[0] + cos_theta * rec.normal[2];
rec.p = p;
rec.normal = normal;
return true;
}
else
return false;
}
//class lambertian : public material
//{
//public:
// texture *albedo; //反射率
// lambertian(texture *a) : albedo(a) {}
// virtual bool scatter(const ray &r_in, const hit_record &rec, vec3 &attenuation, ray &scattered) const
// {
// vec3 s_world = rec.p + rec.normal + random_in_unit_sphere();
// scattered = ray(rec.p, s_world - rec.p, r_in.time()); //scattered为散射光线
// attenuation = albedo->value(rec.u, rec.v, rec.p); //注意这是各通道的反射率！
// //attenuation = vec3(1, 0, 0); //注意这是各通道的反射率！
// return true;
// }
//};
class lambertian : public material {
public:
lambertian(texture *a) : albedo(a) {}
float scattering_pdf(const ray& r_in,
const hit_record& rec, const ray& scattered) const {
float cosine = dot(rec.normal, unit_vector(scattered.direction()));
if (cosine < 0)
return 0;
return cosine / M_PI;
}
//origin
//bool scatter(const ray& r_in,
// const hit_record& rec, vec3& alb, ray& scattered, float& pdf) const {
// vec3 target = rec.p + rec.normal + random_in_unit_sphere();
// scattered = ray(rec.p, unit_vector(target-rec.p), r_in.time());
// alb = albedo->value(rec.u, rec.v, rec.p);
// pdf = dot(rec.normal, scattered.direction()) / M_PI;
// return true;
//}
//pdf
//bool scatter(const ray& r_in,
// const hit_record& rec, vec3& alb, ray& scattered, float& pdf) const {
// vec3 direction;
// do {
// direction = random_in_unit_sphere();
// } while (dot(direction, rec.normal) < 0);
// scattered = ray(rec.p, unit_vector(direction), r_in.time());
// alb = albedo->value(rec.u, rec.v, rec.p);
// pdf = 0.5 / M_PI;
// return true;
//}
//random_cosine_direction
bool scatter(const ray& r_in, const hit_record& rec, vec3& alb, ray& scattered, float& pdf) const
{
onb uvw;
uvw.build_from_w(rec.normal);
vec3 direction = uvw.local(random_cosine_direction());
scattered = ray(rec.p, unit_vector(direction), r_in.time());
alb = albedo->value(rec.u, rec.v, rec.p);
pdf = dot(uvw.w(), scattered.direction()) / M_PI;
return true;
}
texture *albedo;
};
class metal : public material
{
public:
vec3 albedo;
float fuzz;
metal(const vec3 &a, float f) : albedo(a)
{
fuzz = f < 1 ? f : 1;
}
virtual bool scatter(const ray &r_in, const hit_record &rec, vec3 &attenuation, ray &scattered) const
{
vec3 v = unit_vector(r_in.direction());
vec3 n = rec.normal;
vec3 p = rec.p;
vec3 r = reflect(v, n);
vec3 offset = fuzz * random_in_unit_sphere();
scattered = ray(p, r + offset);
attenuation = albedo;
return (dot(scattered.direction(), rec.normal) > 0);
}
};
class dielectric : public material
{
public:
dielectric(float ri) : ref_idx(ri) {} //n2/n1
virtual bool scatter(const ray &r_in, const hit_record &rec, vec3 &attenuation, ray &scattered) const
{
vec3 outward_normal;
vec3 reflected = reflect(r_in.direction(), rec.normal);
float ni_over_nt;
attenuation = vec3(1.0, 1.0, 1.0);
vec3 refracted;
float reflect_prob; //反射概率
float cosine;
if (dot(r_in.direction(), rec.normal) > 0) //从里到外，即入射向量在法向量另外一侧的情况
{
outward_normal = -rec.normal; //对法向量取反
ni_over_nt = ref_idx;
cosine = ref_idx * dot(r_in.direction(), rec.normal) / r_in.direction().length();
//不知道为什么这里要乘一个ref_idx
}
else //从外到里，即入射向量在法向量同一侧
{
outward_normal = rec.normal; //法向量不变
ni_over_nt = 1.0 / ref_idx;
cosine = -dot(r_in.direction(), rec.normal) / r_in.direction().length();
}
if (refract(r_in.direction(), outward_normal, ni_over_nt, refracted))
{
reflect_prob = schlick(cosine, ref_idx);
}
else //若无折射，则全反射
{
reflect_prob = 1.0;
}
if (random_double() < reflect_prob)
{
scattered = ray(rec.p, reflected);
}
else
{
scattered = ray(rec.p, refracted);
}
return true;
}
float ref_idx;
};
//material.h
class diffuse_light : public material {
public:
texture *emit;
diffuse_light(texture *a) : emit(a) {}
virtual bool scatter(const ray& r_in, const hit_record& rec, vec3& attenuation, ray& scattered) const {
return false;
}
virtual vec3 emitted(const ray& r_in, const hit_record& rec, float u, float v, const vec3& p) const {
if (dot(rec.normal, r_in.direction()) >= 0.0)
return emit->value(u, v, p);
else
return vec3(0, 0, 0);
}
/*virtual vec3 emitted(float u, float v, const vec3& p) const {
return emit->value(u, v, p);
}*/
};
//发射一条射线，并采样该射线最终输出到屏幕的颜色值值
//vec3 color(const ray &r, hittable *world, int depth) {
// hit_record rec;
// if (world->hit(r, 0.001, FLT_MAX, rec)) //射线命中物体
// {
// ray scattered; //散射光线
// vec3 attenuation; //其实是反射率！
// if (depth < 66 && rec.mat_ptr->scatter(r, rec, attenuation, scattered))
// {
// return attenuation * color(scattered, world, depth + 1);
// }
// else
// {
// return vec3(0, 0, 0);
// }
// }
// else
// {
// vec3 unit_direction = unit_vector(r.direction());
// float t = 0.5 * (unit_direction.y() + 1.0);
// return (1.0 - t) * vec3(1.0, 1.0, 1.0) + t * vec3(0.5, 0.7, 1.0);
// }
//}
//vec3 color(const ray& r, hittable *world, int depth) {
// hit_record rec;
// if (world->hit(r, 0.001, FLT_MAX, rec)) {
// ray scattered;
// vec3 attenuation;
// vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
// if (depth < 50 && rec.mat_ptr->scatter(r, rec, attenuation, scattered))
// return emitted + attenuation * color(scattered, world, depth + 1);
// else
// return emitted;
// }
// else
// return vec3(0, 0, 0);
//}
//pdf
//vec3 color(const ray& r, hittable *world, int depth) {
// hit_record rec;
// if (world->hit(r, 0.001, FLT_MAX, rec)) {
// ray scattered;
// vec3 attenuation;
// vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
// float pdf;
// vec3 albedo;
// if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
// return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
// *color(scattered, world, depth + 1) / pdf;
// }
// else
// return emitted;
// }
// else
// return vec3(0, 0, 0);
//}
//light
//vec3 color(const ray& r, hittable *world, int depth) {
// hit_record rec;
// if (world->hit(r, 0.001, FLT_MAX, rec)) {
// ray scattered;
// vec3 attenuation;
// //vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
// vec3 emitted = rec.mat_ptr->emitted(r, rec, rec.u, rec.v, rec.p);
// float pdf;
// vec3 albedo;
// if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
//
// //new start
// float sizeX = lightEndX - lightStartX;
// float sizeZ = lightEndZ - lightStartZ;
// float light_area = (lightEndX - lightStartX)*(lightEndZ - lightStartZ);
// vec3 on_light = vec3(lightStartX + random_double()*sizeX,
// lightY,
// lightStartZ + random_double()*sizeZ);
// vec3 to_light = on_light - rec.p;
// float distance_squared = to_light.squared_length();
// to_light.make_unit_vector();
// if (dot(to_light, rec.normal) < 0) return emitted;
// float light_cosine = fabs(to_light.y());
// if (light_cosine < 0.000001) return emitted;
// pdf = distance_squared / (light_cosine * light_area);
// scattered = ray(rec.p, to_light, r.time());
// //new end
//
// return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
// *color(scattered, world, depth + 1) / pdf;
// }
// else
// return emitted;
// }
// else
// return vec3(0, 0, 0);
//}
vec3 color(const ray& r, hittable *world, int depth) {
hit_record rec;
if (world->hit(r, 0.001, FLT_MAX, rec)) {
ray scattered;
vec3 attenuation;
//vec3 emitted = rec.mat_ptr->emitted(rec.u, rec.v, rec.p);
vec3 emitted = rec.mat_ptr->emitted(r, rec, rec.u, rec.v, rec.p);
float pdf;
vec3 albedo;
if (depth < 50 && rec.mat_ptr->scatter(r, rec, albedo, scattered, pdf)) {
//new start
float sizeX = lightEndX - lightStartX;
float sizeZ = lightEndZ - lightStartZ;
float light_area = (lightEndX - lightStartX)*(lightEndZ - lightStartZ);
vec3 on_light = vec3(lightStartX + random_double()*sizeX,
lightY,
lightStartZ + random_double()*sizeZ);
vec3 to_light = on_light - rec.p;
float distance_squared = to_light.squared_length();
to_light.make_unit_vector();
if (dot(to_light, rec.normal) < 0) return emitted;
float light_cosine = fabs(to_light.y());
if (light_cosine < 0.000001) return emitted;
// origin
//pdf = distance_squared / (light_cosine * light_area);
//scattered = ray(rec.p, to_light, r.time());
// 1. cosine
//cosine_pdf p(rec.normal);
// 2. direction to light
//hittable *light_shape = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, 0);
//hittable_pdf p(light_shape, rec.p);
// 3.mixture density
hittable *light_shape = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, 0);
hittable_pdf p0(light_shape, rec.p);
cosine_pdf p1(rec.normal);
mixture_pdf p(&p0, &p1);
scattered = ray(rec.p, p.generate(), r.time());
pdf = p.value(scattered.direction());
return emitted + albedo * rec.mat_ptr->scattering_pdf(r, rec, scattered)
*color(scattered, world, depth + 1) / pdf;
}
else
return emitted;
}
else
return vec3(0, 0, 0);
}
class perlin {
public:
float noise(const vec3& p) const {
int i = (int)floor(p.x()) & 255;
int j = (int)floor(p.y()) & 255;
int k = (int)floor(p.z()) & 255;
// return ranfloat[perm_x[i] ^ perm_y[j] ^ perm_z[k]];
return get_ranfloat(i, j, k);
}
float get_ranfloat(int x, int y, int z) const {
return ranfloat[perm_x[x & 255] ^ perm_y[y & 255] ^ perm_z[z & 255]];
}
static float *ranfloat;
static int *perm_x;
static int *perm_y;
static int *perm_z;
};
static float* perlin_generate() {
float * p = new float[256];
for (int i = 0; i < 256; ++i)
p[i] = random_double();
return p;
}
void permute(int *p, int n) {
for (int i = n - 1; i > 0; i--) {
int target = int(random_double()*(i + 1));
int tmp = p[i];
p[i] = p[target];
p[target] = tmp;
}
return;
}
static int* perlin_generate_perm() {
int * p = new int[256];
for (int i = 0; i < 256; i++)
p[i] = i;
permute(p, 256);
return p;
}
float *perlin::ranfloat = perlin_generate();
int *perlin::perm_x = perlin_generate_perm();
int *perlin::perm_y = perlin_generate_perm();
int *perlin::perm_z = perlin_generate_perm();
class noise_texture : public texture {
public:
noise_texture() {}
virtual vec3 value(float u, float v, const vec3& p) const {
return vec3(1, 1, 1) * noise.noise(p);
}
perlin noise;
};
//hittable *random_scene() {
// int n = 500;
// texture *pertext = new noise_texture();
// hittable **list = new hittable*[n + 1];
// list[0] = new sphere(vec3(0, -1000, 0), 1000, new lambertian(new constant_texture(vec3(0.5, 0.5, 0.5))));
// texture *checker = new checker_texture(new constant_texture(vec3(0.2, 0.3, 0.1)), new constant_texture(vec3(0.9, 0.9, 0.9)));
// list[0] = new sphere(vec3(0, -1000, 0), 1000, new lambertian(checker));
// int i = 1;
// //list[0] = new sphere(vec3(0, -1000, 0), 1000, new lambertian(pertext));
// //list[i++] = new sphere(vec3(5, 1, 0), 1.0, new lambertian(pertext));
// for (int a = -11; a < 11; a++) {
// for (int b = -11; b < 11; b++) {
// float choose_mat = random_double();
// vec3 center(a + 0.9*random_double(), 0.2, b + 0.9*random_double());
// if ((center - vec3(4, 0.2, 0)).length() > 0.9) {
// if (choose_mat < 0.8) { // diffuse
// if (b % 2 == 0) //动态模糊的球体
// {
// auto center2 = center + vec3(0, random_double(), 0);
// list[i++] = new moving_sphere(center, center2, 0.0, 1.0, 0.2,
// new lambertian(new constant_texture(vec3(random_double()*random_double(),
// random_double()*random_double(),
// random_double()*random_double()))
// )
// );
// }
// else
// {
// list[i++] = new sphere(center, 0.2,
// new lambertian(new constant_texture(vec3(random_double()*random_double(),
// random_double()*random_double(),
// random_double()*random_double()))
// )
// );
// }
// }
// else if (choose_mat < 0.95) { // metal
// list[i++] = new sphere(center, 0.2,
// new metal(vec3(0.5*(1 + random_double()),
// 0.5*(1 + random_double()),
// 0.5*(1 + random_double())),
// 0.5*random_double()));
// }
// else { // glass
// list[i++] = new sphere(center, 0.2, new dielectric(1.5));
// }
// }
// }
// }
//
// int nx, ny, nn;
// unsigned char *earthmapjpg = stbi_load("F://earthmap.jpg", &nx, &ny, &nn, 0);
// material *earthmapJpg = new lambertian(new image_texture(earthmapjpg, nx, ny));
// unsigned char *Cristiano = stbi_load("F://Cristiano.jpg", &nx, &ny, &nn, 0);
// material *CristianoJpg = new lambertian(new image_texture(Cristiano, nx, ny));
// unsigned char *earthmappng = stbi_load("F://earthmap.png", &nx, &ny, &nn, 0);
// material *earthmapPng = new lambertian(new image_texture(earthmappng, nx, ny));
//
// list[i++] = new sphere(vec3(5, 1, 0), 1.0, earthmapJpg);
// list[i++] = new sphere(vec3(0, 1, 0), 1.0, CristianoJpg);
// list[i++] = new sphere(vec3(-5, 1, 0), 1.0, earthmapPng);
// list[i++] = new sphere(vec3(5, 0.35, 4), 0.35, new dielectric(1.2));
// list[i++] = new sphere(vec3(0, 0.4, 3), 0.4, new lambertian(new constant_texture(vec3(0.0, 1.0, 1.0))));
// list[i++] = new sphere(vec3(-6, 0.5, 2), 0.5, new metal(vec3(0.8, 0.8, 0.8), 0.1));
//
// //return new hittable_list(list, i);
// return new bvh_node(list, i, 0.0, 1.0);
//}
hittable *random_scene1() {
texture *pertext = new noise_texture();
hittable **list = new hittable*[4];
int i = 0;
list[i++] = new sphere(vec3(0, -1000, 0), 1000, new lambertian(new constant_texture(vec3(0.7, 0.5, 0.3))));
int nx, ny, nn;
unsigned char *Cristiano = stbi_load("F://Cristiano.jpg", &nx, &ny, &nn, 0);
material *CristianoJpg = new lambertian(new image_texture(Cristiano, nx, ny));
//list[i++] = new sphere(vec3(0, 2, 0), 2, new lambertian(pertext));
list[i++] = new sphere(vec3(0, 2, 0), 2, CristianoJpg);
list[i++] = new sphere(vec3(0, 6, 0), 1, new diffuse_light(new constant_texture(vec3(4, 4, 4))));
list[i++] = new xy_rect(3, 5, 1, 3, -2, new diffuse_light(new constant_texture(vec3(4, 4, 4))));
//return new hittable_list(list, i);
return new bvh_node(list, i, 0.0, 1.0);
}
hittable *random_scene() {
//cam.SetCamParams(vec3(278, 278, -800), vec3(278, 278, 0), vec3(0, 1, 0), 40, float(nx) / float(ny), 0.0, 10.0, 0.0, 1.0);
hittable **list = new hittable*[8];
int i = 0;
material *red = new lambertian(new constant_texture(vec3(0.65, 0.05, 0.05)));
material *white = new lambertian(new constant_texture(vec3(0.73, 0.73, 0.73)));
material *green = new lambertian(new constant_texture(vec3(0.12, 0.45, 0.15)));
material *light = new diffuse_light(new constant_texture(vec3(15, 15, 15)));
list[i++] = new flip_normals(new yz_rect(0, 555, 0, 555, 555, green));
list[i++] = new yz_rect(0, 555, 0, 555, 0, red);
//list[i++] = new xz_rect(213, 343, 227, 332, 554, light);
list[i++] = new xz_rect(lightStartX, lightEndX, lightStartZ, lightEndZ, lightY, light);
list[i++] = new flip_normals(new xz_rect(0, 555, 0, 555, 555, white));
list[i++] = new xz_rect(0, 555, 0, 555, 0, white);
list[i++] = new flip_normals(new xy_rect(0, 555, 0, 555, 555, white));
//list[i++] = new box(vec3(130, 0, 65), vec3(295, 165, 230), white);
//list[i++] = new box(vec3(265, 0, 295), vec3(430, 330, 460), white);
hittable *box1 = new box(vec3(0, 0, 0), vec3(165, 165, 165), white);
hittable *box2 = new box(vec3(0, 0, 0), vec3(165, 330, 165), white);
list[i++] = new translate(new rotate_y(box1, -18), vec3(130, 0, 65));
list[i++] = new translate(new rotate_y(box2, 15), vec3(265, 0, 295));
//int nn;
//unsigned char *Cristiano = stbi_load("F://Cristiano.jpg", &nx, &ny, &nn, 0);
//material *CristianoJpg = new lambertian(new image_texture(Cristiano, nx, ny));
list[i++] = new sphere(vec3(0, 2, 0), 2, new lambertian(pertext));
//list[i++] = new sphere(vec3(200, 130, 330), 130, CristianoJpg);
return new bvh_node(list, i, 0.0, 1.0);
}
hittable *world;
void RayTracingInOneThread(int k)
{
float R = cos(M_PI / 4);
// list[0] = new sphere(vec3(-R, 0, -1), R, new lambertian(vec3(0, 0, 1)));
// list[1] = new sphere(vec3(R, 0, -1), R, new lambertian(vec3(1, 0, 0)));
// world = new hittable_list(list, 2);
// list[0] = new sphere(vec3(0, 0, -1), 0.5, new lambertian(vec3(0.8, 0.3, 0.3)));
// list[1] = new sphere(vec3(0, -100.5, -1), 100, new lambertian(vec3(0.1/2, 0.2/2, 0.5/2)));
// list[2] = new sphere(vec3(1, 0, -1), 0.5, new metal(vec3(0.8, 0.6, 0.2), 0.3));
// list[3] = new sphere(vec3(-1, 0, -1), 0.5, new dielectric(1.5));
// world = new hittable_list(list, 4);
// camera cam(vec3(-2, 2, 1), vec3(-0.5, 0, -1), vec3(0, 1, 0), gFov, float(nx) / float(ny));
camera cam(lookfrom, lookat, vec3(0, 1, 0), 40, float(nx) / float(ny), aperture, dist_to_focus, 0, 1.0);
for (int j = ny - k; j >= 0; j -= numThread)
{
for (int i = 0; i < nx; i++)
{
RecordProgressAndTime();
vec3 col(0, 0, 0);
for (int s = 0; s < ns; s++)
{
float u = float(i + random_double()) / float(nx);
float v = float(j + random_double()) / float(ny);
ray r = cam.get_ray(u, v);
col += color(r, world, 0);
}
col /= float(ns);
col = vec3(sqrt(col[0]), sqrt(col[1]), sqrt(col[2]));
int ir = int(255.99 * col[0]);
int ig = int(255.99 * col[1]);
int ib = int(255.99 * col[2]);
DrawPixel(i, j, ir, ig, ib);
numPixelRendered++;
}
}
}
void RayTracing()
{
nx = 600;
ny = 400;
ns = 1000;
// hittable *world = random_scene();
world = random_scene();
numPixelTotal = nx * ny;
while (true)
{
while (!gRayTracingBegin)
{
//wait until begin
}
// curTime = GetCurrentTimeMs();
gFrameFinished = false;
if (!framebufferInited)
{
framebuffer = new int[display_w * display_h];
lastFrameBuffer = new int[display_w * display_h];
for (int i = 0; i < display_h * display_w; i++)
{
lastFrameBuffer[i] = 0;
}
framebufferInited = true;
}
numPixelRendered = 0;
ofstream outFile("output_" + to_string(nx) + "x" + to_string(ny) + ".ppm");
outFile << "P3\n"
<< nx << " " << ny << "\n255\n";
vector<thread> threads;
for (int k = 0; k < numThread; k++)
{
threads.push_back(thread(RayTracingInOneThread, k));
}
for (auto &thread : threads)
{
thread.join();
}
gFrameFinished = true;
Framebuffer2File(nx, ny, ns, framebuffer, outFile, progressDone);
for (int i = 0; i < display_h*display_w; i++)
{
lastFrameBuffer[i] = framebuffer[i];
}
gRayTracingBegin = false;
}
return;
}
vec3 random_on_unit_sphere() {
vec3 p;
do {
p = 2.0*vec3(random_double(), random_double(), random_double()) - vec3(1, 1, 1);
} while (dot(p, p) >= 1.0);
return unit_vector(p);
}
inline float pdf(const vec3& p) {
return 1 / (4 * M_PI);
}
int main(int, char **)
{
int N = 1000000;
float sum=0;
for (int i = 0; i < N; i++) {
vec3 d = random_on_unit_sphere();
float cosine_squared = d.z()*d.z();
sum += cosine_squared / pdf(d);
}
std::cout << "I =" << sum / N << "\n";
totTime = 0;
#ifdef __APPLE__
glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE);
#endif
thread t(RayTracing);
// Setup window
glfwSetErrorCallback(glfw_error_callback);
if (!glfwInit())
return 1;
GLFWwindow *window = glfwCreateWindow(1800, 900, "Ray Tracing", NULL, NULL);
if (window == NULL)
return 1;
glfwMakeContextCurrent(window);
glfwSwapInterval(1); // Enable vsync
// Setup Dear ImGui context
IMGUI_CHECKVERSION();
ImGui::CreateContext();
ImGuiIO &io = ImGui::GetIO();
(void)io;
// Setup Dear ImGui style
ImGui::StyleColorsDark();
// Setup Platform/Renderer bindings
ImGui_ImplGlfw_InitForOpenGL(window, true);
ImGui_ImplOpenGL2_Init();
// Our state
bool show_demo_window = true;
bool show_another_window = false;
// Main loop
while (!glfwWindowShouldClose(window))
{
glfwPollEvents();
// Start the Dear ImGui frame
ImGui_ImplOpenGL2_NewFrame();
ImGui_ImplGlfw_NewFrame();
ImGui::NewFrame();
// 1. Show the big demo window (Most of the sample code is in ImGui::ShowDemoWindow()! You can browse its code to learn more about Dear ImGui!).
if (show_demo_window)
ImGui::ShowDemoWindow(&show_demo_window);
// 2. Show a simple window that we create ourselves. We use a Begin/End pair to created a named window.
{
static float f = 0.0f;
static int counter = 0;
ImGui::Begin("Ray Tracing"); // Create a window called "Hello, world!" and append into it.
if (ImGui::Button("Start")) // Buttons return true when clicked (most widgets return true when edited/activated)
{
gRayTracingBegin = true;
}
ImGui::ProgressBar(progressDone, ImVec2(0.0f, 0.0f));
// ImGui::SameLine(0.0f, ImGui::GetStyle().ItemInnerSpacing.x);
ImGui::InputInt(" speed", &speedFactor);
// ImGui::SameLine();
ImGui::Text("Thread Num: %d ", numThread);
ImGui::Text("Image Size: %d x %d ", nx, ny);
ImGui::Text("Camera fov: %d ", gFov);
ImGui::Text("Camera aperture: %.3f ", (float)aperture);
ImGui::Text("Camera dist to focus: %.3f ", (float)dist_to_focus);
// ImGui::Text("Progress Bar");
ImGui::Text("Total time %.3f s", (float)totTime / 1000);
ImGui::Text("timeRemaining time %.3f s", timeRemaining);
ImGui::End();
}
// 3. Show another simple window.
if (show_another_window)
{
ImGui::Begin("Another Window", &show_another_window); // Pass a pointer to our bool variable (the window will have a closing button that will clear the bool when clicked)
ImGui::Text("Hello from another window!");
if (ImGui::Button("Close Me"))
show_another_window = false;
ImGui::End();
}
ImGui::Render();
glfwGetFramebufferSize(window, &display_w, &display_h);
glViewport(0, 0, display_w, display_h);
glClearColor(0.0f, 0.0f, 0.00f, 1.00f);
glClear(GL_COLOR_BUFFER_BIT);
if (framebufferInited)
{
if (gFrameFinished)
{
DrawFrame(framebuffer);
}
else
{
// DrawFrame(lastFrameBuffer);
DrawFrame(framebuffer);
}
// DrawFrame(framebuffer);
}
ImGui_ImplOpenGL2_RenderDrawData(ImGui::GetDrawData());
glfwMakeContextCurrent(window);
glfwSwapBuffers(window);
}
// Cleanup
ImGui_ImplOpenGL2_Shutdown();
ImGui_ImplGlfw_Shutdown();
ImGui::DestroyContext();
glfwDestroyWindow(window);
glfwTerminate();
return 0;
}
2万+
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
