高级光照_阴影原理概述
阴影是光线被阻挡的结果；当一个光源的光线由于其他物体的阻挡不能够达到一个物体的表面的时候，那么这个物体就在阴影中了。阴影能够使场景看起来真实得多，并且可以让观察者获得物体之间的空间位置关系。场景和物体的深度感因此能够得到极大提升，下图展示了没有阴影和有阴影的情况下的不同：

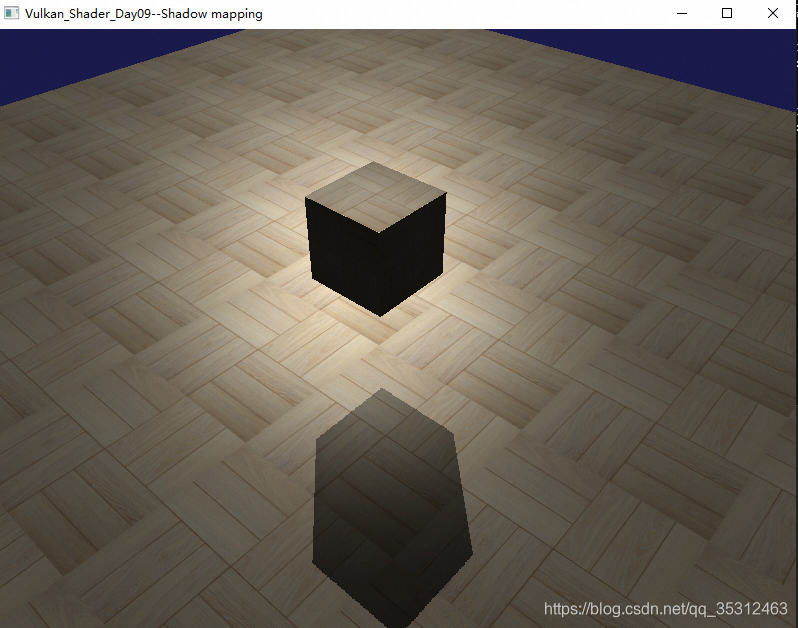

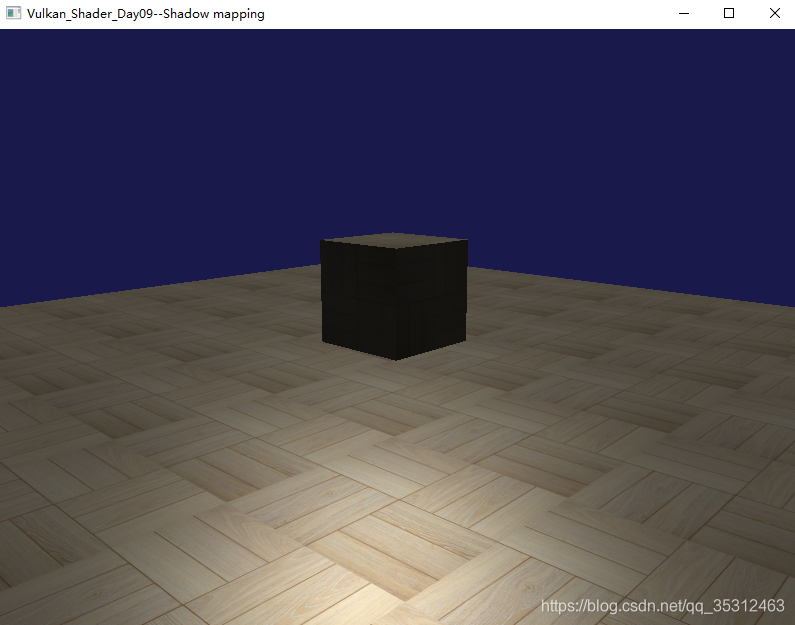

你可以看到，有阴影的时候你能更容易地区分出物体之间的位置关系，例如，当使用阴影的时候浮在地板上的立方体的事实更加清晰。
阴影还是比较不好实现的，因为当前实时渲染领域还没找到一种完美的阴影算法。目前有几种近似阴影技术，但它们都有自己的弱点和不足，这点我们必须要考虑到。
视频游戏中较多使用的一种技术是阴影贴图（shadow mapping），效果不错，而且相对容易实现。阴影贴图并不难以理解，性能也不会太低，而且非常容易扩展成更高级的算法（比如 Omnidirectional Shadow Maps和 Cascaded Shadow Maps）。
阴影映射
阴影映射(Shadow Mapping)背后的思路非常简单：我们以光的位置为视角进行渲染，我们能看到的东西都将被点亮，看不见的一定是在阴影之中了。假设有一个地板，在光源和它之间有一个大盒子。由于光源处向光线方向看去，可以看到这个盒子，但看不到地板的一部分，这部分就应该在阴影中了。
这里的所有蓝线代表光源可以看到的fragment。黑线代表被遮挡的fragment：它们应该渲染为带阴影的。如果我们绘制一条从光源出发，到达最右边盒子上的一个片段上的线段或射线，那么射线将先击中悬浮的盒子，随后才会到达最右侧的盒子。结果就是悬浮的盒子被照亮，而最右侧的盒子将处于阴影之中。
我们希望得到射线第一次击中的那个物体，然后用这个最近点和射线上其他点进行对比。然后我们将测试一下看看射线上的其他点是否比最近点更远，如果是的话，这个点就在阴影中。对从光源发出的射线上的成千上万个点进行遍历是个极端消耗性能的举措，实时渲染上基本不可取。我们可以采取相似举措，不用投射出光的射线。我们所使用的是非常熟悉的东西：深度缓冲。
你可能记得在深度测试教程中，在深度缓冲里的一个值是摄像机视角下，对应于一个片段的一个0到1之间的深度值。如果我们从光源的透视图来渲染场景，并把深度值的结果储存到纹理中会怎样？通过这种方式，我们就能对光源的透视图所见的最近的深度值进行采样。最终，深度值就会显示从光源的透视图下见到的第一个片段了。我们管储存在纹理中的所有这些深度值，叫做深度贴图（depth map）或阴影贴图。
左侧的图片展示了一个定向光源（所有光线都是平行的）在立方体下的表面投射的阴影。通过储存到深度贴图中的深度值，我们就能找到最近点，用以决定片段是否在阴影中。我们使用一个来自光源的视图和投影矩阵来渲染场景就能创建一个深度贴图。这个投影和视图矩阵结合在一起成为一个T变换，它可以将任何三维位置转变到光源的可见坐标空间。
- 定向光并没有位置，因为它被规定为无穷远。然而，为了实现阴影贴图，我们得从一个光的透视图渲染场景，这样就得在光的方向的某一点上渲染场景。
在右边的图中我们显示出同样的平行光和观察者。我们渲染一个点P¯处的片段，需要决定它是否在阴影中。我们先得使用T把P¯变换到光源的坐标空间里。既然点P¯是从光的透视图中看到的，它的z坐标就对应于它的深度，例子中这个值是0.9。使用点P¯在光源的坐标空间的坐标，我们可以索引深度贴图，来获得从光的视角中最近的可见深度，结果是点C¯，最近的深度是0.4。因为索引深度贴图的结果是一个小于点P¯的深度，我们可以断定P¯被挡住了，它在阴影中了。
阴影映射由两个步骤组成：首先，我们渲染深度贴图，然后我们像往常一样渲染场景，使用生成的深度贴图来计算片段是否在阴影之中。听起来有点复杂，但随着我们一步一步地讲解这个技术，就能理解了。
对前些章节代码改动较多，以下附修改后的源码，如果您之前的教程都有了解，那您将很容易看懂新增深度贴图代码及shader的更新，下一部分来说下shader部分的计算及实现…
先贴main代码
shader 9_shader mapping.cpp
#define GLFW_INCLUDE_VULKAN
#define GLM_FORCE_RADIANS
#include <GLFW/glfw3.h>
#define STB_IMAGE_IMPLEMENTATION
#include <stb/stb_image.h>
#define GLM_FORCE_RADIANS
#define GLM_FORCE_DEPTH_ZERO_TO_ONE
#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtx/hash.hpp>
#define TINYOBJLOADER_IMPLEMENTATION
#include <tiny/tiny_obj_loader.h>
#include <fstream>
#include <iostream>
#include <stdexcept>
#include <vector>
#include <cstring>
#include <cstdlib>
#include <set>
#include <array>
#include <algorithm>
#include <chrono>
#include <unordered_map>
#include "Camera.h"
#include "VulkanBuffer.hpp"
#include "VulkanInitializers.hpp"
//if () {
// throw std::runtime_error("failed to create!");
//}
const int WIDTH = 800;
const int HEIGHT = 600;
const int MAX_FRAMES_IN_FLIGHT = 2;
//鼠标移动位置记录
float lastX = WIDTH / 2, lastY = HEIGHT / 2;
//缩放视野
float fov = 45.0f;
bool firstMouse = true;
//环境光
float ambientStrength = 0.1f;
float specularStrength = 0.8f;//镜面强度
glm::vec3 baseLight = glm::vec3(1.0f, 1.0f, 1.0f);
glm::vec3 lightPos = glm::vec3(1.0f, 1.0f, 1.0f);
glm::vec3 lightDir = glm::vec3(-1.0f, -1.0f, -1.0f);
glm::vec3 flashColor = glm::vec3(1.0f, 1.0f, 1.0f);
const std::vector<const char*> validationLayers = {
"VK_LAYER_KHRONOS_validation"
};
const std::vector<const char*> deviceExtensions = {
VK_KHR_SWAPCHAIN_EXTENSION_NAME
};
#ifdef NDEBUG
const bool enableValidationLayers = false;
#else
const bool enableValidationLayers = true;
#endif
VkResult CreateDebugUtilsMessengerEXT(VkInstance instance, const VkDebugUtilsMessengerCreateInfoEXT* pCreateInfo, const VkAllocationCallbacks* pAllocator, VkDebugUtilsMessengerEXT* pDebugMessenger) {
auto func = (PFN_vkCreateDebugUtilsMessengerEXT)vkGetInstanceProcAddr(instance, "vkCreateDebugUtilsMessengerEXT");
if (func != nullptr) {
return func(instance, pCreateInfo, pAllocator, pDebugMessenger);
}
else {
return VK_ERROR_EXTENSION_NOT_PRESENT;
}
}
void DestroyDebugUtilsMessengerEXT(VkInstance instance, VkDebugUtilsMessengerEXT debugMessenger, const VkAllocationCallbacks* pAllocator) {
auto func = (PFN_vkDestroyDebugUtilsMessengerEXT)vkGetInstanceProcAddr(instance, "vkDestroyDebugUtilsMessengerEXT");
if (func != nullptr) {
func(instance, debugMessenger, pAllocator);
}
}
struct QueueFamilyIndices {
uint32_t graphicsFamily = -1;
uint32_t presentFamily = -1;
bool isComplete() {
return graphicsFamily >= 0 && presentFamily >= 0;
}
};
struct SwapChainSupportDetails {
VkSurfaceCapabilitiesKHR capabilities;
std::vector<VkSurfaceFormatKHR> formats;
std::vector<VkPresentModeKHR> presentModes;
};
struct Vertex {
glm::vec3 pos;
glm::vec3 color;
glm::vec3 normal;
glm::vec2 texCoord;
//Material
glm::vec3 m_ambient;
glm::vec3 m_diffuse;
glm::vec3 m_specular;
float m_shininess;
绑定描述
//static VkVertexInputBindingDescription getBindingDescription() {
// VkVertexInputBindingDescription bindingDescription = {};
// bindingDescription.binding = 0;
// bindingDescription.stride = sizeof(Vertex);
// bindingDescription.inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
// return bindingDescription;
//}
属性描述
//static std::array<VkVertexInputAttributeDescription, 8> getAttributeDescriptions() {
// std::array<VkVertexInputAttributeDescription, 8> attributeDescriptions = {};
// attributeDescriptions[0].binding = 0;
// attributeDescriptions[0].location = 0;
// attributeDescriptions[0].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[0].offset = offsetof(Vertex, pos);
// attributeDescriptions[1].binding = 0;
// attributeDescriptions[1].location = 1;
// attributeDescriptions[1].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[1].offset = offsetof(Vertex, color);
// attributeDescriptions[2].binding = 0;
// attributeDescriptions[2].location = 2;
// attributeDescriptions[2].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[2].offset = offsetof(Vertex, normal);
// attributeDescriptions[3].binding = 0;
// attributeDescriptions[3].location = 3;
// attributeDescriptions[3].format = VK_FORMAT_R32G32_SFLOAT;
// attributeDescriptions[3].offset = offsetof(Vertex, texCoord);
// attributeDescriptions[4].binding = 0;
// attributeDescriptions[4].location = 4;
// attributeDescriptions[4].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[4].offset = offsetof(Vertex, m_ambient);
// attributeDescriptions[5].binding = 0;
// attributeDescriptions[5].location = 5;
// attributeDescriptions[5].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[5].offset = offsetof(Vertex, m_diffuse);
// attributeDescriptions[6].binding = 0;
// attributeDescriptions[6].location = 6;
// attributeDescriptions[6].format = VK_FORMAT_R32G32B32_SFLOAT;
// attributeDescriptions[6].offset = offsetof(Vertex, m_specular);
// attributeDescriptions[7].binding = 0;
// attributeDescriptions[7].location = 7;
// attributeDescriptions[7].format = VK_FORMAT_R32_SFLOAT;
// attributeDescriptions[7].offset = offsetof(Vertex, m_shininess);
// return attributeDescriptions;
//}
//绑定描述
static std::vector <VkVertexInputBindingDescription> getBindingDescription() {
std::vector <VkVertexInputBindingDescription> bindingDescription;
bindingDescription.resize(1);
bindingDescription[0].binding = 0;
bindingDescription[0].stride = sizeof(Vertex);
bindingDescription[0].inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
return bindingDescription;
}
//属性描述
static std::vector<VkVertexInputAttributeDescription> getAttributeDescriptions() {
std::vector<VkVertexInputAttributeDescription> attributeDescriptions;
attributeDescriptions.resize(8);
attributeDescriptions[0].binding = 0;
attributeDescriptions[0].location = 0;
attributeDescriptions[0].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[0].offset = offsetof(Vertex, pos);
attributeDescriptions[1].binding = 0;
attributeDescriptions[1].location = 1;
attributeDescriptions[1].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[1].offset = offsetof(Vertex, color);
attributeDescriptions[2].binding = 0;
attributeDescriptions[2].location = 2;
attributeDescriptions[2].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[2].offset = offsetof(Vertex, normal);
attributeDescriptions[3].binding = 0;
attributeDescriptions[3].location = 3;
attributeDescriptions[3].format = VK_FORMAT_R32G32_SFLOAT;
attributeDescriptions[3].offset = offsetof(Vertex, texCoord);
attributeDescriptions[4].binding = 0;
attributeDescriptions[4].location = 4;
attributeDescriptions[4].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[4].offset = offsetof(Vertex, m_ambient);
attributeDescriptions[5].binding = 0;
attributeDescriptions[5].location = 5;
attributeDescriptions[5].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[5].offset = offsetof(Vertex, m_diffuse);
attributeDescriptions[6].binding = 0;
attributeDescriptions[6].location = 6;
attributeDescriptions[6].format = VK_FORMAT_R32G32B32_SFLOAT;
attributeDescriptions[6].offset = offsetof(Vertex, m_specular);
attributeDescriptions[7].binding = 0;
attributeDescriptions[7].location = 7;
attributeDescriptions[7].format = VK_FORMAT_R32_SFLOAT;
attributeDescriptions[7].offset = offsetof(Vertex, m_shininess);
return attributeDescriptions;
}
bool operator==(const Vertex& other) const {
return pos == other.pos && color == other.color && texCoord == other.texCoord;
}
};
namespace std {
template<> struct hash<Vertex> {
size_t operator()(Vertex const& vertex) const {
return ((hash<glm::vec3>()(vertex.pos) ^ (hash<glm::vec3>()(vertex.color) << 1)) >> 1) ^ (hash<glm::vec2>()(vertex.texCoord) << 1);
}
};
}
struct UniformBufferObject {
glm::mat4 model;
glm::mat4 view;
glm::mat4 proj;
glm::mat4 lightSpace;
glm::vec3 baseLight;
float ambientStrength;
glm::vec3 lightPos;
float specularStrength;
glm::vec3 viewPos;
float foo1 = 0.0f;
glm::vec3 lightDirect;
float foo2 = 0.0f;
glm::vec3 flashColor;
float foo3 = 0.0f;
glm::vec3 flashPos;
float outerCutOff;
glm::vec3 flashDir;
float flashCutOff;
};
std::vector<Vertex> vertices;
std::vector<uint32_t> indices;
// positions all containers
//glm::vec3 cubePositions[] = {
// glm::vec3(0.0f, 0.0f, 0.0f),
// glm::vec3(2.0f, 5.0f, -15.0f),
// glm::vec3(-1.5f, -2.2f, -2.5f),
// glm::vec3(-3.8f, -2.0f, -12.3f),
// glm::vec3(2.4f, -0.4f, -3.5f),
// glm::vec3(-1.7f, 3.0f, -7.5f),
// glm::vec3(1.3f, -2.0f, -2.5f),
// glm::vec3(1.5f, 2.0f, -2.5f),
// glm::vec3(1.5f, 0.2f, -1.5f),
// glm::vec3(-1.3f, 1.0f, -1.5f)
//};
//glm::vec3 cubePositions[] = {
// glm::vec3(0.0f, 0.0f, 0.0f),
// glm::vec3(2.0f, 0.0f, 0.0f),
// glm::vec3(0.0f, 4.0f, 0.0f),
// glm::vec3(0.0f, 0.0f, 6.0f)
//};
VkBuffer vertexBuffer;
VkDeviceMemory vertexBufferMemory;
//Camera camera(glm::vec3(2.0f, 2.0f, 2.0f), glm::vec3(0.0f, 0.0f, 0.0f), glm::vec3(0.0f, 1.0f, 0.0f));
Camera camera(glm::vec3(0.0f, 2.0f, 8.0f), glm::radians(-15.0f), glm::radians(180.0f), glm::vec3(0.0f, 1.0f, 0.0f));
void scroll_callback(GLFWwindow* window, double xoffset, double yoffset)
{
if (fov >= 1.0f && fov <= 45.0f)
fov -= yoffset;
if (fov <= 1.0f)
fov = 1.0f;
if (fov >= 45.0f)
fov = 45.0f;
}
void processInput(GLFWwindow* window) {
if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS) {
glfwSetWindowShouldClose(window, true);
}
if (glfwGetKey(window, GLFW_KEY_W) == GLFW_PRESS) {
camera.speedZ = 1.0f;
}
else if (glfwGetKey(window, GLFW_KEY_S) == GLFW_PRESS) {
camera.speedZ = -1.0f;
}
else {
camera.speedZ = 0.0f;
}
if (glfwGetKey(window, GLFW_KEY_A) == GLFW_PRESS) {
camera.speedX = -1.0f;
}
else if (glfwGetKey(window, GLFW_KEY_D) == GLFW_PRESS) {
camera.speedX = 1.0f;
}
else {
camera.speedX = 0.0f;
}
if (glfwGetKey(window, GLFW_KEY_Q) == GLFW_PRESS) {
camera.speedY = 1.0f;
}
else if (glfwGetKey(window, GLFW_KEY_E) == GLFW_PRESS) {
camera.speedY = -1.0f;
}
else {
camera.speedY = 0.0f;
}
}
void mouse_callback(GLFWwindow* window, double xPos, double yPos) {
if (firstMouse) {
lastX = xPos;
lastY = yPos;
firstMouse = false;
}
float deltaX, deltaY;
deltaX = xPos - lastX;
deltaY = yPos - lastY;
lastX = xPos;
lastY = yPos;
camera.ProcessMouseMovement(deltaX, deltaY);
}
class HelloTriangleApplication {
public:
void run() {
initWindow();
initVulkan();
mainLoop();
cleanup();
}
private:
GLFWwindow* window;
VkInstance instance;
VkDebugUtilsMessengerEXT debugMessenger;
VkSurfaceKHR surface;
VkPhysicalDevice physicalDevice = VK_NULL_HANDLE;
VkSampleCountFlagBits msaaSamples = VK_SAMPLE_COUNT_1_BIT;
VkDevice device;
VkQueue graphicsQueue;
VkQueue presentQueue;
VkSwapchainKHR swapChain;
std::vector<VkImage> swapChainImages;
VkFormat swapChainImageFormat;
// Depth buffer format (selected during Vulkan initialization)
VkFormat depthFormat;
VkExtent2D swapChainExtent;
std::vector<VkImageView> swapChainImageViews;
VkRenderPass renderPass;
VkDescriptorSetLayout descriptorSetLayout;
VkPipelineLayout pipelineLayout;
//VkPipeline graphicsPipeline;
std::vector<VkFramebuffer> swapChainFramebuffers;
VkCommandPool commandPool;
std::vector<VkCommandBuffer> commandBuffers;
VkSemaphore imageAvailableSemaphore;
VkSemaphore renderFinishedSemaphore;
//std::vector<VkSemaphore> imageAvailableSemaphores;
//std::vector<VkSemaphore> renderFinishedSemaphores;
//std::vector<VkFence> inFlightFences;
//std::vector<VkFence> imagesInFlight;
size_t currentFrame = 0;
VkDeviceMemory textureImageMemory;
VkImageView textureImageView;//保存纹理图像
VkSampler textureSampler;//创建采样器
//VkBuffer vertexBuffer;
//VkDeviceMemory vertexBufferMemory;
VkBuffer indexBuffer;
VkDeviceMemory indexBufferMemory;
//VkBuffer uniformBuffer;
//VkDeviceMemory uniformBufferMemory;
VkDescriptorPool descriptorPool;
VkDescriptorSet descriptorSet;
VkBuffer stagingBuffer;
VkDeviceMemory stagingBufferMemory;
VkImage colorImage;
VkDeviceMemory colorImageMemory;
VkImageView colorImageView;
VkImage depthImage;
VkDeviceMemory depthImageMemory;
VkImageView depthImageView;
VkPipelineCache pipelineCache;
struct {
vks::Buffer scene;
vks::Buffer offscreen;
} uniformBuffers;
struct {
glm::mat4 projection;
glm::mat4 model;
} uboVSquad;
struct {
glm::mat4 projection;
glm::mat4 view;
glm::mat4 model;
glm::mat4 depthBiasMVP;
glm::vec3 lightPos;
} uboVSscene;
struct {
glm::mat4 depthMVP;
glm::mat4 model;
} uboOffscreenVS;
struct {
VkPipelineLayout offscreen;
} pipelineLayouts;
struct {
VkDescriptorSet offscreen;
VkDescriptorSet scene;
} descriptorSets;
struct {
VkPipeline offscreen;
VkPipeline graphicsPipeline;
VkPipeline sceneShadowPCF;
} pipelines;
// Synchronization semaphores
struct {
// Swap chain image presentation
VkSemaphore presentComplete;
// Command buffer submission and execution
VkSemaphore renderComplete;
} semaphores;
VkSubmitInfo submitInfo;
// List of shader modules created (stored for cleanup)
std::vector<VkShaderModule> shaderModules;
// Framebuffer for offscreen rendering
struct FrameBufferAttachment {
VkImage image;
VkDeviceMemory mem;
VkImageView view;
};
struct OffscreenPass {
int32_t width, height;
VkFramebuffer frameBuffer;
FrameBufferAttachment depth;
VkRenderPass renderPass;
VkSampler depthSampler;
VkDescriptorImageInfo descriptor;
VkCommandBuffer commandBuffer = VK_NULL_HANDLE;
// Semaphore used to synchronize between offscreen and final scene render pass
VkSemaphore semaphore = VK_NULL_HANDLE;
} offscreenPass;
uint32_t mipLevels;//Mip链
VkImage textureImage;
void initWindow() {
glfwInit();
glfwWindowHint(GLFW_CLIENT_API, GLFW_NO_API);
//glfwWindowHint(GLFW_RESIZABLE, GLFW_FALSE);
window = glfwCreateWindow(WIDTH, HEIGHT, "Vulkan_Shader_Day09--Shadow mapping", nullptr, nullptr);
glfwSetWindowUserPointer(window, this);
//glfwMakeContextCurrent(window);
glfwSetInputMode(window, GLFW_CURSOR, GLFW_CURSOR_DISABLED);//禁用鼠标悬浮
glfwSetCursorPosCallback(window, mouse_callback);//注册键盘输入
glfwSetScrollCallback(window, scroll_callback); //注册鼠标滚轮
glfwSetWindowSizeCallback(window, HelloTriangleApplication::onWindowResized);
}
void initVulkan() {
createInstance();
setupDebugMessenger();
createSurface();
pickPhysicalDevice();
createLogicalDevice();
assert(getSupportedDepthFormat());
createSwapChain();
createImageViews();
createRenderPass();
createDescriptorSetLayout();
//setupDescriptorSetLayout();//shadowing
createPipelineCache();//shadowing
prepareOffscreenFramebuffer();//shadowing
createGraphicsPipeline();
//preparePipelines();//shadowing
createCommandPool();
createColorResources();
createDepthResources();
createFramebuffers();
createTextureImage();
createTextureImageView();
createTextureSampler();
//loadModel();
//loadCube();
loadPlane();
createVertexBuffer();
createIndexBuffer();
createUniformBuffer();
//prepareUniformBuffers();//shadowing
createDescriptorPool();
//setupDescriptorPool();//shadowing
createDescriptorSet();
//setupDescriptorSets();//shadowing
createCommandBuffers();
//buildCommandBuffers();//shadowing
buildOffscreenCommandBuffer();//shadowing
createSemaphores();
}
void mainLoop() {
while (!glfwWindowShouldClose(window)) {
glfwPollEvents();
processInput(window);
updateUniformBuffer();
drawFrame();
camera.UpdataCameraPosition();
}
vkDeviceWaitIdle(device);
}
void cleanup() {
cleanupSwapChain();
vkDestroySampler(device, textureSampler, nullptr);
vkDestroyImageView(device, textureImageView, nullptr);
vkDestroyImage(device, textureImage, nullptr);
vkFreeMemory(device, textureImageMemory, nullptr);
vkDestroyDescriptorPool(device, descriptorPool, nullptr);
vkDestroyDescriptorSetLayout(device, descriptorSetLayout, nullptr);
vkDestroyBuffer(device, uniformBuffers.scene.buffer, nullptr);
vkFreeMemory(device, uniformBuffers.scene.memory, nullptr);
vkDestroyBuffer(device, indexBuffer, nullptr);
vkFreeMemory(device, indexBufferMemory, nullptr);
vkDestroyBuffer(device, vertexBuffer, nullptr);
vkFreeMemory(device, vertexBufferMemory, nullptr);
vkDestroyCommandPool(device, commandPool, nullptr);
vkDestroyDevice(device, nullptr);
if (enableValidationLayers) {
DestroyDebugUtilsMessengerEXT(instance, debugMessenger, nullptr);
}
vkDestroySurfaceKHR(instance, surface, nullptr);
vkDestroyInstance(instance, nullptr);
glfwDestroyWindow(window);
glfwTerminate();
}
void updateUniformBuffer() {
// Matrix from light's point of view
//glm::mat4 depthProjectionMatrix = glm::perspective(glm::radians(lightFOV), 1.0f, zNear, zFar);
glm::mat4 depthProjectionMatrix = glm::ortho(-10.0f, 10.0f, -10.0f, 10.0f, zNear, zFar);
glm::mat4 depthViewMatrix = glm::lookAt(lightPos, glm::vec3(0.0f), glm::vec3(0, 1, 0));
glm::mat4 depthModelMatrix = glm::mat4(1.0f);
//将每个世界空间坐标变换到光源处所见到的那个空间
uboOffscreenVS.depthMVP = depthProjectionMatrix * depthViewMatrix * depthModelMatrix;
uboOffscreenVS.model = depthModelMatrix;
//uboOffscreenVS.model = glm::rotate(glm::mat4(1.0f), glm::radians(90.0f), glm::vec3(0.0f, 1.0f, 0.0f));
memcpy(uniformBuffers.offscreen.mapped, &uboOffscreenVS, sizeof(uboOffscreenVS));
static auto startTime = std::chrono::high_resolution_clock::now();
auto currentTime = std::chrono::high_resolution_clock::now();
float time = std::chrono::duration_cast<std::chrono::milliseconds>(currentTime - startTime).count() / 1000.0f;
UniformBufferObject ubo = {};
ubo.ambientStrength = ambientStrength;
ubo.baseLight = baseLight;
ubo.lightPos = lightPos;
ubo.lightDirect = lightDir;
ubo.specularStrength = specularStrength;
ubo.viewPos = camera.Position;
ubo.flashPos = camera.Position;
ubo.flashDir = camera.Forward;
ubo.flashCutOff = glm::cos(glm::radians(8.5f));
ubo.outerCutOff = glm::cos(glm::radians(10.5f));
ubo.flashColor = flashColor;
//ubo.model = glm::rotate(glm::mat4(1.0f), time * glm::radians(90.0f), glm::vec3(0.0f, 0.0f, 1.0f));
//ubo.model = glm::rotate(glm::mat4(1.0f), glm::radians(90.0f), glm::vec3(0.0f, 1.0f, 0.0f));
ubo.model = glm::mat4(1.0f);
ubo.view = camera.GetViewMatrix();
ubo.proj = glm::perspective(glm::radians(fov), swapChainExtent.width / (float)swapChainExtent.height, 0.1f, 100.0f);
ubo.lightSpace = uboOffscreenVS.depthMVP;
ubo.proj[1][1] *= -1;
void* data;
vkMapMemory(device, uniformBuffers.scene.memory, 0, sizeof(ubo), 0, &data);
memcpy(data, &ubo, sizeof(ubo));
vkUnmapMemory(device, uniformBuffers.scene.memory);
}
void drawFrame() {
//prepareFrame
//vkWaitForFences(device, 1, &inFlightFences[currentFrame], VK_TRUE, UINT64_MAX);
// Acquire the next image from the swap chain
uint32_t imageIndex;// Active frame buffer index
//VkResult result = vkAcquireNextImageKHR(device, swapChain, UINT64_MAX, imageAvailableSemaphores[currentFrame], VK_NULL_HANDLE, &imageIndex);
VkResult result = vkAcquireNextImageKHR(device, swapChain, UINT64_MAX, semaphores.presentComplete, VK_NULL_HANDLE, &imageIndex);
// Recreate the swapchain if it's no longer compatible with the surface (OUT_OF_DATE) or no longer optimal for presentation (SUBOPTIMAL)
if (result == VK_ERROR_OUT_OF_DATE_KHR) {
recreateSwapChain();
return;
}
else if (result != VK_SUCCESS && result != VK_SUBOPTIMAL_KHR) {
throw std::runtime_error("failed to acquire swap chain image!");
}
//在使用阴影贴图之前，场景渲染命令缓冲区必须等待屏幕外的渲染(和传输)完成
// Offscreen rendering
VkPipelineStageFlags waitStages[] = { VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT };
submitInfo.pWaitDstStageMask = waitStages;
// Wait for swap chain presentation to finish
submitInfo.pWaitSemaphores = &semaphores.presentComplete; //
// Signal ready with offscreen semaphore
submitInfo.pSignalSemaphores = &offscreenPass.semaphore;//signalSemaphoreCount和pSignalSemaphores参数指定了当命令缓冲区执行结束向哪些信号量发出信号
// Submit work
submitInfo.commandBufferCount = 1;
submitInfo.pCommandBuffers = &offscreenPass.commandBuffer;
if (vkQueueSubmit(graphicsQueue, 1, &submitInfo, VK_NULL_HANDLE) != VK_SUCCESS) {
throw std::runtime_error("failed to submit draw command buffer!");
}
// Scene rendering
// Wait for offscreen semaphore
submitInfo.pWaitSemaphores = &offscreenPass.semaphore;;
// Signal ready with render complete semaphpre
submitInfo.pSignalSemaphores = &semaphores.renderComplete;
// Submit work
submitInfo.pCommandBuffers = &commandBuffers[imageIndex];
if (vkQueueSubmit(graphicsQueue, 1, &submitInfo, VK_NULL_HANDLE) != VK_SUCCESS) {
throw std::runtime_error("failed to submit draw command buffer!");
}
//if (imagesInFlight[imageIndex] != VK_NULL_HANDLE) {
// vkWaitForFences(device, 1, &imagesInFlight[imageIndex], VK_TRUE, UINT64_MAX);
//}
//imagesInFlight[imageIndex] = inFlightFences[currentFrame];
//submitInfo.sType = VK_STRUCTURE_TYPE_SUBMIT_INFO;
//VkSemaphore waitSemaphores[] = { imageAvailableSemaphores[currentFrame] };
//VkPipelineStageFlags waitStages[] = { VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT };
//submitInfo.waitSemaphoreCount = 1;
//submitInfo.pWaitSemaphores = waitSemaphores;
//submitInfo.pWaitDstStageMask = waitStages;
//submitInfo.commandBufferCount = 1;
//submitInfo.pCommandBuffers = &commandBuffers[imageIndex];
//VkSemaphore signalSemaphores[] = { renderFinishedSemaphores[currentFrame] };
//submitInfo.signalSemaphoreCount = 1;
//submitInfo.pSignalSemaphores = signalSemaphores;
//vkResetFences(device, 1, &inFlightFences[currentFrame]);
vkQueueSubmit函数向图像队列提交命令缓冲区
//if (vkQueueSubmit(graphicsQueue, 1, &submitInfo, inFlightFences[currentFrame]) != VK_SUCCESS) {
// throw std::runtime_error("failed to submit draw command buffer!");
//}
VkPresentInfoKHR presentInfo = {};
presentInfo.sType = VK_STRUCTURE_TYPE_PRESENT_INFO_KHR;
presentInfo.waitSemaphoreCount = 1;
presentInfo.pWaitSemaphores = &semaphores.renderComplete;
VkSwapchainKHR swapChains[] = { swapChain };
presentInfo.swapchainCount = 1;
presentInfo.pSwapchains = swapChains;
presentInfo.pImageIndices = &imageIndex;
//vkQueuePresentKHR函数提交请求呈现交换链中的图像
result = vkQueuePresentKHR(presentQueue, &presentInfo);
if (result == VK_ERROR_OUT_OF_DATE_KHR || result == VK_SUBOPTIMAL_KHR) {
recreateSwapChain();
}
else if (result != VK_SUCCESS) {
throw std::runtime_error("failed to present swap chain image!");
}
currentFrame = (currentFrame + 1) % MAX_FRAMES_IN_FLIGHT;
}
static void onWindowResized(GLFWwindow* window, int width, int height) {
if (width == 0 || height == 0) return;
HelloTriangleApplication* app = reinterpret_cast<HelloTriangleApplication*>(glfwGetWindowUserPointer(window));
app->recreateSwapChain();
}
void cleanupSwapChain() {
vkDestroyImageView(device, colorImageView, nullptr);
vkDestroyImage(device, colorImage, nullptr);
vkFreeMemory(device, colorImageMemory, nullptr);
vkDestroyImageView(device, depthImageView, nullptr);
vkDestroyImage(device, depthImage, nullptr);
vkFreeMemory(device, depthImageMemory, nullptr);
for (auto framebuffer : swapChainFramebuffers) {
vkDestroyFramebuffer(device, framebuffer, nullptr);
}
vkFreeCommandBuffers(device, commandPool, static_cast<uint32_t>(commandBuffers.size()), commandBuffers.data());
vkDestroyPipeline(device, pipelines.graphicsPipeline, nullptr);
vkDestroyPipeline(device, pipelines.offscreen, nullptr);
vkDestroyPipelineLayout(device, pipelineLayout, nullptr);
vkDestroyRenderPass(device, renderPass, nullptr);
for (auto imageView : swapChainImageViews) {
vkDestroyImageView(device, imageView, nullptr);
}
vkDestroySwapchainKHR(device, swapChain, nullptr);
}
void recreateSwapChain() {
int width = 0, height = 0;
glfwGetFramebufferSize(window, &width, &height);
while (width == 0 || height == 0) {
glfwGetFramebufferSize(window, &width, &height);
glfwWaitEvents();
}
vkDeviceWaitIdle(device);
cleanupSwapChain();
createSwapChain();
createImageViews();
createRenderPass();
createGraphicsPipeline();
createColorResources();
createDepthResources();
createFramebuffers();
createCommandBuffers();
}
void createInstance() {
if (enableValidationLayers && !checkValidationLayerSupport()) {
throw std::runtime_error("validation layers requested, but not available!");
}
VkApplicationInfo appInfo = {};
appInfo.sType = VK_STRUCTURE_TYPE_APPLICATION_INFO;
appInfo.pApplicationName = "Hello Triangle";
appInfo.applicationVersion = VK_MAKE_VERSION(1, 0, 0);
appInfo.pEngineName = "No Engine";
appInfo.engineVersion = VK_MAKE_VERSION(1, 0, 0);
appInfo.apiVersion = VK_API_VERSION_1_0;
VkInstanceCreateInfo createInfo = {};
createInfo.sType = VK_STRUCTURE_TYPE_INSTANCE_CREATE_INFO;
createInfo.pApplicationInfo = &appInfo;
auto extensions = getRequiredExtensions();
createInfo.enabledExtensionCount = static_cast<uint32_t>(extensions.size());
createInfo.ppEnabledExtensionNames = extensions.data();
VkDebugUtilsMessengerCreateInfoEXT debugCreateInfo;
if (enableValidationLayers) {
createInfo.enabledLayerCount = static_cast<uint32_t>(validationLayers.size());
createInfo.ppEnabledLayerNames = validationLayers.data();
populateDebugMessengerCreateInfo(debugCreateInfo);
createInfo.pNext = (VkDebugUtilsMessengerCreateInfoEXT*)&debugCreateInfo;
}
else {
createInfo.enabledLayerCount = 0;
createInfo.pNext = nullptr;
}
if (vkCreateInstance(&createInfo, nullptr, &instance) != VK_SUCCESS) {
throw std::runtime_error("failed to create instance!");
}
}
void populateDebugMessengerCreateInfo(VkDebugUtilsMessengerCreateInfoEXT& createInfo) {
createInfo = {};
createInfo.sType = VK_STRUCTURE_TYPE_DEBUG_UTILS_MESSENGER_CREATE_INFO_EXT;
createInfo.messageSeverity = VK_DEBUG_UTILS_MESSAGE_SEVERITY_VERBOSE_BIT_EXT | VK_DEBUG_UTILS_MESSAGE_SEVERITY_WARNING_BIT_EXT | VK_DEBUG_UTILS_MESSAGE_SEVERITY_ERROR_BIT_EXT;
createInfo.messageType = VK_DEBUG_UTILS_MESSAGE_TYPE_GENERAL_BIT_EXT | VK_DEBUG_UTILS_MESSAGE_TYPE_VALIDATION_BIT_EXT | VK_DEBUG_UTILS_MESSAGE_TYPE_PERFORMANCE_BIT_EXT;
createInfo.pfnUserCallback = debugCallback;
}
void setupDebugMessenger() {
if (!enableValidationLayers) return;
VkDebugUtilsMessengerCreateInfoEXT createInfo;
populateDebugMessengerCreateInfo(createInfo);
if (CreateDebugUtilsMessengerEXT(instance, &createInfo, nullptr, &debugMessenger) != VK_SUCCESS) {
throw std::runtime_error("failed to set up debug messenger!");
}
}
void createImageViews() {
swapChainImageViews.resize(swapChainImages.size());
for (size_t i = 0; i < swapChainImages.size(); i++) {
swapChainImageViews[i] = createImageView(swapChainImages[i], swapChainImageFormat, VK_IMAGE_ASPECT_COLOR_BIT, 1);
}
}
VkImageView createImageView(VkImage image, VkFormat format, VkImageAspectFlags aspectFlags, uint32_t mipLevels) {
VkImageViewCreateInfo viewInfo = {};
viewInfo.sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO;
viewInfo.image = image;
viewInfo.viewType = VK_IMAGE_VIEW_TYPE_2D;
viewInfo.format = format;
viewInfo.subresourceRange.aspectMask = aspectFlags;
viewInfo.subresourceRange.baseMipLevel = 0;
viewInfo.subresourceRange.levelCount = mipLevels;
viewInfo.subresourceRange.baseArrayLayer = 0;
viewInfo.subresourceRange.layerCount = 1;
VkImageView imageView;
if (vkCreateImageView(device, &viewInfo, nullptr, &imageView) != VK_SUCCESS) {
throw std::runtime_error("failed to create texture image view!");
}
return imageView;
}
void createSurface() {
if (glfwCreateWindowSurface(instance, window, nullptr, &surface) != VK_SUCCESS) {
throw std::runtime_error("failed to create window surface!");
}
}
void pickPhysicalDevice() {
uint32_t deviceCount = 0;
vkEnumeratePhysicalDevices(instance, &deviceCount, nullptr);
if (deviceCount == 0) {
throw std::runtime_error("failed to find GPUs with Vulkan support!");
}
std::vector<VkPhysicalDevice> devices(deviceCount);
vkEnumeratePhysicalDevices(instance, &deviceCount, devices.data());
for (const auto& device : devices) {
if (isDeviceSuitable(device)) {
physicalDevice = device;
//msaaSamples = getMaxUsableSampleCount();
break;
}
}
if (physicalDevice == VK_NULL_HANDLE) {
throw std::runtime_error("failed to find a suitable GPU!");
}
}
void createLogicalDevice() {
QueueFamilyIndices indices = findQueueFamilies(physicalDevice);
std::vector<VkDeviceQueueCreateInfo> queueCreateInfos;
std::set<uint32_t> uniqueQueueFamilies = { indices.graphicsFamily, indices.presentFamily };
float queuePriority = 1.0f;
for (int queueFamily : uniqueQueueFamilies) {
VkDeviceQueueCreateInfo queueCreateInfo = {};
queueCreateInfo.sType = VK_STRUCTURE_TYPE_DEVICE_QUEUE_CREATE_INFO;
queueCreateInfo.queueFamilyIndex = queueFamily;
queueCreateInfo.queueCount = 1;
queueCreateInfo.pQueuePriorities = &queuePriority;
queueCreateInfos.push_back(queueCreateInfo);
}
VkPhysicalDeviceFeatures deviceFeatures = {};
deviceFeatures.samplerAnisotropy = VK_TRUE;
//deviceFeatures.sampleRateShading = VK_TRUE; // enable sample shading feature for the device
VkDeviceCreateInfo createInfo = {};
createInfo.sType = VK_STRUCTURE_TYPE_DEVICE_CREATE_INFO;
createInfo.pQueueCreateInfos = queueCreateInfos.data();
createInfo.queueCreateInfoCount = static_cast<uint32_t>(queueCreateInfos.size());
createInfo.pEnabledFeatures = &deviceFeatures;
createInfo.enabledExtensionCount = static_cast<uint32_t>(deviceExtensions.size());
createInfo.ppEnabledExtensionNames = deviceExtensions.data();
if (enableValidationLayers) {
createInfo.enabledLayerCount = static_cast<uint32_t>(validationLayers.size());
createInfo.ppEnabledLayerNames = validationLayers.data();
}
else {
createInfo.enabledLayerCount = 0;
}
if (vkCreateDevice(physicalDevice, &createInfo, nullptr, &device) != VK_SUCCESS) {
throw std::runtime_error("failed to create logical device!");
}
vkGetDeviceQueue(device, indices.graphicsFamily, 0, &graphicsQueue);
vkGetDeviceQueue(device, indices.presentFamily, 0, &presentQueue);
}
void createSwapChain() {
SwapChainSupportDetails swapChainSupport = querySwapChainSupport(physicalDevice);
VkSurfaceFormatKHR surfaceFormat = chooseSwapSurfaceFormat(swapChainSupport.formats);
VkPresentModeKHR presentMode = chooseSwapPresentMode(swapChainSupport.presentModes);
VkExtent2D extent = chooseSwapExtent(swapChainSupport.capabilities);
uint32_t imageCount = swapChainSupport.capabilities.minImageCount + 1;
if (swapChainSupport.capabilities.maxImageCount > 0 && imageCount > swapChainSupport.capabilities.maxImageCount) {
imageCount = swapChainSupport.capabilities.maxImageCount;
}
VkSwapchainCreateInfoKHR createInfo = {};
createInfo.sType = VK_STRUCTURE_TYPE_SWAPCHAIN_CREATE_INFO_KHR;
createInfo.surface = surface;
createInfo.minImageCount = imageCount;
createInfo.imageFormat = surfaceFormat.format;
createInfo.imageColorSpace = surfaceFormat.colorSpace;
createInfo.imageExtent = extent;
createInfo.imageArrayLayers = 1;
createInfo.imageUsage = VK_IMAGE_USAGE_COLOR_ATTACHMENT_BIT;
QueueFamilyIndices indices = findQueueFamilies(physicalDevice);
uint32_t queueFamilyIndices[] = { (uint32_t)indices.graphicsFamily, (uint32_t)indices.presentFamily };
if (indices.graphicsFamily != indices.presentFamily) {
createInfo.imageSharingMode = VK_SHARING_MODE_CONCURRENT;
createInfo.queueFamilyIndexCount = 2;
createInfo.pQueueFamilyIndices = queueFamilyIndices;
}
else {
createInfo.imageSharingMode = VK_SHARING_MODE_EXCLUSIVE;
createInfo.queueFamilyIndexCount = 0; // Optional
createInfo.pQueueFamilyIndices = nullptr; // Optional
}
createInfo.preTransform = swapChainSupport.capabilities.currentTransform;
createInfo.compositeAlpha = VK_COMPOSITE_ALPHA_OPAQUE_BIT_KHR;
createInfo.presentMode = presentMode;
createInfo.clipped = VK_TRUE;
createInfo.oldSwapchain = VK_NULL_HANDLE;
if (vkCreateSwapchainKHR(device, &createInfo, nullptr, &swapChain) != VK_SUCCESS) {
throw std::runtime_error("failed to create swap chain!");
}
vkGetSwapchainImagesKHR(device, swapChain, &imageCount, nullptr);
swapChainImages.resize(imageCount);
vkGetSwapchainImagesKHR(device, swapChain, &imageCount, swapChainImages.data());
swapChainImageFormat = surfaceFormat.format;
swapChainExtent = extent;
}
bool isDeviceSuitable(VkPhysicalDevice device) {
QueueFamilyIndices indices = findQueueFamilies(device);
bool extensionsSupported = checkDeviceExtensionSupport(device);
bool swapChainAdequate = false;
if (extensionsSupported) {
SwapChainSupportDetails swapChainSupport = querySwapChainSupport(device);
swapChainAdequate = !swapChainSupport.formats.empty() && !swapChainSupport.presentModes.empty();
}
//各向异性滤波器
VkPhysicalDeviceFeatures supportedFeatures;
vkGetPhysicalDeviceFeatures(device, &supportedFeatures);
return indices.isComplete() && extensionsSupported && swapChainAdequate&& supportedFeatures.samplerAnisotropy;
}
VkSampleCountFlagBits getMaxUsableSampleCount() {
VkPhysicalDeviceProperties physicalDeviceProperties;
vkGetPhysicalDeviceProperties(physicalDevice, &physicalDeviceProperties);
VkSampleCountFlags counts = physicalDeviceProperties.limits.framebufferColorSampleCounts & physicalDeviceProperties.limits.framebufferDepthSampleCounts;
if (counts & VK_SAMPLE_COUNT_64_BIT) { return VK_SAMPLE_COUNT_64_BIT; }
if (counts & VK_SAMPLE_COUNT_32_BIT) { return VK_SAMPLE_COUNT_32_BIT; }
if (counts & VK_SAMPLE_COUNT_16_BIT) { return VK_SAMPLE_COUNT_16_BIT; }
if (counts & VK_SAMPLE_COUNT_8_BIT) { return VK_SAMPLE_COUNT_8_BIT; }
if (counts & VK_SAMPLE_COUNT_4_BIT) { return VK_SAMPLE_COUNT_4_BIT; }
if (counts & VK_SAMPLE_COUNT_2_BIT) { return VK_SAMPLE_COUNT_2_BIT; }
return VK_SAMPLE_COUNT_1_BIT;
}
void createRenderPass() {
VkAttachmentDescription colorAttachment = {};
colorAttachment.format = swapChainImageFormat;
colorAttachment.samples = msaaSamples;//多重采样
colorAttachment.loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR;
colorAttachment.storeOp = VK_ATTACHMENT_STORE_OP_STORE;
colorAttachment.stencilLoadOp = VK_ATTACHMENT_LOAD_OP_DONT_CARE;
colorAttachment.stencilStoreOp = VK_ATTACHMENT_STORE_OP_DONT_CARE;
colorAttachment.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED;
//我们已经将finalLayout从VK_IMAGE_LAYOUT_PRESENT_SRC_KHR修改为VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL。
//这是因为多采样图像不能直接呈现。我们首先需要将它们解析为一个常规图像。这个要求不适用于深度缓冲区，因为它在任何时候都不会显示。因此，我们只需要添加一个新的颜色附件，即所谓的解析附件
colorAttachment.finalLayout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL;
// Depth attachment
VkAttachmentDescription depthAttachment = {};
depthAttachment.format = depthFormat;
depthAttachment.samples = msaaSamples;//多重采样
depthAttachment.loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR;
depthAttachment.storeOp = VK_ATTACHMENT_STORE_OP_STORE;
depthAttachment.stencilLoadOp = VK_ATTACHMENT_LOAD_OP_CLEAR;
depthAttachment.stencilStoreOp = VK_ATTACHMENT_STORE_OP_DONT_CARE;
depthAttachment.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED;
depthAttachment.finalLayout = VK_IMAGE_LAYOUT_DEPTH_STENCIL_ATTACHMENT_OPTIMAL;
//添加一个新的颜色附件
VkAttachmentDescription colorAttachmentResolve = {};
colorAttachmentResolve.format = swapChainImageFormat;
colorAttachmentResolve.samples = msaaSamples;
colorAttachmentResolve.loadOp = VK_ATTACHMENT_LOAD_OP_DONT_CARE;
colorAttachmentResolve.storeOp = VK_ATTACHMENT_STORE_OP_STORE;
colorAttachmentResolve.stencilLoadOp = VK_ATTACHMENT_LOAD_OP_DONT_CARE;
colorAttachmentResolve.stencilStoreOp = VK_ATTACHMENT_STORE_OP_DONT_CARE;
colorAttachmentResolve.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED;
colorAttachmentResolve.finalLayout = VK_IMAGE_LAYOUT_PRESENT_SRC_KHR;
VkAttachmentReference colorAttachmentRef = {};
colorAttachmentRef.attachment = 0;
colorAttachmentRef.layout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL;
VkAttachmentReference depthAttachmentRef = {};
depthAttachmentRef.attachment = 1;
depthAttachmentRef.layout = VK_IMAGE_LAYOUT_DEPTH_STENCIL_ATTACHMENT_OPTIMAL;
//创建一个新的附件引用，指向作为解析目标的颜色缓冲区
VkAttachmentReference colorAttachmentResolveRef = {};
colorAttachmentResolveRef.attachment = 2;
colorAttachmentResolveRef.layout = VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL;
VkSubpassDescription subpass = {};
subpass.pipelineBindPoint = VK_PIPELINE_BIND_POINT_GRAPHICS;
subpass.colorAttachmentCount = 1;
subpass.pColorAttachments = &colorAttachmentRef;
subpass.pDepthStencilAttachment = &depthAttachmentRef;
subpass.pResolveAttachments = &colorAttachmentResolveRef;//让渲染通道定义一个多采样解析操作，让我们渲染图像到屏幕
std::array<VkAttachmentDescription, 3> attachments = { colorAttachment, depthAttachment, colorAttachmentResolve };
VkRenderPassCreateInfo renderPassInfo = {};
renderPassInfo.sType = VK_STRUCTURE_TYPE_RENDER_PASS_CREATE_INFO;
renderPassInfo.attachmentCount = static_cast<uint32_t>(attachments.size());
renderPassInfo.pAttachments = attachments.data();
renderPassInfo.subpassCount = 1;
renderPassInfo.pSubpasses = &subpass;
VkSubpassDependency dependency = {};
dependency.srcSubpass = VK_SUBPASS_EXTERNAL;
dependency.dstSubpass = 0;
dependency.srcStageMask = VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT;
dependency.srcAccessMask = 0;
dependency.dstStageMask = VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT;
dependency.dstAccessMask = VK_ACCESS_COLOR_ATTACHMENT_READ_BIT | VK_ACCESS_COLOR_ATTACHMENT_WRITE_BIT;
renderPassInfo.dependencyCount = 1;
renderPassInfo.pDependencies = &dependency;
if (vkCreateRenderPass(device, &renderPassInfo, nullptr, &renderPass) != VK_SUCCESS) {
throw std::runtime_error("failed to create render pass!");
}
}
VkShaderModule createShaderModule(const std::vector<char>& code) {
VkShaderModuleCreateInfo createInfo = {};
createInfo.sType = VK_STRUCTURE_TYPE_SHADER_MODULE_CREATE_INFO;
createInfo.codeSize = code.size();
createInfo.pCode = reinterpret_cast<const uint32_t*>(code.data());
VkShaderModule shaderModule;
if (vkCreateShaderModule(device, &createInfo, nullptr, &shaderModule) != VK_SUCCESS) {
throw std::runtime_error("failed to create shader module!");
}
return shaderModule;
}
static std::vector<char> readFile(const std::string& filename) {
std::ifstream file(filename, std::ios::ate | std::ios::binary);
if (!file.is_open()) {
throw std::runtime_error("failed to open file!");
}
size_t fileSize = (size_t)file.tellg();
std::vector<char> buffer(fileSize);
file.seekg(0);
file.read(buffer.data(), fileSize);
file.close();
return buffer;
}
void createSemaphores() {
//imageAvailableSemaphores.resize(MAX_FRAMES_IN_FLIGHT);
//renderFinishedSemaphores.resize(MAX_FRAMES_IN_FLIGHT);
//inFlightFences.resize(MAX_FRAMES_IN_FLIGHT);
//imagesInFlight.resize(swapChainImages.size(), VK_NULL_HANDLE);
//
//VkSemaphoreCreateInfo semaphoreInfo = {};
//semaphoreInfo.sType = VK_STRUCTURE_TYPE_SEMAPHORE_CREATE_INFO;
//
//VkFenceCreateInfo fenceInfo = {};
//fenceInfo.sType = VK_STRUCTURE_TYPE_FENCE_CREATE_INFO;
//fenceInfo.flags = VK_FENCE_CREATE_SIGNALED_BIT;
//
//for (size_t i = 0; i < MAX_FRAMES_IN_FLIGHT; i++) {
// if (vkCreateSemaphore(device, &semaphoreInfo, nullptr, &imageAvailableSemaphores[i]) != VK_SUCCESS ||
// vkCreateSemaphore(device, &semaphoreInfo, nullptr, &renderFinishedSemaphores[i]) != VK_SUCCESS ||
// vkCreateFence(device, &fenceInfo, nullptr, &inFlightFences[i]) != VK_SUCCESS) {
// throw std::runtime_error("failed to create synchronization objects for a frame!");
// }
//}
// Create synchronization objects
VkSemaphoreCreateInfo semaphoreCreateInfo = vks::initializers::semaphoreCreateInfo();
// Create a semaphore used to synchronize image presentation
// Ensures that the image is displayed before we start submitting new commands to the queu
if (vkCreateSemaphore(device, &semaphoreCreateInfo, nullptr, &semaphores.presentComplete)) {
throw std::runtime_error("failed to create synchronization objects for a frame!");
}
// Create a semaphore used to synchronize command submission
// Ensures that the image is not presented until all commands have been sumbitted and executed
if (vkCreateSemaphore(device, &semaphoreCreateInfo, nullptr, &semaphores.renderComplete)) {
throw std::runtime_error("failed to create synchronization objects for a frame!");
}
// Set up submit info structure
// Semaphores will stay the same during application lifetime
// Command buffer submission info is set by each example
submitInfo = vks::initializers::submitInfo();
submitInfo.pWaitDstStageMask = &submitPipelineStages;
submitInfo.waitSemaphoreCount = 1;
submitInfo.pWaitSemaphores = &semaphores.presentComplete;
submitInfo.signalSemaphoreCount = 1;
submitInfo.pSignalSemaphores = &semaphores.renderComplete;
}
void createCommandBuffers() {
commandBuffers.resize(swapChainFramebuffers.size());
VkCommandBufferAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO;
allocInfo.commandPool = commandPool;
allocInfo.level = VK_COMMAND_BUFFER_LEVEL_PRIMARY;
allocInfo.commandBufferCount = (uint32_t)commandBuffers.size();
if (vkAllocateCommandBuffers(device, &allocInfo, commandBuffers.data()) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate command buffers!");
}
VkCommandBufferBeginInfo beginInfo = {};
beginInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO;
beginInfo.flags = VK_COMMAND_BUFFER_USAGE_SIMULTANEOUS_USE_BIT;
beginInfo.pInheritanceInfo = nullptr; // Optional
//因为我们现在有多个带 VK_ATTACHMENT_LOAD_OP_CLEAR 的附件，我们还需要指定多个清除值
std::array<VkClearValue, 2> clearValues = {};
clearValues[0].color = { 0.1f, 0.1f, 0.3f, 0.5f };
clearValues[1].depthStencil = { 1.0f, 0 };
VkRenderPassBeginInfo renderPassInfo = {};
renderPassInfo.sType = VK_STRUCTURE_TYPE_RENDER_PASS_BEGIN_INFO;
renderPassInfo.renderPass = renderPass;
renderPassInfo.renderArea.offset = { 0, 0 };
renderPassInfo.renderArea.extent = swapChainExtent;
renderPassInfo.clearValueCount = static_cast<uint32_t>(clearValues.size());
renderPassInfo.pClearValues = clearValues.data();
for (size_t i = 0; i < commandBuffers.size(); i++) {
// Set target frame buffer
renderPassInfo.framebuffer = swapChainFramebuffers[i];
vkBeginCommandBuffer(commandBuffers[i], &beginInfo);
vkCmdBeginRenderPass(commandBuffers[i], &renderPassInfo, VK_SUBPASS_CONTENTS_INLINE);
//pDynamicState
VkViewport viewport = vks::initializers::viewport((float)swapChainExtent.width, (float)swapChainExtent.height, 0.0f, 1.0f);
vkCmdSetViewport(commandBuffers[i], 0, 1, &viewport);
VkRect2D scissor = vks::initializers::rect2D(swapChainExtent.width, swapChainExtent.height, 0, 0);
vkCmdSetScissor(commandBuffers[i], 0, 1, &scissor);
VkDeviceSize offsets[] = { 0 };
Visualize shadow map
//if (displayShadowMap) {
// vkCmdBindDescriptorSets(commandBuffers[i], VK_PIPELINE_BIND_POINT_GRAPHICS, pipelineLayouts.quad, 0, 1, &descriptorSet, 0, NULL);
// vkCmdBindPipeline(commandBuffers[i], VK_PIPELINE_BIND_POINT_GRAPHICS, pipelines.quad);
// vkCmdBindVertexBuffers(commandBuffers[i], 0, 1, &models.quad.vertices.buffer, offsets);
// vkCmdBindIndexBuffer(commandBuffers[i], models.quad.indices.buffer, 0, VK_INDEX_TYPE_UINT32);
// vkCmdDrawIndexed(commandBuffers[i], models.quad.indexCount, 1, 0, 0, 0);
//}
//渲染期间绑定缓冲区
VkBuffer vertexBuffers[] = { vertexBuffer };
vkCmdBindDescriptorSets(commandBuffers[i], VK_PIPELINE_BIND_POINT_GRAPHICS, pipelineLayout, 0, 1, &descriptorSet, 0, nullptr);
vkCmdBindPipeline(commandBuffers[i], VK_PIPELINE_BIND_POINT_GRAPHICS, pipelines.graphicsPipeline);
//绑定顶点缓冲区
vkCmdBindVertexBuffers(commandBuffers[i], 0, 1, vertexBuffers, offsets);
//绑定索引缓冲区
vkCmdBindIndexBuffer(commandBuffers[i], indexBuffer, 0, VK_INDEX_TYPE_UINT32);
for (size_t j = 0; j < 1; j++)
{
//glm::vec3 pos = cubePositions[j];
glm::vec3 pos = glm::vec3(0);
vkCmdPushConstants(commandBuffers[i], pipelineLayout, VK_SHADER_STAGE_VERTEX_BIT, 0, sizeof(glm::vec3), &pos);
vkCmdDrawIndexed(commandBuffers[i], static_cast<uint32_t>(indices.size()), 1, 0, 0, 0);
}
//vkCmdDraw(commandBuffers[i], static_cast<uint32_t>(vertices.size()), 1, 0, 0);
vkCmdEndRenderPass(commandBuffers[i]);
if (vkEndCommandBuffer(commandBuffers[i]) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
}
}
void createCommandPool() {
QueueFamilyIndices queueFamilyIndices = findQueueFamilies(physicalDevice);
VkCommandPoolCreateInfo poolInfo = {};
poolInfo.sType = VK_STRUCTURE_TYPE_COMMAND_POOL_CREATE_INFO;
poolInfo.queueFamilyIndex = queueFamilyIndices.graphicsFamily;
poolInfo.flags = 0; // Optional
if (vkCreateCommandPool(device, &poolInfo, nullptr, &commandPool) != VK_SUCCESS) {
throw std::runtime_error("failed to create command pool!");
}
}
bool hasStencilComponent(VkFormat format) {
return format == VK_FORMAT_D32_SFLOAT_S8_UINT || format == VK_FORMAT_D24_UNORM_S8_UINT;
}
void createColorResources() {
VkFormat colorFormat = swapChainImageFormat;
createImage(swapChainExtent.width, swapChainExtent.height, 1, msaaSamples, colorFormat, VK_IMAGE_TILING_OPTIMAL, VK_IMAGE_USAGE_TRANSIENT_ATTACHMENT_BIT | VK_IMAGE_USAGE_COLOR_ATTACHMENT_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, colorImage, colorImageMemory);
colorImageView = createImageView(colorImage, colorFormat, VK_IMAGE_ASPECT_COLOR_BIT, 1);
transitionImageLayout(colorImage, colorFormat, VK_IMAGE_LAYOUT_UNDEFINED, VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL, 1);
}
void createDepthResources() {
createImage(swapChainExtent.width, swapChainExtent.height, 1, msaaSamples, depthFormat, VK_IMAGE_TILING_OPTIMAL, VK_IMAGE_USAGE_DEPTH_STENCIL_ATTACHMENT_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, depthImage, depthImageMemory);
//createImage(swapChainExtent.width, swapChainExtent.height, 1, VK_SAMPLE_COUNT_1_BIT, depthFormat, VK_IMAGE_TILING_OPTIMAL, VK_IMAGE_USAGE_DEPTH_STENCIL_ATTACHMENT_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, depthImage, depthImageMemory);
depthImageView = createImageView(depthImage, depthFormat, VK_IMAGE_ASPECT_DEPTH_BIT, 1);
}
void createTextureSampler() {
VkSamplerCreateInfo samplerInfo = {};
samplerInfo.sType = VK_STRUCTURE_TYPE_SAMPLER_CREATE_INFO;
//指定纹素放大和缩小内插值方式
samplerInfo.magFilter = VK_FILTER_LINEAR;
samplerInfo.minFilter = VK_FILTER_LINEAR;
//每个轴向使用的寻址模式
samplerInfo.addressModeU = VK_SAMPLER_ADDRESS_MODE_REPEAT;
samplerInfo.addressModeV = VK_SAMPLER_ADDRESS_MODE_REPEAT;
samplerInfo.addressModeW = VK_SAMPLER_ADDRESS_MODE_REPEAT;
//各向异性过滤器
samplerInfo.anisotropyEnable = VK_TRUE;
samplerInfo.maxAnisotropy = 16;
//samplerInfo.anisotropyEnable = VK_FALSE;
//samplerInfo.maxAnisotropy = 1;
//采样范围超过图像时候返回的颜色
samplerInfo.borderColor = VK_BORDER_COLOR_INT_OPAQUE_BLACK;
//指定使用的坐标系统，用于访问图像的纹素
samplerInfo.unnormalizedCoordinates = VK_FALSE;
//开启比较功能，那么纹素首先和值进行比较，并且比较后的值用于过滤操作
samplerInfo.compareEnable = VK_FALSE;
samplerInfo.compareOp = VK_COMPARE_OP_ALWAYS;
samplerInfo.mipmapMode = VK_SAMPLER_MIPMAP_MODE_LINEAR;
samplerInfo.mipLodBias = 0.0f;
samplerInfo.minLod = 0;
//samplerInfo.minLod = static_cast<float>(mipLevels / 2);
//samplerInfo.maxLod = 0;
samplerInfo.maxLod = static_cast<float>(mipLevels);
//创建采样器
if (vkCreateSampler(device, &samplerInfo, nullptr, &textureSampler) != VK_SUCCESS) {
throw std::runtime_error("failed to create texture sampler!");
}
}
void createTextureImageView() {
textureImageView = createImageView(textureImage, VK_FORMAT_R8G8B8A8_UNORM, VK_IMAGE_ASPECT_COLOR_BIT, mipLevels);
}
void generateMipmaps(VkImage image, VkFormat imageFormat, int32_t texWidth, int32_t texHeight, uint32_t mipLevels) {
// Check if image format supports linear blitting
VkFormatProperties formatProperties;
vkGetPhysicalDeviceFormatProperties(physicalDevice, imageFormat, &formatProperties);
if (!(formatProperties.optimalTilingFeatures & VK_FORMAT_FEATURE_SAMPLED_IMAGE_FILTER_LINEAR_BIT)) {
throw std::runtime_error("texture image format does not support linear blitting!");
}
VkCommandBuffer commandBuffer = beginSingleTimeCommands();
VkImageMemoryBarrier barrier = {};
barrier.sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER;
barrier.image = image;
barrier.srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
barrier.dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
barrier.subresourceRange.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
barrier.subresourceRange.baseArrayLayer = 0;
barrier.subresourceRange.layerCount = 1;
barrier.subresourceRange.levelCount = 1;
int32_t mipWidth = texWidth;
int32_t mipHeight = texHeight;
for (uint32_t i = 1; i < mipLevels; i++) {
barrier.subresourceRange.baseMipLevel = i - 1;
barrier.oldLayout = VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL;
barrier.newLayout = VK_IMAGE_LAYOUT_TRANSFER_SRC_OPTIMAL;
barrier.srcAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;
barrier.dstAccessMask = VK_ACCESS_TRANSFER_READ_BIT;
vkCmdPipelineBarrier(commandBuffer,
VK_PIPELINE_STAGE_TRANSFER_BIT, VK_PIPELINE_STAGE_TRANSFER_BIT, 0,
0, nullptr,
0, nullptr,
1, &barrier);
VkImageBlit blit = {};
blit.srcOffsets[0] = { 0, 0, 0 };
blit.srcOffsets[1] = { mipWidth, mipHeight, 1 };
blit.srcSubresource.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
blit.srcSubresource.mipLevel = i - 1;
blit.srcSubresource.baseArrayLayer = 0;
blit.srcSubresource.layerCount = 1;
blit.dstOffsets[0] = { 0, 0, 0 };
blit.dstOffsets[1] = { mipWidth > 1 ? mipWidth / 2 : 1, mipHeight > 1 ? mipHeight / 2 : 1, 1 };
blit.dstSubresource.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
blit.dstSubresource.mipLevel = i;
blit.dstSubresource.baseArrayLayer = 0;
blit.dstSubresource.layerCount = 1;
vkCmdBlitImage(commandBuffer,
image, VK_IMAGE_LAYOUT_TRANSFER_SRC_OPTIMAL,
image, VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL,
1, &blit,
VK_FILTER_LINEAR);
barrier.oldLayout = VK_IMAGE_LAYOUT_TRANSFER_SRC_OPTIMAL;
barrier.newLayout = VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL;
barrier.srcAccessMask = VK_ACCESS_TRANSFER_READ_BIT;
barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT;
vkCmdPipelineBarrier(commandBuffer,
VK_PIPELINE_STAGE_TRANSFER_BIT, VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT, 0,
0, nullptr,
0, nullptr,
1, &barrier);
if (mipWidth > 1) mipWidth /= 2;
if (mipHeight > 1) mipHeight /= 2;
}
barrier.subresourceRange.baseMipLevel = mipLevels - 1;
barrier.oldLayout = VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL;
barrier.newLayout = VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL;
barrier.srcAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;
barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT;
vkCmdPipelineBarrier(commandBuffer,
VK_PIPELINE_STAGE_TRANSFER_BIT, VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT, 0,
0, nullptr,
0, nullptr,
1, &barrier);
endSingleTimeCommands(commandBuffer);
}
void createTextureImage() {
int texWidth, texHeight, texChannels;
stbi_uc* pixels = stbi_load("vulkan.png", &texWidth, &texHeight, &texChannels, STBI_rgb_alpha);
VkDeviceSize imageSize = texWidth * texHeight * 4;
mipLevels = static_cast<uint32_t>(std::floor(std::log2(std::max(texWidth, texHeight)))) + 1;
if (!pixels) {
throw std::runtime_error("failed to load texture image!");
}
VkBuffer stagingBuffer;
VkDeviceMemory stagingBufferMemory;
createBuffer(imageSize, VK_BUFFER_USAGE_TRANSFER_SRC_BIT, VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT, stagingBuffer, stagingBufferMemory);
void* data;
vkMapMemory(device, stagingBufferMemory, 0, imageSize, 0, &data);
memcpy(data, pixels, static_cast<size_t>(imageSize));
vkUnmapMemory(device, stagingBufferMemory);
stbi_image_free(pixels);
createImage(texWidth, texHeight, mipLevels, VK_SAMPLE_COUNT_1_BIT, VK_FORMAT_R8G8B8A8_UNORM, VK_IMAGE_TILING_OPTIMAL, VK_IMAGE_USAGE_TRANSFER_SRC_BIT | VK_IMAGE_USAGE_TRANSFER_DST_BIT | VK_IMAGE_USAGE_SAMPLED_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, textureImage, textureImageMemory);
transitionImageLayout(textureImage, VK_FORMAT_R8G8B8A8_UNORM, VK_IMAGE_LAYOUT_UNDEFINED, VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL, mipLevels);
copyBufferToImage(stagingBuffer, textureImage, static_cast<uint32_t>(texWidth), static_cast<uint32_t>(texHeight));
//transitionImageLayout(textureImage, VK_FORMAT_R8G8B8A8_UNORM, VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL, VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL, mipLevels);
vkDestroyBuffer(device, stagingBuffer, nullptr);
vkFreeMemory(device, stagingBufferMemory, nullptr);
//transitioned to VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL while generating mipmaps
generateMipmaps(textureImage, VK_FORMAT_R8G8B8A8_UNORM, texWidth, texHeight, mipLevels);
}
void createImage(uint32_t width, uint32_t height, uint32_t mipLevels, VkSampleCountFlagBits numSamples, VkFormat format, VkImageTiling tiling, VkImageUsageFlags usage, VkMemoryPropertyFlags properties, VkImage& image, VkDeviceMemory& imageMemory) {
VkImageCreateInfo imageInfo = {};
imageInfo.sType = VK_STRUCTURE_TYPE_IMAGE_CREATE_INFO;
imageInfo.imageType = VK_IMAGE_TYPE_2D;
imageInfo.extent.width = width;
imageInfo.extent.height = height;
imageInfo.extent.depth = 1;
imageInfo.mipLevels = mipLevels;
imageInfo.arrayLayers = 1;
imageInfo.format = format;
imageInfo.tiling = tiling;
imageInfo.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED;
imageInfo.usage = usage;
imageInfo.samples = numSamples;
imageInfo.sharingMode = VK_SHARING_MODE_EXCLUSIVE;
if (vkCreateImage(device, &imageInfo, nullptr, &image) != VK_SUCCESS) {
throw std::runtime_error("failed to create image!");
}
VkMemoryRequirements memRequirements;
vkGetImageMemoryRequirements(device, image, &memRequirements);
VkMemoryAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO;
allocInfo.allocationSize = memRequirements.size;
allocInfo.memoryTypeIndex = findMemoryType(memRequirements.memoryTypeBits, properties);
if (vkAllocateMemory(device, &allocInfo, nullptr, &imageMemory) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate image memory!");
}
vkBindImageMemory(device, image, imageMemory, 0);
}
void transitionImageLayout(VkImage image, VkFormat format, VkImageLayout oldLayout, VkImageLayout newLayout, uint32_t mipLevels) {
VkCommandBuffer commandBuffer = beginSingleTimeCommands();
VkImageMemoryBarrier barrier = {};
barrier.sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER;
barrier.oldLayout = oldLayout;
barrier.newLayout = newLayout;
barrier.srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
barrier.dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
barrier.image = image;
//barrier.subresourceRange.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
barrier.subresourceRange.baseMipLevel = 0;
barrier.subresourceRange.levelCount = mipLevels;
barrier.subresourceRange.baseArrayLayer = 0;
barrier.subresourceRange.layerCount = 1;
if (newLayout == VK_IMAGE_LAYOUT_DEPTH_STENCIL_ATTACHMENT_OPTIMAL) {
barrier.subresourceRange.aspectMask = VK_IMAGE_ASPECT_DEPTH_BIT;
if (hasStencilComponent(format)) {
barrier.subresourceRange.aspectMask |= VK_IMAGE_ASPECT_STENCIL_BIT;
}
}
else {
barrier.subresourceRange.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
}
VkPipelineStageFlags sourceStage;
VkPipelineStageFlags destinationStage;
if (oldLayout == VK_IMAGE_LAYOUT_UNDEFINED && newLayout == VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL) {
barrier.srcAccessMask = 0;
barrier.dstAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;
sourceStage = VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT;
destinationStage = VK_PIPELINE_STAGE_TRANSFER_BIT;
}
else if (oldLayout == VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL && newLayout == VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL) {
barrier.srcAccessMask = VK_ACCESS_TRANSFER_WRITE_BIT;
barrier.dstAccessMask = VK_ACCESS_SHADER_READ_BIT;
sourceStage = VK_PIPELINE_STAGE_TRANSFER_BIT;
destinationStage = VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT;
}
else if (oldLayout == VK_IMAGE_LAYOUT_UNDEFINED && newLayout == VK_IMAGE_LAYOUT_DEPTH_STENCIL_ATTACHMENT_OPTIMAL) {
barrier.srcAccessMask = 0;
barrier.dstAccessMask = VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_READ_BIT | VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_WRITE_BIT;
sourceStage = VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT;
destinationStage = VK_PIPELINE_STAGE_EARLY_FRAGMENT_TESTS_BIT;
}
else if (oldLayout == VK_IMAGE_LAYOUT_UNDEFINED && newLayout == VK_IMAGE_LAYOUT_COLOR_ATTACHMENT_OPTIMAL) {
barrier.srcAccessMask = 0;
barrier.dstAccessMask = VK_ACCESS_COLOR_ATTACHMENT_READ_BIT | VK_ACCESS_COLOR_ATTACHMENT_WRITE_BIT;
sourceStage = VK_PIPELINE_STAGE_TOP_OF_PIPE_BIT;
destinationStage = VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT;
}
else {
throw std::invalid_argument("unsupported layout transition!");
}
vkCmdPipelineBarrier(
commandBuffer,
sourceStage, destinationStage,
0,
0, nullptr,
0, nullptr,
1, &barrier
);
endSingleTimeCommands(commandBuffer);
}
void copyBufferToImage(VkBuffer buffer, VkImage image, uint32_t width, uint32_t height) {
VkCommandBuffer commandBuffer = beginSingleTimeCommands();
VkBufferImageCopy region = {};
region.bufferOffset = 0;
region.bufferRowLength = 0;
region.bufferImageHeight = 0;
region.imageSubresource.aspectMask = VK_IMAGE_ASPECT_COLOR_BIT;
region.imageSubresource.mipLevel = 0;
region.imageSubresource.baseArrayLayer = 0;
region.imageSubresource.layerCount = 1;
region.imageOffset = { 0, 0, 0 };
region.imageExtent = {
width,
height,
1
};
vkCmdCopyBufferToImage(commandBuffer, buffer, image, VK_IMAGE_LAYOUT_TRANSFER_DST_OPTIMAL, 1, ®ion);
endSingleTimeCommands(commandBuffer);
}
void loadModel() {
tinyobj::attrib_t attrib;
std::vector<tinyobj::shape_t> shapes;
std::vector<tinyobj::material_t> materials;
std::string warn, err;
if (!tinyobj::LoadObj(&attrib, &shapes, &materials, &warn, &err, "chalet.obj")) {
throw std::runtime_error(warn + err);
}
std::unordered_map<Vertex, uint32_t> uniqueVertices = {};
for (const auto& shape : shapes) {
for (const auto& index : shape.mesh.indices) {
Vertex vertex = {};
vertex.pos = {
attrib.vertices[3 * index.vertex_index + 0],
attrib.vertices[3 * index.vertex_index + 1],
attrib.vertices[3 * index.vertex_index + 2]
};
vertex.texCoord = {
attrib.texcoords[2 * index.texcoord_index + 0],
1.0f - attrib.texcoords[2 * index.texcoord_index + 1]
};
vertex.color = { 1.0f, 1.0f, 1.0f };
if (uniqueVertices.count(vertex) == 0) {
uniqueVertices[vertex] = static_cast<uint32_t>(vertices.size());
vertices.push_back(vertex);
}
indices.push_back(uniqueVertices[vertex]);
}
}
}
void loadCube() {
vertices = {
//positions colors normals texture coords m.ambient m.diffuse m.specular m.shininess
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 10.0f, -0.5f, 10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 10.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-10.0f, -0.5f, 10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-10.0f, -0.5f, -10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 0.0f, 10.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 10.0f, -0.5f, -10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 10.0f, 10.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f}
};
indices = {
2, 1, 0, 5, 4, 3,
6, 7, 8, 9, 10,11,
12,13,14,15,16,17,
20,19,18,23,22,21,
24,25,26,27,28,29,
32,31,30,35,34,33,
38,37,36,36,39,38
};
}
void loadPlane() {
vertices = {
//positions colors normals texture coords m.ambient m.diffuse m.specular m.shininess
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, -1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 0.0f, 1.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{-1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{1.0f, 0.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, -0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, -1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{1.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, 0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-0.5f, 0.5f, -0.5f}, {1.0f, 0.0f, 0.0f},{0.0f, 1.0f, 0.0f},{0.0f, 1.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 10.0f, -1.5f, 10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 10.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-10.0f, -1.5f, 10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 0.0f, 0.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{-10.0f, -1.5f, -10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 0.0f, 10.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
{{ 10.0f, -1.5f, -10.0f}, {1.0f, 0.0f, 0.0f},{ 0.0f, 1.0f, 0.0f},{ 10.0f, 10.0f},{1.0f, 0.5f, 0.31f}, {1.0f, 0.5f, 0.31f},{0.5f, 0.5f, 0.5f},32.0f},
};
indices = {
2, 1, 0, 5, 4, 3,
6, 7, 8, 9, 10,11,
12,13,14,15,16,17,
20,19,18,23,22,21,
24,25,26,27,28,29,
32,31,30,35,34,33,
38,37,36,36,39,38,
};
}
// 创建顶点缓冲区
void createVertexBuffer() {
VkBuffer stagingBuffer;
VkDeviceMemory stagingBufferMemory;
VkDeviceSize bufferSize = sizeof(vertices[0]) * vertices.size();
createBuffer(bufferSize, VK_BUFFER_USAGE_TRANSFER_SRC_BIT, VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT, stagingBuffer, stagingBufferMemory);
//*****填充顶点缓冲区*****
void* data;
//将缓冲区内存映射(mapping the buffer memory)到CPU可访问的内存中完成
vkMapMemory(device, stagingBufferMemory, 0, bufferSize, 0, &data);
//将顶点数据拷贝到映射内存中
memcpy(data, vertices.data(), (size_t)bufferSize);
//取消映射
vkUnmapMemory(device, stagingBufferMemory);
createBuffer(bufferSize, VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_VERTEX_BUFFER_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, vertexBuffer, vertexBufferMemory);
copyBuffer(stagingBuffer, vertexBuffer, bufferSize);
vkDestroyBuffer(device, stagingBuffer, nullptr);
vkFreeMemory(device, stagingBufferMemory, nullptr);
}
// 创建索引缓冲区
void createIndexBuffer() {
VkDeviceSize bufferSize = sizeof(indices[0]) * indices.size();
VkBuffer stagingBuffer;
VkDeviceMemory stagingBufferMemory;
createBuffer(bufferSize, VK_BUFFER_USAGE_TRANSFER_SRC_BIT, VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT, stagingBuffer, stagingBufferMemory);
void* data;
vkMapMemory(device, stagingBufferMemory, 0, bufferSize, 0, &data);
memcpy(data, indices.data(), (size_t)bufferSize);
vkUnmapMemory(device, stagingBufferMemory);
createBuffer(bufferSize, VK_BUFFER_USAGE_TRANSFER_DST_BIT | VK_BUFFER_USAGE_INDEX_BUFFER_BIT, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT, indexBuffer, indexBufferMemory);
copyBuffer(stagingBuffer, indexBuffer, bufferSize);
vkDestroyBuffer(device, stagingBuffer, nullptr);
vkFreeMemory(device, stagingBufferMemory, nullptr);
}
void createUniformBuffer() {
//createBuffer(sizeof(UniformBufferObject), VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT, VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT, uniformBuffer, uniformBufferMemory);
createBuffer(VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT,VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT,&uniformBuffers.scene, sizeof(UniformBufferObject));
// Offscreen vertex shader uniform buffer block
createBuffer(VK_BUFFER_USAGE_UNIFORM_BUFFER_BIT,VK_MEMORY_PROPERTY_HOST_VISIBLE_BIT | VK_MEMORY_PROPERTY_HOST_COHERENT_BIT,&uniformBuffers.offscreen,sizeof(uboOffscreenVS));
// Map persistent
uniformBuffers.offscreen.map();
//uniformBuffers.scene.map();
updateUniformBuffer();
}
void createDescriptorPool() {
//组合图像采样器描述符
std::array<VkDescriptorPoolSize, 3> poolSizes = {};
poolSizes[0].type = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
poolSizes[0].descriptorCount = 6;
poolSizes[1].type = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
poolSizes[1].descriptorCount = 4;
poolSizes[2].type = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
poolSizes[2].descriptorCount = 4;
VkDescriptorPoolCreateInfo poolInfo = {};
poolInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_POOL_CREATE_INFO;
poolInfo.poolSizeCount = static_cast<uint32_t>(poolSizes.size());
poolInfo.pPoolSizes = poolSizes.data();
poolInfo.maxSets = 3;
if (vkCreateDescriptorPool(device, &poolInfo, nullptr, &descriptorPool) != VK_SUCCESS) {
throw std::runtime_error("failed to create descriptor pool!");
}
}
void createDescriptorSet() {
VkDescriptorSetLayout layouts[] = { descriptorSetLayout };
VkDescriptorSetAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_ALLOCATE_INFO;
allocInfo.descriptorPool = descriptorPool;
allocInfo.descriptorSetCount = 1;
allocInfo.pSetLayouts = layouts;
if (vkAllocateDescriptorSets(device, &allocInfo, &descriptorSet) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate descriptor set!");
}
// Image descriptor for the shadow map attachment
VkDescriptorImageInfo texDescriptor =
vks::initializers::descriptorImageInfo(
offscreenPass.depthSampler,
offscreenPass.depth.view,
VK_IMAGE_LAYOUT_DEPTH_STENCIL_READ_ONLY_OPTIMAL);
std::vector<VkWriteDescriptorSet> writeDescriptorSets = {
// Binding 0 : Vertex shader uniform buffer
vks::initializers::writeDescriptorSet(
descriptorSet,
VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
0,
&uniformBuffers.offscreen.descriptor),
// Binding 1 : Fragment shader texture sampler
vks::initializers::writeDescriptorSet(
descriptorSet,
VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER,
1,
&texDescriptor)
};
vkUpdateDescriptorSets(device, writeDescriptorSets.size(), writeDescriptorSets.data(), 0, NULL);
// Offscreen
if (vkAllocateDescriptorSets(device, &allocInfo, &descriptorSets.offscreen) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate descriptor set!");
}
writeDescriptorSets = {
// Binding 0 : Vertex shader uniform buffer
vks::initializers::writeDescriptorSet(
descriptorSets.offscreen,
VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
0,
&uniformBuffers.offscreen.descriptor),
};
vkUpdateDescriptorSets(device, writeDescriptorSets.size(), writeDescriptorSets.data(), 0, NULL);
// 3D scene
if (vkAllocateDescriptorSets(device, &allocInfo, &descriptorSets.scene) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate descriptor set!");
}
// Image descriptor for the shadow map attachment
texDescriptor.sampler = offscreenPass.depthSampler;
texDescriptor.imageView = offscreenPass.depth.view;
writeDescriptorSets = {
// Binding 0 : Vertex shader uniform buffer
vks::initializers::writeDescriptorSet(
descriptorSets.scene,
VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
0,
&uniformBuffers.scene.descriptor),
// Binding 1 : Fragment shader shadow sampler
vks::initializers::writeDescriptorSet(
descriptorSets.scene,
VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER,
1,
&texDescriptor)
};
vkUpdateDescriptorSets(device, writeDescriptorSets.size(), writeDescriptorSets.data(), 0, NULL);
VkDescriptorBufferInfo bufferInfo = {};
bufferInfo.buffer = uniformBuffers.scene.buffer;
bufferInfo.offset = 0;
bufferInfo.range = sizeof(UniformBufferObject);
VkDescriptorImageInfo imageInfo = {};
imageInfo.imageLayout = VK_IMAGE_LAYOUT_SHADER_READ_ONLY_OPTIMAL;
imageInfo.imageView = textureImageView;
imageInfo.sampler = textureSampler;
writeDescriptorSets = {
// Binding 0 : Vertex shader uniform buffer
vks::initializers::writeDescriptorSet(
descriptorSet,
VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER,
0,
&bufferInfo),
// Binding 1 : Fragment shader shadow sampler
vks::initializers::writeDescriptorSet(
descriptorSet,
VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER,
1,
&imageInfo),
// Binding 2 : Fragment shader shadow sampler
vks::initializers::writeDescriptorSet(
descriptorSet,
VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER,
2,
&texDescriptor)
};
vkUpdateDescriptorSets(device, writeDescriptorSets.size(), writeDescriptorSets.data(), 0, NULL);
//std::array<VkWriteDescriptorSet, 2> descriptorWrites = {};
//
//descriptorWrites[0].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
//descriptorWrites[0].dstSet = descriptorSet;
//descriptorWrites[0].dstBinding = 0;
//descriptorWrites[0].dstArrayElement = 0;
//descriptorWrites[0].descriptorType = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
//descriptorWrites[0].descriptorCount = 1;
//descriptorWrites[0].pBufferInfo = &bufferInfo;
//
//descriptorWrites[1].sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
//descriptorWrites[1].dstSet = descriptorSet;
//descriptorWrites[1].dstBinding = 1;
//descriptorWrites[1].dstArrayElement = 0;
//descriptorWrites[1].descriptorType = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
//descriptorWrites[1].descriptorCount = 1;
//descriptorWrites[1].pImageInfo = &imageInfo;
//
//vkUpdateDescriptorSets(device, static_cast<uint32_t>(descriptorWrites.size()), descriptorWrites.data(), 0, nullptr);
}
//创建缓冲区
void createBuffer(VkDeviceSize size, VkBufferUsageFlags usage, VkMemoryPropertyFlags properties, VkBuffer& buffer, VkDeviceMemory& bufferMemory) {
//创建缓冲区
VkBufferCreateInfo bufferInfo = {};
bufferInfo.sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO;
bufferInfo.size = size;
bufferInfo.usage = usage;
bufferInfo.sharingMode = VK_SHARING_MODE_EXCLUSIVE;
if (vkCreateBuffer(device, &bufferInfo, nullptr, &buffer) != VK_SUCCESS) {
throw std::runtime_error("failed to create buffer!");
}
//内存需求
VkMemoryRequirements memRequirements;
vkGetBufferMemoryRequirements(device, buffer, &memRequirements);
//内存分配
VkMemoryAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO;
allocInfo.allocationSize = memRequirements.size;
allocInfo.memoryTypeIndex = findMemoryType(memRequirements.memoryTypeBits, properties);
if (vkAllocateMemory(device, &allocInfo, nullptr, &bufferMemory) != VK_SUCCESS) {
throw std::runtime_error("failed to allocate buffer memory!");
}
//将内存关联到缓冲区
vkBindBufferMemory(device, buffer, bufferMemory, 0);
}
//用于从一个缓冲区拷贝数据到另一个缓冲区
void copyBuffer(VkBuffer srcBuffer, VkBuffer dstBuffer, VkDeviceSize size) {
VkCommandBufferAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO;
allocInfo.level = VK_COMMAND_BUFFER_LEVEL_PRIMARY;
allocInfo.commandPool = commandPool;
allocInfo.commandBufferCount = 1;
VkCommandBuffer commandBuffer;
vkAllocateCommandBuffers(device, &allocInfo, &commandBuffer);
VkCommandBufferBeginInfo beginInfo = {};
beginInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO;
beginInfo.flags = VK_COMMAND_BUFFER_USAGE_ONE_TIME_SUBMIT_BIT;
vkBeginCommandBuffer(commandBuffer, &beginInfo);
VkBufferCopy copyRegion = {};
copyRegion.size = size;
vkCmdCopyBuffer(commandBuffer, srcBuffer, dstBuffer, 1, ©Region);
vkEndCommandBuffer(commandBuffer);
VkSubmitInfo submitInfo = {};
submitInfo.sType = VK_STRUCTURE_TYPE_SUBMIT_INFO;
submitInfo.commandBufferCount = 1;
submitInfo.pCommandBuffers = &commandBuffer;
vkQueueSubmit(graphicsQueue, 1, &submitInfo, VK_NULL_HANDLE);
vkQueueWaitIdle(graphicsQueue);
vkFreeCommandBuffers(device, commandPool, 1, &commandBuffer);
}
VkCommandBuffer beginSingleTimeCommands() {
VkCommandBufferAllocateInfo allocInfo = {};
allocInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO;
allocInfo.level = VK_COMMAND_BUFFER_LEVEL_PRIMARY;
allocInfo.commandPool = commandPool;
allocInfo.commandBufferCount = 1;
VkCommandBuffer commandBuffer;
vkAllocateCommandBuffers(device, &allocInfo, &commandBuffer);
VkCommandBufferBeginInfo beginInfo = {};
beginInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO;
beginInfo.flags = VK_COMMAND_BUFFER_USAGE_ONE_TIME_SUBMIT_BIT;
vkBeginCommandBuffer(commandBuffer, &beginInfo);
return commandBuffer;
}
void endSingleTimeCommands(VkCommandBuffer commandBuffer) {
vkEndCommandBuffer(commandBuffer);
VkSubmitInfo submitInfo = {};
submitInfo.sType = VK_STRUCTURE_TYPE_SUBMIT_INFO;
submitInfo.commandBufferCount = 1;
submitInfo.pCommandBuffers = &commandBuffer;
vkQueueSubmit(graphicsQueue, 1, &submitInfo, VK_NULL_HANDLE);
vkQueueWaitIdle(graphicsQueue);
vkFreeCommandBuffers(device, commandPool, 1, &commandBuffer);
}
uint32_t findMemoryType(uint32_t typeFilter, VkMemoryPropertyFlags properties) {
VkPhysicalDeviceMemoryProperties memProperties;
vkGetPhysicalDeviceMemoryProperties(physicalDevice, &memProperties);
for (uint32_t i = 0; i < memProperties.memoryTypeCount; i++) {
if ((typeFilter & (1 << i)) && (memProperties.memoryTypes[i].propertyFlags & properties) == properties) {
return i;
}
}
throw std::runtime_error("failed to find suitable memory type!");
}
void createFramebuffers() {
swapChainFramebuffers.resize(swapChainImageViews.size());
for (size_t i = 0; i < swapChainImageViews.size(); i++) {
//渲染通道就绪后，修改createframebuffer并将新的图像视图添加到列表中:
std::array<VkImageView, 3> attachments = {
colorImageView,
depthImageView,
swapChainImageViews[i]
};
VkFramebufferCreateInfo framebufferInfo = {};
framebufferInfo.sType = VK_STRUCTURE_TYPE_FRAMEBUFFER_CREATE_INFO;
framebufferInfo.renderPass = renderPass;
framebufferInfo.attachmentCount = static_cast<uint32_t>(attachments.size());
framebufferInfo.pAttachments = attachments.data();
framebufferInfo.width = swapChainExtent.width;
framebufferInfo.height = swapChainExtent.height;
framebufferInfo.layers = 1;
if (vkCreateFramebuffer(device, &framebufferInfo, nullptr, &swapChainFramebuffers[i]) != VK_SUCCESS) {
throw std::runtime_error("failed to create framebuffer!");
}
}
}
void createDescriptorSetLayout() {
VkDescriptorSetLayoutBinding uboLayoutBinding = {};
uboLayoutBinding.binding = 0;
uboLayoutBinding.descriptorType = VK_DESCRIPTOR_TYPE_UNIFORM_BUFFER;
uboLayoutBinding.descriptorCount = 1;
uboLayoutBinding.stageFlags = VK_SHADER_STAGE_VERTEX_BIT;
uboLayoutBinding.pImmutableSamplers = nullptr; // Optional
//为组合图像采样器描述符添加一个VkDescriptorSetLayoutBinding
VkDescriptorSetLayoutBinding samplerLayoutBinding = {};
samplerLayoutBinding.binding = 1;
samplerLayoutBinding.descriptorCount = 1;
samplerLayoutBinding.descriptorType = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
samplerLayoutBinding.pImmutableSamplers = nullptr;
//确保stageFlags正确设置，指定我们打算在片段着色器中使用组合图像采样器描述符。这就是片段颜色最终被确定的地方。可以在顶点着色器中使用纹理采样
samplerLayoutBinding.stageFlags = VK_SHADER_STAGE_FRAGMENT_BIT;
//为组合图像采样器描述符添加一个VkDescriptorSetLayoutBinding
VkDescriptorSetLayoutBinding depthLayoutBinding = {};
depthLayoutBinding.binding = 2;
depthLayoutBinding.descriptorCount = 1;
depthLayoutBinding.descriptorType = VK_DESCRIPTOR_TYPE_COMBINED_IMAGE_SAMPLER;
depthLayoutBinding.pImmutableSamplers = nullptr;
//确保stageFlags正确设置，指定我们打算在片段着色器中使用组合图像采样器描述符。这就是片段颜色最终被确定的地方。可以在顶点着色器中使用纹理采样
depthLayoutBinding.stageFlags = VK_SHADER_STAGE_FRAGMENT_BIT;
std::array<VkDescriptorSetLayoutBinding, 3> bindings = { uboLayoutBinding, samplerLayoutBinding ,depthLayoutBinding };
VkDescriptorSetLayoutCreateInfo layoutInfo = {};
layoutInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_LAYOUT_CREATE_INFO;
layoutInfo.bindingCount = static_cast<uint32_t>(bindings.size());
layoutInfo.pBindings = bindings.data();
if (vkCreateDescriptorSetLayout(device, &layoutInfo, nullptr, &descriptorSetLayout) != VK_SUCCESS) {
throw std::runtime_error("failed to create descriptor set layout!");
}
VkPipelineLayoutCreateInfo pPipelineLayoutCreateInfo =
vks::initializers::pipelineLayoutCreateInfo(
&descriptorSetLayout,
1);
// Offscreen pipeline layout
if (vkCreatePipelineLayout(device, &pPipelineLayoutCreateInfo, nullptr, &pipelineLayouts.offscreen)) {
throw std::runtime_error("failed to create!");
}
}
void createGraphicsPipeline() {
VkPipelineVertexInputStateCreateInfo vertexInputInfo = {};
vertexInputInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO;
//配置图形管线可以接受重新定义的顶点数据的格式
auto bindingDescription = Vertex::getBindingDescription();
auto attributeDescriptions = Vertex::getAttributeDescriptions();
vertexInputInfo.vertexBindingDescriptionCount = bindingDescription.size();
vertexInputInfo.pVertexBindingDescriptions = bindingDescription.data();
vertexInputInfo.vertexAttributeDescriptionCount = attributeDescriptions.size();
vertexInputInfo.pVertexAttributeDescriptions = attributeDescriptions.data();
VkPipelineInputAssemblyStateCreateInfo inputAssembly = {};
inputAssembly.sType = VK_STRUCTURE_TYPE_PIPELINE_INPUT_ASSEMBLY_STATE_CREATE_INFO;
inputAssembly.topology = VK_PRIMITIVE_TOPOLOGY_TRIANGLE_LIST;
inputAssembly.primitiveRestartEnable = VK_FALSE;
inputAssembly.flags = 0;
VkViewport viewport = {};
viewport.x = 0.0f;
viewport.y = 0.0f;
viewport.width = (float)swapChainExtent.width;
viewport.height = (float)swapChainExtent.height;
viewport.minDepth = 0.0f;
viewport.maxDepth = 1.0f;
VkRect2D scissor = {};
scissor.offset = { 0, 0 };
scissor.extent = swapChainExtent;
VkPipelineViewportStateCreateInfo viewportState = {};
viewportState.sType = VK_STRUCTURE_TYPE_PIPELINE_VIEWPORT_STATE_CREATE_INFO;
viewportState.viewportCount = 1;
viewportState.pViewports = &viewport;
viewportState.scissorCount = 1;
viewportState.pScissors = &scissor;
VkPipelineRasterizationStateCreateInfo rasterizer = {};
rasterizer.sType = VK_STRUCTURE_TYPE_PIPELINE_RASTERIZATION_STATE_CREATE_INFO;
rasterizer.depthClampEnable = VK_FALSE;
rasterizer.rasterizerDiscardEnable = VK_FALSE;
rasterizer.polygonMode = VK_POLYGON_MODE_FILL;
rasterizer.lineWidth = 1.0f;
rasterizer.cullMode = VK_CULL_MODE_NONE;
rasterizer.frontFace = VK_FRONT_FACE_COUNTER_CLOCKWISE;
rasterizer.depthBiasEnable = VK_FALSE;
VkPipelineMultisampleStateCreateInfo multisampling = {};
multisampling.sType = VK_STRUCTURE_TYPE_PIPELINE_MULTISAMPLE_STATE_CREATE_INFO;
multisampling.sampleShadingEnable = VK_FALSE;
multisampling.minSampleShading = 1.0f; // Optional
//multisampling.sampleShadingEnable = VK_TRUE; // enable sample shading in the pipeline
//multisampling.minSampleShading = .2f; // min fraction for sample shading; closer to one is smoother
multisampling.rasterizationSamples = msaaSamples;//告诉新建管道使用多个采样
multisampling.pSampleMask = nullptr; // Optional
multisampling.alphaToCoverageEnable = VK_FALSE; // Optional
multisampling.alphaToOneEnable = VK_FALSE; // Optional
VkPipelineDepthStencilStateCreateInfo depthStencil = {};
depthStencil.sType = VK_STRUCTURE_TYPE_PIPELINE_DEPTH_STENCIL_STATE_CREATE_INFO;
depthStencil.depthTestEnable = VK_TRUE; //指定是否应该将新的深度缓冲区与深度缓冲区进行比较，以确认是否应该被丢弃
depthStencil.depthWriteEnable = VK_TRUE; //指定通过深度测试的新的片段深度是否应该被实际写入深度缓冲区
depthStencil.depthCompareOp = VK_COMPARE_OP_LESS;//指定执行保留或者丢弃片段的比较细节
depthStencil.depthBoundsTestEnable = VK_FALSE; //depthBoundsTestEnable, minDepthBounds 和 maxDepthBounds 字段用于可选择的优化深度绑定测试
depthStencil.minDepthBounds = 0.0f; // Optional
depthStencil.maxDepthBounds = 1.0f; // Optional
depthStencil.stencilTestEnable = VK_FALSE;//用于配置模版缓冲区的操作
depthStencil.front = {}; // Optional
depthStencil.back = {}; // Optional
VkPipelineColorBlendAttachmentState colorBlendAttachment = {};
colorBlendAttachment.colorWriteMask = VK_COLOR_COMPONENT_R_BIT | VK_COLOR_COMPONENT_G_BIT | VK_COLOR_COMPONENT_B_BIT | VK_COLOR_COMPONENT_A_BIT;
colorBlendAttachment.blendEnable = VK_FALSE;
colorBlendAttachment.srcColorBlendFactor = VK_BLEND_FACTOR_ONE; // Optional
colorBlendAttachment.dstColorBlendFactor = VK_BLEND_FACTOR_ZERO; // Optional
colorBlendAttachment.colorBlendOp = VK_BLEND_OP_ADD; // Optional
colorBlendAttachment.srcAlphaBlendFactor = VK_BLEND_FACTOR_ONE; // Optional
colorBlendAttachment.dstAlphaBlendFactor = VK_BLEND_FACTOR_ZERO; // Optional
colorBlendAttachment.alphaBlendOp = VK_BLEND_OP_ADD; // Optional
VkPipelineColorBlendStateCreateInfo colorBlending = {};
colorBlending.sType = VK_STRUCTURE_TYPE_PIPELINE_COLOR_BLEND_STATE_CREATE_INFO;
colorBlending.logicOpEnable = VK_FALSE;
colorBlending.logicOp = VK_LOGIC_OP_COPY;
colorBlending.attachmentCount = 1;
colorBlending.pAttachments = &colorBlendAttachment;
colorBlending.blendConstants[0] = 0.0f;
colorBlending.blendConstants[1] = 0.0f;
colorBlending.blendConstants[2] = 0.0f;
colorBlending.blendConstants[3] = 0.0f;
std::vector<VkDynamicState> dynamicStateEnables = {
VK_DYNAMIC_STATE_VIEWPORT,
VK_DYNAMIC_STATE_SCISSOR
};
VkPipelineDynamicStateCreateInfo dynamicState =
vks::initializers::pipelineDynamicStateCreateInfo(
dynamicStateEnables.data(),
dynamicStateEnables.size(),
0);
VkPushConstantRange pushConstantRange{};
pushConstantRange.stageFlags = VK_SHADER_STAGE_VERTEX_BIT;
pushConstantRange.offset = 0;
pushConstantRange.size = sizeof(glm::vec3);
VkPipelineLayoutCreateInfo pipelineLayoutInfo = {};
pipelineLayoutInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO;
pipelineLayoutInfo.setLayoutCount = 1; // Optional
pipelineLayoutInfo.pSetLayouts = &descriptorSetLayout; // Optional
pipelineLayoutInfo.pushConstantRangeCount = 1; // Optional
pipelineLayoutInfo.pPushConstantRanges = &pushConstantRange; // Optional
if (vkCreatePipelineLayout(device, &pipelineLayoutInfo, nullptr, &pipelineLayout) != VK_SUCCESS) {
throw std::runtime_error("failed to create pipeline layout!");
}
std::array<VkPipelineShaderStageCreateInfo, 2> shaderStages;
VkGraphicsPipelineCreateInfo pipelineInfo = {};
pipelineInfo.sType = VK_STRUCTURE_TYPE_GRAPHICS_PIPELINE_CREATE_INFO;
pipelineInfo.renderPass = renderPass;
pipelineInfo.flags = 0;
pipelineInfo.basePipelineIndex = -1;
pipelineInfo.basePipelineHandle = VK_NULL_HANDLE;
pipelineInfo.pVertexInputState = &vertexInputInfo;
pipelineInfo.pInputAssemblyState = &inputAssembly;
pipelineInfo.pViewportState = &viewportState;
pipelineInfo.pRasterizationState = &rasterizer;
pipelineInfo.pMultisampleState = &multisampling;
pipelineInfo.pDepthStencilState = &depthStencil;
pipelineInfo.pColorBlendState = &colorBlending;
//pipelineInfo.pDynamicState = nullptr; // Optional
pipelineInfo.pDynamicState = &dynamicState;
pipelineInfo.stageCount = shaderStages.size();
pipelineInfo.pStages = shaderStages.data();
pipelineInfo.pVertexInputState = &vertexInputInfo;
// Scene rendering with shadows applied
shaderStages[0] = loadShader("shader.vert.spv", VK_SHADER_STAGE_VERTEX_BIT);
shaderStages[1] = loadShader("shader.frag.spv", VK_SHADER_STAGE_FRAGMENT_BIT);
// Use specialization constants to select between horizontal and vertical blur
uint32_t enablePCF = 0;
VkSpecializationMapEntry specializationMapEntry = vks::initializers::specializationMapEntry(0, 0, sizeof(uint32_t));
VkSpecializationInfo specializationInfo = vks::initializers::specializationInfo(1, &specializationMapEntry, sizeof(uint32_t), &enablePCF);
shaderStages[1].pSpecializationInfo = &specializationInfo;
//pipelineInfo.pDynamicState = nullptr; // Optional
pipelineInfo.layout = pipelineLayout;
pipelineInfo.renderPass = renderPass;
pipelineInfo.subpass = 0;
pipelineInfo.basePipelineHandle = VK_NULL_HANDLE; // Optional
pipelineInfo.basePipelineIndex = -1; // Optional
if (vkCreateGraphicsPipelines(device, pipelineCache, 1, &pipelineInfo, nullptr, &pipelines.graphicsPipeline) != VK_SUCCESS) {
throw std::runtime_error("failed to create graphics pipeline!");
}
// PCF filtering
enablePCF = 1;
if (vkCreateGraphicsPipelines(device, pipelineCache, 1, &pipelineInfo, nullptr, &pipelines.sceneShadowPCF) != VK_SUCCESS) {
throw std::runtime_error("failed to create graphics pipeline!");
}
// Offscreen pipeline
rasterizer.cullMode = VK_CULL_MODE_BACK_BIT;
shaderStages[0] = loadShader("offscreen.vert.spv", VK_SHADER_STAGE_VERTEX_BIT);
shaderStages[1] = loadShader("offscreen.frag.spv", VK_SHADER_STAGE_FRAGMENT_BIT);
// No blend attachment states (no color attachments used)
colorBlending.attachmentCount = 0;
// Cull front faces
depthStencil.depthCompareOp = VK_COMPARE_OP_LESS_OR_EQUAL;
// Enable depth bias
rasterizer.depthBiasEnable = VK_TRUE;
// Add depth bias to dynamic state, so we can change it at runtime
dynamicStateEnables.push_back(VK_DYNAMIC_STATE_DEPTH_BIAS);
dynamicState =
vks::initializers::pipelineDynamicStateCreateInfo(
dynamicStateEnables.data(),
dynamicStateEnables.size(),
0);
pipelineInfo.layout = pipelineLayouts.offscreen;
pipelineInfo.renderPass = offscreenPass.renderPass;
if (vkCreateGraphicsPipelines(device, pipelineCache, 1, &pipelineInfo, nullptr, &pipelines.offscreen) != VK_SUCCESS) {
throw std::runtime_error("failed to create graphics pipeline!");
}
//vkDestroyShaderModule(device, fragShaderModule, nullptr);
//vkDestroyShaderModule(device, vertShaderModule, nullptr);
}
bool checkDeviceExtensionSupport(VkPhysicalDevice device) {
uint32_t extensionCount;
vkEnumerateDeviceExtensionProperties(device, nullptr, &extensionCount, nullptr);
std::vector<VkExtensionProperties> availableExtensions(extensionCount);
vkEnumerateDeviceExtensionProperties(device, nullptr, &extensionCount, availableExtensions.data());
std::set<std::string> requiredExtensions(deviceExtensions.begin(), deviceExtensions.end());
for (const auto& extension : availableExtensions) {
requiredExtensions.erase(extension.extensionName);
}
return requiredExtensions.empty();
}
VkExtent2D chooseSwapExtent(const VkSurfaceCapabilitiesKHR& capabilities) {
if (capabilities.currentExtent.width != std::numeric_limits<uint32_t>::max()) {
return capabilities.currentExtent;
}
else {
int width, height;
glfwGetFramebufferSize(window, &width, &height);
VkExtent2D actualExtent = {
static_cast<uint32_t>(width),
static_cast<uint32_t>(height)
};
//VkExtent2D actualExtent = { WIDTH, HEIGHT };
actualExtent.width = std::max(capabilities.minImageExtent.width, std::min(capabilities.maxImageExtent.width, actualExtent.width));
actualExtent.height = std::max(capabilities.minImageExtent.height, std::min(capabilities.maxImageExtent.height, actualExtent.height));
return actualExtent;
}
}
SwapChainSupportDetails querySwapChainSupport(VkPhysicalDevice device) {
SwapChainSupportDetails details;
vkGetPhysicalDeviceSurfaceCapabilitiesKHR(device, surface, &details.capabilities);
uint32_t formatCount;
vkGetPhysicalDeviceSurfaceFormatsKHR(device, surface, &formatCount, nullptr);
if (formatCount != 0) {
details.formats.resize(formatCount);
vkGetPhysicalDeviceSurfaceFormatsKHR(device, surface, &formatCount, details.formats.data());
}
uint32_t presentModeCount;
vkGetPhysicalDeviceSurfacePresentModesKHR(device, surface, &presentModeCount, nullptr);
if (presentModeCount != 0) {
details.presentModes.resize(presentModeCount);
vkGetPhysicalDeviceSurfacePresentModesKHR(device, surface, &presentModeCount, details.presentModes.data());
}
return details;
}
VkSurfaceFormatKHR chooseSwapSurfaceFormat(const std::vector<VkSurfaceFormatKHR>& availableFormats) {
if (availableFormats.size() == 1 && availableFormats[0].format == VK_FORMAT_UNDEFINED) {
return { VK_FORMAT_B8G8R8A8_UNORM, VK_COLOR_SPACE_SRGB_NONLINEAR_KHR };
}
for (const auto& availableFormat : availableFormats) {
if (availableFormat.format == VK_FORMAT_B8G8R8A8_UNORM && availableFormat.colorSpace == VK_COLOR_SPACE_SRGB_NONLINEAR_KHR) {
return availableFormat;
}
}
return availableFormats[0];
}
VkPresentModeKHR chooseSwapPresentMode(const std::vector<VkPresentModeKHR> availablePresentModes) {
VkPresentModeKHR bestMode = VK_PRESENT_MODE_FIFO_KHR;
for (const auto& availablePresentMode : availablePresentModes) {
if (availablePresentMode == VK_PRESENT_MODE_MAILBOX_KHR) {
return availablePresentMode;
}
else if (availablePresentMode == VK_PRESENT_MODE_IMMEDIATE_KHR) {
bestMode = availablePresentMode;
}
}
return bestMode;
}
QueueFamilyIndices findQueueFamilies(VkPhysicalDevice device) {
QueueFamilyIndices indices;
uint32_t queueFamilyCount = 0;
vkGetPhysicalDeviceQueueFamilyProperties(device, &queueFamilyCount, nullptr);
std::vector<VkQueueFamilyProperties> queueFamilies(queueFamilyCount);
vkGetPhysicalDeviceQueueFamilyProperties(device, &queueFamilyCount, queueFamilies.data());
int i = 0;
for (const auto& queueFamily : queueFamilies) {
if (queueFamily.queueCount > 0 && queueFamily.queueFlags & VK_QUEUE_GRAPHICS_BIT) {
indices.graphicsFamily = i;
}
VkBool32 presentSupport = false;
vkGetPhysicalDeviceSurfaceSupportKHR(device, i, surface, &presentSupport);
if (presentSupport) {
indices.presentFamily = i;
}
if (indices.isComplete()) {
break;
}
i++;
}
return indices;
}
std::vector<const char*> getRequiredExtensions() {
uint32_t glfwExtensionCount = 0;
const char** glfwExtensions;
glfwExtensions = glfwGetRequiredInstanceExtensions(&glfwExtensionCount);
std::vector<const char*> extensions(glfwExtensions, glfwExtensions + glfwExtensionCount);
if (enableValidationLayers) {
extensions.push_back(VK_EXT_DEBUG_UTILS_EXTENSION_NAME);
}
return extensions;
}
bool checkValidationLayerSupport() {
uint32_t layerCount;
vkEnumerateInstanceLayerProperties(&layerCount, nullptr);
std::vector<VkLayerProperties> availableLayers(layerCount);
vkEnumerateInstanceLayerProperties(&layerCount, availableLayers.data());
for (const char* layerName : validationLayers) {
bool layerFound = false;
for (const auto& layerProperties : availableLayers) {
if (strcmp(layerName, layerProperties.layerName) == 0) {
layerFound = true;
break;
}
}
if (!layerFound) {
return false;
}
}
return true;
}
static VKAPI_ATTR VkBool32 VKAPI_CALL debugCallback(VkDebugUtilsMessageSeverityFlagBitsEXT messageSeverity, VkDebugUtilsMessageTypeFlagsEXT messageType, const VkDebugUtilsMessengerCallbackDataEXT* pCallbackData, void* pUserData) {
std::cerr << "validation layer: " << pCallbackData->pMessage << std::endl;
return VK_FALSE;
}
#define SHADOWMAP_DIM 2048
// Offscreen frame buffer properties
#define FB_COLOR_FORMAT VK_FORMAT_R8G8B8A8_UNORM
// 16 bits of depth is enough for such a small scene
#define DEPTH_FORMAT VK_FORMAT_D16_UNORM
#define SHADOWMAP_FILTER VK_FILTER_LINEAR
#define VERTEX_BUFFER_BIND_ID 0
bool displayShadowMap = false;
// Keep depth range as small as possible
// for better shadow map precision
float zNear = 1.0f;
float zFar = 96.0f;
float zoom = 0;
glm::vec3 rotation = glm::vec3();
float lightFOV = 45.0f;
VkClearColorValue defaultClearColor = { { 0.1f, 0.1f, 0.3f, 0.5f } };
// Depth bias (and slope) are used to avoid shadowing artefacts
// Constant depth bias factor (always applied)
float depthBiasConstant = 1.25f;
// Slope depth bias factor, applied depending on polygon's slope
float depthBiasSlope = 1.75f;
/** @brief Pipeline stages used to wait at for graphics queue submissions */
VkPipelineStageFlags submitPipelineStages = VK_PIPELINE_STAGE_COLOR_ATTACHMENT_OUTPUT_BIT;
VkBool32 getSupportedDepthFormat()
{
// Find a suitable depth format
VkBool32 validDepthFormat;
// Since all depth formats may be optional, we need to find a suitable depth format to use
// Start with the highest precision packed format
std::vector<VkFormat> depthFormats = {
VK_FORMAT_D32_SFLOAT_S8_UINT,
VK_FORMAT_D32_SFLOAT,
VK_FORMAT_D24_UNORM_S8_UINT,
VK_FORMAT_D16_UNORM_S8_UINT,
VK_FORMAT_D16_UNORM
};
for (auto& format : depthFormats)
{
VkFormatProperties formatProps;
vkGetPhysicalDeviceFormatProperties(physicalDevice, format, &formatProps);
// Format must support depth stencil attachment for optimal tiling
if (formatProps.optimalTilingFeatures & VK_FORMAT_FEATURE_DEPTH_STENCIL_ATTACHMENT_BIT)
{
depthFormat = format;
return true;
}
}
return false;
}
void createPipelineCache()
{
VkPipelineCacheCreateInfo pipelineCacheCreateInfo = {};
pipelineCacheCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_CACHE_CREATE_INFO;
if (vkCreatePipelineCache(device, &pipelineCacheCreateInfo, nullptr, &pipelineCache)) {
throw std::runtime_error("failed to create image!");
}
}
// Setup the offscreen framebuffer for rendering the scene from light's point-of-view to
// The depth attachment of this framebuffer will then be used to sample from in the fragment shader of the shadowing pass
void prepareOffscreenFramebuffer()
{
offscreenPass.width = SHADOWMAP_DIM;
offscreenPass.height = SHADOWMAP_DIM;
VkFormat fbColorFormat = FB_COLOR_FORMAT;
// For shadow mapping we only need a depth attachment
VkImageCreateInfo imageCreateInfo{};
imageCreateInfo.sType = VK_STRUCTURE_TYPE_IMAGE_CREATE_INFO;
VkImageCreateInfo image = imageCreateInfo;
image.imageType = VK_IMAGE_TYPE_2D;
image.extent.width = offscreenPass.width;
image.extent.height = offscreenPass.height;
image.extent.depth = 1;
image.mipLevels = 1;
image.arrayLayers = 1;
image.samples = VK_SAMPLE_COUNT_1_BIT;
image.tiling = VK_IMAGE_TILING_OPTIMAL;
image.format = DEPTH_FORMAT; // Depth stencil attachment
image.usage = VK_IMAGE_USAGE_DEPTH_STENCIL_ATTACHMENT_BIT | VK_IMAGE_USAGE_SAMPLED_BIT; // We will sample directly from the depth attachment for the shadow mapping
if (vkCreateImage(device, &image, nullptr, &offscreenPass.depth.image)) {
throw std::runtime_error("failed to create image!");
}
VkMemoryAllocateInfo memAllocInfo{};
memAllocInfo.sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO;
VkMemoryAllocateInfo memAlloc = memAllocInfo;
VkMemoryRequirements memReqs;
vkGetImageMemoryRequirements(device, offscreenPass.depth.image, &memReqs);
memAlloc.allocationSize = memReqs.size;
memAlloc.memoryTypeIndex = findMemoryType(memReqs.memoryTypeBits, VK_MEMORY_PROPERTY_DEVICE_LOCAL_BIT);
if (vkAllocateMemory(device, &memAlloc, nullptr, &offscreenPass.depth.mem)) {
throw std::runtime_error("failed to create image!");
}
if (vkBindImageMemory(device, offscreenPass.depth.image, offscreenPass.depth.mem, 0)) {
throw std::runtime_error("failed to create image!");
}
VkImageViewCreateInfo imageViewCreateInfo{};
imageViewCreateInfo.sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO;
VkImageViewCreateInfo depthStencilView = imageViewCreateInfo;
depthStencilView.viewType = VK_IMAGE_VIEW_TYPE_2D;
depthStencilView.format = DEPTH_FORMAT;
depthStencilView.subresourceRange = {};
depthStencilView.subresourceRange.aspectMask = VK_IMAGE_ASPECT_DEPTH_BIT;
depthStencilView.subresourceRange.baseMipLevel = 0;
depthStencilView.subresourceRange.levelCount = 1;
depthStencilView.subresourceRange.baseArrayLayer = 0;
depthStencilView.subresourceRange.layerCount = 1;
depthStencilView.image = offscreenPass.depth.image;
if (vkCreateImageView(device, &depthStencilView, nullptr, &offscreenPass.depth.view)) {
throw std::runtime_error("failed to create image!");
}
// Create sampler to sample from to depth attachment
// Used to sample in the fragment shader for shadowed rendering
VkSamplerCreateInfo samplerCreateInfo{};
samplerCreateInfo.sType = VK_STRUCTURE_TYPE_SAMPLER_CREATE_INFO;
samplerCreateInfo.maxAnisotropy = 1.0f;
VkSamplerCreateInfo sampler = samplerCreateInfo;
sampler.magFilter = SHADOWMAP_FILTER;
sampler.minFilter = SHADOWMAP_FILTER;
sampler.mipmapMode = VK_SAMPLER_MIPMAP_MODE_LINEAR;
sampler.addressModeU = VK_SAMPLER_ADDRESS_MODE_CLAMP_TO_EDGE;
sampler.addressModeV = sampler.addressModeU;
sampler.addressModeW = sampler.addressModeU;
sampler.mipLodBias = 0.0f;
sampler.maxAnisotropy = 1.0f;
sampler.minLod = 0.0f;
sampler.maxLod = 1.0f;
sampler.borderColor = VK_BORDER_COLOR_FLOAT_OPAQUE_WHITE;
if (vkCreateSampler(device, &sampler, nullptr, &offscreenPass.depthSampler)) {
throw std::runtime_error("failed to create image!");
}
prepareOffscreenRenderpass();
// Create frame buffer
VkFramebufferCreateInfo framebufferCreateInfo{};
framebufferCreateInfo.sType = VK_STRUCTURE_TYPE_FRAMEBUFFER_CREATE_INFO;
VkFramebufferCreateInfo fbufCreateInfo = framebufferCreateInfo;
fbufCreateInfo.renderPass = offscreenPass.renderPass;
fbufCreateInfo.attachmentCount = 1;
fbufCreateInfo.pAttachments = &offscreenPass.depth.view;
fbufCreateInfo.width = offscreenPass.width;
fbufCreateInfo.height = offscreenPass.height;
fbufCreateInfo.layers = 1;
if (vkCreateFramebuffer(device, &fbufCreateInfo, nullptr, &offscreenPass.frameBuffer)) {
throw std::runtime_error("failed to create image!");
}
}
// Set up a separate render pass for the offscreen frame buffer
// This is necessary as the offscreen frame buffer attachments use formats different to those from the example render pass
void prepareOffscreenRenderpass()
{
VkAttachmentDescription attachmentDescription{};
attachmentDescription.format = DEPTH_FORMAT;
attachmentDescription.samples = VK_SAMPLE_COUNT_1_BIT;
attachmentDescription.loadOp = VK_ATTACHMENT_LOAD_OP_CLEAR; // Clear depth at beginning of the render pass
attachmentDescription.storeOp = VK_ATTACHMENT_STORE_OP_STORE; // We will read from depth, so it's important to store the depth attachment results
attachmentDescription.stencilLoadOp = VK_ATTACHMENT_LOAD_OP_DONT_CARE;
attachmentDescription.stencilStoreOp = VK_ATTACHMENT_STORE_OP_DONT_CARE;
attachmentDescription.initialLayout = VK_IMAGE_LAYOUT_UNDEFINED; // We don't care about initial layout of the attachment
attachmentDescription.finalLayout = VK_IMAGE_LAYOUT_DEPTH_STENCIL_READ_ONLY_OPTIMAL;// Attachment will be transitioned to shader read at render pass end
VkAttachmentReference depthReference = {};
depthReference.attachment = 0;
depthReference.layout = VK_IMAGE_LAYOUT_DEPTH_STENCIL_ATTACHMENT_OPTIMAL; // Attachment will be used as depth/stencil during render pass
VkSubpassDescription subpass = {};
subpass.pipelineBindPoint = VK_PIPELINE_BIND_POINT_GRAPHICS;
subpass.colorAttachmentCount = 0; // No color attachments
subpass.pDepthStencilAttachment = &depthReference; // Reference to our depth attachment
// Use subpass dependencies for layout transitions
std::array<VkSubpassDependency, 2> dependencies;
dependencies[0].srcSubpass = VK_SUBPASS_EXTERNAL;
dependencies[0].dstSubpass = 0;
dependencies[0].srcStageMask = VK_PIPELINE_STAGE_BOTTOM_OF_PIPE_BIT;
dependencies[0].dstStageMask = VK_PIPELINE_STAGE_LATE_FRAGMENT_TESTS_BIT;
dependencies[0].srcAccessMask = VK_ACCESS_SHADER_READ_BIT;
dependencies[0].dstAccessMask = VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_READ_BIT | VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_WRITE_BIT;
dependencies[0].dependencyFlags = VK_DEPENDENCY_BY_REGION_BIT;
dependencies[1].srcSubpass = 0;
dependencies[1].dstSubpass = VK_SUBPASS_EXTERNAL;
dependencies[1].srcStageMask = VK_PIPELINE_STAGE_LATE_FRAGMENT_TESTS_BIT;
dependencies[1].dstStageMask = VK_PIPELINE_STAGE_FRAGMENT_SHADER_BIT;
dependencies[1].srcAccessMask = VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_READ_BIT | VK_ACCESS_DEPTH_STENCIL_ATTACHMENT_WRITE_BIT;
dependencies[1].dstAccessMask = VK_ACCESS_SHADER_READ_BIT;
dependencies[1].dependencyFlags = VK_DEPENDENCY_BY_REGION_BIT;
VkRenderPassCreateInfo renderPassCreateInfo{};
renderPassCreateInfo.sType = VK_STRUCTURE_TYPE_RENDER_PASS_CREATE_INFO;
renderPassCreateInfo.attachmentCount = 1;
renderPassCreateInfo.pAttachments = &attachmentDescription;
renderPassCreateInfo.subpassCount = 1;
renderPassCreateInfo.pSubpasses = &subpass;
renderPassCreateInfo.dependencyCount = static_cast<uint32_t>(dependencies.size());
renderPassCreateInfo.pDependencies = dependencies.data();
if (vkCreateRenderPass(device, &renderPassCreateInfo, nullptr, &offscreenPass.renderPass)) {
throw std::runtime_error("failed to create image!");
}
}
/**
* Create a buffer on the device
*
* @param usageFlags Usage flag bitmask for the buffer (i.e. index, vertex, uniform buffer)
* @param memoryPropertyFlags Memory properties for this buffer (i.e. device local, host visible, coherent)
* @param buffer Pointer to a vk::Vulkan buffer object
* @param size Size of the buffer in byes
* @param data Pointer to the data that should be copied to the buffer after creation (optional, if not set, no data is copied over)
*
* @return VK_SUCCESS if buffer handle and memory have been created and (optionally passed) data has been copied
*/
VkResult createBuffer(VkBufferUsageFlags usageFlags, VkMemoryPropertyFlags memoryPropertyFlags, vks::Buffer *buffer, VkDeviceSize size, void *data = nullptr)
{
buffer->device = device;
// Create the buffer handle
VkBufferCreateInfo bufferCreateInfo{};
bufferCreateInfo.sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO;
bufferCreateInfo.usage = usageFlags;
bufferCreateInfo.size = size;
if (vkCreateBuffer(device, &bufferCreateInfo, nullptr, &buffer->buffer)) {
throw std::runtime_error("failed to create!");
}
// Create the memory backing up the buffer handle
VkMemoryRequirements memReqs;
VkMemoryAllocateInfo memAlloc{};
memAlloc.sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO;
vkGetBufferMemoryRequirements(device, buffer->buffer, &memReqs);
memAlloc.allocationSize = memReqs.size;
// Find a memory type index that fits the properties of the buffer
memAlloc.memoryTypeIndex = findMemoryType(memReqs.memoryTypeBits, memoryPropertyFlags);
if (vkAllocateMemory(device, &memAlloc, nullptr, &buffer->memory)) {
throw std::runtime_error("failed to create!");
}
buffer->alignment = memReqs.alignment;
buffer->size = memAlloc.allocationSize;
buffer->usageFlags = usageFlags;
buffer->memoryPropertyFlags = memoryPropertyFlags;
// If a pointer to the buffer data has been passed, map the buffer and copy over the data
if (data != nullptr)
{
if (buffer->map()) {
throw std::runtime_error("failed to create!");
}
memcpy(buffer->mapped, data, size);
buffer->unmap();
}
// Initialize a default descriptor that covers the whole buffer size
buffer->setupDescriptor();
// Attach the memory to the buffer object
return buffer->bind();
}
VkShaderModule loadShader(const char *fileName, VkDevice device)
{
std::ifstream is(fileName, std::ios::binary | std::ios::in | std::ios::ate);
if (is.is_open())
{
size_t size = is.tellg();
is.seekg(0, std::ios::beg);
char* shaderCode = new char[size];
is.read(shaderCode, size);
is.close();
assert(size > 0);
VkShaderModule shaderModule;
VkShaderModuleCreateInfo moduleCreateInfo{};
moduleCreateInfo.sType = VK_STRUCTURE_TYPE_SHADER_MODULE_CREATE_INFO;
moduleCreateInfo.codeSize = size;
moduleCreateInfo.pCode = (uint32_t*)shaderCode;
if (vkCreateShaderModule(device, &moduleCreateInfo, NULL, &shaderModule))
{
}
delete[] shaderCode;
return shaderModule;
}
else
{
std::cerr << "Error: Could not open shader file \"" << fileName << "\"" << std::endl;
return VK_NULL_HANDLE;
}
}
VkPipelineShaderStageCreateInfo loadShader(std::string fileName, VkShaderStageFlagBits stage)
{
VkPipelineShaderStageCreateInfo shaderStage = {};
shaderStage.sType = VK_STRUCTURE_TYPE_PIPELINE_SHADER_STAGE_CREATE_INFO;
shaderStage.stage = stage;
shaderStage.module = loadShader(fileName.c_str(), device);
shaderStage.pName = "main"; // todo : make param
assert(shaderStage.module != VK_NULL_HANDLE);
shaderModules.push_back(shaderStage.module);
return shaderStage;
}
/**
* Allocate a command buffer from the command pool
*
* @param level Level of the new command buffer (primary or secondary)
* @param (Optional) begin If true, recording on the new command buffer will be started (vkBeginCommandBuffer) (Defaults to false)
*
* @return A handle to the allocated command buffer
*/
VkCommandBuffer createCommandBuffer(VkCommandBufferLevel level, bool begin = false)
{
VkCommandBufferAllocateInfo cmdBufAllocateInfo = vks::initializers::commandBufferAllocateInfo(commandPool, level, 1);
VkCommandBuffer cmdBuffer;
if (vkAllocateCommandBuffers(device, &cmdBufAllocateInfo, &cmdBuffer) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
// If requested, also start recording for the new command buffer
if (begin)
{
VkCommandBufferBeginInfo cmdBufInfo = vks::initializers::commandBufferBeginInfo();
if (vkBeginCommandBuffer(cmdBuffer, &cmdBufInfo) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
}
return cmdBuffer;
}
void buildOffscreenCommandBuffer()
{
if (offscreenPass.commandBuffer == VK_NULL_HANDLE)
{
offscreenPass.commandBuffer = createCommandBuffer(VK_COMMAND_BUFFER_LEVEL_PRIMARY, false);
}
if (offscreenPass.semaphore == VK_NULL_HANDLE)
{
// Create a semaphore used to synchronize offscreen rendering and usage
VkSemaphoreCreateInfo semaphoreCreateInfo = vks::initializers::semaphoreCreateInfo();
if (vkCreateSemaphore(device, &semaphoreCreateInfo, nullptr, &offscreenPass.semaphore) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
}
VkCommandBufferBeginInfo cmdBufInfo = vks::initializers::commandBufferBeginInfo();
cmdBufInfo.flags = VK_COMMAND_BUFFER_USAGE_SIMULTANEOUS_USE_BIT;
VkClearValue clearValues[1];
clearValues[0].depthStencil = { 1.0f, 0 };
VkRenderPassBeginInfo renderPassBeginInfo = vks::initializers::renderPassBeginInfo();
renderPassBeginInfo.renderPass = offscreenPass.renderPass;
renderPassBeginInfo.framebuffer = offscreenPass.frameBuffer;
renderPassBeginInfo.renderArea.offset.x = 0;
renderPassBeginInfo.renderArea.offset.y = 0;
renderPassBeginInfo.renderArea.extent.width = offscreenPass.width;
renderPassBeginInfo.renderArea.extent.height = offscreenPass.height;
renderPassBeginInfo.clearValueCount = 2;
renderPassBeginInfo.pClearValues = clearValues;
if (vkBeginCommandBuffer(offscreenPass.commandBuffer, &cmdBufInfo) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
VkViewport viewport = vks::initializers::viewport((float)offscreenPass.width, (float)offscreenPass.height, 0.0f, 1.0f);
vkCmdSetViewport(offscreenPass.commandBuffer, 0, 1, &viewport);
VkRect2D scissor = vks::initializers::rect2D(offscreenPass.width, offscreenPass.height, 0, 0);
vkCmdSetScissor(offscreenPass.commandBuffer, 0, 1, &scissor);
// Set depth bias (aka "Polygon offset")
// Required to avoid shadow mapping artefacts
vkCmdSetDepthBias(
offscreenPass.commandBuffer,
depthBiasConstant,
0.0f,
depthBiasSlope);
vkCmdBeginRenderPass(offscreenPass.commandBuffer, &renderPassBeginInfo, VK_SUBPASS_CONTENTS_INLINE);
vkCmdBindPipeline(offscreenPass.commandBuffer, VK_PIPELINE_BIND_POINT_GRAPHICS, pipelines.offscreen);
vkCmdBindDescriptorSets(offscreenPass.commandBuffer, VK_PIPELINE_BIND_POINT_GRAPHICS, pipelineLayouts.offscreen, 0, 1, &descriptorSets.offscreen, 0, NULL);
VkBuffer vertexBuffers[] = { vertexBuffer };
VkDeviceSize offsets[1] = { 0 };
vkCmdBindVertexBuffers(offscreenPass.commandBuffer, VERTEX_BUFFER_BIND_ID, 1, vertexBuffers, offsets);
vkCmdBindIndexBuffer(offscreenPass.commandBuffer, indexBuffer, 0, VK_INDEX_TYPE_UINT32);
vkCmdDrawIndexed(offscreenPass.commandBuffer, static_cast<uint32_t>(indices.size()), 1, 0, 0, 0);
vkCmdEndRenderPass(offscreenPass.commandBuffer);
if (vkEndCommandBuffer(offscreenPass.commandBuffer) != VK_SUCCESS) {
throw std::runtime_error("failed to record command buffer!");
}
}
};
int main() {
HelloTriangleApplication app;
try {
app.run();
}
catch (const std::exception& e) {
std::cerr << e.what() << std::endl;
return EXIT_FAILURE;
}
return EXIT_SUCCESS;
}
自定义两个头文件VulkanBuffer.hpp和VulkanInitializers.hpp以便后续直接调用，不至于写多次繁琐的结构体填充，您可以直接拷贝代码应用到您的代码中。
VulkanBuffer.hpp：
/*
* Vulkan buffer class
*
* Encapsulates a Vulkan buffer
*/
#pragma once
#include <vector>
#include "vulkan/vulkan.h"
namespace vks
{
/**
* @brief Encapsulates access to a Vulkan buffer backed up by device memory
* @note To be filled by an external source like the VulkanDevice
*/
struct Buffer
{
VkDevice device;
VkBuffer buffer = VK_NULL_HANDLE;
VkDeviceMemory memory = VK_NULL_HANDLE;
VkDescriptorBufferInfo descriptor;
VkDeviceSize size = 0;
VkDeviceSize alignment = 0;
void* mapped = nullptr;
/** @brief Usage flags to be filled by external source at buffer creation (to query at some later point) */
VkBufferUsageFlags usageFlags;
/** @brief Memory propertys flags to be filled by external source at buffer creation (to query at some later point) */
VkMemoryPropertyFlags memoryPropertyFlags;
/**
* Map a memory range of this buffer. If successful, mapped points to the specified buffer range.
*
* @param size (Optional) Size of the memory range to map. Pass VK_WHOLE_SIZE to map the complete buffer range.
* @param offset (Optional) Byte offset from beginning
*
* @return VkResult of the buffer mapping call
*/
VkResult map(VkDeviceSize size = VK_WHOLE_SIZE, VkDeviceSize offset = 0)
{
return vkMapMemory(device, memory, offset, size, 0, &mapped);
}
/**
* Unmap a mapped memory range
*
* @note Does not return a result as vkUnmapMemory can't fail
*/
void unmap()
{
if (mapped)
{
vkUnmapMemory(device, memory);
mapped = nullptr;
}
}
/**
* Attach the allocated memory block to the buffer
*
* @param offset (Optional) Byte offset (from the beginning) for the memory region to bind
*
* @return VkResult of the bindBufferMemory call
*/
VkResult bind(VkDeviceSize offset = 0)
{
return vkBindBufferMemory(device, buffer, memory, offset);
}
/**
* Setup the default descriptor for this buffer
*
* @param size (Optional) Size of the memory range of the descriptor
* @param offset (Optional) Byte offset from beginning
*
*/
void setupDescriptor(VkDeviceSize size = VK_WHOLE_SIZE, VkDeviceSize offset = 0)
{
descriptor.offset = offset;
descriptor.buffer = buffer;
descriptor.range = size;
}
/**
* Copies the specified data to the mapped buffer
*
* @param data Pointer to the data to copy
* @param size Size of the data to copy in machine units
*
*/
void copyTo(void* data, VkDeviceSize size)
{
assert(mapped);
memcpy(mapped, data, size);
}
/**
* Flush a memory range of the buffer to make it visible to the device
*
* @note Only required for non-coherent memory
*
* @param size (Optional) Size of the memory range to flush. Pass VK_WHOLE_SIZE to flush the complete buffer range.
* @param offset (Optional) Byte offset from beginning
*
* @return VkResult of the flush call
*/
VkResult flush(VkDeviceSize size = VK_WHOLE_SIZE, VkDeviceSize offset = 0)
{
VkMappedMemoryRange mappedRange = {};
mappedRange.sType = VK_STRUCTURE_TYPE_MAPPED_MEMORY_RANGE;
mappedRange.memory = memory;
mappedRange.offset = offset;
mappedRange.size = size;
return vkFlushMappedMemoryRanges(device, 1, &mappedRange);
}
/**
* Invalidate a memory range of the buffer to make it visible to the host
*
* @note Only required for non-coherent memory
*
* @param size (Optional) Size of the memory range to invalidate. Pass VK_WHOLE_SIZE to invalidate the complete buffer range.
* @param offset (Optional) Byte offset from beginning
*
* @return VkResult of the invalidate call
*/
VkResult invalidate(VkDeviceSize size = VK_WHOLE_SIZE, VkDeviceSize offset = 0)
{
VkMappedMemoryRange mappedRange = {};
mappedRange.sType = VK_STRUCTURE_TYPE_MAPPED_MEMORY_RANGE;
mappedRange.memory = memory;
mappedRange.offset = offset;
mappedRange.size = size;
return vkInvalidateMappedMemoryRanges(device, 1, &mappedRange);
}
/**
* Release all Vulkan resources held by this buffer
*/
void destroy()
{
if (buffer)
{
vkDestroyBuffer(device, buffer, nullptr);
}
if (memory)
{
vkFreeMemory(device, memory, nullptr);
}
}
};
}
VulkanInitializers.hpp：
/*
* Initializers for Vulkan structures and objects used by the examples
* Saves lot of VK_STRUCTURE_TYPE assignments
* Some initializers are parameterized for convenience
*/
#pragma once
#include <vector>
#include "vulkan/vulkan.h"
namespace vks
{
namespace initializers
{
inline VkMemoryAllocateInfo memoryAllocateInfo()
{
VkMemoryAllocateInfo memAllocInfo {};
memAllocInfo.sType = VK_STRUCTURE_TYPE_MEMORY_ALLOCATE_INFO;
return memAllocInfo;
}
inline VkMappedMemoryRange mappedMemoryRange()
{
VkMappedMemoryRange mappedMemoryRange {};
mappedMemoryRange.sType = VK_STRUCTURE_TYPE_MAPPED_MEMORY_RANGE;
return mappedMemoryRange;
}
inline VkCommandBufferAllocateInfo commandBufferAllocateInfo(
VkCommandPool commandPool,
VkCommandBufferLevel level,
uint32_t bufferCount)
{
VkCommandBufferAllocateInfo commandBufferAllocateInfo {};
commandBufferAllocateInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_ALLOCATE_INFO;
commandBufferAllocateInfo.commandPool = commandPool;
commandBufferAllocateInfo.level = level;
commandBufferAllocateInfo.commandBufferCount = bufferCount;
return commandBufferAllocateInfo;
}
inline VkCommandPoolCreateInfo commandPoolCreateInfo()
{
VkCommandPoolCreateInfo cmdPoolCreateInfo {};
cmdPoolCreateInfo.sType = VK_STRUCTURE_TYPE_COMMAND_POOL_CREATE_INFO;
return cmdPoolCreateInfo;
}
inline VkCommandBufferBeginInfo commandBufferBeginInfo()
{
VkCommandBufferBeginInfo cmdBufferBeginInfo {};
cmdBufferBeginInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_BEGIN_INFO;
return cmdBufferBeginInfo;
}
inline VkCommandBufferInheritanceInfo commandBufferInheritanceInfo()
{
VkCommandBufferInheritanceInfo cmdBufferInheritanceInfo {};
cmdBufferInheritanceInfo.sType = VK_STRUCTURE_TYPE_COMMAND_BUFFER_INHERITANCE_INFO;
return cmdBufferInheritanceInfo;
}
inline VkRenderPassBeginInfo renderPassBeginInfo()
{
VkRenderPassBeginInfo renderPassBeginInfo {};
renderPassBeginInfo.sType = VK_STRUCTURE_TYPE_RENDER_PASS_BEGIN_INFO;
return renderPassBeginInfo;
}
inline VkRenderPassCreateInfo renderPassCreateInfo()
{
VkRenderPassCreateInfo renderPassCreateInfo {};
renderPassCreateInfo.sType = VK_STRUCTURE_TYPE_RENDER_PASS_CREATE_INFO;
return renderPassCreateInfo;
}
/** @brief Initialize an image memory barrier with no image transfer ownership */
inline VkImageMemoryBarrier imageMemoryBarrier()
{
VkImageMemoryBarrier imageMemoryBarrier {};
imageMemoryBarrier.sType = VK_STRUCTURE_TYPE_IMAGE_MEMORY_BARRIER;
imageMemoryBarrier.srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
imageMemoryBarrier.dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
return imageMemoryBarrier;
}
/** @brief Initialize a buffer memory barrier with no image transfer ownership */
inline VkBufferMemoryBarrier bufferMemoryBarrier()
{
VkBufferMemoryBarrier bufferMemoryBarrier {};
bufferMemoryBarrier.sType = VK_STRUCTURE_TYPE_BUFFER_MEMORY_BARRIER;
bufferMemoryBarrier.srcQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
bufferMemoryBarrier.dstQueueFamilyIndex = VK_QUEUE_FAMILY_IGNORED;
return bufferMemoryBarrier;
}
inline VkMemoryBarrier memoryBarrier()
{
VkMemoryBarrier memoryBarrier {};
memoryBarrier.sType = VK_STRUCTURE_TYPE_MEMORY_BARRIER;
return memoryBarrier;
}
inline VkImageCreateInfo imageCreateInfo()
{
VkImageCreateInfo imageCreateInfo {};
imageCreateInfo.sType = VK_STRUCTURE_TYPE_IMAGE_CREATE_INFO;
return imageCreateInfo;
}
inline VkSamplerCreateInfo samplerCreateInfo()
{
VkSamplerCreateInfo samplerCreateInfo {};
samplerCreateInfo.sType = VK_STRUCTURE_TYPE_SAMPLER_CREATE_INFO;
samplerCreateInfo.maxAnisotropy = 1.0f;
return samplerCreateInfo;
}
inline VkImageViewCreateInfo imageViewCreateInfo()
{
VkImageViewCreateInfo imageViewCreateInfo {};
imageViewCreateInfo.sType = VK_STRUCTURE_TYPE_IMAGE_VIEW_CREATE_INFO;
return imageViewCreateInfo;
}
inline VkFramebufferCreateInfo framebufferCreateInfo()
{
VkFramebufferCreateInfo framebufferCreateInfo {};
framebufferCreateInfo.sType = VK_STRUCTURE_TYPE_FRAMEBUFFER_CREATE_INFO;
return framebufferCreateInfo;
}
inline VkSemaphoreCreateInfo semaphoreCreateInfo()
{
VkSemaphoreCreateInfo semaphoreCreateInfo {};
semaphoreCreateInfo.sType = VK_STRUCTURE_TYPE_SEMAPHORE_CREATE_INFO;
return semaphoreCreateInfo;
}
inline VkFenceCreateInfo fenceCreateInfo(VkFenceCreateFlags flags = 0)
{
VkFenceCreateInfo fenceCreateInfo {};
fenceCreateInfo.sType = VK_STRUCTURE_TYPE_FENCE_CREATE_INFO;
fenceCreateInfo.flags = flags;
return fenceCreateInfo;
}
inline VkEventCreateInfo eventCreateInfo()
{
VkEventCreateInfo eventCreateInfo {};
eventCreateInfo.sType = VK_STRUCTURE_TYPE_EVENT_CREATE_INFO;
return eventCreateInfo;
}
inline VkSubmitInfo submitInfo()
{
VkSubmitInfo submitInfo {};
submitInfo.sType = VK_STRUCTURE_TYPE_SUBMIT_INFO;
return submitInfo;
}
inline VkViewport viewport(
float width,
float height,
float minDepth,
float maxDepth)
{
VkViewport viewport {};
viewport.width = width;
viewport.height = height;
viewport.minDepth = minDepth;
viewport.maxDepth = maxDepth;
return viewport;
}
inline VkRect2D rect2D(
int32_t width,
int32_t height,
int32_t offsetX,
int32_t offsetY)
{
VkRect2D rect2D {};
rect2D.extent.width = width;
rect2D.extent.height = height;
rect2D.offset.x = offsetX;
rect2D.offset.y = offsetY;
return rect2D;
}
inline VkBufferCreateInfo bufferCreateInfo()
{
VkBufferCreateInfo bufCreateInfo {};
bufCreateInfo.sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO;
return bufCreateInfo;
}
inline VkBufferCreateInfo bufferCreateInfo(
VkBufferUsageFlags usage,
VkDeviceSize size)
{
VkBufferCreateInfo bufCreateInfo {};
bufCreateInfo.sType = VK_STRUCTURE_TYPE_BUFFER_CREATE_INFO;
bufCreateInfo.usage = usage;
bufCreateInfo.size = size;
return bufCreateInfo;
}
inline VkDescriptorPoolCreateInfo descriptorPoolCreateInfo(
uint32_t poolSizeCount,
VkDescriptorPoolSize* pPoolSizes,
uint32_t maxSets)
{
VkDescriptorPoolCreateInfo descriptorPoolInfo {};
descriptorPoolInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_POOL_CREATE_INFO;
descriptorPoolInfo.poolSizeCount = poolSizeCount;
descriptorPoolInfo.pPoolSizes = pPoolSizes;
descriptorPoolInfo.maxSets = maxSets;
return descriptorPoolInfo;
}
inline VkDescriptorPoolCreateInfo descriptorPoolCreateInfo(
const std::vector<VkDescriptorPoolSize>& poolSizes,
uint32_t maxSets)
{
VkDescriptorPoolCreateInfo descriptorPoolInfo{};
descriptorPoolInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_POOL_CREATE_INFO;
descriptorPoolInfo.poolSizeCount = static_cast<uint32_t>(poolSizes.size());
descriptorPoolInfo.pPoolSizes = poolSizes.data();
descriptorPoolInfo.maxSets = maxSets;
return descriptorPoolInfo;
}
inline VkDescriptorPoolSize descriptorPoolSize(
VkDescriptorType type,
uint32_t descriptorCount)
{
VkDescriptorPoolSize descriptorPoolSize {};
descriptorPoolSize.type = type;
descriptorPoolSize.descriptorCount = descriptorCount;
return descriptorPoolSize;
}
inline VkDescriptorSetLayoutBinding descriptorSetLayoutBinding(
VkDescriptorType type,
VkShaderStageFlags stageFlags,
uint32_t binding,
uint32_t descriptorCount = 1)
{
VkDescriptorSetLayoutBinding setLayoutBinding {};
setLayoutBinding.descriptorType = type;
setLayoutBinding.stageFlags = stageFlags;
setLayoutBinding.binding = binding;
setLayoutBinding.descriptorCount = descriptorCount;
return setLayoutBinding;
}
inline VkDescriptorSetLayoutCreateInfo descriptorSetLayoutCreateInfo(
const VkDescriptorSetLayoutBinding* pBindings,
uint32_t bindingCount)
{
VkDescriptorSetLayoutCreateInfo descriptorSetLayoutCreateInfo {};
descriptorSetLayoutCreateInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_LAYOUT_CREATE_INFO;
descriptorSetLayoutCreateInfo.pBindings = pBindings;
descriptorSetLayoutCreateInfo.bindingCount = bindingCount;
return descriptorSetLayoutCreateInfo;
}
inline VkDescriptorSetLayoutCreateInfo descriptorSetLayoutCreateInfo(
const std::vector<VkDescriptorSetLayoutBinding>& bindings)
{
VkDescriptorSetLayoutCreateInfo descriptorSetLayoutCreateInfo{};
descriptorSetLayoutCreateInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_LAYOUT_CREATE_INFO;
descriptorSetLayoutCreateInfo.pBindings = bindings.data();
descriptorSetLayoutCreateInfo.bindingCount = static_cast<uint32_t>(bindings.size());
return descriptorSetLayoutCreateInfo;
}
inline VkPipelineLayoutCreateInfo pipelineLayoutCreateInfo(
const VkDescriptorSetLayout* pSetLayouts,
uint32_t setLayoutCount = 1)
{
VkPipelineLayoutCreateInfo pipelineLayoutCreateInfo {};
pipelineLayoutCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO;
pipelineLayoutCreateInfo.setLayoutCount = setLayoutCount;
pipelineLayoutCreateInfo.pSetLayouts = pSetLayouts;
return pipelineLayoutCreateInfo;
}
inline VkPipelineLayoutCreateInfo pipelineLayoutCreateInfo(
uint32_t setLayoutCount = 1)
{
VkPipelineLayoutCreateInfo pipelineLayoutCreateInfo{};
pipelineLayoutCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_LAYOUT_CREATE_INFO;
pipelineLayoutCreateInfo.setLayoutCount = setLayoutCount;
return pipelineLayoutCreateInfo;
}
inline VkDescriptorSetAllocateInfo descriptorSetAllocateInfo(
VkDescriptorPool descriptorPool,
const VkDescriptorSetLayout* pSetLayouts,
uint32_t descriptorSetCount)
{
VkDescriptorSetAllocateInfo descriptorSetAllocateInfo {};
descriptorSetAllocateInfo.sType = VK_STRUCTURE_TYPE_DESCRIPTOR_SET_ALLOCATE_INFO;
descriptorSetAllocateInfo.descriptorPool = descriptorPool;
descriptorSetAllocateInfo.pSetLayouts = pSetLayouts;
descriptorSetAllocateInfo.descriptorSetCount = descriptorSetCount;
return descriptorSetAllocateInfo;
}
inline VkDescriptorImageInfo descriptorImageInfo(VkSampler sampler, VkImageView imageView, VkImageLayout imageLayout)
{
VkDescriptorImageInfo descriptorImageInfo {};
descriptorImageInfo.sampler = sampler;
descriptorImageInfo.imageView = imageView;
descriptorImageInfo.imageLayout = imageLayout;
return descriptorImageInfo;
}
inline VkWriteDescriptorSet writeDescriptorSet(
VkDescriptorSet dstSet,
VkDescriptorType type,
uint32_t binding,
VkDescriptorBufferInfo* bufferInfo,
uint32_t descriptorCount = 1)
{
VkWriteDescriptorSet writeDescriptorSet {};
writeDescriptorSet.sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
writeDescriptorSet.dstSet = dstSet;
writeDescriptorSet.descriptorType = type;
writeDescriptorSet.dstBinding = binding;
writeDescriptorSet.pBufferInfo = bufferInfo;
writeDescriptorSet.descriptorCount = descriptorCount;
return writeDescriptorSet;
}
inline VkWriteDescriptorSet writeDescriptorSet(
VkDescriptorSet dstSet,
VkDescriptorType type,
uint32_t binding,
VkDescriptorImageInfo *imageInfo,
uint32_t descriptorCount = 1)
{
VkWriteDescriptorSet writeDescriptorSet {};
writeDescriptorSet.sType = VK_STRUCTURE_TYPE_WRITE_DESCRIPTOR_SET;
writeDescriptorSet.dstSet = dstSet;
writeDescriptorSet.descriptorType = type;
writeDescriptorSet.dstBinding = binding;
writeDescriptorSet.pImageInfo = imageInfo;
writeDescriptorSet.descriptorCount = descriptorCount;
return writeDescriptorSet;
}
inline VkVertexInputBindingDescription vertexInputBindingDescription(
uint32_t binding,
uint32_t stride,
VkVertexInputRate inputRate)
{
VkVertexInputBindingDescription vInputBindDescription {};
vInputBindDescription.binding = binding;
vInputBindDescription.stride = stride;
vInputBindDescription.inputRate = inputRate;
return vInputBindDescription;
}
inline VkVertexInputAttributeDescription vertexInputAttributeDescription(
uint32_t binding,
uint32_t location,
VkFormat format,
uint32_t offset)
{
VkVertexInputAttributeDescription vInputAttribDescription {};
vInputAttribDescription.location = location;
vInputAttribDescription.binding = binding;
vInputAttribDescription.format = format;
vInputAttribDescription.offset = offset;
return vInputAttribDescription;
}
inline VkPipelineVertexInputStateCreateInfo pipelineVertexInputStateCreateInfo()
{
VkPipelineVertexInputStateCreateInfo pipelineVertexInputStateCreateInfo {};
pipelineVertexInputStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO;
return pipelineVertexInputStateCreateInfo;
}
inline VkPipelineInputAssemblyStateCreateInfo pipelineInputAssemblyStateCreateInfo(
VkPrimitiveTopology topology,
VkPipelineInputAssemblyStateCreateFlags flags,
VkBool32 primitiveRestartEnable)
{
VkPipelineInputAssemblyStateCreateInfo pipelineInputAssemblyStateCreateInfo {};
pipelineInputAssemblyStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_INPUT_ASSEMBLY_STATE_CREATE_INFO;
pipelineInputAssemblyStateCreateInfo.topology = topology;
pipelineInputAssemblyStateCreateInfo.flags = flags;
pipelineInputAssemblyStateCreateInfo.primitiveRestartEnable = primitiveRestartEnable;
return pipelineInputAssemblyStateCreateInfo;
}
inline VkPipelineRasterizationStateCreateInfo pipelineRasterizationStateCreateInfo(
VkPolygonMode polygonMode,
VkCullModeFlags cullMode,
VkFrontFace frontFace,
VkPipelineRasterizationStateCreateFlags flags = 0)
{
VkPipelineRasterizationStateCreateInfo pipelineRasterizationStateCreateInfo {};
pipelineRasterizationStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_RASTERIZATION_STATE_CREATE_INFO;
pipelineRasterizationStateCreateInfo.polygonMode = polygonMode;
pipelineRasterizationStateCreateInfo.cullMode = cullMode;
pipelineRasterizationStateCreateInfo.frontFace = frontFace;
pipelineRasterizationStateCreateInfo.flags = flags;
pipelineRasterizationStateCreateInfo.depthClampEnable = VK_FALSE;
pipelineRasterizationStateCreateInfo.lineWidth = 1.0f;
return pipelineRasterizationStateCreateInfo;
}
inline VkPipelineColorBlendAttachmentState pipelineColorBlendAttachmentState(
VkColorComponentFlags colorWriteMask,
VkBool32 blendEnable)
{
VkPipelineColorBlendAttachmentState pipelineColorBlendAttachmentState {};
pipelineColorBlendAttachmentState.colorWriteMask = colorWriteMask;
pipelineColorBlendAttachmentState.blendEnable = blendEnable;
return pipelineColorBlendAttachmentState;
}
inline VkPipelineColorBlendStateCreateInfo pipelineColorBlendStateCreateInfo(
uint32_t attachmentCount,
const VkPipelineColorBlendAttachmentState * pAttachments)
{
VkPipelineColorBlendStateCreateInfo pipelineColorBlendStateCreateInfo {};
pipelineColorBlendStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_COLOR_BLEND_STATE_CREATE_INFO;
pipelineColorBlendStateCreateInfo.attachmentCount = attachmentCount;
pipelineColorBlendStateCreateInfo.pAttachments = pAttachments;
return pipelineColorBlendStateCreateInfo;
}
inline VkPipelineDepthStencilStateCreateInfo pipelineDepthStencilStateCreateInfo(
VkBool32 depthTestEnable,
VkBool32 depthWriteEnable,
VkCompareOp depthCompareOp)
{
VkPipelineDepthStencilStateCreateInfo pipelineDepthStencilStateCreateInfo {};
pipelineDepthStencilStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_DEPTH_STENCIL_STATE_CREATE_INFO;
pipelineDepthStencilStateCreateInfo.depthTestEnable = depthTestEnable;
pipelineDepthStencilStateCreateInfo.depthWriteEnable = depthWriteEnable;
pipelineDepthStencilStateCreateInfo.depthCompareOp = depthCompareOp;
pipelineDepthStencilStateCreateInfo.front = pipelineDepthStencilStateCreateInfo.back;
pipelineDepthStencilStateCreateInfo.back.compareOp = VK_COMPARE_OP_ALWAYS;
return pipelineDepthStencilStateCreateInfo;
}
inline VkPipelineViewportStateCreateInfo pipelineViewportStateCreateInfo(
uint32_t viewportCount,
uint32_t scissorCount,
VkPipelineViewportStateCreateFlags flags = 0)
{
VkPipelineViewportStateCreateInfo pipelineViewportStateCreateInfo {};
pipelineViewportStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_VIEWPORT_STATE_CREATE_INFO;
pipelineViewportStateCreateInfo.viewportCount = viewportCount;
pipelineViewportStateCreateInfo.scissorCount = scissorCount;
pipelineViewportStateCreateInfo.flags = flags;
return pipelineViewportStateCreateInfo;
}
inline VkPipelineMultisampleStateCreateInfo pipelineMultisampleStateCreateInfo(
VkSampleCountFlagBits rasterizationSamples,
VkPipelineMultisampleStateCreateFlags flags = 0)
{
VkPipelineMultisampleStateCreateInfo pipelineMultisampleStateCreateInfo {};
pipelineMultisampleStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_MULTISAMPLE_STATE_CREATE_INFO;
pipelineMultisampleStateCreateInfo.rasterizationSamples = rasterizationSamples;
pipelineMultisampleStateCreateInfo.flags = flags;
return pipelineMultisampleStateCreateInfo;
}
inline VkPipelineDynamicStateCreateInfo pipelineDynamicStateCreateInfo(
const VkDynamicState * pDynamicStates,
uint32_t dynamicStateCount,
VkPipelineDynamicStateCreateFlags flags = 0)
{
VkPipelineDynamicStateCreateInfo pipelineDynamicStateCreateInfo {};
pipelineDynamicStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_DYNAMIC_STATE_CREATE_INFO;
pipelineDynamicStateCreateInfo.pDynamicStates = pDynamicStates;
pipelineDynamicStateCreateInfo.dynamicStateCount = dynamicStateCount;
pipelineDynamicStateCreateInfo.flags = flags;
return pipelineDynamicStateCreateInfo;
}
inline VkPipelineDynamicStateCreateInfo pipelineDynamicStateCreateInfo(
const std::vector<VkDynamicState>& pDynamicStates,
VkPipelineDynamicStateCreateFlags flags = 0)
{
VkPipelineDynamicStateCreateInfo pipelineDynamicStateCreateInfo{};
pipelineDynamicStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_DYNAMIC_STATE_CREATE_INFO;
pipelineDynamicStateCreateInfo.pDynamicStates = pDynamicStates.data();
pipelineDynamicStateCreateInfo.dynamicStateCount = static_cast<uint32_t>(pDynamicStates.size());
pipelineDynamicStateCreateInfo.flags = flags;
return pipelineDynamicStateCreateInfo;
}
inline VkPipelineTessellationStateCreateInfo pipelineTessellationStateCreateInfo(uint32_t patchControlPoints)
{
VkPipelineTessellationStateCreateInfo pipelineTessellationStateCreateInfo {};
pipelineTessellationStateCreateInfo.sType = VK_STRUCTURE_TYPE_PIPELINE_TESSELLATION_STATE_CREATE_INFO;
pipelineTessellationStateCreateInfo.patchControlPoints = patchControlPoints;
return pipelineTessellationStateCreateInfo;
}
inline VkGraphicsPipelineCreateInfo pipelineCreateInfo(
VkPipelineLayout layout,
VkRenderPass renderPass,
VkPipelineCreateFlags flags = 0)
{
VkGraphicsPipelineCreateInfo pipelineCreateInfo {};
pipelineCreateInfo.sType = VK_STRUCTURE_TYPE_GRAPHICS_PIPELINE_CREATE_INFO;
pipelineCreateInfo.layout = layout;
pipelineCreateInfo.renderPass = renderPass;
pipelineCreateInfo.flags = flags;
pipelineCreateInfo.basePipelineIndex = -1;
pipelineCreateInfo.basePipelineHandle = VK_NULL_HANDLE;
return pipelineCreateInfo;
}
inline VkComputePipelineCreateInfo computePipelineCreateInfo(
VkPipelineLayout layout,
VkPipelineCreateFlags flags = 0)
{
VkComputePipelineCreateInfo computePipelineCreateInfo {};
computePipelineCreateInfo.sType = VK_STRUCTURE_TYPE_COMPUTE_PIPELINE_CREATE_INFO;
computePipelineCreateInfo.layout = layout;
computePipelineCreateInfo.flags = flags;
return computePipelineCreateInfo;
}
inline VkPushConstantRange pushConstantRange(
VkShaderStageFlags stageFlags,
uint32_t size,
uint32_t offset)
{
VkPushConstantRange pushConstantRange {};
pushConstantRange.stageFlags = stageFlags;
pushConstantRange.offset = offset;
pushConstantRange.size = size;
return pushConstantRange;
}
inline VkBindSparseInfo bindSparseInfo()
{
VkBindSparseInfo bindSparseInfo{};
bindSparseInfo.sType = VK_STRUCTURE_TYPE_BIND_SPARSE_INFO;
return bindSparseInfo;
}
/** @brief Initialize a map entry for a shader specialization constant */
inline VkSpecializationMapEntry specializationMapEntry(uint32_t constantID, uint32_t offset, size_t size)
{
VkSpecializationMapEntry specializationMapEntry{};
specializationMapEntry.constantID = constantID;
specializationMapEntry.offset = offset;
specializationMapEntry.size = size;
return specializationMapEntry;
}
/** @brief Initialize a specialization constant info structure to pass to a shader stage */
inline VkSpecializationInfo specializationInfo(uint32_t mapEntryCount, const VkSpecializationMapEntry* mapEntries, size_t dataSize, const void* data)
{
VkSpecializationInfo specializationInfo{};
specializationInfo.mapEntryCount = mapEntryCount;
specializationInfo.pMapEntries = mapEntries;
specializationInfo.dataSize = dataSize;
specializationInfo.pData = data;
return specializationInfo;
}
}
}
1587
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
