LCD屏幕调试过程（驱动IC ST7701s）

调试准备工作



1.屏幕开发手册；

2.逻辑分析仪（用来捕获信号，信号是否正确）；

3.驱动板，驱动屏幕显示；

屏幕接口

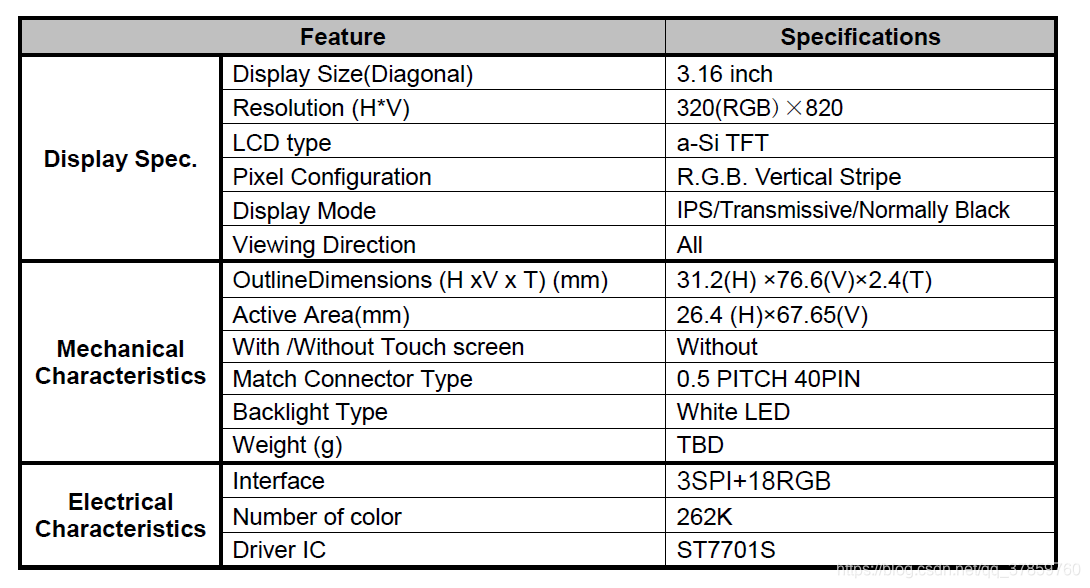

根据手册的说明，可以知道屏幕的一些关键信息，比方说，这里的接口是3SPI+18位的RGB接口，这样我们可以配置我的驱动板接口，这里3SPI是指输入输出使用同一个通道；通过屏幕厂商那里得知使用的9位spi；

这里的屏幕是通过SPI进行驱动，需要通过SPI将命令和数据发送给屏幕进行配置（比如使用的接口，RGB前沿、后沿和位数等等）；

SPI配置好以后，发送配置数据，代码如下,W_C是发送命令，W_D是发送数据：

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x13);

W_C (0xEF);
W_D (0x08);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x10);

W_C (0xC0);
W_D (0xE5);
W_D (0x02);

W_C (0xC1);
W_D (0x0C);
W_D (0x0A);

W_C (0xC2);
W_D (0x07);
W_D (0x0F);

W_C (0xC3);
W_D (0x02);

W_C (0xCC);
W_D (0x10);

W_C (0xB0);
W_D (0x00);
W_D (0x08);
W_D (0x51);
W_D (0x0D);
W_D (0xCE);
W_D (0x06);
W_D (0x00);
W_D (0x08);
W_D (0x08);
W_D (0x1D);
W_D (0x02);
W_D (0xD0);
W_D (0x0F);
W_D (0x6F);
W_D (0x36);
W_D (0x3F);

W_C (0xB1);
W_D (0x00);
W_D (0x10);
W_D (0x4F);
W_D (0x0C);
W_D (0x11);
W_D (0x05);
W_D (0x00);
W_D (0x07);
W_D (0x07);
W_D (0x1F);
W_D (0x05);
W_D (0xD3);
W_D (0x11);
W_D (0x6E);
W_D (0x34);
W_D (0x3F);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x11);

W_C (0xB0);
W_D (0x4D);

W_C (0xB1);
W_D (0x1C);

W_C (0xB2);
W_D (0x87);

W_C (0xB3);
W_D (0x80);

W_C (0xB5);
W_D (0x47);

W_C (0xB7);
W_D (0x85);

W_C (0xB8);
W_D (0x21);

W_C (0xB9);
W_D (0x10);

W_C (0xC1);
W_D (0x78);

W_C (0xC2);
W_D (0x78);

W_C (0xD0);
W_D (0x88);

Delay(100);

W_C (0xE0);
W_D (0x80);
W_D (0x00);
W_D (0x02);

W_C (0xE1);
W_D (0x04);
W_D (0xA0);
W_D (0x00);
W_D (0x00);
W_D (0x05);
W_D (0xA0);
W_D (0x00);
W_D (0x00);
W_D (0x00);
W_D (0x60);
W_D (0x60);

W_C (0xE2);
W_D (0x30);
W_D (0x30);
W_D (0x60);
W_D (0x60);
W_D (0x3C);
W_D (0xA0);
W_D (0x00);
W_D (0x00);
W_D (0x3D);
W_D (0xA0);
W_D (0x00);
W_D (0x00);
W_D (0x00);

W_C (0xE3);
W_D (0x00);
W_D (0x00);
W_D (0x33);
W_D (0x33);

W_C (0xE4);
W_D (0x44);
W_D (0x44);

W_C (0xE5);
W_D (0x06);
W_D (0x3E);
W_D (0xA0);
W_D (0xA0);
W_D (0x08);
W_D (0x40);
W_D (0xA0);
W_D (0xA0);
W_D (0x0A);
W_D (0x42);
W_D (0xA0);
W_D (0xA0);
W_D (0x0C);
W_D (0x44);
W_D (0xA0);
W_D (0xA0);

W_C (0xE6);
W_D (0x00);
W_D (0x00);
W_D (0x33);
W_D (0x33);

W_C (0xE7);
W_D (0x44);
W_D (0x44);

W_C (0xE8);
W_D (0x07);
W_D (0x3F);
W_D (0xA0);
W_D (0xA0);
W_D (0x09);
W_D (0x41);
W_D (0xA0);
W_D (0xA0);
W_D (0x0B);
W_D (0x43);
W_D (0xA0);
W_D (0xA0);
W_D (0x0D);
W_D (0x45);
W_D (0xA0);
W_D (0xA0);

W_C (0xEB);
W_D (0x00);
W_D (0x01);
W_D (0x4E);
W_D (0x4E);
W_D (0xEE);
W_D (0x44);
W_D (0x00);

W_C (0xED);
W_D (0xFF);
W_D (0xFF);
W_D (0x04);
W_D (0x56);
W_D (0x72);
W_D (0xFF);
W_D (0xFF);
W_D (0xFF);
W_D (0xFF);
W_D (0xFF);
W_D (0xFF);
W_D (0x27);
W_D (0x65);
W_D (0x40);
W_D (0xFF);
W_D (0xFF);

W_C (0xEF);
W_D (0x10);
W_D (0x0D);
W_D (0x04);
W_D (0x08);
W_D (0x3F);
W_D (0x1F);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x13);

W_C (0xE8);
W_D (0x00);
W_D (0x0E);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x00);

W_C (0x11);

Delay(120);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x13);

W_C (0xE8);
W_D (0x00);
W_D (0x0C);

Delay(10 );

W_C (0xE8);
W_D (0x00);
W_D (0x00);

W_C (0xFF);
W_D (0x77);
W_D (0x01);
W_D (0x00);
W_D (0x00);
W_D (0x00);

W_C (0x3A);
W_D (0x55);

W_C (0x36);
W_D (0x00);

W_C (0x35);
W_D (0x00);

W_C (0x29);
