【Unity3D】LineRenderer实现划屏刀光效果

材质球

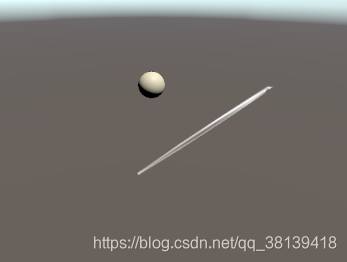

最终效果

using System.Collections;
using System.Collections.Generic;
using System.Linq;
using UnityEngine;

public class DrawLine : SingletonBehaviour<DrawLine>
{
    private LineRenderer renderer;
    public Material rendererMaterial;
    private LinkedList<Vector3> pointLists;
    private bool isDrawing=false;

    private Vector3 point;

    private GameObject lineObj;
    // Use this for initialization
    void Start ()
    {
        pointLists = new LinkedList<Vector3>();
        renderer = gameObject.AddComponent<LineRenderer>();
        renderer.material = rendererMaterial;
        renderer.startWidth = 0.1f;
        renderer.endWidth = 0.05f;
    }

    // Update is called once per frame
    void Update ()
    {
        if (Input.GetMouseButton(0))
        {
            DrawLineByPoint();
        }
        if (Input.GetMouseButtonDown(0))
        {
            if (Vector3.Distance(pointLists.Last.Value, Camera.main.ScreenToWorldPoint(Input.mousePosition)) > 0.1f)
            {
                DrawLineByPoint();
            }
            isDrawing = true;

            Debug.Log("开始绘图");
        }else if (Input.GetMouseButtonUp(0))
        {
            isDrawing = false;
            pointLists.Clear();
            // while (lines.Count>0)
            // {
            //     Destroy(lines[lines.Count-1],0.1f);
            //     lines.RemoveAt(lines.Count-1);
            // }

            renderer.positionCount = 0;
            Debug.Log("绘图结束");
        }

        if (isDrawing)
        {
            DrawLineByPoint();

            renderer.numPositions = pointLists.Count;
            renderer.SetPositions(pointLists.ToArray());

            Debug.Log("正在绘图");
        }
    }

    private void DrawLineByPoint()
    {
        if(pointLists.Count<5)
        {
            point.Set(Camera.main.ScreenToWorldPoint(Input.mousePosition).x,
                Camera.main.ScreenToWorldPoint(Input.mousePosition).y, transform.position.z);
            pointLists.AddLast(point);
            Debug.Log(pointLists.Count);
        }
        else
        {
            pointLists.RemoveFirst();
        }
    }

}
