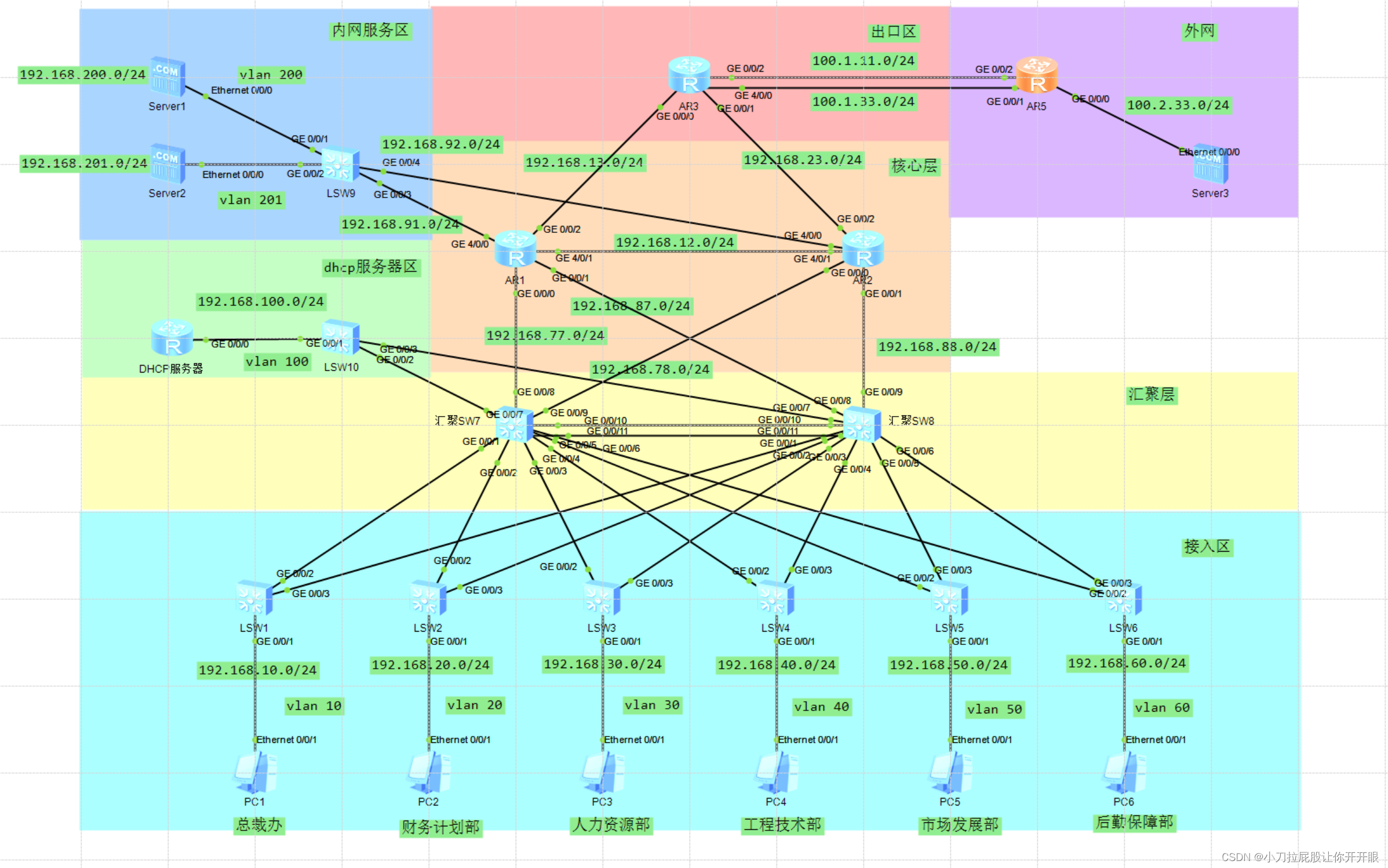

1.部门可以访问公司资源和互联网资源
2.部门之间不能互访
3.服务器要有单独的服务器区和交换机内部网络使用私有ip地址

配置vlan/各端口类型/链路聚合

SW1~8, SW10

#
vlan batch 10 20 30 40 50 60 100
#

SW1

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 10
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 10
#

SW2

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 20
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 20
#

SW3

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 30
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 30
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 30
#

SW4

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 40
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 40
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 40
#

SW5

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 50
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 50
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 50
#

SW6

#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 60
 stp edged-port enable
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 60
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 60
#

SW7

[SW7]port-group trunk
[SW7-port-group-trunk]group-member g0/0/1 to g0/0/7
[SW7-port-group-trunk]p l t
[SW7-port-group-trunk]p t a v all

//链路聚合
[SW7]int Eth-Trunk 1
[SW7-Eth-Trunk1]trunkport g0/0/10
[SW7-Eth-Trunk1]trunkport g0/0/11
[SW7-Eth-Trunk1]p l t
[SW7-Eth-Trunk1]p t a v all

[S
