eNSP中小型园区网络拓扑搭建（下）

→b站直通车，感谢大佬←

→eNSP中小型园区网络拓扑搭建（上）←

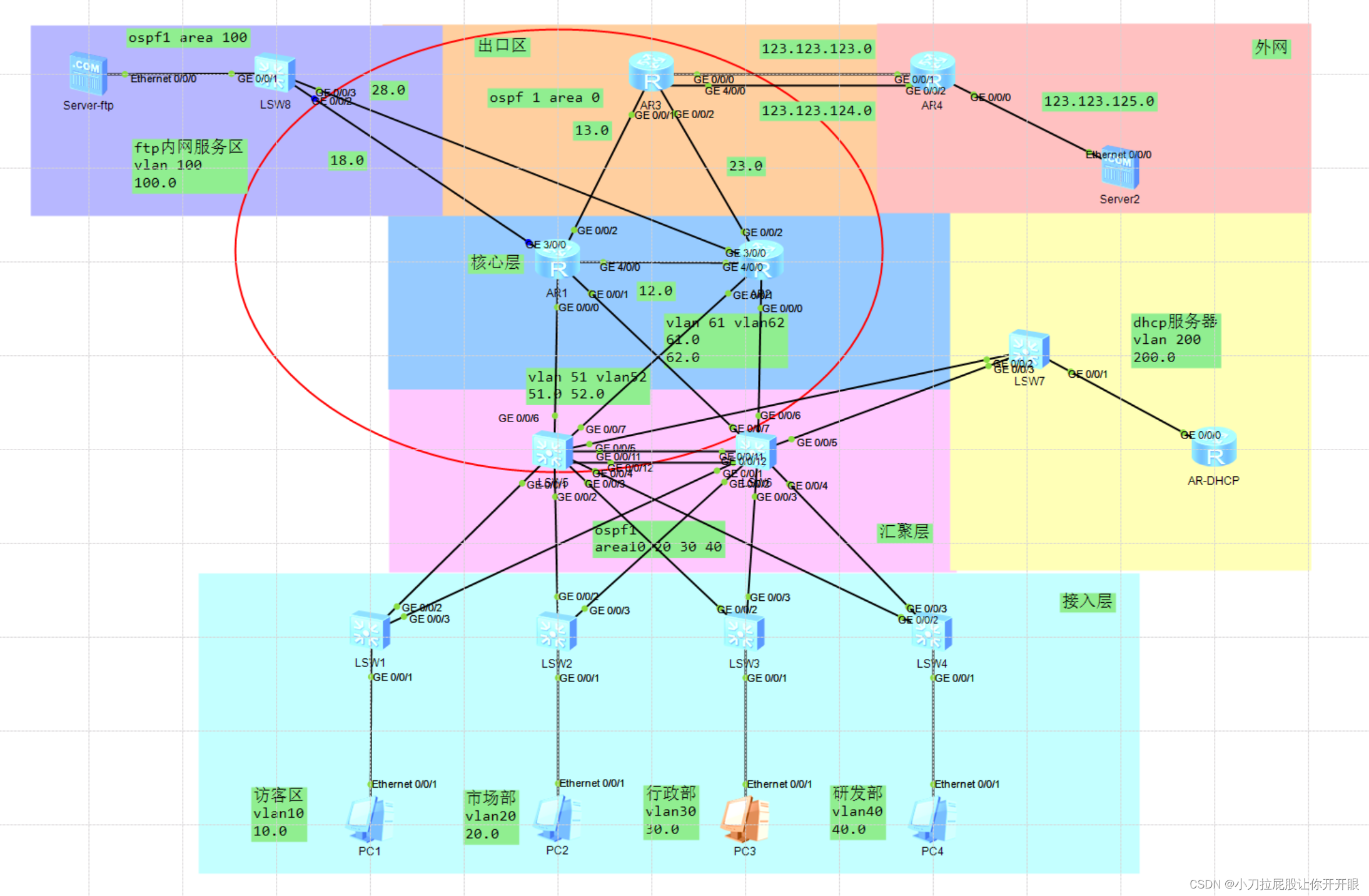

不带配置命令的拓扑图已上传~

配置ospf

SW5

#
ospf 1 router-id 5.5.5.5
 area 0.0.0.0
  network 192.168.51.5 0.0.0.0
  network 192.168.52.5 0.0.0.0
 area 0.0.0.10
  network 192.168.10.5 0.0.0.0
 area 0.0.0.20
  network 192.168.20.5 0.0.0.0
 area 0.0.0.30
  network 192.168.30.5 0.0.0.0
 area 0.0.0.40
  network 192.168.40.5 0.0.0.0
#

SW6

#
ospf 1 router-id 6.6.6.6
 area 0.0.0.0
  network 192.168.61.6 0.0.0.0
  network 192.168.62.6 0.0.0.0
 area 0.0.0.10
  network 192.168.10.6 0.0.0.0
 area 0.0.0.20
  network 192.168.20.6 0.0.0.0
 area 0.0.0.30
  network 192.168.30.6 0.0.0.0
 area 0.0.0.40
  network 192.168.40.6 0.0.0.0
#

AR1

#
ospf 1 router-id 1.1.1.1
 area 0.0.0.0
  network 192.168.12.1 0.0.0.0
  network 192.168.13.1 0.0.0.0
  network 192.168.18.1 0.0.0.0
  network 192.168.51.1 0.0.0.0
  network 192.168.52.1 0.0.0.0
#

AR2

#
ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 192.168.12.2 0.0.0.0
  network 192.168.23.2 0.0.0.0
  network 192.168.28.2 0.0.0.0
  network 192.168.61.2 0.0.0.0
  network 192.168.62.2 0.0.0.0
#

AR3

#
ospf 1 router-id 3.3.3.3
 default-route-advertise always
 area 0.0.0.0
  network 192.168.13.3 0.0.0.0
  network 192.168.23.3 0.0.0.0
#

SW8

#
ospf 1 router-id 8.8.8.8
 area 0.0.0.0
  network 192.168.18.8 0.0.0.0
  network 192.168.28.8 0.0.0.0
 area 0.0.0.100
  network 192.168.100.8 0.0.0.0
#

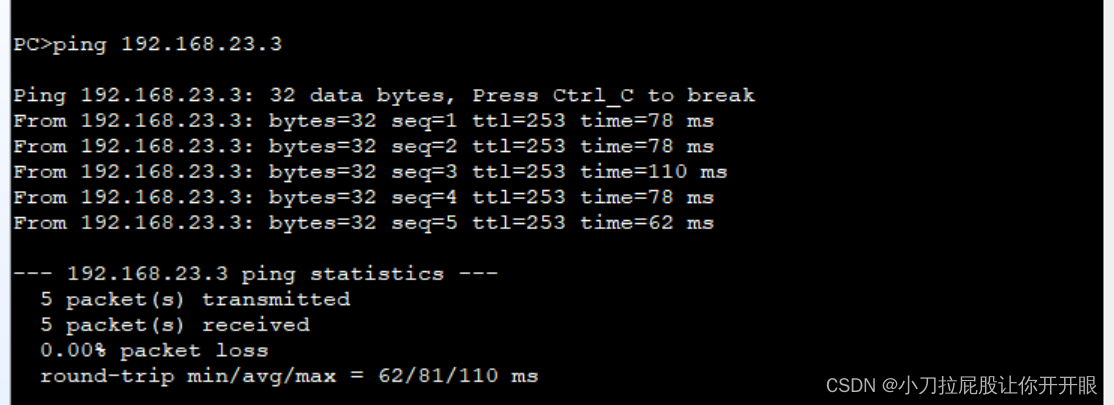

PC连通性测试

配置出口默认路由

#
ip route-static 0.0.0.0 0.0.0.0 123.123.123.4 preference 120
ip route-static 0.0.0.0 0.0.0.0 123.123.124.4
#

配置ACL+NAT

出口配置动态nat，访客部、市场部、行政部可访问internet

#
acl number 2000
 rule 5 permit source 192.168.10.0 0.0.0.255
 rule 10 permit source 192.168.20.0 0.0.0.255
 rule 15 permit source 192.168.30.0 0.0.0.255
#

[AR3-GigabitEthernet0/0/0]nat outbound 2000
[AR3-GigabitEthernet4/0/0]nat outbound 2000

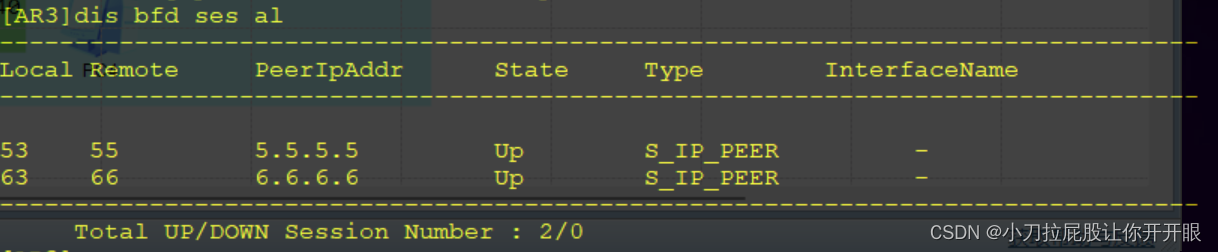

配置bfd

AR3

[AR3]bfd

#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#
bfd tosw5 bind peer-ip 5.5.5.5 source-ip 3.3.3.3
 discriminator local 53
 discriminator remote 55
 min-tx-interval 100
 min-rx-interval 100
 commit
#
bfd tosw6 bind peer-ip 6.6.6.6 source-ip 3.3.3.3
 discriminator local 63
 discriminator remote 66
 min-tx-interval 100
 min-rx-interval 100
 commit
#

//lo口宣告进ospf area0
[AR3-ospf-1-area-0.0.0.0]net 3.3.3.3 0.0.0.0

AR5

[SW5]bfd

#
interface LoopBack0
 ip address 5.5.5.5 255.255.255.255
#
bfd tor3 bind peer-ip 3.3.3.3 source-ip 5.5.5.5
 discriminator local 55
 discriminator remote 53
 min-tx-interval 100
 min-rx-interval 100
 commit
#

//lo口宣告进ospf area0
[SW5-ospf-1-area-0.0.0.0]net 5.5.5.5 0.0.0.0


[SW5-Vlanif10]vrrp vrid 10 track bfd-session 55 reduced 30
[SW5-Vlanif20]vrrp vrid 20 track bfd-session 55 reduced 30
[SW5-Vlanif30]vrrp vrid 30 track bfd-session 55 reduced 30

AR6

[SW6]bfd

#
interface LoopBack0
 ip address 6.6.6.6 255.255.255.255
#
bfd tor3 bind peer-ip 3.3.3.3 source-ip 6.6.6.6
 discriminator local 66
 discriminator remote 63
 min-tx-interval 100
 min-rx-interval 100
 commit
#

//lo口宣告进ospf area0
[SW6-ospf-1-area-0.0.0.0]net 6.6.6.6 0.0.0.0

[SW5-Vlanif40]vrrp vrid 40 track bfd-session 66 reduced 30

进行调优防护

二层安全

• 在二层网络中确保根桥位置不被抢占（根防护）

SW5、SW6

[SW5]port-group 1
[SW5-port-group-1]group-member g0/0/1 to g0/0/4
[SW5-port-group-1]stp root-protection

• 连接终端的接口要快速进入转发状态（边缘端口）

SW1~4

[SW1-GigabitEthernet0/0/1]stp edged-port en

• 确保连接终端接口不能接受处理budu（bpdu防护）

SW1~4

[SW1]stp bpdu-protection

• 为抵御mac范洪攻击，需要在交换机上限制学习mac地址的数量（端口安全）

SW1~4

[SW1-GigabitEthernet0/0/1]port-security en
[SW1-GigabitEthernet0/0/1]port-security max-mac-num 100

三层安全

• 仅允许访客区可以访问Internet，不允许访问其他任何部门

SW1

#
acl number 3001
 rule 5 deny ip destination 192.168.20.0 0.0.0.255
 rule 10 deny ip destination 192.168.30.0 0.0.0.255
 rule 15 deny ip destination 192.168.40.0 0.0.0.255
#

[SW1-GigabitEthernet0/0/1]traffic-filter inbound acl 3001

• 市场部与行政部之间可以互相访问，但不允许访问研发部
• 研发部作为公司核心部门，掌握公司核心数据，仅允许其访问FTP服务器，不允许其 访问其他部门和访问Internet

SW4

#
acl number 3001
 rule 5 deny ip destination 192.168.30.0 0.0.0.255
 rule 10 deny ip destination 192.168.20.0 0.0.0.255
#

[SW4-GigabitEthernet0/0/1]traffic-filter inbound acl 3001

SW8

#
acl number 3001
 rule 5 permit ip source 192.168.40.0 0.0.0.255
 rule 10 deny ip
#

[SW8-GigabitEthernet0/0/1]traffic-filter outbound acl 3001
