ESP8266上电时串口打印乱码原因和发送AT指令串口返回信息含义

版权声明:本文为博主原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接和本声明。
本文链接:https://blog.csdn.net/qq_38405680/article/details/84571843

因为esp8266模块上电时,默认打印波特率为74880.

其固件中通信与串口默认为115200.

所以如果把串口设置为74880,之后再上电模块打印的信息就不会有乱码了,但AT指令默认通信波特率是115200.如果在使用AT通信时,在调到115200.

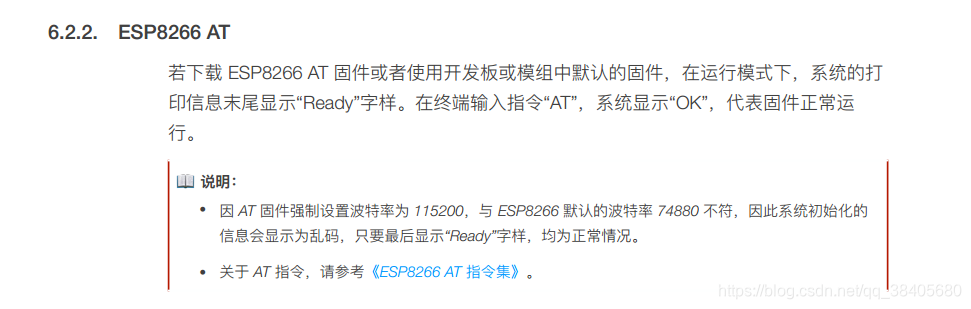

可参考乐鑫提供的esp8266开发手册:

https://www.espressif.com/sites/default/files/documentation/2a-esp8266-sdk_getting_started_guide_cn.pdf

学习还得是要看官方datasheet的。
