计算机三维动态图形设计——八倍镜模型代码实现

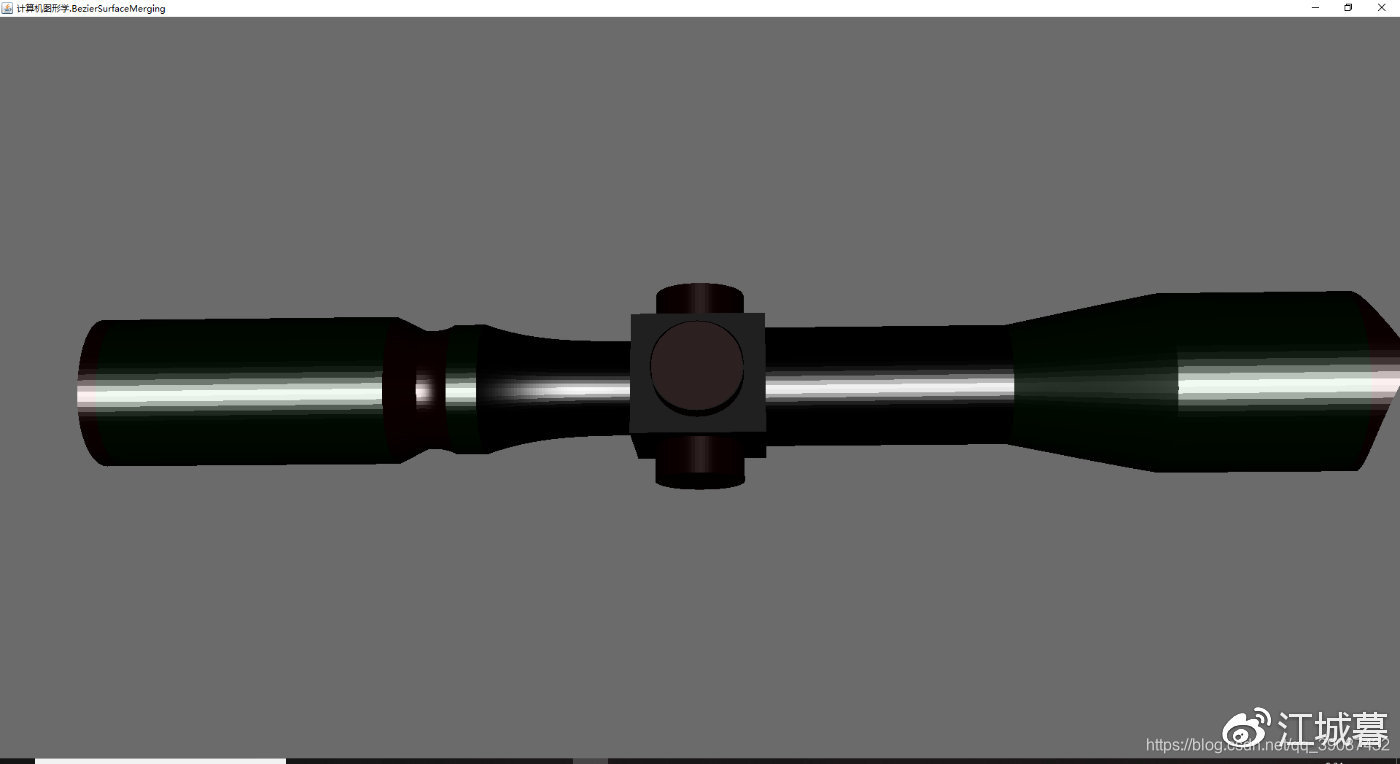

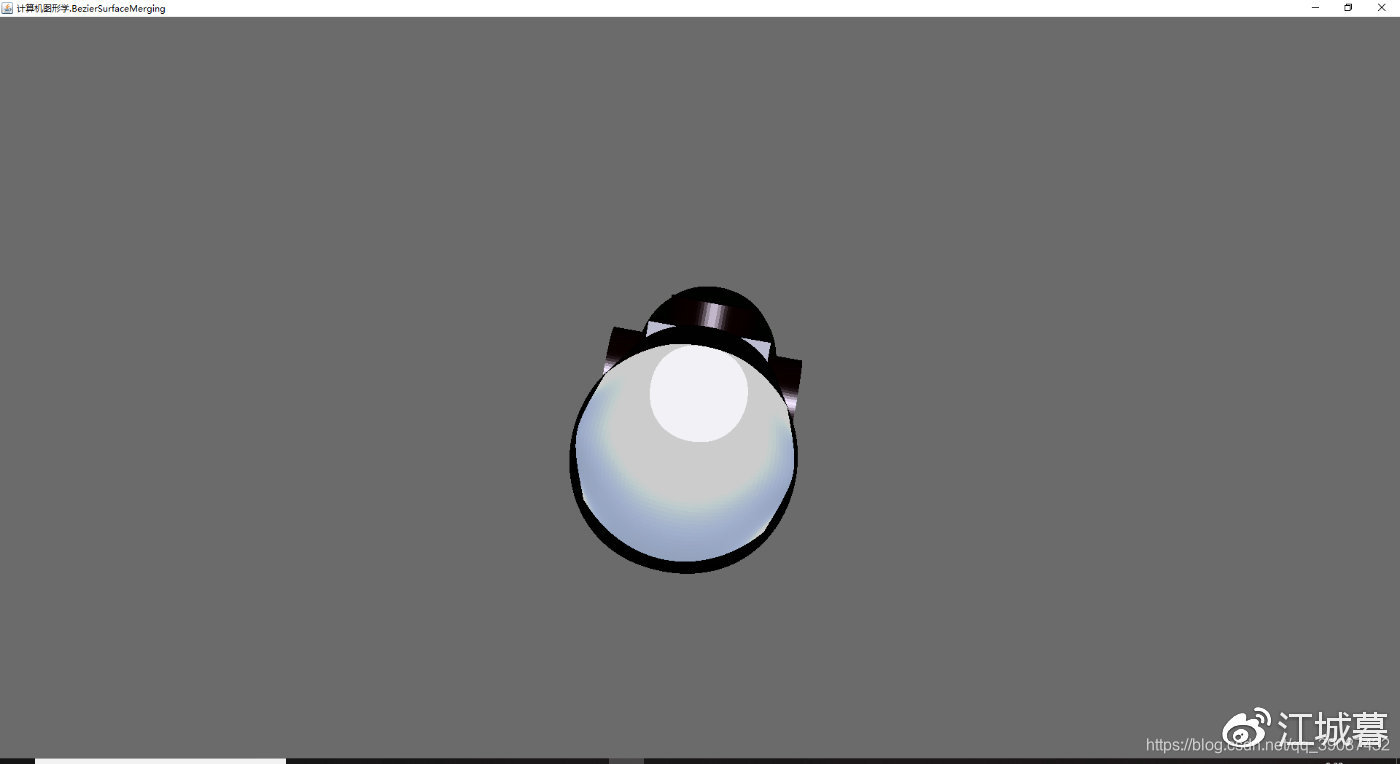

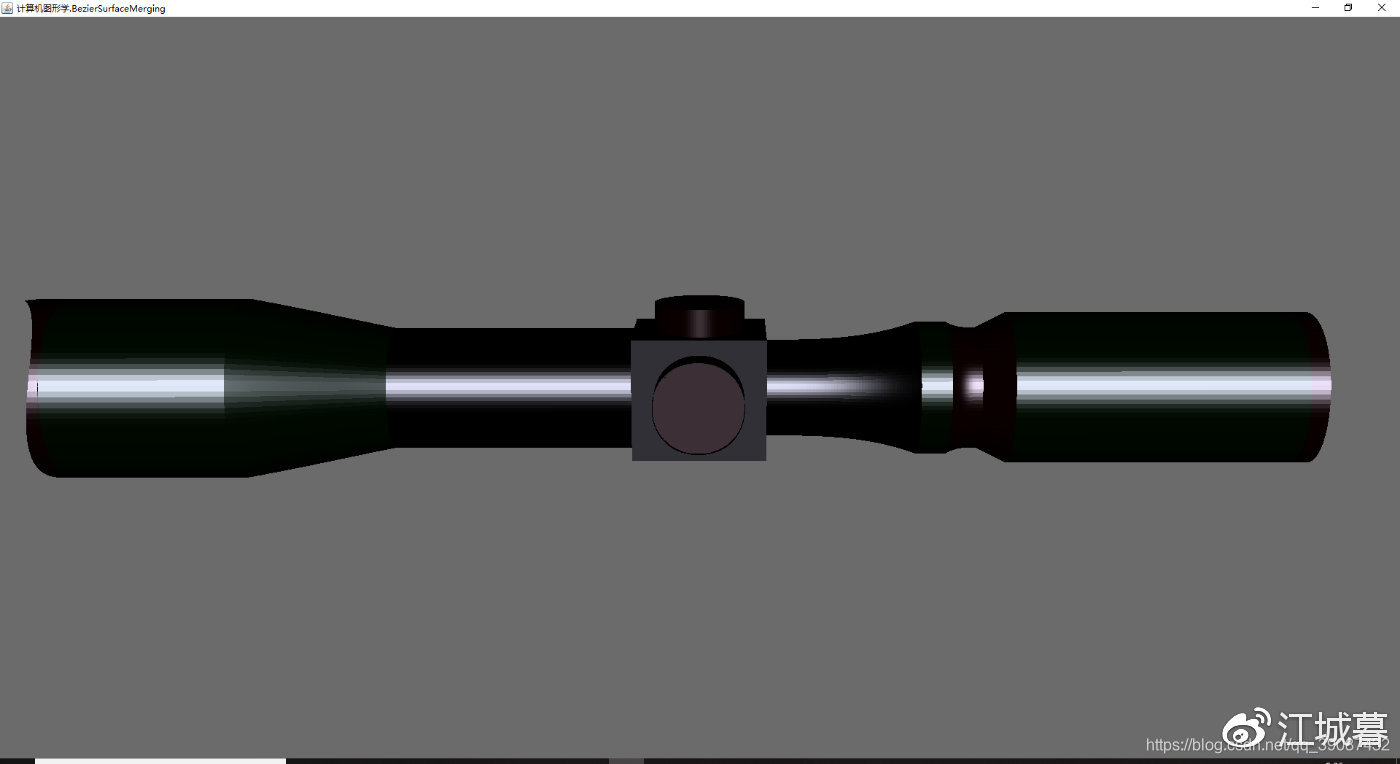

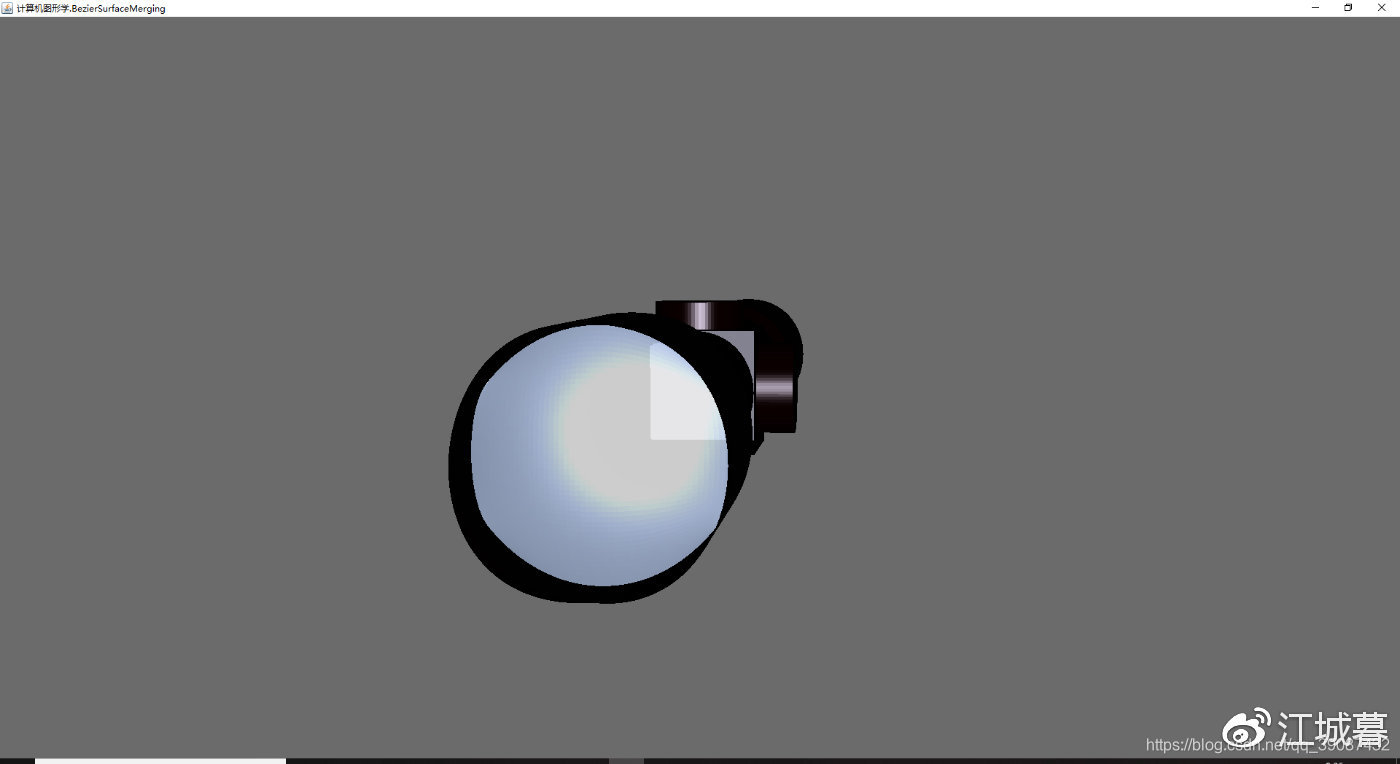

利用双三次Bezier曲面拼接构建三维复杂模型，并在此基础上增加环境光、为目镜和物镜设置透明度。
import java.applet.Applet;
import java.awt.*;
import com.sun.j3d.utils.applet.MainFrame;
import com.sun.j3d.utils.geometry.*;
import com.sun.j3d.utils.universe.*;
import javax.media.j3d.*;
import javax.vecmath.*;
import com.sun.j3d.utils.behaviors.mouse.*;
public class BezierSurfaceMerging extends Applet
{public BranchGroup createBranchGroupSceneGraph()
{BranchGroup BranchGroupRoot =new BranchGroup();
BoundingSphere bounds=new BoundingSphere(new Point3d(0.0,0.0,0.0),100.0);
Color3f bgColor=new Color3f(0.42f,0.42f,0.42f);
Background bg=new Background(bgColor);
bg.setApplicationBounds(bounds);
BranchGroupRoot.addChild(bg);
Color3f directionalColor=new Color3f(0.9f,0.9f,1f);
Vector3f vec=new Vector3f(0.f,0.f,-1.0f);
DirectionalLight directionalLight=new DirectionalLight(directionalColor,vec);
directionalLight.setInfluencingBounds(bounds);
BranchGroupRoot.addChild(directionalLight);
Transform3D tr=new Transform3D();
tr.setScale(0.85);
TransformGroup transformgroup=new TransformGroup(tr);
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_WRITE);
transformgroup.setCapability(TransformGroup.ALLOW_TRANSFORM_READ);
BranchGroupRoot.addChild(transformgroup);
MouseRotate mouserotate = new MouseRotate();
mouserotate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mouserotate);
mouserotate.setSchedulingBounds(bounds);
MouseZoom mousezoom = new MouseZoom();
mousezoom.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mousezoom);
mousezoom.setSchedulingBounds(bounds);
MouseTranslate mousetranslate = new MouseTranslate();
mousetranslate.setTransformGroup(transformgroup);
BranchGroupRoot.addChild(mousetranslate);
mousetranslate.setSchedulingBounds(bounds);
//定义第一个Bezier曲面的16个控制顶点
float[][][] P1={{{-0.98f, 0.125f, 0f, 1.f},
{-0.85f, 0.125f, 0.f, 1.f},
{-0.68f, 0.125f, 0.f,1.f},
{-0.51f, 0.125f, 0f, 1.f}},
{{-0.98f, 0.125f, 0.165f, 1.f},
{-0.85f, 0.125f, 0.165f, 1.f},
{-0.68f, 0.125f, 0.165f,1.f},
{-0.51f, 0.125f, 0.165f, 1.f}},
{{-0.98f, -0.125f, 0.165f, 1.f},
{-0.85f, -0.125f, 0.165f, 1.f},
{-0.68f, -0.125f, 0.165f,1.f},
{-0.51f, -0.125f, 0.165f, 1.f}},
{{-0.98f, -0.125f, 0f, 1.f},
{-0.85f, -0.125f, 0.f, 1.f},
{-0.68f, -0.125f, 0.f,1.f},
{-0.51f, -0.125f, 0f, 1.f}}};
//定义第一个Bezier曲面外观属性
Appearance app1 = new Appearance();
Material material1 = new Material();
material1.setDiffuseColor(new Color3f(.0f,.0f,.0f));
PolygonAttributes polygona1=new PolygonAttributes();
polygona1.setBackFaceNormalFlip(true);
polygona1.setCullFace(PolygonAttributes.CULL_NONE);
polygona1.setPolygonMode(PolygonAttributes.POLYGON_FILL);
app1.setPolygonAttributes(polygona1);
ColoringAttributes color1=new ColoringAttributes();
color1.setColor(0.f,0.f,0.f);
app1.setColoringAttributes(color1);
app1.setMaterial(material1);
//定义第二个Bezier曲面的16个控制顶点
float[][][] P2={{{-0.51f, 0.125f, 0.f, 1.f},
{-0.494f, 0.117f, 0.f, 1.f},
{-0.477f, 0.1085f, 0.f,1.f},
{-0.46f, 0.1f, 0.f, 1.f}},
{{-0.51f, 0.125f, 0.165f, 1.f},
{-0.494f, 0.117f, 0.1545f, 1.f},
{-0.477f, 0.1085f, 0.1432f,1.f},
{-0.46f, 0.1f, 0.132f, 1.f}},
{{-0.51f, -0.125f, 0.165f, 1.f},
{-0.494f, -0.117f, 0.1545f, 1.f},
{-0.477f, -0.1085f, 0.1432f,1.f},
{-0.46f, -0.1f, 0.132f, 1.f}},
{{-0.51f, -0.125f, 0.f, 1.f},
{-0.494f, -0.117f, 0.f, 1.f},
{-0.477f, -0.1085f, 0.f,1.f},
{-0.46f, -0.1f, 0.f, 1.f}}};
//定义第二个Bezier曲面外观属性
Appearance app2 = new Appearance();
Material material2 = new Material();
material2.setDiffuseColor(new Color3f(0.05f,.0f,0.f));
PolygonAttributes polygona2=new PolygonAttributes();
polygona2.setBackFaceNormalFlip(true);
polygona2.setCullFace(PolygonAttributes.CULL_NONE);
polygona2.setPolygonMode(PolygonAttributes.POLYGON_FILL);
app2.setPolygonAttributes(polygona2);
app2.setMaterial(material2);
//定义第三个Bezier曲面的16个控制顶点
float[][][] P3={{{-0.46f, 0.1f, 0.f, 1.f},
{-0.444f, 0.1f, 0.f, 1.f},
{-0.427f, 0.1f, 0.f,1.f},
{-0.41f, 0.11f, 0.f, 1.f}},
{{-0.46f, 0.1f, 0.132f, 1.f},
{-0.444f, 0.1f, 0.132f, 1.f},
{-0.427f, 0.1f, 0.132f,1.f},
{-0.41f, 0.11f, 0.1452f, 1.f}},
{{-0.46f, -0.1f, 0.132f, 1.f},
{-0.444f, -0.1f, 0.132f, 1.f},
{-0.427f, -0.1f, 0.132f,1.f},
{-0.41f, -0.11f, 0.1452f, 1.f}},
{{-0.46f, -0.1f, 0.f, 1.f},
{-0.444f, -0.1f, 0.f, 1.f},
{-0.427f, -0.1f, 0.f,1.f},
{-0.41f, -0.11f, 0.f, 1.f}}};
//定义第三个Bezier曲面外观属性color3.setColor(0.8196f,0.9019f,0.9529f);
Appearance app3 = new Appearance();
Material material3 = new Material();
material3.setDiffuseColor(new Color3f(0.8196f,0.9019f,0.9529f));
PolygonAttributes polygona3=new PolygonAttributes();
polygona3.setBackFaceNormalFlip(true);
polygona3.setCullFace(PolygonAttributes.CULL_NONE);
polygona3.setPolygonMode(PolygonAttributes.POLYGON_FILL);
app3.setPolygonAttributes(polygona3);
app3.setMaterial(material3);
TransparencyAttributes transparence = new TransparencyAttributes(1,.2f);
app3.setTransparencyAttributes(transparence);
//定义第四个Bezier曲面的16个控制顶点
float[][][] P4={{{-0.41f, 0.11f, 0.f, 1.f},
{-0.394f, 0.11f, 0.f, 1.f},
{-0.377f, 0.11f, 0.f,1.f},
{-0.36f, 0.11f, 0.f, 1.f}},
{{-0.41f, 0.11f, 0.1452f, 1.f},
{-0.394f, 0.11f, 0.1452f, 1.f},
{-0.377f, 0.11f, 0.1452f,1.f},
{-0.36f, 0.11f, 0.1452f, 1.f}},
{{-0.41f, -0.11f, 0.1452f, 1.f},
{-0.394f, -0.11f, 0.1452f, 1.f},
{-0.377f, -0.11f, 0.1452f,1.f},
{-0.36f, -0.11f, 0.1452f, 1.f}},
{{-0.41f, -0.11f, 0.f, 1.f},
{-0.394f, -0.11f, 0.f, 1.f},
{-0.377f, -0.11f, 0.f,1.f},
{-0.36f, -0.11f, 0.f, 1.f}}};
//定义第四个Bezier曲面外观属性
Appearance app4 = new Appearance();
Material material4 = new Material();
material4.setDiffuseColor(new Color3f(0.f,0.04f,0.f));
PolygonAttributes polygona4=new PolygonAttributes();
polygona4.setBackFaceNormalFlip(true);
polygona4.setCullFace(PolygonAttributes.CULL_NONE);
polygona4.setPolygonMode(PolygonAttributes.POLYGON_FILL);
app4.setPolygonAttributes(polygona4);
app4.setMaterial(material4);
//定义第五个Bezier曲面的16个控制顶点
float[][][] P5={{{-0.36f, 0.11f, 0.f, 1.f},
{-0.277f, 0.08f, 0.f, 1.f},
{-0.194f, 0.08f, 0.f,1.f},
{-0.11f, 0.08f, 0.f, 1.f}},
{{-0.36f, 0.11f, 0.1452f, 1.f},
{-0.277f, 0.08f, 0.1056f, 1.f},
{-0.194f, 0.08f, 0.1056f,1.f},
{-0.11f, 0.08f, 0.1056f, 1.f}},
{{-0.36f, -0.11f, 0.1452f, 1.f},
{-0.277f, -0.08f, 0.1056f, 1.f},
{-0.194f, -0.08f, 0.1056f,1.f},
{-0.11f, -0.08f, 0.1056f, 1.f}},
{{-0.36f, -0.11f, 0.f, 1.f},
{-0.277f, -0.08f, 0.f, 1.f},
{-0.194f, -0.08f, 0.f,1.f},
{-0.11f, -0.08f, 0.f, 1.f}}};
//定义第五个Bezier曲面外观属性
PolygonAttributes polygona5=new PolygonAttributes();
polygona5.setBackFaceNormalFlip(true);
polygona5.setCullFace(PolygonAttributes.CULL_NONE);
polygona5.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第六个Bezier曲面的16个控制顶点
float[][][] P6={{{-0.11f, 0.1f, 0.1f, 1.f},
{-0.0377f, 0.1f, 0.1f, 1.f},
{0.0377f, 0.1f, 0.1f,1.f},
{0.11f, 0.1f, 0.1f, 1.f}},
{{-0.11f, 0.055f, 0.1f, 1.f},
{-0.0377f, 0.055f, 0.1f, 1.f},
{0.0377f, 0.055f, 0.1f,1.f},
{0.11f, 0.055f, 0.1f, 1.f}},
{{-0.11f, -0.055f, 0.1f, 1.f},
{-0.0377f, -0.055f, 0.1f, 1.f},
{0.0377f, -0.055f, 0.1f,1.f},
{0.11f, -0.055f, 0.1f, 1.f}},
{{-0.11f, -0.1f, 0.1f, 1.f},
{-0.0377f, -0.1f, 0.1f, 1.f},
{0.0377f, -0.1f, 0.1f,1.f},
{0.11f, -0.1f, 0.1f, 1.f}}};
//定义第六个Bezier曲面外观属性
PolygonAttributes polygona6=new PolygonAttributes();
polygona6.setBackFaceNormalFlip(true);
polygona6.setCullFace(PolygonAttributes.CULL_NONE);
polygona6.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第七个Bezier曲面的16个控制顶点
float[][][] P7={{{0.11f, 0.1f, 0.f, 1.f},
{0.24f, 0.1f, 0.f, 1.f},
{0.38f, 0.1f, 0.f,1.f},
{0.51f, 0.1f, 0.f, 1.f}},
{{0.11f, 0.1f, 0.132f, 1.f},
{0.24f, 0.1f, 0.132f, 1.f},
{0.38f, 0.1f, 0.132f,1.f},
{0.511f, 0.1f, 0.132f, 1.f}},
{{0.11f, -0.1f, 0.132f, 1.f},
{0.24f, -0.1f, 0.132f, 1.f},
{0.38f, -0.1f, 0.132f,1.f},
{0.511f, -0.1f, 0.132f, 1.f}},
{{0.11f, -0.1f, 0.f, 1.f},
{0.24f, -0.1f, 0.f, 1.f},
{0.38f, -0.1f, 0.f,1.f},
{0.51f, -0.1f, 0.f, 1.f}}};
//定义第七个Bezier曲面外观属性
PolygonAttributes polygona7=new PolygonAttributes();
polygona7.setBackFaceNormalFlip(true);
polygona7.setCullFace(PolygonAttributes.CULL_NONE);
polygona7.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第八个Bezier曲面的16个控制顶点
float[][][] P8={{{0.51f, 0.1f, 0.f, 1.f},
{0.593f, 0.1166f, 0.f, 1.f},
{0.676f, 0.135f, 0.f,1.f},
{0.76f, 0.15f, 0.f, 1.f}},
{{0.51f, 0.1f, 0.132f, 1.f},
{0.593f, 0.1166f, 0.1539f, 1.f},
{0.676f, 0.135f, 0.1782f,1.f},
{0.76f, 0.15f, 0.198f, 1.f}},
{{0.51f, -0.1f, 0.132f, 1.f},
{0.593f, -0.1166f, 0.1539f, 1.f},
{0.676f, -0.135f, 0.1782f,1.f},
{0.76f, -0.15f, 0.198f, 1.f}},
{{0.51f, -0.1f, 0.f, 1.f},
{0.593f, -0.1166f, 0.f, 1.f},
{0.676f, -0.135f, 0.f,1.f},
{0.76f, -0.15f, 0.f, 1.f}}};
//定义第八个Bezier曲面外观属性
PolygonAttributes polygona8=new PolygonAttributes();
polygona8.setBackFaceNormalFlip(true);
polygona8.setCullFace(PolygonAttributes.CULL_NONE);
polygona8.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第九个Bezier曲面的16个控制顶点
float[][][] P9={{{0.76f, 0.15f, 0.f, 1.f},
{0.86f, 0.15f, 0.f, 1.f},
{0.96f, 0.15f, 0.f,1.f},
{1.06f, 0.15f, 0.f, 1.f}},
{{0.76f, 0.15f, 0.198f, 1.f},
{0.86f, 0.15f, 0.198f, 1.f},
{0.96f, 0.15f, 0.198f,1.f},
{1.06f, 0.15f, 0.198f, 1.f}},
{{0.76f, -0.15f, 0.198f, 1.f},
{0.86f, -0.15f, 0.198f, 1.f},
{0.96f, -0.15f, 0.198f,1.f},
{1.06f, -0.15f, 0.198f, 1.f}},
{{0.76f, -0.15f, 0.f, 1.f},
{0.86f, -0.15f, 0.f, 1.f},
{0.96f, -0.15f, 0.f,1.f},
{1.06f, -0.15f, 0.f, 1.f}}};
//定义第九个Bezier曲面外观属性
PolygonAttributes polygona9=new PolygonAttributes();
polygona9.setBackFaceNormalFlip(true);
polygona9.setCullFace(PolygonAttributes.CULL_NONE);
polygona9.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第十个Bezier曲面的16个控制顶点
float[][][] P10={{{1.06f, 0.15f, 0.f, 1.f},
{1.09f, 0.15f, 0.f, 1.f},
{1.12f, 0.15f, 0.f,1.f},
{1.13f, 0.15f, 0.f, 1.f}},
{{1.06f, 0.15f, 0.198f, 1.f},
{1.00f, 0.15f, 0.198f, 1.f},
{1.0f, 0.15f, 0.198f,1.f},
{1.00f, 0.15f, 0.198f, 1.f}},
{{1.06f, -0.15f, 0.198f, 1.f},
{1.12f, -0.15f, 0.1989f, 1.f},
{1.15f, -0.15f, 0.198f,1.f},
{1.15f, -0.15f, 0.198f, 1.f}},
{{1.06f, -0.15f, 0.f, 1.f},
{1.06f, -0.15f, 0.f, 1.f},
{1.06f, -0.15f, 0.f,1.f},
{1.06f, -0.15f, 0.f, 1.f}}};
//定义第十个Bezier曲面外观属性
PolygonAttributes polygona10=new PolygonAttributes();
polygona10.setBackFaceNormalFlip(true);
polygona10.setCullFace(PolygonAttributes.CULL_NONE);
polygona10.setPolygonMode(PolygonAttributes.POLYGON_LINE);
Shape3D BezierSurfaceface1=new BezierThreeOrderSurfaceface(P1,app4);
transformgroup.addChild(BezierSurfaceface1);
Shape3D BezierSurfaceface2=new BezierThreeOrderSurfaceface(P2,app2);
transformgroup.addChild(BezierSurfaceface2);
Shape3D BezierSurfaceface3=new BezierThreeOrderSurfaceface(P3,app2);
transformgroup.addChild(BezierSurfaceface3);
Shape3D BezierSurfaceface4=new BezierThreeOrderSurfaceface(P4,app4);
transformgroup.addChild(BezierSurfaceface4);
Shape3D BezierSurfaceface5=new BezierThreeOrderSurfaceface(P5,app1);
transformgroup.addChild(BezierSurfaceface5);
Shape3D BezierSurfaceface6=new BezierThreeOrderSurfaceface(P6,app1);
transformgroup.addChild(BezierSurfaceface6);
Shape3D BezierSurfaceface7=new BezierThreeOrderSurfaceface(P7,app1);
transformgroup.addChild(BezierSurfaceface7);
Shape3D BezierSurfaceface8=new BezierThreeOrderSurfaceface(P8,app4);
transformgroup.addChild(BezierSurfaceface8);
Shape3D BezierSurfaceface9=new BezierThreeOrderSurfaceface(P9,app4);
transformgroup.addChild(BezierSurfaceface9);
Shape3D BezierSurfaceface10=new BezierThreeOrderSurfaceface(P10,app2);
transformgroup.addChild(BezierSurfaceface10);
/*Shape3D BezierControlPoints1=new BezierSurfaceControlPoints(P1,app2);
transformgroup.addChild(BezierControlPoints1);
Shape3D BezierControlPoints2=new BezierSurfaceControlPoints(P2,app2);
transformgroup.addChild(BezierControlPoints2);
Shape3D BezierControlPoints3=new BezierSurfaceControlPoints(P3,app2);
transformgroup.addChild(BezierControlPoints3);
Shape3D BezierControlPoints4=new BezierSurfaceControlPoints(P4,app2);
transformgroup.addChild(BezierControlPoints4);
Shape3D BezierControlPoints5=new BezierSurfaceControlPoints(P5,app2);
transformgroup.addChild(BezierControlPoints5);
Shape3D BezierControlPoints6=new BezierSurfaceControlPoints(P6,app2);
transformgroup.addChild(BezierControlPoints6);
Shape3D BezierControlPoints7=new BezierSurfaceControlPoints(P7,app2);
transformgroup.addChild(BezierControlPoints7);
Shape3D BezierControlPoints8=new BezierSurfaceControlPoints(P8,app2);
transformgroup.addChild(BezierControlPoints8);
Shape3D BezierControlPoints9=new BezierSurfaceControlPoints(P9,app2);
transformgroup.addChild(BezierControlPoints9);
Shape3D BezierControlPoints10=new BezierSurfaceControlPoints(P10,app2);
transformgroup.addChild(BezierControlPoints10);*/
//定义第11个Bezier曲面的16个控制顶点
float[][][] P11={{{-0.98f, 0.125f, 0f, 1.f},
{-0.85f, 0.125f, 0.f, 1.f},
{-0.68f, 0.125f, 0.f,1.f},
{-0.51f, 0.125f, 0f, 1.f}},
{{-0.98f, 0.125f, -0.165f, 1.f},
{-0.85f, 0.125f, -0.165f, 1.f},
{-0.68f, 0.125f, -0.165f,1.f},
{-0.51f, 0.125f, -0.165f, 1.f}},
{{-0.98f, -0.125f, -0.165f, 1.f},
{-0.85f, -0.125f, -0.165f, 1.f},
{-0.68f, -0.125f, -0.165f,1.f},
{-0.51f, -0.125f, -0.165f, 1.f}},
{{-0.98f, -0.125f, 0f, 1.f},
{-0.85f, -0.125f, 0.f, 1.f},
{-0.68f, -0.125f, 0.f,1.f},
{-0.51f, -0.125f, 0f, 1.f}}};
//定义第11个Bezier曲面外观属性
Appearance app11 = new Appearance();
PolygonAttributes polygona11=new PolygonAttributes();
polygona11.setBackFaceNormalFlip(true);
polygona11.setCullFace(PolygonAttributes.CULL_NONE);
polygona11.setPolygonMode(PolygonAttributes.POLYGON_FILL);
//定义第12个Bezier曲面的16个控制顶点
float[][][] P12={{{-0.51f, 0.125f, 0.f, 1.f},
{-0.494f, 0.117f, 0.f, 1.f},
{-0.477f, 0.1085f, 0.f,1.f},
{-0.46f, 0.1f, 0.f, 1.f}},
{{-0.51f, 0.125f, -0.165f, 1.f},
{-0.494f, 0.117f, -0.1545f, 1.f},
{-0.477f, 0.1085f, -0.1432f,1.f},
{-0.46f, 0.1f, -0.132f, 1.f}},
{{-0.51f, -0.125f, -0.165f, 1.f},
{-0.494f, -0.117f, -0.1545f, 1.f},
{-0.477f, -0.1085f, -0.1432f,1.f},
{-0.46f, -0.1f, -0.132f, 1.f}},
{{-0.51f, -0.125f, 0.f, 1.f},
{-0.494f, -0.117f, 0.f, 1.f},
{-0.477f, -0.1085f, 0.f,1.f},
{-0.46f, -0.1f, 0.f, 1.f}}};
//定义第12个Bezier曲面外观属性
Appearance app12 = new Appearance();
PolygonAttributes polygona12=new PolygonAttributes();
polygona12.setBackFaceNormalFlip(true);
polygona12.setCullFace(PolygonAttributes.CULL_NONE);
polygona12.setPolygonMode(PolygonAttributes.POLYGON_LINE);
app2.setPolygonAttributes(polygona2);
ColoringAttributes color12=new ColoringAttributes();
color12.setColor(0.f,0.f,1.f);
app12.setColoringAttributes(color12);
//定义第13个Bezier曲面的16个控制顶点
float[][][] P13={{{-0.46f, 0.1f, 0.f, 1.f},
{-0.444f, 0.1f, 0.f, 1.f},
{-0.427f, 0.1f, 0.f,1.f},
{-0.41f, 0.11f, 0.f, 1.f}},
{{-0.46f, 0.1f, -0.132f, 1.f},
{-0.444f, 0.1f, -0.132f, 1.f},
{-0.427f, 0.1f, -0.132f,1.f},
{-0.41f, 0.11f, -0.1452f, 1.f}},
{{-0.46f, -0.1f, -0.132f, 1.f},
{-0.444f, -0.1f, -0.132f, 1.f},
{-0.427f, -0.1f, -0.132f,1.f},
{-0.41f, -0.11f, -0.1452f, 1.f}},
{{-0.46f, -0.1f, 0.f, 1.f},
{-0.444f, -0.1f, 0.f, 1.f},
{-0.427f, -0.1f, 0.f,1.f},
{-0.41f, -0.11f, 0.f, 1.f}}};
//定义第13个Bezier曲面外观属性
PolygonAttributes polygona13=new PolygonAttributes();
polygona13.setBackFaceNormalFlip(true);
polygona13.setCullFace(PolygonAttributes.CULL_NONE);
polygona13.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第14个Bezier曲面的16个控制顶点
float[][][] P14={{{-0.41f, 0.11f, 0.f, 1.f},
{-0.394f, 0.11f, 0.f, 1.f},
{-0.377f, 0.11f, 0.f,1.f},
{-0.36f, 0.11f, 0.f, 1.f}},
{{-0.41f, 0.11f, -0.1452f, 1.f},
{-0.394f, 0.11f, -0.1452f, 1.f},
{-0.377f, 0.11f, -0.1452f,1.f},
{-0.36f, 0.11f, -0.1452f, 1.f}},
{{-0.41f, -0.11f, -0.1452f, 1.f},
{-0.394f, -0.11f, -0.1452f, 1.f},
{-0.377f, -0.11f, -0.1452f,1.f},
{-0.36f, -0.11f, -0.1452f, 1.f}},
{{-0.41f, -0.11f, 0.f, 1.f},
{-0.394f, -0.11f, 0.f, 1.f},
{-0.377f, -0.11f, 0.f,1.f},
{-0.36f, -0.11f, 0.f, 1.f}}};
//定义第14个Bezier曲面外观属性
PolygonAttributes polygona14=new PolygonAttributes();
polygona14.setBackFaceNormalFlip(true);
polygona14.setCullFace(PolygonAttributes.CULL_NONE);
polygona14.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第15个Bezier曲面的16个控制顶点
float[][][] P15={{{-0.36f, 0.11f, 0.f, 1.f},
{-0.277f, 0.08f, 0.f, 1.f},
{-0.194f, 0.08f, 0.f,1.f},
{-0.11f, 0.08f, 0.f, 1.f}},
{{-0.36f, 0.11f, -0.1452f, 1.f},
{-0.277f, 0.08f, -0.1056f, 1.f},
{-0.194f, 0.08f, -0.1056f,1.f},
{-0.11f, 0.08f, -0.1056f, 1.f}},
{{-0.36f, -0.11f, -0.1452f, 1.f},
{-0.277f, -0.08f, -0.1056f, 1.f},
{-0.194f, -0.08f, -0.1056f,1.f},
{-0.11f, -0.08f, -0.1056f, 1.f}},
{{-0.36f, -0.11f, 0.f, 1.f},
{-0.277f, -0.08f, 0.f, 1.f},
{-0.194f, -0.08f, 0.f,1.f},
{-0.11f, -0.08f, 0.f, 1.f}}};
//定义第15个Bezier曲面外观属性
PolygonAttributes polygona15=new PolygonAttributes();
polygona15.setBackFaceNormalFlip(true);
polygona15.setCullFace(PolygonAttributes.CULL_NONE);
polygona15.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第16个Bezier曲面的16个控制顶点
float[][][] P16={{{-0.11f, 0.1f, -0.1f, 1.f},
{-0.0377f, 0.1f, -0.1f, 1.f},
{0.0377f, 0.1f, -0.1f,1.f},
{0.11f, 0.1f, -0.1f, 1.f}},
{{-0.11f, 0.055f, -0.1f, 1.f},
{-0.0377f, 0.055f, -0.1f, 1.f},
{0.0377f, 0.055f, -0.1f,1.f},
{0.11f, 0.055f, -0.1f, 1.f}},
{{-0.11f, -0.055f, -0.1f, 1.f},
{-0.0377f, -0.055f, -0.1f, 1.f},
{0.0377f, -0.055f, -0.1f,1.f},
{0.11f, -0.055f, -0.1f, 1.f}},
{{-0.11f, -0.1f, -0.1f, 1.f},
{-0.0377f, -0.1f, -0.1f, 1.f},
{0.0377f, -0.1f, -0.1f,1.f},
{0.11f, -0.1f, -0.1f, 1.f}}};
//定义第16个Bezier曲面外观属性
PolygonAttributes polygona16=new PolygonAttributes();
polygona16.setBackFaceNormalFlip(true);
polygona16.setCullFace(PolygonAttributes.CULL_NONE);
polygona16.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第17个Bezier曲面的16个控制顶点
float[][][] P17={{{0.11f, 0.1f, 0.f, 1.f},
{0.24f, 0.1f, 0.f, 1.f},
{0.38f, 0.1f, 0.f,1.f},
{0.51f, 0.1f, 0.f, 1.f}},
{{0.11f, 0.1f, -0.132f, 1.f},
{0.24f, 0.1f, -0.132f, 1.f},
{0.38f, 0.1f, -0.132f,1.f},
{0.511f, 0.1f, -0.132f, 1.f}},
{{0.11f, -0.1f, -0.132f, 1.f},
{0.24f, -0.1f, -0.132f, 1.f},
{0.38f, -0.1f, -0.132f,1.f},
{0.511f, -0.1f, -0.132f, 1.f}},
{{0.11f, -0.1f, 0.f, 1.f},
{0.24f, -0.1f, 0.f, 1.f},
{0.38f, -0.1f, 0.f,1.f},
{0.51f, -0.1f, 0.f, 1.f}}};
//定义第17个Bezier曲面外观属性
PolygonAttributes polygona17=new PolygonAttributes();
polygona17.setBackFaceNormalFlip(true);
polygona17.setCullFace(PolygonAttributes.CULL_NONE);
polygona17.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第18个Bezier曲面的16个控制顶点
float[][][] P18={{{0.51f, 0.1f, 0.f, 1.f},
{0.593f, 0.1166f, 0.f, 1.f},
{0.676f, 0.135f, 0.f,1.f},
{0.76f, 0.15f, 0.f, 1.f}},
{{0.51f, 0.1f, -0.132f, 1.f},
{0.593f, 0.1166f, -0.1539f, 1.f},
{0.676f, 0.135f, -0.1782f,1.f},
{0.76f, 0.15f, -0.198f, 1.f}},
{{0.51f, -0.1f, -0.132f, 1.f},
{0.593f, -0.1166f, -0.1539f, 1.f},
{0.676f, -0.135f, -0.1782f,1.f},
{0.76f, -0.15f, -0.198f, 1.f}},
{{0.51f, -0.1f, 0.f, 1.f},
{0.593f, -0.1166f, 0.f, 1.f},
{0.676f, -0.135f, 0.f,1.f},
{0.76f, -0.15f, 0.f, 1.f}}};
//定义第18个Bezier曲面外观属性
PolygonAttributes polygona18=new PolygonAttributes();
polygona18.setBackFaceNormalFlip(true);
polygona18.setCullFace(PolygonAttributes.CULL_NONE);
polygona18.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第19个Bezier曲面的16个控制顶点
float[][][] P19={{{0.76f, 0.15f, 0.f, 1.f},
{0.86f, 0.15f, 0.f, 1.f},
{0.96f, 0.15f, 0.f,1.f},
{1.06f, 0.15f, 0.f, 1.f}},
{{0.76f, 0.15f, -0.198f, 1.f},
{0.86f, 0.15f, -0.198f, 1.f},
{0.96f, 0.15f, -0.198f,1.f},
{1.06f, 0.15f, -0.198f, 1.f}},
{{0.76f, -0.15f, -0.198f, 1.f},
{0.86f, -0.15f, -0.198f, 1.f},
{0.96f, -0.15f, -0.198f,1.f},
{1.06f, -0.15f, -0.198f, 1.f}},
{{0.76f, -0.15f, 0.f, 1.f},
{0.86f, -0.15f, 0.f, 1.f},
{0.96f, -0.15f, 0.f,1.f},
{1.06f, -0.15f, 0.f, 1.f}}};
//定义第19个Bezier曲面外观属性
PolygonAttributes polygona19=new PolygonAttributes();
polygona19.setBackFaceNormalFlip(true);
polygona19.setCullFace(PolygonAttributes.CULL_NONE);
polygona19.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第20个Bezier曲面的16个控制顶点
float[][][] P20={{{1.06f, 0.15f, 0.f, 1.f},
{1.09f, 0.15f, 0.f, 1.f},
{1.12f, 0.15f, 0.f,1.f},
{1.13f, 0.15f, 0.f, 1.f}},
{{1.06f, 0.15f, -0.198f, 1.f},
{1.00f, 0.15f, -0.198f, 1.f},
{1.0f, 0.15f, -0.198f,1.f},
{1.00f, 0.15f, -0.198f, 1.f}},
{{1.06f, -0.15f, -0.198f, 1.f},
{1.12f, -0.15f, -0.1989f, 1.f},
{1.15f, -0.15f, -0.198f,1.f},
{1.15f, -0.15f, -0.198f, 1.f}},
{{1.06f, -0.15f, 0.f, 1.f},
{1.06f, -0.15f, 0.f, 1.f},
{1.06f, -0.15f, 0.f,1.f},
{1.06f, -0.15f, 0.f, 1.f}}};
//定义第20个Bezier曲面外观属性
PolygonAttributes polygona20=new PolygonAttributes();
polygona20.setBackFaceNormalFlip(true);
polygona20.setCullFace(PolygonAttributes.CULL_NONE);
polygona20.setPolygonMode(PolygonAttributes.POLYGON_LINE);
Shape3D BezierSurfaceface11=new BezierThreeOrderSurfaceface(P11,app4);
transformgroup.addChild(BezierSurfaceface11);
Shape3D BezierSurfaceface12=new BezierThreeOrderSurfaceface(P12,app2);
transformgroup.addChild(BezierSurfaceface12);
Shape3D BezierSurfaceface13=new BezierThreeOrderSurfaceface(P13,app2);
transformgroup.addChild(BezierSurfaceface13);
Shape3D BezierSurfaceface14=new BezierThreeOrderSurfaceface(P14,app4);
transformgroup.addChild(BezierSurfaceface14);
Shape3D BezierSurfaceface15=new BezierThreeOrderSurfaceface(P15,app1);
transformgroup.addChild(BezierSurfaceface15);
Shape3D BezierSurfaceface16=new BezierThreeOrderSurfaceface(P16,app1);
transformgroup.addChild(BezierSurfaceface16);
Shape3D BezierSurfaceface17=new BezierThreeOrderSurfaceface(P17,app1);
transformgroup.addChild(BezierSurfaceface17);
Shape3D BezierSurfaceface18=new BezierThreeOrderSurfaceface(P18,app4);
transformgroup.addChild(BezierSurfaceface18);
Shape3D BezierSurfaceface19=new BezierThreeOrderSurfaceface(P19,app4);
transformgroup.addChild(BezierSurfaceface19);
Shape3D BezierSurfaceface20=new BezierThreeOrderSurfaceface(P20,app2);
transformgroup.addChild(BezierSurfaceface20);
/*Shape3D BezierControlPoints11=new BezierSurfaceControlPoints(P11,app2);
transformgroup.addChild(BezierControlPoints11);
Shape3D BezierControlPoints12=new BezierSurfaceControlPoints(P12,app2);
transformgroup.addChild(BezierControlPoints12);
Shape3D BezierControlPoints13=new BezierSurfaceControlPoints(P13,app2);
transformgroup.addChild(BezierControlPoints13);
Shape3D BezierControlPoints14=new BezierSurfaceControlPoints(P14,app2);
transformgroup.addChild(BezierControlPoints14);
Shape3D BezierControlPoints15=new BezierSurfaceControlPoints(P15,app2);
transformgroup.addChild(BezierControlPoints15);
Shape3D BezierControlPoints16=new BezierSurfaceControlPoints(P16,app2);
transformgroup.addChild(BezierControlPoints16);
Shape3D BezierControlPoints17=new BezierSurfaceControlPoints(P17,app2);
transformgroup.addChild(BezierControlPoints17);
Shape3D BezierControlPoints18=new BezierSurfaceControlPoints(P18,app2);
transformgroup.addChild(BezierControlPoints18);
Shape3D BezierControlPoints19=new BezierSurfaceControlPoints(P19,app2);
transformgroup.addChild(BezierControlPoints19);
Shape3D BezierControlPoints20=new BezierSurfaceControlPoints(P20,app2);
transformgroup.addChild(BezierControlPoints20);*/
//定义顶层盖子Bezier曲面的16个控制顶点
float[][][] P21={{{-0.11f, 0.1f, -0.1f, 1.f},
{-0.055f, 0.1f, -0.1f, 1.f},
{0.055f, 0.1f, -0.1f,1.f},
{0.11f, 0.1f, -0.1f, 1.f}},
{{-0.11f, 0.1f, -0.05f, 1.f},
{-0.055f, 0.1f, -0.05f, 1.f},
{0.055f, 0.1f, -0.05f,1.f},
{0.11f, 0.1f, -0.05f, 1.f}},
{{-0.11f, 0.1f, 0.05f, 1.f},
{-0.055f, 0.1f, 0.05f, 1.f},
{0.055f, 0.1f, 0.05f,1.f},
{0.11f, 0.1f, 0.05f, 1.f}},
{{-0.11f, 0.1f, 0.1f, 1.f},
{-0.055f, 0.1f, 0.1f, 1.f},
{0.055f, 0.1f, 0.1f,1.f},
{0.11f, 0.1f, 0.1f, 1.f}}};
//定义第21个Bezier曲面外观属性
PolygonAttributes polygona21=new PolygonAttributes();
polygona21.setBackFaceNormalFlip(true);
polygona21.setCullFace(PolygonAttributes.CULL_NONE);
polygona21.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义底层盖子Bezier曲面的16个控制顶点
float[][][] P22={{{-0.11f, -0.1f, -0.1f, 1.f},
{-0.055f, -0.1f, -0.1f, 1.f},
{0.055f, -0.1f, -0.1f,1.f},
{0.11f, -0.1f, -0.1f, 1.f}},
{{-0.11f, -0.1f, -0.05f, 1.f},
{-0.055f, -0.1f, -0.05f, 1.f},
{0.055f, -0.1f, -0.05f,1.f},
{0.11f, -0.1f, -0.05f, 1.f}},
{{-0.11f, -0.1f, 0.05f, 1.f},
{-0.055f, -0.1f, 0.05f, 1.f},
{0.055f, -0.1f, 0.05f,1.f},
{0.11f, -0.1f, 0.05f, 1.f}},
{{-0.11f, -0.1f, 0.1f, 1.f},
{-0.055f, -0.1f, 0.1f, 1.f},
{0.055f, -0.1f, 0.1f,1.f},
{0.11f, -0.1f, 0.1f, 1.f}}};
//定义第22个Bezier曲面外观属性
PolygonAttributes polygona22=new PolygonAttributes();
polygona22.setBackFaceNormalFlip(true);
polygona22.setCullFace(PolygonAttributes.CULL_NONE);
polygona22.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义右侧旋钮曲面的16个控制顶点
float[][][] P23={{{-0.052f, 0.052f, 0.16f, 1.f},
{-0.026f, 0.08f, 0.16f, 1.f},
{0.026f, 0.08f, 0.16f,1.f},
{0.052f, 0.052f, 0.16f, 1.f}},
{{-0.08f, 0.026f, 0.16f, 1.f},
{-0.f, 0.0f, 0.16f, 1.f},
{0.f, 0.0f, 0.16f,1.f},
{0.08f, 0.026f, 0.16f, 1.f}},
{{-0.08f, -0.026f, 0.16f, 1.f},
{-0.f, -0.0f, 0.16f, 1.f},
{0.f, -0.0f, 0.16f,1.f},
{0.08f, -0.026f, 0.16f, 1.f}},
{{-0.052f, -0.052f, 0.16f, 1.f},
{-0.026f, -0.08f, 0.16f, 1.f},
{0.026f, -0.08f, 0.16f,1.f},
{0.052f, -0.052f, 0.16f, 1.f}}};
//定义第23个Bezier曲面外观属性
PolygonAttributes polygona23=new PolygonAttributes();
polygona23.setBackFaceNormalFlip(true);
polygona23.setCullFace(PolygonAttributes.CULL_NONE);
polygona23.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第24个Bezier曲面的16个控制顶点
float[][][] P24={{{-0.052f, 0.145f, -0.052f, 1.f},
{-0.026f, 0.145f, -0.08f, 1.f},
{0.026f, 0.145f, -0.08f,1.f},
{0.052f, 0.145f, -0.052f, 1.f}},
{{-0.08f, 0.145f, -0.026f, 1.f},
{-0.f, 0.145f, 0.0f, 1.f},
{0.f, 0.145f, 0.0f,1.f},
{0.08f, 0.145f, -0.026f, 1.f}},
{{-0.08f, 0.145f, 0.026f, 1.f},
{-0.f, 0.145f, 0.0f, 1.f},
{0.f, 0.145f, 0.0f,1.f},
{0.08f, 0.145f, 0.026f, 1.f}},
{{-0.052f, 0.145f, 0.052f, 1.f},
{-0.026f, 0.145f, 0.08f, 1.f},
{0.026f, 0.145f, 0.08f,1.f},
{0.052f, 0.145f, 0.052f, 1.f}}};
//定义第24个Bezier曲面外观属性
PolygonAttributes polygona24=new PolygonAttributes();
polygona24.setBackFaceNormalFlip(true);
polygona24.setCullFace(PolygonAttributes.CULL_NONE);
polygona24.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义右侧旋钮边缘Bezier曲面的16个控制顶点
float[][][] P25={{{0f, 0.075f, 0.1f, 1.f},
{0f, 0.075f, 0.12f, 1.f},
{0f, 0.075f, 0.14f,1.f},
{0f, 0.075f, 0.16f, 1.f}},
{{-0.099f, 0.075f, 0.1f, 1.f},
{-0.099f, 0.075f, 0.12f, 1.f},
{-0.099f, 0.075f, 0.14f,1.f},
{-0.099f, 0.075f, 0.16f, 1.f}},
{{-0.099f, -0.075f, 0.1f, 1.f},
{-0.099f, -0.075f, 0.12f, 1.f},
{-0.099f, -0.075f, 0.14f,1.f},
{-0.099f, -0.075f, 0.16f, 1.f}},
{{0f, -0.075f, 0.1f, 1.f},
{0f, -0.075f, 0.12f, 1.f},
{0f, -0.075f, 0.14f,1.f},
{0f, -0.075f, 0.16f, 1.f}}};
//定义第25个Bezier曲面外观属性
PolygonAttributes polygona25=new PolygonAttributes();
polygona25.setBackFaceNormalFlip(true);
polygona25.setCullFace(PolygonAttributes.CULL_NONE);
polygona25.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义右侧旋钮边缘Bezier曲面的16个控制顶点
float[][][] P26={{{0f, 0.075f, 0.1f, 1.f},
{0f, 0.075f, 0.12f, 1.f},
{0f, 0.075f, 0.14f,1.f},
{0f, 0.075f, 0.16f, 1.f}},
{{0.099f, 0.075f, 0.1f, 1.f},
{0.099f, 0.075f, 0.12f, 1.f},
{0.099f, 0.075f, 0.14f,1.f},
{0.099f, 0.075f, 0.16f, 1.f}},
{{0.099f, -0.075f, 0.1f, 1.f},
{0.099f, -0.075f, 0.12f, 1.f},
{0.099f, -0.075f, 0.14f,1.f},
{0.099f, -0.075f, 0.16f, 1.f}},
{{0f, -0.075f, 0.1f, 1.f},
{0f, -0.075f, 0.12f, 1.f},
{0f, -0.075f, 0.14f,1.f},
{0f, -0.075f, 0.16f, 1.f}}};
//定义第26个Bezier曲面外观属性
PolygonAttributes polygona26=new PolygonAttributes();
polygona26.setBackFaceNormalFlip(true);
polygona26.setCullFace(PolygonAttributes.CULL_NONE);
polygona26.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义顶层旋钮边缘Bezier曲面的16个控制顶点
float[][][] P27={{{-0.075f, 0.1f, 0.f, 1.f},
{-0.075f, 0.115f, 0.f, 1.f},
{-0.075f, 0.13f, 0.f,1.f},
{-0.075f, 0.145f, 0.f, 1.f}},
{{-0.075f, 0.1f, 0.099f, 1.f},
{-0.075f, 0.115f, 0.099f, 1.f},
{-0.075f, 0.13f, 0.099f,1.f},
{-0.075f, 0.145f, 0.099f, 1.f}},
{{0.075f, 0.1f, 0.099f, 1.f},
{0.075f, 0.115f, 0.099f, 1.f},
{0.075f, 0.13f, 0.099f,1.f},
{0.075f, 0.145f, 0.099f, 1.f}},
{{0.075f, 0.1f, 0.f, 1.f},
{0.075f, 0.115f, 0.f, 1.f},
{0.075f, 0.13f, 0.f,1.f},
{0.075f, 0.145f, 0.f, 1.f}}};
//定义第27个Bezier曲面外观属性
PolygonAttributes polygona27=new PolygonAttributes();
polygona27.setBackFaceNormalFlip(true);
polygona27.setCullFace(PolygonAttributes.CULL_NONE);
polygona27.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义顶层旋钮边缘Bezier曲面的16个控制顶点
float[][][] P28={{{-0.075f, 0.1f, 0.f, 1.f},
{-0.075f, 0.115f, 0.f, 1.f},
{-0.075f, 0.13f, 0.f,1.f},
{-0.075f, 0.145f, 0.f, 1.f}},
{{-0.075f, 0.1f, -0.099f, 1.f},
{-0.075f, 0.115f, -0.099f, 1.f},
{-0.075f, 0.13f, -0.099f,1.f},
{-0.075f, 0.145f, -0.099f, 1.f}},
{{0.075f, 0.1f, -0.099f, 1.f},
{0.075f, 0.115f, -0.099f, 1.f},
{0.075f, 0.13f, -0.099f,1.f},
{0.075f, 0.145f, -0.099f, 1.f}},
{{0.075f, 0.1f, 0.f, 1.f},
{0.075f, 0.115f, 0.f, 1.f},
{0.075f, 0.13f, 0.f,1.f},
{0.075f, 0.145f, 0.f, 1.f}}};
//定义第个Bezier曲面外观属性
PolygonAttributes polygona28=new PolygonAttributes();
polygona28.setBackFaceNormalFlip(true);
polygona28.setCullFace(PolygonAttributes.CULL_NONE);
polygona28.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义左侧旋钮控制顶点
float[][][] P29={{{-0.052f, 0.052f, -0.16f, 1.f},
{-0.026f, 0.08f, -0.16f, 1.f},
{0.026f, 0.08f, -0.16f,1.f},
{0.052f, 0.052f, -0.16f, 1.f}},
{{-0.08f, 0.026f, -0.16f, 1.f},
{-0.f, 0.0f, -0.16f, 1.f},
{0.f, 0.0f, -0.16f,1.f},
{0.08f, 0.026f, -0.16f, 1.f}},
{{-0.08f, -0.026f, -0.16f, 1.f},
{-0.f, -0.0f, -0.16f, 1.f},
{0.f, -0.0f, -0.16f,1.f},
{0.08f, -0.026f, -0.16f, 1.f}},
{{-0.052f, -0.052f, -0.16f, 1.f},
{-0.026f, -0.08f, -0.16f, 1.f},
{0.026f, -0.08f, -0.16f,1.f},
{0.052f, -0.052f, -0.16f, 1.f}}};
//定义第29个Bezier曲面外观属性
PolygonAttributes polygona29=new PolygonAttributes();
polygona29.setBackFaceNormalFlip(true);
polygona29.setCullFace(PolygonAttributes.CULL_NONE);
polygona29.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义左侧旋钮边缘Bezier曲面的16个控制顶点
float[][][] P30={{{0f, 0.075f, -0.1f, 1.f},
{0f, 0.075f, -0.12f, 1.f},
{0f, 0.075f, -0.14f,1.f},
{0f, 0.075f, -0.16f, 1.f}},
{{-0.099f, 0.075f, -0.1f, 1.f},
{-0.099f, 0.075f, -0.12f, 1.f},
{-0.099f, 0.075f, -0.14f,1.f},
{-0.099f, 0.075f, -0.16f, 1.f}},
{{-0.099f, -0.075f, -0.1f, 1.f},
{-0.099f, -0.075f, -0.12f, 1.f},
{-0.099f, -0.075f, -0.14f,1.f},
{-0.099f, -0.075f, -0.16f, 1.f}},
{{0f, -0.075f, -0.1f, 1.f},
{0f, -0.075f, -0.12f, 1.f},
{0f, -0.075f, -0.14f,1.f},
{0f, -0.075f, -0.16f, 1.f}}};
//定义第30个Bezier曲面外观属性
PolygonAttributes polygona30=new PolygonAttributes();
polygona30.setBackFaceNormalFlip(true);
polygona30.setCullFace(PolygonAttributes.CULL_NONE);
polygona30.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义左侧旋钮边缘Bezier曲面的16个控制顶点
float[][][] P31={{{0f, 0.075f, -0.1f, 1.f},
{0f, 0.075f, -0.12f, 1.f},
{0f, 0.075f, -0.14f,1.f},
{0f, 0.075f, -0.16f, 1.f}},
{{0.099f, 0.075f, -0.1f, 1.f},
{0.099f, 0.075f, -0.12f, 1.f},
{0.099f, 0.075f, -0.14f,1.f},
{0.099f, 0.075f, -0.16f, 1.f}},
{{0.099f, -0.075f, -0.1f, 1.f},
{0.099f, -0.075f, -0.12f, 1.f},
{0.099f, -0.075f, -0.14f,1.f},
{0.099f, -0.075f, -0.16f, 1.f}},
{{0f, -0.075f, -0.1f, 1.f},
{0f, -0.075f, -0.12f, 1.f},
{0f, -0.075f, -0.14f,1.f},
{0f, -0.075f, -0.16f, 1.f}}};
//定义第31个Bezier曲面外观属性
PolygonAttributes polygona31=new PolygonAttributes();
polygona31.setBackFaceNormalFlip(true);
polygona31.setCullFace(PolygonAttributes.CULL_NONE);
polygona31.setPolygonMode(PolygonAttributes.POLYGON_LINE);
Shape3D BezierSurfaceface21=new BezierThreeOrderSurfaceface(P21,app1);
transformgroup.addChild(BezierSurfaceface21);
Shape3D BezierSurfaceface22=new BezierThreeOrderSurfaceface(P22,app1);
transformgroup.addChild(BezierSurfaceface22);
Shape3D BezierSurfaceface23=new BezierThreeOrderSurfaceface(P23,app2);
transformgroup.addChild(BezierSurfaceface23);
Shape3D BezierSurfaceface24=new BezierThreeOrderSurfaceface(P24,app2);
transformgroup.addChild(BezierSurfaceface24);
Shape3D BezierSurfaceface25=new BezierThreeOrderSurfaceface(P25,app2);
transformgroup.addChild(BezierSurfaceface25);
Shape3D BezierSurfaceface26=new BezierThreeOrderSurfaceface(P26,app2);
transformgroup.addChild(BezierSurfaceface26);
Shape3D BezierSurfaceface27=new BezierThreeOrderSurfaceface(P27,app2);
transformgroup.addChild(BezierSurfaceface27);
Shape3D BezierSurfaceface28=new BezierThreeOrderSurfaceface(P28,app2);
transformgroup.addChild(BezierSurfaceface28);
Shape3D BezierSurfaceface29=new BezierThreeOrderSurfaceface(P29,app2);
transformgroup.addChild(BezierSurfaceface29);
Shape3D BezierSurfaceface30=new BezierThreeOrderSurfaceface(P30,app2);
transformgroup.addChild(BezierSurfaceface30);
Shape3D BezierSurfaceface31=new BezierThreeOrderSurfaceface(P31,app2);
transformgroup.addChild(BezierSurfaceface31);
/*Shape3D BezierControlPoints21=new BezierSurfaceControlPoints(P21,app2);
transformgroup.addChild(BezierControlPoints21);
Shape3D BezierControlPoints22=new BezierSurfaceControlPoints(P22,app2);
transformgroup.addChild(BezierControlPoints22);
Shape3D BezierControlPoints23=new BezierSurfaceControlPoints(P23,app2);
transformgroup.addChild(BezierControlPoints23);
Shape3D BezierControlPoints24=new BezierSurfaceControlPoints(P24,app2);
transformgroup.addChild(BezierControlPoints24);
Shape3D BezierControlPoints25=new BezierSurfaceControlPoints(P25,app2);
transformgroup.addChild(BezierControlPoints25);
Shape3D BezierControlPoints26=new BezierSurfaceControlPoints(P26,app2);
transformgroup.addChild(BezierControlPoints26);
Shape3D BezierControlPoints27=new BezierSurfaceControlPoints(P27,app2);
transformgroup.addChild(BezierControlPoints27);
Shape3D BezierControlPoints28=new BezierSurfaceControlPoints(P28,app2);
transformgroup.addChild(BezierControlPoints28);
Shape3D BezierControlPoints29=new BezierSurfaceControlPoints(P29,app2);
transformgroup.addChild(BezierControlPoints29);
Shape3D BezierControlPoints30=new BezierSurfaceControlPoints(P30,app2);
transformgroup.addChild(BezierControlPoints30);
Shape3D BezierControlPoints31=new BezierSurfaceControlPoints(P31,app2);
transformgroup.addChild(BezierControlPoints31);*/
//定义前面盖子Bezier曲面的16个控制顶点
float[][][] P32={{{-0.11f, 0.1f, -0.1f, 1.f},
{-0.11f, 0.1f, -0.05f, 1.f},
{-0.11f, 0.1f, 0.05f,1.f},
{-0.11f, 0.1f, 0.1f, 1.f}},
{{-0.11f, 0.05f, -0.1f, 1.f},
{-0.11f, 0.05f, -0.05f, 1.f},
{-0.11f, 0.05f, 0.05f,1.f},
{-0.11f, 0.05f, 0.1f, 1.f}},
{{-0.11f, -0.05f, -0.1f, 1.f},
{-0.11f, -0.05f, -0.05f, 1.f},
{-0.11f, -0.05f, 0.05f,1.f},
{-0.11f, -0.05f, 0.1f, 1.f}},
{{-0.11f, -0.1f, -0.1f, 1.f},
{-0.11f, -0.1f, -0.05f, 1.f},
{-0.11f, -0.1f, 0.05f,1.f},
{-0.11f, -0.1f, 0.1f, 1.f}}};
//定义第32个Bezier曲面外观属性
PolygonAttributes polygona32=new PolygonAttributes();
polygona32.setBackFaceNormalFlip(true);
polygona32.setCullFace(PolygonAttributes.CULL_NONE);
polygona32.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义后面盖子Bezier曲面的16个控制顶点
float[][][] P33={{{-0.11f, 0.1f, -0.1f, 1.f},
{-0.055f, 0.1f, -0.1f, 1.f},
{0.055f, 0.1f, -0.1f,1.f},
{0.11f, 0.1f, -0.1f, 1.f}},
{{-0.11f, 0.1f, -0.05f, 1.f},
{-0.055f, 0.1f, -0.05f, 1.f},
{0.055f, 0.1f, -0.05f,1.f},
{0.11f, 0.1f, -0.05f, 1.f}},
{{-0.11f, 0.1f, 0.05f, 1.f},
{-0.055f, 0.1f, 0.05f, 1.f},
{0.055f, 0.1f, 0.05f,1.f},
{0.11f, 0.1f, 0.05f, 1.f}},
{{-0.11f, 0.1f, 0.1f, 1.f},
{-0.055f, 0.1f, 0.1f, 1.f},
{0.055f, 0.1f, 0.1f,1.f},
{0.11f, 0.1f, 0.1f, 1.f}}};
//定义第33个Bezier曲面外观属性
PolygonAttributes polygona33=new PolygonAttributes();
polygona33.setBackFaceNormalFlip(true);
polygona33.setCullFace(PolygonAttributes.CULL_NONE);
polygona33.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义物镜Bezier曲面的16个控制顶点
float[][][] P34={{{1f, 0.08f, -0.125f, 1.f},
{1f, 0.165f, -0.055f, 1.f},
{1f, 0.165f, 0.055f,1.f},
{1f, 0.08f, 0.125f, 1.f}},
{{1f, 0.05f, -0.15f, 1.f},
{1.05f, 0.05f, -0.05f, 1.f},
{1.05f, 0.05f, 0.05f, 1.f},
{1f, 0.05f, 0.15f, 1.f}},
{{1f, -0.05f, -0.15f, 1.f},
{1.05f, -0.05f, -0.05f, 1.f},
{1.05f, -0.05f, 0.05f, 1.f},
{1f, -0.05f, 0.15f, 1.f}},
{{1f, -0.08f, -0.125f, 1.f},
{1f, -0.165f, -0.055f, 1.f},
{1f, -0.165f, 0.055f,1.f},
{1f, -0.08f, 0.125f, 1.f}}};
//定义第34个Bezier曲面外观属性
PolygonAttributes polygona34=new PolygonAttributes();
polygona34.setBackFaceNormalFlip(true);
polygona34.setCullFace(PolygonAttributes.CULL_NONE);
polygona34.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义目镜Bezier曲面的16个控制顶点
float[][][] P35={{{-0.95f, 0.072f, -0.103f, 1.f},
{-0.95f, 0.14f, -0.045f, 1.f},
{-0.95f, 0.14f, 0.045f,1.f},
{-0.95f, 0.072f, 0.103f, 1.f}},
{{-0.95f, 0.f, -0.13f, 1.f},
{-0.98f, 0.05f, -0.05f, 1.f},
{-0.98f, 0.05f, 0.05f,1.f},
{-0.95f, 0.f, 0.13f, 1.f}},
{{-0.95f, 0.f, -0.13f, 1.f},
{-0.98f, -0.05f, -0.05f, 1.f},
{-0.98f, -0.05f, 0.05f, 1.f},
{-0.95f, 0.f, 0.13f, 1.f}},
{{-0.95f, -0.072f, -0.103f, 1.f},
{-0.95f, -0.14f, -0.045f, 1.f},
{-0.95f, -0.14f, 0.045f,1.f},
{-0.95f, -0.072f, 0.103f, 1.f}}};
//定义第35个Bezier曲面外观属性
PolygonAttributes polygona35=new PolygonAttributes();
polygona35.setBackFaceNormalFlip(true);
polygona35.setCullFace(PolygonAttributes.CULL_NONE);
polygona35.setPolygonMode(PolygonAttributes.POLYGON_LINE);
Shape3D BezierSurfaceface32=new BezierThreeOrderSurfaceface(P32,app1);
transformgroup.addChild(BezierSurfaceface32);
Shape3D BezierSurfaceface33=new BezierThreeOrderSurfaceface(P33,app1);
transformgroup.addChild(BezierSurfaceface33);
Shape3D BezierSurfaceface34=new BezierThreeOrderSurfaceface(P34,app3);
transformgroup.addChild(BezierSurfaceface34);
Shape3D BezierSurfaceface35=new BezierThreeOrderSurfaceface(P35,app3);
transformgroup.addChild(BezierSurfaceface35);
/*Shape3D BezierControlPoints32=new BezierSurfaceControlPoints(P32,app2);
transformgroup.addChild(BezierControlPoints32);
Shape3D BezierControlPoints33=new BezierSurfaceControlPoints(P33,app2);
transformgroup.addChild(BezierControlPoints33);
Shape3D BezierControlPoints34=new BezierSurfaceControlPoints(P34,app3);
transformgroup.addChild(BezierControlPoints34);
Shape3D BezierControlPoints35=new BezierSurfaceControlPoints(P35,app3);
transformgroup.addChild(BezierControlPoints35);*/
//定义第36个Bezier曲面的16个控制顶点
float[][][] P36={{{-1.01f, 0.125f, 0f, 1.f},
{-1f, 0.125f, 0.f, 1.f},
{-0.99f, 0.125f, 0.f,1.f},
{-0.98f, 0.125f, 0f, 1.f}},
{{-1.01f, 0.125f, 0.165f, 1.f},
{-1f, 0.125f, 0.165f, 1.f},
{-0.99f, 0.125f, 0.165f,1.f},
{-0.98f, 0.125f, 0.165f, 1.f}},
{{-1.01f, -0.125f, 0.165f, 1.f},
{-1f, -0.125f, 0.165f, 1.f},
{-0.99f, -0.125f, 0.165f,1.f},
{-0.98f, -0.125f, 0.165f, 1.f}},
{{-1.01f, -0.125f, 0f, 1.f},
{-1f, -0.125f, 0.f, 1.f},
{-0.99f, -0.125f, 0.f,1.f},
{-0.98f, -0.125f, 0f, 1.f}}};
//定义第36个Bezier曲面外观属性
PolygonAttributes polygona36=new PolygonAttributes();
polygona36.setBackFaceNormalFlip(true);
polygona36.setCullFace(PolygonAttributes.CULL_NONE);
polygona36.setPolygonMode(PolygonAttributes.POLYGON_LINE);
//定义第37个Bezier曲面的16个控制顶点
float[][][] P37={{{-1.01f, 0.125f, 0f, 1.f},
{-1f, 0.125f, 0.f, 1.f},
{-0.99f, 0.125f, 0.f,1.f},
{-0.98f, 0.125f, 0f, 1.f}},
{{-1.01f, 0.125f, -0.165f, 1.f},
{-1f, 0.125f, -0.165f, 1.f},
{-0.99f, 0.125f, -0.165f,1.f},
{-0.98f, 0.125f, -0.165f, 1.f}},
{{-1.01f, -0.125f, -0.165f, 1.f},
{-1f, -0.125f, -0.165f, 1.f},
{-0.99f, -0.125f, -0.165f,1.f},
{-0.98f, -0.125f, -0.165f, 1.f}},
{{-1.01f, -0.125f, 0f, 1.f},
{-1f, -0.125f, 0.f, 1.f},
{-0.99f, -0.125f, 0.f,1.f},
{-0.98f, -0.125f, 0f, 1.f}}};
//定义第37个Bezier曲面外观属性
PolygonAttributes polygona37=new PolygonAttributes();
polygona37.setBackFaceNormalFlip(true);
polygona37.setCullFace(PolygonAttributes.CULL_NONE);
polygona37.setPolygonMode(PolygonAttributes.POLYGON_LINE);
Shape3D BezierSurfaceface36=new BezierThreeOrderSurfaceface(P36,app2);
transformgroup.addChild(BezierSurfaceface36);
Shape3D BezierSurfaceface37=new BezierThreeOrderSurfaceface(P37,app2);
transformgroup.addChild(BezierSurfaceface37);
/*Shape3D BezierControlPoints36=new BezierSurfaceControlPoints(P36,app2);
transformgroup.addChild(BezierControlPoints36);
Shape3D BezierControlPoints37=new BezierSurfaceControlPoints(P37,app2);
transformgroup.addChild(BezierControlPoints37);*/
BranchGroupRoot.compile();
return BranchGroupRoot;
}
public BezierSurfaceMerging()
{setLayout(new BorderLayout());
GraphicsConfiguration gc = SimpleUniverse.getPreferredConfiguration();
Canvas3D c=new Canvas3D(gc);
add("Center",c);
BranchGroup BranchGroupScene=createBranchGroupSceneGraph();
SimpleUniverse u=new SimpleUniverse(c);
u.getViewingPlatform().setNominalViewingTransform();
u.addBranchGraph(BranchGroupScene);
}
public static void main(String[] args)
{new MainFrame(new BezierSurfaceMerging(),400,400); }
}
class BezierThreeOrderSurfaceface extends Shape3D
{public BezierThreeOrderSurfaceface(float[][][] P,Appearance app)
{int i,j,k;
int n0;//定义对参数u、v在[0，1]区间的等分点数
float division;//参数u在[0，1]区间的等分线段长度
n0=50;division=1.f/n0;
//分别定义存放控制顶点x、y、z坐标与第四维坐标的数组
float[][] PX=new float[4][4];
float[][] PY=new float[4][4];
float[][] PZ=new float[4][4];
float[][] P4=new float[4][4];
//定义系数矩阵及其转置矩阵
float[][] M1={{1.f,0.f,0.f,0.f},
{-3.f,3.f,0.f,0.f},
{3.f,-6.f,3.f,0.f},
{-1.f,3.f,-3.f,1.f}};
float[][] M2={{1.f,-3.f,3.f,-1.f},
{0.f,3.f,-6.f,3.f},
{0.f,0.f,3.f,-3.f},
{0.f,0.f,0.f,1.f}};
//定义Bezier曲面的u、v参数分割点坐标数组
float[][][] UV=new float[n0+1][n0+1][2];
//定义U、V矩阵数组
float[][] UU=new float[1][4];
float[][] VV=new float[4][1];
//定义存放曲面上点的坐标的数组
float[][][] SurfaceXYZ=new float[n0+1][n0+1][4];
for(i=0;i<n0+1;i++)
for(j=0;j<n0+1;j++)
{ UV[i][j][0]=i*division;
UV[i][j][1]=j*division; }
for(i=0;i<4;i++)
for(j=0;j<4;j++)
{ PX[i][j]=P[i][j][0];
PY[i][j]=P[i][j][1];
PZ[i][j]=P[i][j][2];
P4[i][j]=P[i][j][3]; }
//计算曲面上点的坐标值
for(i=0;i<n0+1;i++)
for(j=0;j<n0+1;j++)
{ UU[0][0]=1.f;
UU[0][1]=UV[i][j][0];
UU[0][2]=UV[i][j][0]*UV[i][j][0];
UU[0][3]=UV[i][j][0]*UV[i][j][0]*UV[i][j][0];
VV[0][0]=1.f;
VV[1][0]=UV[i][j][1];
VV[2][0]=UV[i][j][1]*UV[i][j][1];
VV[3][0]=UV[i][j][1]*UV[i][j][1]*UV[i][j][1];
//计算一点的x坐标
matrixm g0=new matrixm(1,4,4,UU,M1);
matrixm g1=new matrixm(1,4,4,g0.CC,PX);
matrixm g2=new matrixm(1,4,4,g1.CC,M2);
matrixm g3=new matrixm(1,4,1,g2.CC,VV);
SurfaceXYZ[i][j][0]=g3.CC[0][0];
//计算一点的y坐标
matrixm g4=new matrixm(1,4,4,UU,M1);
matrixm g5=new matrixm(1,4,4,g4.CC,PY);
matrixm g6=new matrixm(1,4,4,g5.CC,M2);
matrixm g7=new matrixm(1,4,1,g6.CC,VV);
SurfaceXYZ[i][j][1]=g7.CC[0][0];
//计算一点的z坐标
matrixm g8=new matrixm(1,4,4,UU,M1);
matrixm g9=new matrixm(1,4,4,g8.CC,PZ);
matrixm g10=new matrixm(1,4,4,g9.CC,M2);
matrixm g11=new matrixm(1,4,1,g10.CC,VV);
SurfaceXYZ[i][j][2]=g11.CC[0][0];
//计算一点的第4维坐标
matrixm g12=new matrixm(1,4,4,UU,M1);
matrixm g13=new matrixm(1,4,4,g12.CC,P4);
matrixm g14=new matrixm(1,4,4,g13.CC,M2);
matrixm g15=new matrixm(1,4,1,g14.CC,VV);
SurfaceXYZ[i][j][3]=g15.CC[0][0];
//将齐次坐标转换为三维坐标系坐标，如果第4维为1，则不用除第4维
SurfaceXYZ[i][j][0]=SurfaceXYZ[i][j][0]/SurfaceXYZ[i][j][3];
SurfaceXYZ[i][j][1]=SurfaceXYZ[i][j][1]/SurfaceXYZ[i][j][3];
SurfaceXYZ[i][j][2]=SurfaceXYZ[i][j][2]/SurfaceXYZ[i][j][3];
}
QuadArray BezierQuadsurfaceface = new QuadArray(n0*n0*4,
GeometryArray.COORDINATES|GeometryArray.NORMALS);
int c=0;//以顶点数累加的方式设置顶点的序号
for(i=0;i<n0;i++)
{for(j=0;j<n0;j++)
{//设置一个平面上的4个点
Point3f A=new Point3f(SurfaceXYZ[i][j][0],SurfaceXYZ[i][j][1],
SurfaceXYZ[i][j][2]);
Point3f B=new Point3f(SurfaceXYZ[i][j+1][0],SurfaceXYZ[i][j+1][1],
SurfaceXYZ[i][j+1][2]);
Point3f C=new Point3f(SurfaceXYZ[i+1][j+1][0],SurfaceXYZ[i+1][j+1][1],
SurfaceXYZ[i+1][j+1][2]);
Point3f D=new Point3f(SurfaceXYZ[i+1][j][0],SurfaceXYZ[i+1][j][1],
SurfaceXYZ[i+1][j][2]);
//计算由四个点形成的平面的法向量
Vector3f a = new Vector3f(A.x - B.x, A.y - B.y, A.z - B.z);
Vector3f b = new Vector3f(C.x - B.x, C.y - B.y, C.z - B.z);
Vector3f n = new Vector3f();
n.cross(b, a);
n.normalize();
//设置点的序号
BezierQuadsurfaceface.setCoordinate(c, A);
BezierQuadsurfaceface.setCoordinate(c+1, B);
BezierQuadsurfaceface.setCoordinate(c+2, C);
BezierQuadsurfaceface.setCoordinate(c+3, D);
//设置点的法向量
BezierQuadsurfaceface.setNormal(c, n);
BezierQuadsurfaceface.setNormal(c+1, n);
BezierQuadsurfaceface.setNormal(c+2, n);
BezierQuadsurfaceface.setNormal(c+3, n);
c=c+4;
}}
this.addGeometry(BezierQuadsurfaceface);
this.setAppearance(app);
}}
class BezierSurfaceControlPoints extends Shape3D
{public BezierSurfaceControlPoints(float[][][] P,Appearance app)
{int i,j,k;
QuadArray BeziersurfacecontrolPointsNet =new QuadArray(3*3*4,
GeometryArray.COORDINATES|GeometryArray.NORMALS);
int c=0;
for(i=0;i<3;i++)
{for(j=0;j<3;j++)
{Point3f A=new Point3f(P[i][j][0],P[i][j][1],P[i][j][2]);
Point3f B=new Point3f(P[i][j+1][0],P[i][j+1][1],P[i][j+1][2]);
Point3f C=new Point3f(P[i+1][j+1][0],P[i+1][j+1][1],P[i+1][j+1][2]);
Point3f D=new Point3f(P[i+1][j][0],P[i+1][j][1],P[i+1][j][2]);
Vector3f a = new Vector3f(A.x - B.x, A.y - B.y, A.z - B.z);
Vector3f b = new Vector3f(C.x - B.x, C.y - B.y, C.z - B.z);
Vector3f n = new Vector3f();
n.cross(b, a);
n.normalize();
BeziersurfacecontrolPointsNet.setCoordinate(c, A);
BeziersurfacecontrolPointsNet.setCoordinate(c+1, B);
BeziersurfacecontrolPointsNet.setCoordinate(c+2, C);
BeziersurfacecontrolPointsNet.setCoordinate(c+3, D);
BeziersurfacecontrolPointsNet.setNormal(c, n);
BeziersurfacecontrolPointsNet.setNormal(c+1, n);
BeziersurfacecontrolPointsNet.setNormal(c+2, n);
BeziersurfacecontrolPointsNet.setNormal(c+3, n);
c=c+4;
}}
this.addGeometry(BeziersurfacecontrolPointsNet);
this.setAppearance(app);
}}
class matrixm
{ public float CC[][]= new float[4][4];
int ll,mm,kk;
public matrixm(int mmm, int kkk, int nnn,float a[][],float b[][])
{for(ll=0;ll<mmm;ll++)
for(mm=0;mm<nnn;mm++){CC[ll][mm]=0.f;}
for(ll=0;ll<mmm;ll++)
for(mm=0;mm<nnn;mm++)
{for(kk=0;kk<kkk;kk++) CC[ll][mm]=CC[ll][mm]+a[ll][kk]*b[kk][mm];}
}}
249
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
