将虚拟块设备的逻辑范围分段进行映射，将一段范围按照特定的规则映射到低层设备。

映射设备


/*
 * DM core internal structure that used directly by dm.c and dm-rq.c
 * DM targets must _not_ deference a mapped_device to directly access its members!
 */
struct mapped_device {
	struct mutex suspend_lock;

	struct mutex table_devices_lock;
	struct list_head table_devices;

	/*
	 * The current mapping (struct dm_table *).
	 * Use dm_get_live_table{_fast} or take suspend_lock for
	 * dereference.
	 */
	void __rcu *map;

	unsigned long flags;

	/* Protect queue and type against concurrent access. */
	struct mutex type_lock;
	enum dm_queue_mode type;

	int numa_node_id;
	struct request_queue *queue;

	atomic_t holders;
	atomic_t open_count;

	struct dm_target *immutable_target;
	struct target_type *immutable_target_type;

	char name[16];
	struct gendisk *disk;
	struct dax_device *dax_dev;

	/*
	 * A list of ios that arrived while we were suspended.
	 */
	struct work_struct work;
	wait_queue_head_t wait;
	spinlock_t deferred_lock;
	struct bio_list deferred;

	void *interface_ptr;

	/*
	 * Event handling.
	 */
	wait_queue_head_t eventq;
	atomic_t event_nr;
	atomic_t uevent_seq;
	struct list_head uevent_list;
	spinlock_t uevent_lock; /* Protect access to uevent_list */

	/* the number of internal suspends */
	unsigned internal_suspend_count;

	/*
	 * io objects are allocated from here.
	 */
	struct bio_set io_bs;
	struct bio_set bs;

	/*
	 * Processing queue (flush)
	 */
	struct workqueue_struct *wq;

	/*
	 * freeze/thaw support require holding onto a super block
	 */
	struct super_block *frozen_sb;

	/* forced geometry settings */
	struct hd_geometry geometry;

	/* kobject and completion */
	struct dm_kobject_holder kobj_holder;

	struct block_device *bdev;

	struct dm_stats stats;

	/* for blk-mq request-based DM support */
	struct blk_mq_tag_set *tag_set;
	bool init_tio_pdu:1;

	struct srcu_struct io_barrier;
};

目标设备

struct dm_target {
	struct dm_table *table;
	struct target_type *type;

	/* target limits */
	sector_t begin;
	sector_t len;

	/* If non-zero, maximum size of I/O submitted to a target. */
	uint32_t max_io_len;

	/*
	 * A number of zero-length barrier bios that will be submitted
	 * to the target for the purpose of flushing cache.
	 *
	 * The bio number can be accessed with dm_bio_get_target_bio_nr.
	 * It is a responsibility of the target driver to remap these bios
	 * to the real underlying devices.
	 */
	unsigned num_flush_bios;

	/*
	 * The number of discard bios that will be submitted to the target.
	 * The bio number can be accessed with dm_bio_get_target_bio_nr.
	 */
	unsigned num_discard_bios;

	/*
	 * The number of secure erase bios that will be submitted to the target.
	 * The bio number can be accessed with dm_bio_get_target_bio_nr.
	 */
	unsigned num_secure_erase_bios;

	/*
	 * The number of WRITE SAME bios that will be submitted to the target.
	 * The bio number can be accessed with dm_bio_get_target_bio_nr.
	 */
	unsigned num_write_same_bios;

	/*
	 * The number of WRITE ZEROES bios that will be submitted to the target.
	 * The bio number can be accessed with dm_bio_get_target_bio_nr.
	 */
	unsigned num_write_zeroes_bios;

	/*
	 * The minimum number of extra bytes allocated in each io for the
	 * target to use.
	 */
	unsigned per_io_data_size;

	/* target specific data */
	void *private;

	/* Used to provide an error string from the ctr */
	char *error;

	/*
	 * Set if this target needs to receive flushes regardless of
	 * whether or not its underlying devices have support.
	 */
	bool flush_supported:1;

	/*
	 * Set if this target needs to receive discards regardless of
	 * whether or not its underlying devices have support.
	 */
	bool discards_supported:1;

	/*
	 * Set if the target required discard bios to be split
	 * on max_io_len boundary.
	 */
	bool split_discard_bios:1;
};

映射规则

映射表


struct dm_table {
	struct mapped_device *md;
	enum dm_queue_mode type;

	/* btree table */
	unsigned int depth;
	unsigned int counts[MAX_DEPTH];	/* in nodes */
	sector_t *index[MAX_DEPTH];

	unsigned int num_targets;
	unsigned int num_allocated;
	sector_t *highs;
	struct dm_target *targets;

	struct target_type *immutable_target_type;

	bool integrity_supported:1;
	bool singleton:1;
	unsigned integrity_added:1;

	/*
	 * Indicates the rw permissions for the new logical
	 * device.  This should be a combination of FMODE_READ
	 * and FMODE_WRITE.
	 */
	fmode_t mode;

	/* a list of devices used by this table */
	struct list_head devices;

	/* events get handed up using this callback */
	void (*event_fn)(void *);
	void *event_context;

	struct dm_md_mempools *mempools;

	struct list_head target_callbacks;
};

目标类型


/*
 * Information about a target type
 */

struct target_type {
	uint64_t features;
	const char *name;
	struct module *module;
	unsigned version[3];
	dm_ctr_fn ctr;
	dm_dtr_fn dtr;
	dm_map_fn map;
	dm_clone_and_map_request_fn clone_and_map_rq;
	dm_release_clone_request_fn release_clone_rq;
	dm_endio_fn end_io;
	dm_request_endio_fn rq_end_io;
	dm_presuspend_fn presuspend;
	dm_presuspend_undo_fn presuspend_undo;
	dm_postsuspend_fn postsuspend;
	dm_preresume_fn preresume;
	dm_resume_fn resume;
	dm_status_fn status;
	dm_message_fn message;
	dm_prepare_ioctl_fn prepare_ioctl;
#ifdef CONFIG_BLK_DEV_ZONED
	dm_report_zones_fn report_zones;
#endif
	dm_busy_fn busy;
	dm_iterate_devices_fn iterate_devices;
	dm_io_hints_fn io_hints;
	dm_dax_direct_access_fn direct_access;
	dm_dax_copy_iter_fn dax_copy_from_iter;
	dm_dax_copy_iter_fn dax_copy_to_iter;

	/* For internal device-mapper use. */
	struct list_head list;
};

dm模块初始化

module_init(dm_init)
dm_init调用_inits函数指针数组里的函数
在这里插入图片描述

创建映射设备

分配映射设备描述符

DM_DEV_CREATE
dev_create
–>dm_create
–>alloc_dev
–>dm_sysfs_init

alloc_dev

/*
 * Allocate and initialise a blank device with a given minor.
 */
static struct mapped_device *alloc_dev(int minor)
{
	md = kvzalloc_node(sizeof(*md), GFP_KERNEL, numa_node_id);
	r = init_srcu_struct(&md->io_barrier);
	md->queue = blk_alloc_queue_node(GFP_KERNEL, numa_node_id);
	md->queue->queuedata = md;
	md->queue->backing_dev_info->congested_data = md;
	md->disk = alloc_disk_node(1, md->numa_node_id);
	INIT_WORK(&md->work, dm_wq_work);
	md->disk->fops = &dm_blk_dops;
	md->disk->queue = md->queue;
	md->disk->private_data = md;
	sprintf(md->disk->disk_name, "dm-%d", minor);
	md->wq = alloc_workqueue("kdmflush", WQ_MEM_RECLAIM, 0);
}

加载映射表

DM_TABLE_LOAD
table_load
–>populate_table
–>dm_table_complete //映射表的类型？？？
–>dm_setup_md_queue


/*
 * Setup the DM device's queue based on md's type
 */
int dm_setup_md_queue(struct mapped_device *md, struct dm_table *t)
{
	int r;
	struct queue_limits limits;
	enum dm_queue_mode type = dm_get_md_type(md);

	switch (type) {
	case DM_TYPE_REQUEST_BASED:
		r = dm_mq_init_request_queue(md, t);
		if (r) {
			DMERR("Cannot initialize queue for request-based dm-mq mapped device");
			return r;
		}
		break;
	case DM_TYPE_BIO_BASED:
	case DM_TYPE_DAX_BIO_BASED:
	case DM_TYPE_NVME_BIO_BASED:
		dm_init_normal_md_queue(md);
		blk_queue_make_request(md->queue, dm_make_request);
		break;
	case DM_TYPE_NONE:
		WARN_ON_ONCE(true);
		break;
	}

	r = dm_calculate_queue_limits(t, &limits);
	if (r) {
		DMERR("Cannot calculate initial queue limits");
		return r;
	}
	dm_table_set_restrictions(t, md->queue, &limits);
	blk_register_queue(md->disk);

	return 0;
}

恢复映射设备

DM_DEV_SUSPEND

数据关系图

以dm-name 0 4096 linear /dev/sda 0为例，成功创建好dm-0设备后，其在内存中的数据结构关系如图

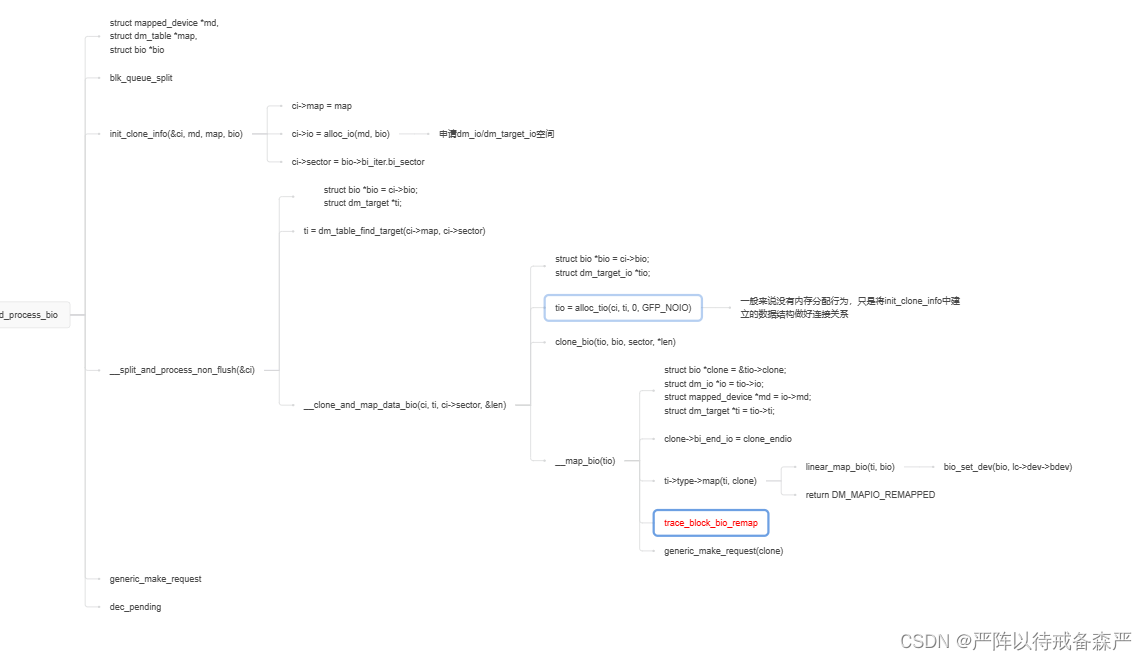

请求执行

dm_make_request
–>queue_io–>dm_wq_work
–>dm_process_bio–>__split_and_process_bio–>generic_make_request
dm_wq_work

static void dm_wq_work(struct work_struct *work)
{
	struct mapped_device *md = container_of(work, struct mapped_device,
						work);
	struct bio *c;
	int srcu_idx;
	struct dm_table *map;

	map = dm_get_live_table(md, &srcu_idx);

	while (!test_bit(DMF_BLOCK_IO_FOR_SUSPEND, &md->flags)) {
		spin_lock_irq(&md->deferred_lock);
		c = bio_list_pop(&md->deferred);
		spin_unlock_irq(&md->deferred_lock);

		if (!c)
			break;

		if (dm_request_based(md))
			(void) generic_make_request(c);
		else
			(void) dm_process_bio(md, map, c);
	}

	dm_put_live_table(md, srcu_idx);
}
