vue-高德地图-轨迹回放（播放、暂停、倍速播放、进度条拖动播放）

仰望半月

已于 2023-06-25 17:43:28 修改

阅读量8.1k

点赞数 21

分类专栏：高德地图文章标签： vue.js 前端 javascript

于 2023-06-25 15:11:39 首次发布

本文链接：https://blog.csdn.net/qq_40295331/article/details/131377640

版权

高德地图专栏收录该内容

3 篇文章

订阅专栏

最近项目要做一个轨迹管理模块

涉及功能：

1、展示该车辆一段时间内的轨迹线路

2、可进行播放、暂停、继续播放

3、倍速播放（难点在于播放过程中如果调整了倍速，要在对应位置继续播放）

4、拖动进度条播放（分为：拖动了进度条再开始在对应位置播放；和播放过程中拖动了进度条继续在相应位置播放）

5、播放过程中实时显示车辆相应位置信息

好的、废话不多说了，先看下效果吧~~~

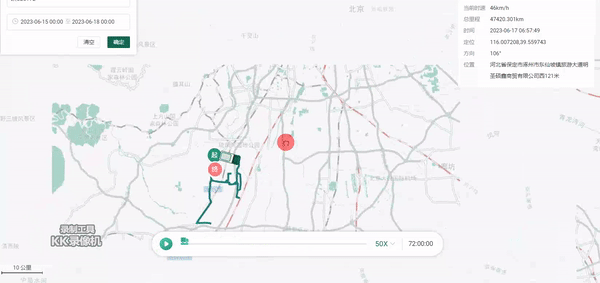

以下倍速播放

以下进度条播放

以下部分代码~~~

<!-- 车辆动画控制进度条 -->
      <div class="progressDiv"  v-if="recordePathData.length">
        <div class="progressDiv_playBtn">
          <!-- //0->未开始  1->行驶中  2->暂停 -->
          <img v-if="carPalyStayus == 0" @click="startAnimation([])" src="@/assets/imgs/fullview/progress_play.png"/>
          <img v-if="carPalyStayus == 1" @click="pauseAnimation" src="@/assets/imgs/fullview/progress_pause.png"/>
          <img v-if="carPalyStayus == 2" @click="resumeAnimation" src="@/assets/imgs/fullview/progress_play.png"/>
        </div>
        <div class="progressDiv_sliderDiv">
          <!--进度条-->
          <!-- {{sliderVal + '%'}} -->
          <el-slider v-model="sliderVal" :step="1" @change="sliderChange" :show-tooltip="false"></el-slider>
        </div>
        <div class="progressDiv_speedDiv">
          <el-select v-model="speedCount"
            @change="speedCountChange($event)"
            placeholder="倍速选择" :clearable="false">
              <el-option  v-for="(item,index) in speedCountArr"
              :label="item.name"
              :value="item.value"
              :key="index" />
            </el-select>
        </div>
        <div class="progressDiv_timeDiv">
          {{times}}
        </div>
      </div>

js部分：

1、轨迹渲染（记得点位要去重）

// 1、先拿到轨迹数据
 that.recordePathData = [
          {"address":"河北省保定市涿州市东仙坡镇107国道优瑞通办公家具东北1米","locationTime":"2023-06-01 06:42:45","longitude":"115.977977","totalMileage":45829.6,"dir":20,"speed":35.0,"latitude":"39.541622"},
          {"address":"河北省保定市涿州市东仙坡镇107国道七色光幼儿园南2米","locationTime":"2023-06-01 06:43:10","longitude":"115.979568","totalMileage":45829.9,"dir":36,"speed":40.0,"latitude":"39.543769"},
          {"address":"河北省保定市涿州市东仙坡镇107国道鑫华家具城东北3米","locationTime":"2023-06-01 06:44:20","longitude":"115.986027","totalMileage":45830.8,"dir":39,"speed":46.0,"latitude":"39.549856"},
          {"address":"河北省保定市涿州市码头镇影视城路未来星幼儿园西南4米","locationTime":"2023-06-01 06:53:55","longitude":"116.050132","totalMileage":45837.9,"dir":96,"speed":44.0,"latitude":"39.547945"},
          {"address":"河北省保定市涿州市码头镇向阳商业街向阳之光西南5米","locationTime":"2023-06-01 06:55:50","longitude":"116.052696","totalMileage":45838.8,"dir":185,"speed":27.0,"latitude":"39.542336"},
          {"address":"河北省保定市涿州市清凉寺街道涿码路冀安驾校北6米","locationTime":"2023-06-01 06:59:20","longitude":"116.046594","totalMileage":45840.5,"dir":179,"speed":48.0,"latitude":"39.52875"},
          {"address":"河北省保定市涿州市清凉寺街道花田路中冶未来城西南7米","locationTime":"2023-06-01 07:02:05","longitude":"116.055632","totalMileage":45842.0,"dir":125,"speed":16.0,"latitude":"39.522454"},
          {"address":"河北省保定市涿州市开发区腾飞大街中胶人才家园南8米","locationTime":"2023-06-01 07:07:45","longitude":"116.057421","totalMileage":45844.9,"dir":185,"speed":37.0,"latitude":"39.496563"},
          {"address":"河北省保定市涿州市开发区腾飞大街涿州市统计局南9米","locationTime":"2023-06-01 07:09:55","longitude":"116.056483","totalMileage":45845.7,"dir":187,"speed":31.0,"latitude":"39.490092"},
          {"address":"河北省保定市涿州市开发区润禾街凯兴花园西北10米","locationTime":"2023-06-01 07:15:15","longitude":"116.046196","totalMileage":45848.2,"dir":192,"speed":9.0,"latitude":"39.473553"},
        ]
that.dealRepeatArr(that.recordePathData); //处理下重复点位
that.dealShowPoline(); //处理数据并展示轨迹




//处理下重复点位
      dealRepeatArr(tempArr) {
        for (let i = 0; i < tempArr.length; i++) {
          for (let j = i + 1; j < tempArr.length; j++) {
              if (tempArr[i].longitude == tempArr[j].longitude && tempArr[i].latitude == tempArr[j].latitude) {
                  tempArr.splice(j, 1);
                  j--;
              };
          };
        };
        console.log(tempArr)
        return tempArr;
      },

2、开始回放、暂停、继续回放、倍速选择、进度条拖动

      //开始回放
      startAnimation (arr) {
        var carDuration = this.initSpeed * this.speedCount
        //
        if (this.sliderVal > 0 && this.carPalyStayus == 0) { //未播放的情况下，直接从指定位置开始播放
          this.map.setZoom(18);
          this.reDrawPolyline(0); //倍数变化之后，需要从新绘制线
        } else { //从头开始播放
          this.carPalyStayus = 1; //0->未开始  1->行驶中  2->暂停
          arr = this.carLineArr;
          this.map.setZoom(18);
          this.carMarker.moveAlong(arr, carDuration);
        }
        // carDuration：移动速度，单位：米/秒
      },
      //暂停回放
      pauseAnimation () {
        this.carMarker.pauseMove();
        this.carPalyStayus = 2; //0->未开始  1->行驶中  2->暂停
      },
      //继续回放
      resumeAnimation () {
        var that = this;
        //如果点击了暂停，并切换了倍数，从新绘制
        if ((that.carPalyStayus == 2 && that.isSpeedCountChange) || (that.carPalyStayus == 2 && that.isSliderValChange)) {
          that.isSpeedCountChange = false;
          that.isSliderValChange = false;
          that.reDrawPolyline(2); //倍数变化之后，需要从新绘制线
        }
        that.carMarker.resumeMove();
        that.carPalyStayus = 1; //0->未开始  1->行驶中  2->暂停
      },
      //倍速选择
      speedCountChange(e) {
        var that = this;
        // carPalyStayus //0->未开始  1->行驶中  2->暂停
        // 如果正在行驶中点击倍数
        if (that.carPalyStayus == 1) {
          that.carMarker.pauseMove(); // 先暂停车
          that.reDrawPolyline(1); //倍数变化之后，需要从新绘制线
        } else if (that.carPalyStayus == 2) {
          that.isSpeedCountChange = true;
        }
      },
      //进度条拖动
      sliderChange() {
        //手动拖动进度条过程中触发：移动车辆，定位车辆回放位置
        var that = this;
        //计算拖动进度条后车辆对应轨迹新的索引值
        var getIndex = Math.round(that.carLineArr.length * that.sliderVal / 100);
        var currentIndex = 0
        if (getIndex > 0) {
           currentIndex = getIndex - 1;
        }
        var vehicleLocation = that.carLineArr[currentIndex];
        that.carMarker.setPosition(new AMap.LngLat(vehicleLocation.lng, vehicleLocation.lat));
        if (currentIndex == 0) {
          that.progval = 1;  //处理重新绘制线路时 that.progval-1 找不到值报错
        } else {
          that.progval = currentIndex;
        }
        that.progvalLength = that.progval;
        // carPalyStayus //0->未开始  1->行驶中  2->暂停
        if (that.carPalyStayus == 0) {
        } else if (that.carPalyStayus == 1) {
          that.carMarker.pauseMove(); // 先暂停车
          that.reDrawPolyline(1); //倍数变化之后，需要从新绘制线
        } else if (that.carPalyStayus == 2) {
          that.isSliderValChange = true;
        }
      },

ok，最后总结下，就是无论改变倍速、拖动进度条，都要记录当时小车移动的索引，通过这个索引来从新绘制轨迹线路，以及重启小车动画

           that.carMarker.on('moving', function (e) {
              that.passedPolyline.setPath(e.passedPath);
              that.map.setCenter(e.target.getPosition(),true)
              var len = e.passedPath.length;
              that.progval = (len - 1) + that.progvalLength;
            });

完结啦，不容易~~~

有用的话就点个赞点个赞点个赞啦，哈哈哈~~~
