基本结构
导言区pre:文档类型、调用宏包、文档格式
正文区:文字、公式、表格、图片、参考文献、章节结构
%导言区
\documentclass{artical}
%\documentclass{14pt,a4paper}{artical}
%\documentclass{twocolumn}{artical}
\usepackage{geometry}
%\usepackage{subfigure}
\usepackage{fancyhdr}
\usepackage{amsmath,amsthm,amssymb}
\usepackage{graphicx}
\usepackage{hyperref}
\usepackage{mutirow}
%\usepackage{ctex}
\title{My first document}
\author{Ding Yueyue}
\data{\today}
% 正文区

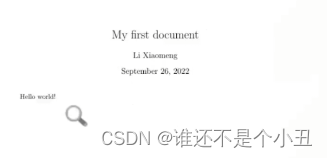

\begin{document}
\maketitle 生成封面标题
Hello world 正文内容
\end{document}
\documentclass[12pt, letterpaper]{article}
\usepackage[utf8]{inputenc}
\usepackage{comment}
% Title
\title{Document Title}
\author{Nobody \thanks{Somebody}}
\date{Some Date}
\begin{document}
\begin{titlepage}
\maketitle
\end{titlepage}
\tableofcontents
\begin{abstract}
This is a simple paragraph at the beginning of the
document. A brief introduction about the main subject.
\end{abstract}
First document. This is a simple example, with no
extra parameters or packages included.
% Comments
\begin{comment}
This text won't show up in the compiled pdf
this is just a multi-line comment. Useful
to, for instance, comment out slow-rendering
while working on the draft.
\end{comment}
\end{document}
一个LaTex文件分为两个部分:导言和正文。 在\begin{document}和\end{document }之间的是文档的正文内容。 在\begin{document}之前的命令称为preamble(导言)。 在preamble中通常定义文档的格式、语言等。上文所示LaTex文档其结构如下图所示:
\documentclass[12pt, letterpaper]{article}
文档类型 正文字号默认10pt 纸张 a4paper 格式article book report slides
\usepackage[utf8]{inputenc} 在编译LaTex文件时要导入的扩展包
\usepackage{comment}
% Title 设置封面格式
\title{Document Title} 题目
\author{Nobody \thanks{Somebody}} 作者
\date{Some Date} 日期
\begin{document} 正文开始
\begin{titlepage}
\maketitle
\end{titlepage}
生成封面
\tableofcontents
生成文档目录
\begin{abstract} 摘要开始
This is a simple paragraph at the beginning of the
document. A brief introduction about the main subject.
\end{abstract} 结束
First document. This is a simple example, with no
extra parameters or packages included.
% Comments
\begin{comment} 评论开始
This text won't show up in the compiled pdf
this is just a multi-line comment. Useful
to, for instance, comment out slow-rendering
while working on the draft.
\end{comment}}
从百分号%开始到这一个行结束的部分是LaTex文件的注释内容,
不在编译后生成的pdf文档中显示。
在\begin{comment}和\end{comment }之间的内容也不在编译后生成的pdf文档中显示。
# $ % ^ & _ { } \ 要想在生成的文档中显示保留字符,要在这些字符前加反斜杠 \
$\backslash$ 是输出\ ; \\ 是换行 ; 数学公式环境的$ \sim $是插入波浪线.
多文件编译
毕业论文篇幅较长,单一文件的编译方式不太方便,可按照文档的逻辑层次,把整个文档分成多个,提供的\include{filename}命令可用来导入另一个文件的内容作为一个章节,文件名不用带.tex扩展名。\include{filename}命令会在命令之前和之后使用\clearpage或\cleardoublepage另起新页,并将文件内容贴到\include{filename}命令所在位置。或者:\input{filename1}
\clearpage或\cleardoublepage
\include{filename} ;内容
\clearpage或\cleardoublepage
Arial字体的使用
- 先定义新字体Arial:
\newfontfamily\sectionef{Arial}
- 在需要使用Arial字体的地方输入命令:
\sectionef
设置标题
英文标题字体采用Arial,中文标题采用黑体
一级标题居中,小三号
二级标题左对齐,四号
三级标题subsubsection
\usepackage{titlesec}
\newfontfamily\sectionef{Arial} % 设置Arial字体
% \newCJKfontfamily\sectioncf{STXihei} % 设置黑体
\titleformat{\section}{\center\zihao{-3}\heiti\sectionef}{ % 设置一级标题居中,中文字体为黑体,英文字体为Arial,字号为小三号
第\,\thesection\,章}{1em}{}
\titleformat*{\subsection}{\zihao{4}\heiti\sectionef} % 设置二级标题中文字体为黑体,英文字体为Arial字号为四号
zize{} black
设置页边距,页眉,页脚
页边距左右均为3.2 cm,上下均为3.8 cm
页眉居中,显示当前章标题
页脚居中,显示当前页码
封面不显示页码,中英文摘要和目录页码采用大写罗马格式,正文及参考文献采用小写阿拉伯格式
由于titlesec宏包会改变页眉章标题格式,所以需要重新定义页眉章标题格式,如果没有引入titlesec宏包,可采用\fancyhead[C]{\leftmark}完成页眉居中显示当前章标题。
\usepackage{geometry} %宏包 几何参数
\geometry{left=3.2cm,right=3.2cm,top=3.8cm,bottom=3.8cm} % 设置页边距
\usepackage{fancyhdr} % 设置页眉
\pagestyle{fancy}
\fancyhf{}
\cfoot{\thepage} % 设置页码
\renewcommand{\sectionmark}[1]{\markboth{第\thesection 章\quad % 设置页眉内容为章标题
\ #1}{}}
\pagenumbering{digit type}
页码数字类型:
arabic 阿拉伯数字(1,2,3,4),默认样式roman 小写罗马数字(i,ii,iii,iv)
Roman 大写罗马数字(I,II,III,IV)alph 小写拉丁字母(a,b,c,d)
Aiph 大写拉丁字母(A,B,C,D)
\setcounter{page}{page number} 设置页码
\thispagestyle{empty} 当前页不标页码
\begin{document}
%% Making title page
\begin{titlepage}
\maketitle
\thispagestyle{empty} 封面不标
\end{titlepage}
%% Contents
\pagenumbering{roman}
\tableofcontents 目录小罗马
\newpage
\pagenumbering{arabic} 正文阿拉伯
\setcounter{page}{1}
在封面不标记页码,目录页使用小写罗马数字标记页码,正文部分使用阿拉伯数字标记页码
段落行间距
\documentclass[UTF8]{article}
\usepackage{setspace} 调用{setspace}扩展包
\begin{document}
%%双倍行间距
\begin{spacing}{2.0}
段落内容。
\end{spacing}
%%单倍行间距
\begin{spacing}{1.0}
段落内容。
\end{spacing}
\end{document}
分段:正文空行即分段
\seciton{},\subsection{},\subsubsection{} 放到对应位置即可
加 *:不参加编号,适用于章节、图表等。 \subsubsection*{} ;
在文本中插入公式:$equation$ 空格:\quad
数学公式
单独成行的公式,不编号*:
\begin{equation*}
具体公式
\end{equation*}
多行排列的公式:
\begin{equation}
\begin{aligned} 多行用一个编号
& 对齐位置
\\ 换行位置
\end{aligned}
\end{equation}
(2)
\begin{align} 每行都编号,可分别引用
& 对齐
\\ 换行
\end{align}
(equation \ref{eq:k})放到文中引用的位置
\begin{equation}
\label{eq:k} 引用公式的标识(非排序)
具体公式
\end{equation}
矩阵
导言:调用宏包amsmath
\begin{pmatrix}
& 矩阵元素分隔 \cdots 横向省略
\\ 换行 \vdots 竖向省略 \ddots 斜向省略
\end{pmatrix}
\begin{equation} 公式可嵌套矩阵
\end{equation}
\hspace{1cm} 段落间空白
\vspace{5pt}
\begin{center} 居中
...
\end{center}
\begin{flushleft} 左对齐
...
\end{flushleft}
\begin{flushright}右对齐
...
\end{flushright}

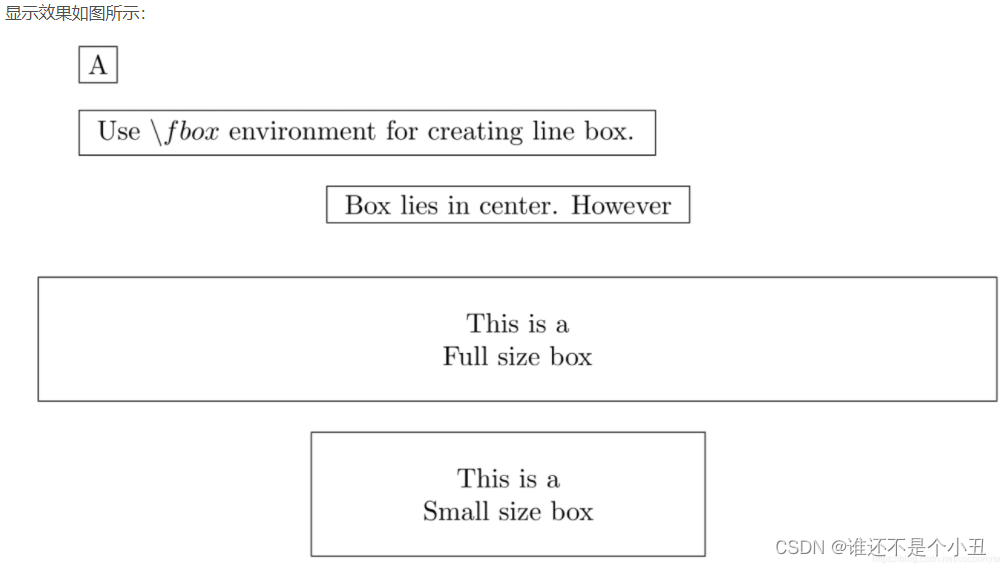

\fbox{A} 给文字加线框
\hfill
\fbox{
Use $\backslash fbox$ environment for creating line box.
}
\begin{center}
\fbox{
Box lies in center. However
}
\end{center}
\begin{center}
\fbox{
\parbox{\textwidth}{
\begin{center}
This is a \\
Full size box \\
\end{center}
}
}
\end{center}
\begin{center}
\fbox{
\parbox{0.4\textwidth}{
\begin{center}
This is a \\
Small size box \\
\end{center}
}
}
\end{center}
图片插入及引用
首先将图片存在和正文.tex同一文件夹下,或单独建立子文件夹
单图片
\usepackage[pdftex]{graphicx} 宏包
% 设置图片文件存放路径
\graphicspath{{../figures} 路径
\begin{document}
% 在正文中引用图片时使用\ref
(Figure \ref{fig:foo})
\begin{figure}[options] %options插入位置:!h(here),!t(top),!b(bottem),!p(漂浮),htp(优先级)
%设置对齐格式
\centering %图片居中
%指定图形宽高和图形名称
\includegraphics[width=0.8,height=2.5]{foo.png} %如果在Fig子文件夹里用:{Fig/foo.png}
% [scale=0.3] ; [height=2.5in] ;[width=0.5,textwidth,angle=30]
\caption{Foo} %设置标题
\label{fig:foo} %标记图片正文引用名称
\end{figure}
\end{document}
插入图片并在文中通过图片编号引用图片
多图片(子图)宏包 \usepackage{subfigure}
\subfigure[subcaption.]{\includegraphics[wide=0.3\columnwith]{fig/1.png}}
\subfigure[subcaption.]{\includegraphics[wide=0.3\columnwith]{fig/1.png}}
[子标题]
子图程序之间插入空行,文档图片换行
\label{subfig:m} 放其中一个子图后面,就可以单独引用
表格
\begin{table}[htp]
\centering
\begin{tabular}{llr}
\hline
\multicolumn{2}{c}{Item} \\
\cline{1-2}
Animal & Description & Price (\$) \\
\hline
Gnat & per gram & 13.65 \\
& each & 0.01 \\
Gnu & stuffed & 92.50 \\
Emu & stuffed & 33.33 \\
Armadillo & frozen & 8.99 \\
\hline
\end{tabular}
\label{tab:table1} 标签
\caption{TableCaption} 表头
\end{table}
表格的引用: \ref{tab:table1}

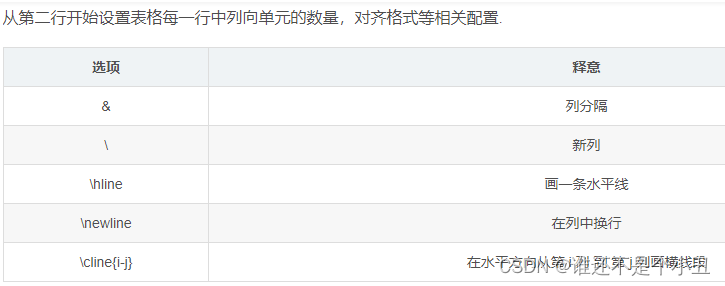

单元格对齐方式
\begin{tabular}{c|c|c|c|c}
& & & & \\ 一行五个元素
\hline
\cline{1-2}
\end{tabular}

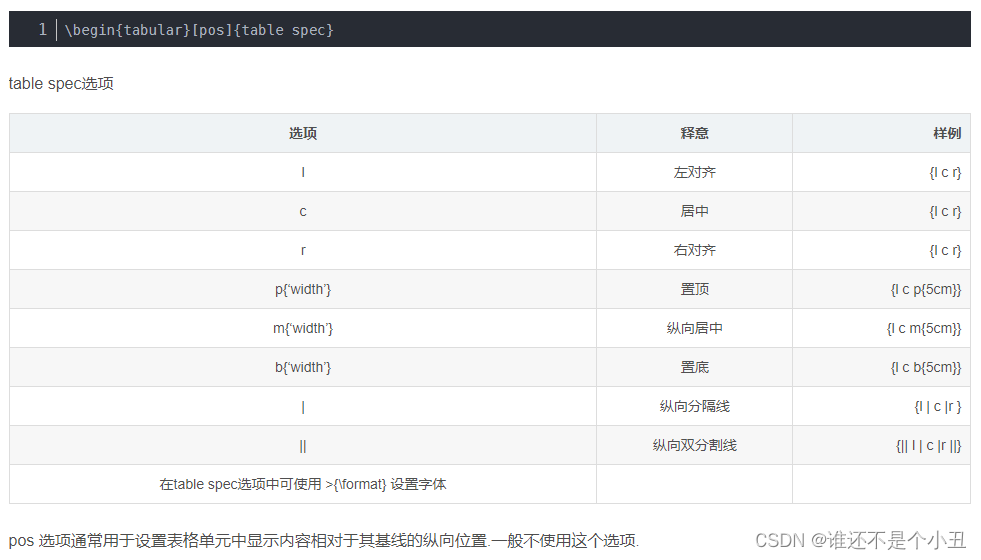

{c|c|c|c|c} %5列数据,每列居中,是|有4个纵向的分割线
&&&&&&& % &为单元格分界 ;\hline 横向分割线(全列);\cline{1-2} 横向分割线(1-2列)
\begin{tabular}{p{0.1cm}}{p{0.1cm}}{p{2.5cm}}{p{5.5cm}}{p{2.1cm}} 单元格置顶 宽度
\usepackage{multirow}
multirow{数量_OF_ROWS}{WIDTH}{CONTENT} 行合并 CONTENT:合并后的显示内容
multicolumn{数量_OF_COLUMNS}{ALIGNMENT}{CONTENT} 列合并 ALIGNMENT:对齐方式c
直接放到要合并的地方

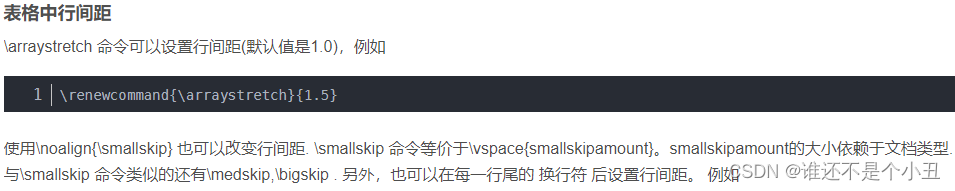

表格行距、字体大小:(整体大小修改)
\tiney\scriptsize\footnotesize\small\normalsize\large\Large\LARGE\huge\Huge

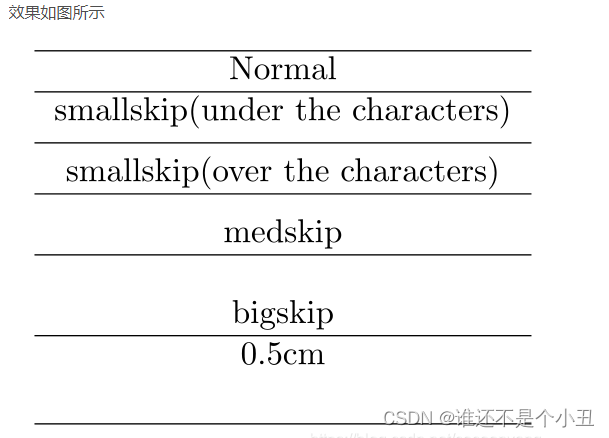

\begin{tabular}{c}
\hline
Normal \\
\hline
smallskip(under the characters) \\ \noalign{\smallskip}
\hline \noalign{\smallskip}
smallskip(over the characters) \\
\hline \noalign{\medskip}
medskip \\
\hline \noalign{\bigskip}
bigskip \\
\hline
0.5cm \\[0.5cm]
\hline
\end{tabular}

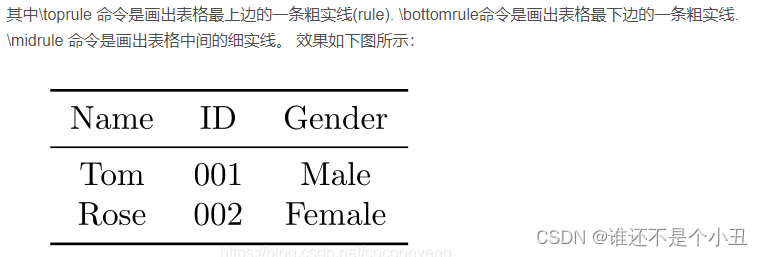

Latex中默认的线条宽度是0.4pt, 如果想要使用粗一点的线条,可以使用 booktabs环境包. 这需要在Latex文档的导言部分添加命令: \usepackage{booktabs}
\begin{table}[h]
\centering
\begin{tabular}{ccc}
\toprule
Name & ID & Gender\\
\midrule
Tom & 001& Male\\
Rose & 002& Female\\
\bottomrule
\end{tabular}
\caption{这是一张三线表}
\end{table}
参考文献
cite{rerf1}
(1)短文 便捷
\begin{thebibliography}{99} 最多99个文献
\bibitem{ref1}author ;title,etl
\end{thebibliography}{99}
(2) 常规 方便管理
建立references.bib文件,在正文对应的位置放置\bibliography{references}
bib中的格式:artical,book,boolet,conference,inbook,mastersthesis,phdthesis,
@artical{li2020towards} 使用谷歌学术或者百度学术 引用——bibtext格式
title
authou
journal
按要求调整文献格式
\bibliographystyle{options}
常用格式:plain,unsrt,alpha,abbrv,ieeetr,acm,siam,apalike, 期刊提供的.bst格式(qikan.bst)
\bibliograyhystyle{qikan}
参考文献的格式:
~\cite{name1@2022} ~为空半格,\cite常用理科期刊
~\citep{name3@2022} \citep常用人文期刊
跨文本引用
多章节或正文+附件
导言:
\usepackage{xr}
\externaldocument{texfile} texfile:要读取的文件名
交叉引用
\ref{tex:Lcompare}
附件:
\appendix
\counterwithin{figure}{section} 图片
\counterwithin{table}{section} 设置报个
\counterwithin{equation}{section} 设置公式
模板
下载模板,把正文填充到里面
在线版latex
www.overleaf.com
在线编辑、多人共享、在线投稿、网速影响
