前面文章有讲过 “spring boot 使用RestTemplate信任所有https请求”，但实际生产使用时毕竟违反规范使用，造成安全问题，

这里就分享一下通过服务方提供的认证证书来实现https请求；

一、证书转换

1、服务方给的证书多为"cer"类型，比如直接从浏览器中下载下来的，该类证书不能直接使用java调用认证，需转换为java可识别的类型，比如".keystore";

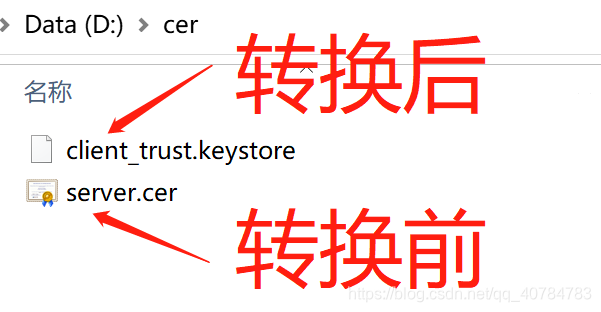

2、利用jdk中"keytool"命令进行转换，即证书导入，windows系统在证书目录打开cmd，执行命令：

keytool -importcert -keystore client_trust.keystore -file D:\cer\server.cer -alias client_trust_server -storepass 111111 -noprompt

注意：切记“-storepass”后输入的密码，后面要用

参数说明

importcert 表示导入信任证书
file 指示导入证书，支持pem/der格式
keystore 指示目标keystore文件
storepass 指示新的keystore密钥
alias 指示trust证书在keystore中的别名
noprompt 指示不弹出提示

导入后的证书为 trustedCertEntry 实体类型，而私钥证书为 PrivateKeyEntry

二、Spring Boot项目中导入证书

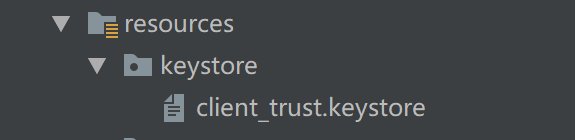

在“resources”目录下新建文件夹“keystore”，并将转换后的证书导入进来：

三、主要依赖

<!-- SpringBoot版本-->
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.3.4.RELEASE</version>
    <relativePath/>
</parent>

<!-- 主要依赖-->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
	<groupId>org.apache.httpcomponents</groupId>
	<artifactId>httpclient</artifactId>
	<version>4.5.13</version>
</dependency>

四、配置RestTemplate实例

import org.apache.http.conn.ssl.NoopHostnameVerifier;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.TrustSelfSignedStrategy;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.ssl.SSLContexts;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.DefaultResourceLoader;
import org.springframework.core.io.ResourceLoader;
import org.springframework.http.client.ClientHttpResponse;
import org.springframework.http.client.HttpComponentsClientHttpRequestFactory;
import org.springframework.web.client.ResponseErrorHandler;
import org.springframework.web.client.RestTemplate;

import javax.net.ssl.SSLContext;
import java.io.IOException;
import java.io.InputStream;
import java.security.KeyStore;

/**
 * RestTemplate - https证书认证
 */
@Configuration
public class RestTemplateOfCerConfig {

    /**
     * resources 目录下证书路径
     * cerPath = "classpath:/keystore/client_trust.keystore";
     */
    @Value("${cer-path}")
    private String cerPath;

    /**
     * 使用"keytool"命令导入证书时输入的密码
     * cerPwd = "111111";
     */
    @Value("${cer-pwd}")
    private String cerPwd;

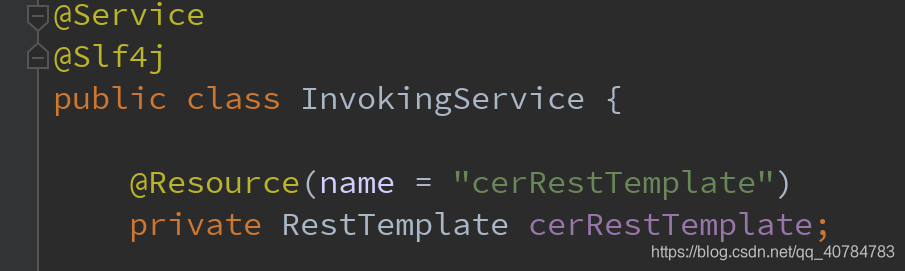

    @Bean(name = "cerRestTemplate")
    public RestTemplate hwRestTemplate(HttpComponentsClientHttpRequestFactory cerHttpsFactory) {
        RestTemplate restTemplate = new RestTemplate(cerHttpsFactory);
        restTemplate.setErrorHandler(new ResponseErrorHandler() {
            @Override
            public boolean hasError(ClientHttpResponse clientHttpResponse) {
                return false;
            }

            @Override
            public void handleError(ClientHttpResponse clientHttpResponse) {
                //默认处理非200的返回，会抛异常
            }
        });
        return restTemplate;
    }

    @Bean(name = "cerHttpsFactory")
    public HttpComponentsClientHttpRequestFactory httpComponentsClientHttpRequestFactory() throws Exception {
        CloseableHttpClient httpClient = createCloseableHttpClient();
        HttpComponentsClientHttpRequestFactory httpsFactory = new HttpComponentsClientHttpRequestFactory(httpClient);
        httpsFactory.setReadTimeout(2000);
        httpsFactory.setConnectTimeout(2000);
        return httpsFactory;
    }

    /**
     * https协议证书认证
     *
     * @return
     * @throws Exception
     */
    private CloseableHttpClient createCloseableHttpClient() throws Exception {
        KeyStore keyStore = KeyStore.getInstance(KeyStore.getDefaultType());
        keyStore.load(resourceLoader(cerPath), cerPwd.toCharArray());
        SSLContext sslContext = SSLContexts.custom()
                .loadTrustMaterial(keyStore, new TrustSelfSignedStrategy()).build();

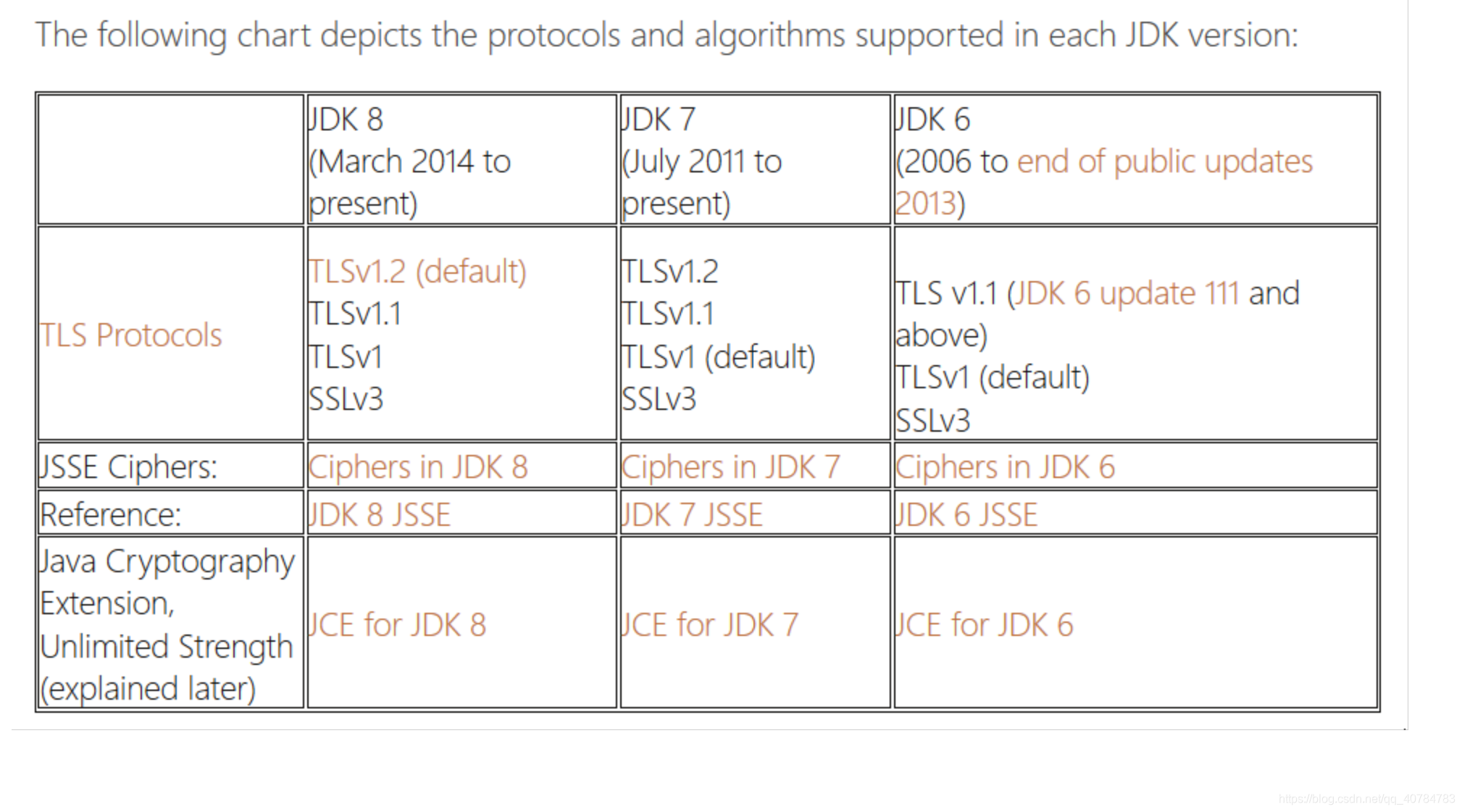

        // 这里的通信协议要根据使用的JDK版本来适配
        SSLConnectionSocketFactory sslfactory = new SSLConnectionSocketFactory(sslContext, new String[]{"TLSv1.2"}, null, NoopHostnameVerifier.INSTANCE);
        HttpClientBuilder httpClientBuilder = HttpClientBuilder.create();
        CloseableHttpClient closeableHttpClient = httpClientBuilder.setSSLSocketFactory(sslfactory).build();
        return closeableHttpClient;
    }

    /**
     * 读取文件信息
     *
     * @param fileFullPath
     * @return
     * @throws IOException
     */
    public InputStream resourceLoader(String fileFullPath) throws IOException {
        ResourceLoader resourceLoader = new DefaultResourceLoader();
        return resourceLoader.getResource(fileFullPath).getInputStream();
    }

}
